  1. QCDml Tutorial How to mark up your configurations Chris Maynard

  2. Contents • FAQs on using XML schema • Defining QCDml • Namespaces and validation • Example XML IDs • Ensemble and config • Ensemble: actions, algorithms and management metadata • Config: what goes where • Babble about BinX • Metadata catalogue demo Chris Maynard

  3. FAQs about XML schema • What is XML schema? • Collection of rules for XML documents • An XML schema is itself an XML document • Why do we need an XML schema? • Computers can read and understand XML IDs • <length>16</length> • Meaning of length is context dependent • Do I need to learn XML schema • No. Schema makes it easier to produce XML Chris Maynard

  4. QCDml1.0 • Metadata split into two schemata • Ensemble XML <markovChain/> • Config XML <gaugeConfiguration/> • N.B. use lowerCamelConvention • ILDG website for XML schema files • http://www.lqcd.org/ildg • Go to Metadata and follow links • Version 1.0 online and ready to use Chris Maynard

  5. Namespaces • Example XML ID for UKQCD data • XML Namespace defined by W3.org as • A collection of names identified by a URI reference Chris Maynard

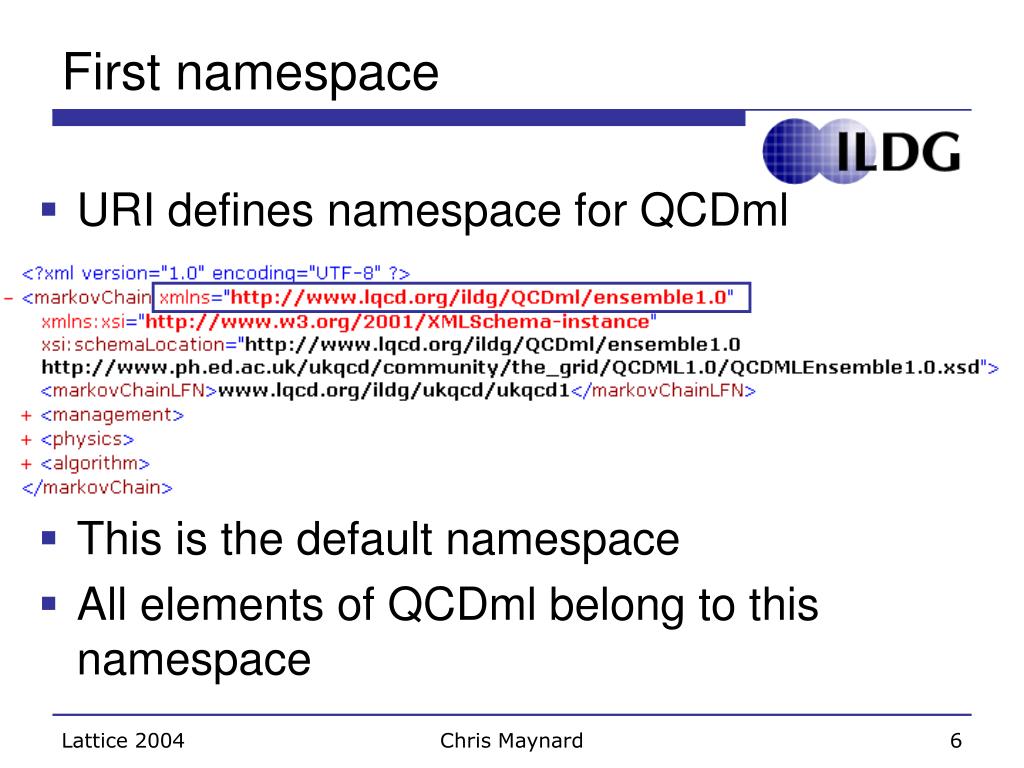

  6. First namespace • URI defines namespace for QCDml • This is the default namespace • All elements of QCDml belong to this namespace Chris Maynard

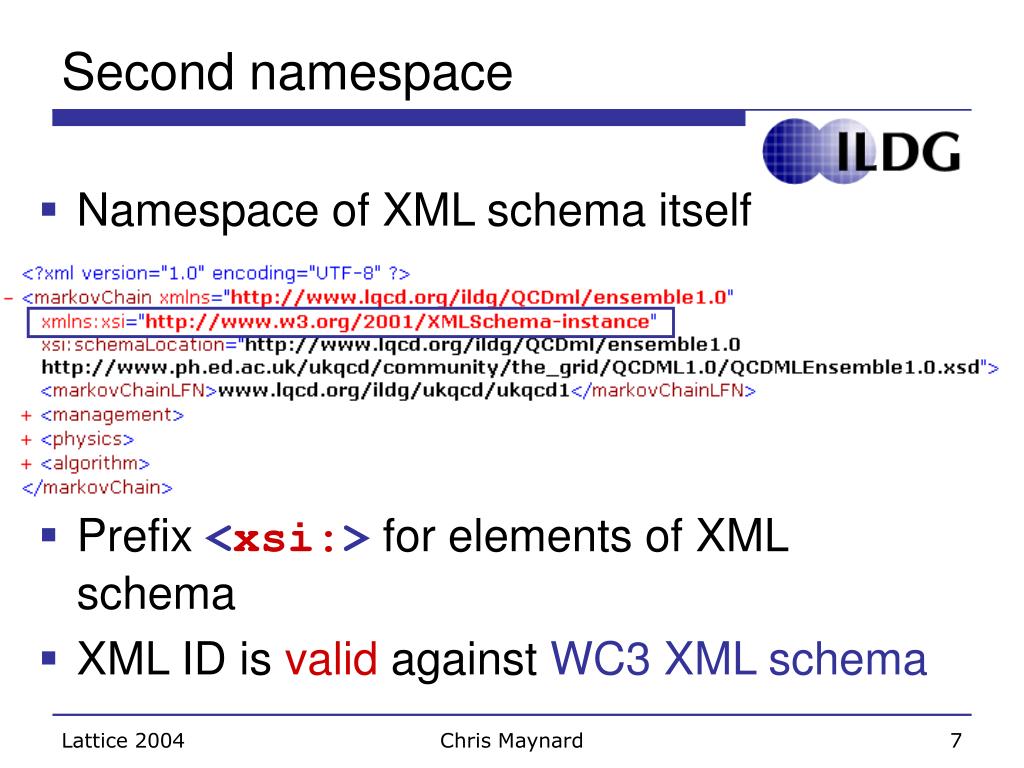

  7. Second namespace • Namespace of XML schema itself • Prefix <xsi:> for elements of XML schema • XML ID is valid against WC3 XML schema Chris Maynard

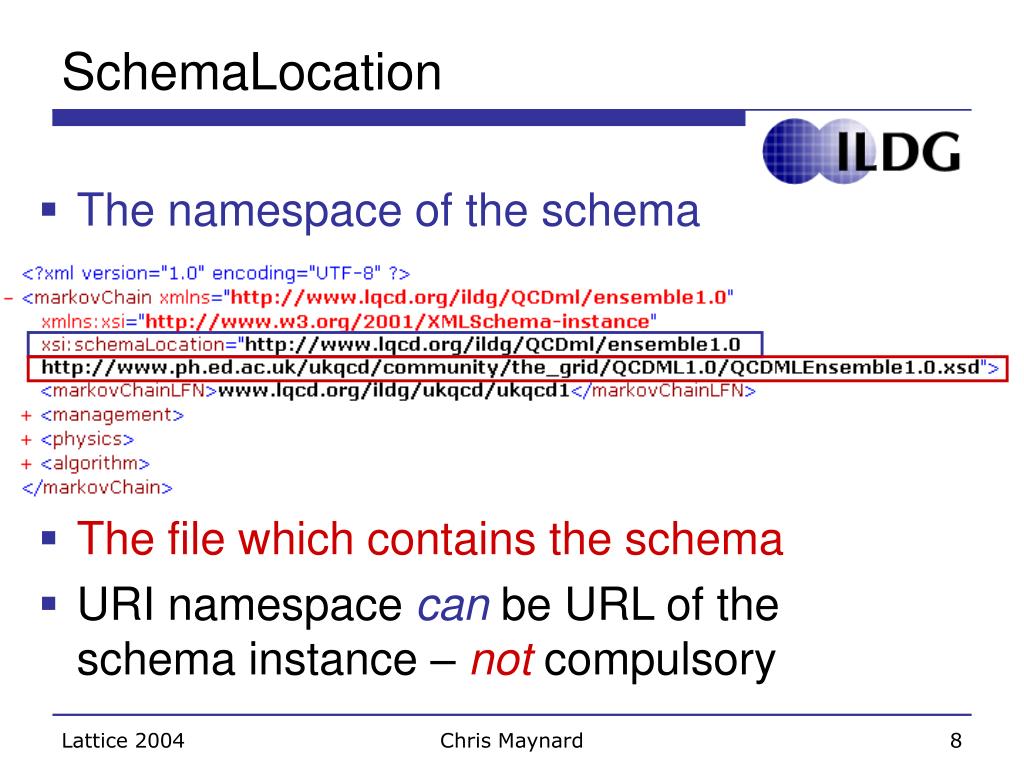

  8. SchemaLocation • The namespace of the schema • The file which contains the schema • URI namespace can be URL of the schema instance – not compulsory Chris Maynard

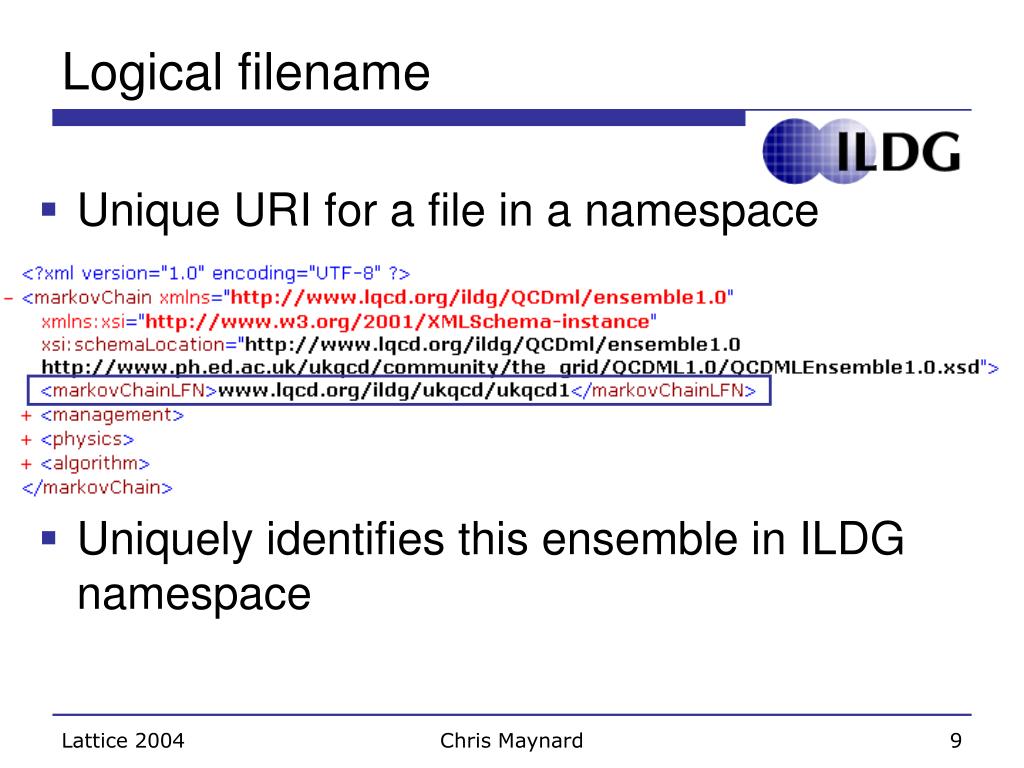

  9. Logical filename • Unique URI for a file in a namespace • Uniquely identifies this ensemble in ILDG namespace Chris Maynard

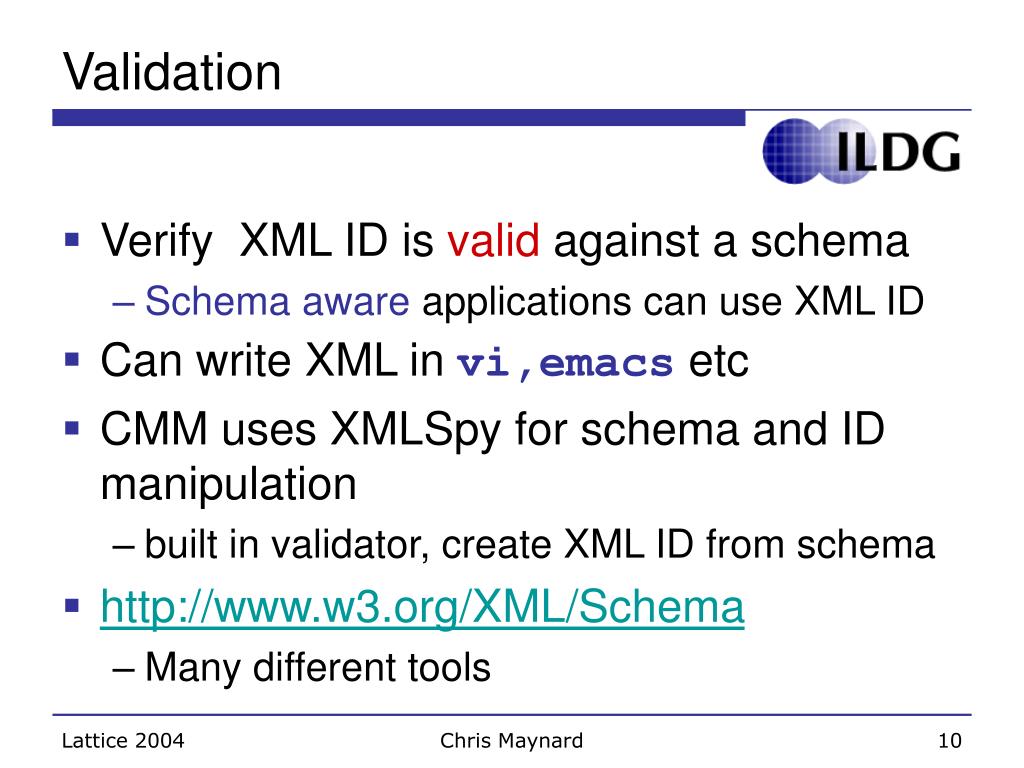

  10. Validation • Verify XML ID is valid against a schema • Schema aware applications can use XML ID • Can write XML in vi,emacs etc • CMM uses XMLSpy for schema and ID manipulation • built in validator, create XML ID from schema • http://www.w3.org/XML/Schema • Many different tools Chris Maynard

  11. QCDml Ensemble <action/> UML representation of schema Split into quark and gluon sections Chris Maynard

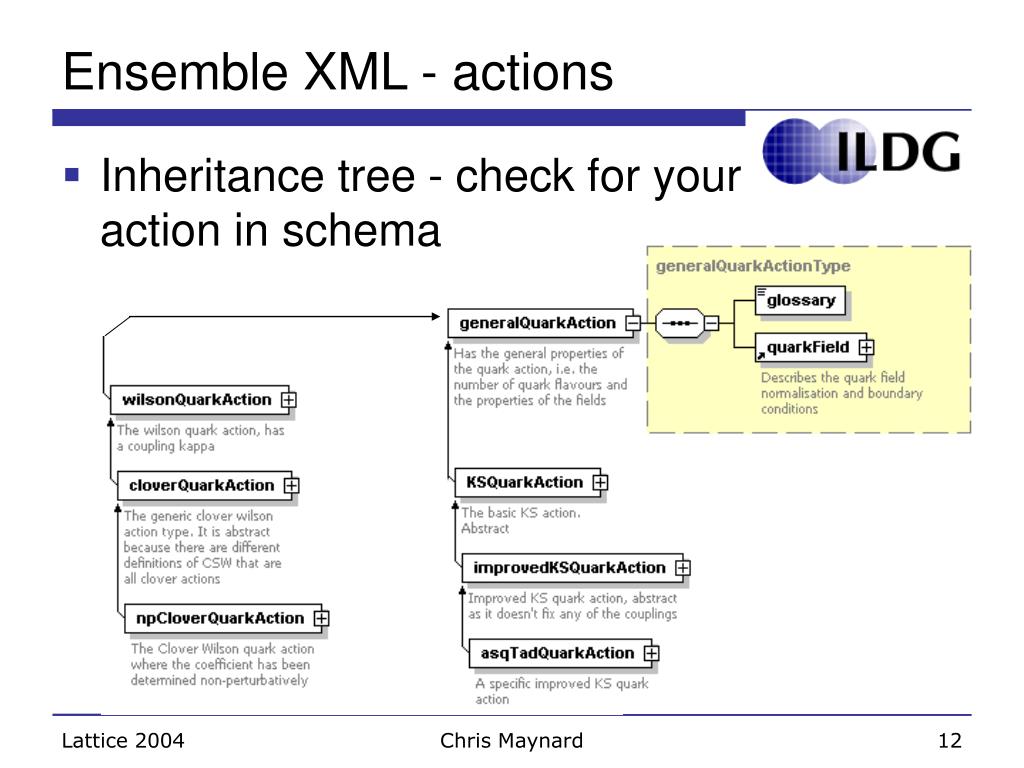

  12. Ensemble XML - actions • Inheritance tree - check for your action in schema Chris Maynard

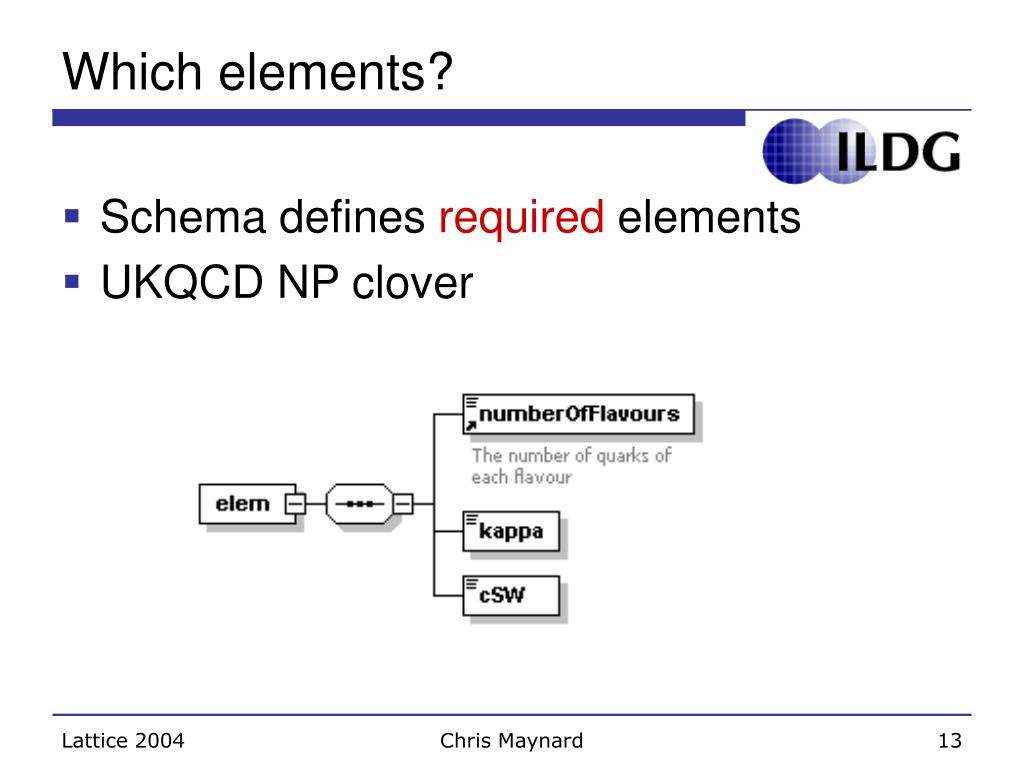

  13. Which elements? • Schema defines required elements • UKQCD NP clover Chris Maynard

  14. UKQCD Ensemble example Glossary: not computer readable How cSW was determined References etc Chris Maynard

  15. NumberOfFlavours Number of degenerate flavours for which these coupling values apply Chris Maynard

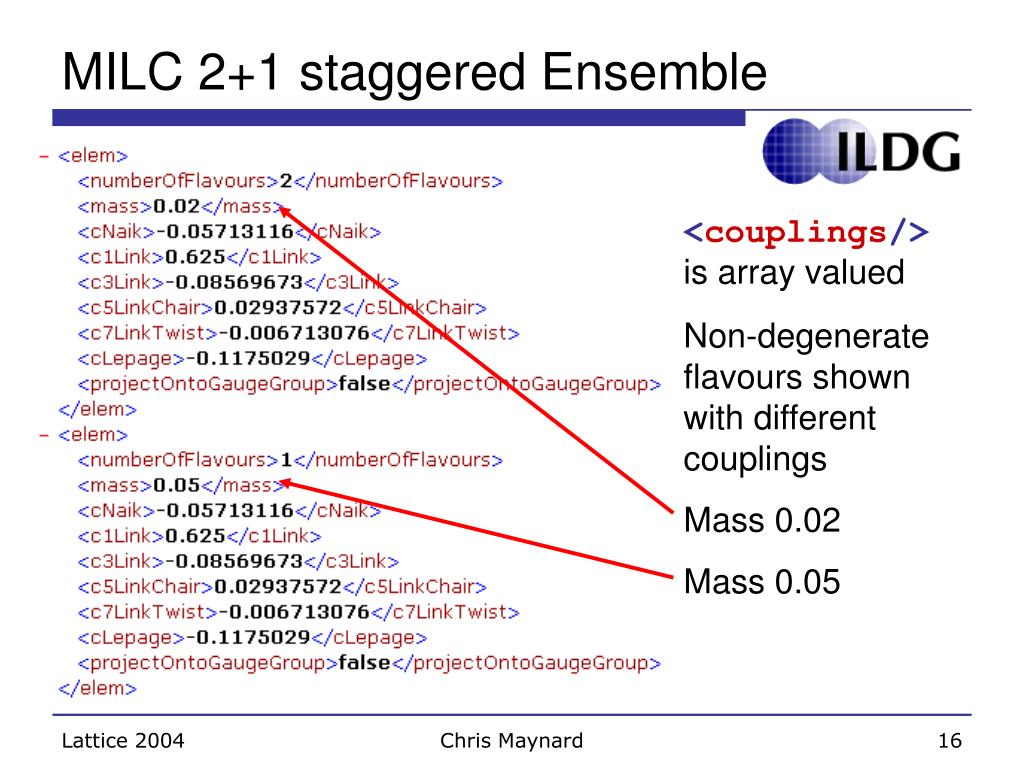

  16. MILC 2+1 staggered Ensemble <couplings/> is array valued Non-degenerate flavours shown with different couplings Mass 0.02 Mass 0.05 Chris Maynard

  17. Management • Metadata created when Ensemble registered with ILDG • Yet to be created middleware will do this Chris Maynard

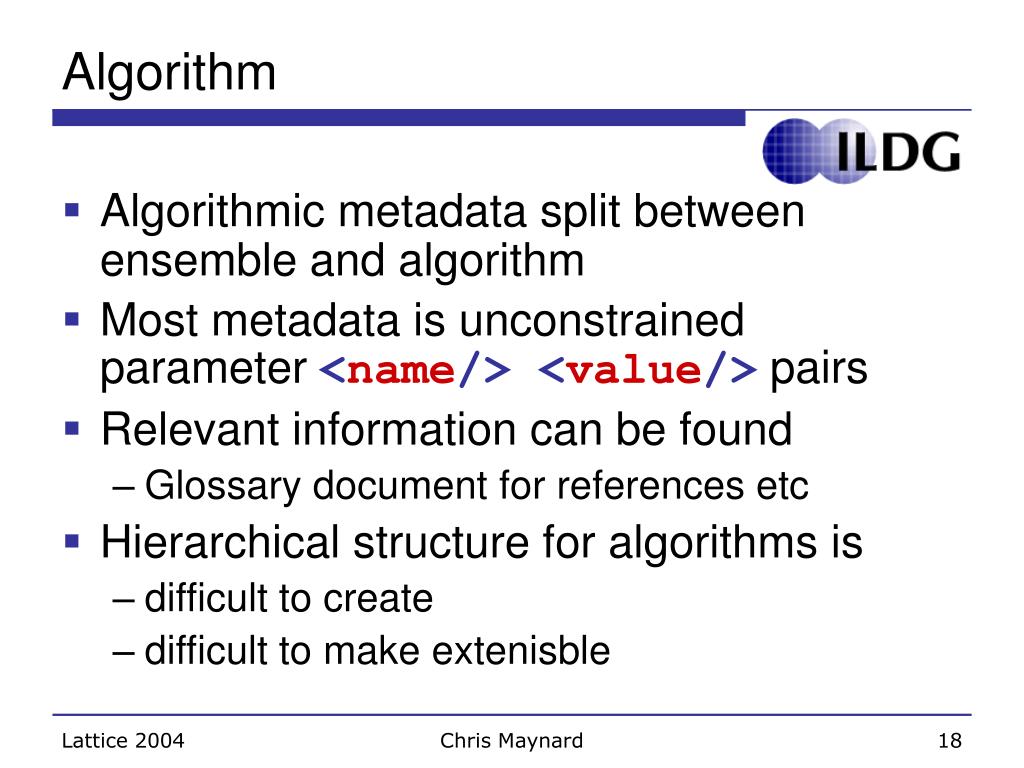

  18. Algorithm • Algorithmic metadata split between ensemble and algorithm • Most metadata is unconstrained parameter <name/> <value/> pairs • Relevant information can be found • Glossary document for references etc • Hierarchical structure for algorithms is • difficult to create • difficult to make extenisble Chris Maynard

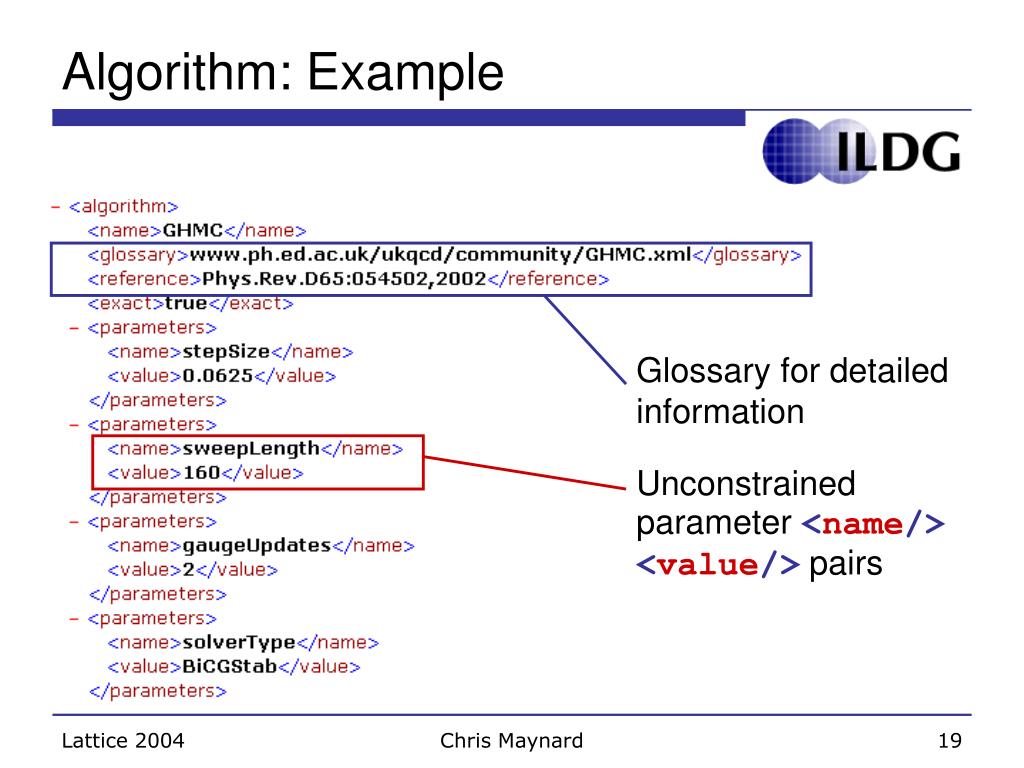

  19. Algorithm: Example Glossary for detailed information Unconstrained parameter <name/> <value/> pairs Chris Maynard

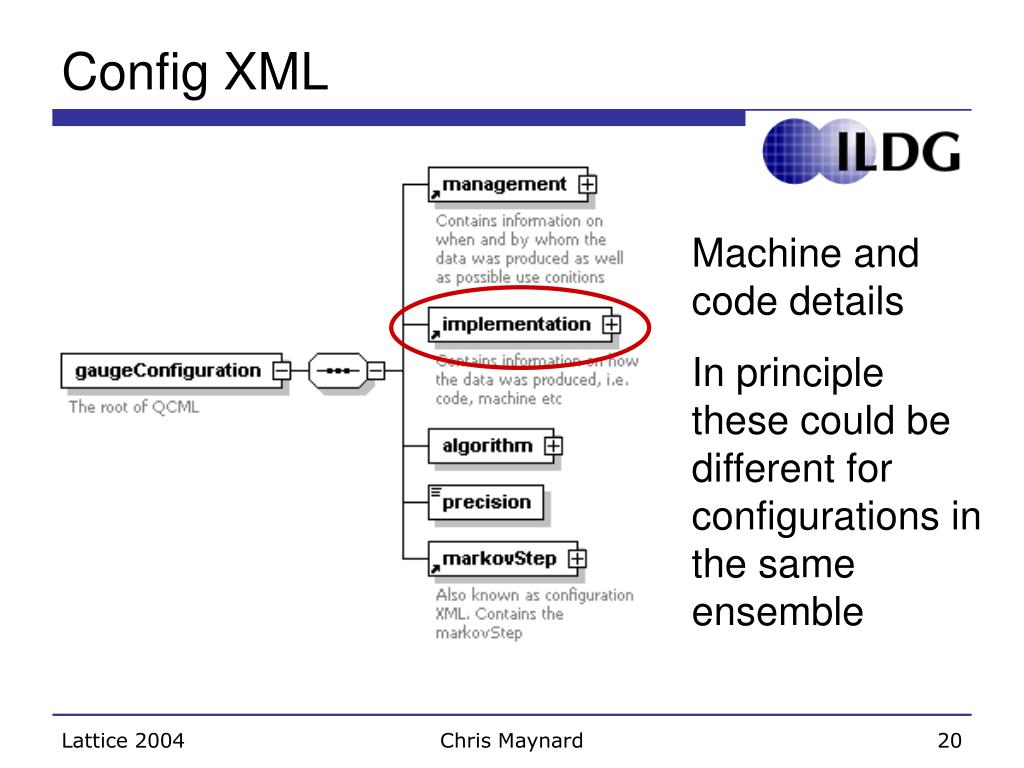

  20. Config XML Machine and code details In principle these could be different for configurations in the same ensemble Chris Maynard

  21. Config Management Checksum for config binary Zeroeth <revision/> is generate data, as this occurs before submission to ILDG Chris Maynard

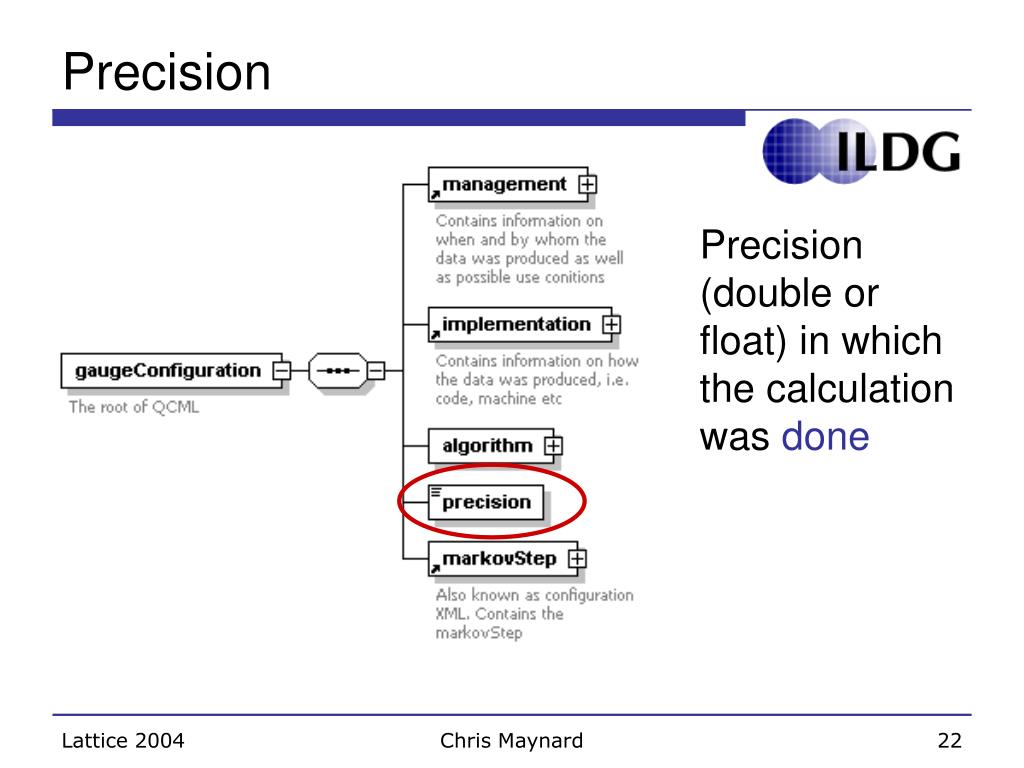

  22. Precision Precision (double or float) in which the calculation was done Chris Maynard

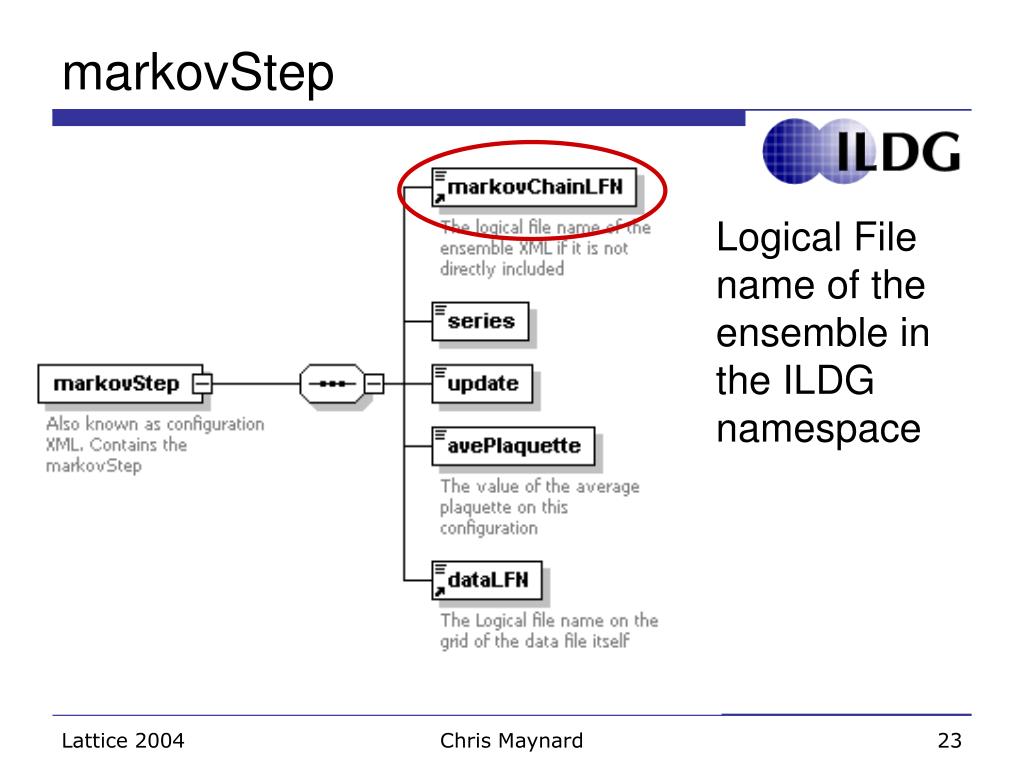

  23. markovStep Logical File name of the ensemble in the ILDG namespace Chris Maynard

  24. dataLFN Logical File name of the configuration in the ILDG namespace Chris Maynard

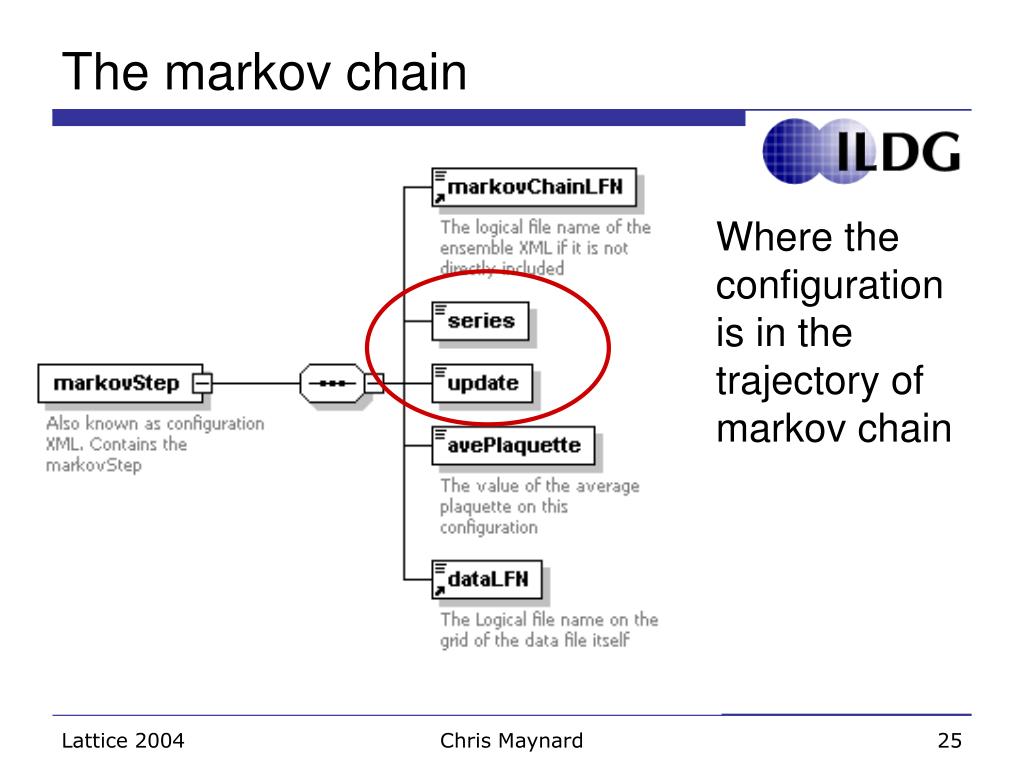

  25. The markov chain Where the configuration is in the trajectory of markov chain Chris Maynard

  26. avePlaquette Very useful metadata, can be used to check data transformations are correct Chris Maynard

  27. Config: UKQCD example Application codes can write this info either as QCDml Or tool can convert the IO to QCDml Chris Maynard

  28. BinX • XML markup for binary data • Library for manipulating marked up data • Production codes do not use BinX library • But easy to mark up data format in BinX style • ILDG middleware can use BinX for data manipulations • http://www.edikt.org/binx • BinX under discussion by Middleware + Metadata WG for file format. Chris Maynard

  29. Gauge config BinX Small Written once per ensemble write code on top of BinX library Change array order 2x3  3x3 average plaquette ILDG BinX based gauge config manipulator? Chris Maynard

  30. Correlator data Compact. No standard shape to correlators BinX will read in any shape Chris Maynard

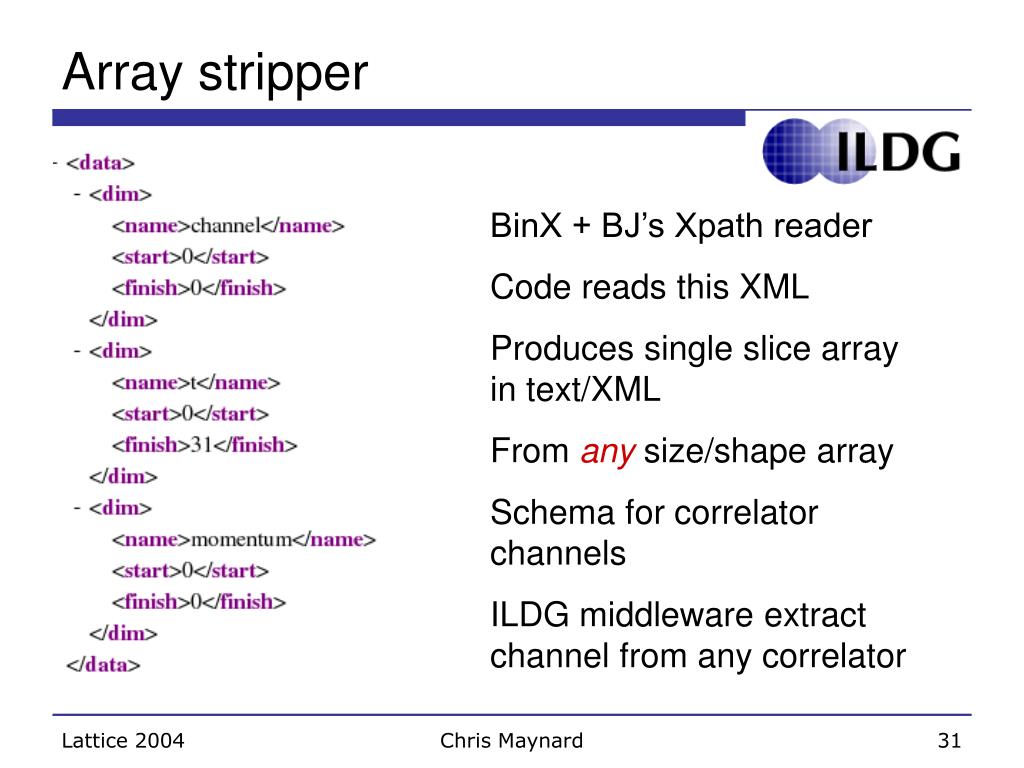

  31. Array stripper BinX + BJ’s Xpath reader Code reads this XML Produces single slice array in text/XML From any size/shape array Schema for correlator channels ILDG middleware extract channel from any correlator Chris Maynard

  32. Correlator dictionary • Possible QCDml extension • Correlator AP code knows channel details • IO AP write dictionary • Channel n is zero p pion • User requests pion • Stripper reads dictionary to find pion • Pulls channel n from correlator • Very easy to read other peoples data! Chris Maynard

  33. Metadata demonstration • UKQCD metadata catalogue • Browser is based on OGSA-DIA • Open source • You can get it at www.forge.nesc.ac.uk • Browser reads the schema • Build XPath query graphically • Result handler • Display XML and GET data • Render web page of results? • Create XML IDs? Chris Maynard

  34. ILDG metadata • ILDG proposal: • All collaborations publish metadata • Example method • UKQCD metadata catalogue access is not authenticated • Anyone can read it • ILDG aggregation of metadata catalogues • Mark up data in QCDml • No extra effort required. Chris Maynard
