  1. Introduction to Space-Vector Theory

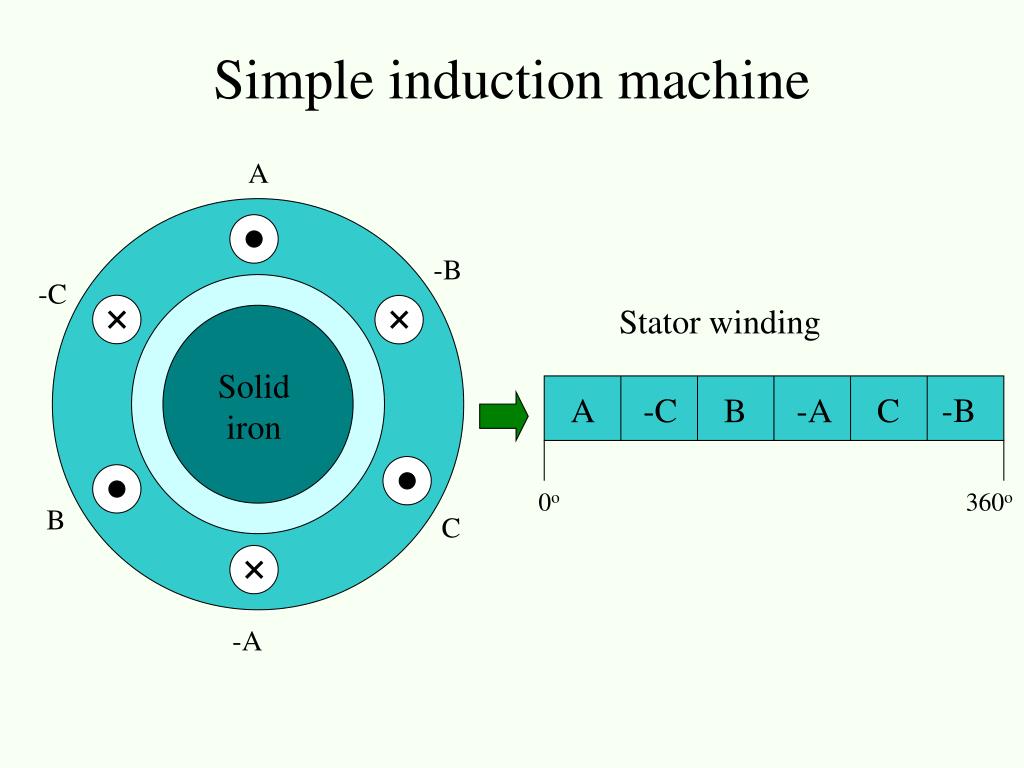

  2. A -C B -A C Simple induction machine A -B -C Stator winding Solid iron -B 0o 360o B C -A

  3. Phase A magnetic axis ”corresponding” coil

  4. Phase B magnetic axis ”corresponding” coil

  5. Phase C magnetic axis ”corresponding” coil

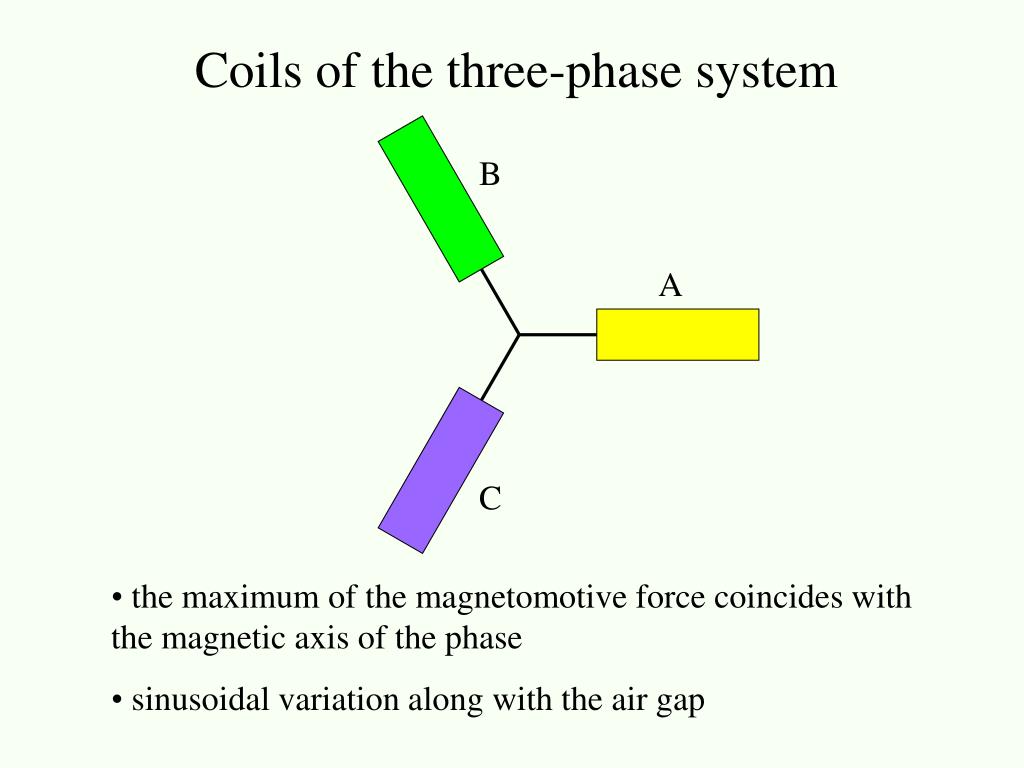

  6. B A C Coils of the three-phase system • the maximum of the magnetomotive force coincides with the magnetic axis of the phase • sinusoidal variation along with the air gap

  7. Magnetomotive force (MMF) in the air gap • with a unit phase current and unit number of windings caused by phase A caused by phase B caused by phase C

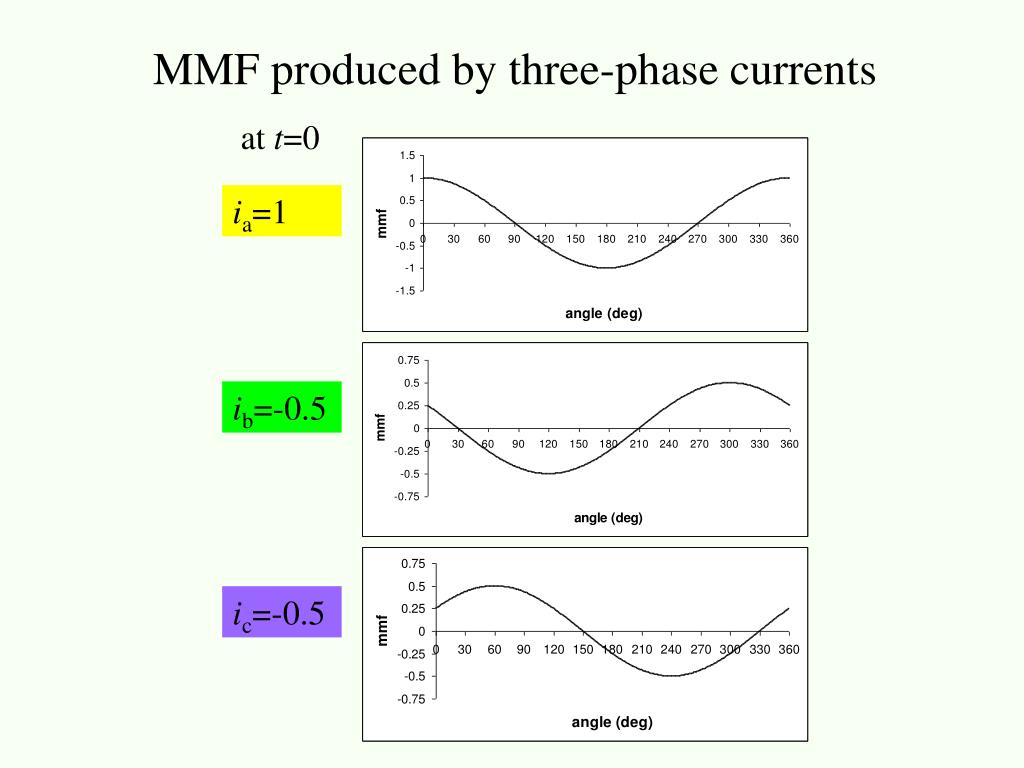

  8. MMF produced by three-phase currents at t=0 ia=1 ib=-0.5 ic=-0.5

  9. Here, MMF depends on the time and the position angle sinusoidally Phase currents Total MMF Moves to the positive direction

  10. Space-vector theory assumes sinusoidal spatial behaviour • However, the time-variation of the phase quantities can be arbitrary

  11. Pulsating magnetic fields produce a rotating field • Visualisation for the two-phase and two-pole winding • Can you see the rotation..?
