Public-Key Cryptography

Public-Key Cryptography. probably most significant advance in the 3000 year history of cryptography uses two keys – a public key and a private key asymmetric since parties are not equal uses clever application of number theory concepts to function

ewan
Télécharger la présentation

Public-Key Cryptography

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Public-Key Cryptography • probably most significant advance in the 3000 year history of cryptography • uses two keys – a public key and a private key • asymmetric since parties are not equal • uses clever application of number theory concepts to function • complements rather than replaces private key cryptography

  2. Public-Key Cryptography • public-key/two-key/asymmetric cryptography involves the use of two keys: • a public-key, which may be known by anybody, and can be used to encrypt messages, and verify signatures • a private-key, known only to the recipient, used to decrypt messages, and sign (create) signatures • is asymmetric because • those who encrypt messages or verify signatures cannot decrypt messages or create signatures

  3. Public-Key Cryptography

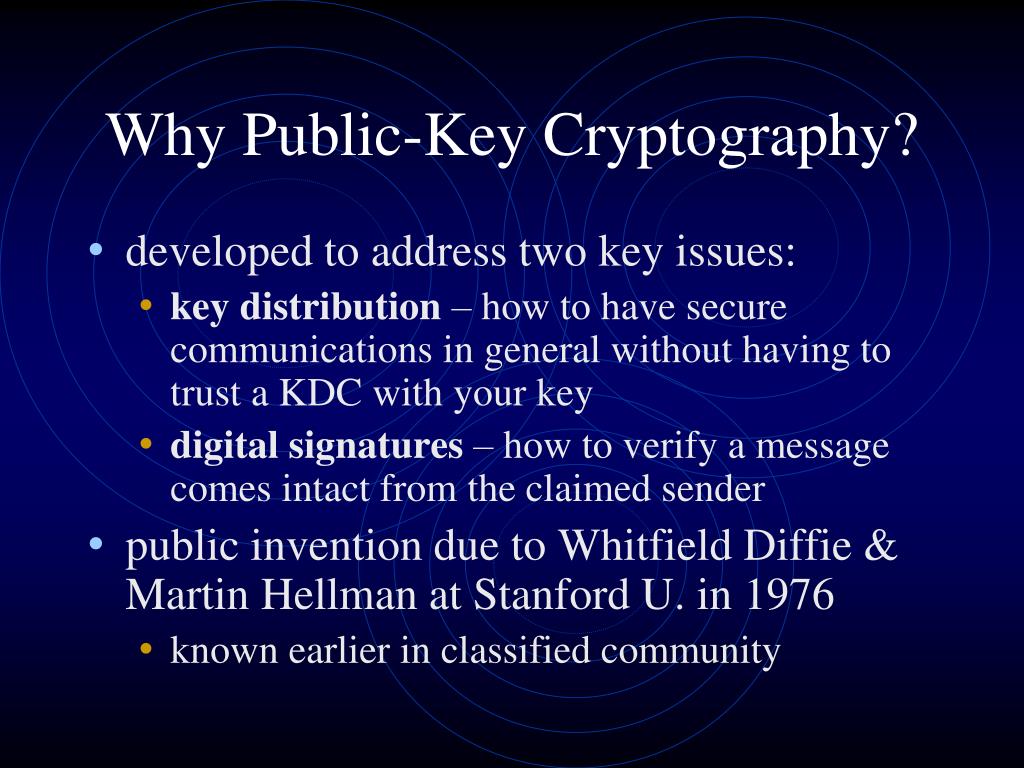

  4. Why Public-Key Cryptography? • developed to address two key issues: • key distribution – how to have secure communications in general without having to trust a KDC with your key • digital signatures – how to verify a message comes intact from the claimed sender • public invention due to Whitfield Diffie & Martin Hellman at Stanford U. in 1976 • known earlier in classified community

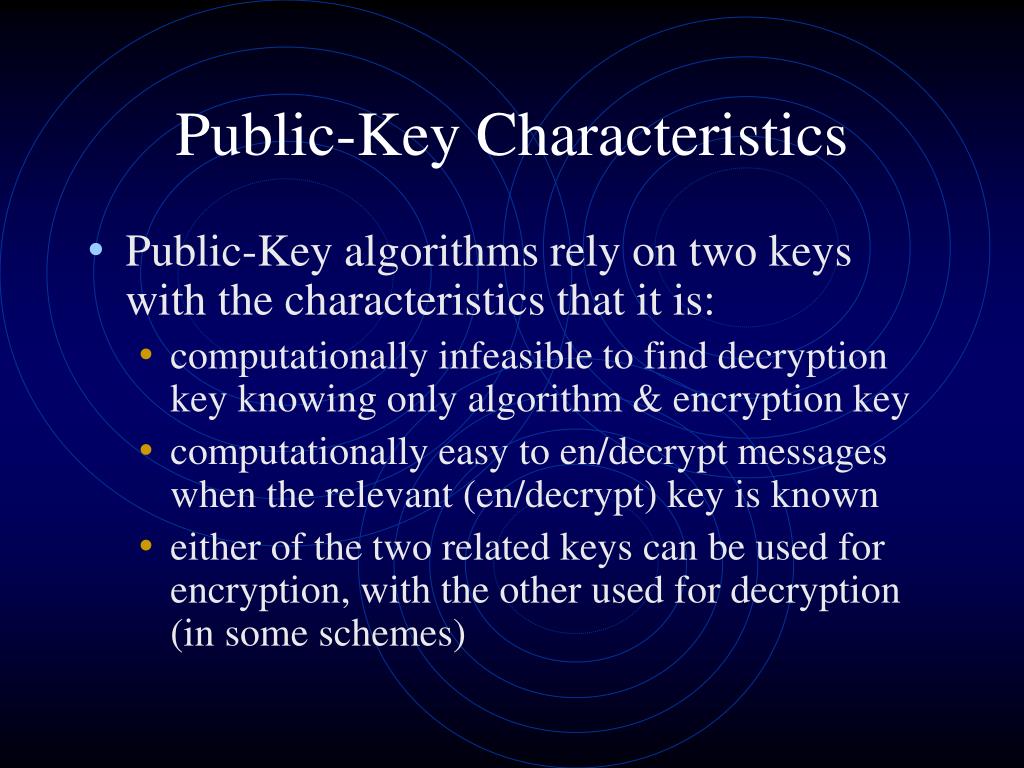

  5. Public-Key Characteristics • Public-Key algorithms rely on two keys with the characteristics that it is: • computationally infeasible to find decryption key knowing only algorithm & encryption key • computationally easy to en/decrypt messages when the relevant (en/decrypt) key is known • either of the two related keys can be used for encryption, with the other used for decryption (in some schemes)

  6. Public-Key Cryptosystems

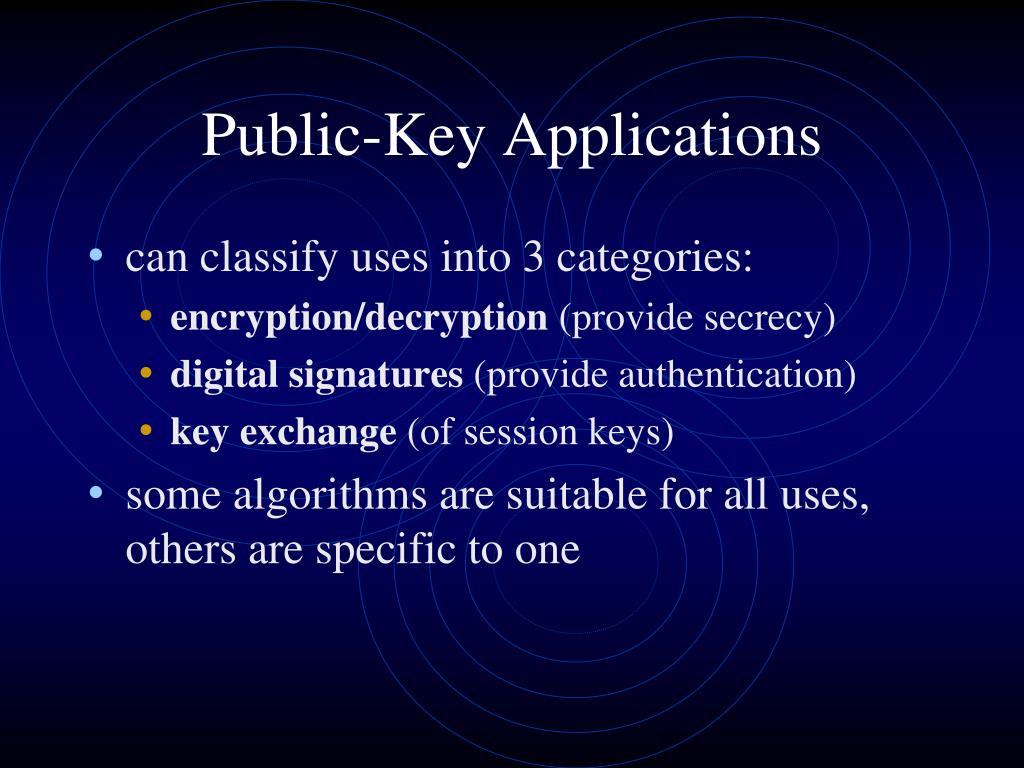

  7. Public-Key Applications • can classify uses into 3 categories: • encryption/decryption (provide secrecy) • digital signatures (provide authentication) • key exchange (of session keys) • some algorithms are suitable for all uses, others are specific to one

  8. Security of Public Key Schemes • like private key schemes brute force exhaustive search attack is always theoretically possible • but keys used are too large (>512bits) • security relies on a large enough difference in difficulty between easy (en/decrypt) and hard (cryptanalyse) problems • more generally the hard problem is known, its just made too hard to do in practise • requires the use of very large numbers • hence is slow compared to private key schemes

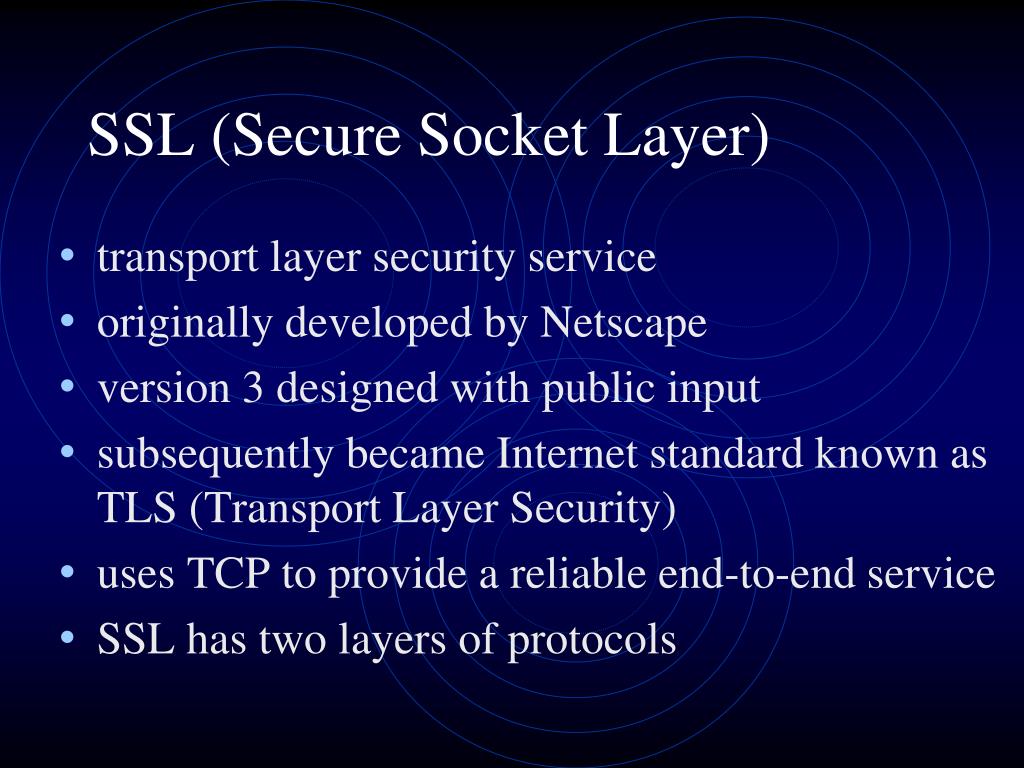

  9. transport layer security service originally developed by Netscape version 3 designed with public input subsequently became Internet standard known as TLS (Transport Layer Security) uses TCP to provide a reliable end-to-end service SSL has two layers of protocols SSL (Secure Socket Layer)

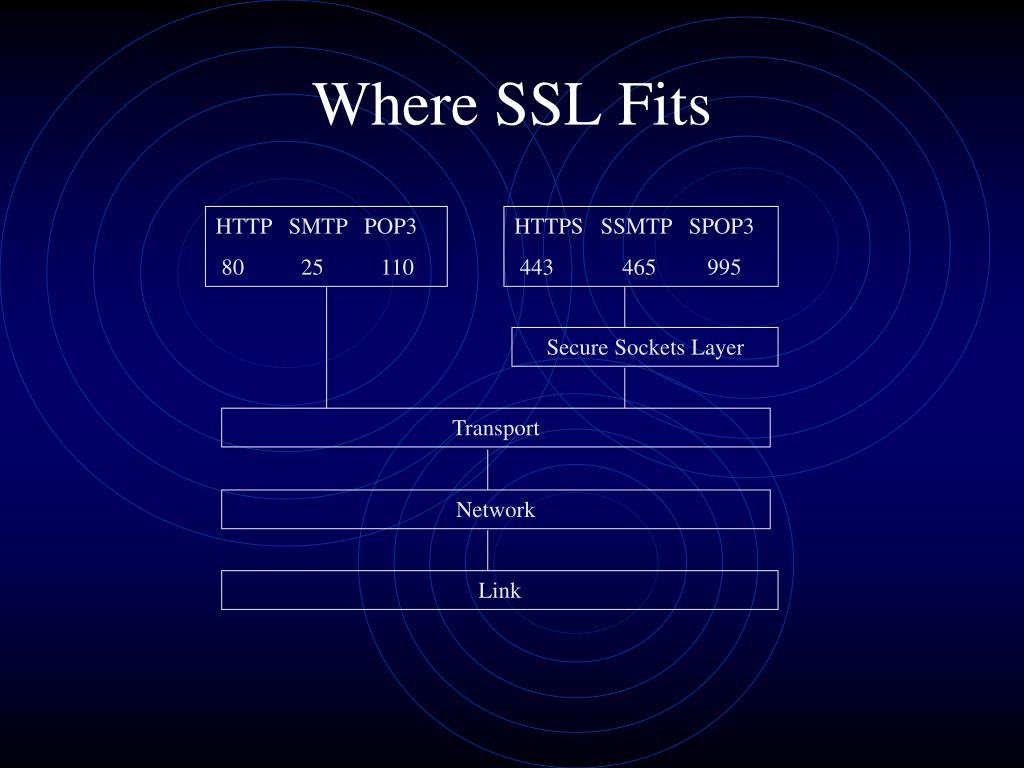

  10. Where SSL Fits HTTP SMTP POP3 80 25 110 HTTPS SSMTP SPOP3 443 465 995 Secure Sockets Layer Transport Network Link

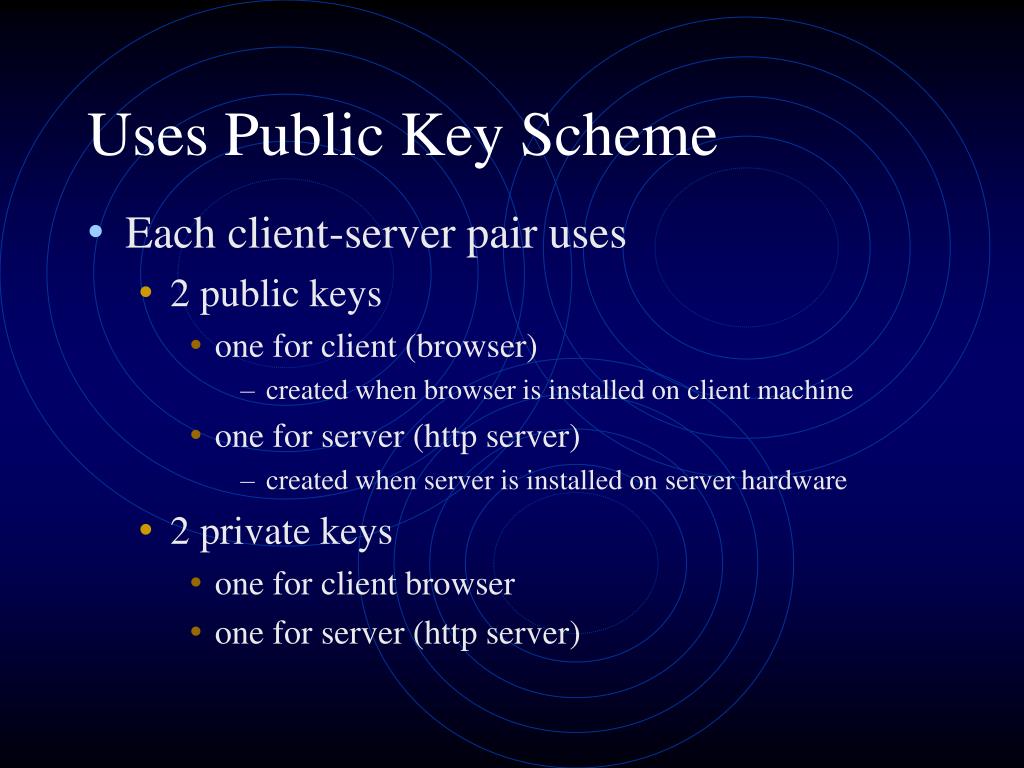

  11. Uses Public Key Scheme • Each client-server pair uses • 2 public keys • one for client (browser) • created when browser is installed on client machine • one for server (http server) • created when server is installed on server hardware • 2 private keys • one for client browser • one for server (http server)

  12. SSL Architecture

  13. SSL Architecture • SSL session • an association between client & server • created by the Handshake Protocol • define a set of cryptographic parameters • may be shared by multiple SSL connections • SSL connection • a transient, peer-to-peer, communications link • associated with 1 SSL session

  14. SSL Record Protocol • confidentiality • using symmetric encryption with a shared secret key defined by Handshake Protocol • IDEA, RC2-40, DES-40, DES, 3DES, Fortezza, RC4-40, RC4-128 • message is compressed before encryption • message integrity • using a MAC (Message Authentication Code) created using a shared secret key and a short message

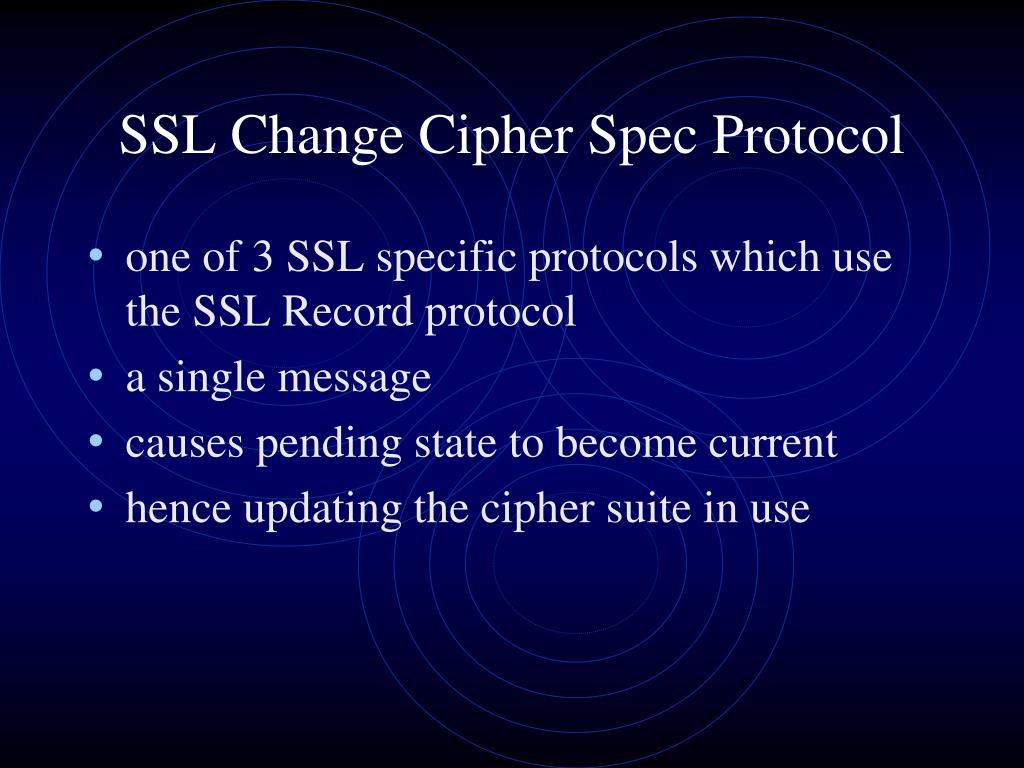

  15. SSL Change Cipher Spec Protocol • one of 3 SSL specific protocols which use the SSL Record protocol • a single message • causes pending state to become current • hence updating the cipher suite in use

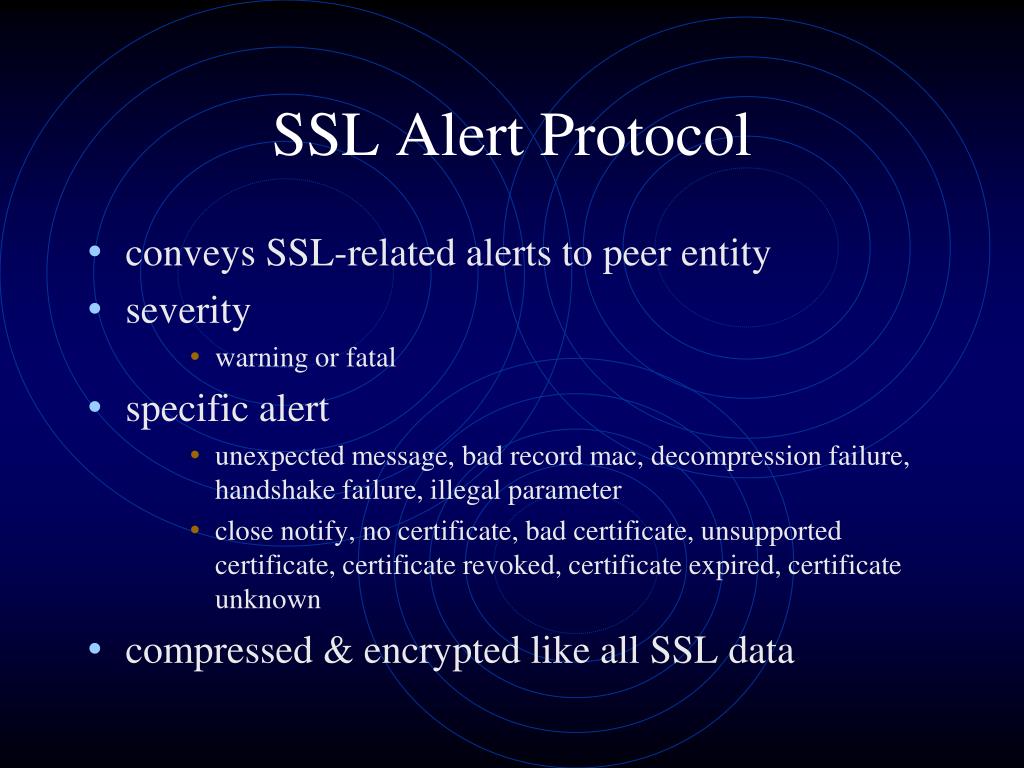

  16. SSL Alert Protocol • conveys SSL-related alerts to peer entity • severity • warning or fatal • specific alert • unexpected message, bad record mac, decompression failure, handshake failure, illegal parameter • close notify, no certificate, bad certificate, unsupported certificate, certificate revoked, certificate expired, certificate unknown • compressed & encrypted like all SSL data

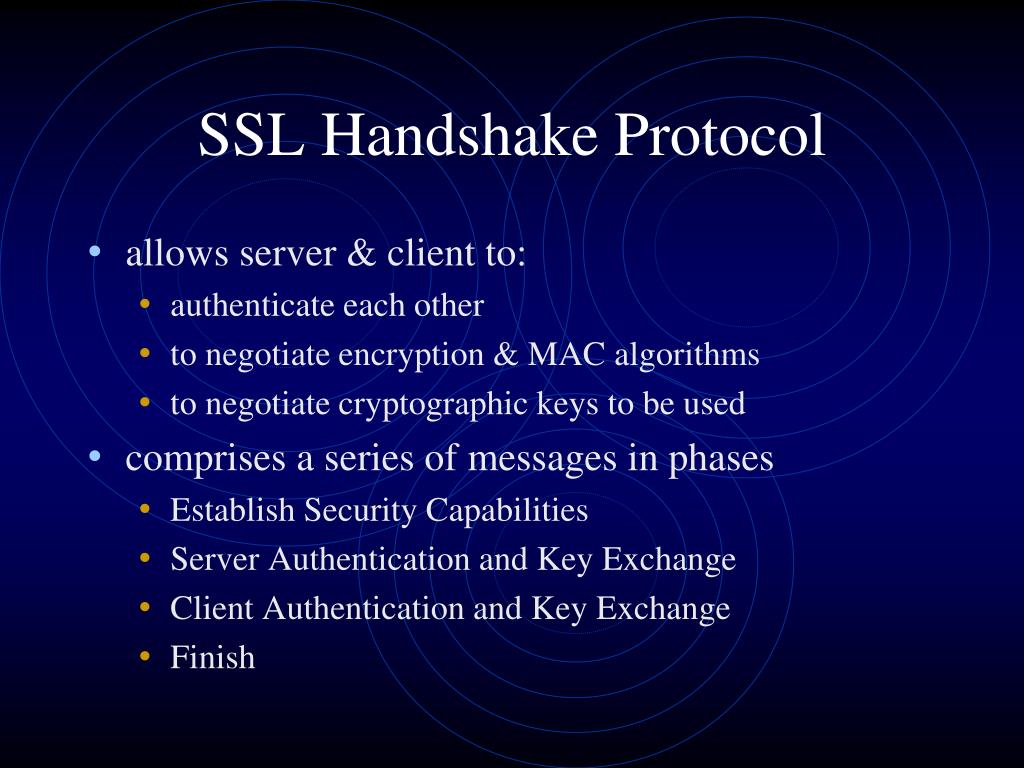

  17. SSL Handshake Protocol • allows server & client to: • authenticate each other • to negotiate encryption & MAC algorithms • to negotiate cryptographic keys to be used • comprises a series of messages in phases • Establish Security Capabilities • Server Authentication and Key Exchange • Client Authentication and Key Exchange • Finish

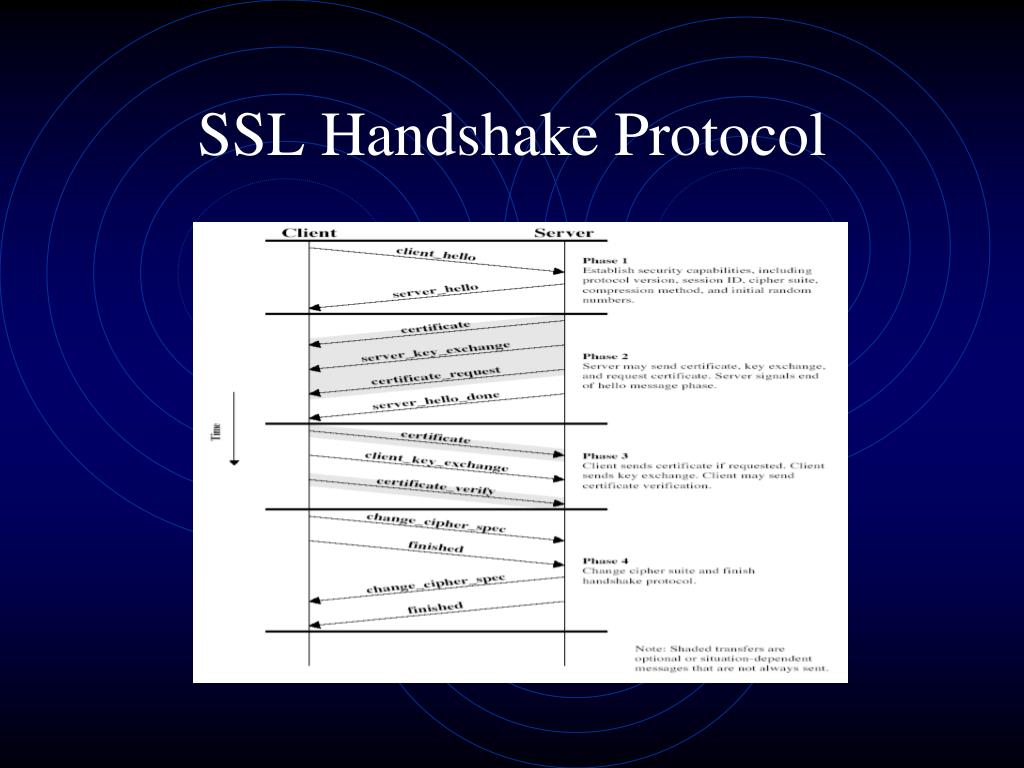

  18. SSL Handshake Protocol
