  1. An optimal reliability allocation method for digital substation systemsYuzhou Hu, Peichao Zhang, Yongchun Su, Yu Zou Adviser: Frank, Yeong-Sung Lin Present by Sean Chou

  2. Agenda • Introduction • Reliability allocation modeling and solving • Equivalent redundancy coefficient • Case study • Conclusions

  3. Agenda • Introduction • Reliability allocation modeling and solving • Equivalent redundancy coefficient • Case study • Conclusions

  4. Introduction • The applying of the IEC 61850 standard and the rapid development of the high-speed Ethernet technology permit implementation of a digital substation system. • Comprises more electronic devices, e.g., merging units, Ethernet switches and time synchronization sources [1]. • It is a potential shortcoming of the all-digital protection system and has a dramatic impact on the reliability of the system.

  5. Introduction • The digital substation system is expected to have equal or higher reliability than the conventional one. Thus, it is necessary to design a robust system structure. • Many methods can help to optimize the system reliability such as the component importance analysis, the fault tree analysis, and the reliability allocation methods.

  6. Introduction • Component importance analysis can analyze the system structure and help to diagnose the weaknesses of the system. • But it has three limitations: • It cannot set the system optimization objective • It does not tell us how the reliability should be allocated among the components exactly. • It cannot consider the optimization constraints of each component.

  7. Introduction • In paper [4], the principle for reliability allocation is given. Common reliability allocation methods include proportion method, AGREE method, minimum cost method, etc. [5]-[8]. • It is unrealistic to discuss the reliability allocation issues without considering the economic factors. • Thus, this paper chooses the minimum cost method as the basis for analysis to model the mathematic programming.

  8. Introduction • Using the above method, we can determine the reliability optimization objective of each component while obtaining a target level of the whole system. • But the analysis result often cannot help to guide the optimization process directly. • We usually employ redundancy instead to increase the reliability of the system effectively. • Thus the problem turns to decide how to achieve redundancy in a most cost-effective way.

  9. Introduction • Traditional reliability allocation methods mentioned above cannot answer the question. • This paper aims to propose a novel reliability optimal allocation method based on minimum cost allocation method, which considers the cost factors, optimization feasibility, and constraints for the components of the digital substation system.

  10. Agenda • Introduction • Reliability allocation modeling and solving • Equivalent redundancy coefficient • Case study • Conclusions

  11. Reliability allocation modeling and solving • Basic Concept of Reliability Allocation • Model of the cost versus the reliability of components • Mathematic Programming

  12. Reliability allocation modeling and solving • Basic Concept of Reliability Allocation • The goal of reliability allocation is to solve the inequalities:

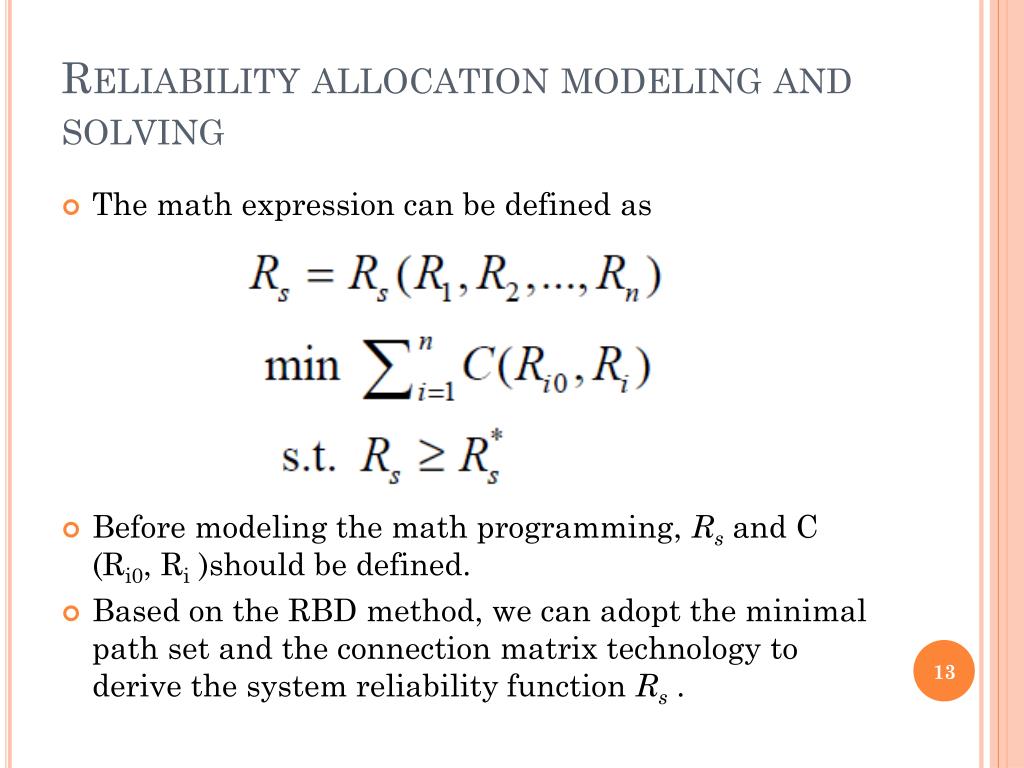

  13. Reliability allocation modeling and solving • The math expression can be defined as • Before modeling the math programming, Rsand C (Ri0, Ri )should be defined. • Based on the RBD method, we can adopt the minimal path setand the connection matrix technology toderive the system reliability function Rs.

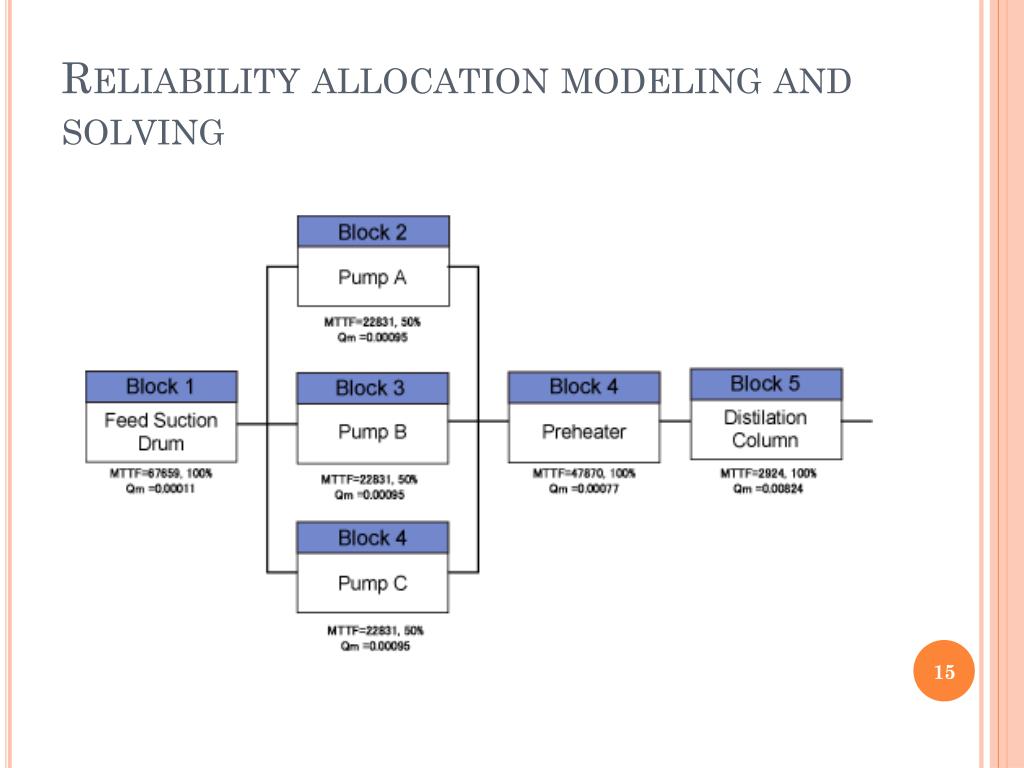

  14. Reliability allocation modeling and solving • A Reliability Block Diagram (RBD) performs the system reliability and availability analyses on large and complex systems using block diagrams to show network relationships. • The structure of the reliability block diagram defines the logical interaction of failures within a system that are required to sustain system operation. • http://www.reliabilityeducation.com/rbd.pdf

  15. Reliability allocation modeling and solving

  16. Reliability allocation modeling and solving • Model of the cost versus the reliability of components • The other important element in the minimum cost allocation is the cost function. • Classical cost-reliability models : • Lagrange model is based on the assumption that the logarithm of component unreliability is proportional to cost, which may not always be the case. • Powermodel has two constants to be calculated, both of which are not related to reliability.

  17. Reliability allocation modeling and solving • Because of these shortcomings, these models are difficult to be applied in practice. • The modified “three parameters model” is an exponential function of manufacturing cost with respect to reliability, which contains following parameters.

  18. Reliability allocation modeling and solving • “three parameters model” • Using the above cost model, we can take optimize costs, feasibility of optimization, and constraints for the components of the digital substation system into consideration.

  19. Reliability allocation modeling and solving • Mathematic Programming • Based on the RBD of the system structure, we have already got the system reliability function. • We should also define the following vectors:

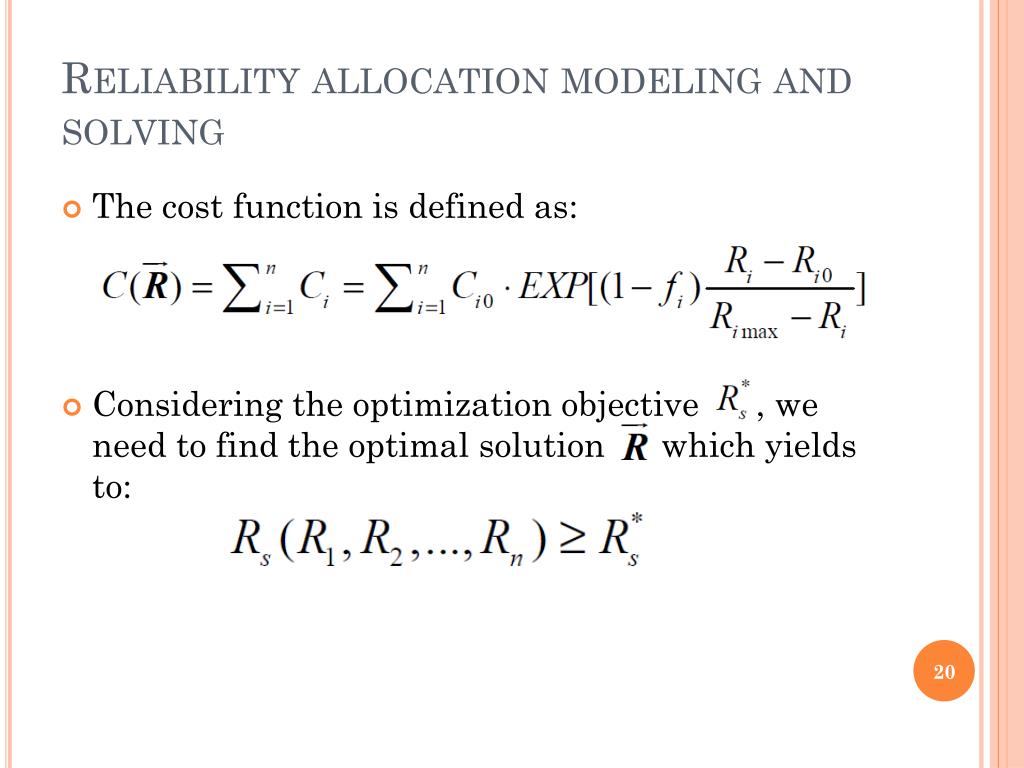

  20. Reliability allocation modeling and solving • The cost function is defined as: • Considering the optimization objective , we need to find the optimal solution which yields to:

  21. Reliability allocation modeling and solving • Then, we get the mathematic programming: • The GRG (Generalized Reduced Gradient) method [13] is employed to solve the problem and calculate the optimal feasible solution . • Thus, the vector is the reliability optimization objective of each component.

  22. Reliability allocation modeling and solving • However, the solution of the reliability allocation tells only one part of a story. • When the results are generated, follow-up question arises: how to improve the reliability of the components in practice? How?

  23. Agenda • Introduction • Reliability allocation modeling and solving • Equivalent redundancy coefficient • Case study • Conclusions

  24. Equivalent redundancy coefficient • Two ways to improve the reliability ofcomponents: • substitution (with more reliable components) • redundancy (achieved in the component level) • The former way is oftenunavailable, whereas the latter is more effective. • Based on the optimal feasible solution , this section further demonstrates the above discussions.

  25. Equivalent redundancy coefficient • According to the reliability of parallel-redundancy components, the equivalent redundancy coefficient θiis introduced which yields to: • θican measure the gap between the initial reliability and objective reliability of the component i.

  26. Equivalent redundancy coefficient • Because the calculation result Riis solved by the minimum cost allocation method, the equivalent redundancy coefficient θihas already taken the cost factors into consideration. • When all the other conditions remain the same, the higher the initial cost of the component is, the smaller the equivalent redundancy coefficient θibecomes.

  27. Equivalent redundancy coefficient • Arrange θiin descending order and mark the array subscript of the maximum θi as u, namely: • Then the component u is the critical component in the optimization process. • If we reduplicate the component u, the total system reliability will improve in the most effective way, while the additional cost remains minimum. • Thus, reduplicating the component u is an effective quasi-optimal method in engineering practice.

  28. Equivalent redundancy coefficient • Since the system structure has changed after realizing the redundancy, it is necessary to modify the variable Ruin the system reliability function ( ) . • Check , if can’t meet the objective Use GRG to find the new θu

  29. Equivalent redundancy coefficient • The complete process of the method in this paper:

  30. Agenda • Introduction • Reliability allocation modeling and solving • Equivalent redundancy coefficient • Case study • Conclusions

  31. Case study • We apply the method of the preceding section to a practical digital protection system at the transformer bay of a typical 110kV digital substation to demonstrate the effectiveness. • Includes the following components: • Protection • Main protection (PR) • Zero-sequence protection • Breaker failure protection • Merging unit (MU) • Circuit breaker IED (CB IED) • Time source (TS) • Ethernet media (EM). • Transformer auxiliary relay

  32. Case study • Based on the above protection configuration, we can form the RBD for the transformer bay as shown in Fig.2.

  33. Case study • This paper assumes that the life of all the components accord with exponential distribution. • It means that the failure rate of each component is constant and their mean time to failure(MTTF) is the reciprocal of the average life expectancy.

  34. Case study • Referring to the parameters listed in paper [2] and [3], this paper estimates the cost, MTTF, and the optimization feasibility parameters of all the components as showed in Table I.

  35. Case study • According to the system RBD, this paper employs minimal path set method to solve the system reliability function, and calculates the reliability of the components as well as the whole system. • The initial reliability of the system is 0.9552, and theoptimization objective is set as 0.99. • We implement the GRG method, with the error tolerance to be 0.001.

  36. Case study

  37. Case study

  38. Case study • Theadditional costs of quasi-optimal scheme showed in Table Vare $9,000, which has risen by 17.51%.

  39. Agenda • Introduction • Reliability allocation modeling and solving • Equivalent redundancy coefficient • Case study • Conclusions

  40. Conclusions • The novel method proposed in this paper provides the quasi-optimal redundancy scheme which can be used in practice directly. • The methodology proposed in this paper is easy to implement using software and suitable to analyze the digital substation system with arbitrary architectures.

  41. Conclusions • In this research • A resource allocation method • Other issues • Internalfactor • Component geographic location • External factor • Nature disaster • Attacker • Confidential issue about storage • Secret sharing

  42. Thanks for your listening.
