  1. On Demand Multicast Routing Protocol (ODMRP ) CSE 6590

  2. Types of Multicast Routing in MANETs • Tree-based • One path between a source-receiver pair • AMRoute, AMRIS, MAODV • Mesh-based • Multiple paths between a source-receiver pair • ODMRP, CAMP • Hybrid • Zone Routing Protocol (ZRP)

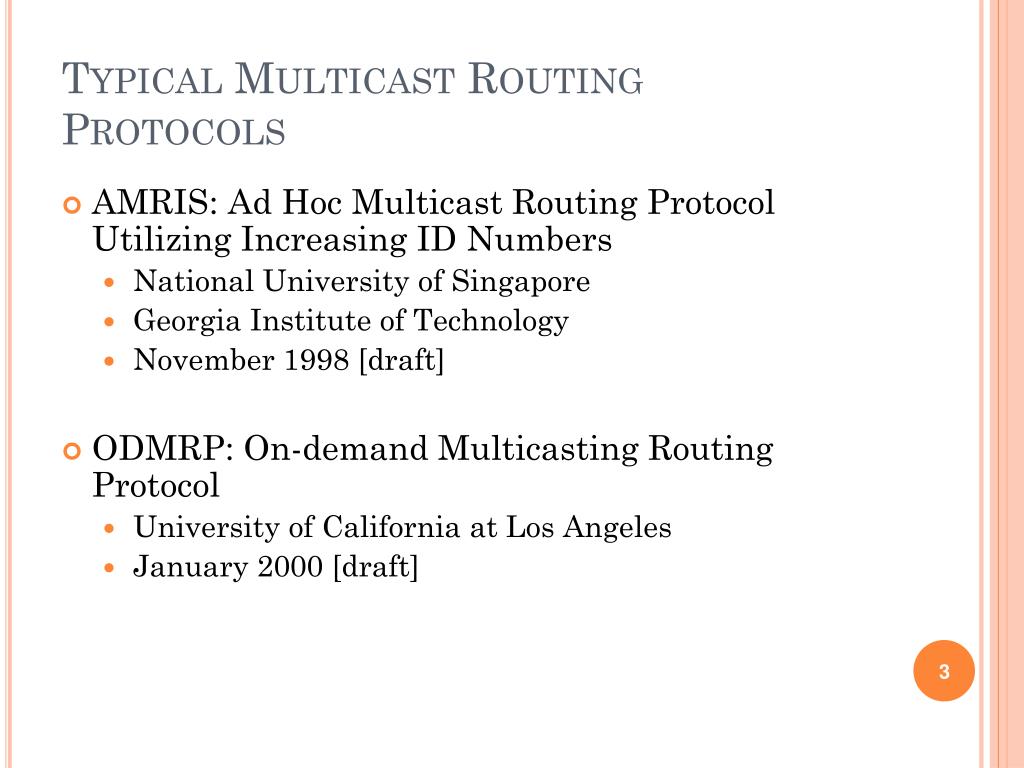

  3. Typical Multicast Routing Protocols • AMRIS: Ad Hoc Multicast Routing Protocol Utilizing Increasing ID Numbers • National University of Singapore • Georgia Institute of Technology • November 1998 [draft] • ODMRP: On-demand Multicasting Routing Protocol • University of California at Los Angeles • January 2000 [draft]

  4. Why compare them?

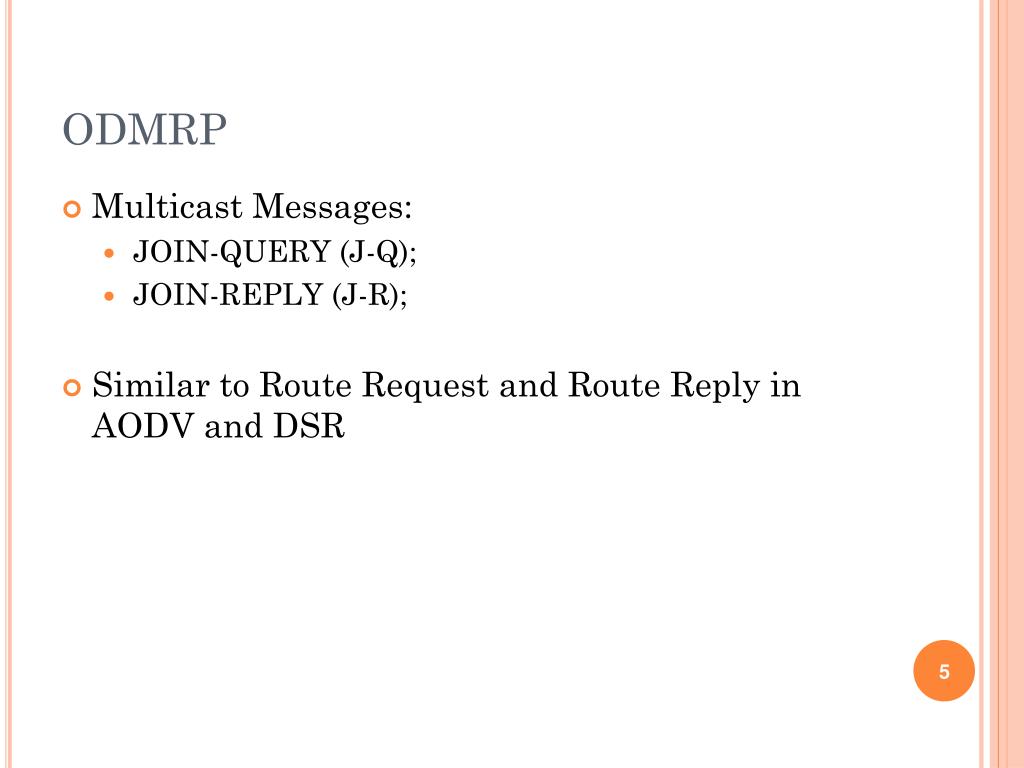

  5. ODMRP • Multicast Messages: • JOIN-QUERY (J-Q); • JOIN-REPLY (J-R); • Similar to Route Request and Route Reply in AODV and DSR

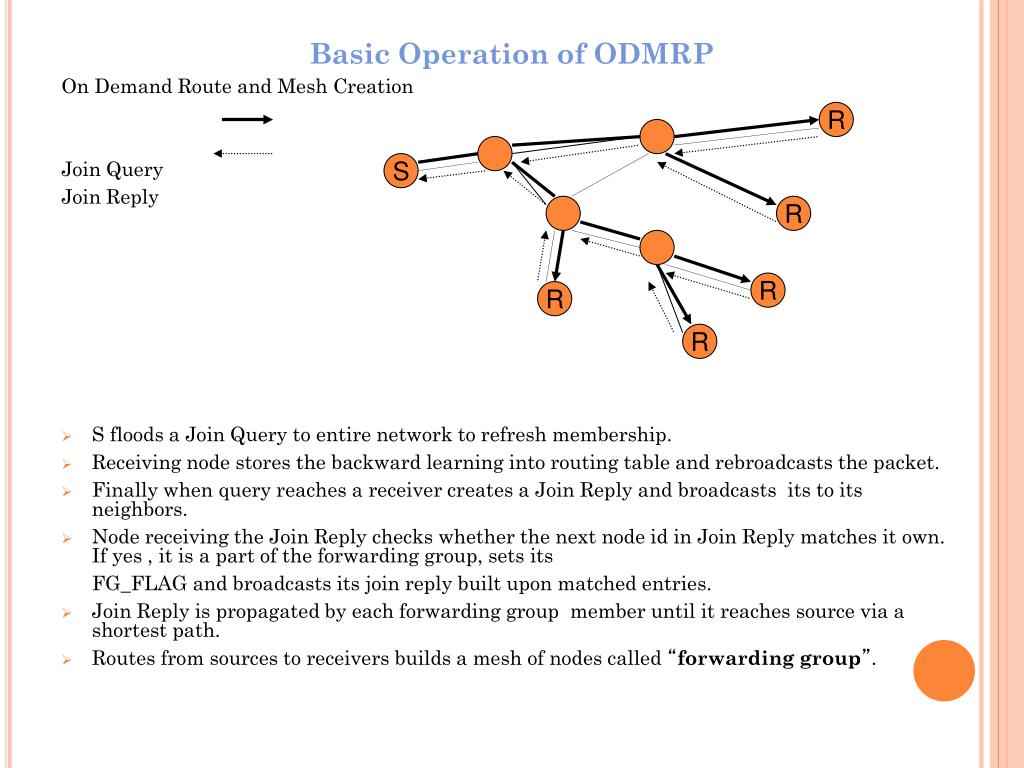

  6. R S Basic Operation of ODMRP On Demand Route and Mesh Creation Join Query Join Reply • S floods a Join Query to entire network to refresh membership. • Receiving node stores the backward learning into routing table and rebroadcasts the packet. • Finally when query reaches a receiver creates a Join Reply and broadcasts its to its neighbors. • Node receiving the Join Reply checks whether the next node id in Join Reply matches it own. If yes , it is a part of the forwarding group, sets its FG_FLAG and broadcasts its join reply built upon matched entries. • Join Reply is propagated by each forwarding group member until it reaches source via a shortest path. • Routes from sources to receivers builds a mesh of nodes called “forwarding group”. R R R R

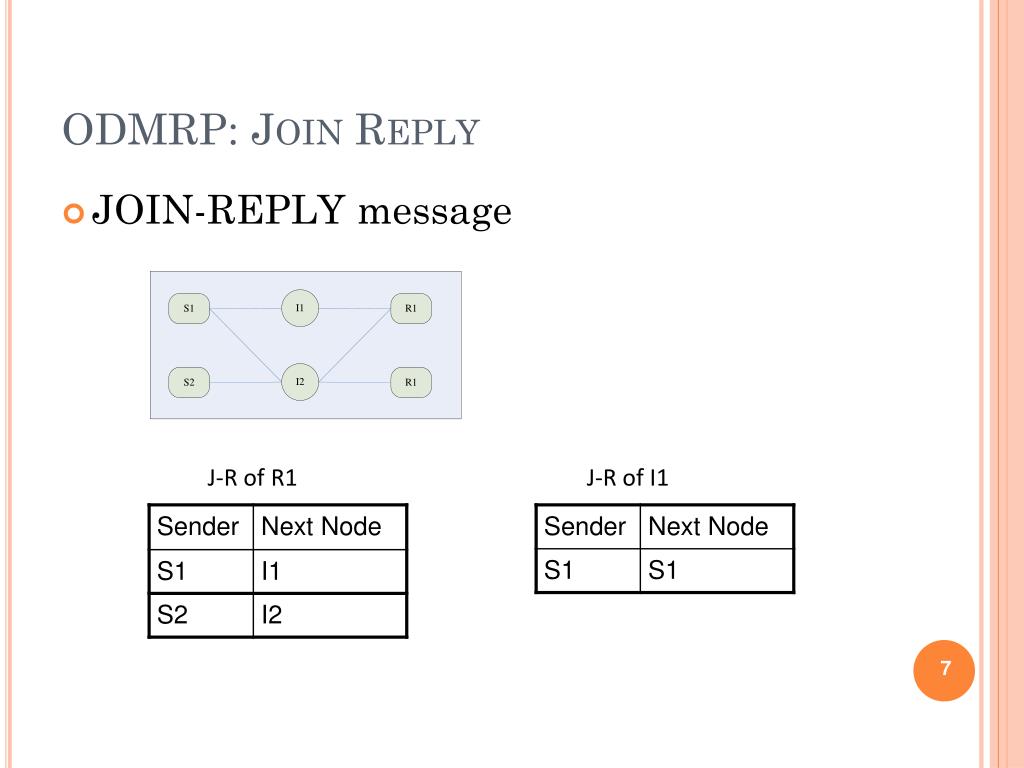

  7. ODMRP: Join Reply • JOIN-REPLY message J-R of R1 J-R of I1

  8. FG FG Concept of Forwarding Group Why a mesh? Links Multicast Routes Initial Route from S1 to R2 is < S1 -A- B- R2> Redundant Route < S1- A- C- B- R2> FG FG FG FG R1 S1 A B S2 C R3 S3 R2

  9. ODMRP: Sender Actions Sender actions: • Downstream • Generate J-Q message; • Broadcast J-Q ; • Upstream • Receive J-R (include the path info);

  10. ODMRP: Intermediate Nodes (downstream) Intermediate node actions:(downstream) • Receive J-Q, omit duplicated ones (use cached sequence numbers); • Store upstream node info; • Re-broadcast J-Q;

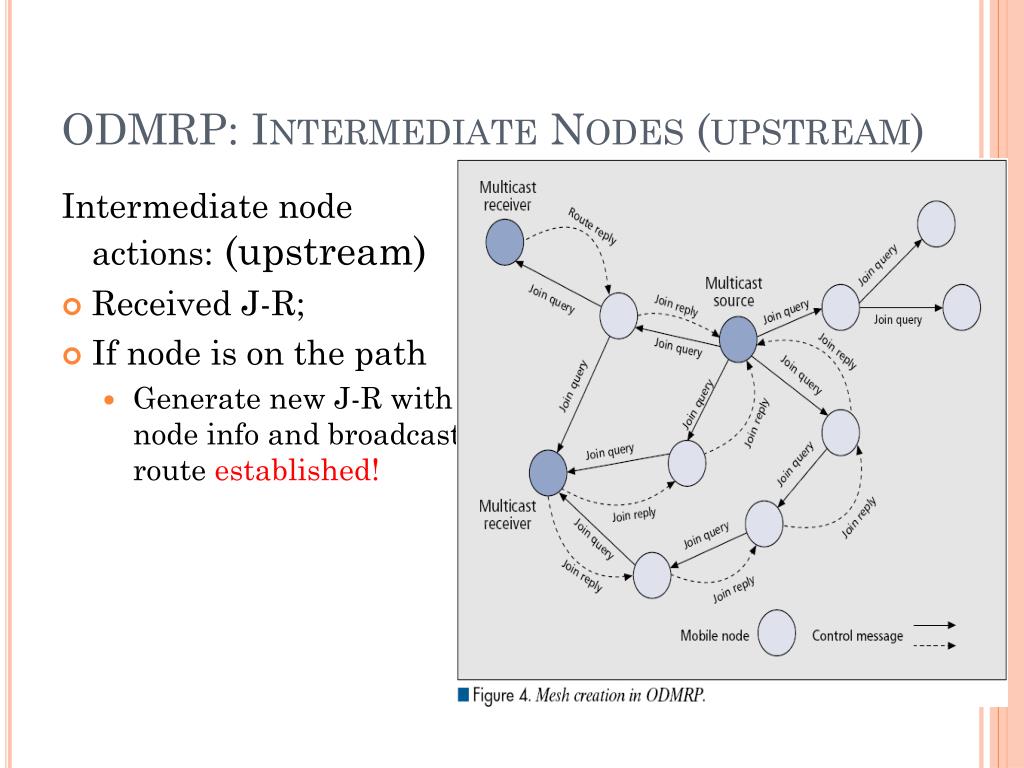

  11. ODMRP: Intermediate Nodes (upstream) Intermediate node actions: (upstream) • Received J-R; • If node is on the path • Generate new J-R with node info and broadcast, route established!

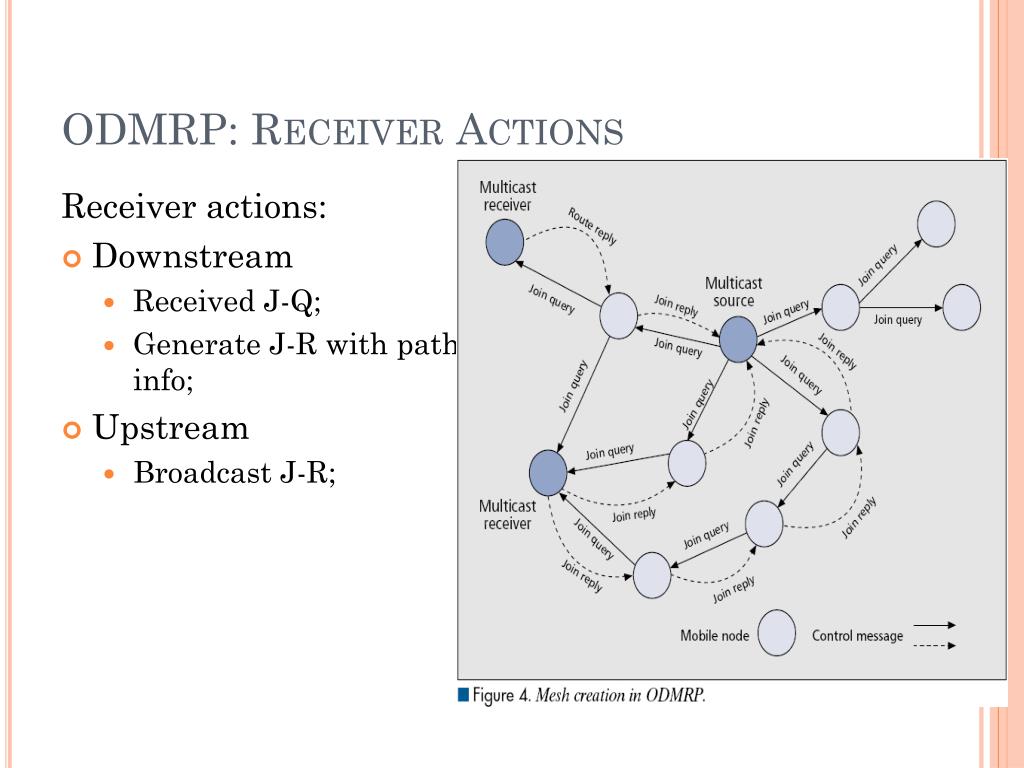

  12. ODMRP: Receiver Actions Receiver actions: • Downstream • Received J-Q; • Generate J-R with path info; • Upstream • Broadcast J-R;

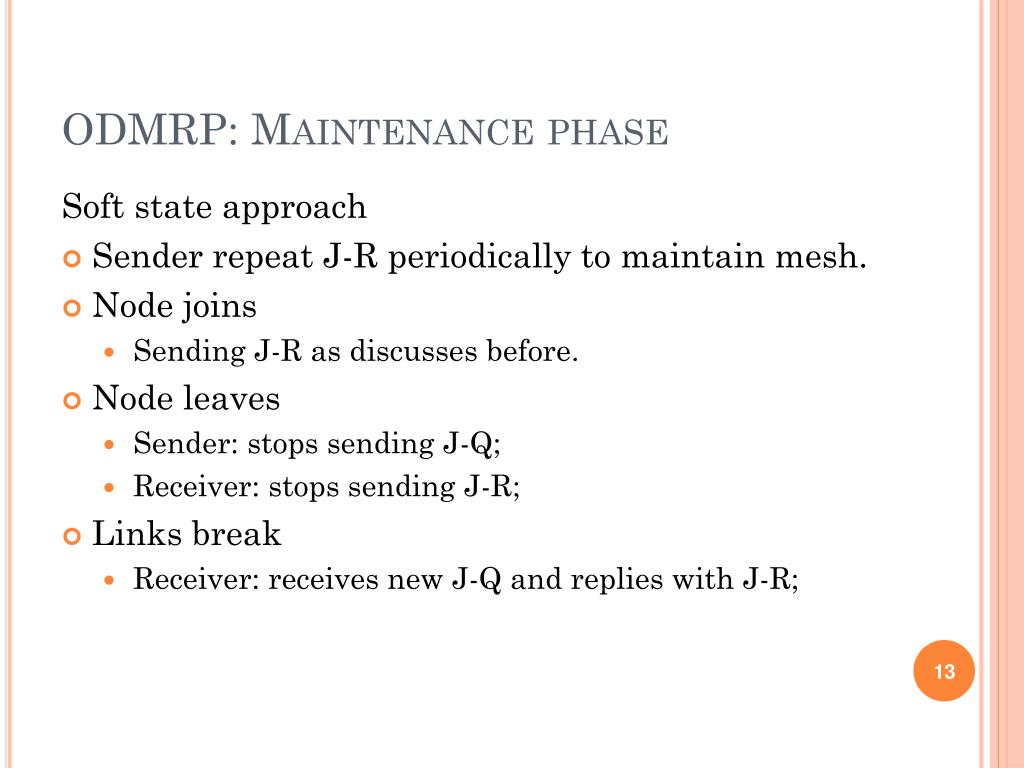

  13. ODMRP: Maintenance phase Soft state approach • Sender repeat J-R periodically to maintain mesh. • Node joins • Sending J-R as discusses before. • Node leaves • Sender: stops sending J-Q; • Receiver: stops sending J-R; • Links break • Receiver: receives new J-Q and replies with J-R;

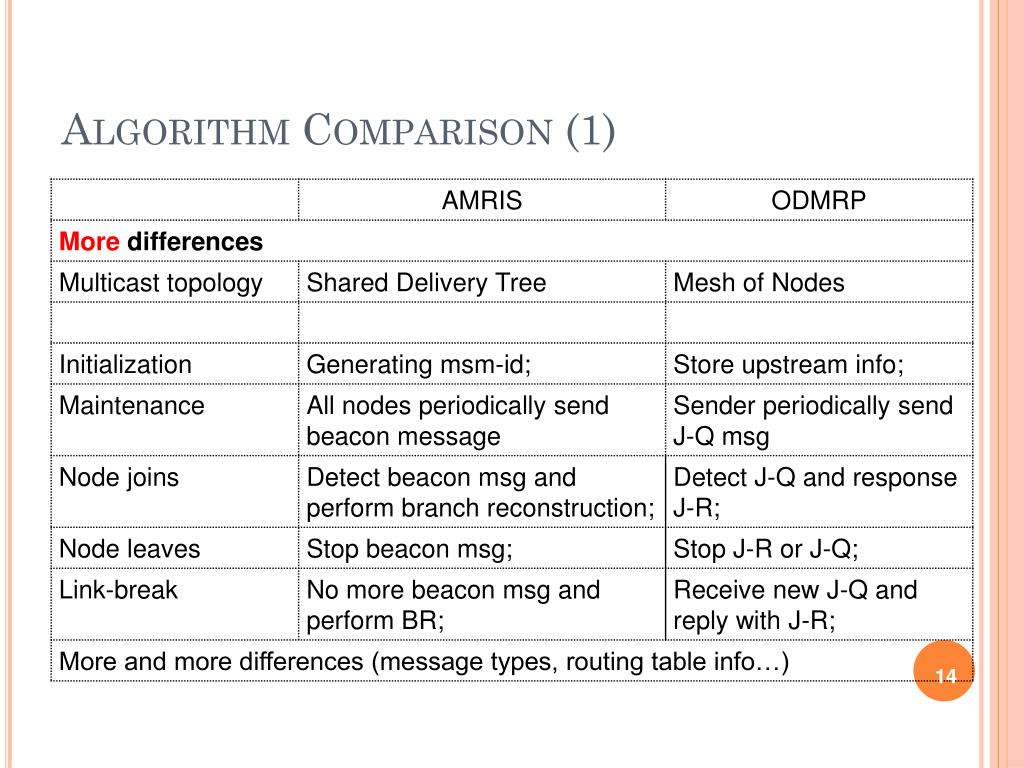

  14. Algorithm Comparison (1)

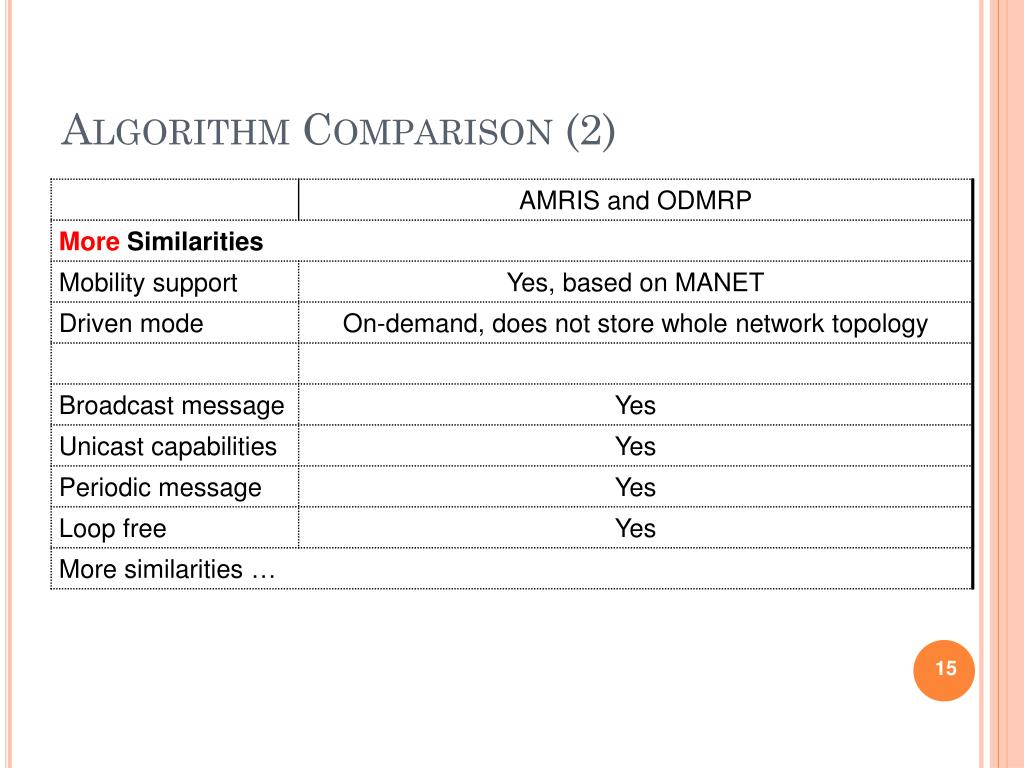

  15. Algorithm Comparison (2)

  16. Performance Comparison (1) Packet Delivery Ratio as a function of mobile speed • # of data packets actually delivered to the destinations versus # of data packets supposed to be received • PDR of ARMIS is speed sensitive

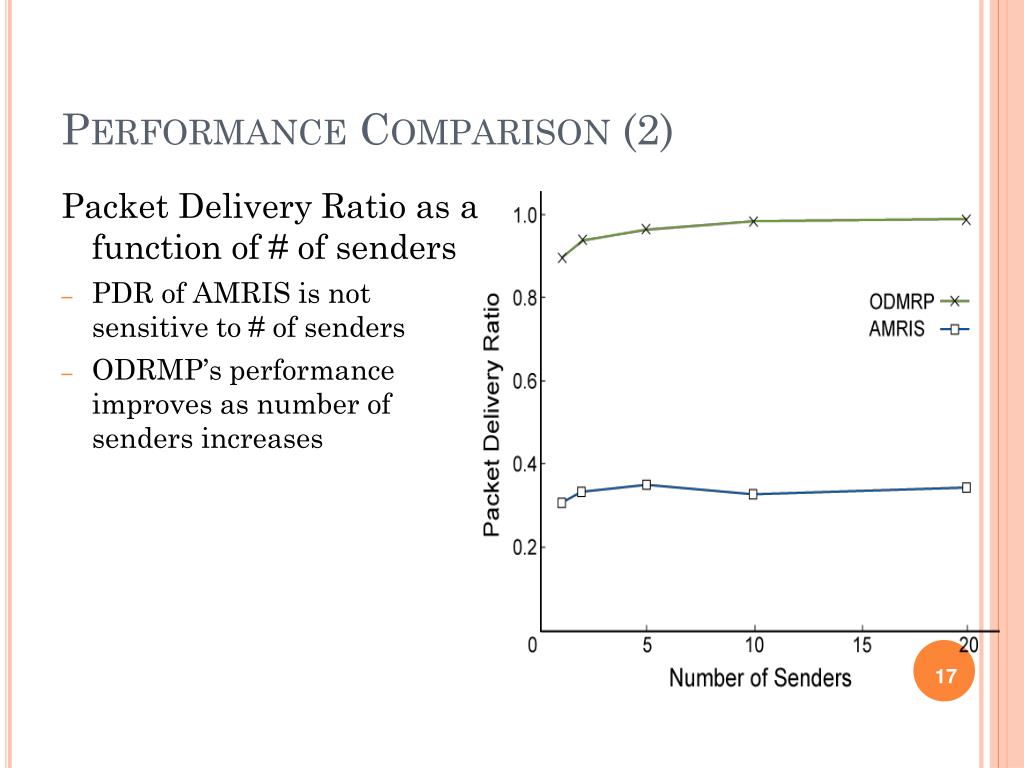

  17. Performance Comparison (2) Packet Delivery Ratio as a function of # of senders • PDR of AMRIS is not sensitive to # of senders • ODRMP’s performance improves as number of senders increases

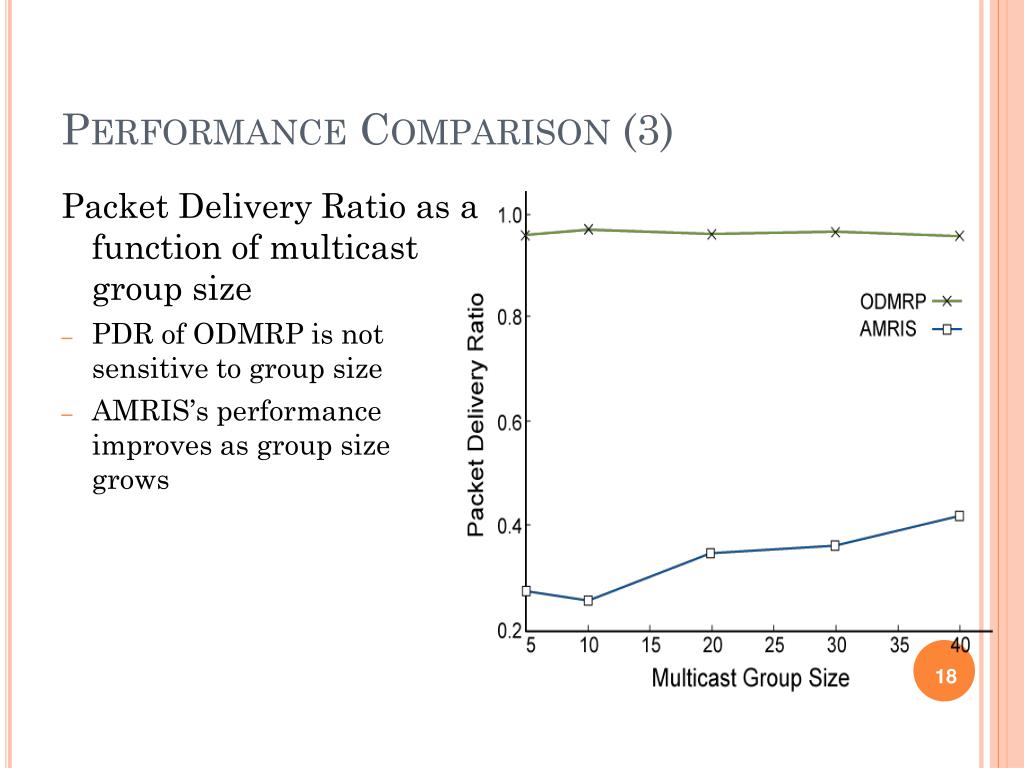

  18. Performance Comparison (3) Packet Delivery Ratio as a function of multicast group size • PDR of ODMRP is not sensitive to group size • AMRIS’s performance improves as group size grows

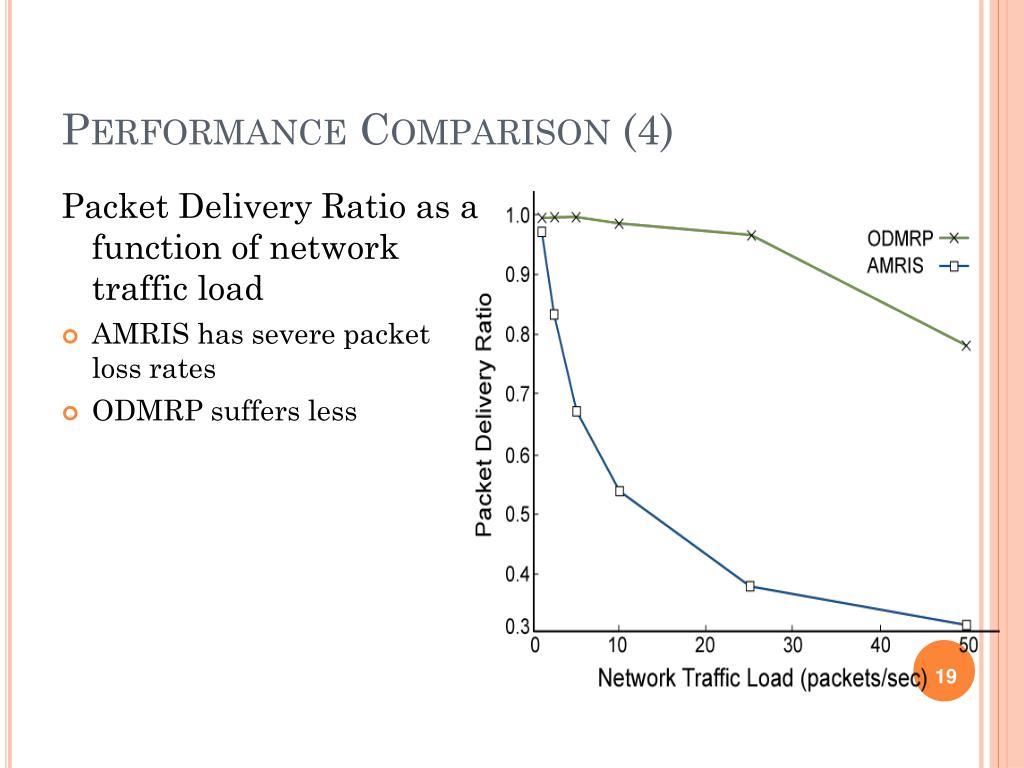

  19. Performance Comparison (4) Packet Delivery Ratio as a function of network traffic load • AMRIS has severe packet loss rates • ODMRP suffers less

  20. Overhead Comparison (1) Number of Control Bytes Transmitted Per Data Bytes Delivered as a function of mobility speed • Control bytes are control packets and data packet headers • Not speed sensitive • AMRIS has lower ratio

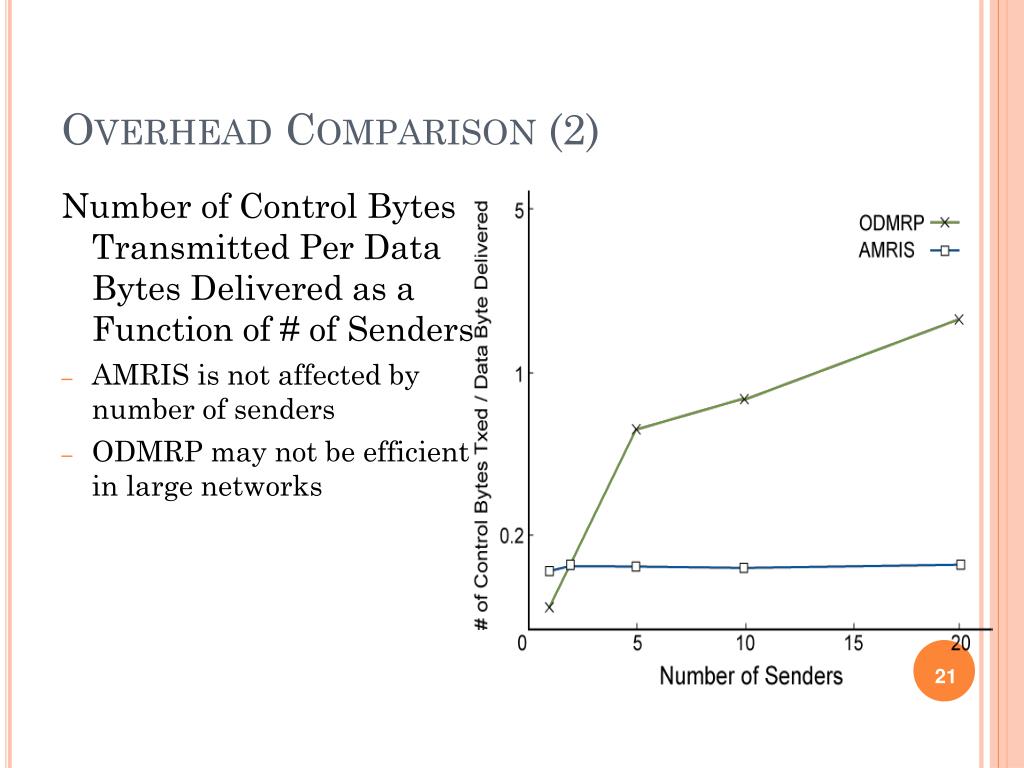

  21. Overhead Comparison (2) Number of Control Bytes Transmitted Per Data Bytes Delivered as a Function of # of Senders • AMRIS is not affected by number of senders • ODMRP may not be efficient in large networks

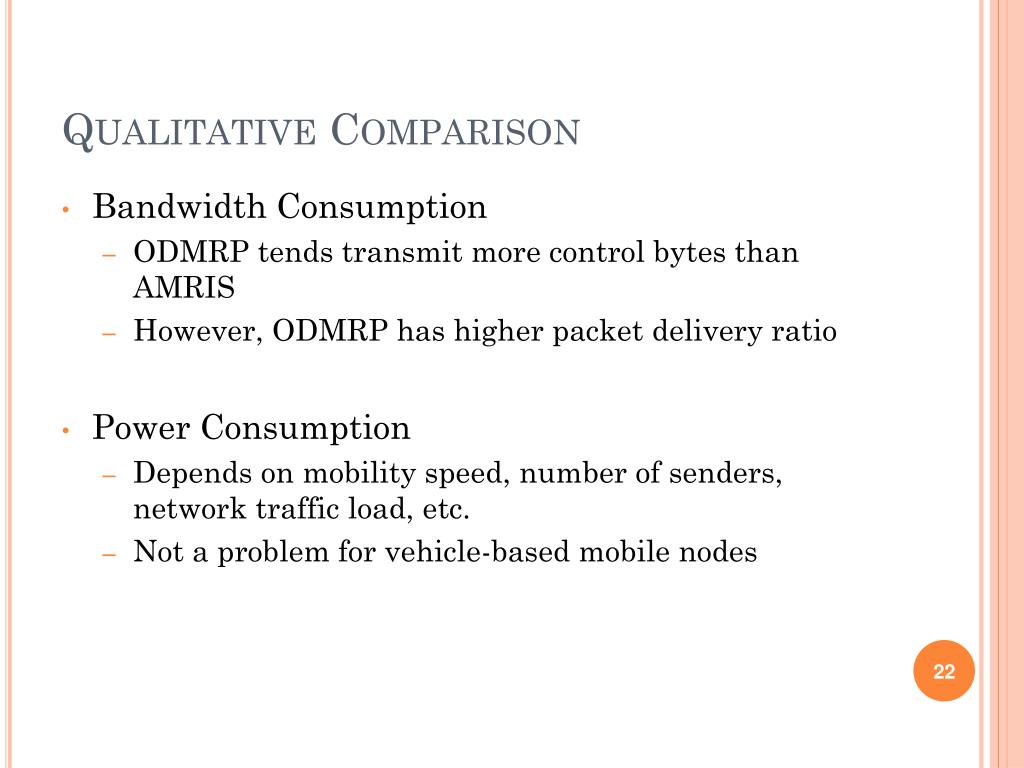

  22. Qualitative Comparison • Bandwidth Consumption • ODMRP tends transmit more control bytes than AMRIS • However, ODMRP has higher packet delivery ratio • Power Consumption • Depends on mobility speed, number of senders, network traffic load, etc. • Not a problem for vehicle-based mobile nodes

  23. References • “A Performance Comparison Study of Ad Hoc Wireless Multicast Protocols”, Sung-Ju Lee, William Su, Julian Hsu, Mario Gerla, and Rajive Bagrodia, Proceedings of IEEE INFOCOM 2000 • “Multicast over wireless mobile ad hoc networks: Present and future directions”, Carlos de Morais Cordeiro, Hrishikesh Gossain and Dharma P. Agrawal, IEEE Network, January 2003 • “Exploring Mesh- and Tree Based Multicast Routing Protocols for MANETs”, Kumar Viswanath, Katia Obraczka and Gene Tsudik • “Capacity of Wireless Mesh Networks Understanding Single Radio, Dual Radio and Multi-Radio Wireless Mesh Networks” • “On the 802.11 Turbulence of Nintendo DS and Sony PSP Handheld Network Games”, Mark Claypool • www.wikipedia.org
