  1. ATLAS Insertable B-Layer (IBL) LHCC Upgrade Review CERN, February 16, 2009 G. Darbo - INFN / Genova LHCC Review Agenda page: http://indico.cern.ch/conferenceDisplay.py?confId=52276

  2. From Replacement to Insertable BL • One and half year ago (29/9/2007) the B-Layer Replacement Workshop. • Serious difficulties found in the original idea of replacement: • Longer than foreseen shutdown of LHC for replacement (>1 year); • Activation of present detector ß safety issues; • Need to dismount service panels, disks, etc to access B-Layer ß time, risk of damage. • ATLAS appointed a B-Layer Task Force (BLTF): • Jan to Jun 2008 – BLTF convened every two weeks, chairs: A.Clark & G.Mornacchi; • July 2008 – BLTF Reported at Bern ATLAS Week, written document sent to the ATLAS EB. • An Insertable B-Layer (IBL)was the main recommendation of the BLTF: • ATLAS will appoint the IBL Project Leader this week; • Very motivated Pixel and Project Office groups, fully behind it.

  3. LHCC: Integrated Luminosity • Integrated luminosity affects detector life – Peak Luminosity affects R/O INTEGRATED LUMINOSITY Integrated Luminosity: 2008-17: 650 fb-1 2013-17: 550 fb-1 New injectors + IR upgrade phase 2 Before LHC accident. Need updated scenario for finalizing the IBL schedule Long Shutdown (8 months) Peak Luminosity: 2017: 3x1034 cm-2s-1 SLHC Start-up Early operation Collimation phase 2 Linac4 + IR upgrade phase 1 Ref: LHCC 1/7/2008 – Roland Garoby

  4. B-Layer Scenarios To maintain Pixel Detector performance with inserted layer, material budget is critical. Development of new local support structure with carbon-carbon foams. WH(120 Gev) SV1 εb=60% Light jets rejection SV1 εb=70% 2-layers R=3.5 cm and 8 cm 2-old layers ATLAS b-inserted as 4-layer R=3.5 cm b-replaced

  5. Main IBL Challenge • Beam pipe extraction and installation of the IBL + new Beam pipe • Complicated by material activation. • Fight everywhere for space: engineers are starting with making a real design. • Layout to fit into tight envelopes between present B-Layer and beam pipe. • Additional services (pipes, opto-fibers, electrical services). • Reduce beam pipe radius (Current internal r = 0.29). IBL assumes r = 0.25, with reduced isolation (from 8mm to 4mm). Smaller radius is investigated. • Keep low the IBL radiation-length: • Low radiation length (X0 = 60% of B-Layer) and smaller detector radius improve current Pixel detector physics performance (even with inefficient B-Layer). • Carbon-carbon foams with low density (ρ ~ 0.1÷0.2 g/cc) and reasonable thermal conductivity (K ~ 6÷18 W/m•K). • Head room in the cooling: low T, small fluid mass. • Electrical services low mass: Al (instead of Cu); high signal bandwidths. • Large active area in the modules (big FE chips). • Front-end chip and sensor design: • Higher radiation dose (200Mrad, 2x1016 neq/cm2), higher R/O bandwidths.

  6. Challenges: Beam Pipe Removal • Tools to dismount Beam Pipe support collars: • Remote access >3 m inside • Activated material – fast operation • Beam pipe must been supported from inside. • Tool has to compensate gravity bow (7m long pipe). Extraction tool Collar in remote position: 3m inside PP1 Ref: IBL Eng. Meeting 25/11/2008 – Yuri Gusakov

  7. B-Layer Replacement - Insertion Smaller radius B-layer to insert in the existing Pixel • 16-staves (current module “active” footprint gives hermetic coverage in phi, but current total width does not fit); IBL will be not shingled in Z (no space). Requires new smaller beam-pipe; beam-pipe Ø is the most important inputs • Pixel Modules: increase live area of the footprint: • New chip design (FE-I4) – live fraction, I/O bandwidth, 200 Mrad; • Sensor – increase radiation hard (smaller radius and ramping up LHC luminosity):3x1015 neq/cm2. New radiation dose simulation is going on with new release of Fluka. R&D and prototyping in 2009, construction 2010-2012;

  8. Possible Layouts Monostave With “agreed” FE-I4 size full coverage • Fighting for space to old b-layer against full coverage • 15 staves looks the most promising, at 35 or 36 mm radius, but mechanically is tight • We may not profit from smaller radius beampipe so much if we want full coverage (agreed module size). Tune FE-I4size? • We are also looking at several bistave options with inependent cooling circuits Flex Hybrid Curved (min R=1m) Straight • Castellated layer • 7 bistaves • 0 tilt • 32.5 IR, 41.5 OR • Bistave atractive: • Good clearace & overlap • More mechaniccally stable • Potenzial cooling redundance • However: • More difficult handling • Support may only be possible on one end 7mm offset Flex Hybrid Coverage Diagram Bistave Ref.: Neal Hartman

  9. Frontend Chip - FE-I4 FE-I3 @ R=5cm • Reasons for a new FE design: • Increase live fraction • New architecture to reduce inefficiencies (L=3xLHC) • New FE-I4 • Pixel size = 250 x 50 µm2 • Pixels = 80 x 336 • Technology = 0.13µm • Power = 0.5 W/cm2 • FE-I4 Design Status • Contribution from 5 laboratories. • Main blocks MPW submitted in Spring 2008. • Full FE-I4 Review: 2/3/3009 • Submission in Summer 3xLHC sLHC LHC inefficiency Hit prob. / DC 20.2mm ~200μm 7.6mm ~19 mm active IBM reticule 16.8mm 8mm active 2.8mm ~2mm Chartered reticule (24 x 32) FE-I3 74% FE-I4 ~89%

  10. Modules & Stave Arrangement • Two module options: • Single chip modules abut one against the next • Small sensor type: like 3D, active edge • Multi chip modules: chip look the same if using multi-chip modules • As present sensor size (~3xFE-I4) : like planar n-on-n • assuming no Z-shingling, no space. W-bond pads

  11. Sensors Options Planar (n-on-n) Pro’s n-on-n is a proven technology Lower Cdet -> lower noise, lower in-time threshold for same power settings in the FE. Partially depleted sensors collect charge Con’s No active edge (?) Guard ring -> dead area in Z, constraints the envelope (?) Charge collected at 600Vbias • Two “silicon” technologies considered: Planar and 3D sensors. • Could profit from 2 large “SLHC” R&D communities. 3D sensor • pro’s: • Larger charge collection after irradiation (but more power in the FE for same time-walk) • Active edge (butting modules) • Lower voltage (<150 V), power after irradiation • Con’s: • column Inefficiency at 90º • Higher Cdet • No experience in “scale” production • Several options and design flavours • Higher cost. Yield? • Other options? Diamonds could be a compatible technology • No cooling issues, low capacitance, no leakage current make them appealing… • Smaller community than silicon…

  12. External Services – ID Endplate • Final services arrangement necessitated improvisation • Cable over-length, mapping changes. Not all improvisations are documented ß in situ cross check is going on before closing of ATLAS. • Entering of nose region is critical even for few additional services, as available envelope is basically taken

  13. External Services • Installation of additional services for IBL is certainly not straight forward • Careful design on flange (and in ID endplate region) is necessary, which must combine • Verification in situ – happening now before closing ID end-plate & ATLAS • New design/drawings (in CATIA for flange) • Pipe routing for eventual CO2 cooling up to USA 15 should be o.k. • Radiation protection aspects have to be considered early enough All installation aspects of new IBL services have to be considered from the very beginning !

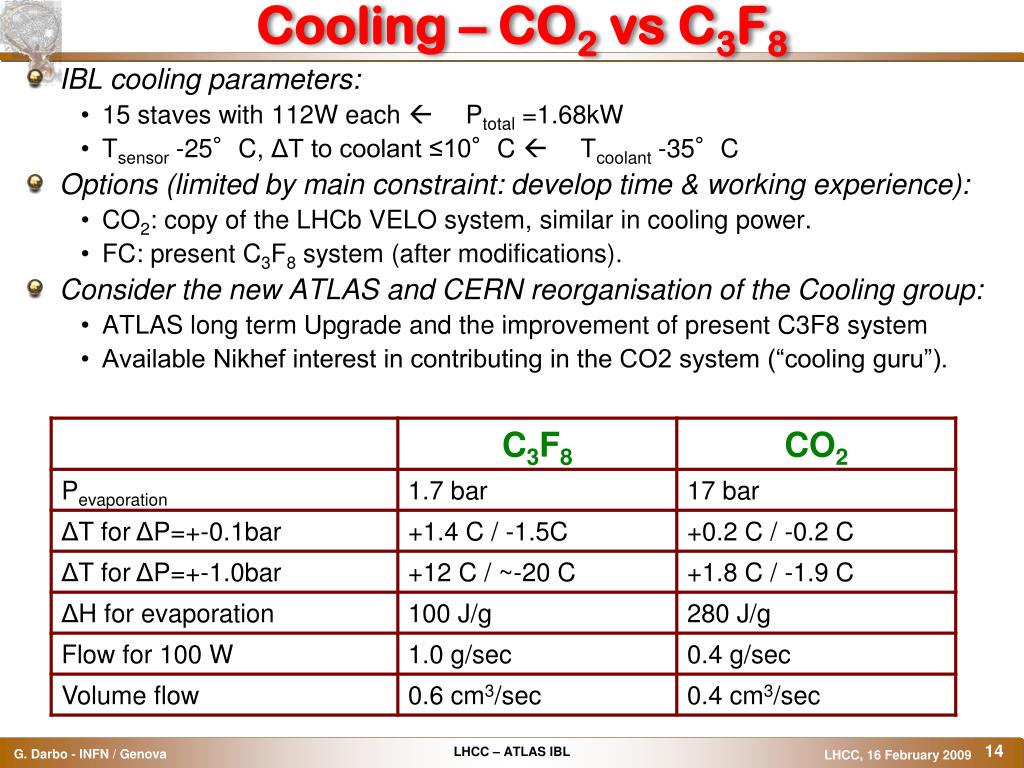

  14. Cooling – CO2 vs C3F8 • IBL cooling parameters: • 15 staves with 112W each ß Ptotal =1.68kW • Tsensor -25°C, ΔT to coolant ≤10°C ß Tcoolant -35°C • Options (limited by main constraint: develop time & working experience): • CO2: copy of the LHCb VELO system, similar in cooling power. • FC: present C3F8 system (after modifications). • Consider the new ATLAS and CERN reorganisation of the Cooling group: • ATLAS long term Upgrade and the improvement of present C3F8 system • Available Nikhef interest in contributing in the CO2 system (“cooling guru”).

  15. IBL Project Organization • IBL Project Leader (IBL PL) reporting to ATLAS and Pixel community: • Final round of IBL PL search – (probably) ATLAS CB nominates this week • Project Documents • Draft WBS exists: used to assign deliverables, costs and interest from ATLAS groups; • TDR in late 2009 (early 2010): TDR should not have options inside (sensor could be the exception); • Schedule: it will be agreed with CMS and LHC. Long shutdown for new triplet used to install. This will happen before the B-Layer will have seen life dose. • Funding Model • The overall model for the B-Layer Replacement was that this part of the detector was a “consumable”. • A dedicated line of funding, contained inside the Pixel M&O B, exists for the B-Layer Replacement. This will cover part of the costs. • First estimate would indicate a cost of about 7-8 MCHF, including new beampipe.

  16. Conclusions • Big progress in convergence to a B-Layer project: IBL • Feasibility studies on-going and “strawman” coming soon for several subparts • Organization structure will have soon Project Leader • Cost evaluation and funding model • Interest from groups to contribute. Open to Pixel and ATLAS • Challenging project • It will be an “assurance” for present B-Layer both for radiation end-of-life and for hard failures • Time scale is short, need optimization of design and prototyping but no time for basic R&D • Options should be kept small: decision between option is usually long and require parallel efforts.

  17. BACKUP SLIDES

  18. Critical Issues – Available Envelopes • Nominal Current B-Layer inner radius is just over 46 mm. • Envelope for B-Layer is 45.5 mm. • Assumed that is possible to reduce the beam pipe envelope • Reduce beam pipe isolation • Smaller beam pipe? R=25mm? • Need also clearance for beam pipe alignment (together with IBL) Current envelopes

  19. FE-I4 Architecture: Obvious Solution to Bottleneck • >99% or hits will not leave the chip (not triggered) • So don’t move them around inside the chip! (this will also save digital power!) • This requires local storage and processing in the pixel array • Possible with smaller feature size technology (130nm) Local Buffers pixels pixels Column pair bus Data transfer clocked at 20MHz bottleneck Sense amplifiers Buffer & serialiser Serial out trigger End of columnbuffer 64 deep trigger FE-I3 Column pair FE-I4 Column pair

  20. FE-I4_proto1 Collaboration • Participating institutes: Bonn, CPPM, Genova, LBNL, Nikhef. Bonn: D. Arutinov, M.Barbero, T. Hemperek, M. Karagounis. CPPM: D. Fougeron, M. Menouni. Genova: R. Beccherle, G. Darbo. LBNL: R. Ely, M. Garcia-Sciveres, D. Gnani, A. Mekkaoui. Nikhef: R. Kluit, J.D. Schipper FE-I4-P1 3mm LDORegulator 61x14 array Control Block ChargePump CapacitanceMeasurement SEU test IC 4mm DACs CurrentReference ShuLDO+trist LVDS/LDO/10b-DAC 4-LVDS Rx/Tx

  21. Internal Services – Stave Cable • Stave cable still on conceptual stage: • Cable using System Task force recommended signals + direct power. • Wire bonding MUST be done on stave • Many ideas (none developed to the end) • Single cable (conceptually like a circuit board to connect the FE chips) • Monolithic cable on top or on the bottom • Single cable also possible • Space is limited, what about reworking? End-of-stave connectors Unfolded cable Monolithic Cable on the Bottom

  22. From End-of-Stave (PP0) to PP1 “Strawman” Issuess: • X-section of LV cables • No active EOS -> 6m (FE-I4 to opto-board) • Interconnection space at PP0. • PP1 connectors… …more work to come to a design - EOS (PP0) Ref.: Marco Oriundo, Danilo Giugni, …

  23. LHCb-VELO Cooling System 2PACL (2-Phase Accumulator Controlled Loop) principle of cooling: • Liquid overflow => no mass flow control • Low vapor quality => good heat transfer • No local evaporator control, evaporator is passive in detector • Very stable evaporator temperature control with 2-phase accumulator (P4-5 = P7) Long distance P4-5 P7 5 Heat out Heat out Condenser 6 Heat in 4 Heat in 2 3 evaporator Restrictor Heat exchanger 1 2-Phase Accumulator Pump Vapor Liquid Pressure 2 3 2-phase 4 P7 5 1 6 Enthalpy Enthalpy

  24. R/O Links • Changes (strawman R/O from System Task force): • Down link (TTC) stay the same 40Mb/s (Manchester coding) – to 2 FE-I4 (?) – need clock multiplier in the FE-I4 (issues of SEU for clock multiplier). • Uplink use 160 Mb/s data+clock (8b/10b encode) – Single FE-I4 • Need new BOC design (substitute custom ASIC(s) with FPGA) • ROD could stay the same: reprogram FPGA (or new design for x2 links: need also 2 S-Links) • Use GRIN fibers (under rad-test for SLHC, or new Ericsson) • Opto-board at PP1 – need test of reliable electrical signal transmission (~4m) Present system

  25. Powering and DCS • Power scheme – Independent powering with PP1 regulators: • Use, on FE-I4 chip, x2 DC/DC and/or LDO conversion • DCS: similar implementation that today • Temperature sensors not on each module, smaller granularity • More than 600V if planar sensors? • Minor changes needed but it has a lot of different components to build/acquire. PP2 regulator 2.5V LDO 3.3V DC/DC FE-I4 Chip (the same we have now)‏ Remote sensing not needed for LDO (?) at PP1 for DC/DC
