FLUID PROPERTIES

FLUID PROPERTIES. Independent variables. SCALARS. VECTORS. TENSORS. , w. REFERENCE FRAME. , v. , u. SCALARS. Need a single number to represent them: P , T , ρ. besttofind.com. Temperature. May vary in any dimension x , y , z , t. www.physicalgeography.net/fundamentals/7d.html.

fadhila
Télécharger la présentation

FLUID PROPERTIES

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. FLUID PROPERTIES Independent variables SCALARS VECTORS TENSORS

  2. , w REFERENCE FRAME , v , u

  3. SCALARS Need a single number to represent them: P, T, ρ besttofind.com Temperature May vary in any dimension x, y, z, t www.physicalgeography.net/fundamentals/7d.html

  4. VECTORS Have length and direction Need three numbers to represent them: http://www.xcrysden.org/doc/vectorField.html

  5. Unit vector = vector whose length equals 1 z y x

  6. VECTORS In terms of the unit vector:

  7. CONCEPTS RELATED TO VECTORS Nabla operator: Denotes spatial variability Dot Product:

  8. CONCEPTS RELATED TO VECTORS CrossProduct:

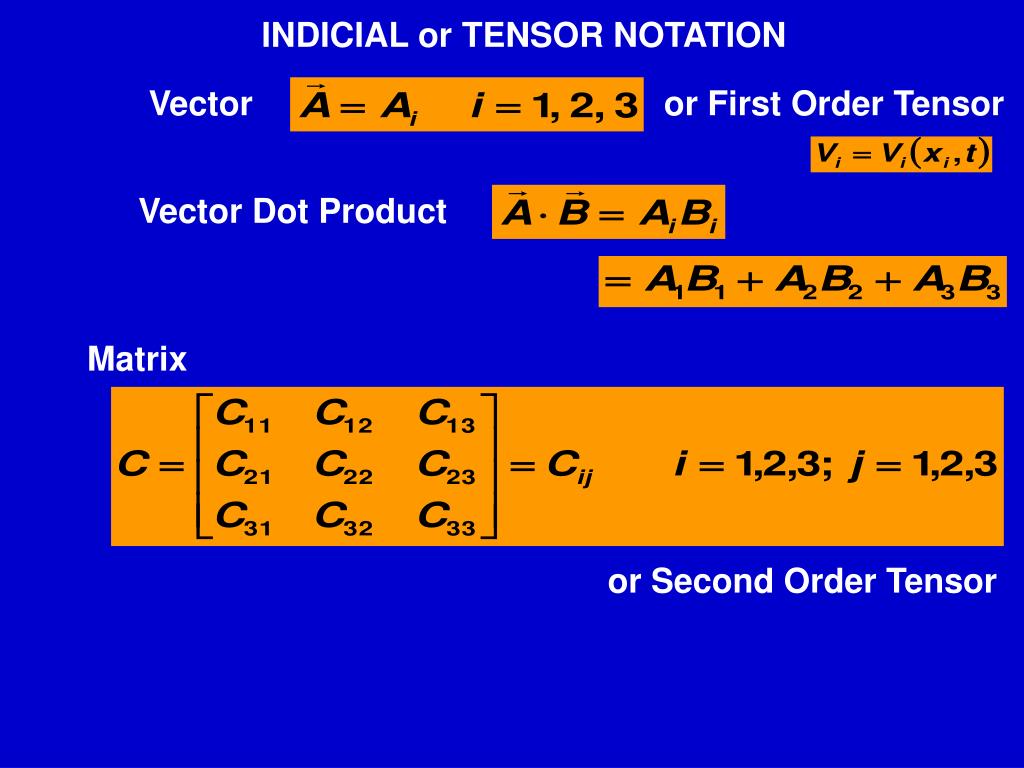

  9. INDICIAL or TENSOR NOTATION Matrix Vector Vector Dot Product or First Order Tensor or Second Order Tensor

  10. INDICIAL or TENSOR NOTATION Gradient of Scalar Gradient of Vector Special operator – Kronecker Delta Second Order Tensor

  11. TENSORS Need nine numbers to represent them:

  12. For a fluid at rest: Normal (perpendicular) forces caused by pressure

  13. MATERIAL (or SUBSTANTIAL or PARTICLE) DERIVATIVE

  14. Fluids Deform more easily than solids Have no preferred shape

  15. Deformation, or motion, is produced by a shear stress z u x μ= molecular dynamic viscosity [Pa·s = kg/(m·s)]

  16. Continuum Approximation Even though matter is made of discrete particles, we can assume that matter is distributed continuously. This is because distance between molecules << scales of variation ψ(any property) varies continuously as a function of space and time space and time are the independent variables In the Continuum description, need to allow for relevant molecular processes – Diffusive Fluxes

  17. Diffusive Fluxes z t = 0 e.g. Fourier Heat Conduction law: x Continuum representation of molecular interactions This is for a scalar (heat flux – a vector itself) but it also applies to a vector (momentum flux) t = 1 t = 2

  18. Diffusive Fluxes (of momentum) Shear stress is proportional to the rate of shear normal to which the stress is exerted at molecular scales µ is the molecular dynamic viscosity = 10-3 kg m-1 s-1 for water is a property of the fluid Shear stress has units of kg m-1 s-1 m s-1 m-1 = kg m-1 s-2 or force per unit area or pressure: kg m s-2 m-2 = kg m-1 s-2

  19. Net momentum flux by u

  20. Diffusive Fluxes (of momentum) For a vector (momentum), the diffusion law can be written as (for an incompressible fluid): Shear stress linearly proportional to strain rate – Newtonian Fluid (viscosity is constant)

  21. Boundary Conditions z u Zero Flux x No-Slip [u (z = 0) = 0]

  22. Hydrostatics - The Hydrostatic Equation g z p + (∂p/∂z ) dz z = z0 + dz dz z = z0 p Integrating in z: A

  23. Example – Application of the Hydrostatic Equation - 1 Find h z AC Downward Force? Weight of the cylinder = W Upward Force? h Pressure on the cylinder = F H Pressure on the cylinder = F = W Same result as with Archimedes’ principle (volume displaced = hAc) so the buoyant force is the same as F

  24. Example – Application of the Hydrostatic Equation - 2 Find force on bottom and sides of tank z On bottom? AT = L W x W On vertical sides? dFx Integrating over depth (bottom to surface) D L Same force on the other side
