  1. By Dirk Beyer, Alessandro Cimatti, Alberto Griggio, Erkan Keremoglu and Roberto Sebastiani Software Model Checking via Large-Block Encoding Presentation By: Pashootan Vaezipoor Simon Fraser University (Spring 09)

  2. Introduction • A successful approach to model checking is through construction and analysis of an abstract reachability tree (ART) + predicate abstraction Unwind PresentationBy: Pashootan Vaezipoor Simon Fraser University (Spring 09)

  3. Introduction • ART nodes consist of • Control-Flow Location • Call stack • Data State formulas • In Single-Block Encoding (SBE) each program op is represented by a single edge in ART • Huge number of paths and nodes • But in Large-Block Encoding (LBE) entire part of the program is represented by an edge • Smaller number of paths are enumerated in ART • Exponential reduction in number of states (maybe) PresentationBy: Pashootan Vaezipoor Simon Fraser University (Spring 09)

  4. SBE toLBE: Consequences • We use Satisfiability Modulo Theories (SMT) tradeoff PresentationBy: Pashootan Vaezipoor Simon Fraser University (Spring 09)

  5. SBE toLBE: Example SBE LBE PresentationBy: Pashootan Vaezipoor Simon Fraser University (Spring 09)

  6. Program and CFA • We work on a simple imperative PL • Assume Op • Assignment • Just integers • Program is presented by a Control Flow Automaton (CFA) • CFA: A(L, G) • Program: P = (A, l0, lE) • A concrete data state of the program is a variable assignment like c that assigns to each variable an integer value • A formula φ represents the set S of states c that: • S = {c | c |= φ} • SPOP (φ): represents the set of data states that are reachable from states in region φafter applying OP PresentationBy: Pashootan Vaezipoor Simon Fraser University (Spring 09)

  7. Predicate Abstraction • We define precision (like π) as a finite subset from the universal predicate set of the program • Cartesian Predicate Abstraction: • A CartPAφ cπ of a formula φ is the strongest conjunction of predicates from π entailed by φ • This is used as an Abstract State • Boolean Predicate Abstraction: • A BoolPAφ Bπ of a formula is the strongest combination of predicates from π entailed by φ PresentationBy: Pashootan Vaezipoor Simon Fraser University (Spring 09)

  8. Predicate Abstraction tradeoff PresentationBy: Pashootan Vaezipoor Simon Fraser University (Spring 09)

  9. Single-Block Encoding

  10. ART-Based SMC with SBE • The Precision function assigns to each program location, a precision formula • The nodes of ART are like n=(l, φ) • The tree is complete when there are no uncovered nodes, or all possible abstract successor states are present in the ART as the children of the node • If the final ART does not have any error nodes, then we are done • Else the error path is checked for feasibility • If feasible: the error is reported • If not feasible: refinement! • For practical reasons, SBEs use Cartesian abstraction PresentationBy: Pashootan Vaezipoor Simon Fraser University (Spring 09)

  11. Large-Block Encoding

  12. Summarization of CFA • Each large control-flow subgraph that is free of loops is replaced with a single control-flow edge with a large formula • This is done with applying the following rules: • Rule 0 (Error Sink): make all error points, a sink • Rule 1 (Sequence): remove intermediate nodes and go directly to successor nodes • Rule 2 (Choice): If there are two edges btw two nodes we should replace that with a single edge PresentationBy: Pashootan Vaezipoor Simon Fraser University (Spring 09)

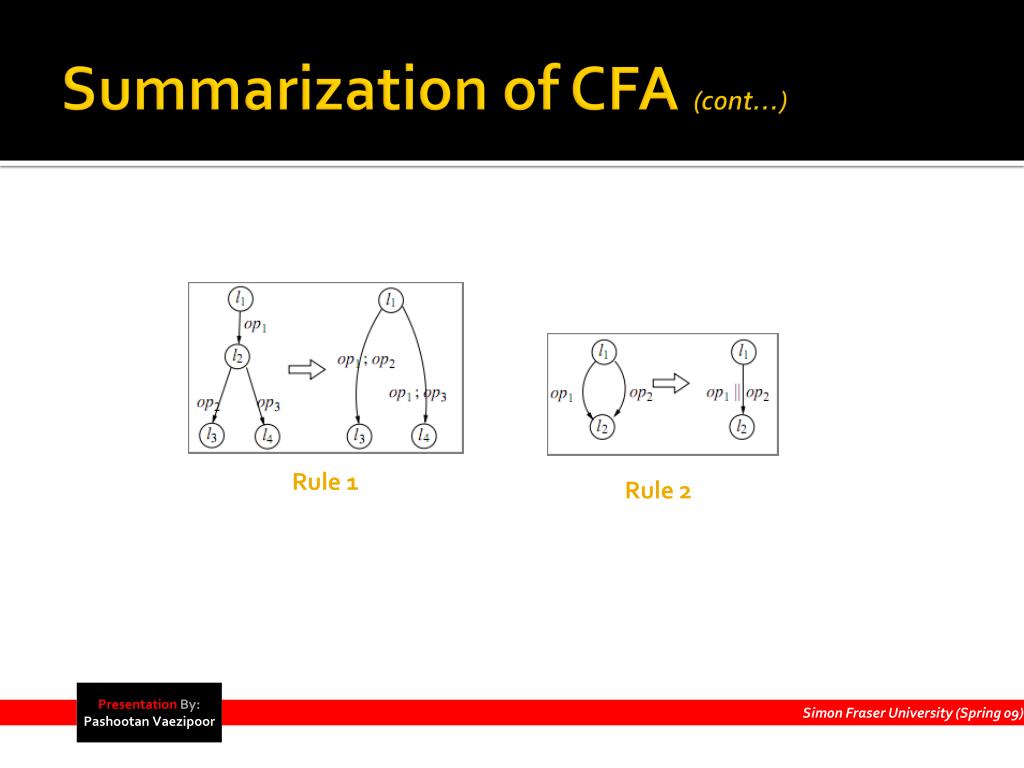

  13. Summarization of CFA (cont…) Rule 1 Rule 2 PresentationBy: Pashootan Vaezipoor Simon Fraser University (Spring 09)

  14. Example PresentationBy: Pashootan Vaezipoor Simon Fraser University (Spring 09)

  15. SBE vs. LBE • LBE: • Possibly exponentially smaller ARTs • Less abstract refinement steps • Each step is more expensive than SBE • More expressive representation of abstract states PresentationBy: Pashootan Vaezipoor Simon Fraser University (Spring 09)

  16. Experimental Configs • In the paper, BLAST is used for the model checking phase • All four configs are tested: • bfs • dfs • predH 0 • predH 7 • The config–dfs –predH 7 is the winner for programs without defects • For unsafe programs –bfs –predH 7 is winner PresentationBy: Pashootan Vaezipoor Simon Fraser University (Spring 09)

  17. Performance Results PresentationBy: Pashootan Vaezipoor Simon Fraser University (Spring 09)

  18. Experiments • In the experiments, all four combinations of LBE vs. SBE and Cartesian vs. Boolean abstraction are tested • Results: • SBE doesn’t benefit from Boolean Abstraction • Combination of LBE with Cartesian Abstraction failed to solve any experiments due to the loss of precision • SBE + CartAbs is OK • LBE + BoolAbs is OK PresentationBy: Pashootan Vaezipoor Simon Fraser University (Spring 09)
