  1. NEES SFSI Demonstration Project Project Meeting – August 1, 2005 Austin, TX Matthew Dryden Prof. Gregory Fenves University of California, Berkeley

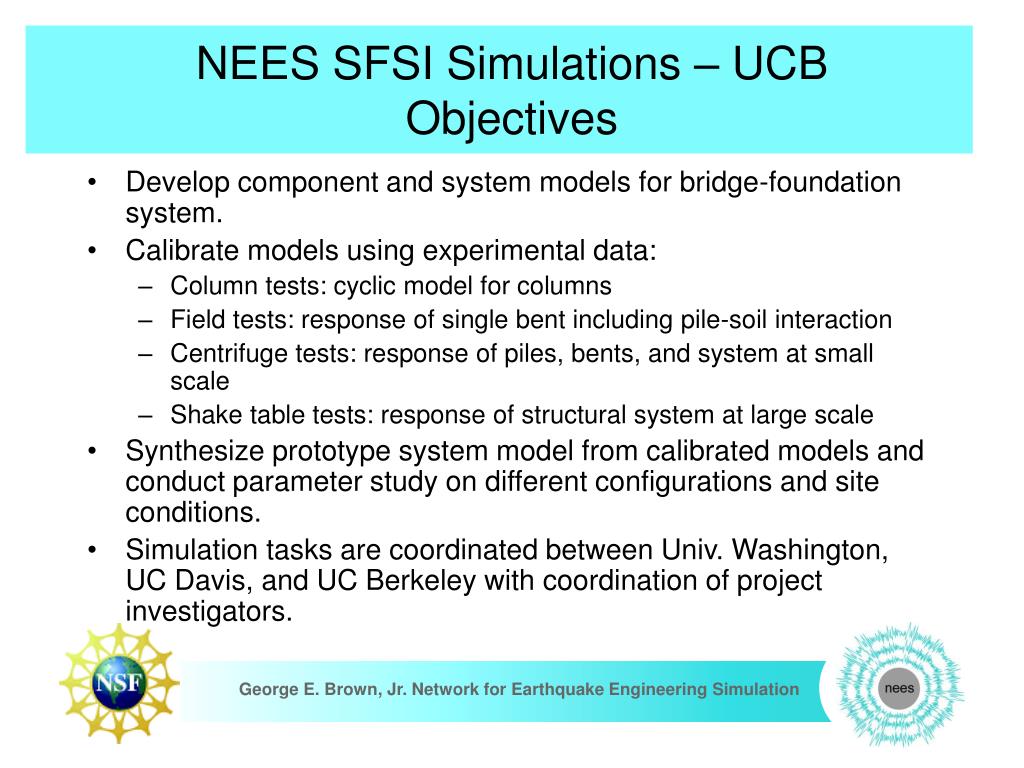

  2. NEES SFSI Simulations – UCBObjectives • Develop component and system models for bridge-foundation system. • Calibrate models using experimental data: • Column tests: cyclic model for columns • Field tests: response of single bent including pile-soil interaction • Centrifuge tests: response of piles, bents, and system at small scale • Shake table tests: response of structural system at large scale • Synthesize prototype system model from calibrated models and conduct parameter study on different configurations and site conditions. • Simulation tasks are coordinated between Univ. Washington, UC Davis, and UC Berkeley with coordination of project investigators.

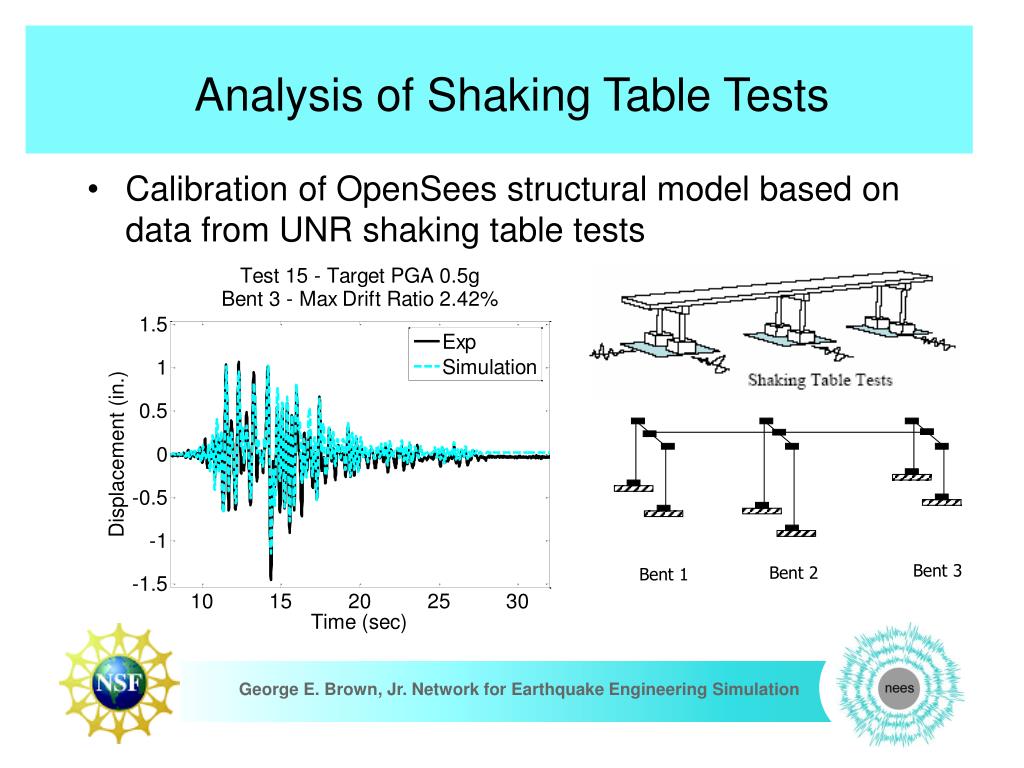

  3. Bent 3 Bent 2 Bent 1 Analysis of Shaking Table Tests • Calibration of OpenSees structural model based on data from UNR shaking table tests

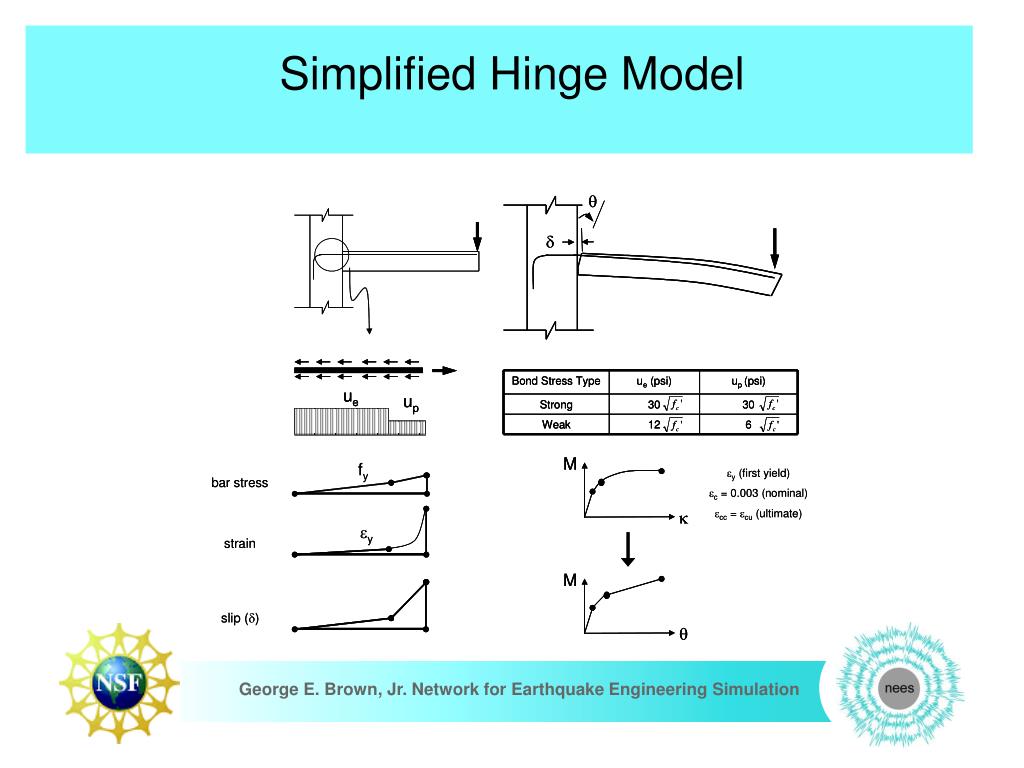

  4. Simplified Hinge Model

  5. Simplified Hinge Model

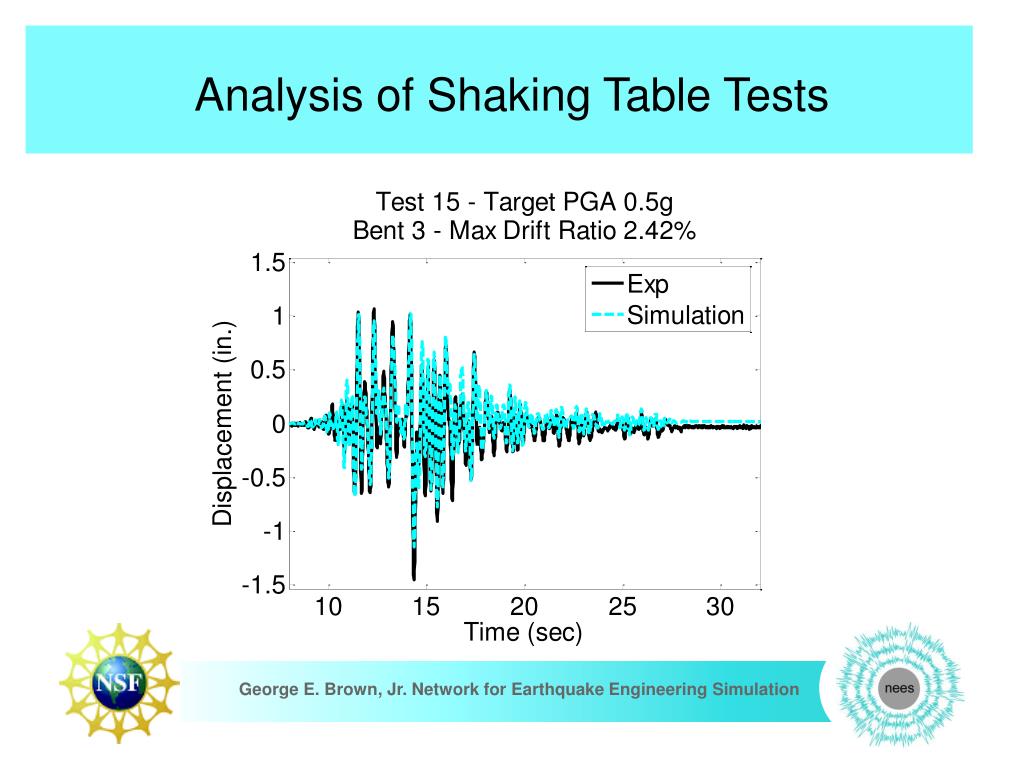

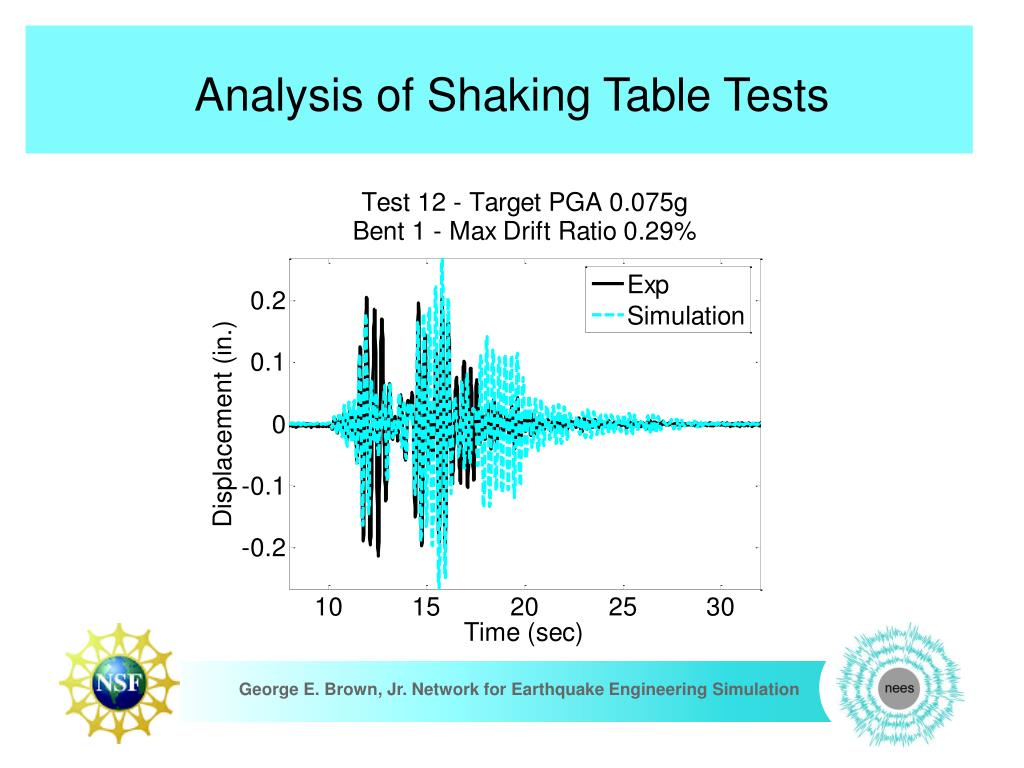

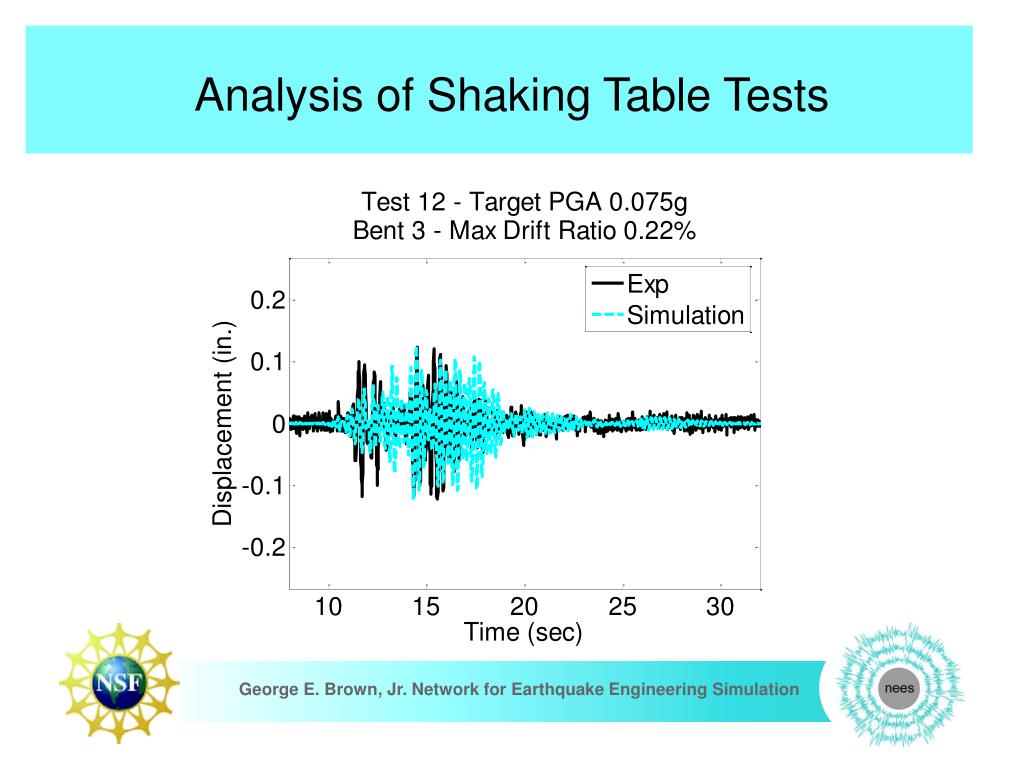

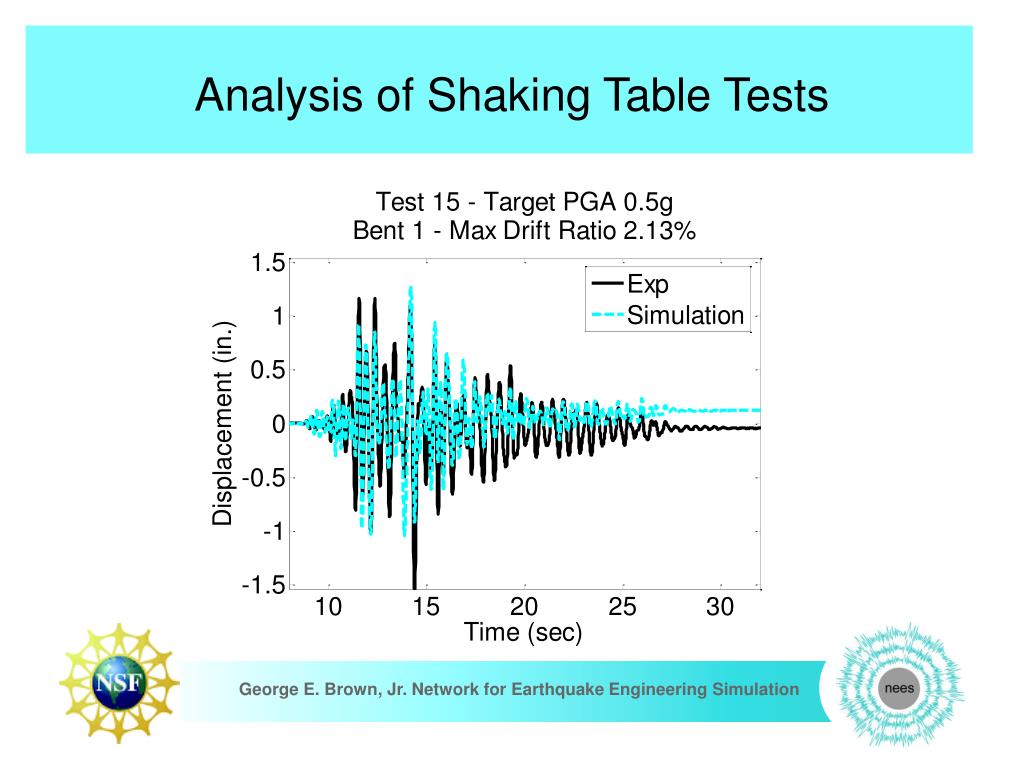

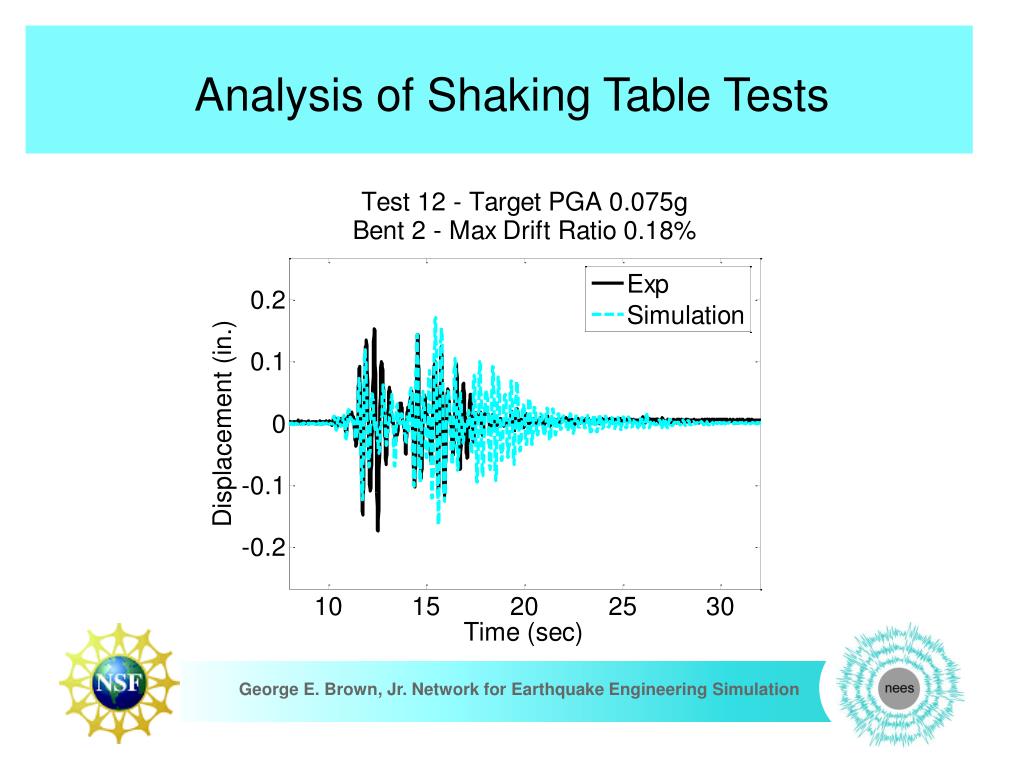

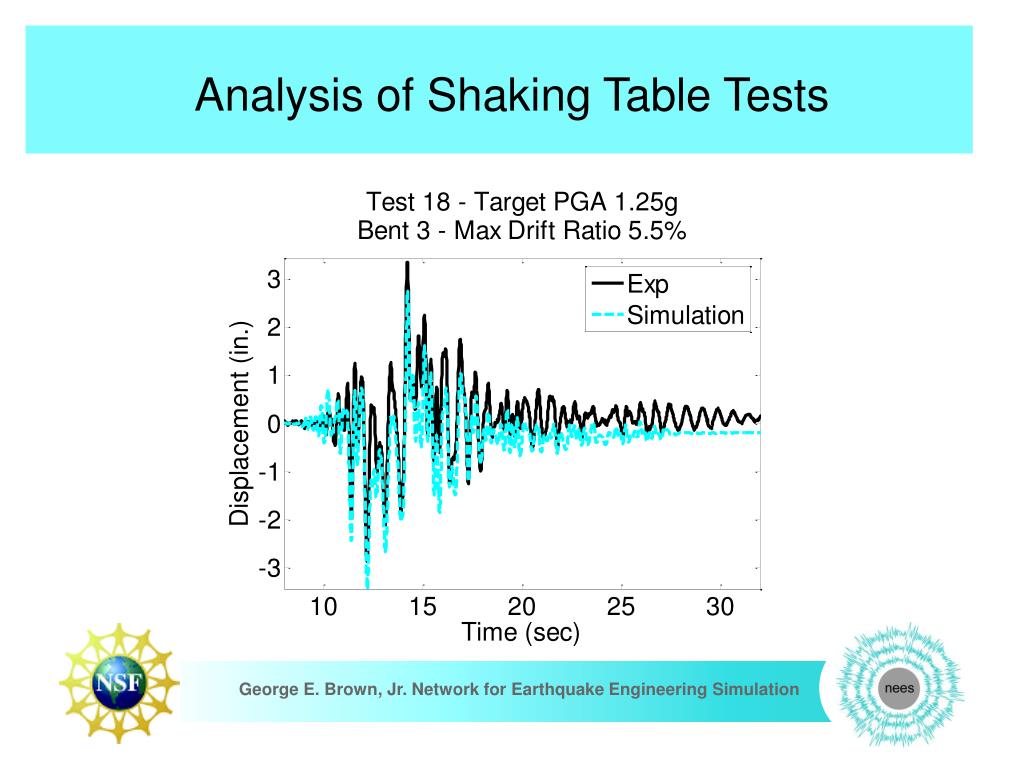

  6. Analysis of Shaking Table Tests

  7. Analysis of Shaking Table Tests

  8. Analysis of Shaking Table Tests

  9. Analysis of Shaking Table Tests

  10. Analysis of Shaking Table Tests

  11. Analysis of Shaking Table Tests

  12. Analysis of Shaking Table Tests

  13. Analysis of Shaking Table Tests

  14. Analysis of Shaking Table Tests

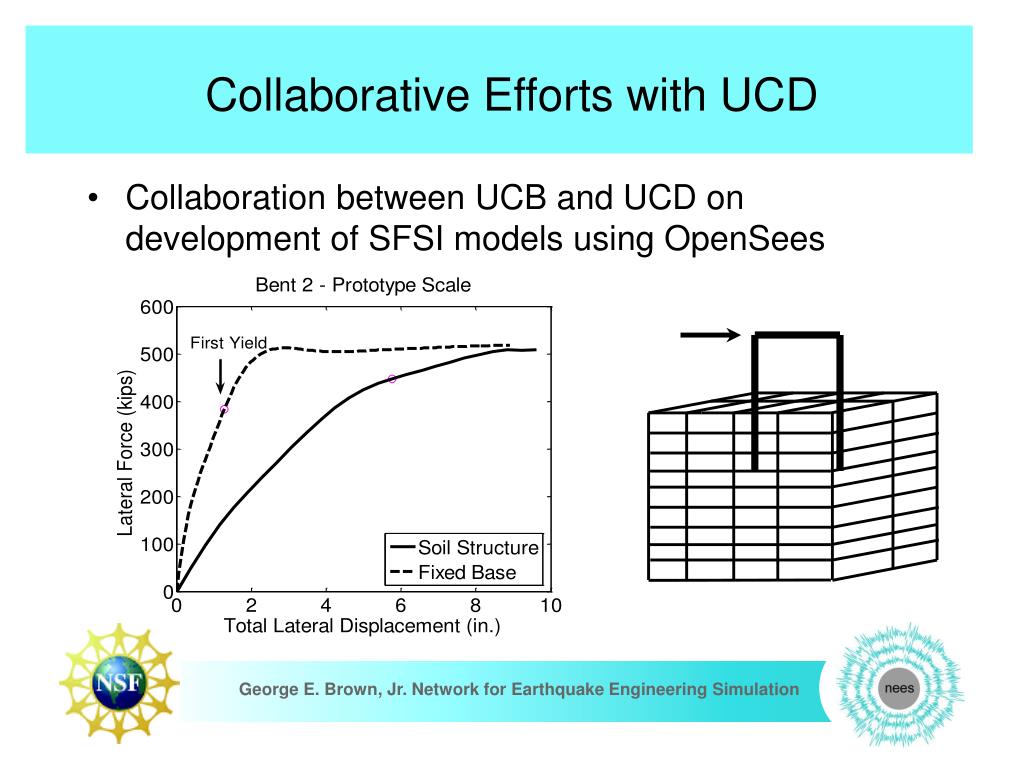

  15. Collaborative Efforts with UCD • Collaboration between UCB and UCD on development of SFSI models using OpenSees

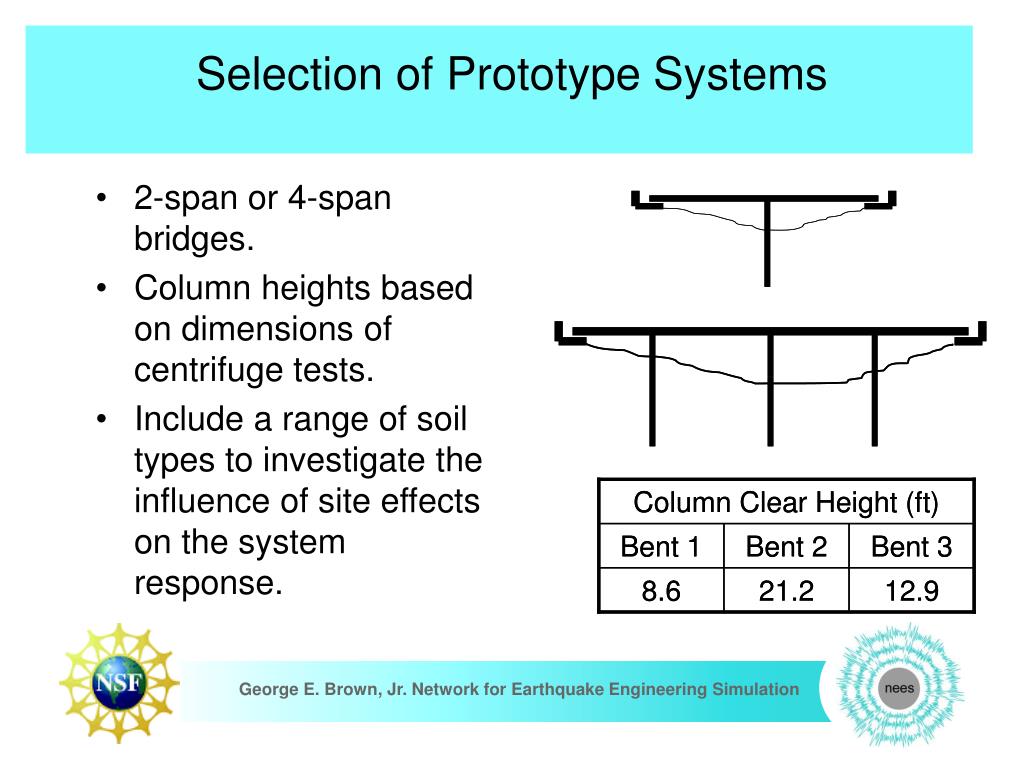

  16. 2-span or 4-span bridges. Column heights based on dimensions of centrifuge tests. Include a range of soil types to investigate the influence of site effects on the system response. Selection of Prototype Systems

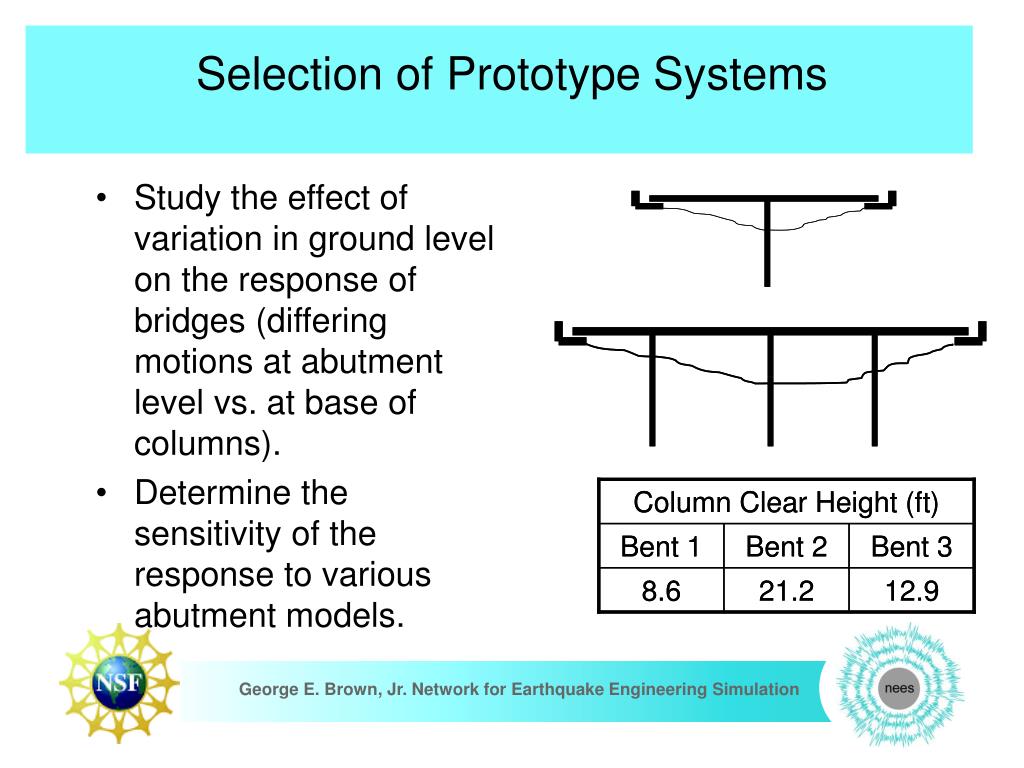

  17. Study the effect of variation in ground level on the response of bridges (differing motions at abutment level vs. at base of columns). Determine the sensitivity of the response to various abutment models. Selection of Prototype Systems

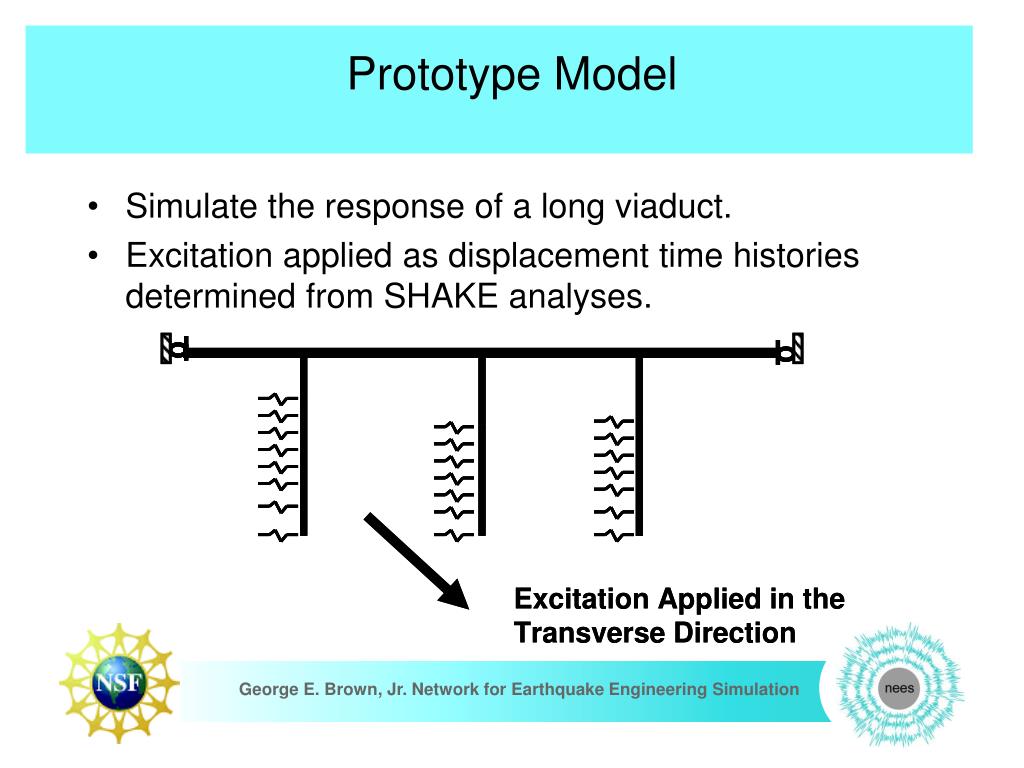

  18. Prototype Model • Simulate the response of a long viaduct. • Excitation applied as displacement time histories determined from SHAKE analyses.

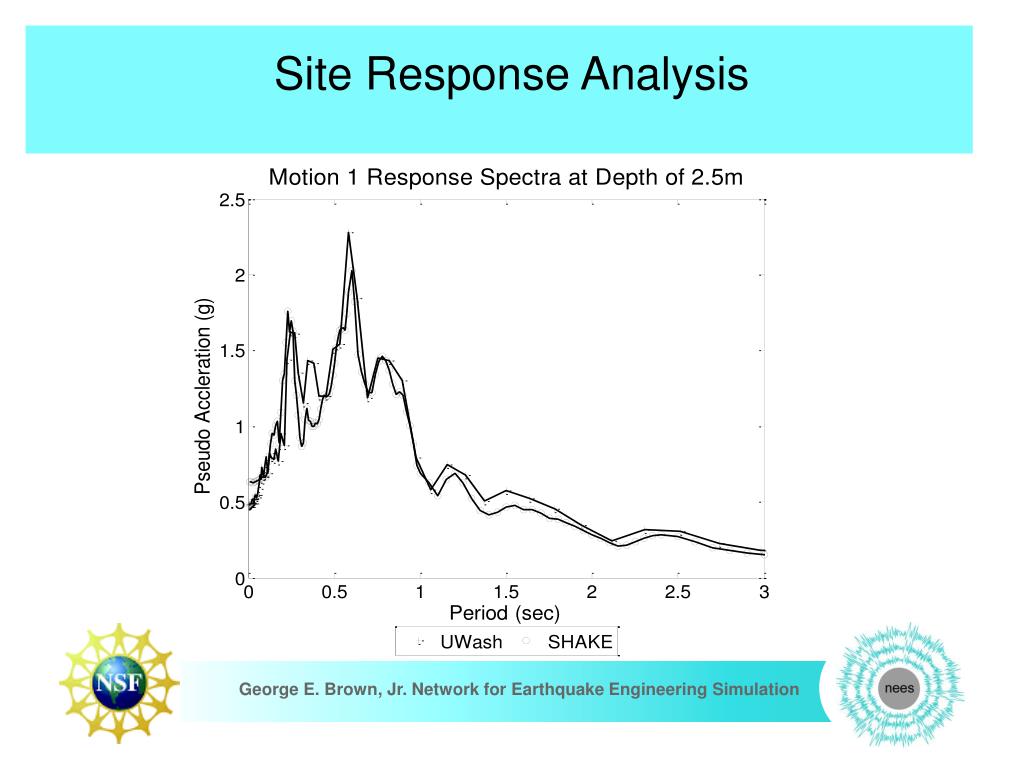

  19. Site Response Analysis

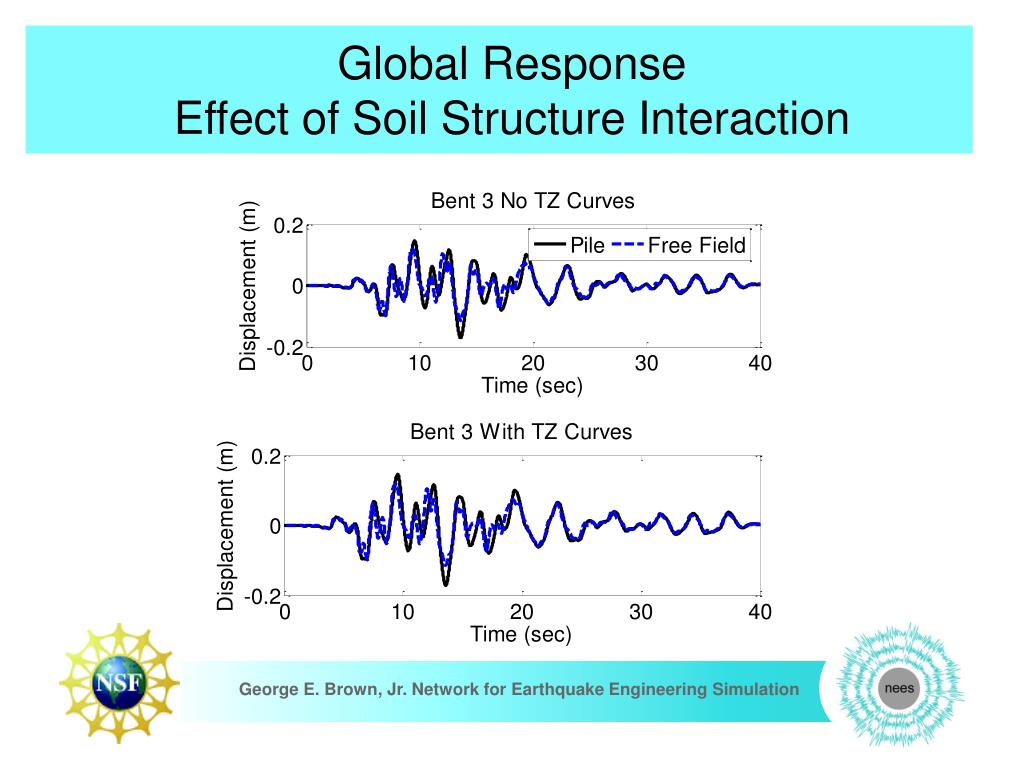

  20. Global ResponseEffect of Soil Structure Interaction

  21. Global ResponseEffect of Soil Structure Interaction

  22. Global ResponseEffect of Soil Structure Interaction

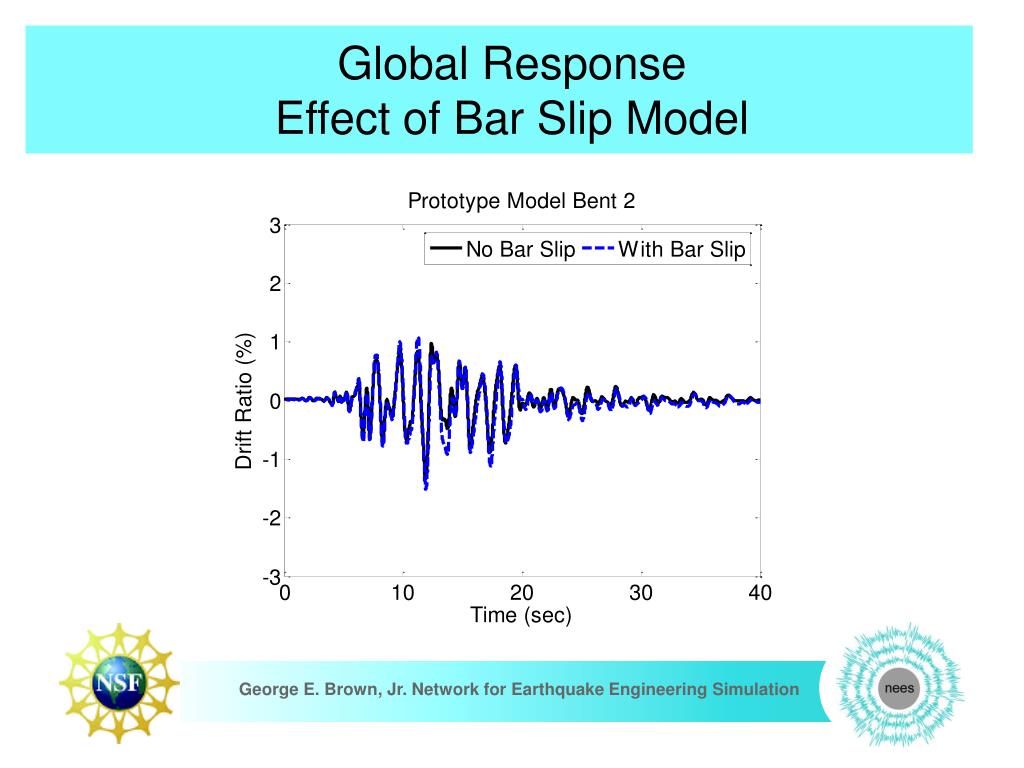

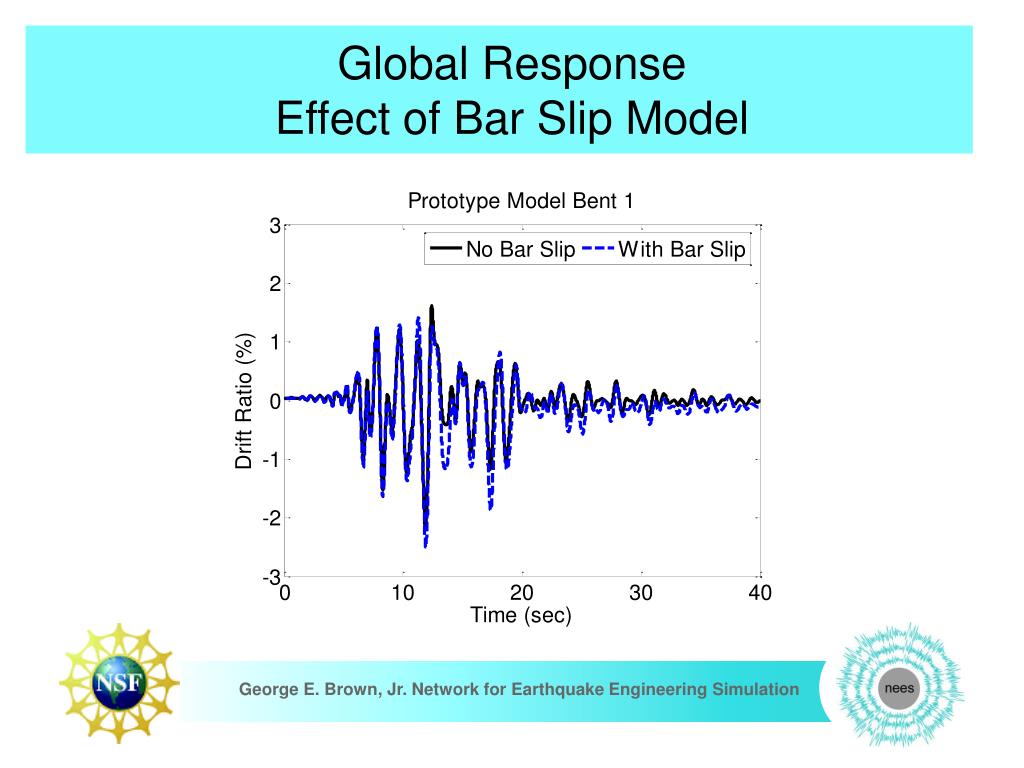

  23. Global ResponseEffect of Bar Slip Model

  24. Global ResponseEffect of Bar Slip Model

  25. Global ResponseEffect of Bar Slip Model

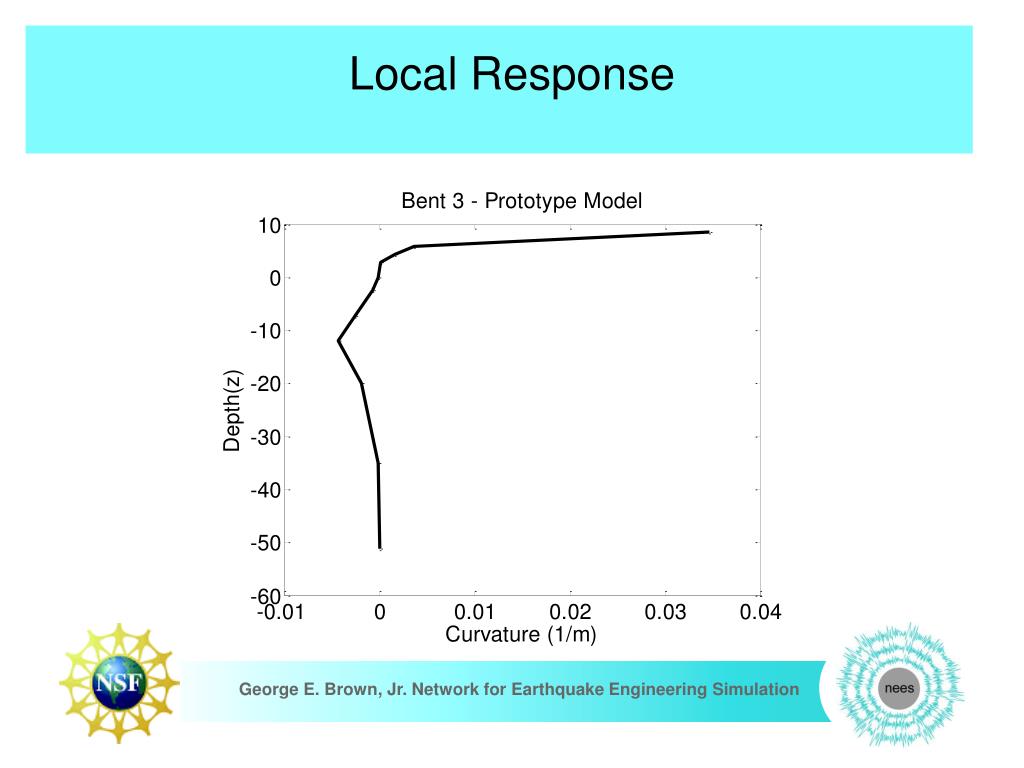

  26. Local Response

  27. Local Response

  28. Local Response

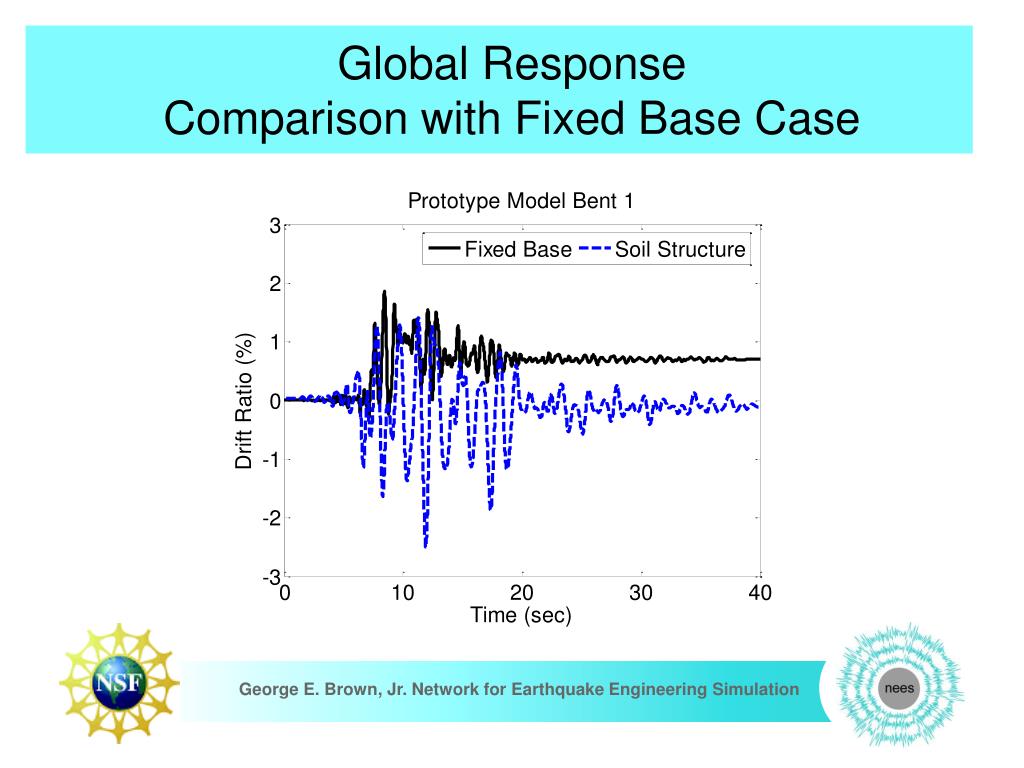

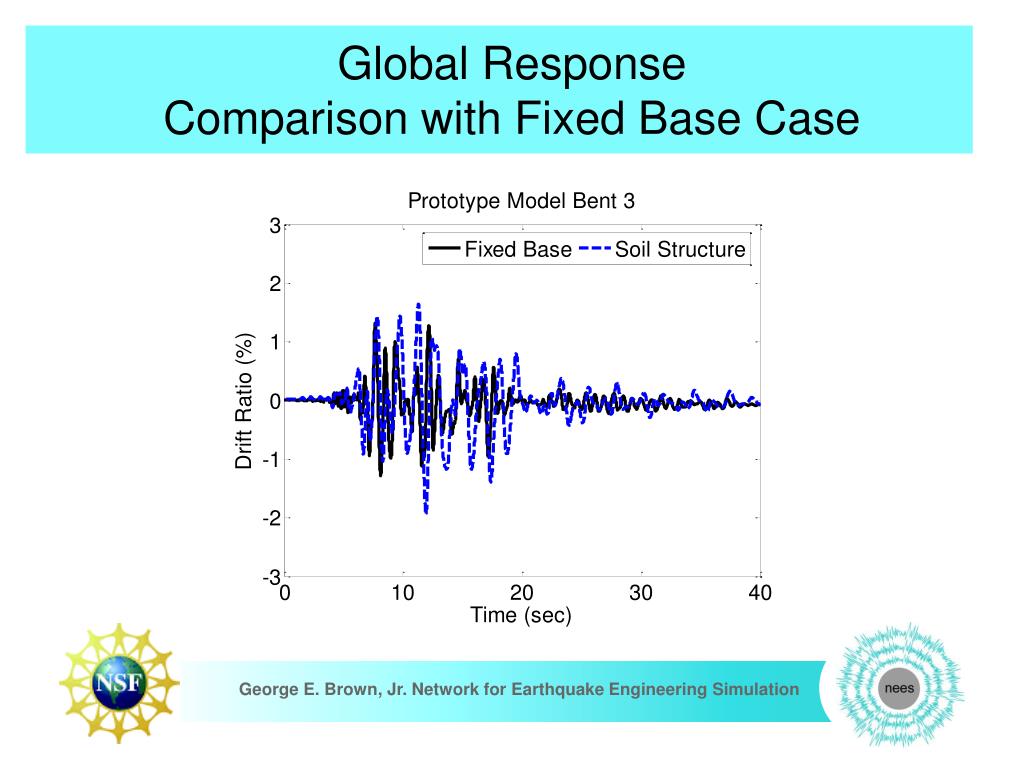

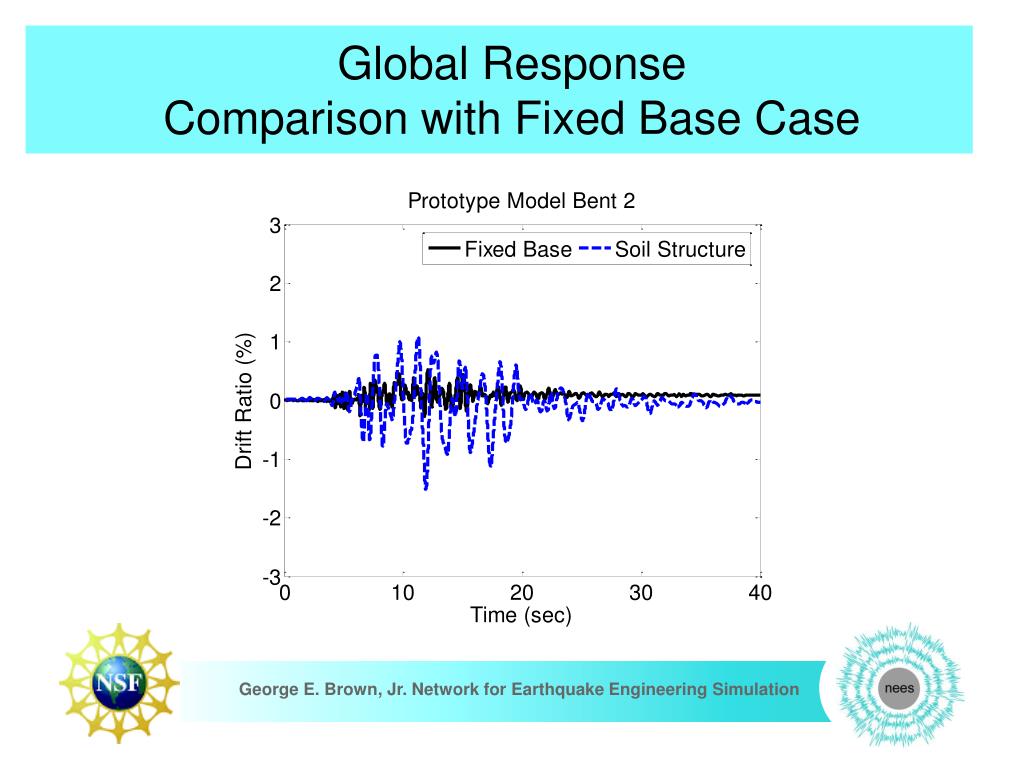

  29. Global ResponseComparison with Fixed Base Case

  30. Global ResponseComparison with Fixed Base Case

  31. Global ResponseComparison with Fixed Base Case

  32. Continuing Work - Hierarchy of Models • Develop models at varying levels of sophistication to determine how much complexity is necessary to capture the response adequately. • OpenSees 3-D model of structure with p-y curves and displacement time histories determined from SHAKE analyses. • Collaborate with UCD to develop 3-D model of structure with 3-D solid elements for the soil.

  33. Questions or Comments?
