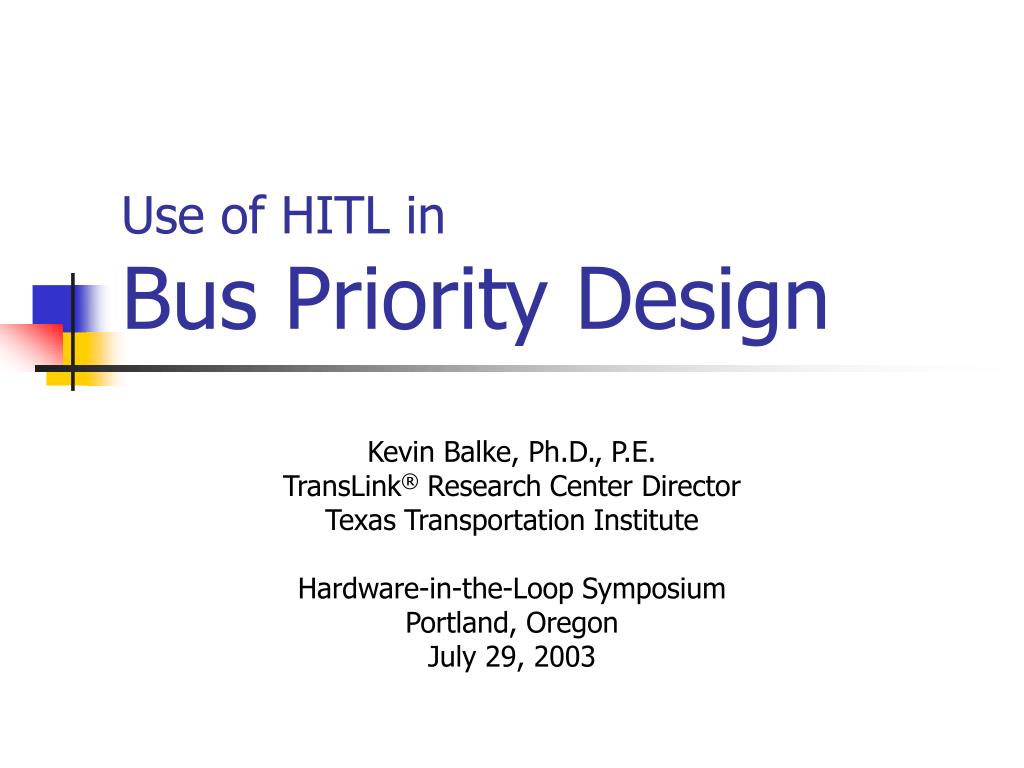

Use of HITL in Bus Priority Design. Kevin Balke, Ph.D., P.E. TransLink ® Research Center Director Texas Transportation Institute Hardware-in-the-Loop Symposium Portland, Oregon July 29, 2003. Presentation Outline. Algorithm Development and Testing Product Evaluation

falala
Télécharger la présentation

Use of HITL in Bus Priority Design

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Use of HITL in Bus Priority Design Kevin Balke, Ph.D., P.E. TransLink® Research Center Director Texas Transportation Institute Hardware-in-the-Loop Symposium Portland, Oregon July 29, 2003

  2. Presentation Outline • Algorithm Development and Testing • Product Evaluation • Sensor Location Design

  3. Algorithm Development • Proof-of-concept testing of algorithm • Investigated • New computer algorithm • Manipulating traffic signal parameters in real traffic signal controller • Evaluate whether algorithm performs as designed

  4. Product Evaluation • Test functionality of controllers/ technology • Compare features in similar situations • Develop deep understanding of how a product responds • Controlled environment

  5. Sensor Location Design • Recent application of HITL technologies • Conducted as part of Houston METRO’s installation of Regional Traffic Computer Signal System (RTCSS) • Investigate question  where to place optical detection zones?

  6. Houston Metro TSP Architecture 3M Opticom® Series 700 System Emitter Phase Selector Receiver Priority Phase Call Naztec 2070 w/ NextPhase®Software

  7. Houston Metro Issues • Near-side bus stops • ≈ 75% are nearside stops • Many priority systems designed for far side stops • Emitter Range • > 2500 ft in ideal conditions • Designed for emergency vehicle preemption • How do you apply to transit priority?

  8. Our Study • What is the optimal length of the detection zones? • Too far  “priority” occurs before bus gets to intersection • Too close  “priority” hasn’t started when bus arrives • Investigate interaction between: • Bus stop location • Detection zone location • Priority algorithm performance

  9. Use HITL Simulation VISSIM model of two intersection Naztec controller with planned NextPhase timings Three bus stop locations 1500 ft upstream of intersection 50 ft upstream of intersection Two bus stops on same approach  100 ft and 500 ft Our Approach

  10. Detection Zones Lengths • Varied detection zone length • 1500 ft, 1000 ft, 500 ft, 100 ft, and No detection Detection Zone Length x

  11. MOEs • Probability of bus “successfully” clearing intersection without stopping • Bus Delay

  12. Lessons Learned • Optimum detection range between 1000 ft and 1500 ft • Exact length will vary depending upon • Cycle length • Degree of congestion • Passenger demands (dwell times) • Type of TSP logic • Do not include multiple bus stops or intersections
