SSIS in a nutshell

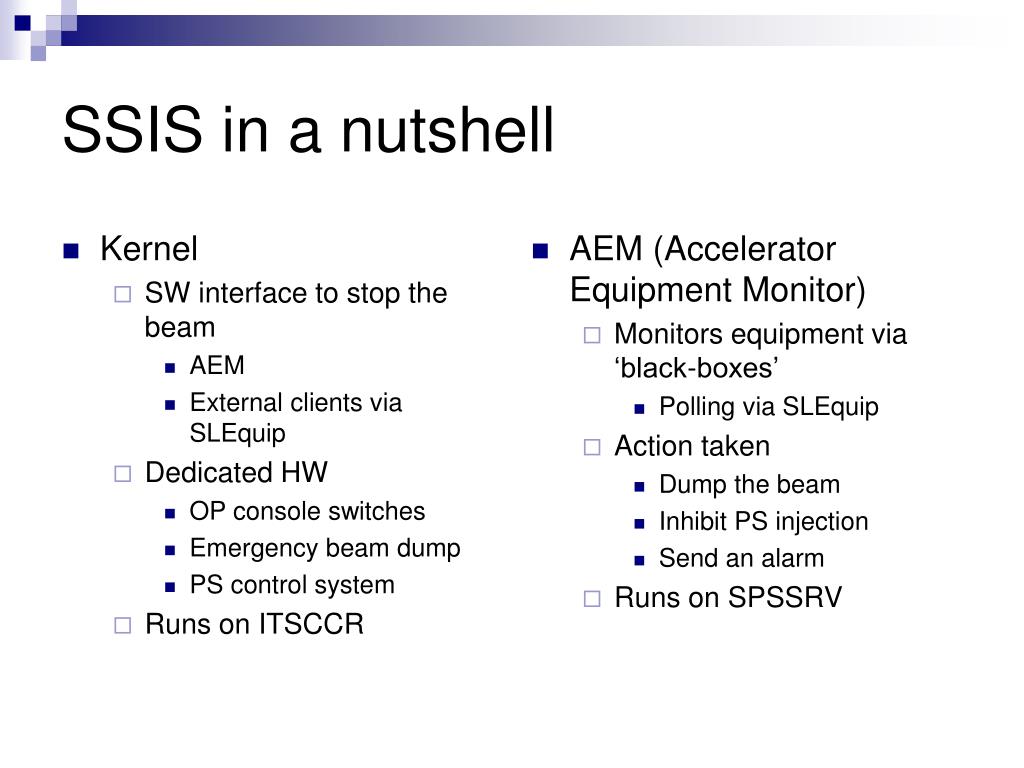

Kernel SW interface to stop the beam AEM External clients via SLEquip Dedicated HW OP console switches Emergency beam dump PS control system Runs on ITSCCR. AEM (Accelerator Equipment Monitor) Monitors equipment via ‘black-boxes’ Polling via SLEquip Action taken Dump the beam

fancy
Télécharger la présentation

SSIS in a nutshell

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Kernel SW interface to stop the beam AEM External clients via SLEquip Dedicated HW OP console switches Emergency beam dump PS control system Runs on ITSCCR AEM (Accelerator Equipment Monitor) Monitors equipment via ‘black-boxes’ Polling via SLEquip Action taken Dump the beam Inhibit PS injection Send an alarm Runs on SPSSRV SSIS in a nutshell

  2. SSIS requirements for startup 2006 • ITSCCR with HW connections • AEM + black-boxes on SPSSRV • SPS machine mode • MACHST and BEAMST • SLEquip-FESA gateway(s) for black-boxes

  3. Mugefs Collimators TEDs Dump cooling system MPS BTVs Poutres ZS Schottky pick ups SPS-LEP discon Taxes P0 bends ZS Coldex TBSM TBSE BISCRA STEP Equipment monitored by SSIS

  4. Equipment possibly moving to FESA • AB/BDI – scrapers • BISCRA SCR50S • STEP BOT519, TOP519, INT519, EXT519 • AB/BT – extraction elements • ZSGENM BA2 • ZSMOT BA2 • AB/ATB - stoppers • TBSM 1TURN • TBSE TT20 (21?) • TED TT20, TT60

  5. AB/BDI equipment • Moving to FESA • BISCRA SCR50S • Gateway does not exist • STEP BOT519, TOP519, INT519, EXT519 • Gateway implemented and tested by Kris • To be tested via SSIS

  6. AB/ATB equipment • Moving to FESA • TED TT20, TT60 • By February 2006 • Gateway does not exist • TBSM 1TURN, TBSE TT20 (21?) • By May 2006 • Gateway does not exist • Question: Connected to BIC = SSIS not needed?
