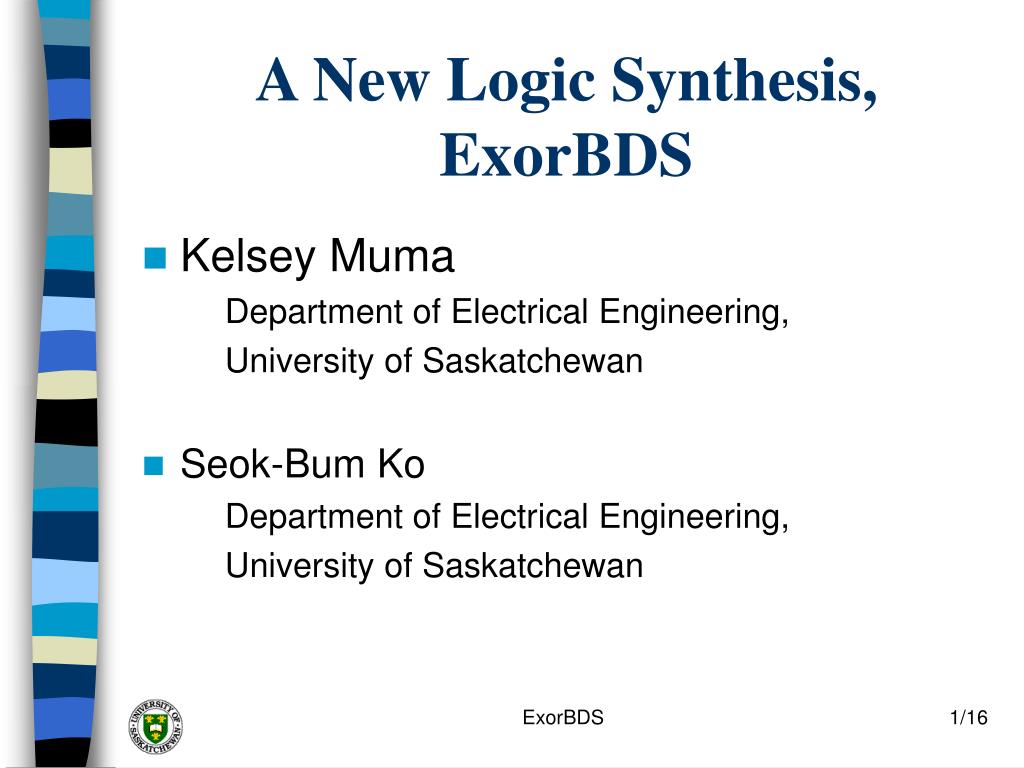

  1. A New Logic Synthesis, ExorBDS • Kelsey Muma Department of Electrical Engineering, University of Saskatchewan • Seok-Bum Ko Department of Electrical Engineering, University of Saskatchewan ExorBDS

  2. A New Logic Synthesis, ExorBDS • Outline • Introduction • Background • ExorBDS • Experimental Method and Results • Conclusions ExorBDS

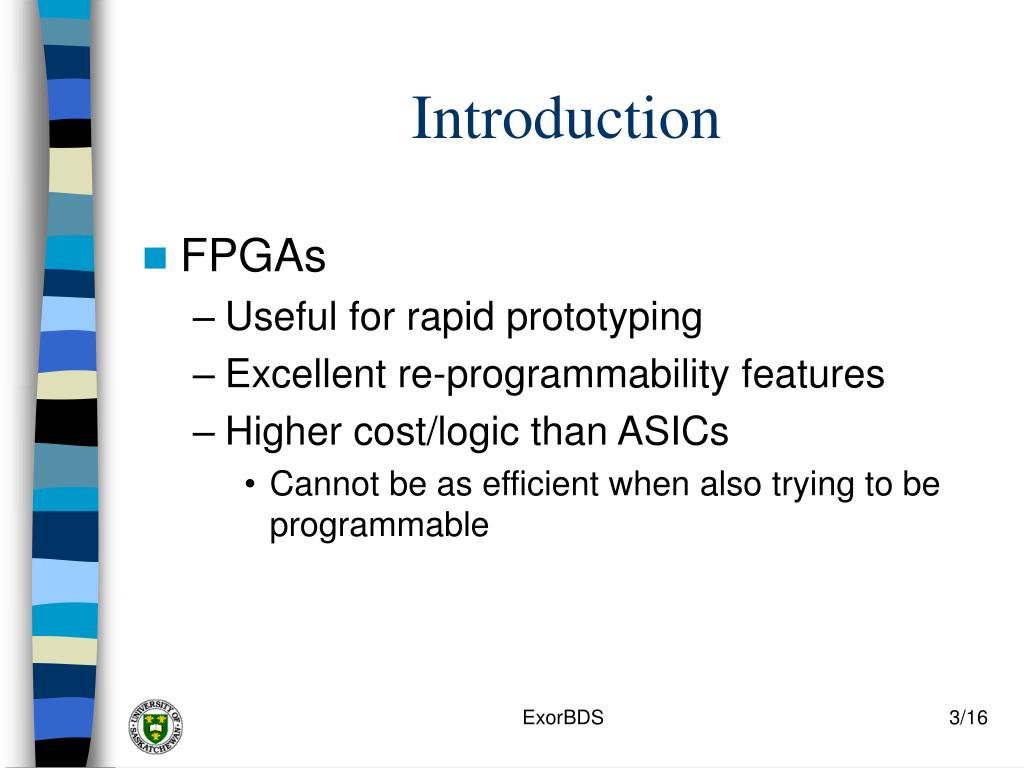

  3. Introduction • FPGAs • Useful for rapid prototyping • Excellent re-programmability features • Higher cost/logic than ASICs • Cannot be as efficient when also trying to be programmable ExorBDS

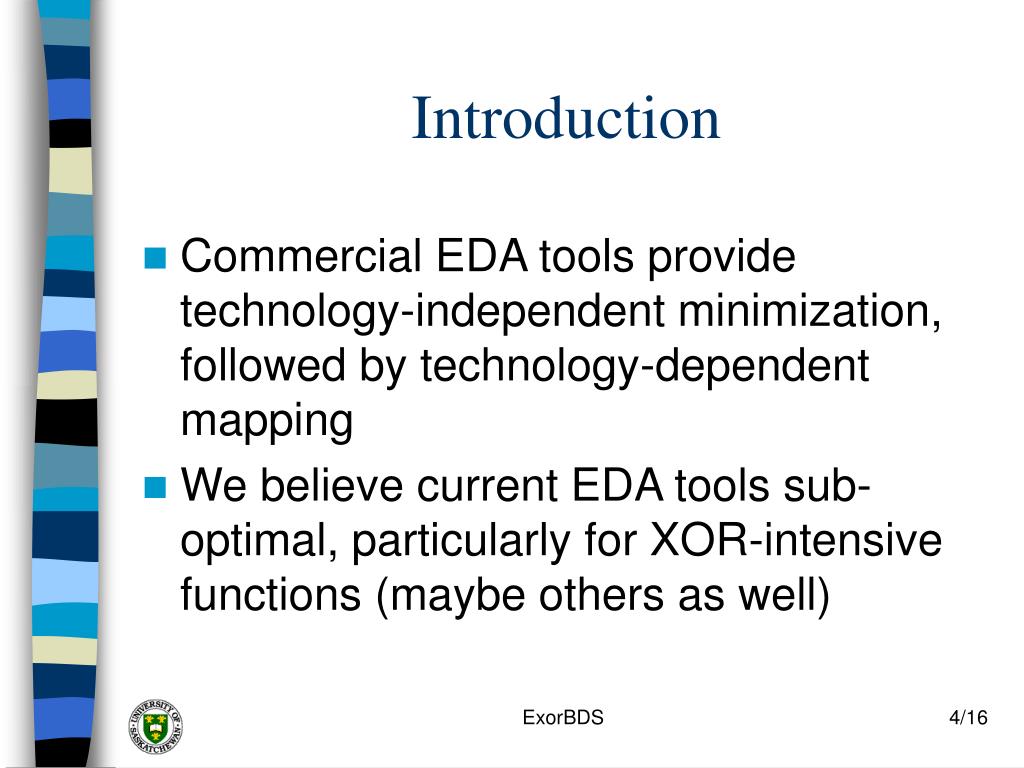

  4. Introduction • Commercial EDA tools provide technology-independent minimization, followed by technology-dependent mapping • We believe current EDA tools sub-optimal, particularly for XOR-intensive functions (maybe others as well) ExorBDS

  5. Background • Parity Prediction Circuits • Basic error checking method • Prediction circuit involves XORing all outputs to determine expected parity bit ExorBDS

  6. Background • Overview of Xilinx Virtex II Pro • Experimental results based on this FPGA (XC2VP2) • Contains CLBs • Each CLB contains 4 slices • Each slice contains 2 4-input LUT • 4-LUT: used for comparing methods ExorBDS

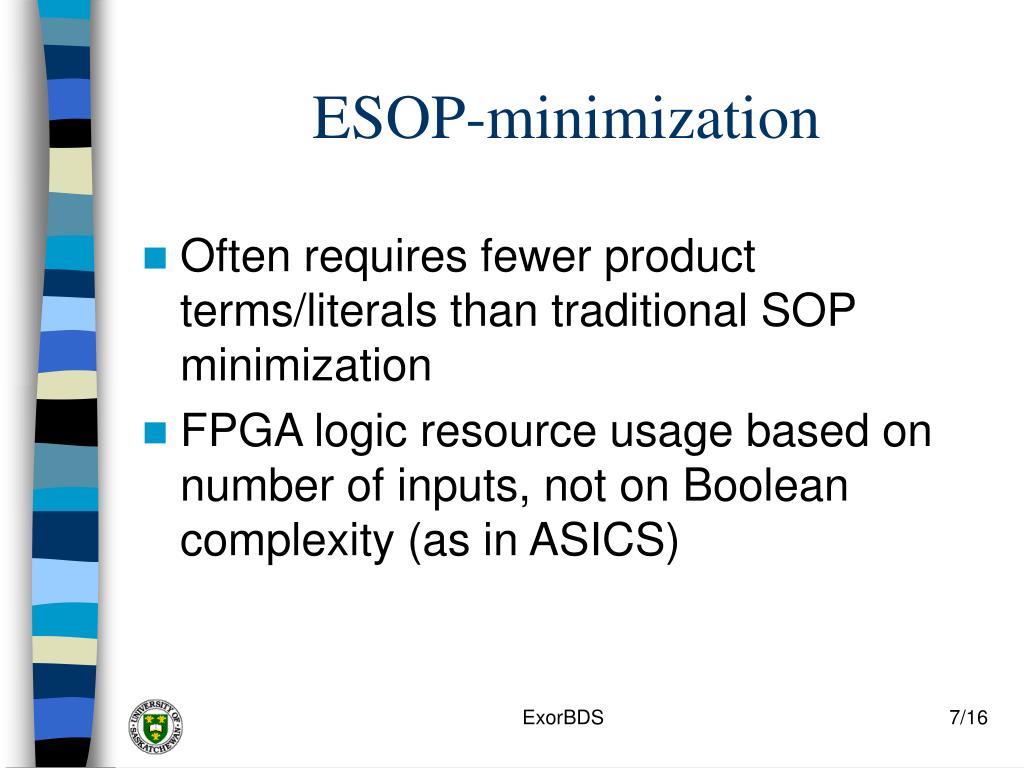

  7. ESOP-minimization • Often requires fewer product terms/literals than traditional SOP minimization • FPGA logic resource usage based on number of inputs, not on Boolean complexity (as in ASICS) ExorBDS

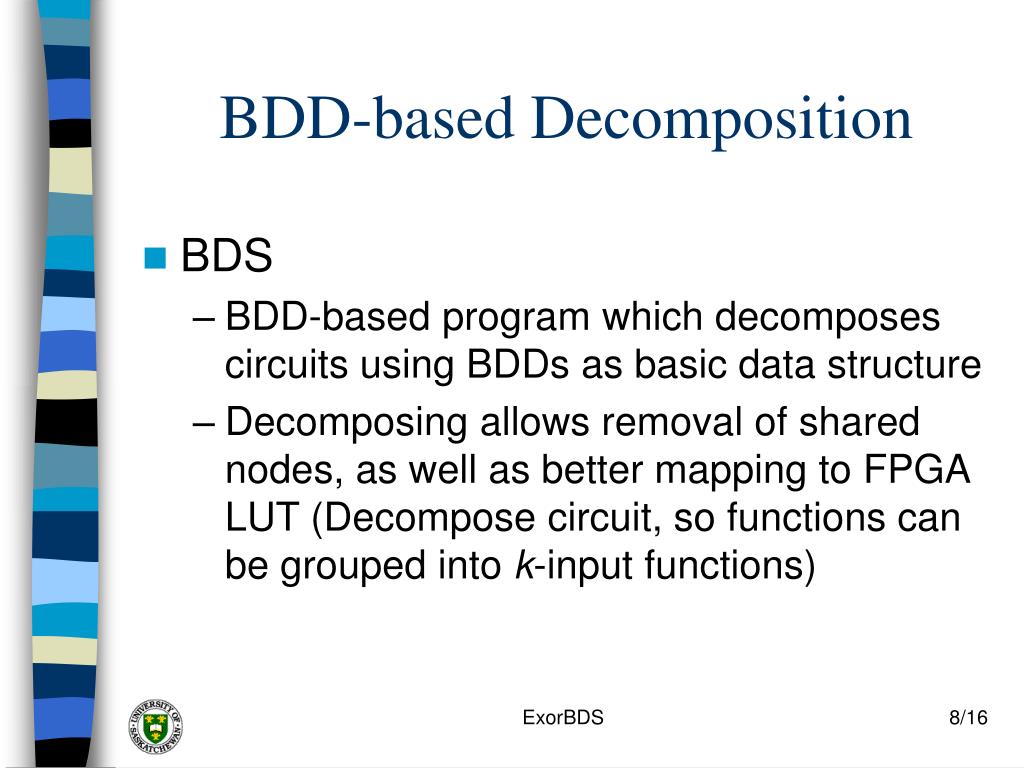

  8. BDD-based Decomposition • BDS • BDD-based program which decomposes circuits using BDDs as basic data structure • Decomposing allows removal of shared nodes, as well as better mapping to FPGA LUT (Decompose circuit, so functions can be grouped into k-input functions) ExorBDS

  9. ExorBDS • Includes single stage of ESOP-minimization, followed by a stage of BDD-based decomposition 1. Use Exorcism4 for ESOP-minimization 2. Use BDS for BDD-decomposition ExorBDS

  10. ExorBDS Parity prediction circuit Exorcism4 BDS Convert to VHDL, synthesize ExorBDS

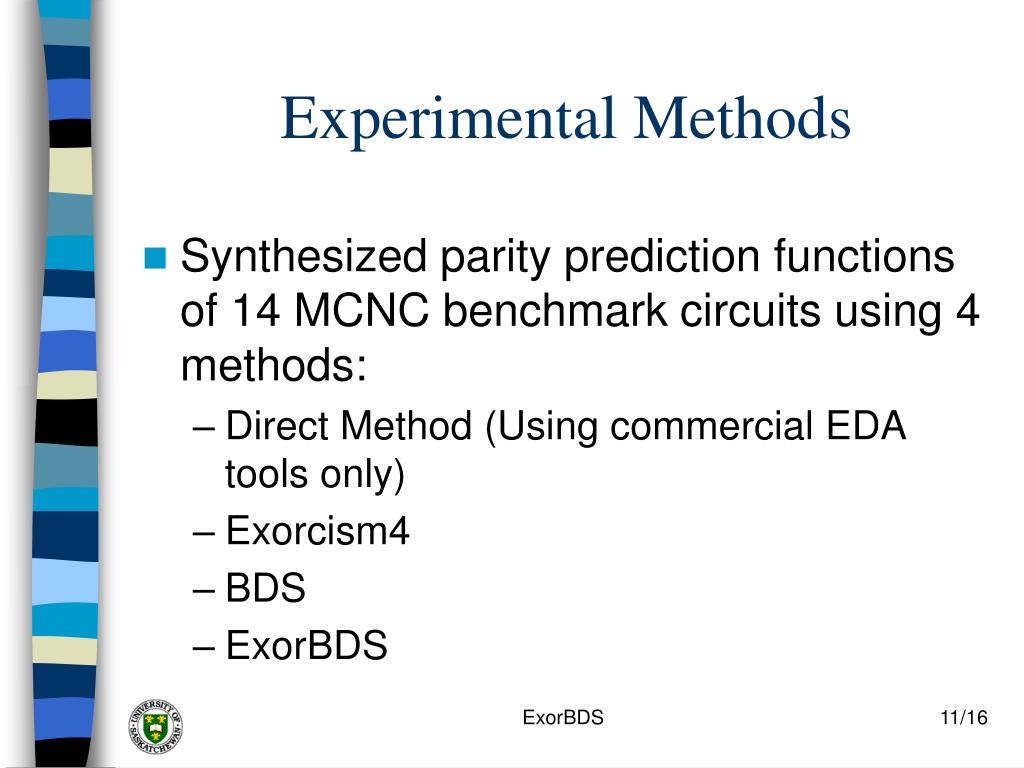

  11. Experimental Methods • Synthesized parity prediction functions of 14 MCNC benchmark circuits using 4 methods: • Direct Method (Using commercial EDA tools only) • Exorcism4 • BDS • ExorBDS ExorBDS

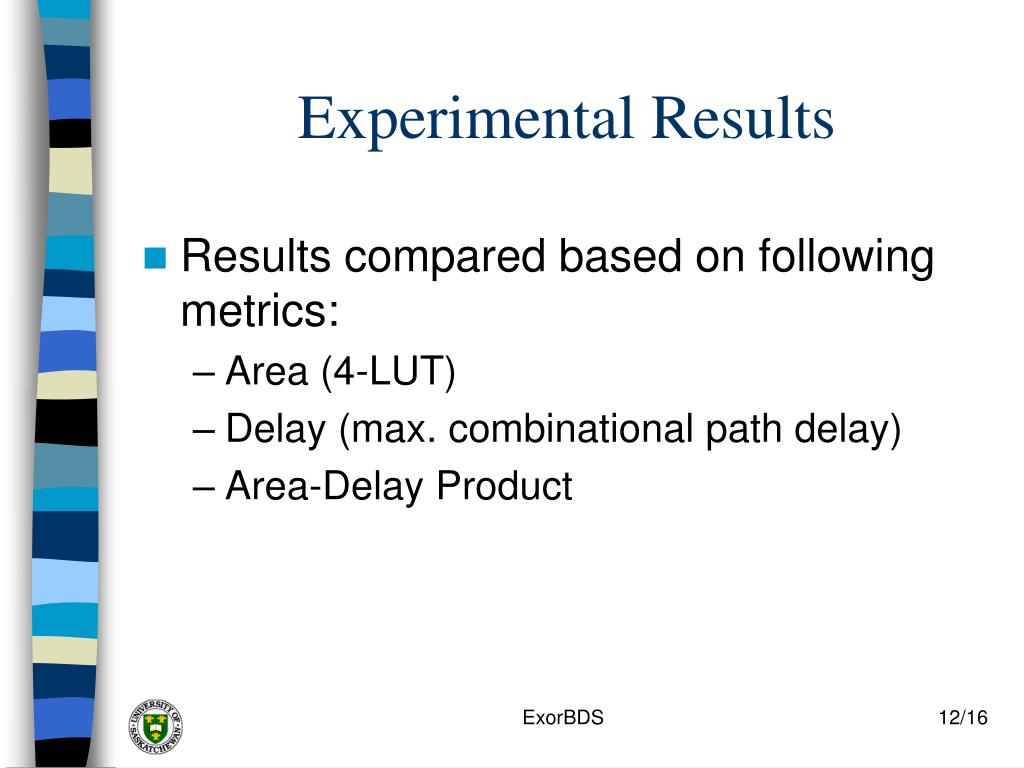

  12. Experimental Results • Results compared based on following metrics: • Area (4-LUT) • Delay (max. combinational path delay) • Area-Delay Product ExorBDS

  13. Experimental Results* *: misex3 excluded ExorBDS

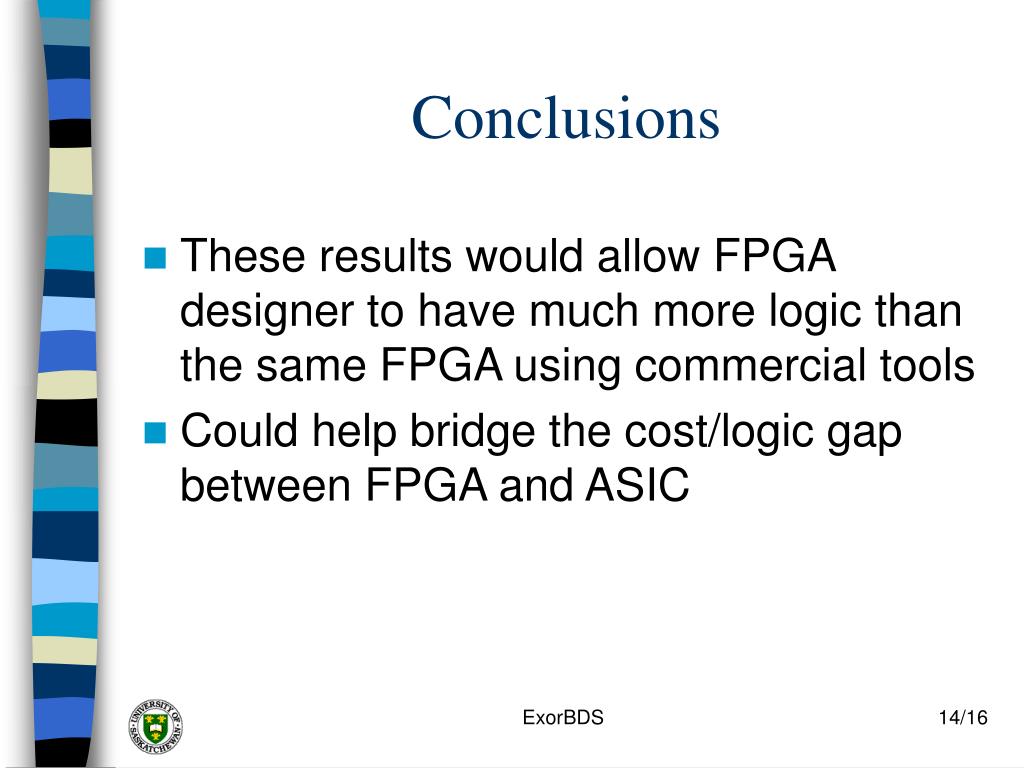

  14. Conclusions • These results would allow FPGA designer to have much more logic than the same FPGA using commercial tools • Could help bridge the cost/logic gap between FPGA and ASIC ExorBDS

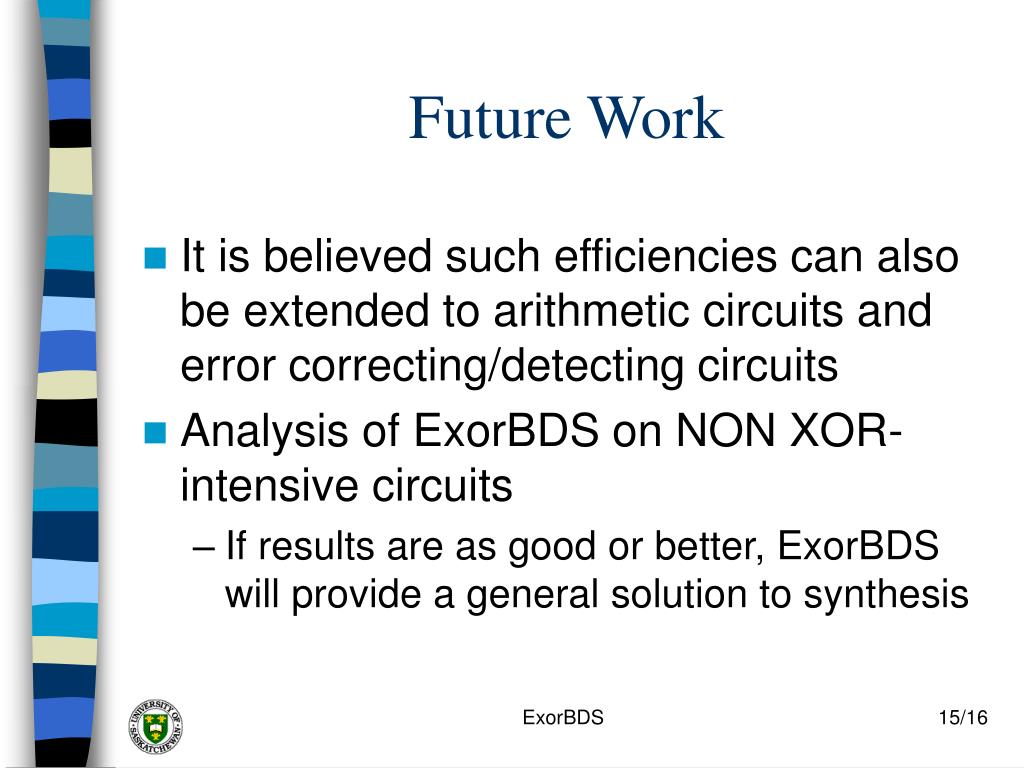

  15. Future Work • It is believed such efficiencies can also be extended to arithmetic circuits and error correcting/detecting circuits • Analysis of ExorBDS on NON XOR-intensive circuits • If results are as good or better, ExorBDS will provide a general solution to synthesis ExorBDS

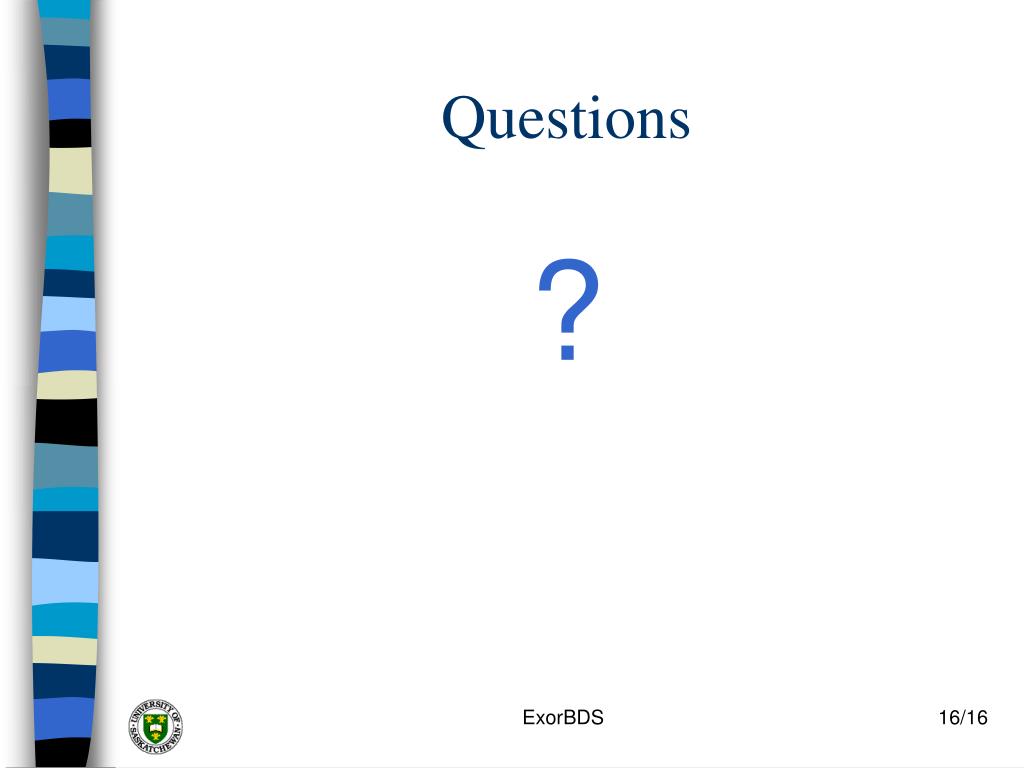

  16. Questions ? ExorBDS
