Significant Digits

Significant Digits. In Chemistry, because numbers (i.e. data) are connected with making measurements, they carry a measure of uncertainty based on the accuracy of the measuring instrument and/or the measuring skill of the chemist.

farrah
Télécharger la présentation

Significant Digits

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

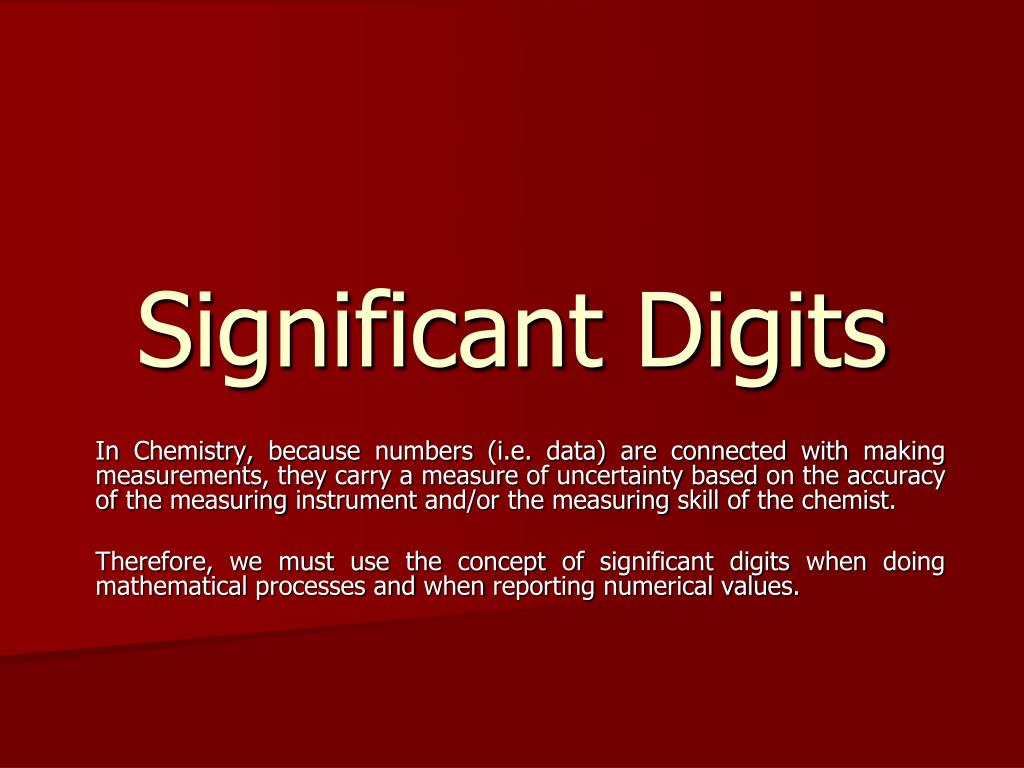

  1. Significant Digits In Chemistry, because numbers (i.e. data) are connected with making measurements, they carry a measure of uncertainty based on the accuracy of the measuring instrument and/or the measuring skill of the chemist. Therefore, we must use the concept of significant digits when doing mathematical processes and when reporting numerical values.

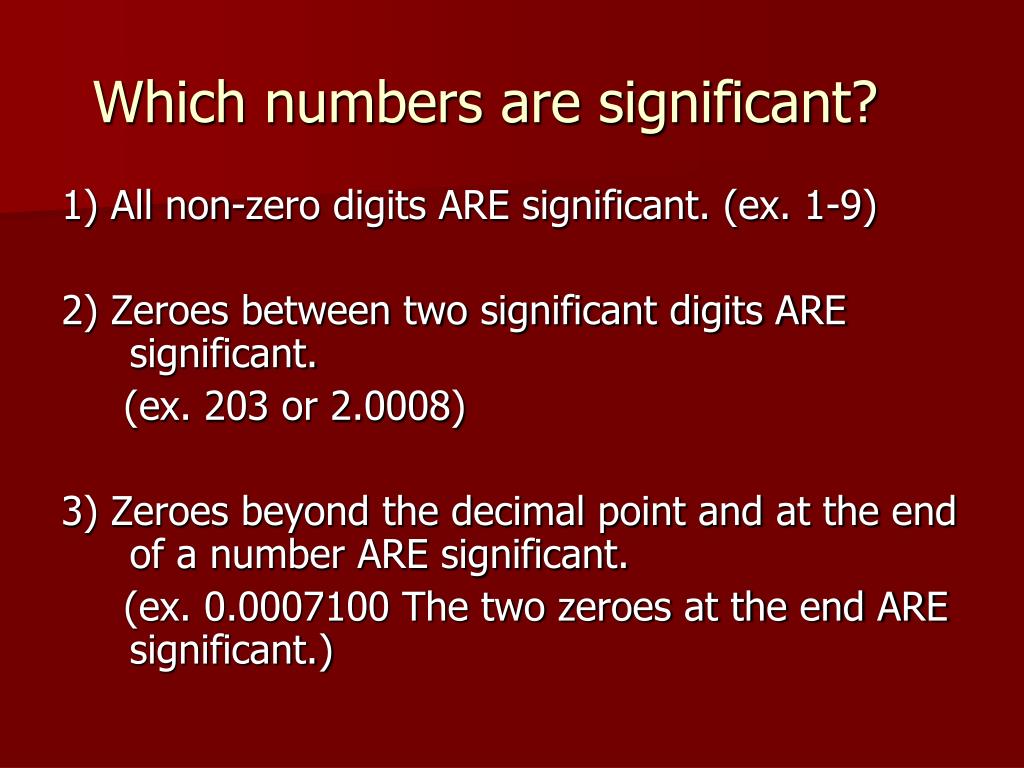

  2. Which numbers are significant? 1) All non-zero digits ARE significant. (ex. 1-9) 2) Zeroes between two significant digits ARE significant. (ex. 203 or 2.0008) 3) Zeroes beyond the decimal point and at the end of a number ARE significant. (ex. 0.0007100 The two zeroes at the end ARE significant.)

  3. Which numbers are NOT significant? 1) Zeroes after a non-zero number when there is NO decimal are NOT significant. (ex. 1203000 The three zeroes at the end are NOT significant. They are only place holders because the number can be written as 1.203 x 106.) 2) Zeroes after the decimal point but before the first non-zero digit are NOT significant. (ex. 0.0007010 or .0007010 The first three zeroes after the decimal are NOT significant. They are only place holders because the number can be written as 7.010 x 10-4.)

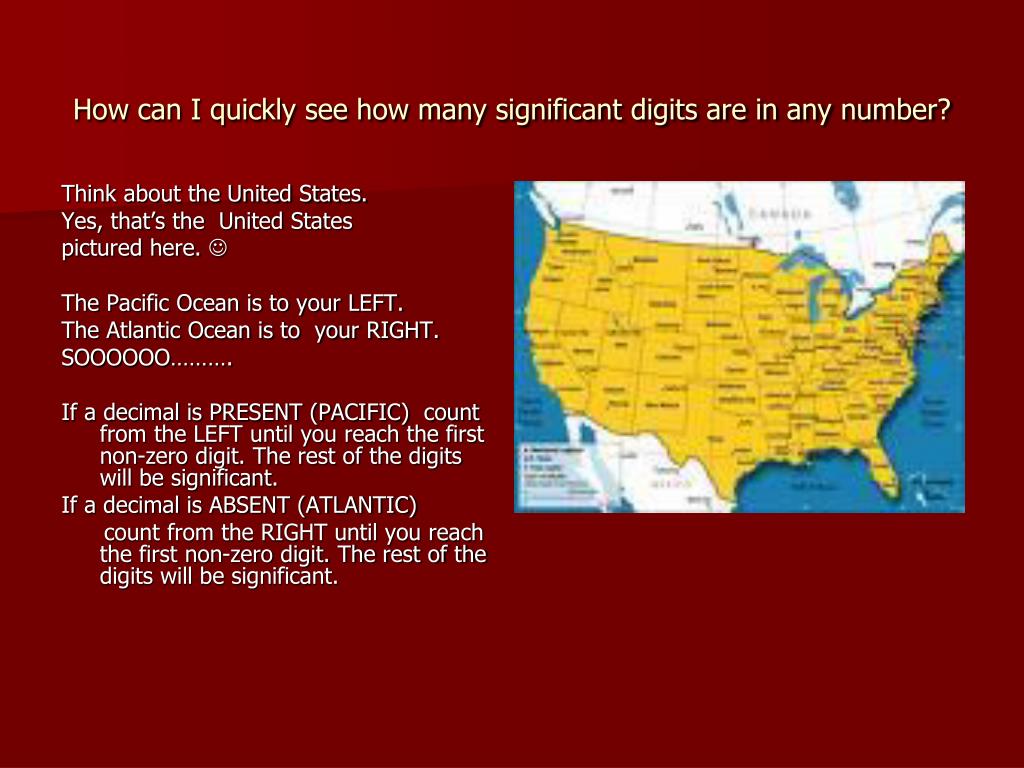

  4. How can I quickly see how many significant digits are in any number? Think about the United States. Yes, that’s the United States pictured here.  The Pacific Ocean is to your LEFT. The Atlantic Ocean is to your RIGHT. SOOOOOO………. If a decimal is PRESENT (PACIFIC) count from the LEFT until you reach the first non-zero digit. The rest of the digits will be significant. If a decimal is ABSENT (ATLANTIC) count from the RIGHT until you reach the first non-zero digit. The rest of the digits will be significant.

  5. So, let’s try that technique! How many significant digits are in each of the following numbers? 160,000,000 Ans. 2 12.00950 Ans. 7 0.009865 Ans. 4 4507 Ans. 4 23.007 Ans. 5 950 Ans. 2 0.0000000000000000000004 Ans. 1

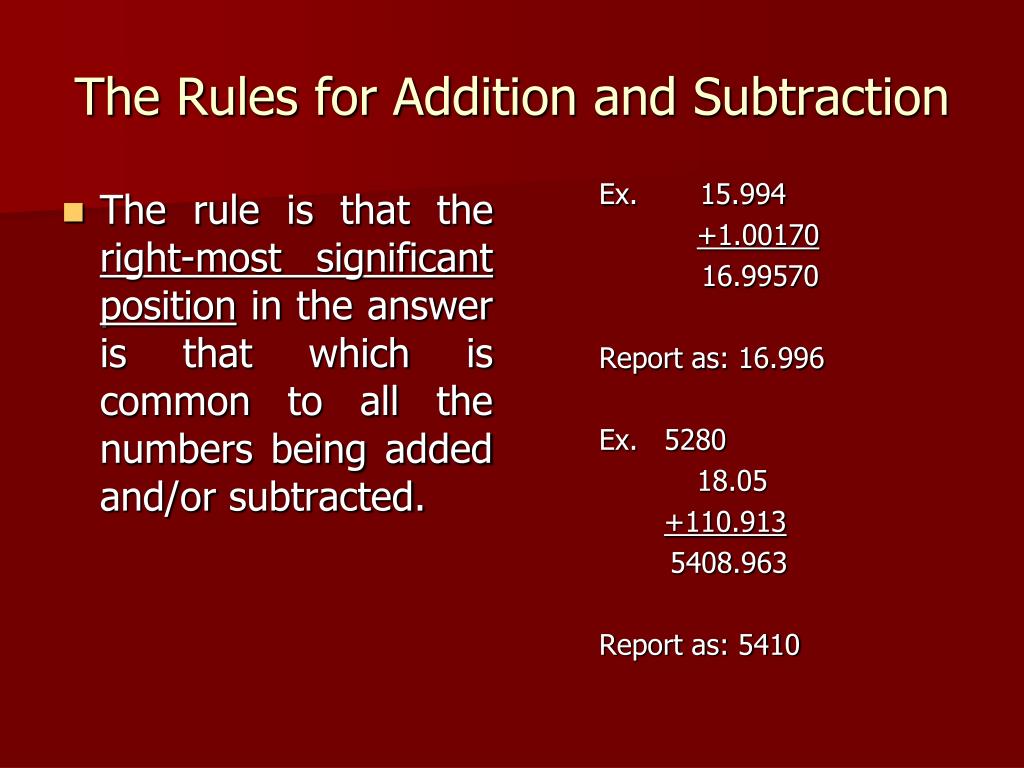

  6. The rule is that the right-most significant position in the answer is that which is common to all the numbers being added and/or subtracted. Ex. 15.994 +1.00170 16.99570 Report as: 16.996 Ex. 5280 18.05 +110.913 5408.963 Report as: 5410 The Rules for Addition and Subtraction

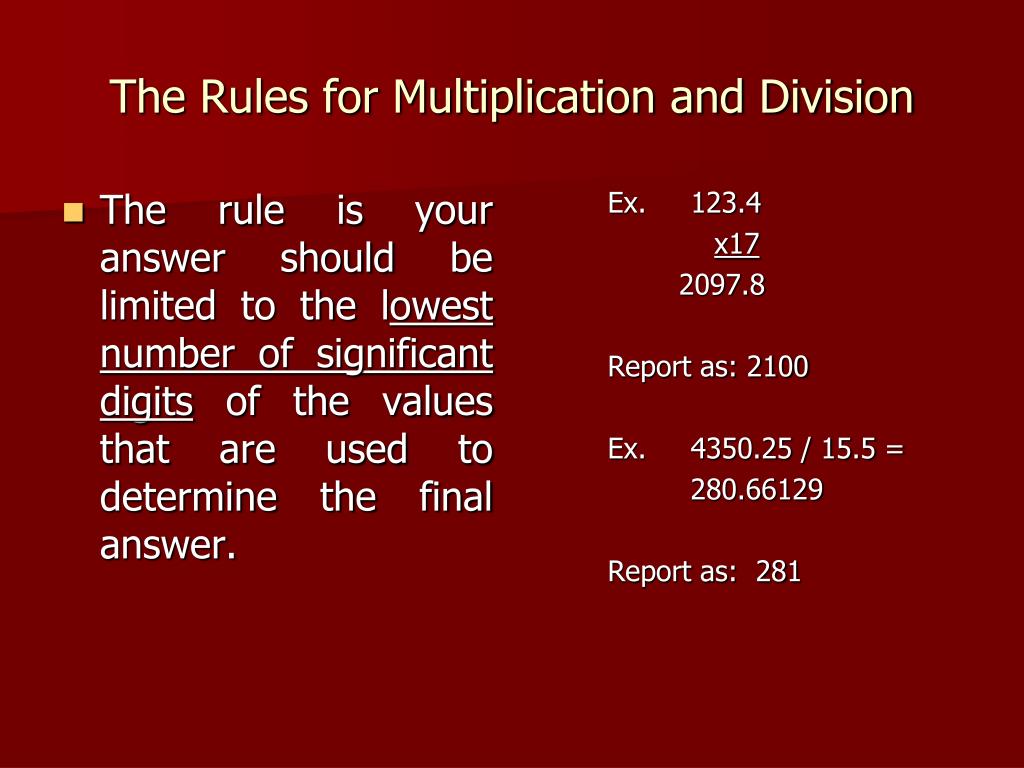

  7. The rule is your answer should be limited to the lowest number of significant digits of the values that are used to determine the final answer. Ex. 123.4 x17 2097.8 Report as: 2100 Ex. 4350.25 / 15.5 = 280.66129 Report as: 281 The Rules for Multiplication and Division
