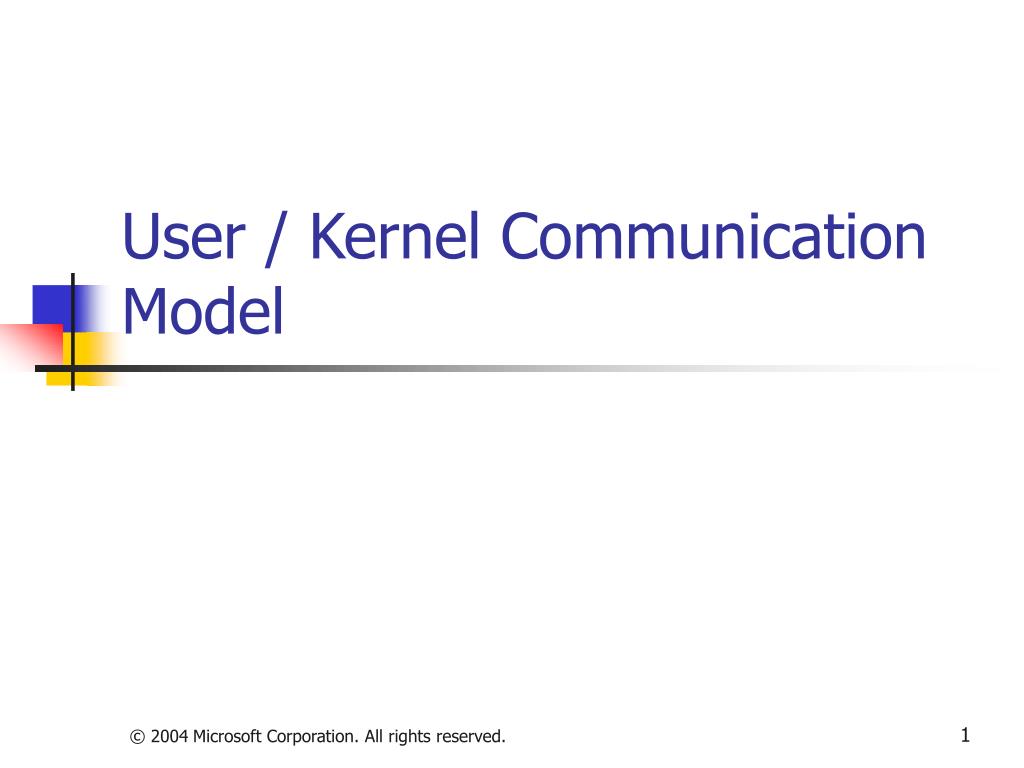

  1. User / Kernel Communication Model © 2004 Microsoft Corporation. All rights reserved.

  2. Advantages • Bi-directional messaging facility • Minifilter defines the security on the channel • Fast User-to-Kernel messaging, no buffering • Efficient Kernel-to-User messaging with the capability for user mode to reply back to the filter. • Can associate I/O completion ports for Kernel-to-User communication © 2004 Microsoft Corporation. All rights reserved.

  3. Communication Ports • Filter creates a named communication port • Filter implicitly begins to listen for incoming connections on the port • Connection will be denied if user doesn’t have sufficient access as specified by security descriptor on listener port • Each connection to the listener port gets its own message queue and private endpoints © 2004 Microsoft Corporation. All rights reserved.

  4. Communication Ports (cont’d) • Closing either endpoint (kernel/user) terminates that connection • Closing listener port handle prevents future connections • Existing connections will not be terminated • Unload safe • When minifilter unloads, Filter manager forcibly terminates existing connections © 2004 Microsoft Corporation. All rights reserved.

  5. Creating Communication Port • Minifilter creates a named port with: • FltCreateCommunicationPort( IN PFLT_FILTER Filter, OUT PFLT_PORT *ServerPort, IN POBJECT_ATTRIBUTES ObjectAttributes, IN PVOID ServerPortCookie OPTIONAL, IN PFLT_CONNECT_NOTIFY ConnectNotifyCallback, IN PFLT_DISCONNECT_NOTIFY DisconnectNotifyCallback, IN PFLT_MESSAGE_NOTIFY MessageNotifyCallback, IN ULONG MaxConnections); • Minifilter closes named port with: • FltCloseCommunicationPort() © 2004 Microsoft Corporation. All rights reserved.

  6. Establishing a Connection from User-Mode • Application connects to named port with: • FilterConnectCommunicationPort( IN LPCWSTR lpPortName, IN DWORD dwOptions, IN LPVOID lpContext OPTIONAL, IN WORD wSizeOfContext, IN LPSECURITY_ATTRIBUTES lpSecurityAttributes OPTIONAL, OUT HANDLE *hPort); • Application disconnects from named port with: • CloseHandle() © 2004 Microsoft Corporation. All rights reserved.

  7. Establishing a Connection (cont’d) • User connect triggers ConnectNotify() callback in minifilter • Receives a handle to the new connection just created • On return, user-mode receives a separate handle representing its endpoint to the connection • User-mode handle is a file handle • Can be used to associate I/O completion ports © 2004 Microsoft Corporation. All rights reserved.

  8. User-to-Kernel Messaging • FilterSendMessage() • Sends synchronous message from user to kernel • Minifilter receives message via MessageNotify() callback • Buffers are raw user buffers • Must use try-except(), probe/capture, etc., to safely access buffers © 2004 Microsoft Corporation. All rights reserved.

  9. Kernel-to-User Messaging • FltSendMessage() • Sends message to waiting user-mode receiver • Can block if no user-mode receivers are available • Timeout may be specified, use with care • FilterGetMessage() • Called by user mode application to receive a message from the minifilter • Recommend that you use overlapped structure to issue multiple asynchronous gets • FilterReplyMessage() • Applications reply to a specific message • Requires agreed upon message protocol between application and minifilter © 2004 Microsoft Corporation. All rights reserved.

  10. Terminating a Connection • User-mode close of handle triggers DisconnectNotify() in minifilter • Filter then calls FltCloseClientPort() to finish closing the connection • Minifilter unload also triggers DisconnectNotify() © 2004 Microsoft Corporation. All rights reserved.

  11. Sample • Look at Scanner minifilter sample © 2004 Microsoft Corporation. All rights reserved.
