1 / 1

σ H

Sporulation Initiation. Outgrowth. Vegetative Cell. Spo0A. σ H. Septum Formation sigE, Dhaf_4054 sigF, Dhaf_3442 spoIIAA, Dhaf_3440 spoIIAB, Dhaf_3441 spoIIR, Dhaf_4409 spoIIGA, no homolog spoIIE, Dhaf_0143. sigH, Dhaf_0402 kinABCDE, histidine kinases not assigned

favian
Télécharger la présentation

σ H

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

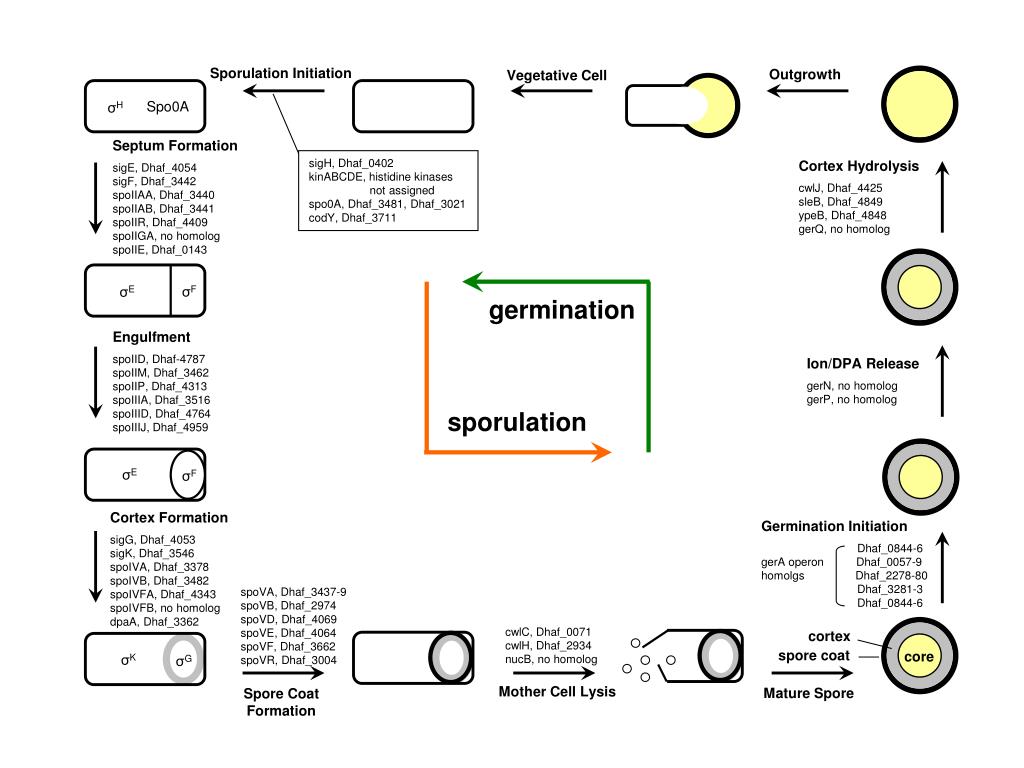

  1. Sporulation Initiation Outgrowth Vegetative Cell Spo0A σH Septum Formation sigE, Dhaf_4054 sigF, Dhaf_3442 spoIIAA, Dhaf_3440 spoIIAB, Dhaf_3441 spoIIR, Dhaf_4409 spoIIGA, no homolog spoIIE, Dhaf_0143 sigH, Dhaf_0402 kinABCDE, histidine kinases not assigned spo0A, Dhaf_3481, Dhaf_3021 codY, Dhaf_3711 Cortex Hydrolysis cwlJ, Dhaf_4425 sleB, Dhaf_4849 ypeB, Dhaf_4848 gerQ, no homolog σF σE germination Engulfment spoIID, Dhaf-4787 spoIIM, Dhaf_3462 spoIIP, Dhaf_4313 spoIIIA, Dhaf_3516 spoIIID, Dhaf_4764 spoIIIJ, Dhaf_4959 Ion/DPA Release gerN, no homolog gerP, no homolog sporulation σE σF Cortex Formation sigG, Dhaf_4053 sigK, Dhaf_3546 spoIVA, Dhaf_3378 spoIVB, Dhaf_3482 spoIVFA, Dhaf_4343 spoIVFB, no homolog dpaA, Dhaf_3362 Germination Initiation Dhaf_0844-6 gerA operon Dhaf_0057-9 homolgs Dhaf_2278-80 Dhaf_3281-3 Dhaf_0844-6 spoVA, Dhaf_3437-9 spoVB, Dhaf_2974 spoVD, Dhaf_4069 spoVE, Dhaf_4064 spoVF, Dhaf_3662 spoVR, Dhaf_3004 cwlC, Dhaf_0071 cwlH, Dhaf_2934 nucB, no homolog cortex spore coat core σK σG Mother Cell Lysis Mature Spore Spore Coat Formation
