Plug-In T6: Basic Skills and Tools Using Access 2010

1. Plug-In T6: Basic Skills and Tools Using Access 2010 Business Driven Technology

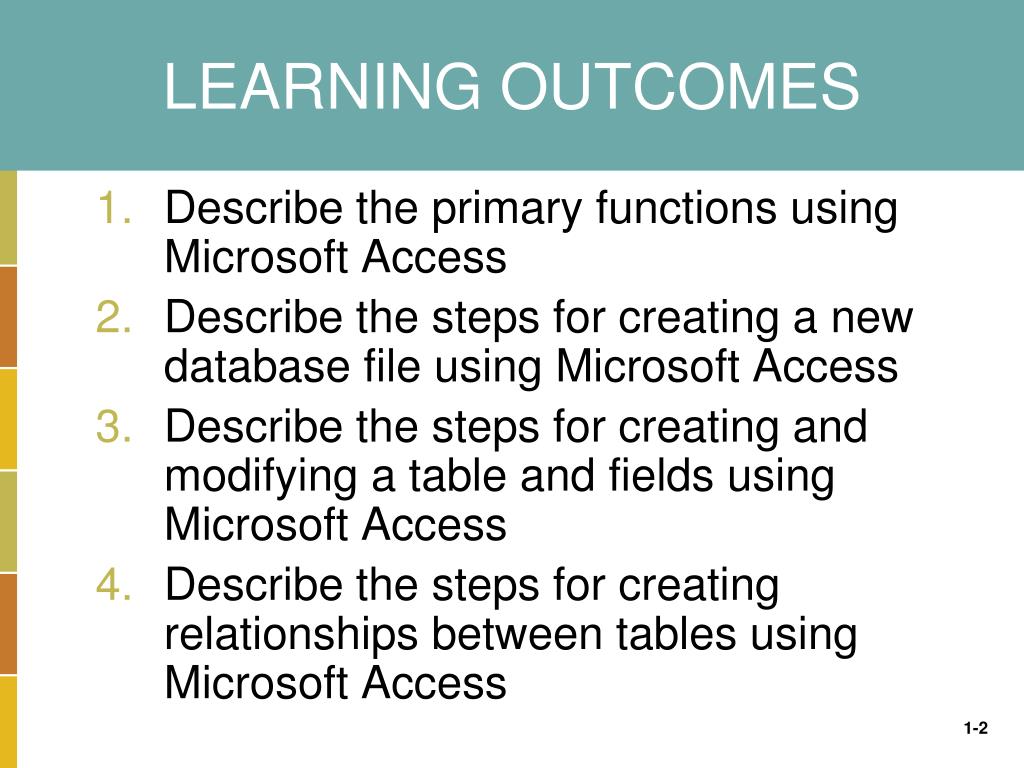

2. LEARNING OUTCOMES • Describe the primary functions using Microsoft Access • Describe the steps for creating a new database file using Microsoft Access • Describe the steps for creating and modifying a table and fields using Microsoft Access • Describe the steps for creating relationships between tables using Microsoft Access

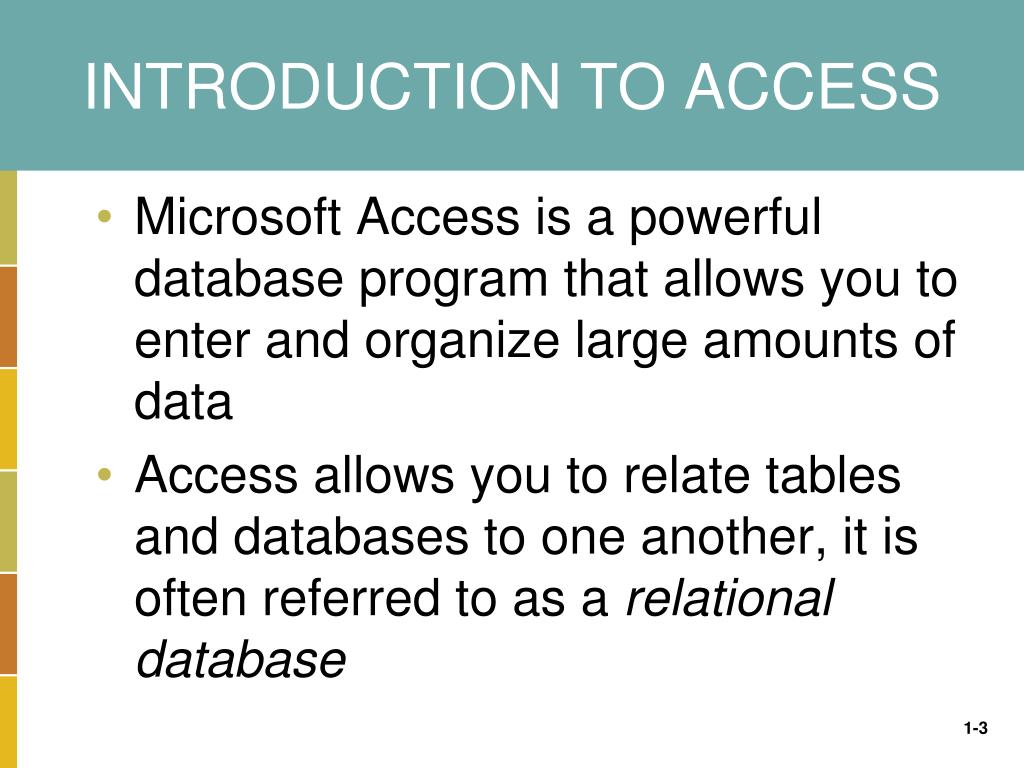

3. INTRODUCTION TO ACCESS • Microsoft Access is a powerful database program that allows you to enter and organize large amounts of data • Access allows you to relate tables and databases to one another, it is often referred to as a relational database

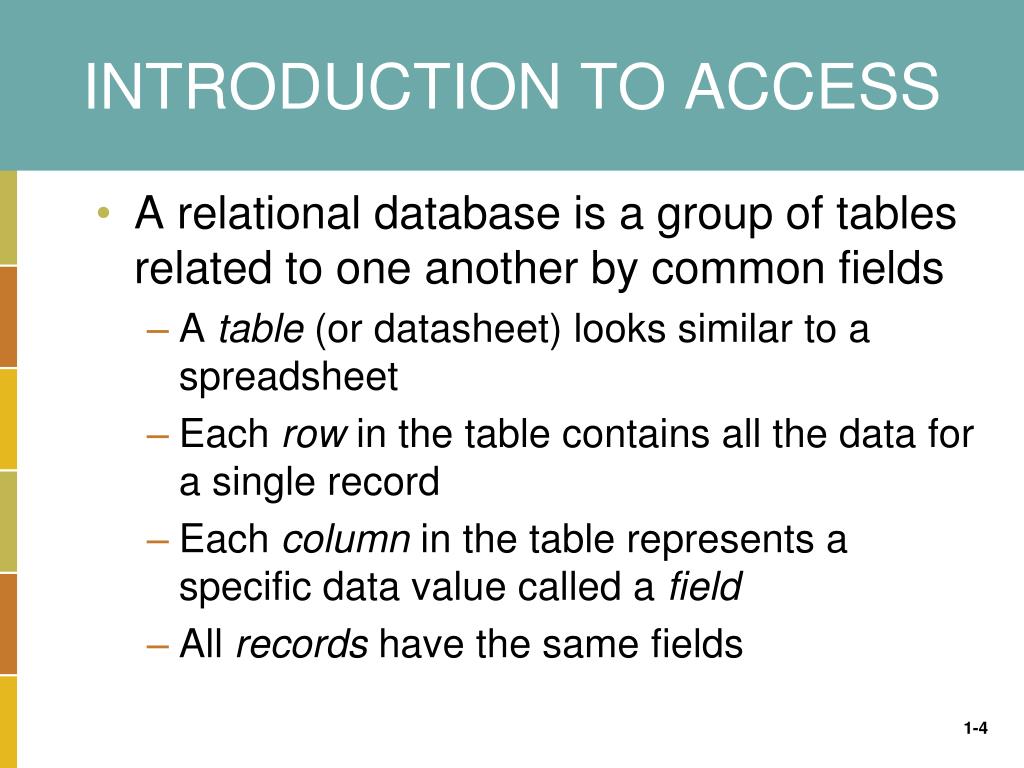

4. INTRODUCTION TO ACCESS • A relational database is a group of tables related to one another by common fields • A table (or datasheet) looks similar to a spreadsheet • Each row in the table contains all the data for a single record • Each column in the table represents a specific data value called a field • All records have the same fields

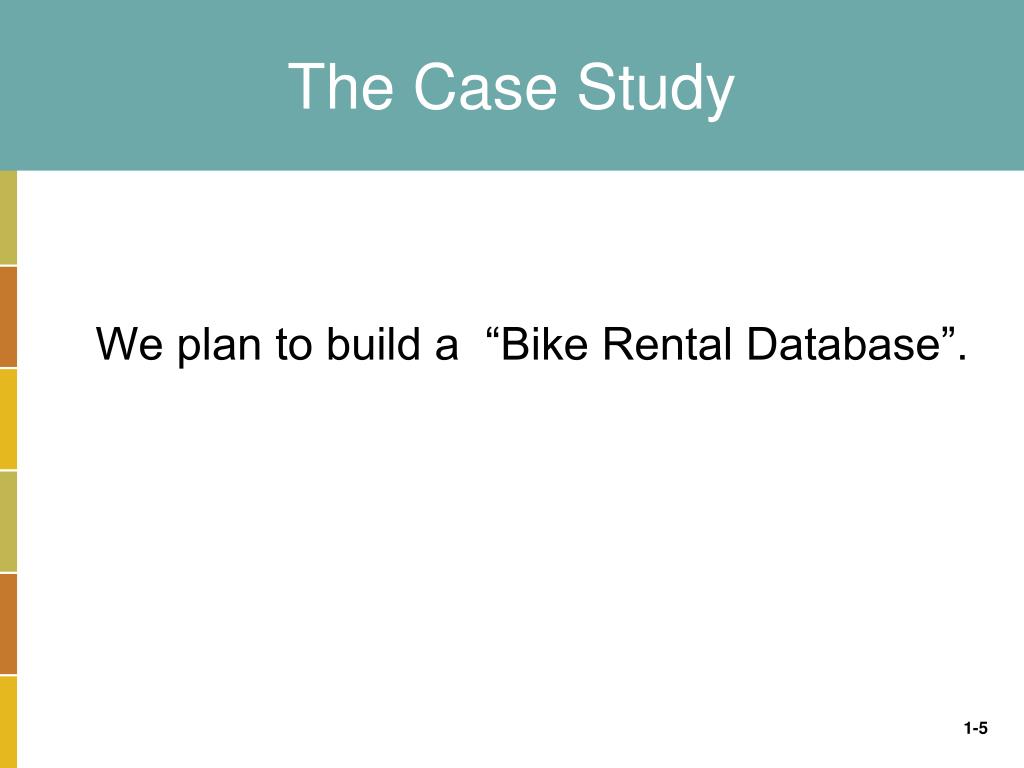

5. The Case Study We plan to build a “Bike Rental Database”.

6. Initial ERD

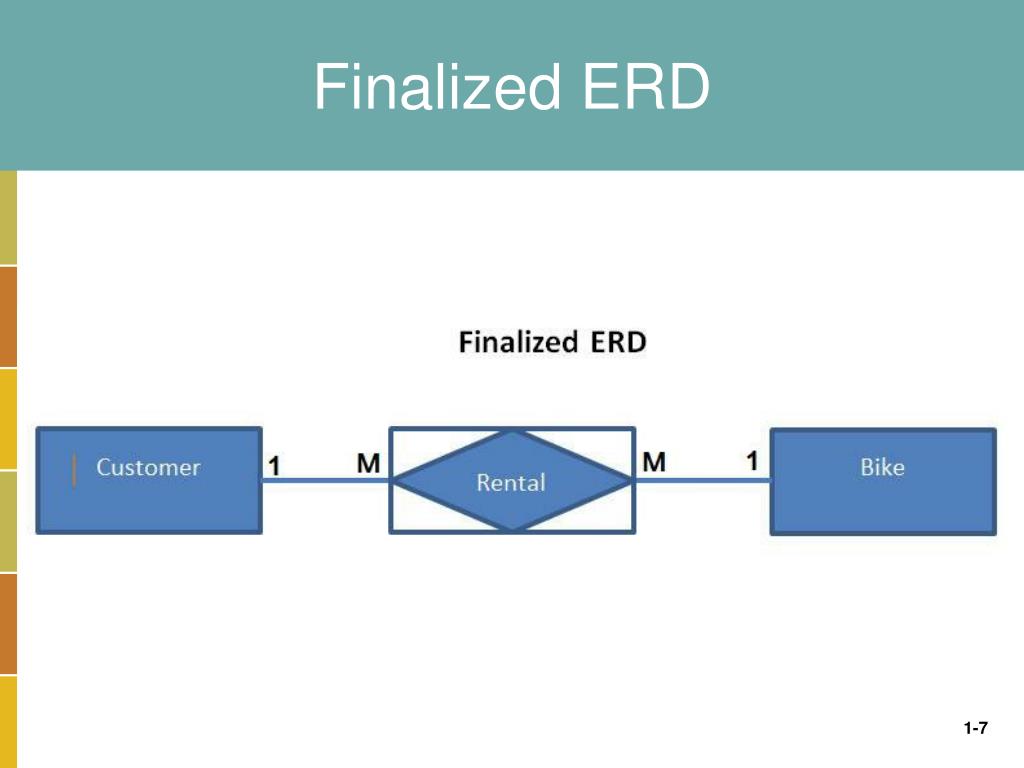

7. Finalized ERD

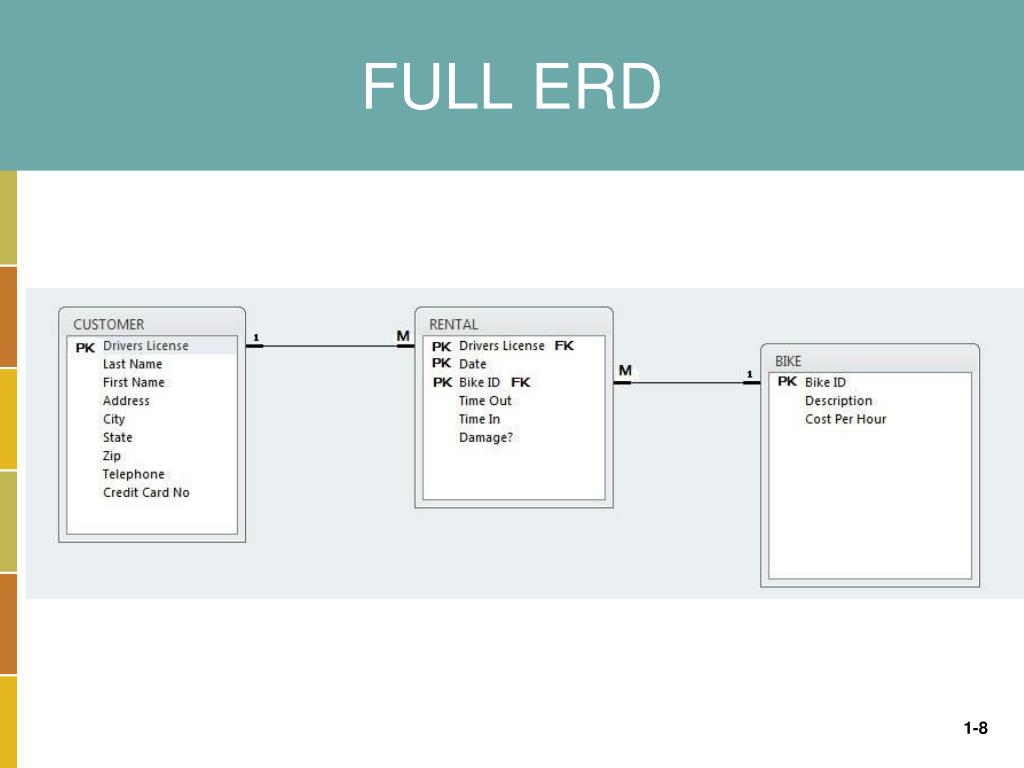

8. FULL ERD

9. Alternate ERD

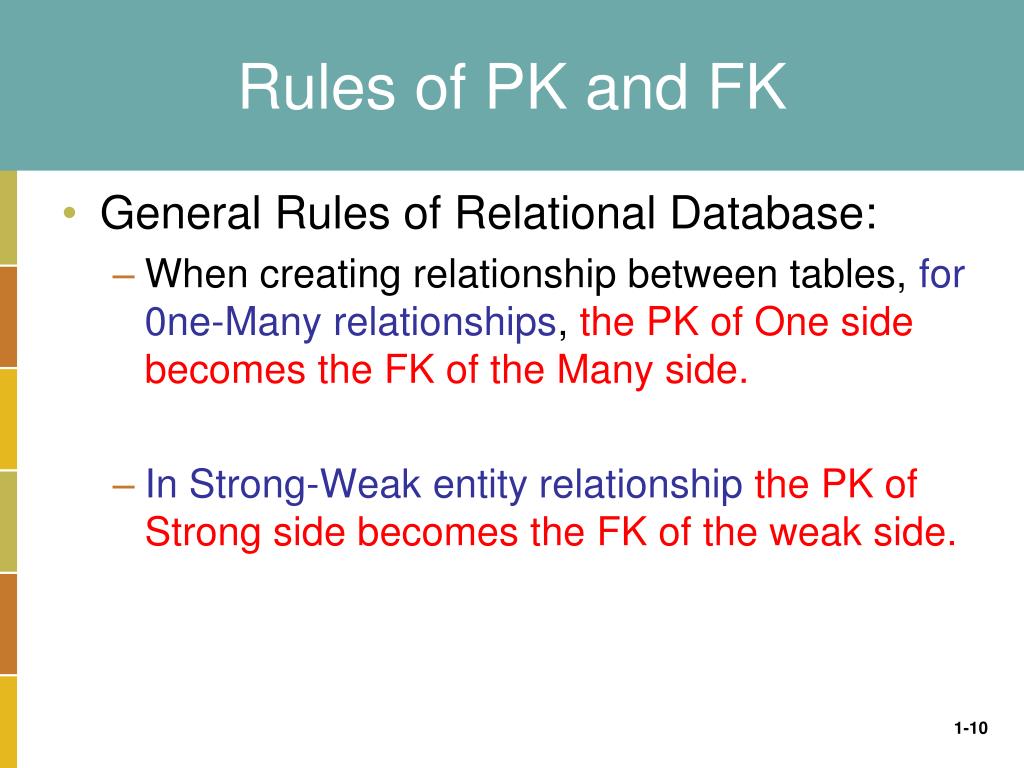

10. Rules of PK and FK • General Rules of Relational Database: • When creating relationship between tables, for 0ne-Many relationships, the PK of One side becomes the FK of the Many side. • In Strong-Weak entity relationship the PK of Strong side becomes the FK of the weak side.

11. Creating A New Blank Database • To start a new database using Microsoft Access, click the Blank Database option in the New File task pane • The first thing you do is name your database • In Access, the database file cannot be moved to another disk or folder using the Save As command

12. Creating A New Blank Database • To create a blank database, follow these steps: • Open Access, click the Office button and then click New • On the Getting Started with Microsoft Office Access page, under New Blank Database, click Blank Database • Enter Slopeside Bikes for the database file name • Click Create

13. Creating A New Blank Database

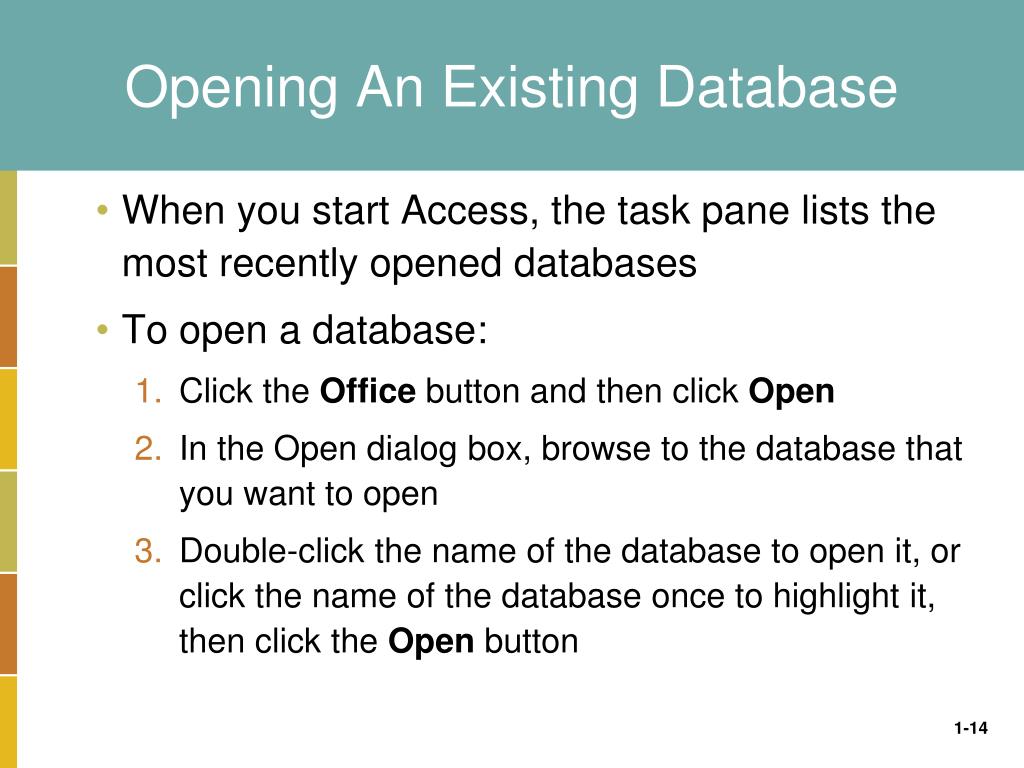

14. Opening An Existing Database • When you start Access, the task pane lists the most recently opened databases • To open a database: • Click the Office button and then click Open • In the Open dialog box, browse to the database that you want to open • Double-click the name of the database to open it, or click the name of the database once to highlight it, then click the Open button

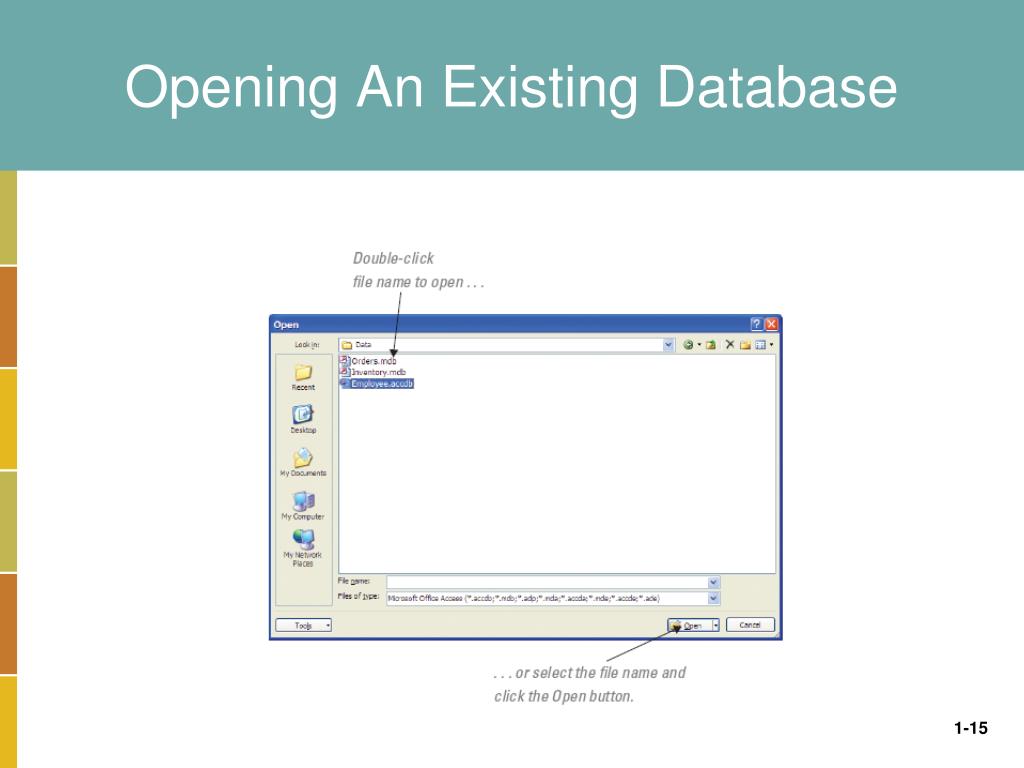

15. Opening An Existing Database

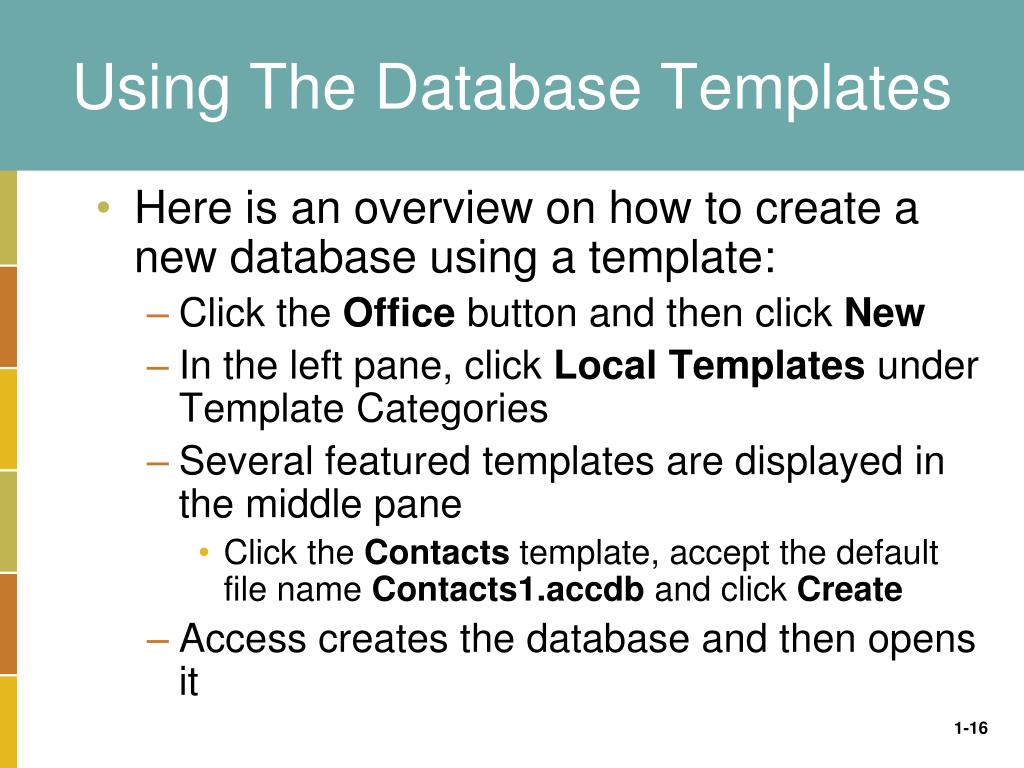

16. Using The Database Templates • Here is an overview on how to create a new database using a template: • Click the Office button and then click New • In the left pane, click Local Templates under Template Categories • Several featured templates are displayed in the middle pane • Click the Contacts template, accept the default file name Contacts1.accdb and click Create • Access creates the database and then opens it

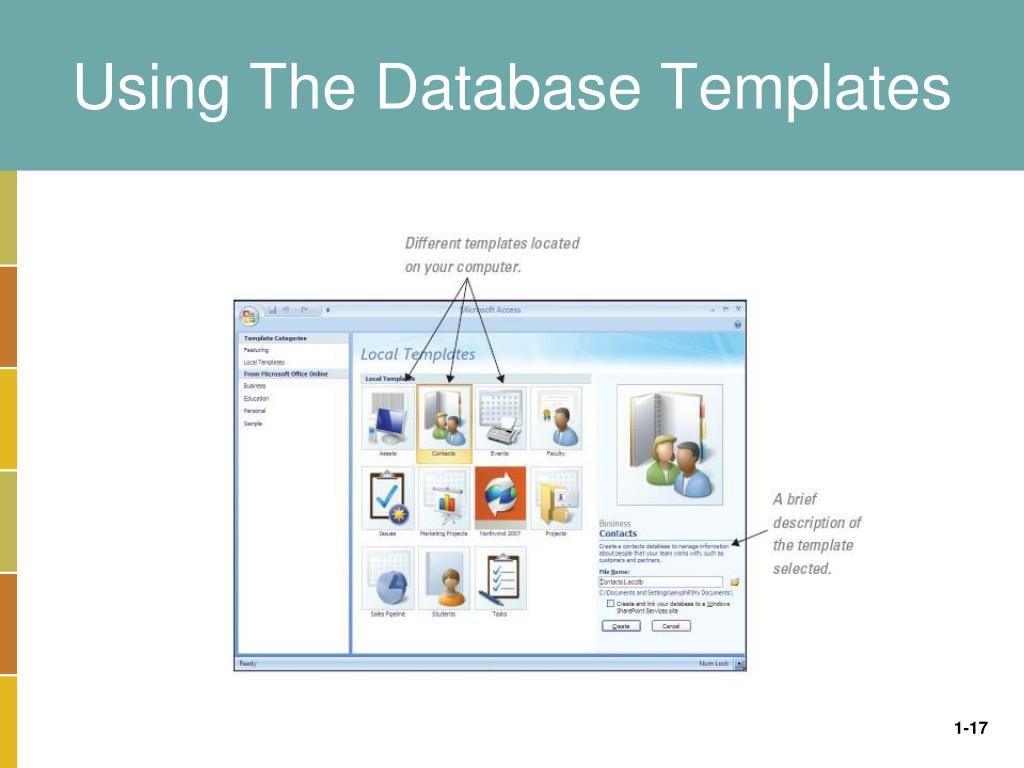

17. Using The Database Templates

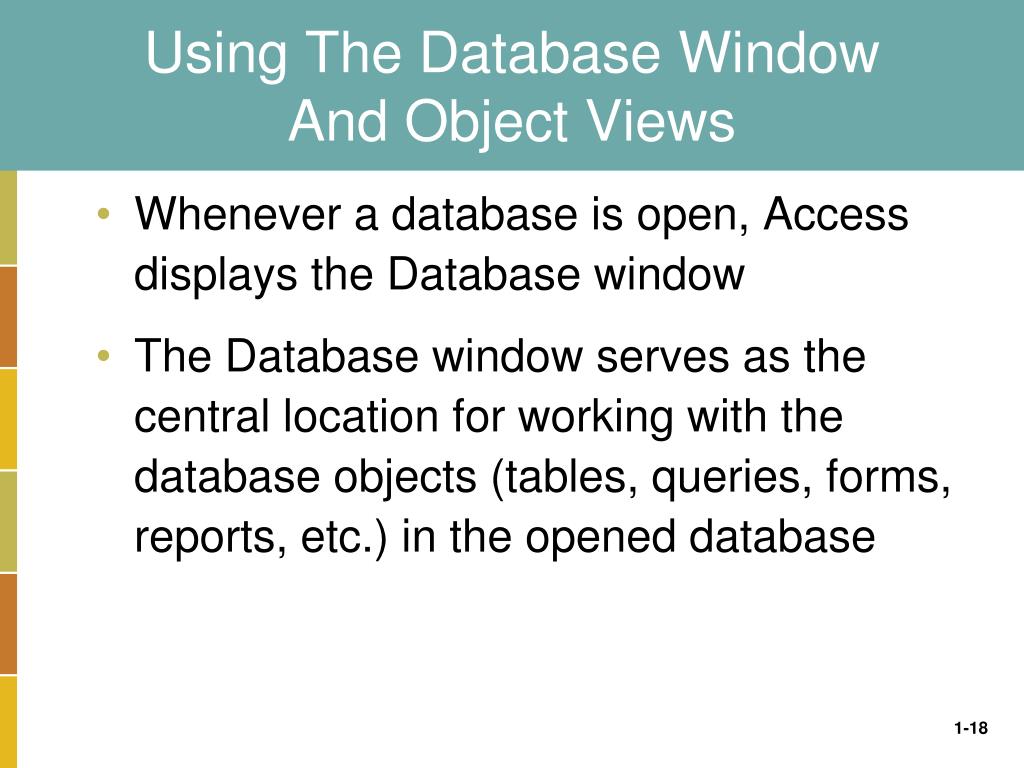

18. Using The Database WindowAnd Object Views • Whenever a database is open, Access displays the Database window • The Database window serves as the central location for working with the database objects (tables, queries, forms, reports, etc.) in the opened database

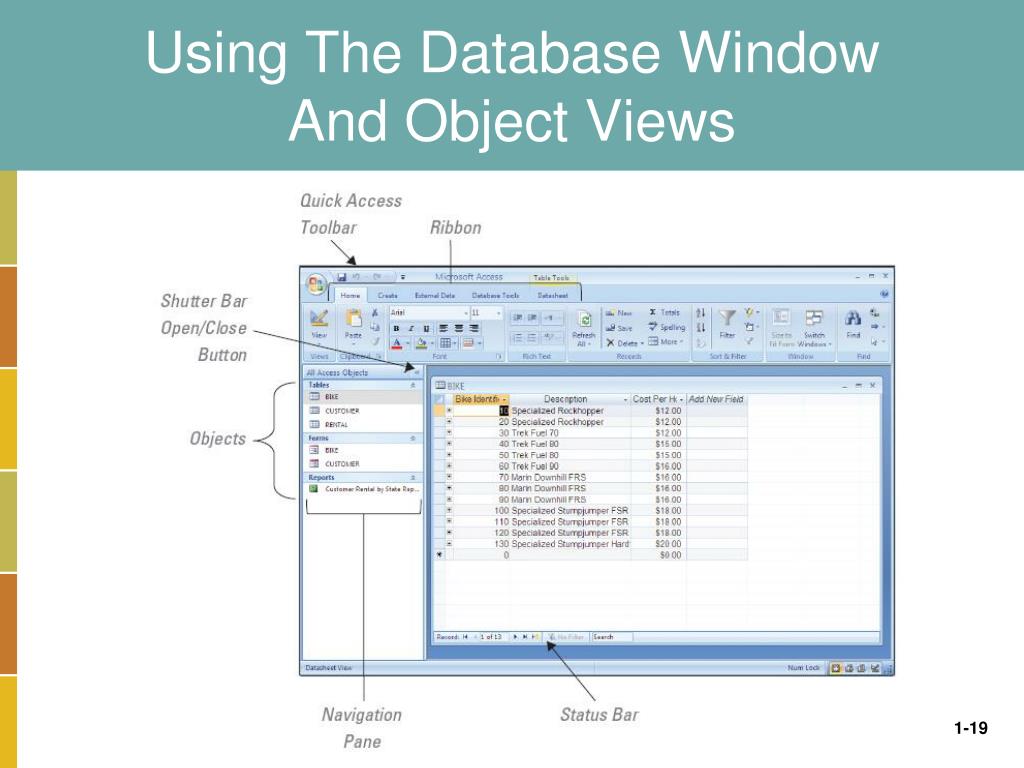

19. Using The Database WindowAnd Object Views

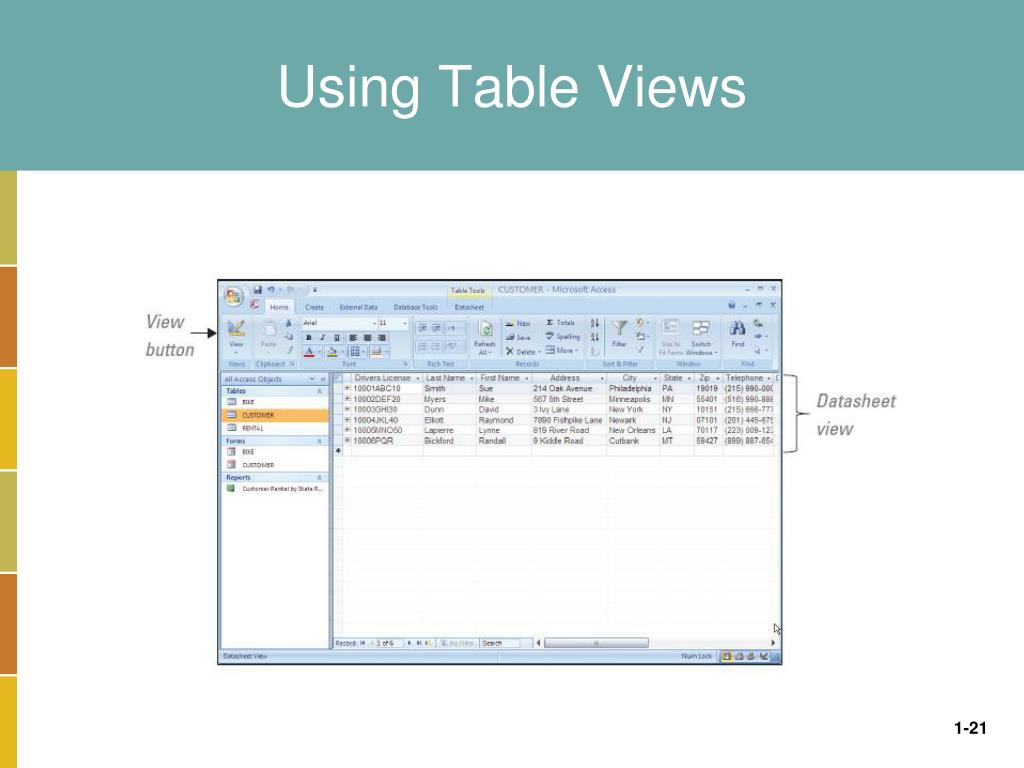

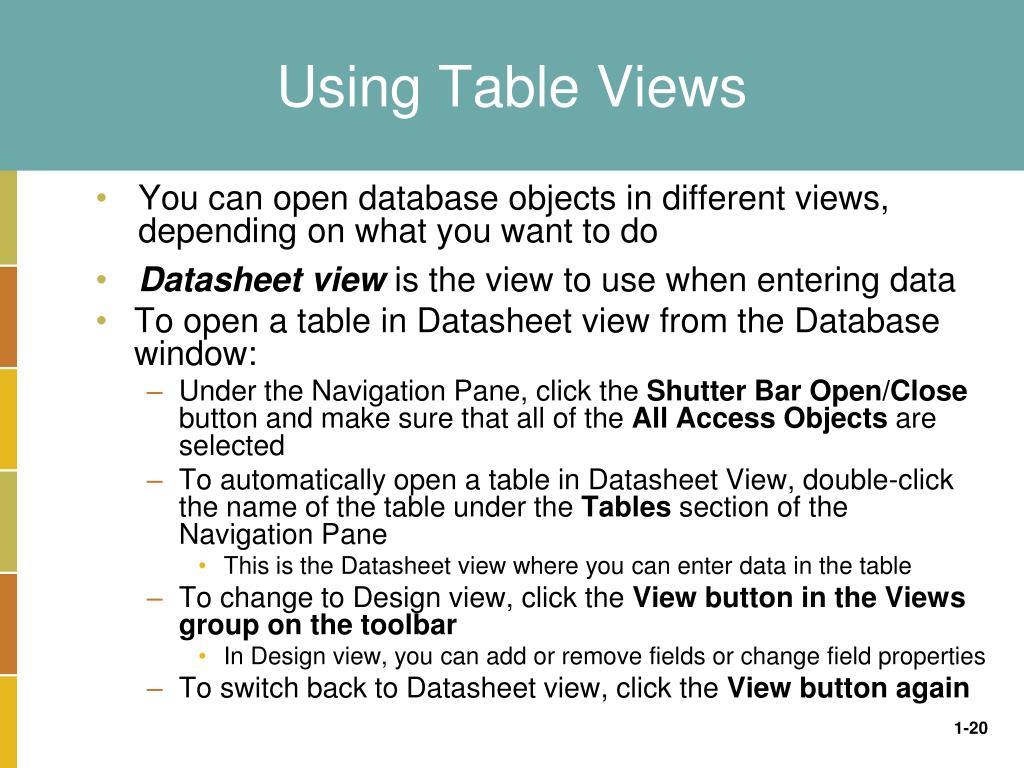

20. Using Table Views • You can open database objects in different views, depending on what you want to do • Datasheet view is the view to use when entering data • To open a table in Datasheet view from the Database window: • Under the Navigation Pane, click the Shutter Bar Open/Close button and make sure that all of the All Access Objects are selected • To automatically open a table in Datasheet View, double-click the name of the table under the Tables section of the Navigation Pane • This is the Datasheet view where you can enter data in the table • To change to Design view, click the View button in the Views group on the toolbar • In Design view, you can add or remove fields or change field properties • To switch back to Datasheet view, click the View button again

21. Using Table Views

22. CREATING AND MODIFYING TABLES • Access gives you several different ways to create tables: • Create a table using data entry • Create a table in Design view

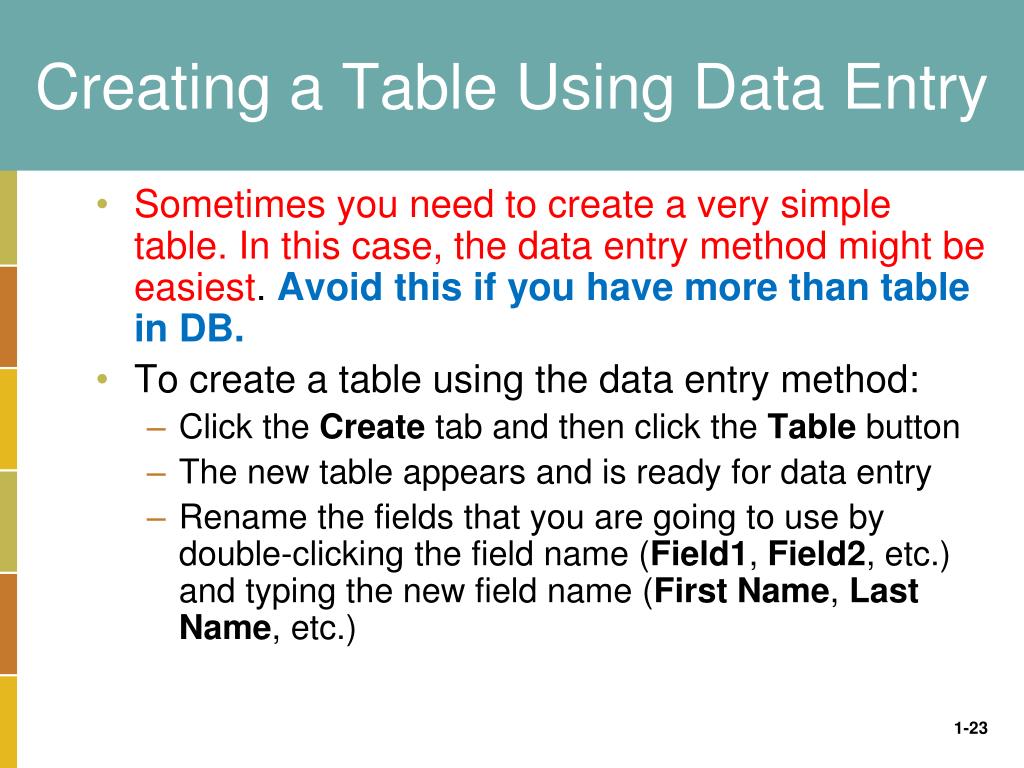

23. Creating a Table Using Data Entry • Sometimes you need to create a very simple table. In this case, the data entry method might be easiest. Avoid this if you have more than table in DB. • To create a table using the data entry method: • Click the Create tab and then click the Table button • The new table appears and is ready for data entry • Rename the fields that you are going to use by double-clicking the field name (Field1, Field2,etc.)and typing the new field name (First Name, Last Name, etc.)

24. Creating a Table Using Data Entry

25. Creating A Table In Design View • To create a table using the data entry method: • Click the Create tab, and then click the Table Design button • Click in the Field Name cell and type Bike ID • Click in the Data Type cell, click the list arrow and select Number • To make the Bike ID field a primary key, click on the Primary Key button in the Tools group on the toolbar • In the Field Properties pane (below the table), make sure the Required property is set to Yes and the Field Size is set to Long Integer

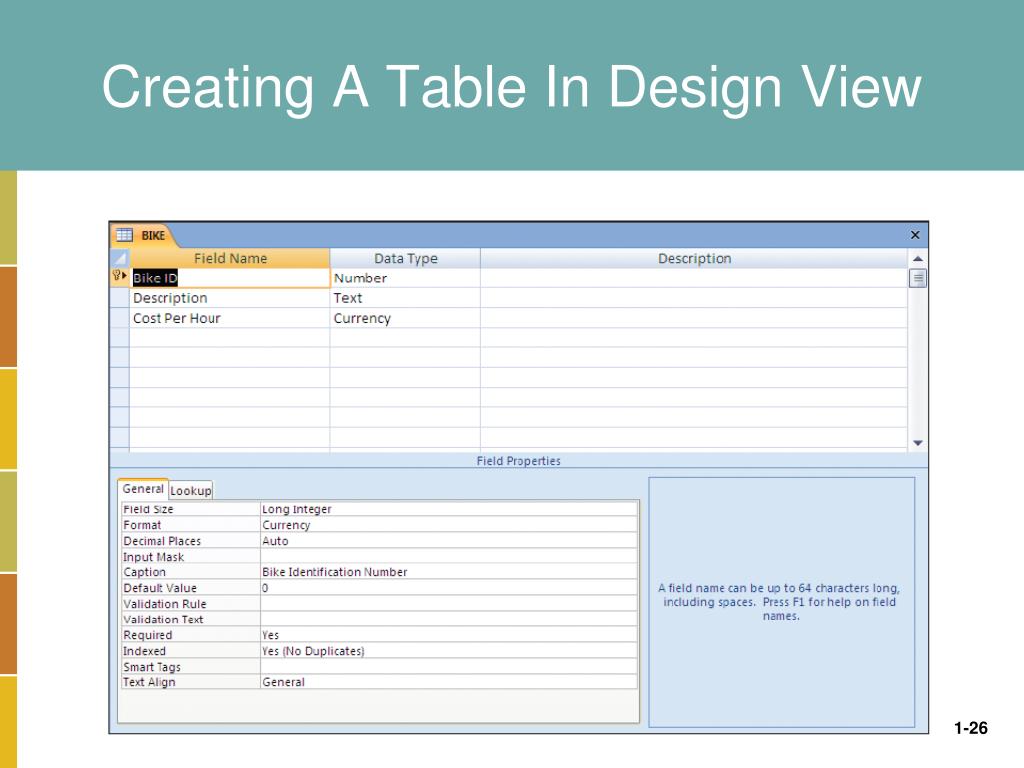

26. Creating A Table In Design View

27. Changing Data Types • By default, the data type for a new field is text • To change the data type for a field: • Open the table in Design view • Click the data type for the field that you want to change • Click the drop-down arrow to see the list of available data types • Select the appropriate data type for your data

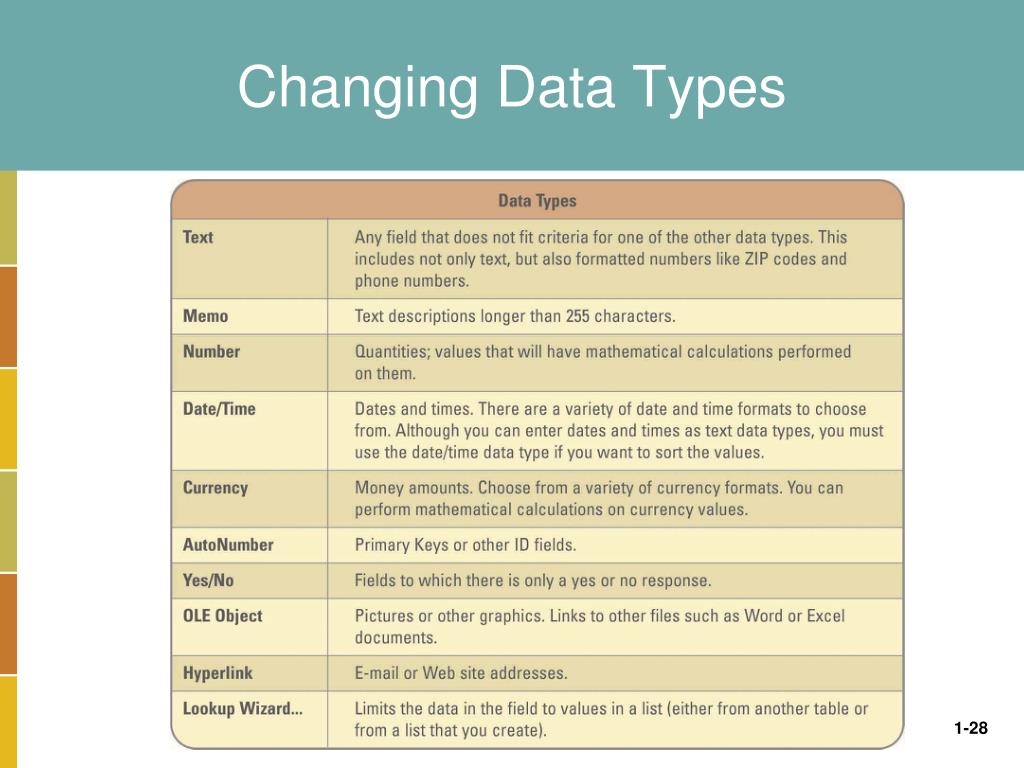

28. Changing Data Types

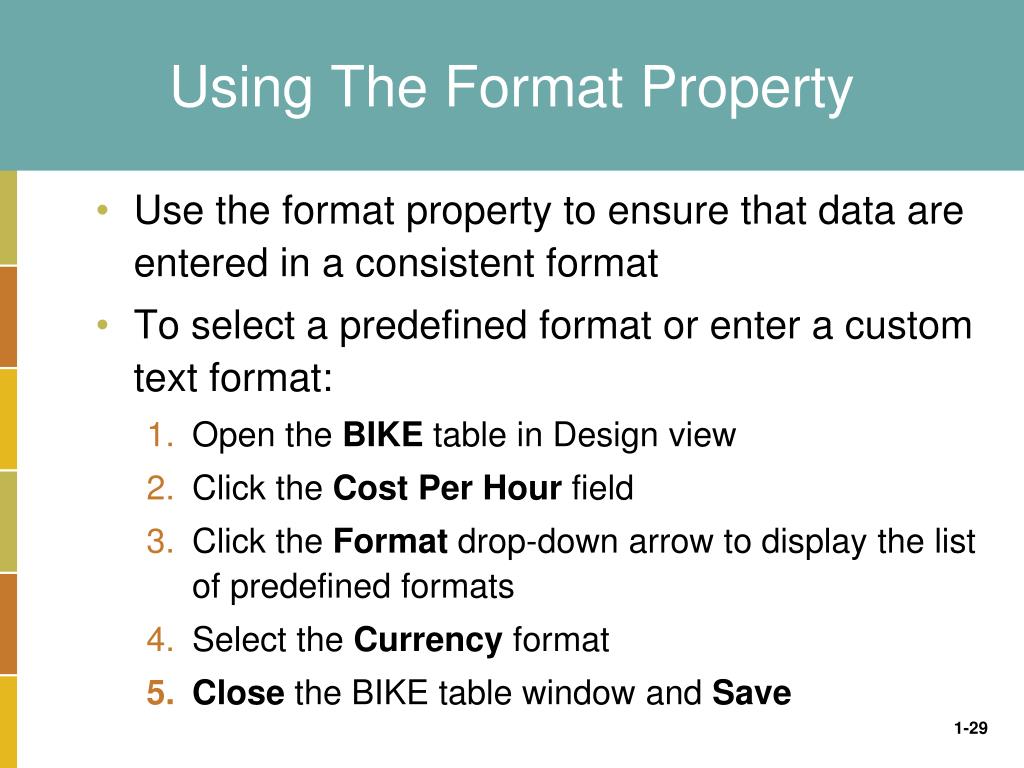

29. Using The Format Property • Use the format property to ensure that data are entered in a consistent format • To select a predefined format or enter a custom text format: • Open the BIKE table in Design view • Click the Cost Per Hour field • Click the Format drop-down arrow to display the list of predefined formats • Select the Currency format • Close the BIKE table window and Save

30. Using The Format Property

31. DEFINING RELATIONSHIPS • Objects in your database are related to one another through relationships defined by common fields between tables • There are three types of relationships: • One-to-many • One-to-one • Many-to-many

32. DEFINING RELATIONSHIPS • When these fields have the same names, Access automatically creates the one-to-many relationship for you • The fields may have different names • In those cases, you may want to manually create the relationship using the Relationships window

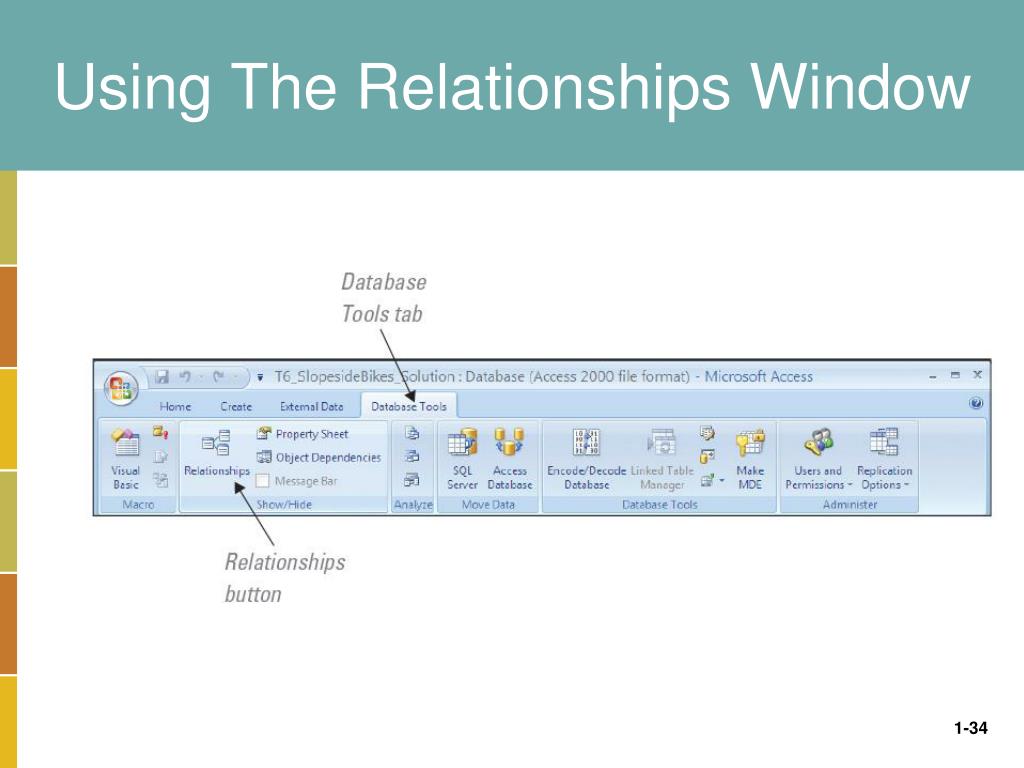

33. Using The Relationships Window • To define relationships between tables follow these steps: • Open the Relationships window by clicking on the Database Tools tab and selecting the Relationships button • Select each table listed (i.e., BIKE, CUSTOMER, and RENTAL) and click the Add button, then click the Close button • To define a new relationship, click and drag the Bike ID from the BIKE table and drop it on the Bike ID in the RENTAL table • Click the Create button in the Edit Relationships dialog box • Select the Enforce Referential Integrity box • Click the Create button

34. Using The Relationships Window

35. Using The Relationships Window

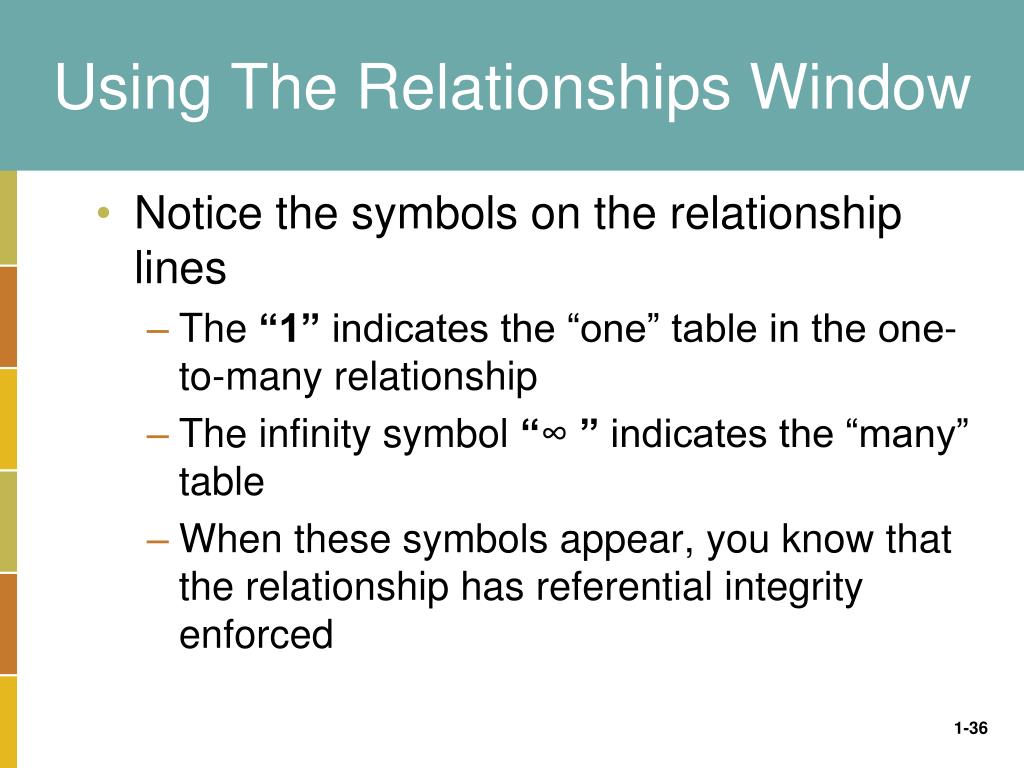

36. Using The Relationships Window • Notice the symbols on the relationship lines • The “1” indicates the “one” table in the one-to-many relationship • The infinity symbol “∞ ” indicates the “many” table • Whenthese symbols appear, you know that the relationship has referential integrity enforced

37. Using The Relationships Window
