Access Manager 11gR2 (11.1.2.0.0) Technical Presentation

1. R2 Access Manager 11gR2 (11.1.2.0.0) Technical Presentation Venu Shastri Senior Principal Product Manager Identity Management, Oracle

2. Agenda • Overview • Key Features • Architecture & Deployment • Extensibility & Integrations • Q & A

3. Agenda • Overview • Key Features • Architecture & Deployment • Extensibility & Integrations • Q & A

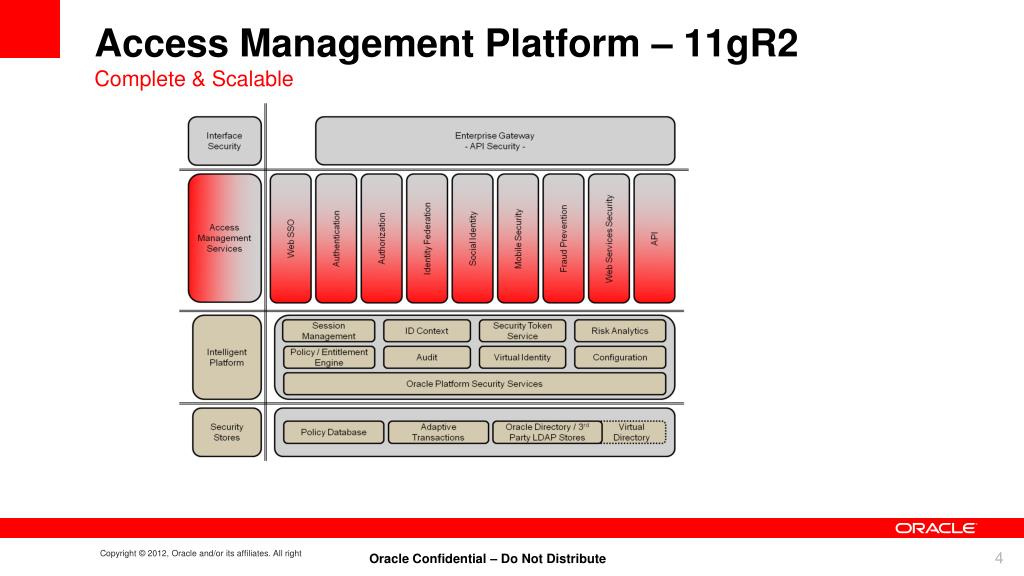

4. Access Management Platform – 11gR2Complete & Scalable

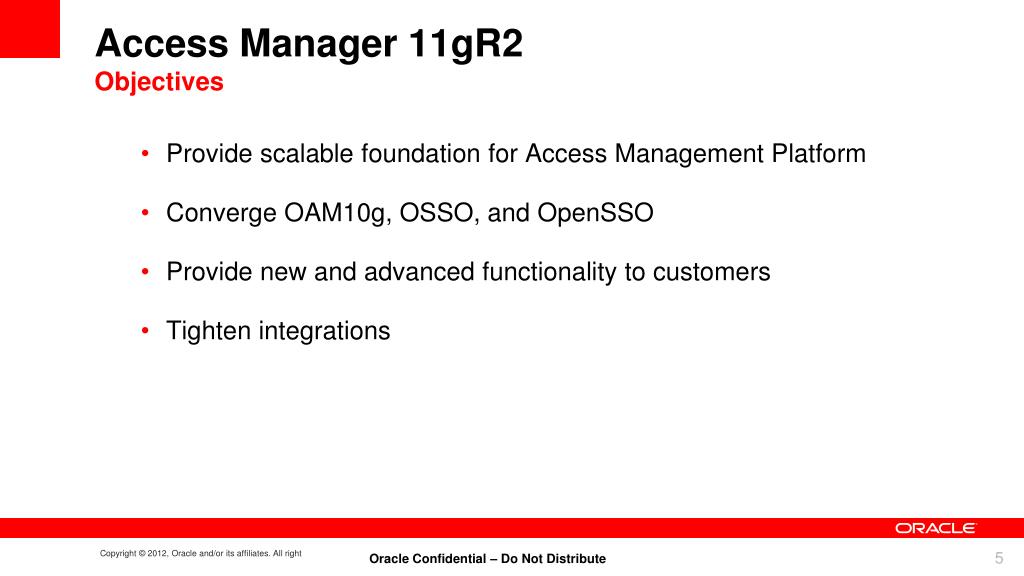

5. Access Manager 11gR2Objectives • Provide scalable foundation for Access Management Platform • Converge OAM10g, OSSO, and OpenSSO • Provide new and advanced functionality to customers • Tighten integrations

6. Access Manager 11gR2Key Features • Simplified Web Single Sign On (SSO) • Authentication and Authorization • Centralized Policy Administration • Advanced Session Management • Centralized Agent Management • Native Password Management • Windows Native Authentication • Comprehensive Auditing and Logging

7. Access Manager 11gR2Benefits • Centralized policy management and auditing reduces cost and improves compliance. • Support for access management in a complex, heterogeneous environment reduces total cost of ownership and accelerates deployment. • Flexible and powerful policy model allow organizations to meet complex access management needs. • Scalable deployment model supports most demanding, internet scale deployments. • Extensible architecture enables easy customization to meet organization specific requirements.

8. Access Manager 11gR2Deployment Overview

9. Agenda • Overview • Key Features • Architecture & Deployment • Extensibility & Integrations • Q & A

10. Access Manager 11gR2Policy Model • Enhanced security • Closed world – access is denied to resources unless a policy specifically allows access • Resource simplification • No URL Prefixes – resources are defined as complete URL patterns (“*” and “…”) associated with host id and used to determine the sole policy applicable to a request • Responses • Expression based responses that are powerful • Ability to return user, request, and session information

11. Access Manager Resource Types Host Identifiers Application Domains Authentication Schemes Policies Resources Authentication Policies Authorization Policies Legend Identity Store - Relationship: One-to-Many - Relationship: Many-to-Many - External Dependencies - Relationship: Containment Access Manager 11gR2Policy Model Authentication Modules

12. Access Manager 11gR2Policy Model Enhancements • Multiple IP Ranges • Wildcard enhancements • Resource Operation/Custom Types • Authorization expressions • AND, OR, NOT • ( and ) – precedence indicators • User Attribute Condition • LDAP Filter / Search • Enables creation of more complex and flexible authorization constraints that deals only with LDAP attributes • Session Attribute Condition

13. Access Manager 11gR2Policy Model Enhancements – LDAP Query/Filter Condition

14. Access Manager 11gR2Policy Model Enhancements – Complex Expressions

15. Access Manager 11gR2Session Management • Stateful sessions with detailed security context information that can be further propagated • Tracks active user sessions using a high performance distributed cache • Admin can specify Session Lifetime & Idle Timeout globally • Admin can limit the number of concurrent sessions a user can have at one time • Out-of-band session termination • Prevents unauthorized access to systems when a user has been terminated • Can be done with or without persistent storage • Provides automatic session failover

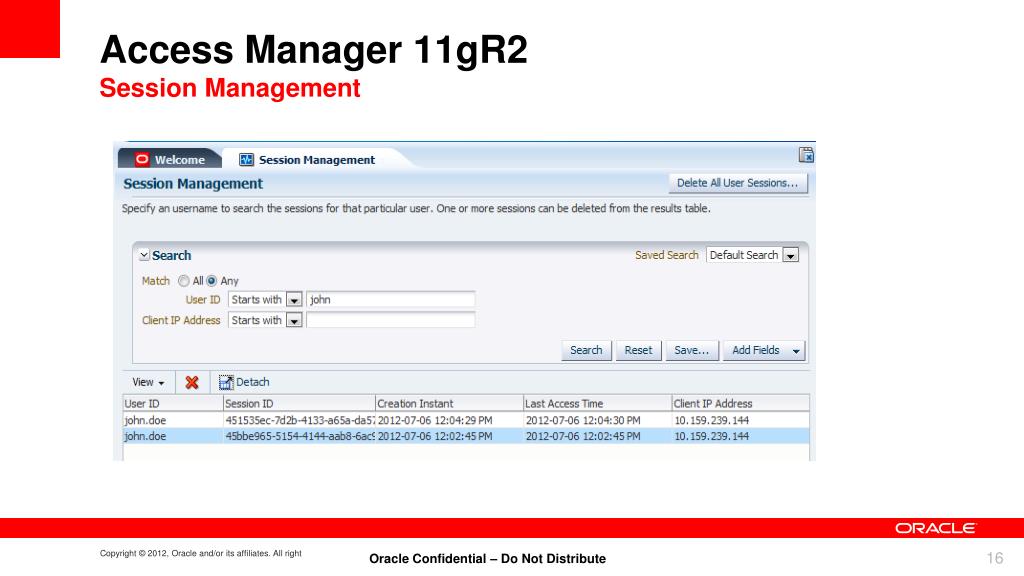

16. Access Manager 11gR2Session Management

17. Access Manager 11gR2Windows Native Authentication • SPNEGO based credential validation for true Windows desktop to web single sign-on • Allows single sign-on for WebGate and Oracle SSO protected applications simultaneously • Does not need IIS based solution for WebGate • WebGates and Oracle SSO protected applications need not run on Windows platform • Can be enabled for a subset of protected applications • Internal vs External websites

18. Access Manager 11gR2Embedded Credential Collection • OAM 11g collects credentials at the runtime server • Login pages are presented by the OAM runtime servers • OAM runtime servers can redirect to login pages located in a separate web server • Regardless of where the login pages are, credentials are sent to the OAM runtime servers for collection • Sample Login pages are provided out-of-the-box

19. Access Manager 11gR2Detached Credential Collector • Extends 11g Webgate with an option to enable Credential Collection capability (Authentication Gate) • Back Channel communications use OAP protocol whilst Front channel uses HTTPS • Decouples credential collection from Server • Provides flexibility to place DCC anywhere in the DMZ • More security. End-user HTTP sessions get terminated at DMZ • Reduces overhead on server. Improves performance

20. Access Manager 11gR2Detached Credential Collector

21. Access Manager 11gR2Password Management • Native password management for simple password mgmt requirements • In-band Password Capability • Password Warning • Forced Password Reset(expired / reset) • Password Policy Enforcement • Password Composition Rules • Password History • Account Lockout • OAM – OIM Password Integration still supported

22. Access Manager 11gR2Password Management

23. Access Manager 11gR2Centralized Agent Management • One administration console to manage all agents within the deployment • Simultaneously manage and configure mod_osso, OAM 10g webgates, OpenSSO Agents and OAM 11g webgates • Operational status of each individual agent can be monitored • Agent hostname, IP address, connected server, number of active connections, average operation latency, and more…

24. Access Manager 11gR2Centralized Agent Management

25. Access Manager 11gR211g WebGate • 11g Cookie is hosted scoped • Cookie Encryption for each 11g WebGate is unique to that WebGate • Authorization Caching • Resource to Authorization Policy • Authorization Result • Diagnostic page • OUI Installer that lays out a WebGate package depending on platform used

26. Access Manager 11gR2Utilities • Remote Registration Tool • Application administrators can register agents without the help of the Security team • Policy objects can be automatically created to protect resources of a given application at registration time • Access Tester Tool • Simulates resource requests to ensure policy evaluates correctly • Uncovers network issues that impact webgates or mod_osso agents due to the tool’s remote nature

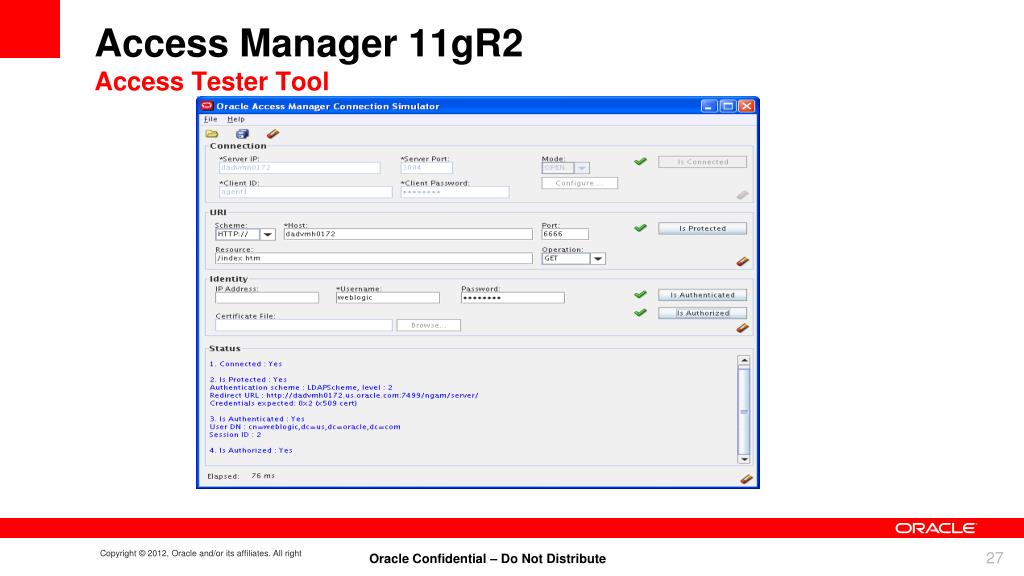

27. Access Manager 11gR2Access Tester Tool

28. Access Manager 11gR2Logging and Auditing • Logging • Centralized log management via Enterprise Manager (EM) • Graphical tools for configuring and viewing logs (EM) • Multiple logging levels • Auditing • Standardized auditing across FMW components • Common Audit Framework allows audit logs to be directed and persisted into an audit database • Reports generated via Oracle BI Publisher

29. Agenda • Overview • Key Features • Architecture & Deployment • Extensibility & Integrations • Q & A

30. Access Manager 11gR2Internal Architecture Protocol Compatibility Framework Credential Collector SSO Engine AuthN Service AuthZ Service OAM Server Session Management Identity Provider Token Processing Partner & Trust Policy Service Configuration Service Coherence Distributed Cache Oracle Platform Security Services

31. Access Manager 11gR2Installation and Configuration • Installation process • OAM 11g installs using Oracle Universal Installer (OUI) • The installation process copies all the software bits to the host machine • OUI does not perform product configuration • Configuration process requires 2 steps • Database schema configuration using Repository Creation Utility (RCU) • Product configuration and deployment using WebLogic Configuration Wizard

32. Access Manager 11gR2Deployment on WebLogic Cluster

33. Access Manager 11gR2Multi-data-center Deployment • Supporting Active - Active, Active - Passive or Active - Hot Standby deployments • Enables seamless user SSO across data centers with session continuity • Follows Master-Slave configuration for Access Manager deployment across Data-Centers. Policy and configuration keeps in sync via T2P processes. • Behavior is configurable based on Session Adoption Policy • Re-authentication Required – True/False • Remote Session Invalidation - True/False • On-Demand Session Data Retrieval - True/False

34. Access Manager 11gR2Multi-data-center Deployment – Active/Active User 2 (Geo-location 2) User 1 (Geo-location 1) OAM Cookie DC=DC2 OAM Cookie DC=DC1 Global Load Balancer Active Active Stand-by Stand-by Access Manager Cluster in Data-Center 2 (Slave) Access Manager Cluster in Data-Center 1 (Master) Synchronized using T2P Process

35. Access Manager 11gR2Multi-data-center Deployment – Active/Active User 2 (Geo-location 2) User 1 (Geo-location 1) OAM Cookie DC=DC1 DC=DC2 OAM Cookie DC=DC2 Global Load Balancer Re-authenticate User Data-Center 1 is down or over-loaded Back-channel OAP call Access Manager Cluster in Data-Center 2 (Slave) Access Manager Cluster in Data-Center 1 (Master) Retrieve Remote Session Data Invalidate Remote Session

36. Agenda • Overview • Key Features • Architecture & Deployment • Extensibility & Integrations • Q & A

37. Access Manager 11gR2Extensibility • Authentication Extensibility Framework • Allows for customized authentication modules to be plugged into the system • Includes Java SDK tooling for users to create customized modules • Pure Java based ASDK • Includes authentication services and authorization services • One platform independent package • Includes APIs for the extended protocol-level op codes • Backward compatible against OAM 10g

38. Access Manager 11gR2Key IDM Integrations • SSO to web services • Issuance and validation of web service tokens Identity Propagation OAM OSTS • Identity propagation from federated partners into the local environment • Simplify authentication flows Federated SSO Federation OAM

39. Access Manager 11gR2Key IDM Integrations • Reinforce password Authentication • Risk-based authentication Authentication OAM OAAM • Secure self-service flows • Increase security and usability • Consistent user experience End-to-End OAM OAAM OIM

40. Access Manager 11gR2New Platform and Integration Support • New platform support • Solaris x64, AIX 7.1, and Oracle Linux 6.x / RHEL 6.x • 3rd party integrations • Microsoft SharePoint 2010 • RSA Authentication Manager 7.1 • JBoss 5.1.0 • Microsoft Outlook Web Application (OWA) 2010 – Post R2 • Microsoft Forefront TMG 2010 – Post R2 • SAP Portal 7.0 – Post R2 • IBM WebSphere Portal 7.0 – Post R2

41. Q & A
