  1. Sharks, Skates, Rays and Chimeras Class Chondrichthyes

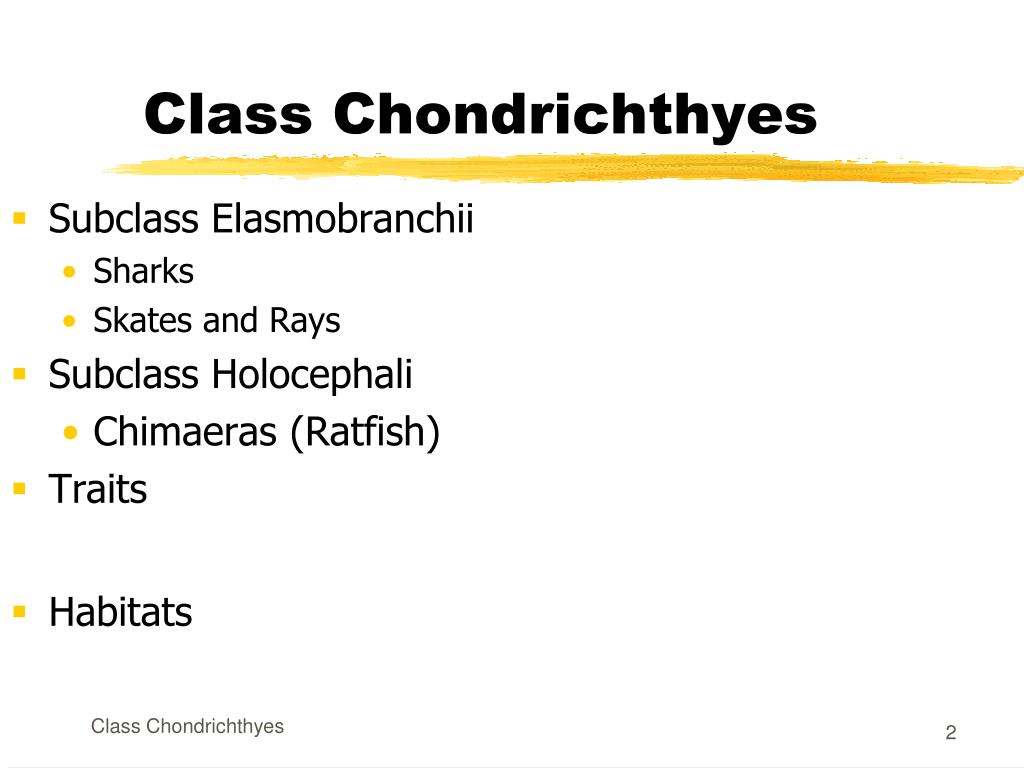

  2. Class Chondrichthyes • Subclass Elasmobranchii • Sharks • Skates and Rays • Subclass Holocephali • Chimaeras (Ratfish) • Traits • Habitats Class Chondrichthyes

  3. Adaptations • Buoyancy • Respiration • External covering • Feeding • Movement • Sensory systems Class Chondrichthyes

  4. Buoyancy • Huge oil-filled liver • A shark that has an air weight of 1,000 kg. weighs only 3.3kg in water • Lift created by a heterocercal tail Class Chondrichthyes

  5. Caudal Fin Types • Heterocercal • Homocercal Class Chondrichthyes

  6. Respiration • Chondrichthyes employ 3 different methods of respiration • “Two pump” method • Ram ventilation • Spiracles Class Chondrichthyes

  7. Class Chondrichthyes

  8. External Covering • All Chondrichthyes have placoid scales in one form or another • Placoid scale modifications • Spine of stingray, dorsal spine of dogfish, defensive spines in the skate, and teeth Class Chondrichthyes

  9. Ganoid: Sturgeon & Paddlefish Placoid:Sharks, Skates and Rays Ctenoid Cycloid: Tarpon and Ladyfish Scale Types Class Chondrichthyes

  10. Feeding • Digestion • Spiral valve Class Chondrichthyes

  11. Movement • Pelagic sharks have rete mirabile Class Chondrichthyes

  12. Sensory Systems • Elasmobranchs a have well-developed sensory system which acts in concert to locate prey and find their way around the environment • Some species can detect a drop of blood as dilute as 1 part per billion • Also, very good at following an odor trail Class Chondrichthyes

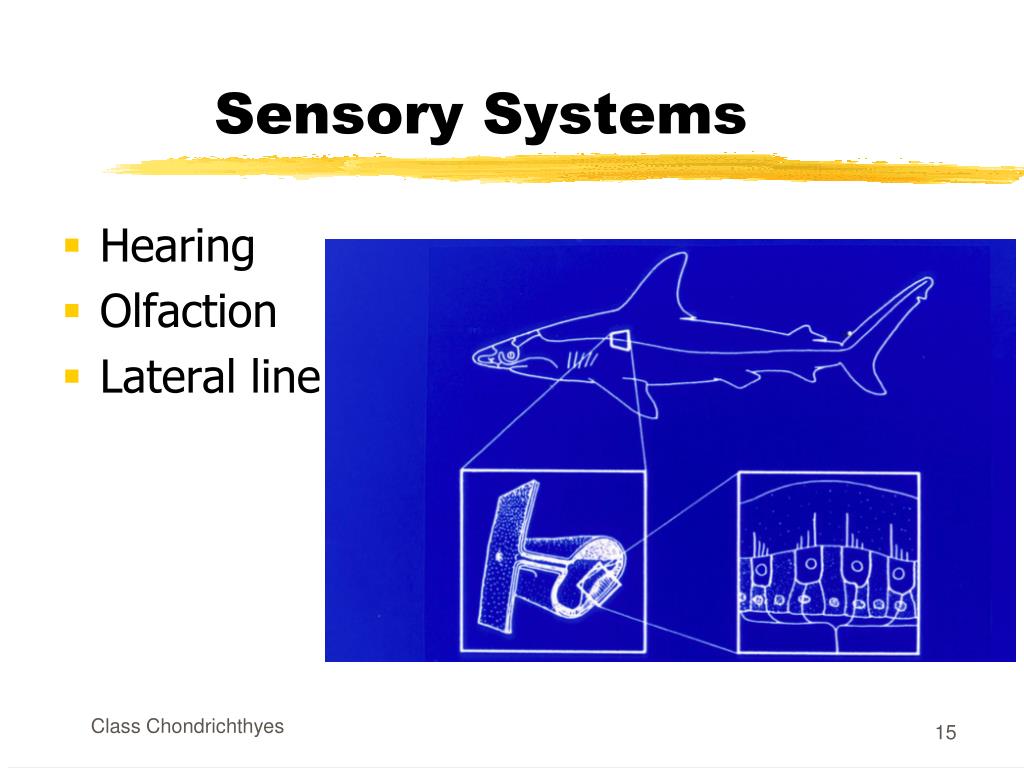

  13. Sensory Systems • Hearing • Olfaction • Lateral line Class Chondrichthyes

  14. Sensory Systems • Visual systems are well developed for use during night and day • Tapetum lucidum = increased vision at night • Nictitating membrane Class Chondrichthyes

  15. Sensory Systems • Ampullae of Lorenzini Class Chondrichthyes

  16. Chondrichthyes Reproduction • Most species have extended gestation periods in egg cases or in the body cavities of females • Young traits • Internal fertilization, through the use of claspers on the male Class Chondrichthyes

  17. Chondrichthyes Reproduction • Oviparity • Viviparity • Yolk-sac Viviparity • Uterine Viviparity • Cannibal Viviparity • Placental Viviparity Class Chondrichthyes

  18. Oviparity - Egg Laying • Oviparity Class Chondrichthyes

  19. Viviparity • Yolk-sac Viviparity (Ovoviviparity) • Eggs are produced and retained inside the mother • Shell disappears and young are retained until fully developed • Uterine Viviparity • Mother secretes nutrient rich fluid which is taken up through the skin of the embryo Class Chondrichthyes

  20. Cannibal Viviparity • Young in each oviduct consume unfertilized eggs or other siblings Class Chondrichthyes

  21. Placental Viviparity • Nutrients are supplied to the embryo directly from the mother via a umbilical cord Class Chondrichthyes

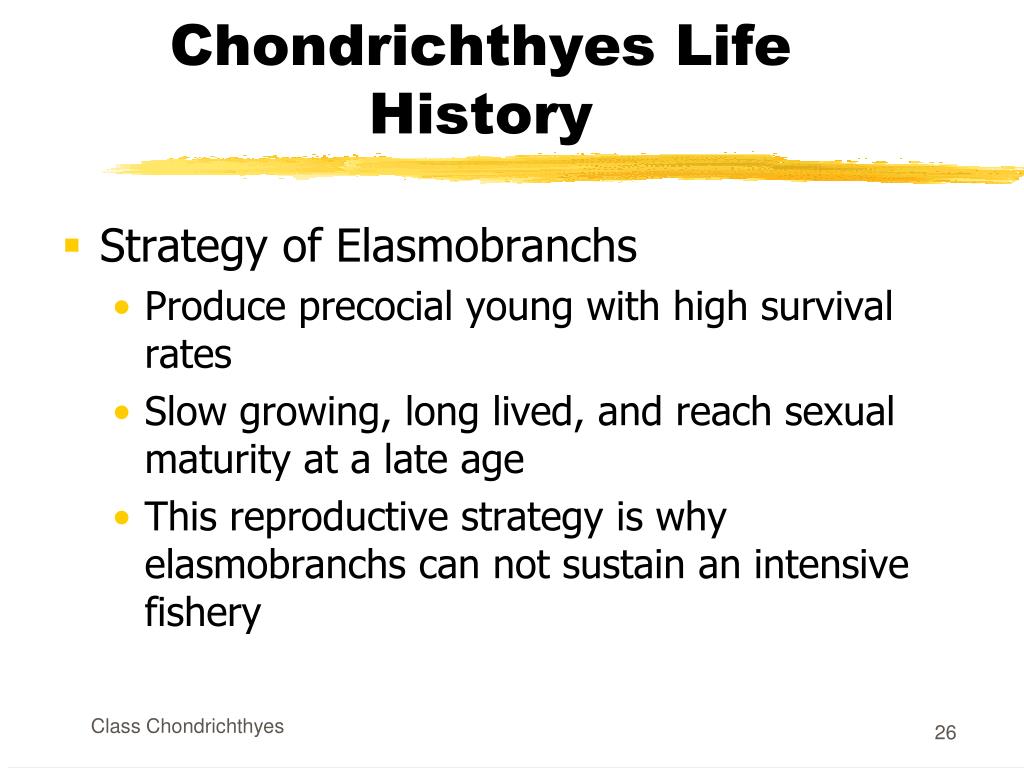

  22. Chondrichthyes Life History • Strategy of Elasmobranchs • Produce precocial young with high survival rates • Slow growing, long lived, and reach sexual maturity at a late age • This reproductive strategy is why elasmobranchs can not sustain an intensive fishery Class Chondrichthyes

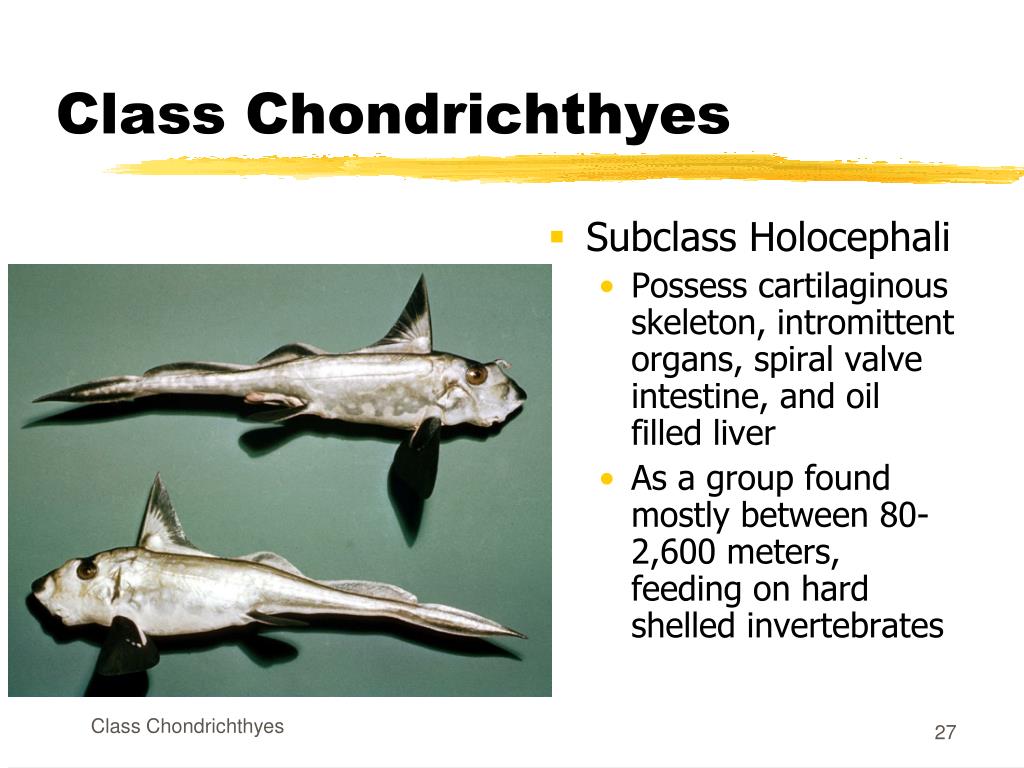

  23. Class Chondrichthyes • Subclass Holocephali • Possess cartilaginous skeleton, intromittent organs, spiral valve intestine, and oil filled liver • As a group found mostly between 80-2,600 meters, feeding on hard shelled invertebrates Class Chondrichthyes
