  1. Automated Testing Tool for UML Behavioral Descriptions M.Tech. Project Guided by: Presented by: Venkat Prof. S.Ramesh Prof. Sridhar Iyer

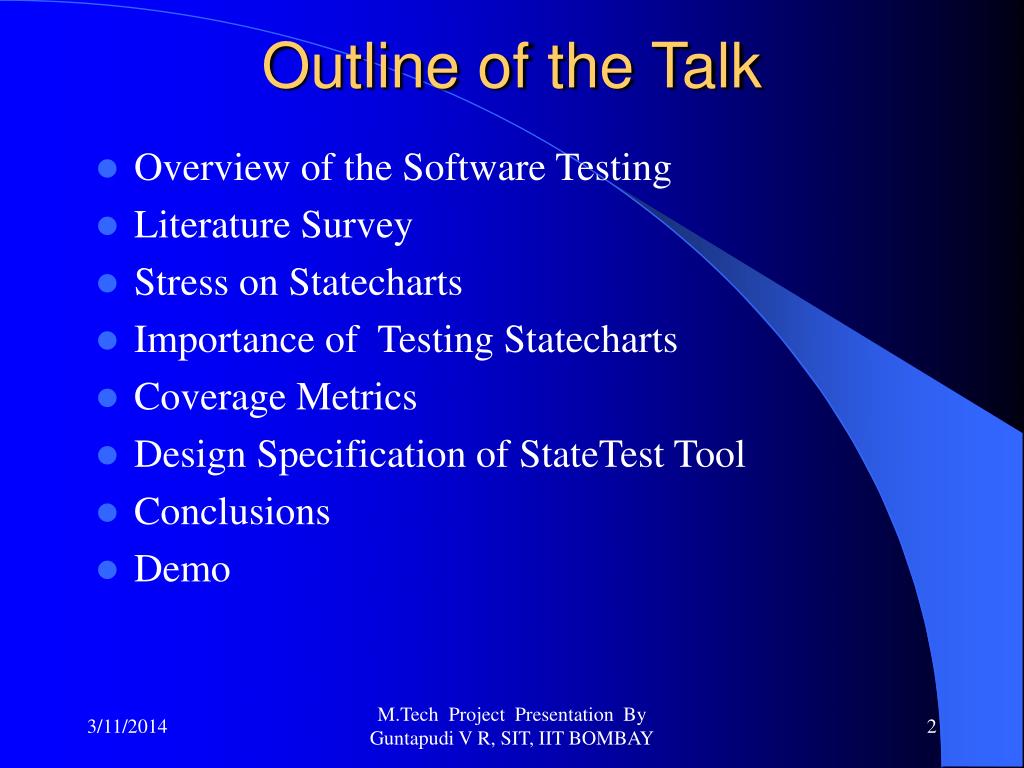

  2. Outline of the Talk • Overview of the Software Testing • Literature Survey • Stress on Statecharts • Importance of Testing Statecharts • Coverage Metrics • Design Specification of StateTest Tool • Conclusions • Demo M.Tech Project Presentation By Guntapudi V R, SIT, IIT BOMBAY

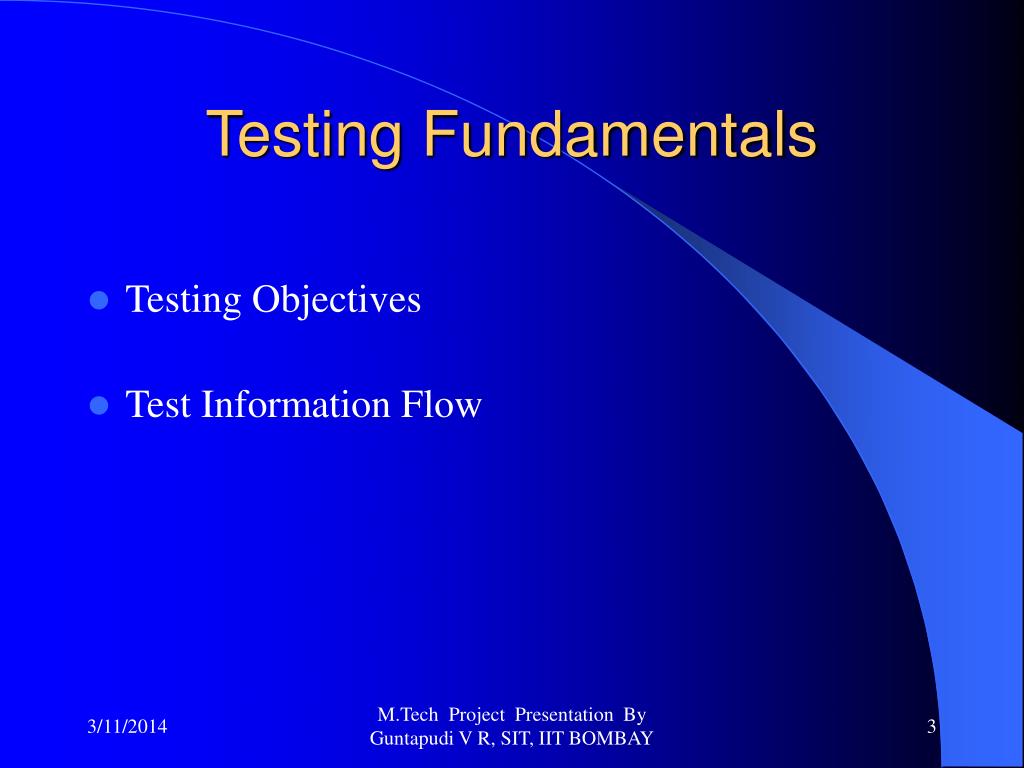

  3. Testing Fundamentals • Testing Objectives • Test Information Flow M.Tech Project Presentation By Guntapudi V R, SIT, IIT BOMBAY

  4. Test Information Flow M.Tech Project Presentation By Guntapudi V R, SIT, IIT BOMBAY

  5. Test Case Design • Three elements • Test specification • Test requirements • Clues • Fault Conditions • Reachability • Necessity • Propagation M.Tech Project Presentation By Guntapudi V R, SIT, IIT BOMBAY

  6. An Example void Check_square(int do_square,double x) { double y = x; if(do_square) y = x + x; printf(“squared value larger? %d\n”,y > x); } The fault is that + was used when * should have been M.Tech Project Presentation By Guntapudi V R, SIT, IIT BOMBAY

  7. Reachability (do_square is true) Necessity (x!=2 && x!=0) Propagation (x <=1) (to differentiate the truth value between (x+x >x) and (x*x>x)) Fault Conditions M.Tech Project Presentation By Guntapudi V R, SIT, IIT BOMBAY

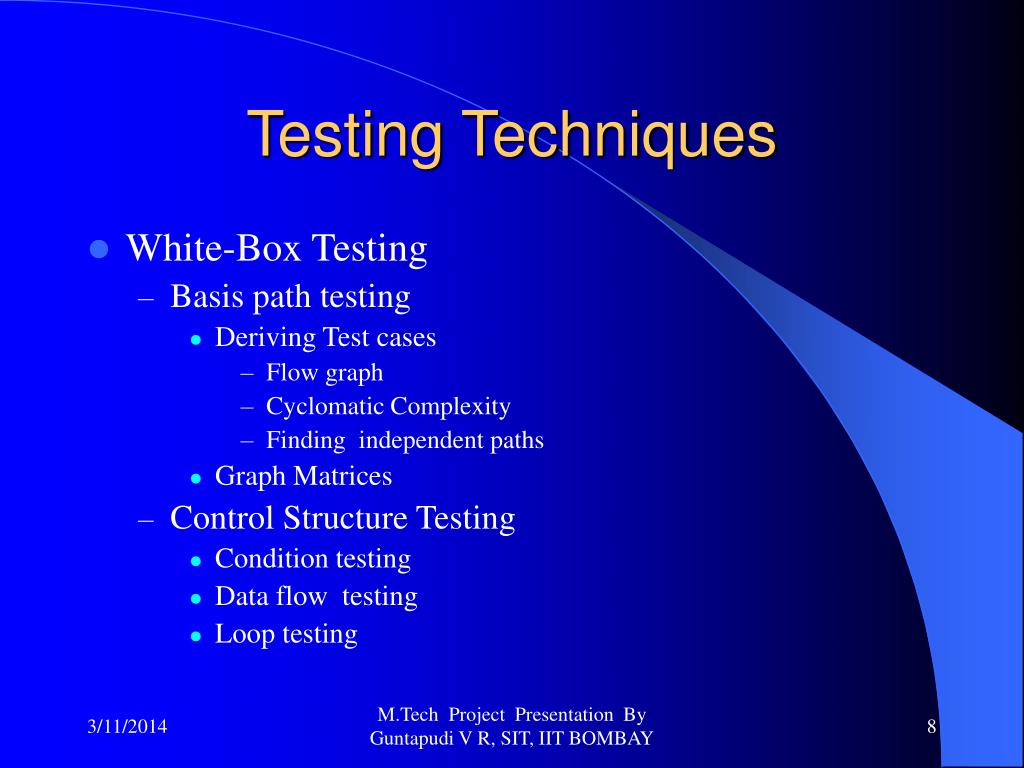

  8. Testing Techniques • White-Box Testing • Basis path testing • Deriving Test cases • Flow graph • Cyclomatic Complexity • Finding independent paths • Graph Matrices • Control Structure Testing • Condition testing • Data flow testing • Loop testing M.Tech Project Presentation By Guntapudi V R, SIT, IIT BOMBAY

  9. Testing Techniques • Black-Box Testing • Equivalence Partitioning • (Range,specific value)one valid, two invalid inputs • (Boolean,member of a set)one valid, one invalid inputs • Boundary Value Analysis(BVA) • Ex: (1). If 0<a<5, then test with (-1, 0, 1) and (4, 5, 6) • Ex: (2). If the i/p has n values, then test with i/p s (n-1), (n), and (n+1) values • Comparison Testing • Specially for Safety-critical systems M.Tech Project Presentation By Guntapudi V R, SIT, IIT BOMBAY

  10. Testing Strategies • Unit Testing • To test the modules • Integration Testing • To test interfaces between modules • Top-down • Could be DFS / BFS followed • Bottom-up • Regression Testing • Validation Testing • Validation test criteria • Configuration review • Alpha and Beta testing • System Testing • Recovery • Security • Stress • Performance M.Tech Project Presentation By Guntapudi V R, SIT, IIT BOMBAY

  11. Spiral Model of S/W Testing M.Tech Project Presentation By Guntapudi V R, SIT, IIT BOMBAY

  12. Literature Survey • AdaTest and Cantata • For State Machine Testing • IPL Algo. For Coverage Metrics • Property-Based Testing • Suggests the Testing at Source code level, rather than at higher level • TASPEC is the Central entity • ATTOL Software • ATTOL UnitTest, ATTOL SystemTset, ATTOL Coverage • +1 Software Testing Tool • +1Base, +1CR, +1CM, +1DataTree, +1Test, +1Reports, +1Reuse M.Tech Project Presentation By Guntapudi V R, SIT, IIT BOMBAY

  13. A Brief Look At UML • Result of the Three OO methodologies • Booch Method by Grady Booch • OMT by James Rumbaugh • OOSE by Ivar Jacobson • Statechart is one of the Nine building blocks supported by the UML M.Tech Project Presentation By Guntapudi V R, SIT, IIT BOMBAY

  14. Statecharts : A Visual Formalism for Complex Systems • Origins Of Statecharts • FSMs • STDs • Harel Statecharts • Limitations of State Machines • Doesn’t • Provide State Hierarchy • Have History Info. • Have Concurrent States M.Tech Project Presentation By Guntapudi V R, SIT, IIT BOMBAY

  15. Semantics of Statecharts • State • Event • Transitions • Event [Guard] / Action Transition M.Tech Project Presentation By Guntapudi V R, SIT, IIT BOMBAY

  16. Example for Statechart Semantics M.Tech Project Presentation By Guntapudi V R, SIT, IIT BOMBAY

  17. More features of Statecharts • Generalization • Simplifies by Factorization • Orthogonality • Simplifies by Segmentation • History Info. • To memorize the substate last visited M.Tech Project Presentation By Guntapudi V R, SIT, IIT BOMBAY

  18. Example for Generalization M.Tech Project Presentation By Guntapudi V R, SIT, IIT BOMBAY

  19. Example for Orthogonality M.Tech Project Presentation By Guntapudi V R, SIT, IIT BOMBAY

  20. Example for History state M.Tech Project Presentation By Guntapudi V R, SIT, IIT BOMBAY

  21. Importance of Testing Statecharts Statecharts play crucial role in modeling • Safety-critical systems • Networking Protocols • GUIs (Graphical User Interfaces) • OOD (Object-Oriented Design) M.Tech Project Presentation By Guntapudi V R, SIT, IIT BOMBAY

  22. Methodology of Testing SCs M.Tech Project Presentation By Guntapudi V R, SIT, IIT BOMBAY

  23. Coverage Metrics • State Coverage • Ratio of number of states covered and total number of states in the given state model • Event Coverage • Ratio of number of events covered and total number of events in the given state model • Transition Coverage • Ratio of number transitions exercised and total number of transitions in the given state model • State-Event Coverage • Ratio of state-event pairs exercised and number of states multiply number of events in the given state model M.Tech Project Presentation By Guntapudi V R, SIT, IIT BOMBAY

  24. Design Specification of StateTest Tool • Two inputs and Three outputs • Input_1 : Statechart specification generated by Statechart Editor(SCE) by BARC • Input_2 : Test Script File • Output_1 : Pass / Fail report • Output_2 : Coverage Metrics • Output_3 : Error Report M.Tech Project Presentation By Guntapudi V R, SIT, IIT BOMBAY

  25. Statechart Spec. and Test Case’s Formats M.Tech Project Presentation By Guntapudi V R, SIT, IIT BOMBAY

  26. DFD Level 0 for StateTest M.Tech Project Presentation By Guntapudi V R, SIT, IIT BOMBAY

  27. DFD Level 1 for StateTest M.Tech Project Presentation By Guntapudi V R, SIT, IIT BOMBAY

  28. Implementation Details • StateTest tool is implemented by using JAVA language • StateTest tool has justfour classes M.Tech Project Presentation By Guntapudi V R, SIT, IIT BOMBAY

  29. Object Specification of StateTest • Four Classes • StatesInfo • Reads the Statechart specification file • CopyStateHierarchy • Reads the hierarchical from the StatesInfo class • TestScriptReading • Reads the Test Script file • ReportGenerator • Generates pass / fail report M.Tech Project Presentation By Guntapudi V R, SIT, IIT BOMBAY

  30. Initial Object Specification for StateTest M.Tech Project Presentation By Guntapudi V R, SIT, IIT BOMBAY

  31. Detailed Object Specification for StateTest Tool M.Tech Project Presentation By Guntapudi V R, SIT, IIT BOMBAY

  32. Experiments • Code generated by SCE (BARC tool) from the Statechart figures • Statechart’s Specification as a 4-tuple by StateTest tool internally • Experimented with many complex Statecharts • Execution time of each test case is reasonable M.Tech Project Presentation By Guntapudi V R, SIT, IIT BOMBAY

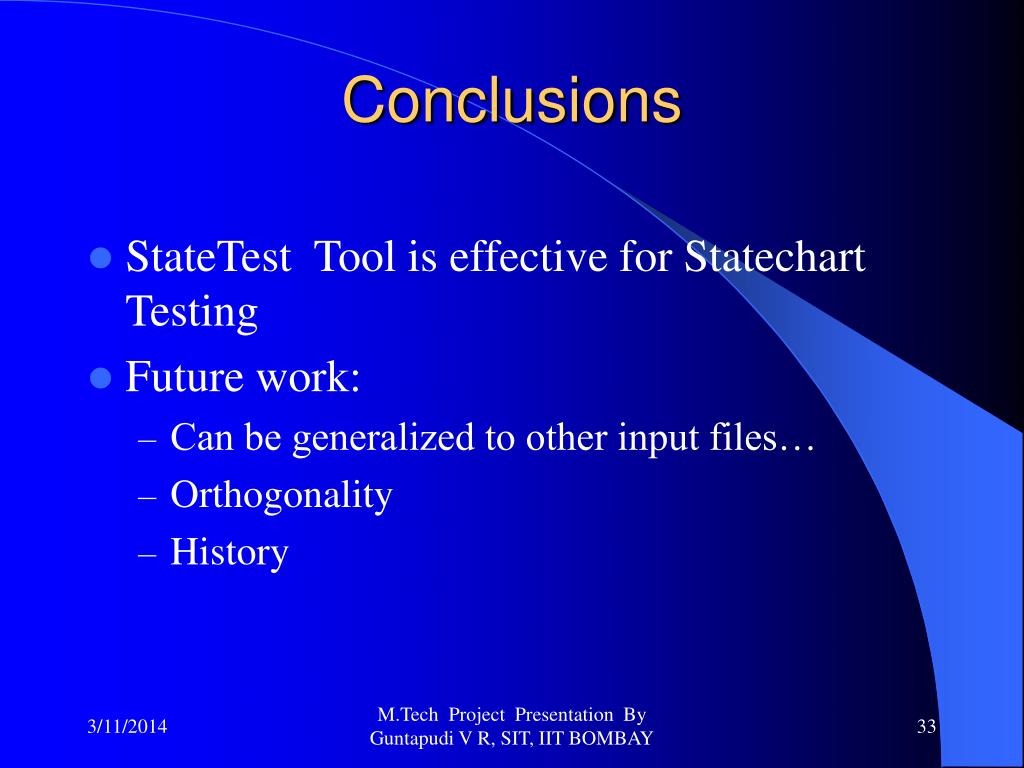

  33. Conclusions • StateTest Tool is effective for Statechart Testing • Future work: • Can be generalized to other input files… • Orthogonality • History M.Tech Project Presentation By Guntapudi V R, SIT, IIT BOMBAY

  34. Thank You M.Tech Project Presentation By Guntapudi V R, SIT, IIT BOMBAY
