  1. Spice Messaging QueueCSE 60771 Distributed Systems Peter Bui and Aaron Dingler

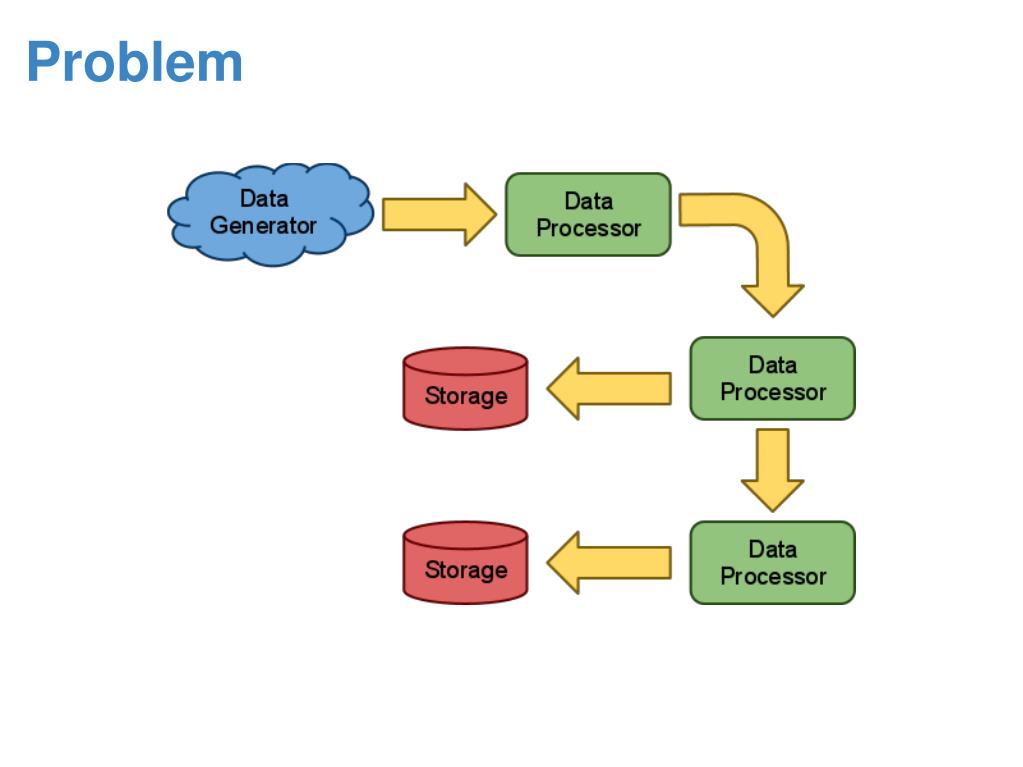

  2. Problem

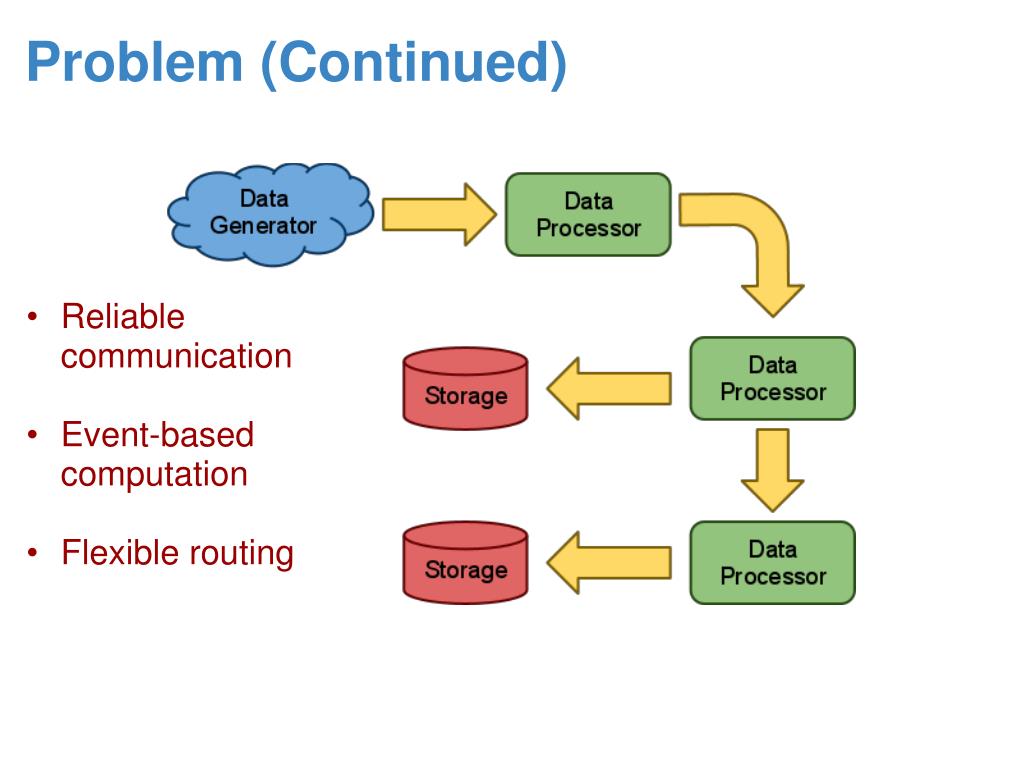

  3. Problem (Continued) • Reliable communication • Event-based computation • Flexible routing

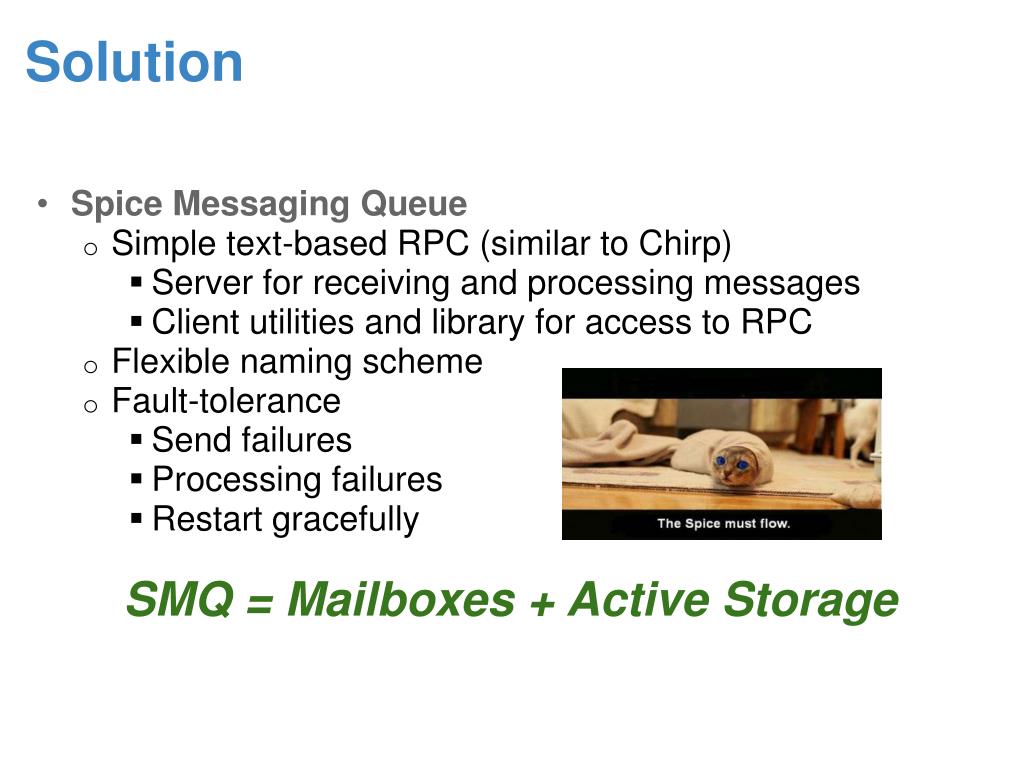

  4. Solution • Spice Messaging Queue • Simple text-based RPC (similar to Chirp) • Server for receiving and processing messages • Client utilities and library for access to RPC • Flexible naming scheme • Fault-tolerance • Send failures • Processing failures • Restart gracefully SMQ = Mailboxes + Active Storage

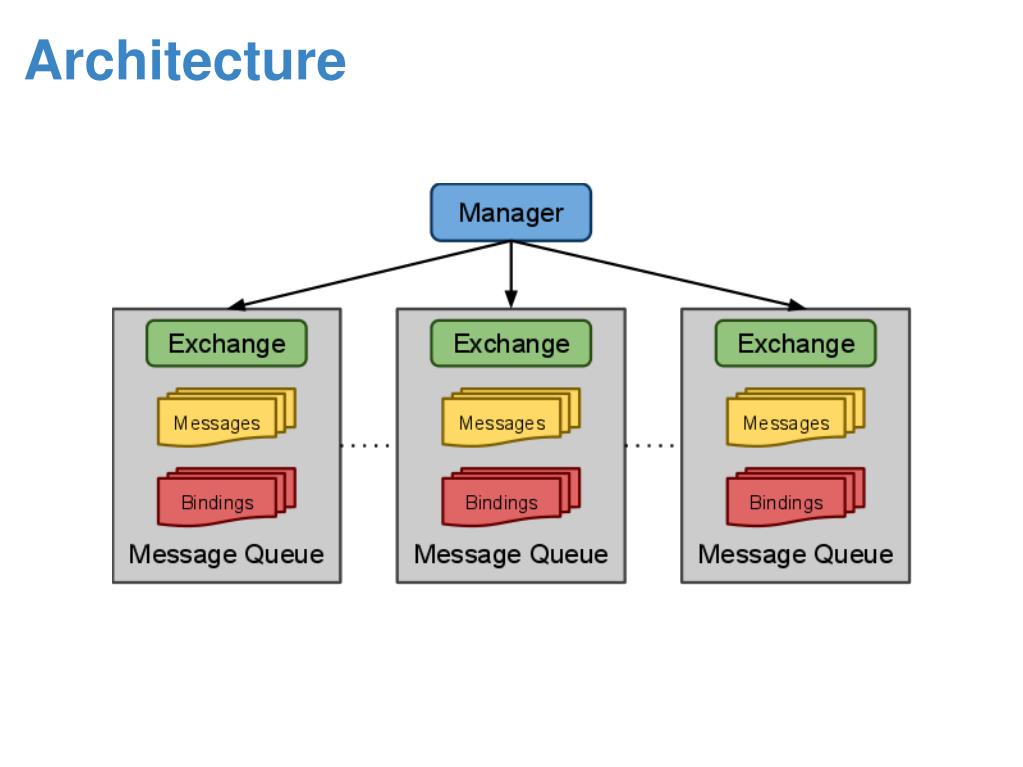

  5. Architecture

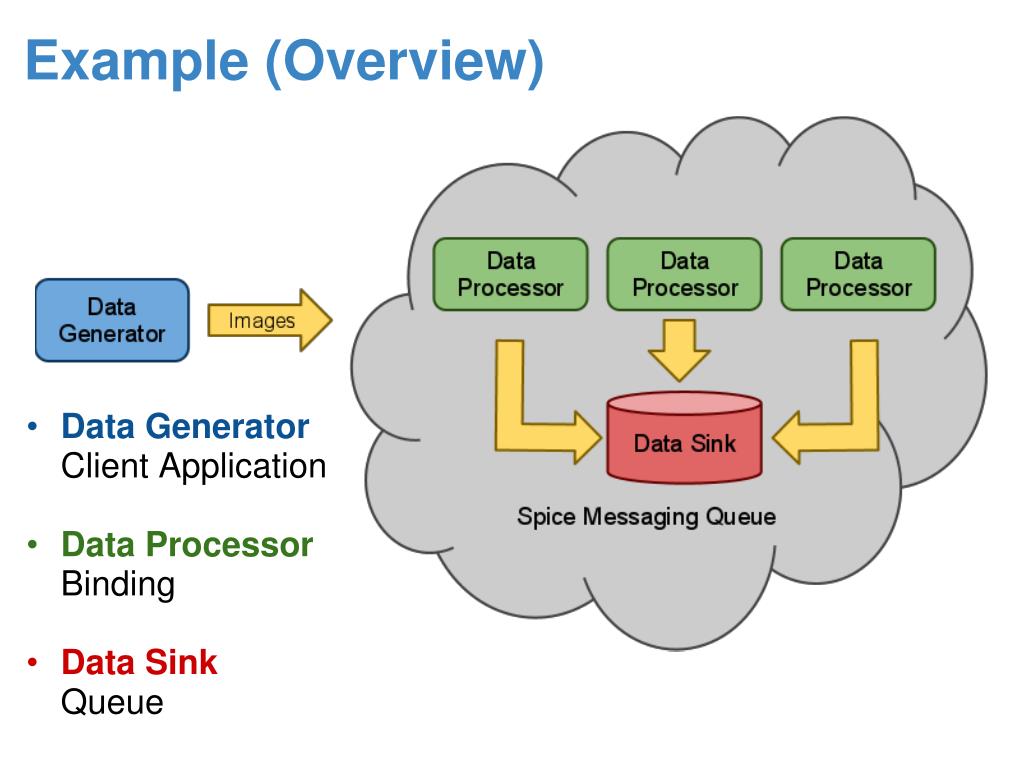

  6. Example (Overview) • Data GeneratorClient Application • Data ProcessorBinding • Data SinkQueue

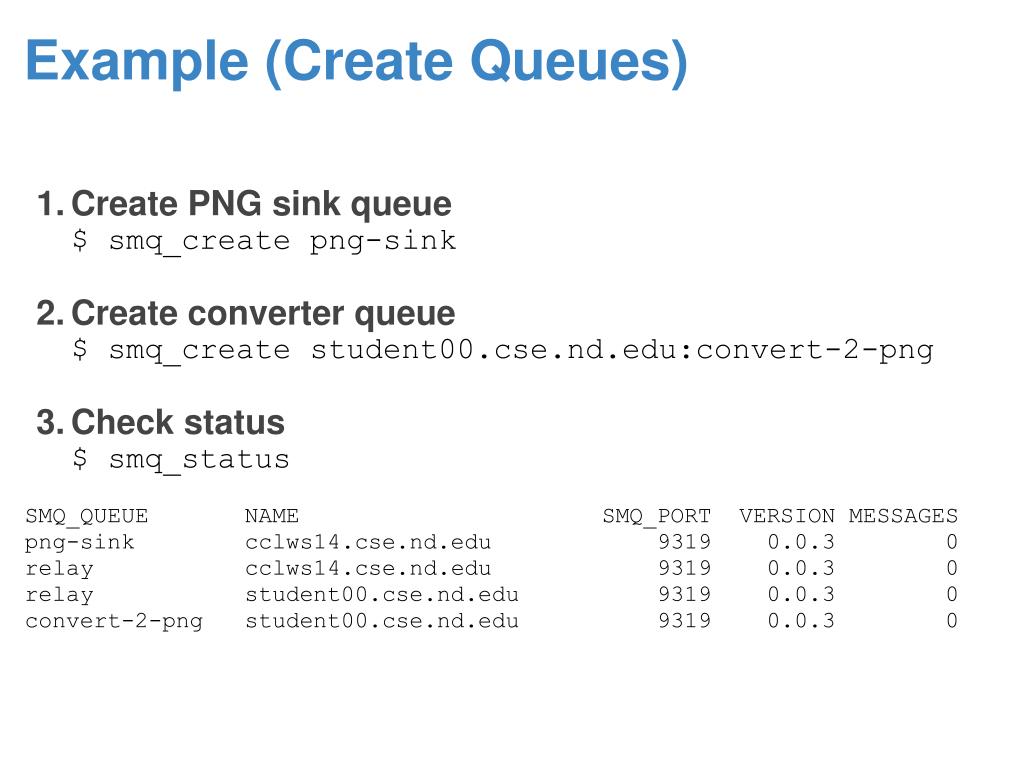

  7. Example (Create Queues) • Create PNG sink queue$ smq_create png-sink • Create converter queue$ smq_create student00.cse.nd.edu:convert-2-png • Check status$ smq_status SMQ_QUEUE       NAME                      SMQ_PORT  VERSION MESSAGES  png-sink        cclws14.cse.nd.edu            9319    0.0.3        0  relay           cclws14.cse.nd.edu            9319    0.0.3        0  relay           student00.cse.nd.edu          9319    0.0.3        0  convert-2-png   student00.cse.nd.edu          9319    0.0.3        0

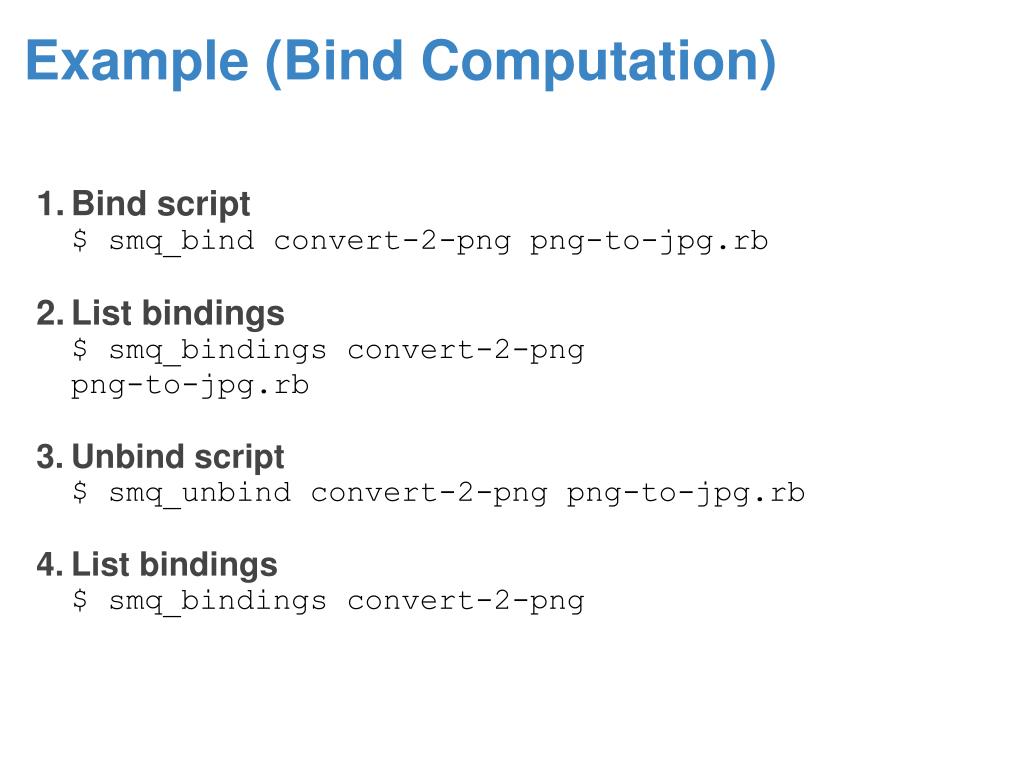

  8. Example (Bind Computation) • Bind script$ smq_bind convert-2-png png-to-jpg.rb • List bindings$ smq_bindings convert-2-pngpng-to-jpg.rb • Unbind script$ smq_unbind convert-2-png png-to-jpg.rb • List bindings$ smq_bindings convert-2-png

  9. Example (Put) • Generate message header for each image (body)$ cat mid.metasource data-generatortarget png-sinksubject convert-2-pngoutfile $fileid.png • Put message (header/body)$smq_put convert-2-png mid.meta mid.tiff

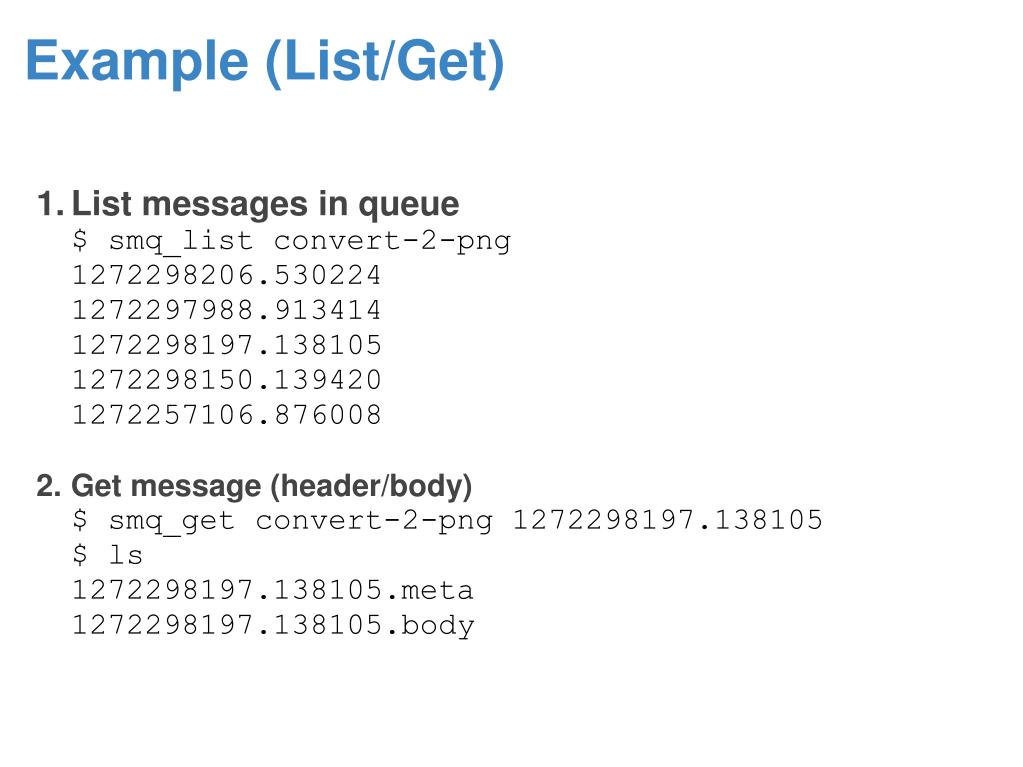

  10. Example (List/Get) • List messages in queue$ smq_list convert-2-png1272298206.5302241272297988.9134141272298197.1381051272298150.1394201272257106.876008 • Get message (header/body)$ smq_get convert-2-png 1272298197.138105$ ls1272298197.138105.meta1272298197.138105.body

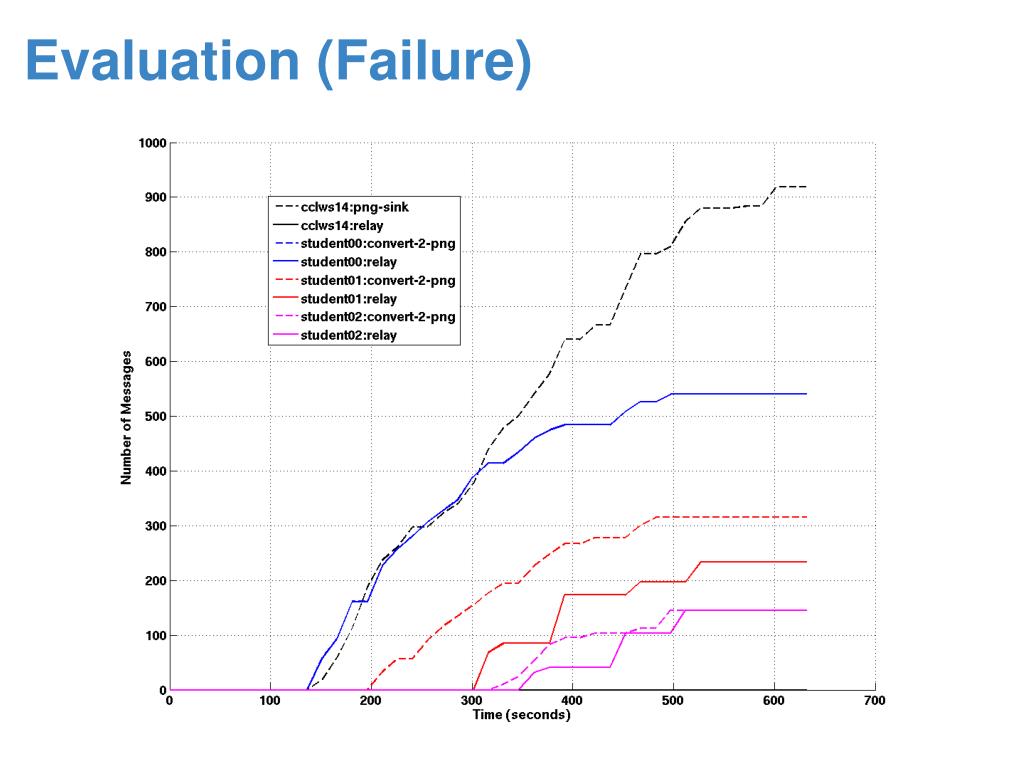

  11. Evaluation (Failure)

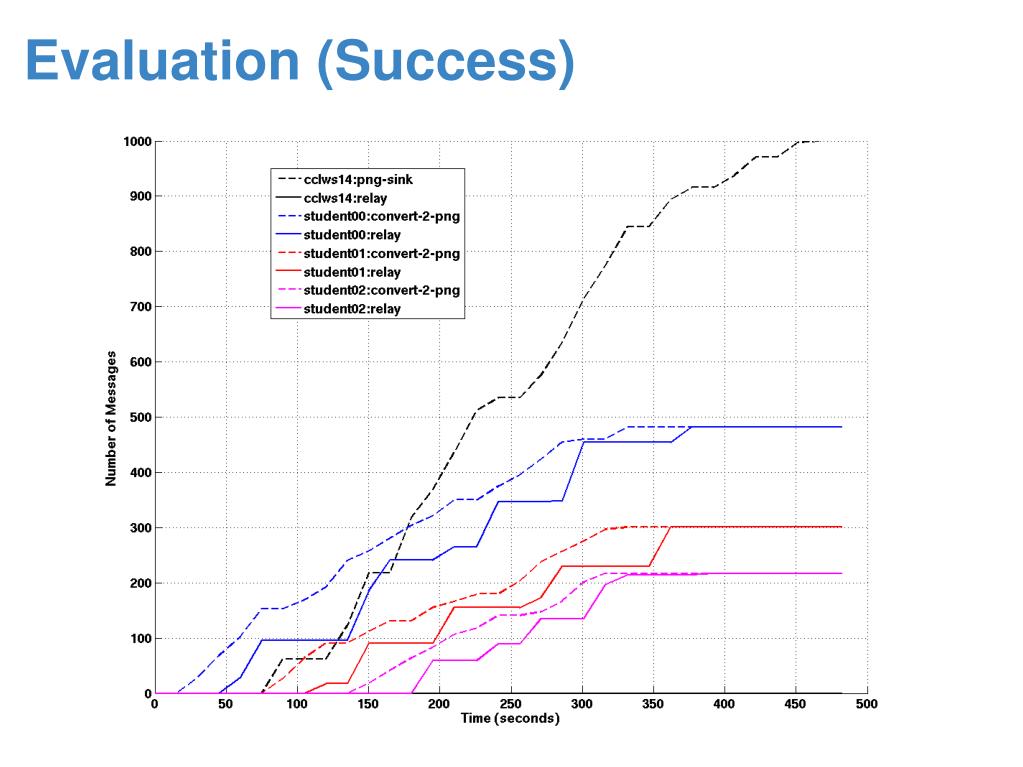

  12. Evaluation (Success)

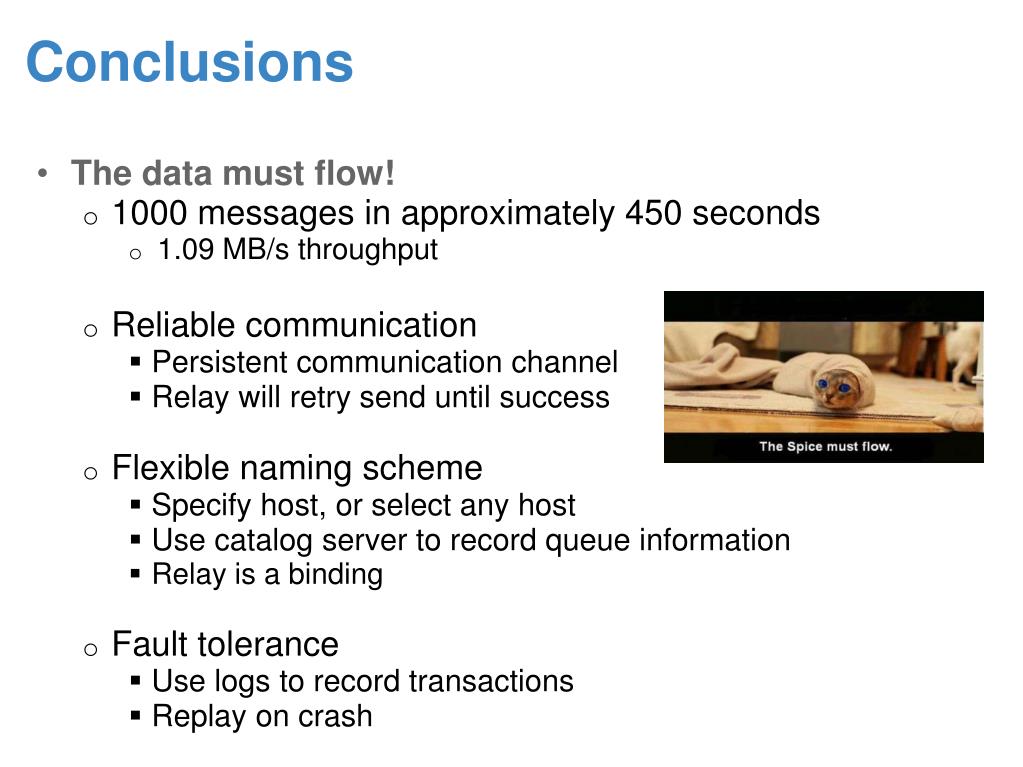

  13. Conclusions • The data must flow! • 1000 messages in approximately 450 seconds • 1.09 MB/s throughput • Reliable communication • Persistent communication channel • Relay will retry send until success • Flexible naming scheme • Specify host, or select any host • Use catalog server to record queue information • Relay is a binding • Fault tolerance • Use logs to record transactions • Replay on crash

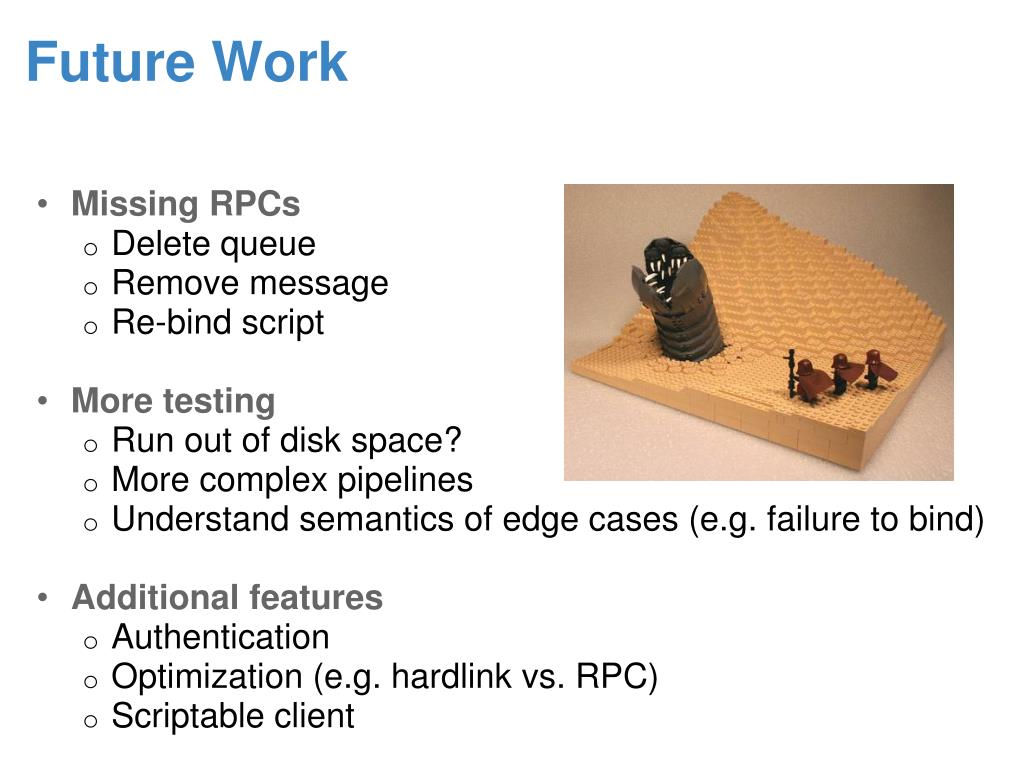

  14. Future Work • Missing RPCs • Delete queue • Remove message • Re-bind script • More testing • Run out of disk space? • More complex pipelines • Understand semantics of edge cases (e.g. failure to bind) • Additional features • Authentication • Optimization (e.g. hardlink vs. RPC) • Scriptable client
