  1. 3D Printing, with FRC!

  2. What is 3D printing?

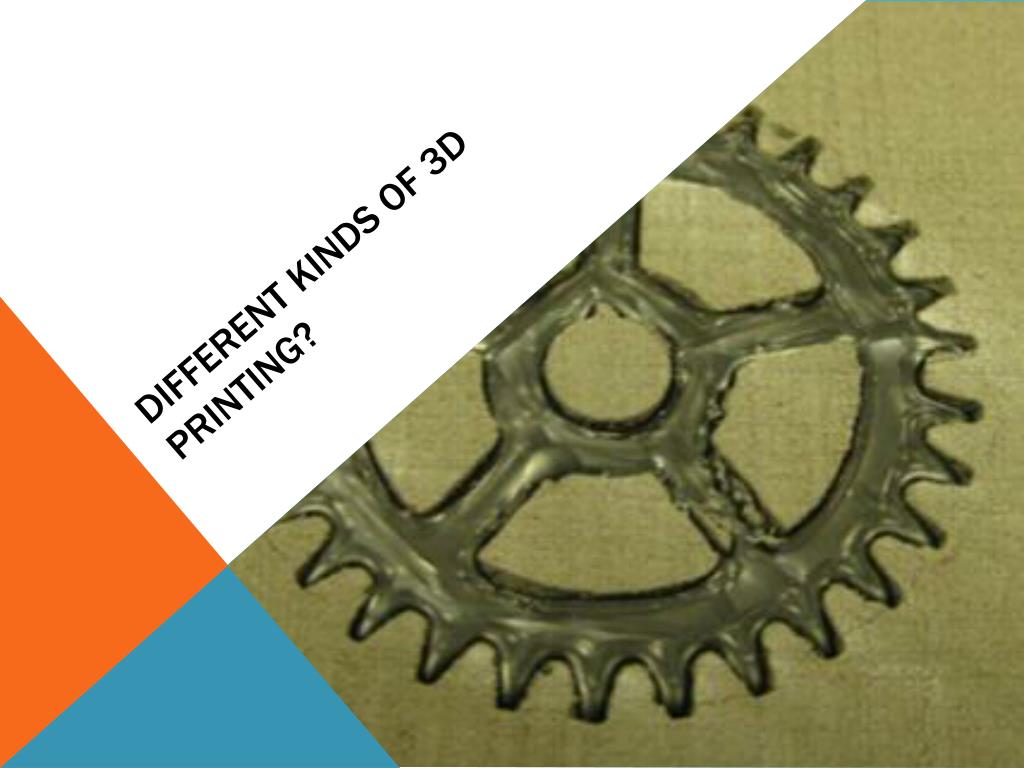

  3. Different kinds of 3D printing?

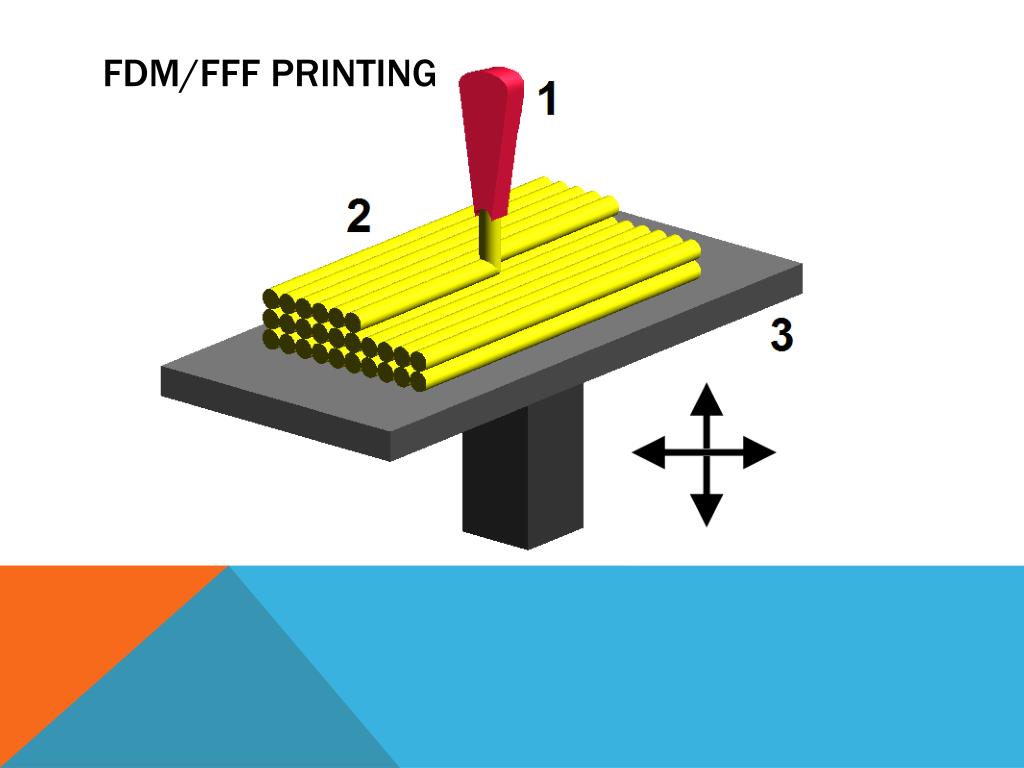

  4. FDM/FFF Printing

  5. DLP/SLA Printing

  6. SLS Printing

  7. PolyJet (Objet/Stratasis)

  8. Printing Materials • FDM/FFF • ABS • PLA • HDPE • Nylon • LayWOOD • LayBRICK • DLP/SLA • Curable polymer resin • SLS • Pretty much anything? • PolyJet • Plastic-like resins • High-Temperature resistant • Lots of different materials for different applications

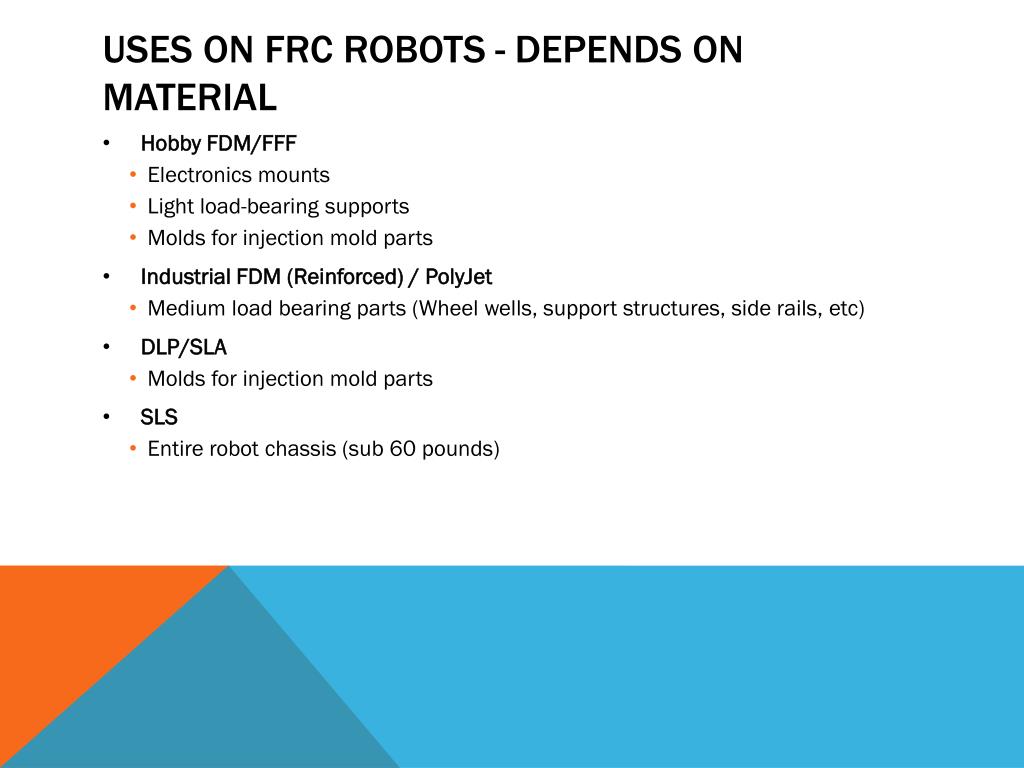

  9. Uses on FRC Robots - Depends on material • Hobby FDM/FFF • Electronics mounts • Light load-bearing supports • Molds for injection moldparts • Industrial FDM (Reinforced) / PolyJet • Medium load bearing parts (Wheel wells, support structures, side rails, etc) • DLP/SLA • Molds for injection mold parts • SLS • Entire robot chassis (sub 60 pounds)

  10. …or whole robot can be 3D printed? Not Recommended for beginners

  11. The REPRAP Project

  12. Darwin

  13. Mendel

  14. Prusa Mendel i1

  15. Prusa Mendel i2

  16. MendelMax

  17. Mendel 90

  18. MendelMax 2.0

  19. Prusa i3

  20. DELTA REPRAPS

  21. Unorthodox Repraps

  22. Repstrap

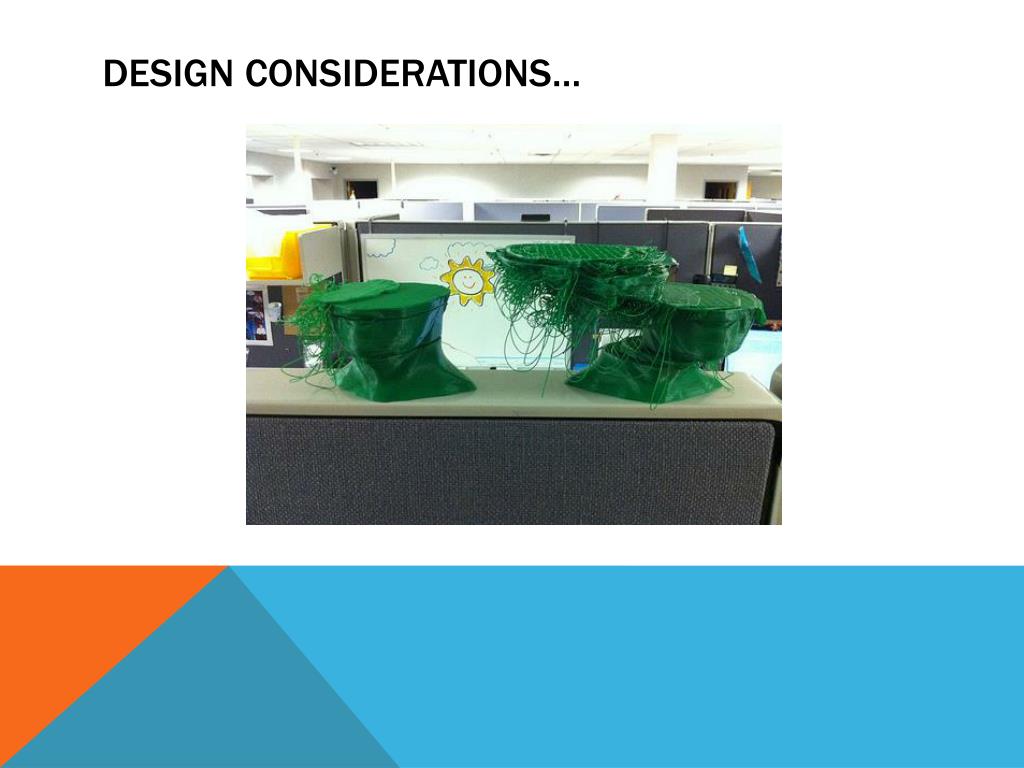

  23. Design Considerations…

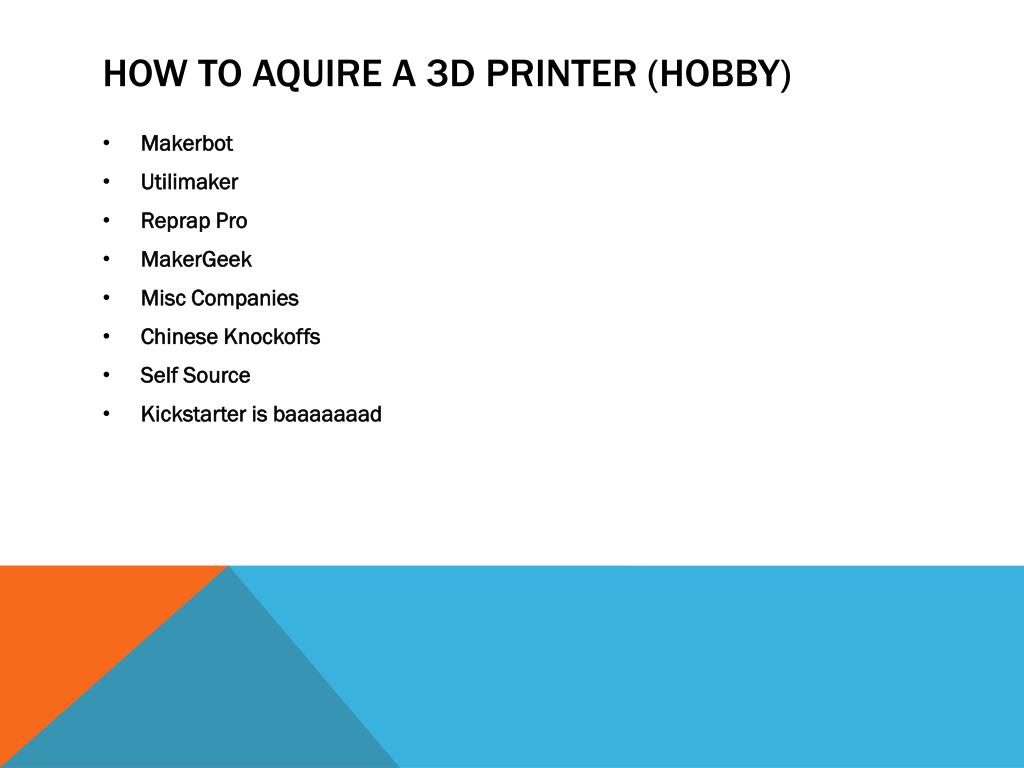

  24. How to aquire a 3D printer (Hobby) • Makerbot • Utilimaker • Reprap Pro • MakerGeek • Misc Companies • Chinese Knockoffs • Self Source • Kickstarter is baaaaaaad
