Radio observations of the formation of the first galaxies and supermassive Black Holes Chris Carilli (NRAO) LANL Cosmology School, July 2010. Concepts and tools in radio astronomy: dust, cool gas, and star formation

finn
Télécharger la présentation

ESO

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

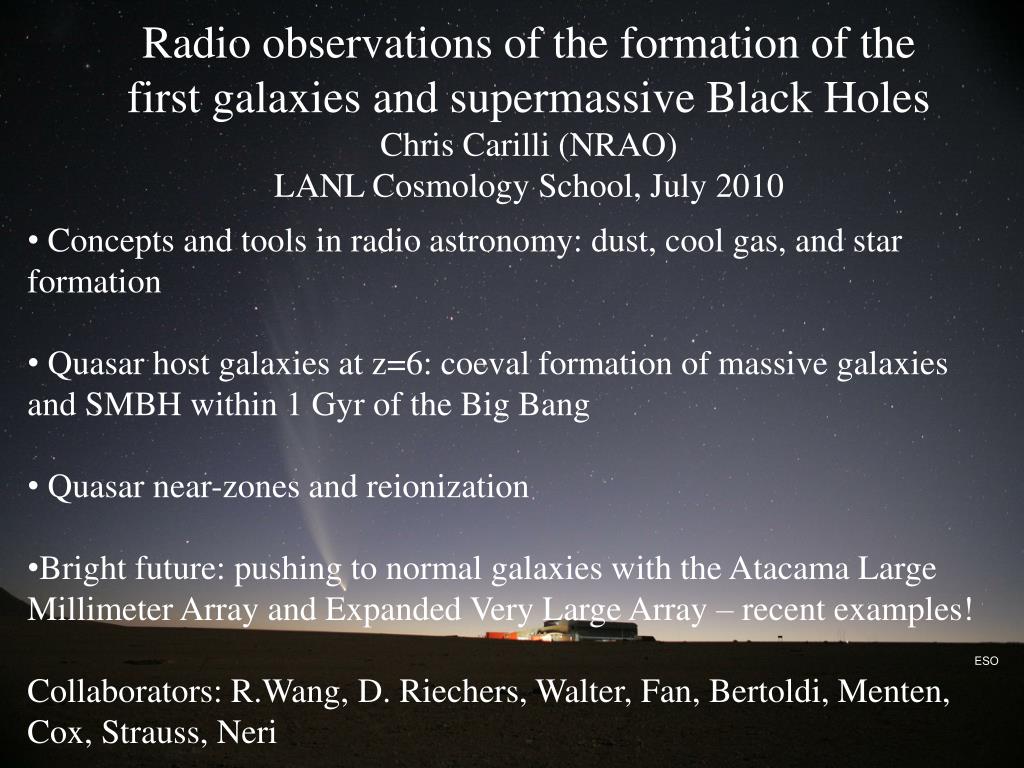

  1. Radio observations of the formation of the first galaxies and supermassive Black Holes Chris Carilli (NRAO) LANL Cosmology School, July 2010 • Concepts and tools in radio astronomy: dust, cool gas, and star formation • Quasar host galaxies at z=6: coeval formation of massive galaxies and SMBH within 1 Gyr of the Big Bang • Quasar near-zones and reionization • Bright future: pushing to normal galaxies with the Atacama Large Millimeter Array and Expanded Very Large Array – recent examples! • Collaborators: R.Wang, D. Riechers, Walter, Fan, Bertoldi, Menten, Cox, Strauss, Neri ESO

  2. Millimeter through centimeter astronomy: unveiling the cold, obscured universe Submm = dust optical mid-IR CO Galactic GN20 SMG z=4.0 • optical studies provide a limited view of star and galaxy formation • cm/mm reveal the dust-obscured, earliest, most active phases of star and galaxy formation HST/CO/SUBMM

  3. Cosmic ‘Background’ Radiation 30 nW m-2 sr-1 17 nW m-2 sr-1 Over half the light in the Universe is absorbed by dust and reemitted in the FIR Franceschini 2000

  4. Radio – FIR: obscuration-free estimate of massive star formation • Radio: SFR = 1x10-21 L1.4 W/Hz • FIR: SFR = 3x10-10 LFIR (Lo)

  5. Magic of (sub)mm: distance independent method of studying objects in universe from z=0.8 to 10 LFIR ~ 4e12 x S250(mJy) Lo SFR ~ 1e3 x S250 Mo/yr FIR = 1.6e12 L_sun 1000 Mo/yr obs = 250 GHz 7

  6. Spectral lines submm cm z=0.2 Atomic fine structure lines z=4 Molecular rotational lines

  7. Molecular gas • CO = total gas masses = fuel for star formation • M(H2) = α L’(CO(1-0)) • Velocities => dynamical masses • Gas excitation => ISM physics (densities,temperatures) • Dense gas tracers (eg. HCN) => gas directly associated with star formation • Astrochemistry/biology Wilson et al. CO image of ‘Antennae’ merging galaxies

  8. Fine Structure lines [CII] 158um (2P3/2 - 2P1/2) • Principal ISM gas coolant: efficiency of photo-electric heating by dust grains. • Traces star formation and the CNM • COBE: [CII] most luminous cm to FIR line in the Galaxy ~ 1% Lgal • Herschel: revolutionary look at FSL in nearby Universe – AGN/star formation diagnostics Fixsen et al. [CII] CO [OI] 63um [CII] [OIII]/[CII] [OIII] 88um [CII] Cormier et al.

  9. MAMBO at 30m Powerful suite of existing cm/mm facilites First glimpses into early galaxy formation 30’ field at 250 GHz rms < 0.3 mJy Very Large Array 30’ field at 1.4 GHz rms< 10uJy, 1” res High res imaging at 20 to 50 GHz rms < 0.1 mJy, res < 0.2” Plateau de Bure Interferometer High res imaging at 90 to 230 GHz rms < 0.1mJy, res < 0.5”

  10. SDSS Apache Point NM Massive galaxy and SMBH formation at z~6: gas, dust, star formation in quasar hosts • Why quasars? • Rapidly increasing samples: z>4: > 1000 known z>5: > 100 z>6: 20 • Spectroscopic redshifts • Extreme (massive) systems MB < -26 => Lbol> 1014 Lo MBH > 109 Mo (Eddington / MgII) 1148+5251 z=6.42

  11. Gunn-Peterson Effect 6.4 SDSS z~6 quasars => tail-end of reionization and first (new) light? z=6.4 5.7 Fan et al 2006

  12. QSO host galaxies MBH – Mbulge relation Nearby galaxies Haaring & Rix • All low z spheroidal galaxies have SMBH: MBH=0.002 Mbulge • ‘Causal connection between SMBH and spheroidal galaxy formation’ • Luminous high z quasars have massive host galaxies (1012 Mo)

  13. Cosmic Downsizing Massive galaxies form most of their stars rapidly at high z ~(e-folding time)-1 Currently active star formation tH-1 Red and dead => Require active star formation at early times Zheng+ • Massive old galaxies at high z • Stellar population synthesis in nearby ellipticals

  14. Dust in high z quasar host galaxies: 250 GHz surveys HyLIRG Wang sample 33 z>5.7 quasars • 30% of z>2 quasars have S250 > 2mJy • LFIR ~ 0.3 to 1.3 x1013 Lo (~ 1000xMilky Way) • Mdust ~ 1.5 to 5.5 x108Mo

  15. Dust formation at tuniv<1Gyr? • AGB Winds ≥ 1.4e9yr • High mass star formation? (Dwek, Anderson, Cherchneff, Shull, Nozawa) • ‘Smoking quasars’: dust formed in BLR winds (Elvis) • ISM dust formation (Draine) • Extinction toward z=6.2 QSO and z~6 GRBs => different mean grain properties at z>4 (Perley, Stratta) • Larger, silicate + amorphous carbon dust grains formed in core collapse SNe vs. eg. graphite SMC, z<4 quasars Galactic z~6 quasar, GRBs Stratta et al.

  16. Dust heating? Radio to near-IR SED low z SED TD ~ 1000K TD = 47 K • FIR excess = 47K dust • SED consistent with star forming galaxy: • SFR ~ 400 to 2000 Mo yr-1 Star formation? AGN Radio-FIR correlation

  17. Fuel for star formation? Molecular gas: 8 CO detections at z ~ 6 with PdBI, VLA • M(H2)~ 0.7 to 3 x1010 (α/0.8) Mo • Δv = 200 to 800 km/s 1mJy

  18. CO excitation: Dense, warm gas, thermally excited to 6-5 230GHz 691GHz starburst nucleus Milky Way • LVG model => Tk > 50K, nH2 = 2x104 cm-3 • Galactic Molecular Clouds (50pc): nH2~ 102 to 103 cm-3 • GMC star forming cores (≤1pc): nH2~ 104 cm-3

  19. LFIR vs L’(CO): ‘integrated Kennicutt-Schmidt star formation law’ • Further circumstantial evidence for star formation • Gas consumption time (Mgas/SFR) decreases with SFR FIR ~ 1010 Lo/yr => tc~108yr FIR ~ 1013 Lo/yr => tc~107yr • => Need gas re-supply to build giant elliptical SFR 1e3 Mo/yr Index=1.5 MW 1e11 Mo Mgas

  20. 1148+52 z=6.42: VLA imaging at 0.15” resolution CO3-2 VLA IRAM 0.3” 1” ~ 6kpc + • ‘molecular galaxy’ size ~ 6 kpc – only direct observations of host galaxy of z~6 quasar! • Double peaked ~ 2kpc separation, each ~ 1kpc • TB ~ 35 K ~ starburst nuclei

  21. Gas dynamics => ‘weighing’ the first galaxies z=6.42 -150 km/s 7kpc +150 km/s • CO only method for deriving dynamical masses at these distances • Dynamical mass (r < 3kpc) ~ 6 x1010 Mo • M(H2)/Mdyn ~ 0.3

  22. Gas dynamics: CO velocities z=4.4 z=4.19 -150 km/s +150 km/s • Dynamical masses ~ 0.4 to 2 x1011 Mo • M(H2)/Mdyn ≥ 0.5 => gas/baryons dominate inner few kpc

  23. Break-down of MBH – Mbulge relation at very high z z>4 QSO CO z<0.2 QSO CO Low z galaxies Riechers + <MBH/Mbulge> ~ 15 higher at z>4 => Black holes form first?

  24. Wang z=6 sample: galaxy mass vs. inclination, assuming all have CO radii ~ J1148+5251 Wang + Low z MBH/Mbulge • Departure from MBH – Mbulge at highest z, or • All face-on: i < 20o

  25. [CII] 158um search in z > 6.2 quasars [CII] 1” [NII] For z>6 => redshifts to 250GHz => Bure! • S[CII] = 3mJy • S250GHz < 1mJy • => don’t pre-select on dust • L[CII] = 4x109 Lo (L[NII] < 0.1L[CII] ) • S250GHz = 5.5mJy • S[CII] = 12mJy

  26. 1148+5251 z=6.42:‘Maximal star forming disk’ PdBI 250GHz 0.25”res • [CII] size ~ 1.5 kpc => SFR/area ~ 1000 Mo yr-1 kpc-2 • Maximal starburst (Thompson, Quataert, Murray 2005) • Self-gravitating gas and dust disk • Vertical disk support by radiation pressure on dust grains • ‘Eddington limited’ SFR/area ~ 1000 Mo yr-1 kpc-2 • eg. Arp 220 on 100pc scale, Orion SF cloud cores < 1pc

  27. [CII] Malhotra • [CII]/FIR decreases with LFIR = lower gas heating efficiency due to charged dust grains in high radiation environments • Opacity in FIR may also play role (Papadopoulos)

  28. [CII] z >4 • HyLIRG at z> 4: large scatter, but no worse than low z ULIRG • Normal star forming galaxies are not much harder to detect in [CII] (eg. LBG, LAE) Maiolino, Bertoldi, Knudsen, Iono, Wagg

  29. A starburst to quasar sequence at the highest z? Anticorrelation of EW(Lya) with submm detections No Dust Submm dust • Strong FIR => starburst • Weak Lya => young quasar, prior to build-up of BLR (?) • Consistent with ‘Sanders sequence’: starburst to composite to quasar Submm dust No Dust

  30. Summary cm/mm observations of 33 quasars at z~6: only direct probe of the host galaxies EVLA 160uJy J1425+3254 CO at z = 5.9 • 11 in mm continuum => Mdust ~ 108 Mo: Dust formation in SNe? • 10 at 1.4 GHz continuum: Radio to FIR SED => SFR ~ 1000 Mo/yr • 8 in CO => Mgas ~ 1010 Mo = Fuel for star formation in galaxies • High excitation ~ starburst nuclei, but on kpc-scales • Follow star formation law (LFIR vs L’CO): tc ~ 107 yr • 3 in [CII] => maximal star forming disk: 1000 Mo yr-1 kpc-2 • Departure from MBH – Mbulge at z~6: BH form first? • Anticorrel. EW(Lya) with submm detections => SB to Q sequence

  31. Extreme Downsizing: Building a giant elliptical galaxy + SMBH at tuniv< 1Gyr 10 • Plausible? Multi-scale simulation isolating most massive halo in 3Gpc3 • Stellar mass ~ 1e12 Mo forms in series (7) of major, gas rich mergers from z~14, with SFR 1e3 Mo/yr • SMBH of ~ 2e9 Mo forms via Eddington-limited accretion + mergers • Evolves into giant elliptical galaxy in massive cluster (3e15 Mo) by z=0 6.5 Li, Hernquist et al. Li, Hernquist+ • Rapid enrichment of metals, dust in ISM • Rare, extreme mass objects: ~ 100 SDSS z~6 QSOs on entire sky • Goal: push to normal galaxies at z > 6

  32. BREAK Discussion points: Dust formation within 1Gyr of Big Bang? Evolution of MBH – Mbulge relation? Starburst to quasar sequence: duty cycles and timescales? Gas resupply (CMA, mergers)? FIR – EW(Lya) anti-correlation? ESO

  33. Quasar Near Zones: J1148+5251 • Accurate host galaxy redshift from CO: z=6.419 • Quasar spectrum => photons leaking down to z=6.32 White et al. 2003 • ‘time bounded’ Stromgren sphere ionized by quasar • Difference in zhost and zGP => • RNZ = 4.7Mpc [fHI Nγ tQ]1/3 (1+z)-1

  34. HI HII Loeb & Barkana

  35. Quasar Near-Zones: sample of 25 quasars at z=5.7 to 6.5 • (Carilli et al. 2010) • Host galaxy redshifts: CO (6), MgII (11), UV (8) • GP on-set redshift: • Adopt fixed resolution of 20A • Find 1st point when transmission drops below 10% (of extrapolated) = well above typical GP level. z = 6.1 Wyithe et al. 2010

  36. Quasar Near-Zones: Correlation of RNZ with UV luminosity Nγ1/3 LUV

  37. Quasar Near-Zones: RNZ vs redshift RNZ = 7.3 – 6.5(z-6) z>6.15 • <RNZ> decreases by factor 2.3 from z=5.7 to 6.5 => • fHI increases by factor 9 • Pushing into tail-end of reionization?

  38. Alternative hypothesis to Stromgren sphere: Quasar Proximity Zones (Bolton & Wyithe) • RNZ measures where density of ionizing photon from quasar > background photons (IGRF) => • RNZ [Nγ]1/2 (1+z)-9/4 • Increase in RNZ from z=6.5 to 5.7 is then • due to rapid increase in mfp and density of • ionizing background during overlap or • ‘percolation’ stage of reionization • Either case (CSS or PZ) => rapid • evolution of IGM from z ~ 6 to 6.5

  39. What is Atacama Large Milllimeter Array? North American, European, Japanese, and Chilean collaboration to build & operate a large millimeter/submm array at high altitude site (5000m) in northern Chile => order of magnitude, or more, improvement in all areas of (sub)mm astronomy, including resolution, sensitivity, and frequency coverage.

  40. ALMA Specs • High sensitivity array = 54x12m • Wide field imaging array = 12x7m antennas • Frequencies = 80 GHz to 720 GHz • Resolution = 20mas res at 700 GHz • Sensitivity = 13uJy in 1hr at 230GHz

  41. What is EVLA? First steps to the SKA-high • By building on the existing infrastructure, multiply ten-fold the VLA’s observational capabilities, including: • 10x continuum sensitivity (1uJy) • Full frequency coverage (1 to 50 GHz) • 80x Bandwidth (8GHz) + 104 channels • 40mas resolution at 40GHz Overall: ALMA+EVLA provide > order magnitude improvement from 1GHz to 1 THz!

  42. Pushing to normal galaxies: spectral lines 100 Mo yr-1 at z=5 cm telescopes: star formation, low order molecular transitions -- total gas mass, dense gas tracers (sub)mm: dust, high order molecular lines, fine structure lines -- ISM physics, dynamics

  43. ALMA and first galaxies: [CII] and Dust 100Mo/yr 10Mo/yr

  44. Wide bandwidth spectroscopy J1148+52 at z=6.4 in 24hrs with ALMA • ALMA: Detect multiple lines, molecules per 8GHz band • EVLA 30 to 38 GHz = CO2-1 at z=5.0 to 6.7 => large cosmic volume searches for molecular gas (1 beam = 104 cMpc3) w/o need for optical redshifts

  45. ALMA Status • Antennas, receivers, correlator in production: best submm receivers and antennas ever! • Site construction well under way: Observation Support Facility, Array Operations Site, 5 Antenna interferometry at high site! • Early science call Q1 2011 embargoed first light image

  46. EVLA Status • Antenna retrofits 70% complete (100% at ν ≥ 18GHz). • Full receiver complement completed 2012 with 8GHz bandwidth • Early science started March 2010 using new correlator (up to 2GHz bandwidth) – already revolutionizing our view of galaxy formation!

  47. GN20 molecule-rich proto-cluster at z=4 CO 2-1 in 3 submm galaxies, all in 256 MHz band 0.3mJy z=4.055 4.051 4.056 0.4mJy 0.7mJy CO2-1 46GHz • SFR ~ 103 Mo/year • Mgas > 1010 Mo • Early, clustered massive galaxy formation 1000 km/s

  48. GN20 z=4.0 EVLA: well sampled velocity field VLA: ‘pseudo-continuum’ 2x50MHz channels

  49. GN20 moment images +250 km/s -250 km/s • Low order CO emitting regions are large (10 to 20 kpc) • Gas mass = 1.3e11 Mo • Stellar mass = 2.3e11 Mo • Dynamical mass (R < 4kpc) = 3e11 Mo • => Baryon dominated within 4kpc
