Common Subexpression Elimination

1. Common Subexpression Elimination Johnathon Jamison CS265 S. Graham

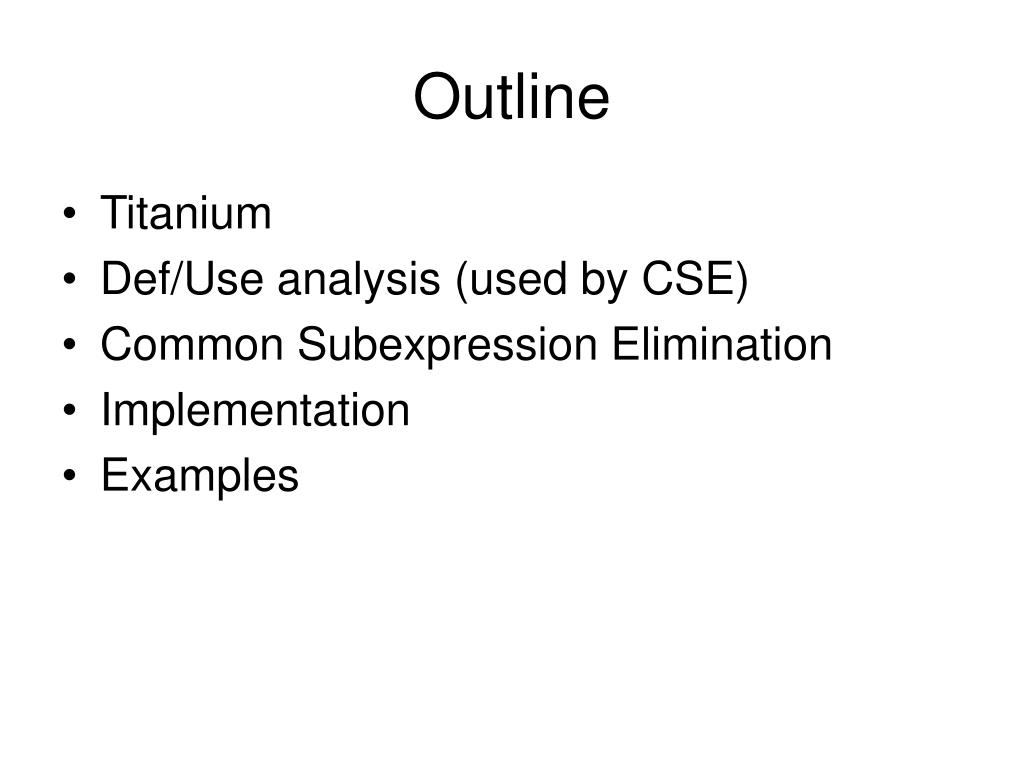

2. Outline • Titanium • Def/Use analysis (used by CSE) • Common Subexpression Elimination • Implementation • Examples

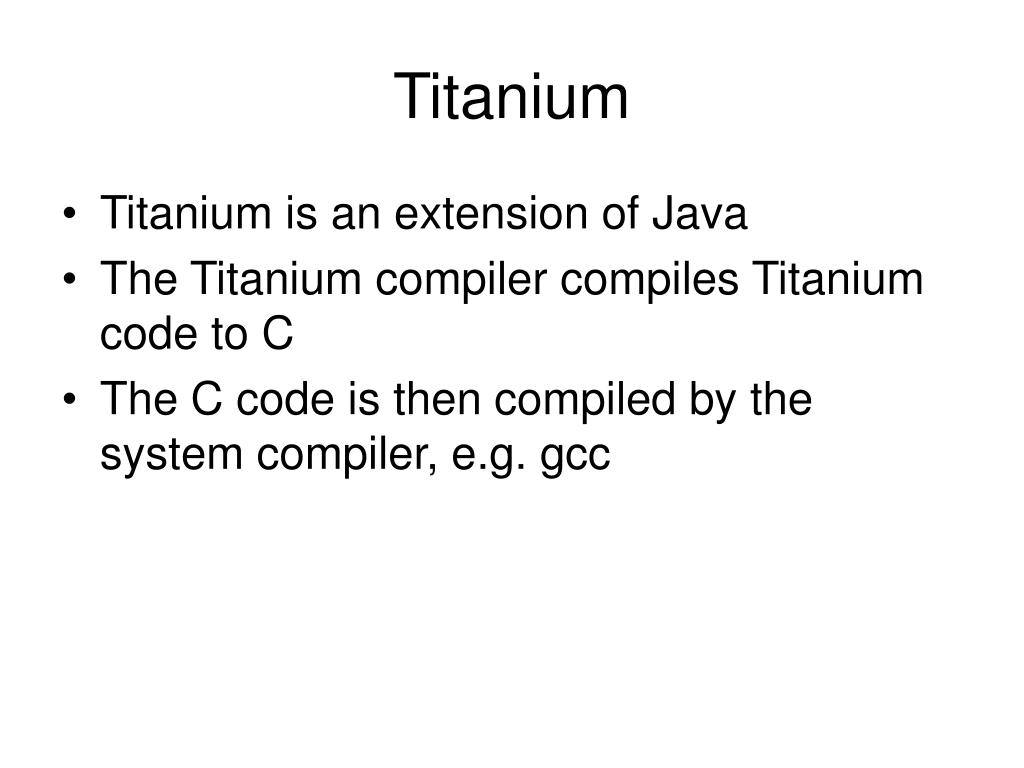

3. Titanium • Titanium is an extension of Java • The Titanium compiler compiles Titanium code to C • The C code is then compiled by the system compiler, e.g. gcc

4. Def/Use • Given: a = … … …a… • We want to link the use of a to the definition of a above.

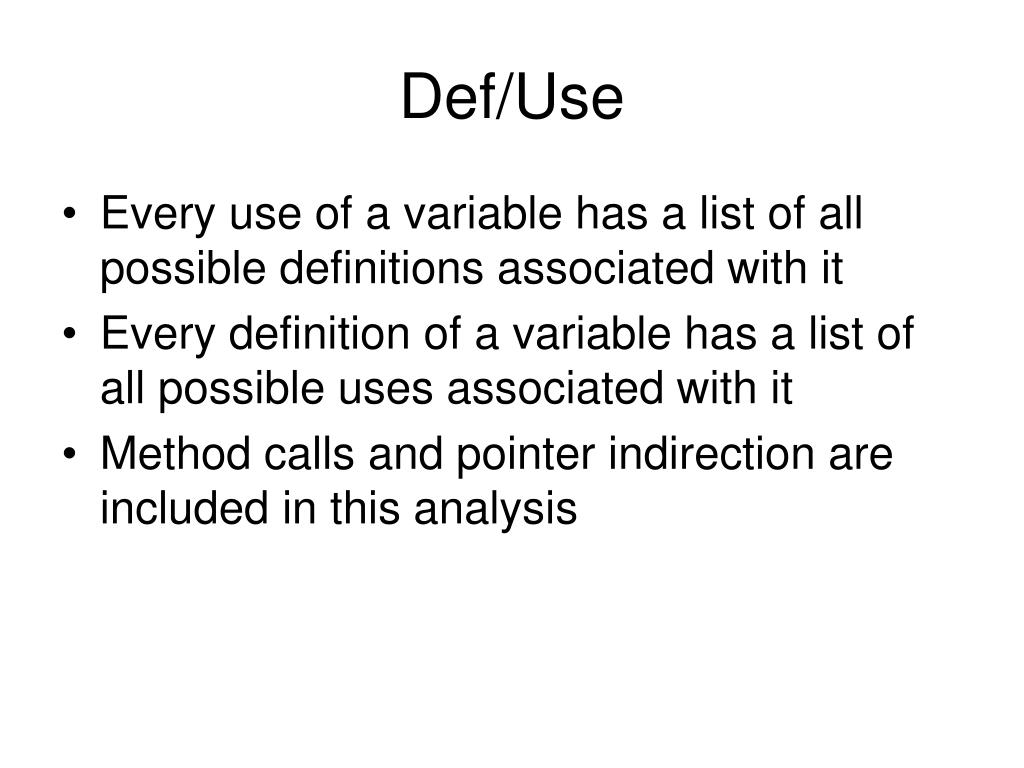

5. Def/Use • Every use of a variable has a list of all possible definitions associated with it • Every definition of a variable has a list of all possible uses associated with it • Method calls and pointer indirection are included in this analysis

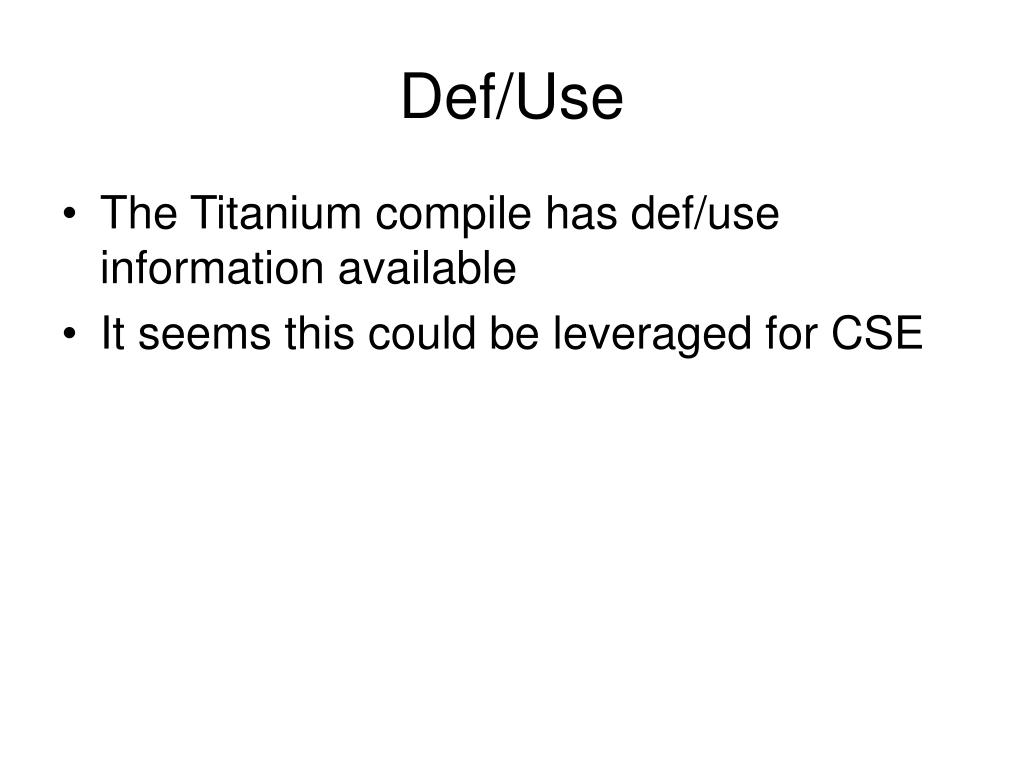

6. Def/Use • The Titanium compile has def/use information available • It seems this could be leveraged for CSE

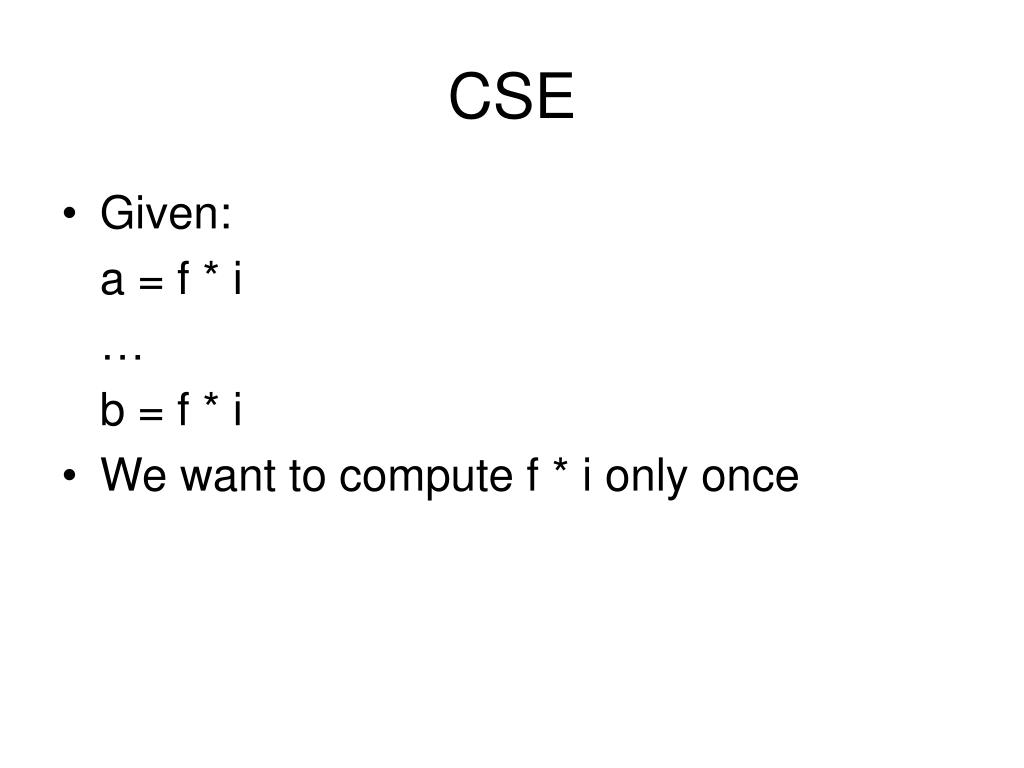

7. CSE • Given: a = f * i … b = f * i • We want to compute f * i only once

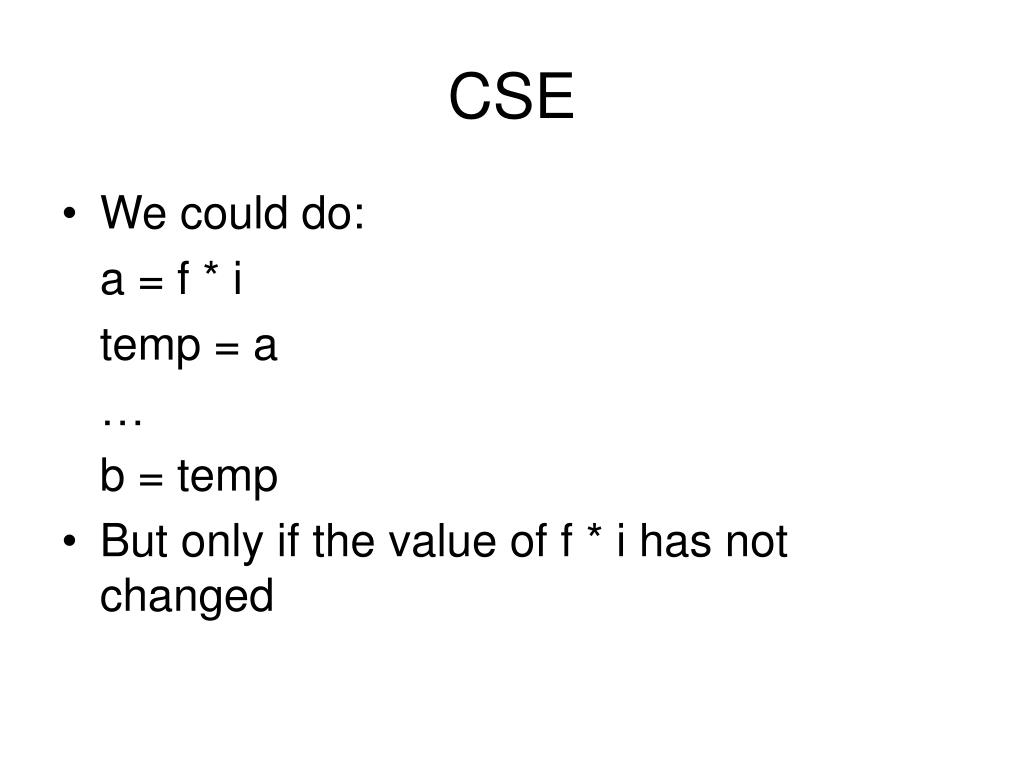

8. CSE • We could do: a = f * i temp = a … b = temp • But only if the value of f * i has not changed

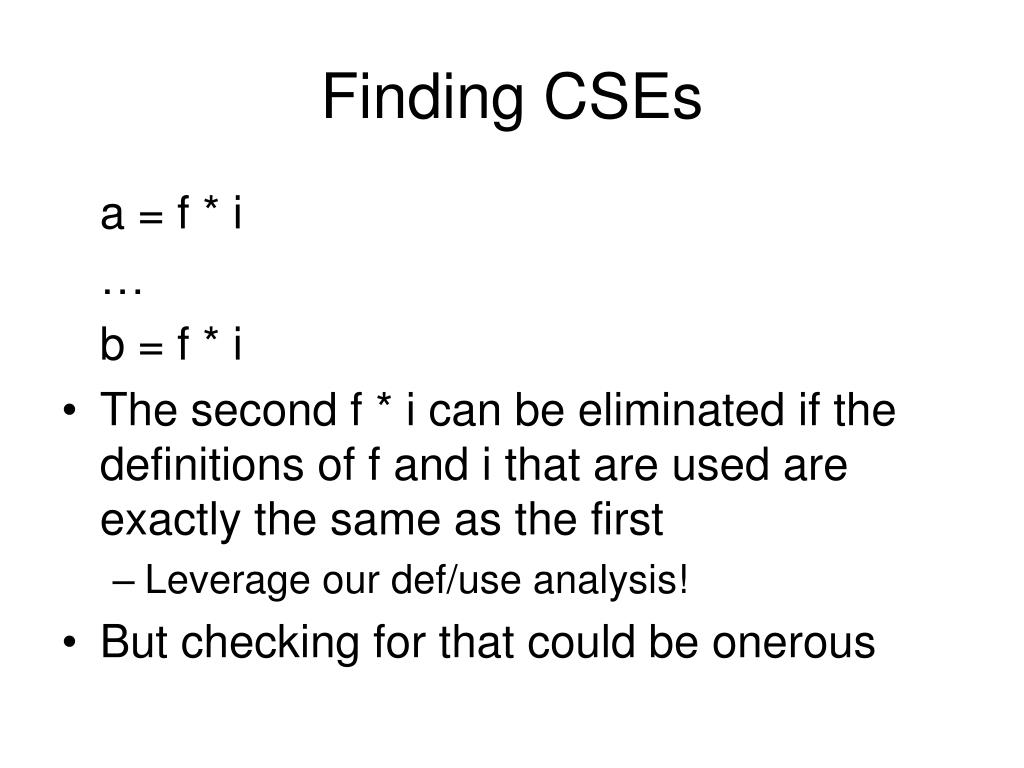

9. Finding CSEs a = f * i … b = f * i • The second f * i can be eliminated if the definitions of f and i that are used are exactly the same as the first • Leverage our def/use analysis! • But checking for that could be onerous

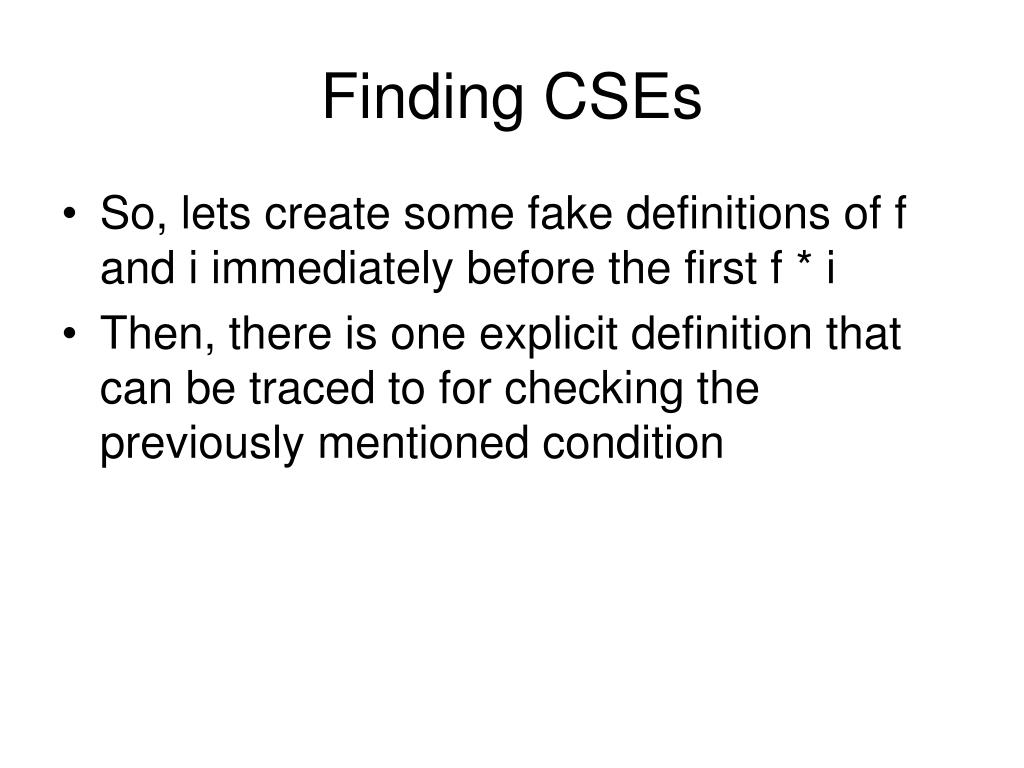

10. Finding CSEs • So, lets create some fake definitions of f and i immediately before the first f * i • Then, there is one explicit definition that can be traced to for checking the previously mentioned condition

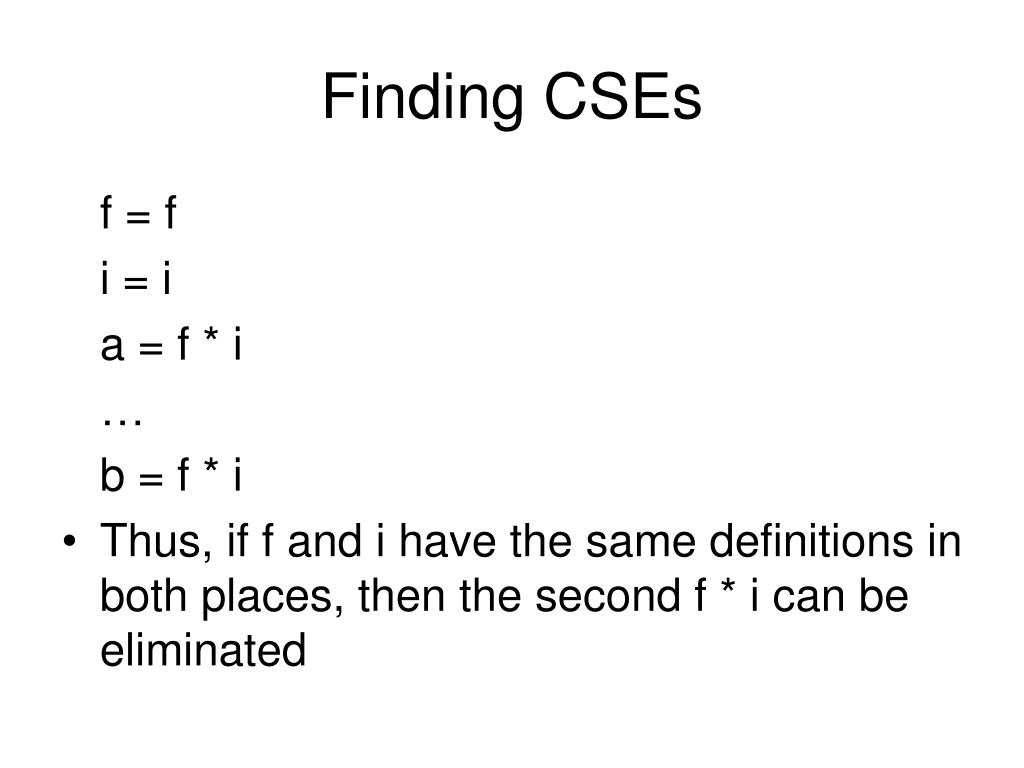

11. Finding CSEs f = f i = i a = f * i … b = f * i • Thus, if f and i have the same definitions in both places, then the second f * i can be eliminated

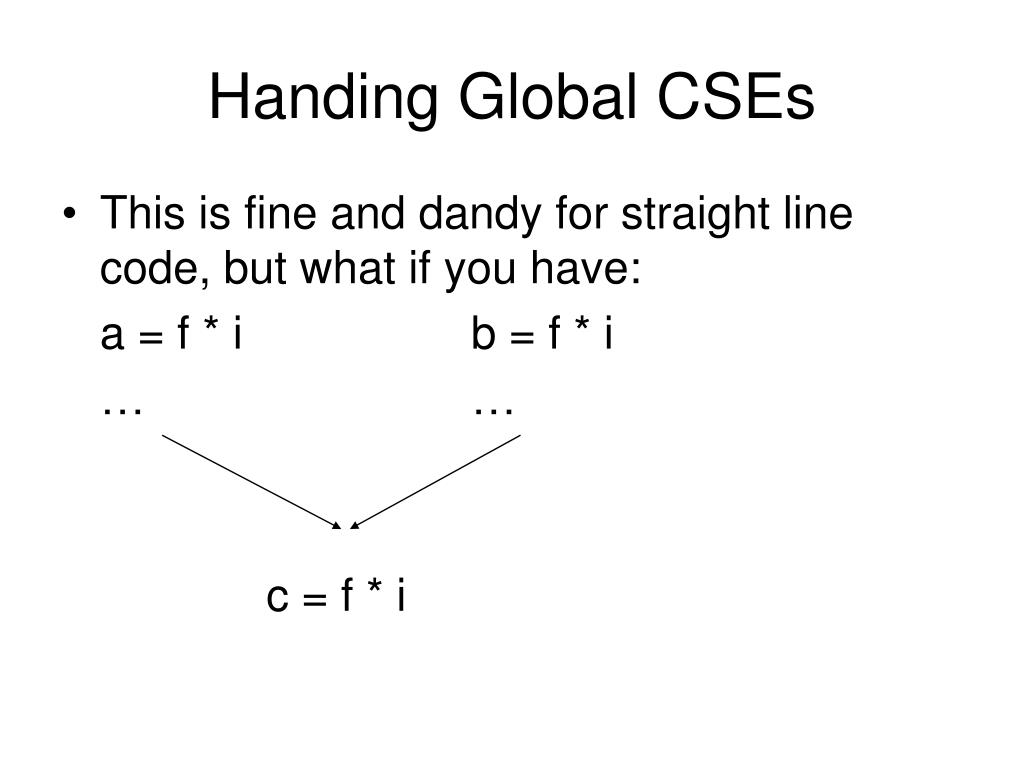

12. Handing Global CSEs • This is fine and dandy for straight line code, but what if you have: a = f * i b = f * i … … c = f * i

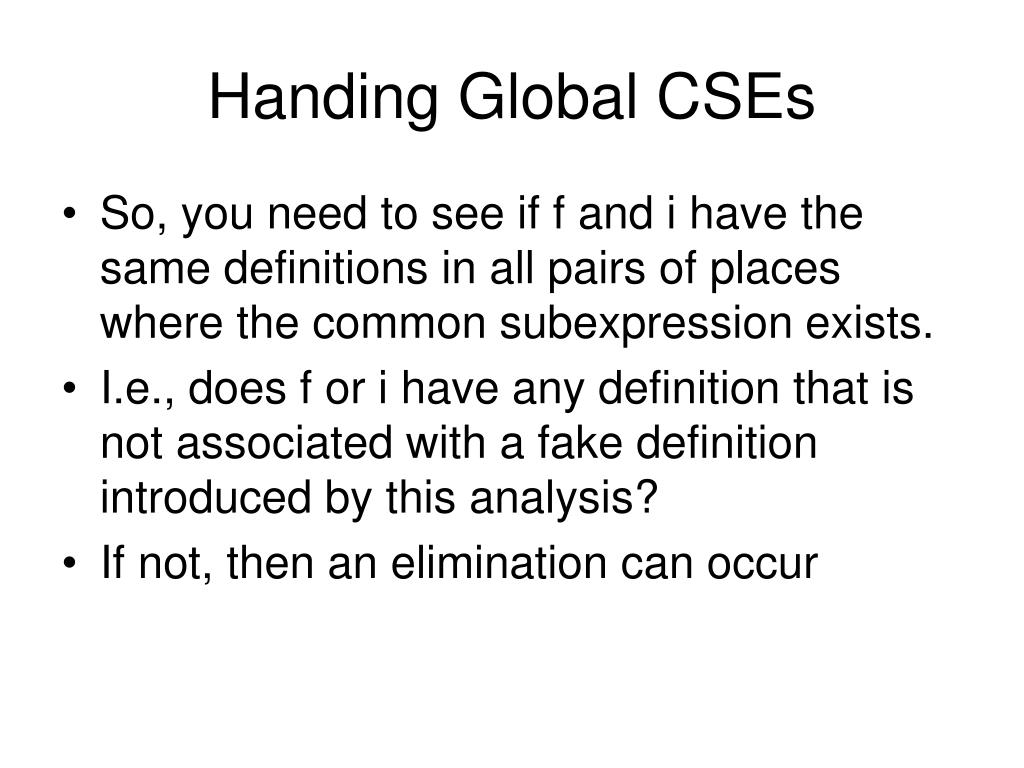

13. Handing Global CSEs • So, you need to see if f and i have the same definitions in all pairs of places where the common subexpression exists. • I.e., does f or i have any definition that is not associated with a fake definition introduced by this analysis? • If not, then an elimination can occur

14. Simultaneous CSEs • The def/use analysis is expensive • You can not run the def use analysis for every potential CSE • Thus all CSEs should be analyzed simultaneously • So, extra assignments are placed everywhere in the code a CSE could be

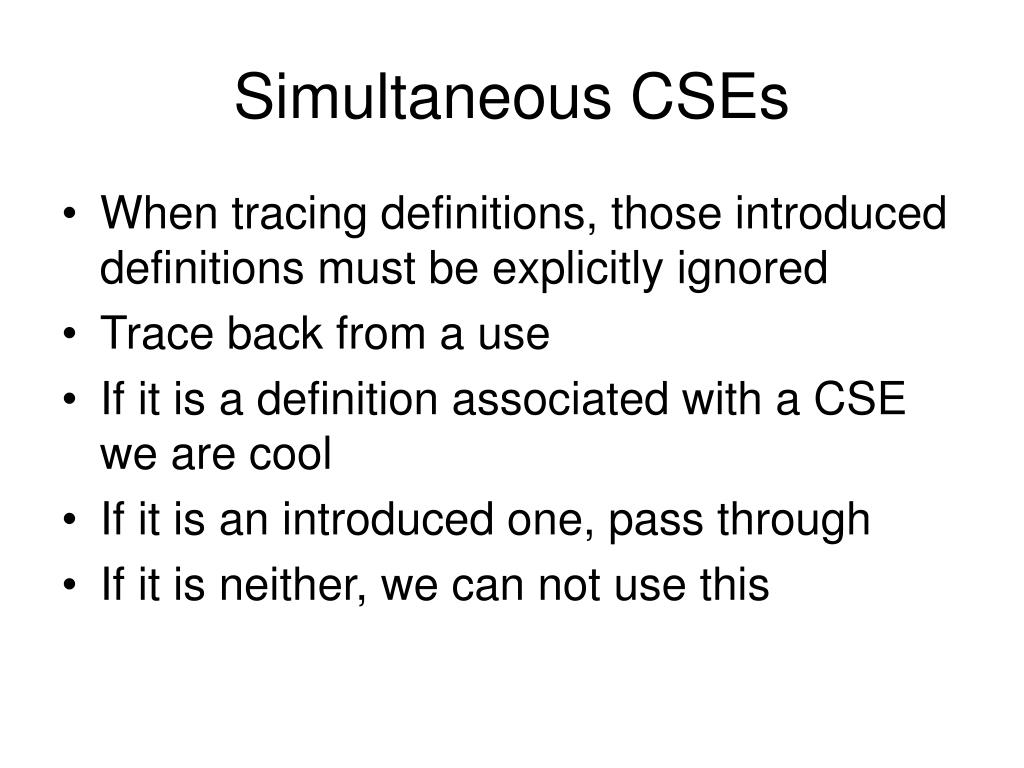

15. Simultaneous CSEs • When tracing definitions, those introduced definitions must be explicitly ignored • Trace back from a use • If it is a definition associated with a CSE we are cool • If it is an introduced one, pass through • If it is neither, we can not use this

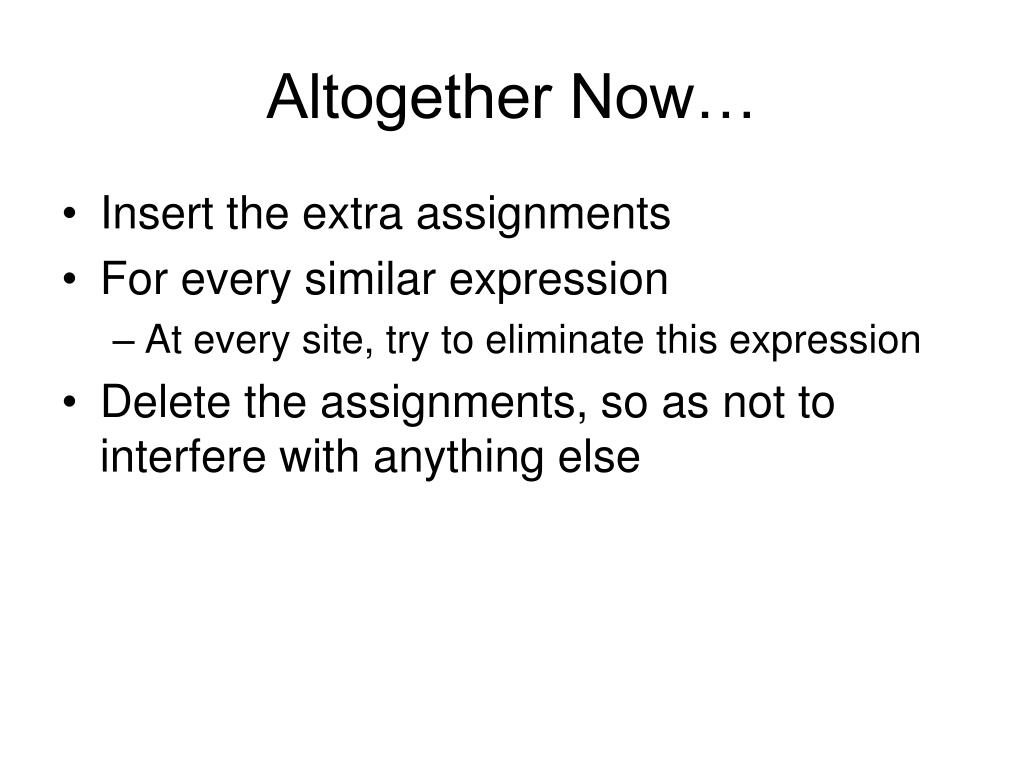

16. Altogether Now… • Insert the extra assignments • For every similar expression • At every site, try to eliminate this expression • Delete the assignments, so as not to interfere with anything else

17. Interaction with Copy Propagation • Any temps introduced are placed after the calculation, so that copy propagation can remove them a = f * i a = f * i temp_1 = a … … b = f * i b = temp_1 temp_2 = b … … c = f * i c = temp_2

18. CSE Tidbits • Compiler temps are placed at top level, as the live range of CSEs are unknown • Associativity is accounted for • Only binary and unary operations are done • Can be extended

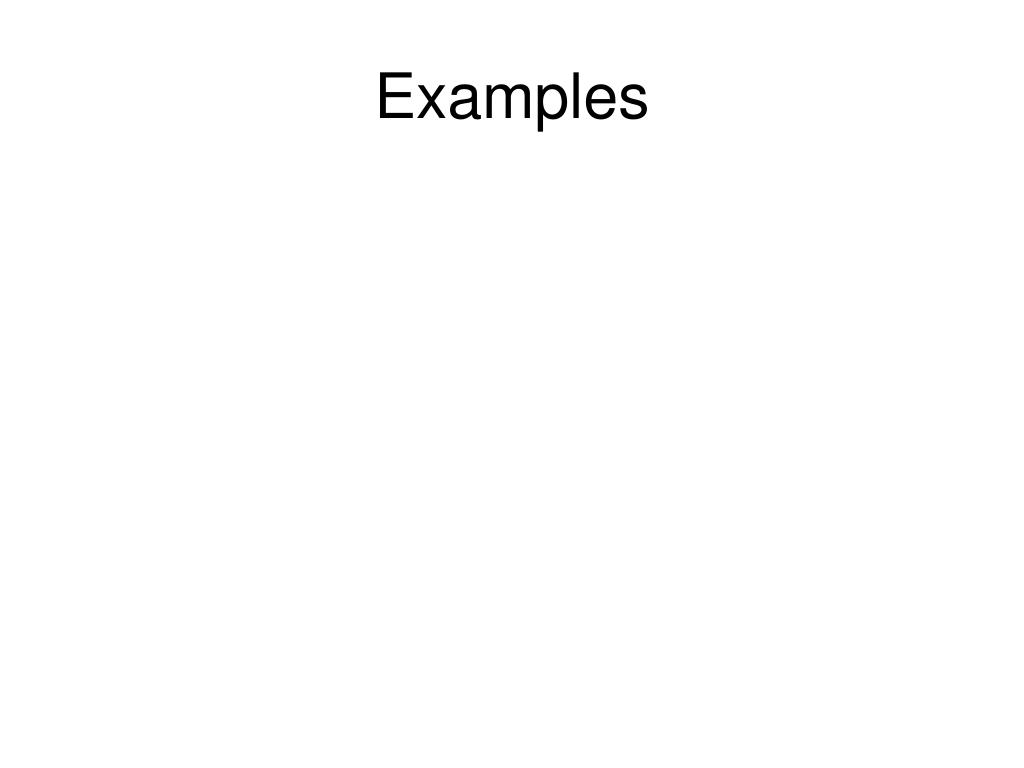

19. Examples

20. Timings – Preliminary Results • CSE alone seems to have negligable effect • Global copy propagation gives a few percent increase • CSE on top of global copy propagation gives a couple percent more

21. Local CSE • Used Muchnick’s algorithm (described in class) • Used defs to find what was killed • Fully implemented • Except method calls • Since we are using defs already, why not so something more substantial?
