  1. Computer System SecurityCSE 5339/7339 Session 18 October 21, 2004

  2. Contents • Midterm  back • Midterm Key – Part-3 (Questions 2, 3, 9, 10) • Security Policy • Models of Security • Trusted Operating Systems • Mehmet’s presentation

  3. Midterm Question 2 “ELVISISALIVE” and S2 = “DNOYZWLFEDSL”. a) What ciphertext results from using S1 as plaintext and S2 as a one-time pad? Justify your answer. b) If S2 is ciphertext, what characters must have been used as key material from a one-time pad if the plaintext is “ANDINMEMPHIS”? Justify your answer

  4. Midterm Question 3 Describe the difference between symmetric-key and asymmetric-key cryptosystems. Discuss one advantage and one disadvantage of each

  5. Midterm Question 9 Using DES, what would the 32-bit output of the S-boxes be if the input was (in binary): 001011 010111 001011 110100 110110 111010 001000 110011

  6. Midterm Question 10 Using AES, show the column that will result after applying the Mix Column operation to the following column:   0A 52 31 9C

  7. Military Security policy Unclassified Restricted Confidential Secret Top Secret

  8. Access to Information Information access is limited by the need-to-know rule. Compartment: Each piece of classified information may be associated with one or more projects called compartments

  9. Compartments and Sensitivity Levels Top Secret Compartment 1 Secret Compartment 2 Confidential Compartment 3 Restricted Unclassified

  10. Classification & Clearance <rank; compartments>  class of a piece of information Clearance: an indication that a person is trusted to access information up to a certain level of sensitivity. <rank; compartments>  clearance of a subject

  11. Dominance Relation We say that s dominates o (or o is dominated by s) if o  s. For a subject s and an object o, o  s if and only if rank(o)  rank(s) and compartments(o) is subset of compartments(s) A subject can read an object if the subject dominates the object.

  12. Example Information classified as <secret; {Sweden}> Which of the following subject clearances can read the above information? <top secret; {Sweden}> <secret; {Sweden, crypto}> <top secret; {crypto}> <confidential; {Sweden}> <secret; {France}>

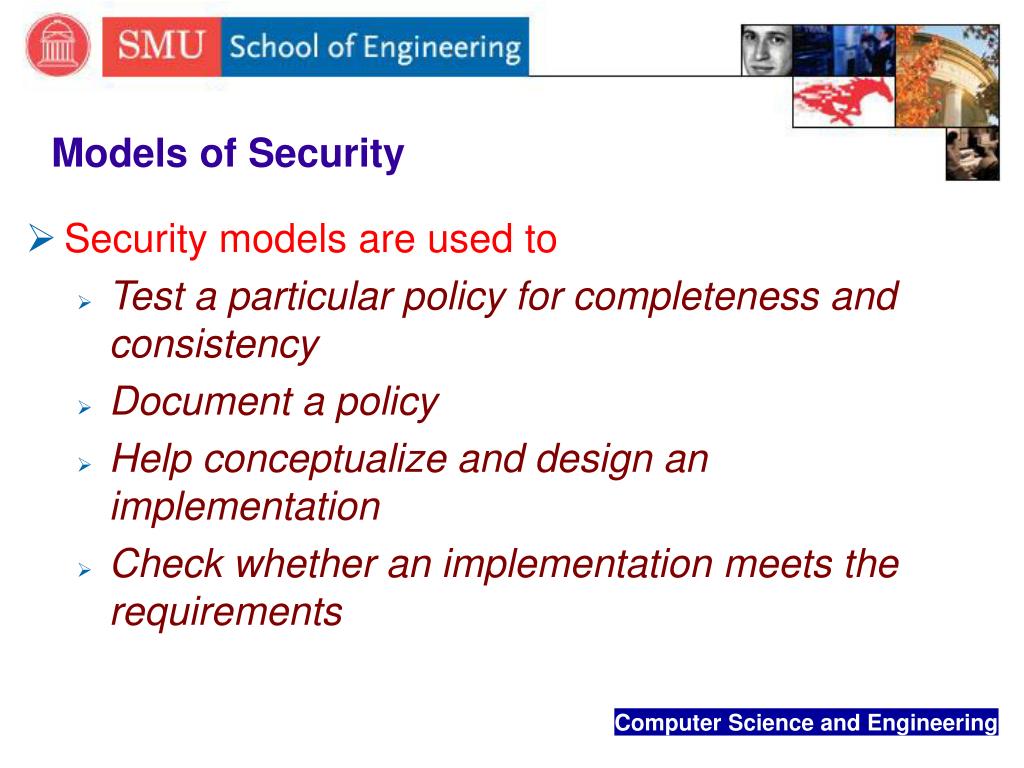

  13. Models of Security • Security models are used to • Test a particular policy for completeness and consistency • Document a policy • Help conceptualize and design an implementation • Check whether an implementation meets the requirements

  14. Upper bound Lattice Lower bound

  15. Bell-La Padula Model • Formal description of the allowable paths of information flow in a secure system. • Set of subjects and another set of objects • Each subject s has a fixed security clearance C(s) • Each object o has a fixed security class C(o)

  16. Bell-La Padula Model (Cont.) • Two properties characterize the secure flow of information: • A subject s may have read access to an object o only if C(o) C(s) • A subject s who has read access to an object o may have write access to an object p only if C(o) C(p).

  17. o5 High Illustration s2 o4 o3 s1 o2 Low o1

  18. Harrison, Ruzzo, and Ullman (HRU) Model

  19. HRU Model (cont.) • HRU allows the state of the protraction system to be changed by a well defined set of commands: • Add subject s to M • Add object o to M • Delete subject s from M • Delete object o from M • Add right r to M[s,o] • Delete right r from M[s,o] Owner can change rights of an object

  20. Take Grant Model • Unlimited number of subjects and objects • States and state transitions • Directed graph • Four primitive operations: • take • create • grant • revoke

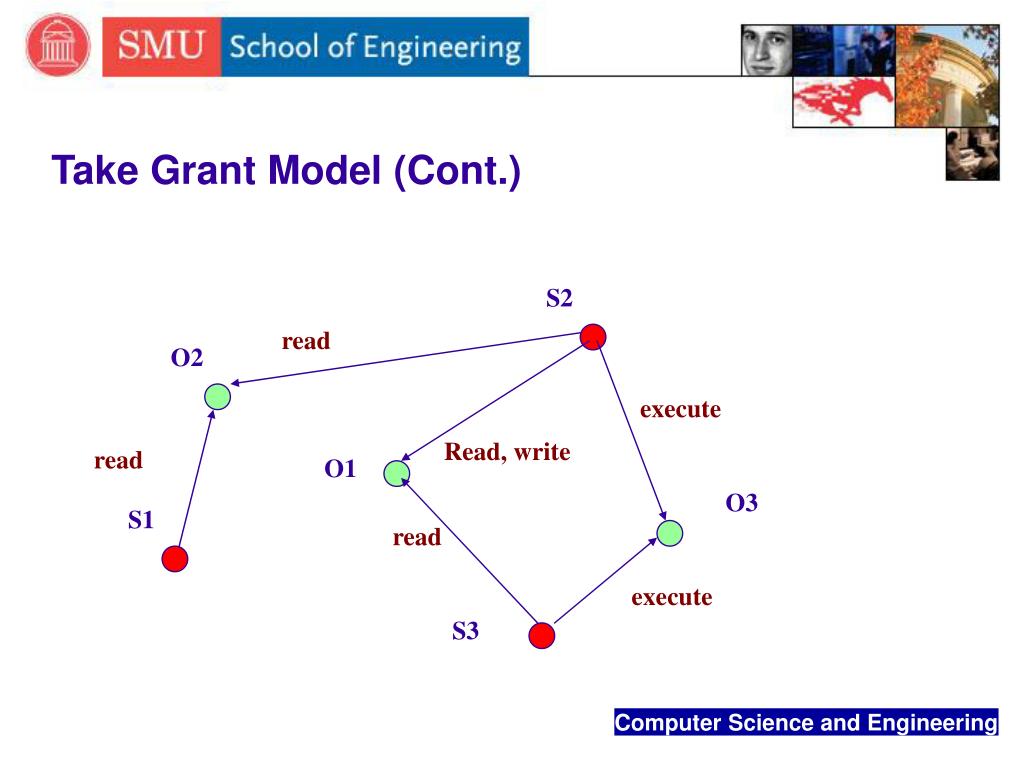

  21. Take Grant Model (Cont.) S2 read O2 execute Read, write read O1 O3 S1 read execute S3

  22. Create S O S becomes rights

  23. Revoke S O S O becomes r1, r2 r1, r2, r3

  24. Take S2 O S1 read take becomes read S2 O S1 read take

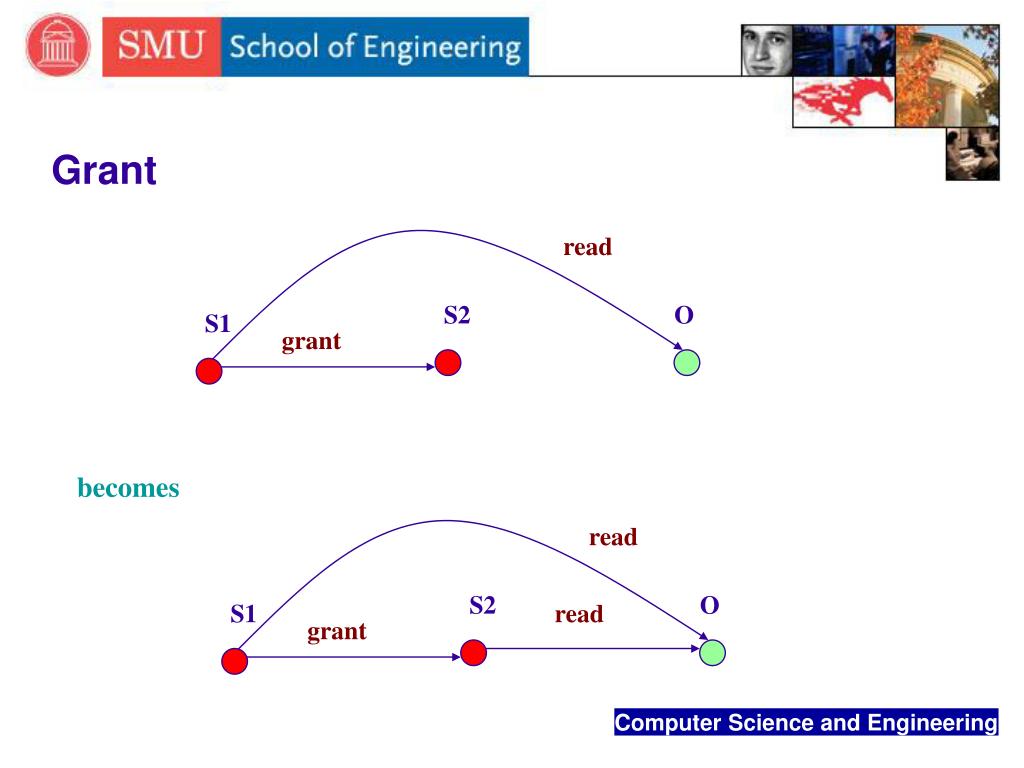

  25. Grant read S2 O S1 grant becomes read S2 O S1 read grant

  26. Trusted OS Design • OS is a complex system  difficult to design • Adding the responsibility of security enforcement makes it even more difficult • OS controls interactions between subjects and objects • Clear mapping from security requirements to the design • Design must be checked using formal reviews or simulation • Requirements  design  testing

  27. Security Design Principles • Least privilege – users, programs, fewest privilege possible • Economy of mechanism – small, simple, straight forward • Open design – extensive public scrutiny • Complete mediation – every attempt must be checked • Permission based – denial of access is the default • Separation of privilege – more than one condition • Least common mechanism – the risk of sharing • Ease of use – unlikely to be avoided

  28. OS Functions users User interface Synchronization Concurrency control Deadlock management Communication Accounting OS Services Resource allocation Data CPU Memory I/O devices Tables Libraries

  29. Security features in ordinary OS • Authentication of users – password comparison • Protection of memory – user space, paging, segmentations • File and I/O device access control – access control matrix • Allocation & access control to general objects – table lookup • Enforcement of sharing – integrity, consistency • Fair service – no starvation • Interprocess communication & synchronization – table lookup • Protection of OS protection data – encryption, hardware control, isolation

  30. Security features of Trusted OS • Identification and Authentication • Mandatory and Discretionary Access Control (MAC & DAC) • Object reuse protection • Complete mediation – all accesses are checked • Trusted path • Accountability and Audit – security log • Audit log reduction • Intrusion detection – patterns of normal system usages, anomalies

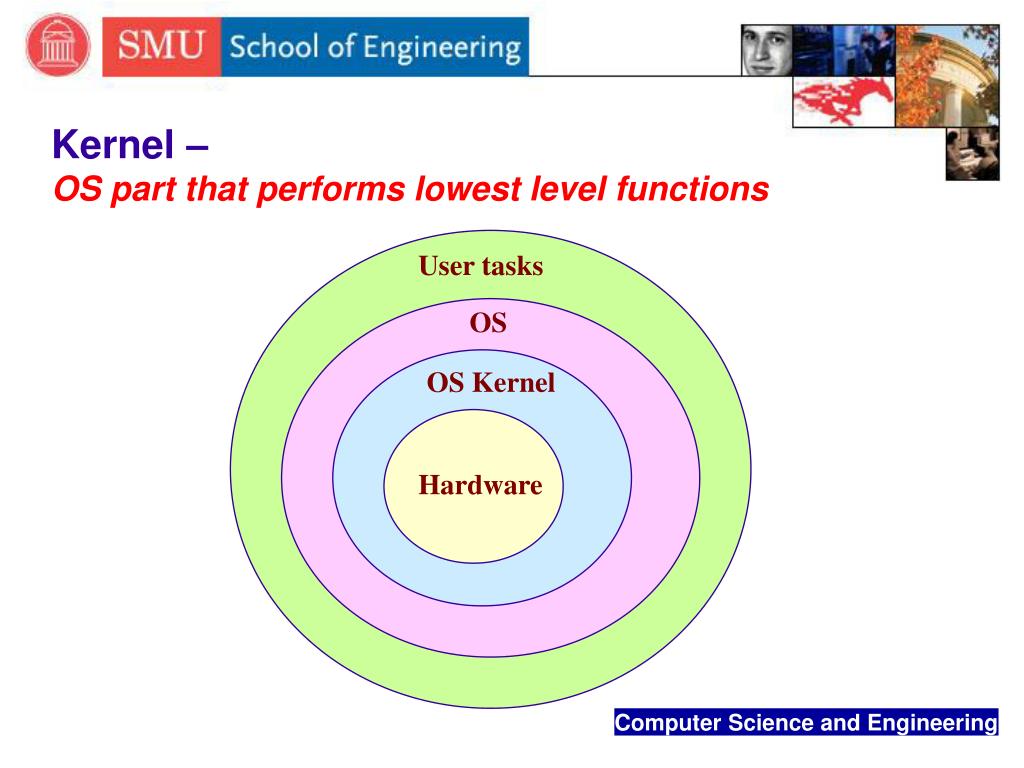

  31. Kernel – OS part that performs lowest level functions User tasks OS OS Kernel Hardware

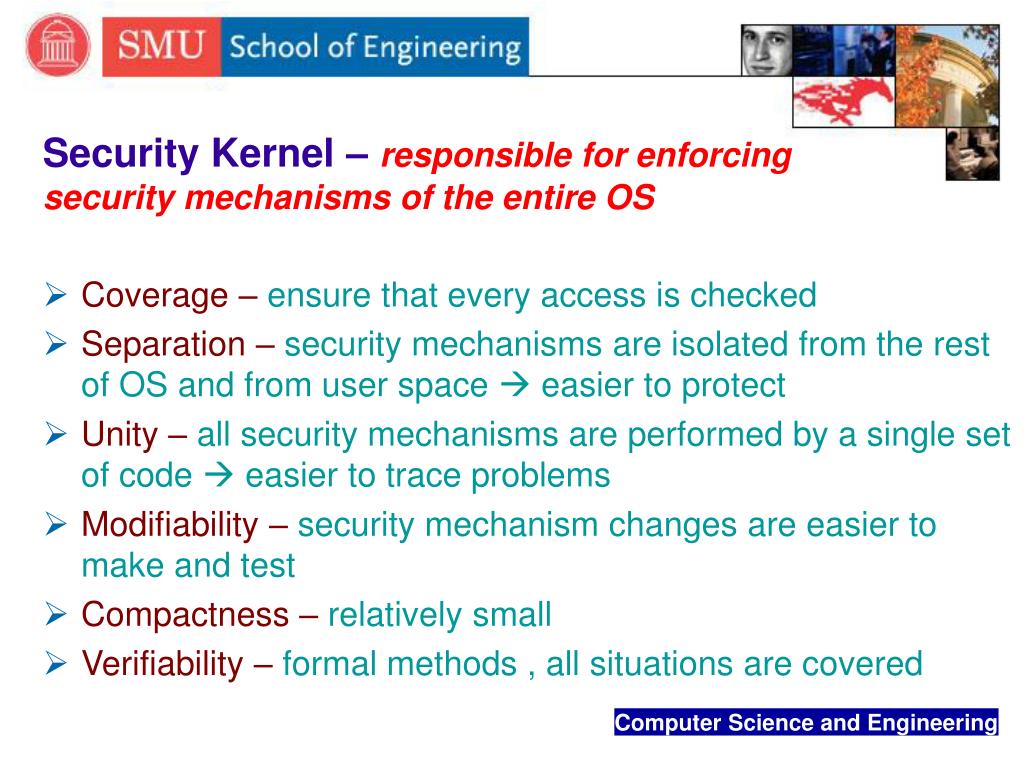

  32. Security Kernel – responsible for enforcing security mechanisms of the entire OS • Coverage – ensure that every access is checked • Separation – security mechanisms are isolated from the rest of OS and from user space  easier to protect • Unity – allsecurity mechanisms are performed by a single set of code  easier to trace problems • Modifiability – security mechanism changes are easier to make and test • Compactness – relatively small • Verifiability – formal methods , all situations are covered

  33. User tasks Combined Security Kernel / OS System OS Kernel: - HW interactions - Access control OS OS Kernel Hardware OS: • Resource allocation • Sharing • Access control • Authentication functions Security activity

  34. User tasks Separate Security Kernel Security Kernel: • Access control • Authentication functions OS Security Kernel Hardware OS: • Resource allocation • Sharing • Hardware interactions
