  1. Bit-Line Leakage Cancellation: Design and Test Automation Sudhanshu Khanna

  2. Deliverables • Bit-Line Leakage Cancellation • Schematic • Layout • On-Chip High Speed Testing • Memory BIST BOTTOM – UP DESIGN TOP – DOWN DESIGN

  3. Goals & Constraints: L1 Cache design • Achieve High Density • How: More Bit-Cells, Less Periphery • Achieve High Speed • How: Lower Read Time • L1 bit-cells use Low-Vt transistors • Memory-Vdd must be same as Core-Vdd • => Can’t use Multi-Vdd to increase performance

  4. Why is Bit-Line Leakage an Issue • Challenges (Scaling issues) • Lower Iread • Higher Ileakage • Only solution: Reduce # cells on a bit-line => Lower Density

  5. Why is Bit-Line Leakage an Issue • SA differential = V(BL) – V(BLB) • If BL leaks, differential lowers (data-dependent too) • More time needed to generate same differential => Lower Speed

  6. Where is Bit-line leakage an issue? • Advanced technology nodes • Issue: High Vt variation, high leakage • Result: Impact on performance • Sub-threshold memory • Issue: Low Ion/Ioff • Result: Energy penalty due to higher required BL swing • High Temperature Compliant Memories • Alternative memories

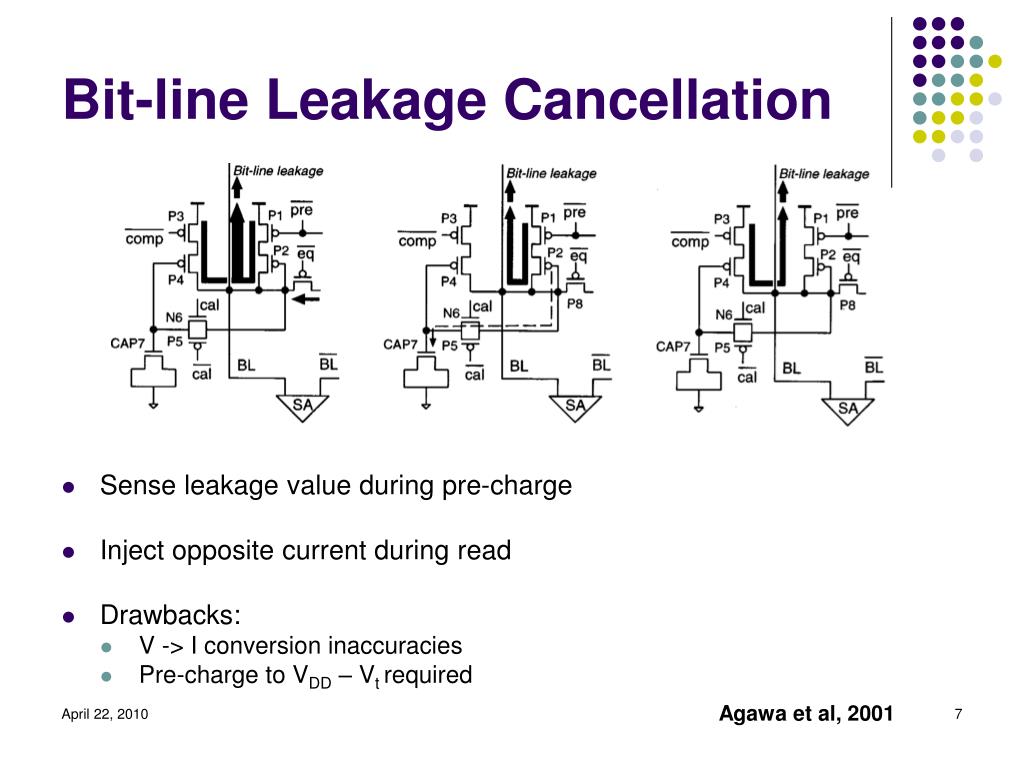

  7. Bit-line Leakage Cancellation • Sense leakage value during pre-charge • Inject opposite current during read • Drawbacks: • V -> I conversion inaccuracies • Pre-charge to VDD – Vt required Agawa et al, 2001

  8. High Speed Testing Issues Signal Analyzer ~ 100 MHz TESTER ~ 20 MHz 1 GHz Inverter OUTPUT PAD ~ 200 MHz You can make a FAST inverter, but you cant see it work

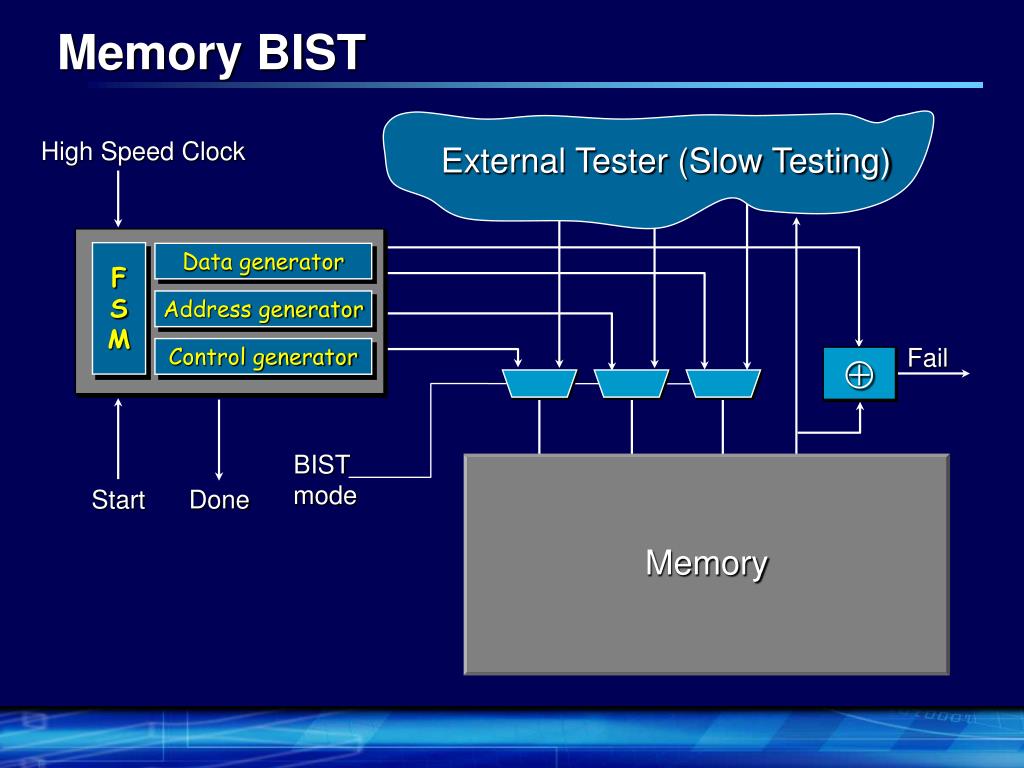

  9. Memory BIST High Speed Clock External Tester (Slow Testing) F S M Data generator Address generator Fail Control generator  BIST mode Memory Start Done

  10. M-BIST Design Flow Algorithm Behavioral Verilog: NC-Verilog Structural Verilog: RTL Compiler Place and Route: Encounter Integration with Custom Memory: Virtuoso

  11. Top-Down Flow Issues Faced • RTL Complier • Assign Statements • Unused Nets connect to VDD, VSS • Inputs of standard blocks e.g. Carry-In of Adder • Unused bus signals: e.g. Z[4] of a bus Z[11:0] • Encounter • < > vs [ ] • Virtuoso: • Global Signals

  12. Thanks for your time !
