Phase matching

Solid State Chalcogenides: What to expect from selenophosphates Mercouri Kanatzidis, Northwestern University, DMR 0702911. K 2 P 2 Se 6 : a helix with very strong non-linear optical property. SHG response: 50x larger than the commercial material AgGaSe 2 .

fonda
Télécharger la présentation

Phase matching

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

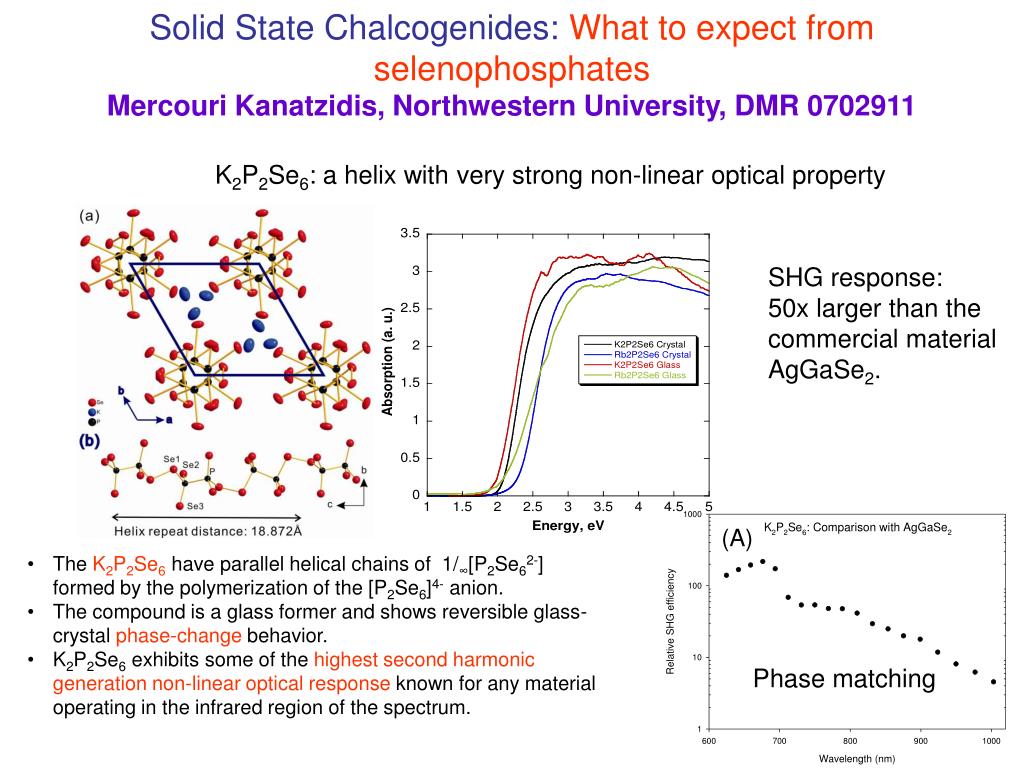

  1. Solid State Chalcogenides: What to expect from selenophosphatesMercouri Kanatzidis, Northwestern University, DMR 0702911 K2P2Se6: a helix with very strong non-linear optical property SHG response: 50x larger than the commercial material AgGaSe2. • The K2P2Se6 have parallel helical chains of 1/∞[P2Se62-] formed by the polymerization of the [P2Se6]4- anion. • The compound is a glass former and shows reversible glass-crystal phase-change behavior. • K2P2Se6 exhibits some of the highest second harmonic generation non-linear optical response known for any material operating in the infrared region of the spectrum. Phase matching

  2. Solid State Chalcogenides: What to expect from selenophosphatesMercouri Kanatzidis, Northwestern University, DMR 0702911 • The new material, K2P2Se6 which we have discovered has strong chirality combined with phase-change behavior which could enable it to be explored as a multi-functional switchable material. • The glass forming property of these materials makes them potentially valuable for producing IR optical glass fibers. • K2P2Se6 exhibits wide IR transparency up to 19.2 μm and coupled with its very large SHG response, and type-I phase-matchable, is the top performing NLO material in the IR region. • Possible applications: • optical parametric oscillators • frequency doubling for long wave IR wavelengths, i.e. generation of light with a doubled frequency (half the wavelength)

  3. Solid State Chalcogenides: What to expect from selenophosphatesMercouri Kanatzidis, Northwestern University, DMR 0702911 Graduate Students:In Chung (PhD 2007), Nan Ding (PhD 2007), Chris Malliakas (anticipated end of PhD 2007) Post Doctorals:Dr. Emanouil Manos, PhD University of Ioannina, Dr. Ferdiand Poudeu, PhD University of Dresden, now Assistant Professor of Chemistry University of New Orleans; Dr.John Androulakis, PhD University of Crete. International Exchange:Ms Seon Mi Park, Ewha Womans University, Seoul Korea, Prof. K. Paraskevopoulos, Aristotle University, Thessaloniki Greece. Prof. K. Chrisssafis, Aristotle University, Thessaloniki Greece. Collaborators:Prof.Simon Billinge (Michigan State University), Prof. S. D. Mahanti (Michigan State University), Dr. Peter Chupas, Argonne National Laboratory, Prof., Prof. K. Paraskevopoulos, Aristotle University, Thessaloniki Greece. Undergraduates: Marc Coussens, Jonathan Cave
