  1. Editing MXFmedia on basic IT-technology

  2. RTL: Gouden Kooi

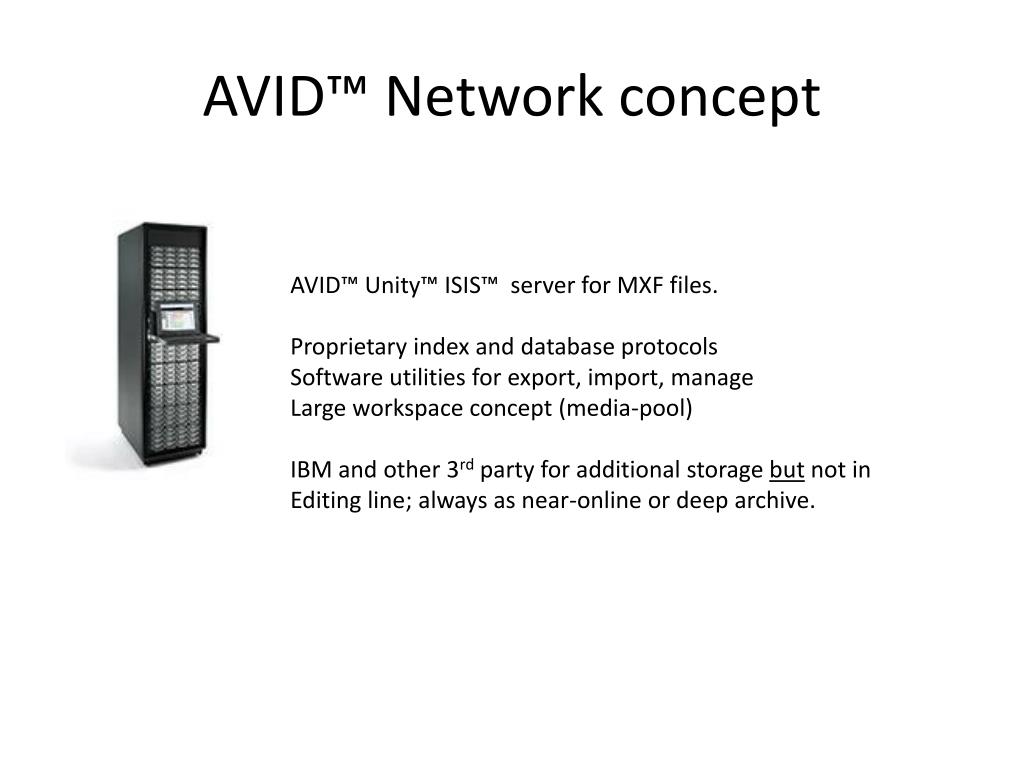

  3. AVID™ Network concept AVID™ Unity™ ISIS™ server for MXF files. Proprietary index and database protocols Software utilities for export, import, manage Large workspace concept (media-pool) IBM and other 3rd party for additional storage but not in Editing line; always as near-online or deep archive.

  4. Media Pool concept All media are in the same Dir. Projectbased Each project has it’s own Dir.

  5. Get media for editing or playback (disk I/O)

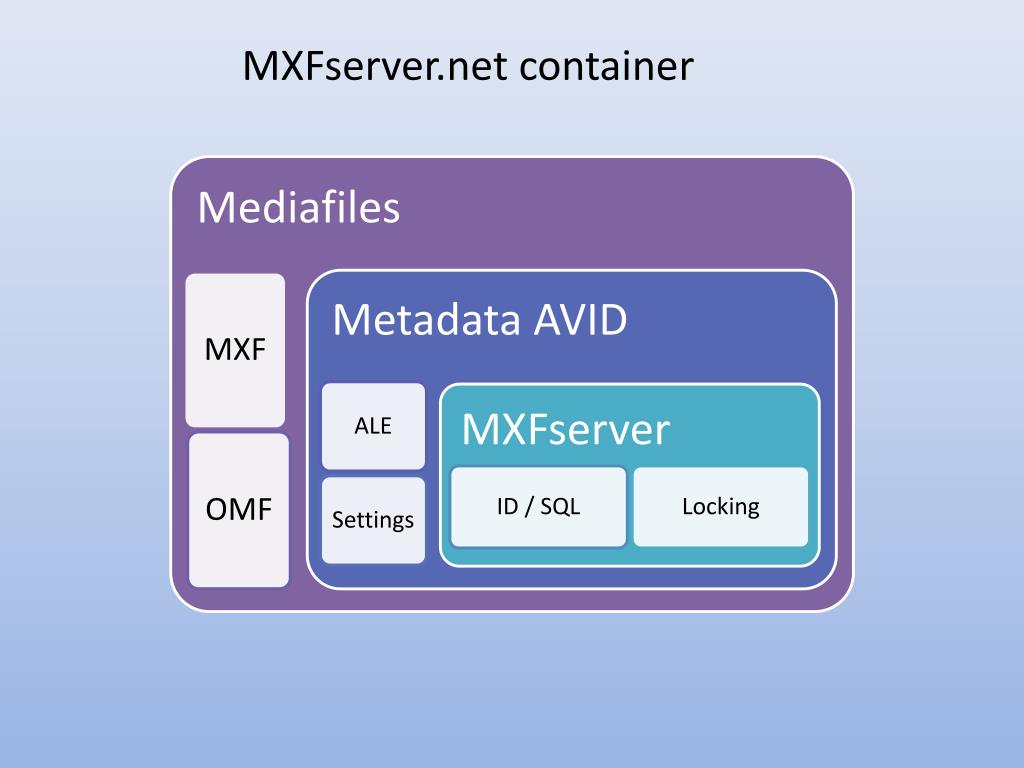

  6. MXFserver.net container

  7. Metadata – in SQL database Screensetup in XML SQL > Excel output

  8. MXFserver.net • Do not touch AVID™ • No conversion • Projectbased • Control layer (SQL) • Active Directory • Share Media • Multiple Projects attached • XML interface • Dongle protected (VEVT)

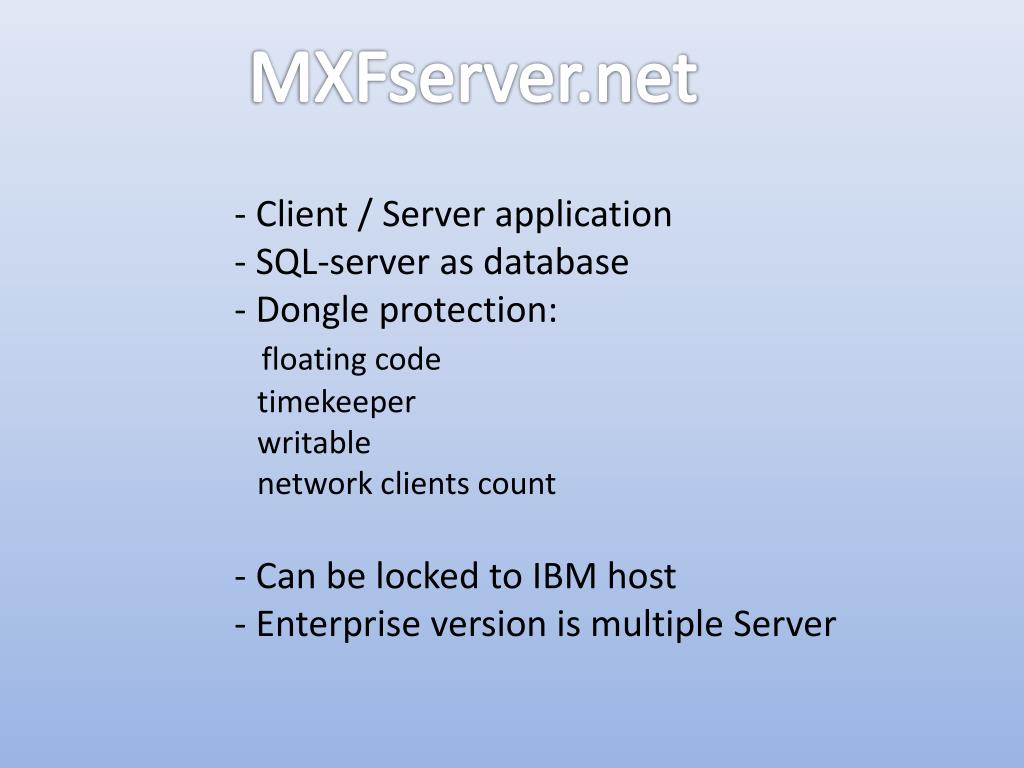

  9. MXFserver.net • - Client / Server application • SQL-server as database • Dongle protection: • floating code • timekeeper • writable • network clients count • Can be locked to IBM host • Enterprise version is multiple Server

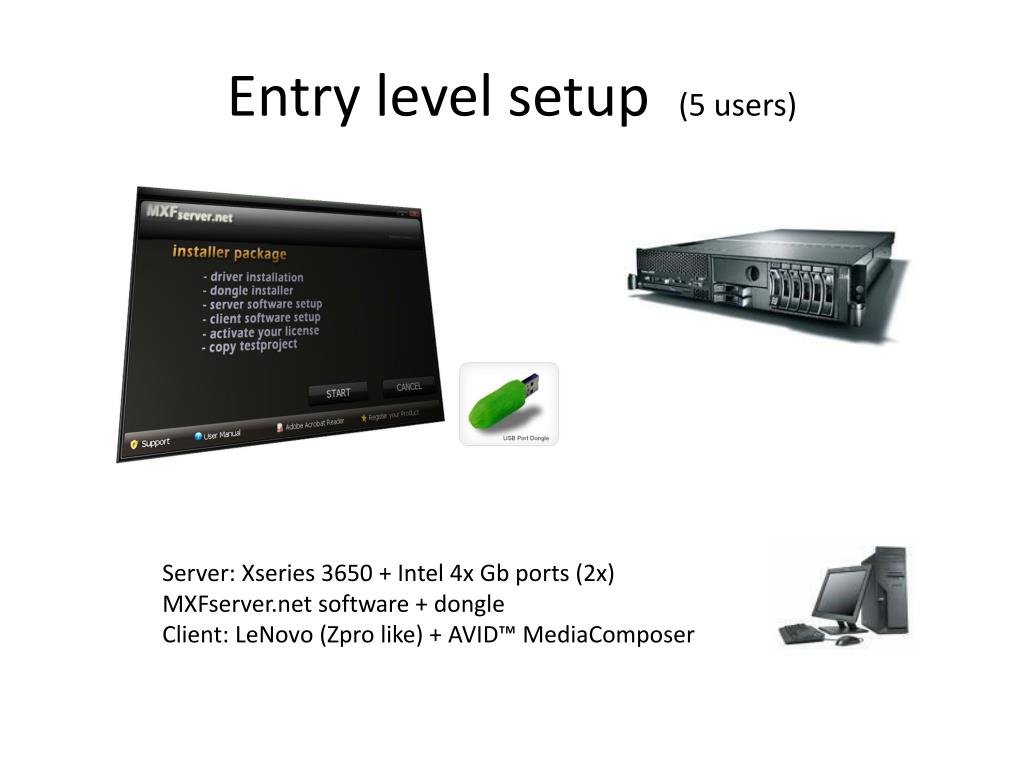

  10. Entry level setup (5 users) Server: Xseries 3650 + Intel 4x Gb ports (2x) MXFserver.net software + dongle Client: LeNovo (Zpro like) + AVID™ MediaComposer

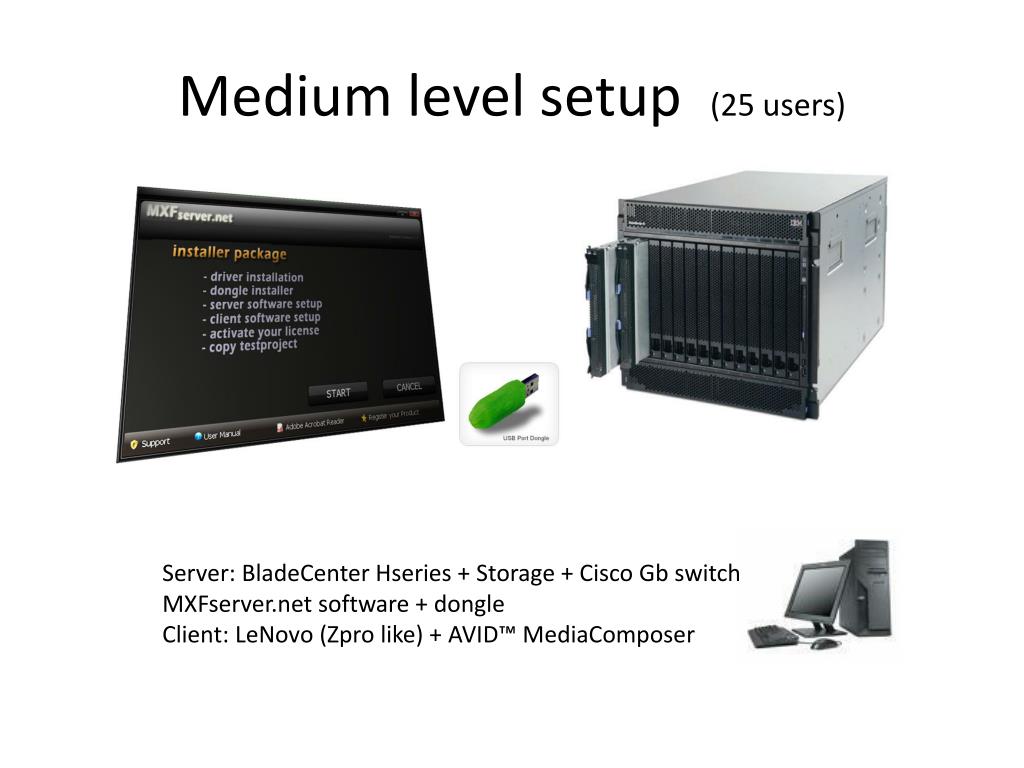

  11. Medium level setup (25 users) Server: BladeCenter Hseries + Storage + Cisco Gb switch MXFserver.net software + dongle Client: LeNovo (Zpro like) + AVID™ MediaComposer

  12. Flowchart Encoding Traffic Application (UBF) 1. planning 3. labeling 5. capture 6. encoderen 7. cerificeren 8. low res 10. web access 2. aanlevering 4. spotten (cerificeren) 9. archiveren XDCAM player Format & Label & Bar- code file Rhozet Carbon Coder Server Low Res storage VPN Toegang voor klant Disk Low res file File firewall Flexicart Tektronix Cerify Tape eVTR eVTR spotten Access control eVTR eVTR coder planning coder MXFserver SQL Control layer MXFserverMedia layer Deep Archive: tape per klant editing Storage Avid MC Avid MC LTO 4 LTO 4 LTO 4 File Track&Trace Tape binnen tape gedigitaliseerd Encodeer rapport low res web access Physical check Quality check tape ge-encodeerd Cerify rapport LTO archived

  13. FilmPartners
