Lipids

Lipids. Highly diverse structures Unifying property Hydrophobic: little to no affinity to water Contains hydrocarbons, which form nonpolar covalent bonds Do not form polymers Biologically important lipids containing molecules: Fats Phospholipids Steroids. Fats. Structure

forrester
Télécharger la présentation

Lipids

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

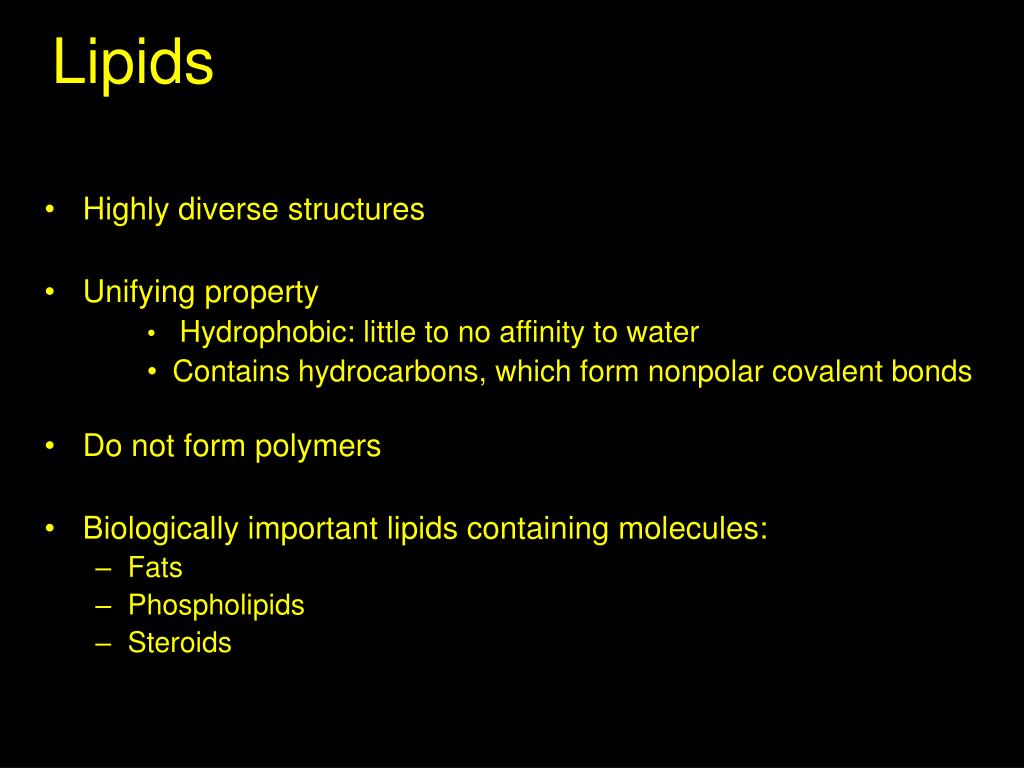

  1. Lipids • Highly diverse structures • Unifying property • Hydrophobic: little to no affinity to water • Contains hydrocarbons, which form nonpolar covalent bonds • Do not form polymers • Biologically important lipids containing molecules: • Fats • Phospholipids • Steroids

  2. Fats • Structure • Composed of two different molecules bonded by ester linkage • fatty acid & glycerol • - Fatty acid Hydrocarbon chain with a carboxyl group at one end • Glycerol • Three-carbon alcohol • Each carbon attached to hydroxyl group Try to Draw

  3. LE 5-11a Fatty acid (palmitic acid) Glycerol Dehydration reaction in the synthesis of a fat

  4. Ester linkage LE 5-11b Fat molecule (triacylglycerol)

  5. Properties of Fats • Hydrophobic • H2O molecules form hydrogen bonds with each other and EXCLUDE fatty acid chains--> Fats separate from H2O (like oil & vinegar) Fatty acids variable chain length (often 16-18 carbons)

  6. Saturated fat - refers to saturated fatty acid chains - carbons contains maximum number of hydrogens - results in 100% single bonds (no double bonds) - more linear, packs tightly to form solid Tend to be from animals

  7. Saturated or unsaturated? Ester linkage LE 5-11b Fat molecule (triacylglycerol)

  8. Butter LE 5-12a Stearic acid Saturated fat and fatty acid.

  9. Unsaturated fat -contains unsaturated fatty acids -carbon-carbon double bonds (>1) -irregular hydrocarbon conformation -poor packing -forms liquids (oils) at room temperature Tend to be from plants and fish

  10. Olive oil Other liquid fats (unsaturated)? LE 5-12b Oleic acid cis double bond causes bending Unsaturated fat and fatty acid.

  11. Phospholipids • Structure • two fatty acids bonded to glycerol through ester linkage • Phosphate bonded to third hydroxyl group of glycerol • Fatty acids= Hydrophobic tail • Phosphate and other groups= hydrophilic head Draw schematic

  12. LE 5-13 Choline Hydrophilic head Phosphate Glycerol Hydrophobic tails Fatty acids Hydrophilic head Hydrophobic tails Space-filling model Structural formula Phospholipid symbol

  13. If many phospholipids were mixed in H2O into what structures would they self-assemble? • Micelle (draw) - Detergents • Bilayer (draw) -Cell membranes

  14. Cellular membrane: Phospholipid Bilayer LE 5-14 WATER Hydrophilic head Hydrophobic tails WATER

  15. Steroids • Structure - Hydrophobic molecules made of 4 fused hydrocarbon rings • Examples and Diverse Functions • Cholesterol • Component of animal cell membranes • Building block for steroid sex hormones such as • Estrogen, testosterone, progesterone • High levels--> contribute to heart disease

  16. Cholesterol

  17. estradiol testosterone

  18. Pardon me. Did you miss anything?

  19. Ch 7 Membrane Structure and Function

  20. Cellular membrane -overall functions - Boundary between intracellular compartments, living cells, and abiotic environment • Selectively permeable • Some molecules cross membranes more readily than others

  21. Membrane Structure Predominant constituent: phospholipids • Amphipathic molecules: hydrophobic AND hydrophilic Dispersed protein components Membrane organization and properties described by: Fluid Mosaic Model Singer and Nicolson 1972

  22. Organization of membrane phospholipids LE 7-2 WATER Hydrophilic head Hydrophobic tail WATER

  23. Mosaic: something made of small pieces

  24. Mosaic: Proteins dispersed among phospholipids in membrane: LE 7-3 Hydrophilic region of protein Phospholipid bilayer Hydrophobic region of protein

  25. Freeze-fracture studies of the plasma membrane • Frozen membrane split along the middle of the phospholipid bilayer using a knife • Imaged by EM Supports mosaic part of model

  26. Extracellular layer LE 7-4 Proteins Knife Plasma membrane Cytoplasmic layer Extracellular layer Cytoplasmic layer

  27. The Fluidity of Membranes • Phospholipids move laterally within the bilayer • Some membrane proteins also drift laterally • Rarely does a phospholipid flip-flop transversely across the membrane

  28. LE 7-5a Lateral movement (~107 times per second) Flip-flop (~ once per month) Movement of phospholipids

  29. Effects of Temperature on membranes • Cool temp: membranes switch from fluid to more solid state • Solidification depends on type of lipid • What property of lipids would favor liquid versus solid state?

  30. Degree of saturation of fatty acid tails LE 7-5b Viscous Fluid Saturated hydro- carbon tails Unsaturated hydrocarbon tails with kinks Membrane fluidity

  31. Steroid cholesterol also component of membranes • Tends to moderate effects of temp. on membrane state • At warm temperatures (such as 37°C), restrains movement of phospholipids • At cool temperatures, maintains fluidity by preventing tight packing

  32. LE 7-5c Cholesterol Cholesterol within the animal cell membrane

  33. Movement of membrane proteins Can drift within the bilayer • Proteins much larger than lipids--> move more slowly • Cell fusion studies support fluidity of membrane proteins

  34. LE 7-6 Membrane proteins Mouse cell Mixed proteins after 1 hour Human cell Hybrid cell

  35. Membrane Proteins and Their Functions • Proteins determine most of the membrane’s specific functions • Peripheral membrane proteins • not embedded • attached to extracellular or cytoplasmic surface • Integral membrane proteins • penetrate the hydrophobic core of bilayer • often span the membrane

  36. Fibers of extracellular matrix (ECM) LE 7-7 Glycoprotein Carbohydrate Glycolipid EXTRACELLULAR SIDE OF MEMBRANE Cholesterol Peripheral proteins Microfilaments of cytoskeleton Integral protein CYTOPLASMIC SIDE OF MEMBRANE
