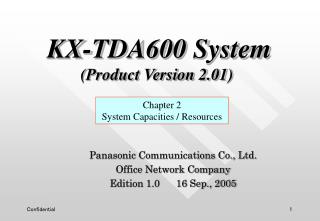

  1. KX-TDA600 System(Product Version 2.01) Panasonic Communications Co., Ltd. Office Network Company Edition 1.0 16 Sep., 2005 Chapter 2System Capacities / Resources

  2. Chapter 2 System Capacities / Resources 1. System Capacity 2. System Resources

  3. 1. System Capacity (1/8) (Max. Capacity of Card) KX-TDA600 (1)Extension Card : Max.10 cards (Note: CS-INF:Max.4 cards, Extension Card + CS-INF:Max.10 cards) (2) Trunk Card(include ISDN-EXT): Max.10 cards (Note: E1,PRI Cards: count as 2 cards) (3) Extension Card + Trunk Card : Max.10 cards Basic Shelf (1)Extension Card : Max.10 cards (Note: CS-INF:Max.4 cards, Extension Card + CS-INF:Max.10 cards) (2) Trunk Card(include ISDN-EXT): Max.10 cards (Note: E1,PRI Cards: count as 2 cards) (3) Extension Card + Trunk Card : Max.11 cards KX-TDA620 Expansion Shelf

  4. 1. System Capacity (2/8) (Max. Capacity of Card in detail) Maximum Slot/Card TDA600 TDA620 System Max. of Free Slot 10 11 43 ELCOT16 10 10 40 BRI 10 10 40 PRI/E1 5 5 20 IP-G/W4, 16 10 10 40 DHLC8, DLC8, 16 10 10 40 SLC8, (M)ESLC16 10 10 40 IP-EXT16 10 10 40 CSIF4,8 4 4 16 CTI-LINK 1 0 1 EECHO16 2 2 8 OPB3 4 4 16 MSG4 4 4 16 32 DPH2 8 8 DPH4 4 4 16 EIO4 4 4 16

  5. 43 Slots 1. System Capacity (3/8) 688 ports w/o DXDP 1,008 ports w DXDP (Max. Capacity of Ports) 32 Slots 512 ports w/o DXDP 752 ports w DXDP 21 Slots 336 ports w/o DXDP 496 ports w DXDP 10 Slots 160 ports w/o DXDP 240 ports w DXDP Max. Capacity is configured with All Analogue, BRI or VoIP Trunk, except for PRI Card.

  6. 1. System Capacity (4/8) (Loading test) Loading test of DIL1:N incoming call(40 CO Incoming, 16Ext./1CO)

  7. 3-Shelfs 4-Shelfs Basic 2-Shelfs 1. System Capacity (5/8) (Max. Capacity of CO & Ext) 640 CO 640 Ext. w/o DXDP 960 Ext. w DXDP 480 CO 480 Ext. w/o DXDP 720 Ext. w DXDP 320 CO 320 Ext. w/o DXDP 480 Ext. w DXDP 160 CO 160 Ext. w/o DXDP 240 Ext. w DXDP

  8. 1. System Capacity (6/8) (Max. Capacity of Extension in detail) Basic System 2 Shelf System 3 Shelf System With DXDP With DXDP With DXDP With DXDP 4 Shelf System (Max) Max. Extension 160 240 320 480 480 720 640 960 Max. SLT 160 160 320 320 480 480 640 640 Max. D-PT (T7600 series, T7565, T7560) 160 160 320 320 480 480 640 640 Max. IP-PT(NT-136) 160 160 320 320 480 480 640 640 Max. Old D-PT (T75/T74/T72 series) 128 128 256 256 384 384 512 512 Max. APT 80 80 160 160 240 240 320 320 Max. DSS Console 64 64 64 64 64 64 64 64 Max. VPS 8 8 8 8 8 8 8 8 Max. D-PT is 160 pcs per shelf even DXDP is used.

  9. 1. System Capacity (7/8) (Other Accessories) 2 Shelf System Basic System 4 Shelf System (Max) 3 Shelf System Other Accessories TDA600 + TDA620 TDA600 + 2 x TDA620 TDA600 Max. CS (TD142/TD141) 32 64 96 128 Max. PS w/o EMEC 256 256 256 256 Max. PS with EMEC 512 512 512 512 Max. Doorphone 16 32 48 64 Max. Door Opener 16 32 48 64 Max. External Relay 16 32 48 64 Max. External Sensor 16 32 48 64 Max. BGM / MOH Input 2 2 2 2 Max. External Paging 2 2 2 2 Max. RS232C / SMDR 1 1 1 1 Max. USB 1 1 1 1 Max. Ethernet For CTIor Programming 1 1 1 1 Max. PC Phone 128 128 128 128 Max. PC Console 8 8 8 8

  10. 1. System Capacity (8/8) (Method of estimating power supply capacity) Power Unit Rating Max M-Type 128 PU Max L-Type 512 PU T7600/T7565/T7560 Series 1 128 160*² NT136 IP Phone 0 160 160*² T7500/T7400/T7200 Series 4 32 128*² APT 4 32 80*² DSS (T7640) 1 64 64*² SLC8 8 10 cards*² 10 cards*² ESLC16 16 8 cards 10 cards SLT*1 EMSLC16 16 8 cards 10 cards DHLC8 8 10 cards*² 10 cards*² DECT CS (TDA0141/TDA0142) 4 32 128*² ISDN Extension (2ch) 2 64BRI 80BRI*² TVM Port 1 8*² 8*² *1 Calculation must be based on the number of cards, not the number of terminals. *2 Maximum capacity per shelf

  11. 2. System Resources (1/4) Resources TDA600 TDA100/200 Resources TDA600 TDA100/200 MSG waiting Log. 1672 256 Tenant 8 8 SMDR (W/O EMEC) 1000 200 COS 64 64 SMDR (W EMEC) 4000 Trunk group 96 64 Ext. user group 96 32 Hotel check out calls W EMEC 8000 4000 Paging group 96 32 Call pick up group 96 64 Both W/O MEC and W MEC are same W MEC Idle Ext. Hunting-G 128 Group (16 Ext./G) 64 Group (16 Ext./G) ICD-Group 128 Group (128 Ext./G) 64 Group (32 Ext./G) Queuing time table 128 64 VM Unit 8 2 VM Port (Ch)/VM 12 (24ch) 12 (24ch) VM (DPT) Group 8 2 Available to use 1 Group / 1 Shelf for Broadcasting Feature VM (DTMF) Group 8 2 Call park area 100 100 Conference 3x10 or 8x4 3X10 or 8x4/Shelf Ext. Number digits 1-5 1-4

  12. 2. System Resources (2/4) Resources TDA600 TDA100/200 Verified user code 4 digits x 1000 4 digits x 1000 Verified code PIN 10 digits x 1000 10 digits x 1000 Special carrier code 16 digits x 100 16 digits x 20 Host access code 10digitsx10/TRG 10digitsx10/TRG DDI table 32 digits x 1000 32 digits x 1000 Emergency dial 32 digits x 10 32 digits x 10 Quick dial W/O EMEC 4 digits x 80 4 digits x 80 Quick dial W/ EMEC 4 digits x 80 + 8 digits x 1000 SSD W/O EMEC 32 digits x 1000 32 digits x 1000 SSD W/ EMEC 32 digits x 1000 x 8 32 digits x 1000 x8 Personal SSD W/O EMEC 32 digits x 10 32 digits x 10 Personal SSD W/ EMEC 32 digits x 100 32 digits x 100 One-Touch Dial 32 digits 32 digits Pick up dial 32 digits 32 digits Redial 32 digits 32 digits

  13. 2. System Resources (3/4) Resources TDA600 TDA100/200 ARS plan 48 16 Leading digit 16 digits x 1000 16 digits x 1000 Excepted leading 16 digits x 200 16 digits x 200 ARS Carrier 48 10 TIE Routing Table 32 32 Leading digits 3 digits 3 digits PBX Code 7 digits 7 digits 7 7 Toll Restriction level 16digitsx100/level 16digitsx100/level Denied Code 16digitsx100/level 16digitsx100/level Exception Code 8 digits 8 digits Charge Rate 3 Denomination 3 100/Ext. 100/Ext. Call Log (Outgoing) 100/Ext. 100/Ext. Call Log (Incoming)

  14. Without EMEC card With EMEC card 2. System Resources (4/4) (Memory Expansion Card) The following features are available when a KX-TDA6105 Memory Expansion Card (EMEC) is installed: 4 Party Conference with Broadcast Not Available Available System Speed Dial 1000 per system 1000 per Tenant 8 tenants per system Station Speed Dial Max: 10 per Station Max: 100 per Station SMDR Call Storage for Check-out Not Available 8000 calls SMDR Call Storage 1000 calls 4000 calls Quick Dial 4 digits, 80 entries 4 digits, 80 entries 8 digits, 1000 entries Number of PS 256 pcs 512 pcs

  15. Chapter 2 System Capacities / Resources Thank you very much !
