  1. Dynamic Software Updates: The State Mapping Problem Rida A. BazziKristisMakris PeymanNayeri Jun Shen ARIZONA STATE UNIVERSITY

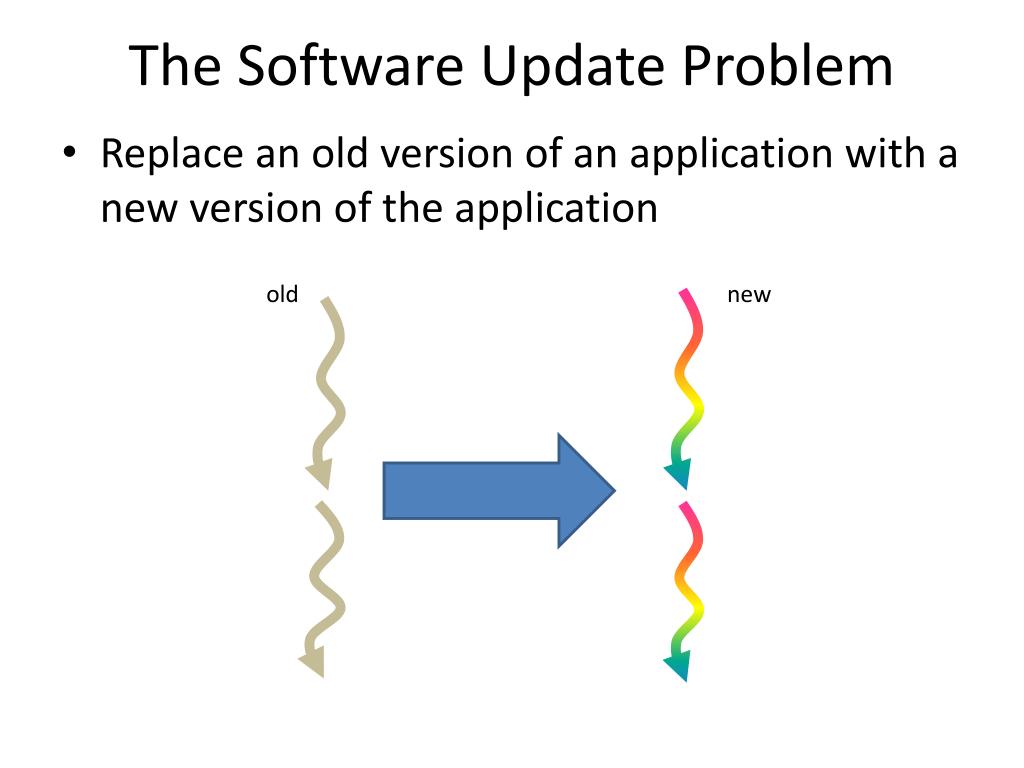

  2. The Software Update Problem • Replace an old version of an application with a new version of the application old new

  3. old new

  4. old How to affect the mapping: mechanism? How to determine if a safe mapping is possible? State mapping new

  5. THE MECHANISM: UpStare • A general mechanism for state mapping • Supports immediate updates of multi-threaded applications • Supports update for applications with blocking system calls • An application written in C is made updateable using code instrumentation

  6. UpStare’sMECHANISMS • State Reconstruction: to update active functions • Transforming blocking calls to non-blocking calls. • Forcing all threads to block before an update. • Stack reconstruction for every thread • Resumption up to the update point for all • Resumption for all

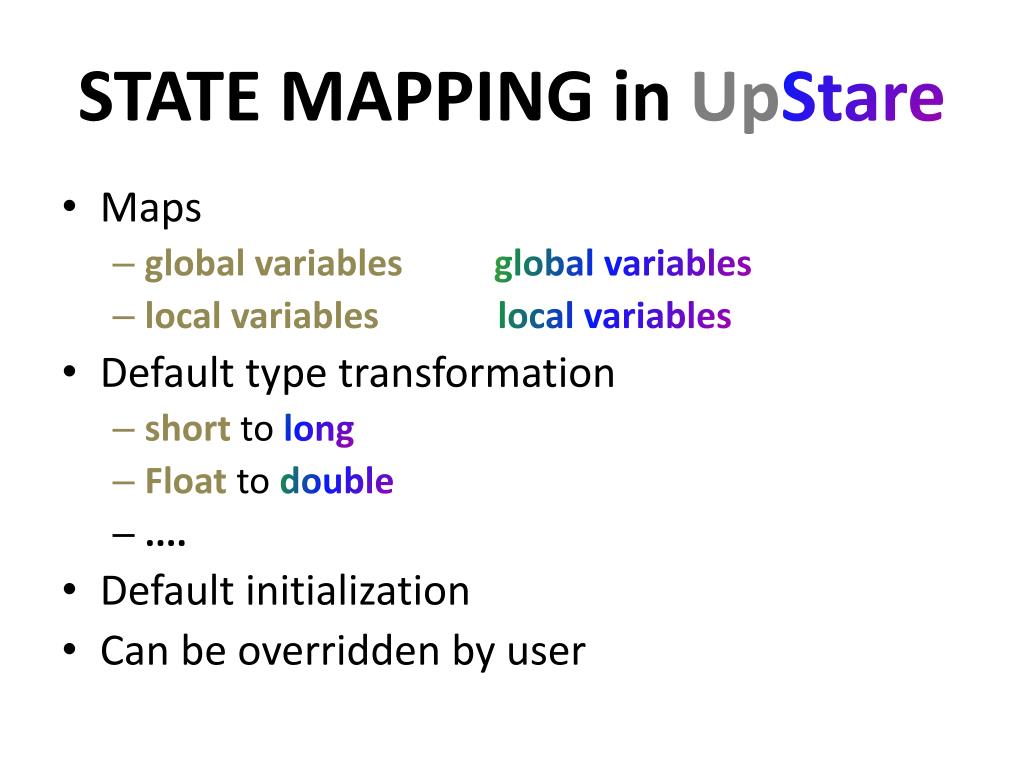

  7. STATE MAPPING in UpStare • Maps • global variables global variables • local variables local variables • Default type transformation • short to long • Float to double • .... • Default initialization • Can be overridden by user

  8. TAMING THE STATE MAPPING PROBLEM • Assumption • Some degree of backward compatibility should be expected • Approach • Ignore some differences: log functions • Reduce the state that needs to be mapped: wait for light-weight functions to exit • Take advantage of backward compatibility assumption: semantic checking with unification

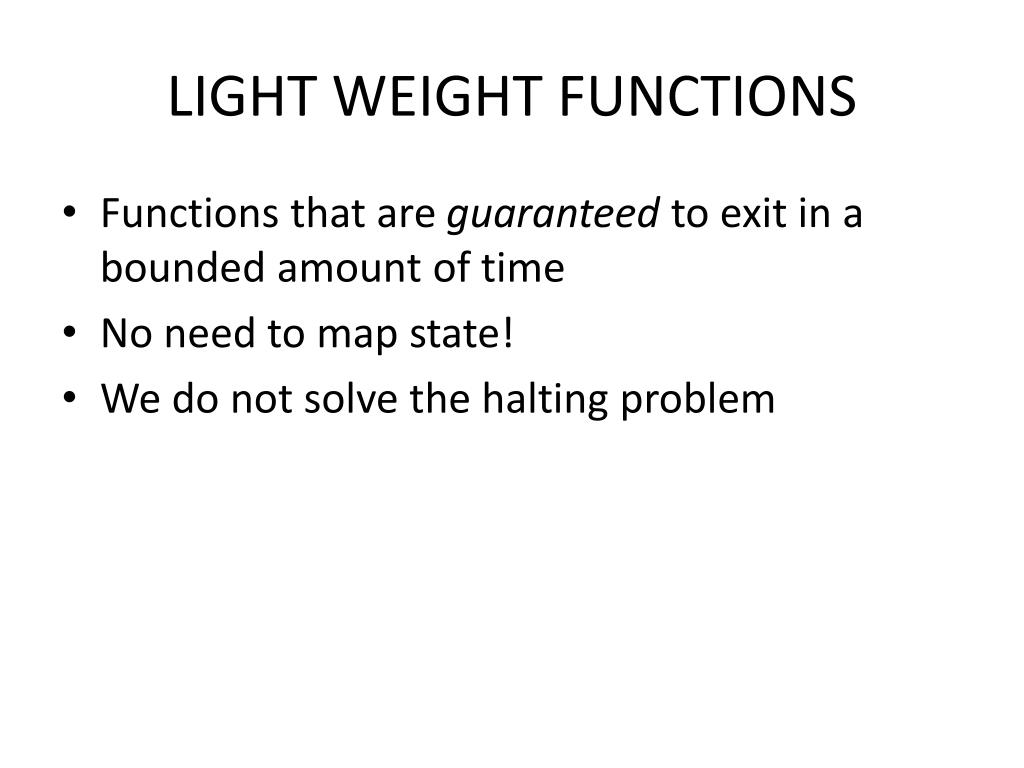

  9. LIGHT WEIGHT FUNCTIONS • Functions that are guaranteed to exit in a bounded amount of time • No need to map state! • We do not solve the halting problem

  10. STRICT DEFINITION • A function as lightweight if: • Does not contain loops • Does not call itself recursively • Does not call synchronization functions (locks, semaphores, …) • Does not call a non-lightweight function • Does not read input

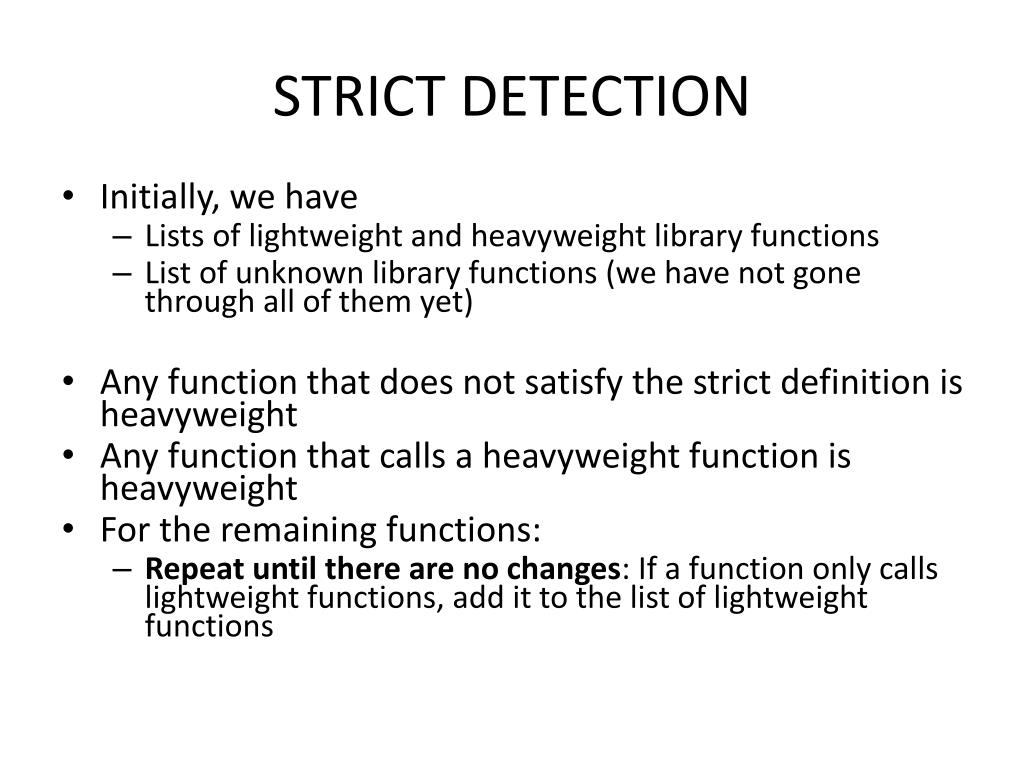

  11. STRICT DETECTION • Initially, we have • Lists of lightweight and heavyweight library functions • List of unknown library functions (we have not gone through all of them yet) • Any function that does not satisfy the strict definition is heavyweight • Any function that calls a heavyweight function is heavyweight • For the remaining functions: • Repeat until there are no changes: If a function only calls lightweight functions, add it to the list of lightweight functions

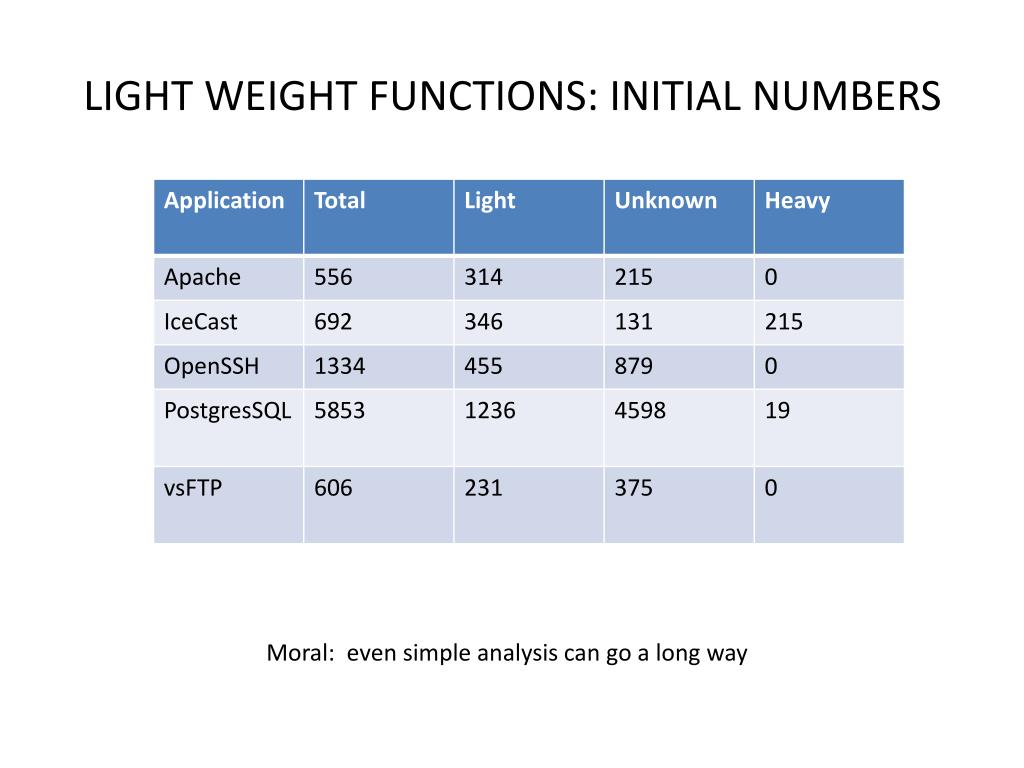

  12. LIGHT WEIGHT FUNCTIONS: INITIAL NUMBERS Moral: even simple analysis can go a long way

  13. OTHER INTERESTING STATISTICS

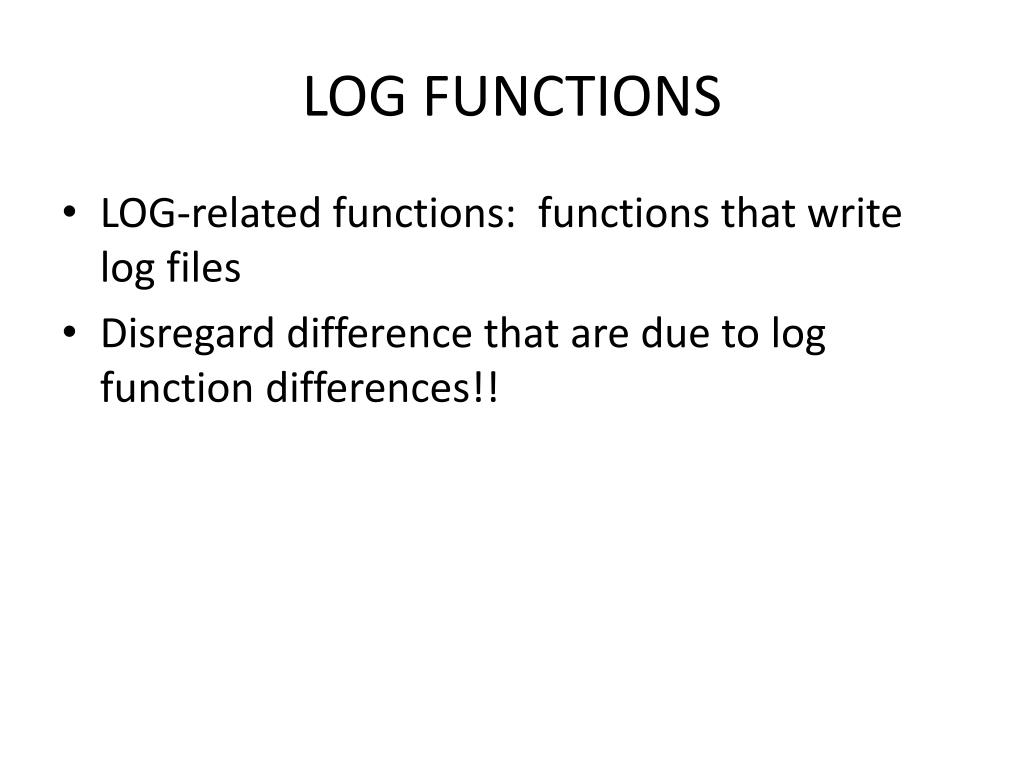

  14. LOG FUNCTIONS • LOG-related functions: functions that write log files • Disregard difference that are due to log function differences!!

  15. LOG FUNCTIONS: DETECTION • String arguments • Write only (fprintf, printf (not persistent), write, …) • Heavily used: no. of callers * no. of call sites • recursively : called by log-functions exclusively. This is somewhat counter-intuitive and we should modify it to work bottom up. • Name has log (not logarithms!) We can detect the “top” log function, but we miss some of them 10% of changes are due to automatically detected log functions

  16. ENHANCEMENTS: BACKWARD COMPATIBLE UPDATES if (newOption) x = y*z; else x = y+z; w = x/2; x = w-z; /* update point */ (b) new version x = y+z; w = x/2; x = w-z; /* update point */ (a) Old version

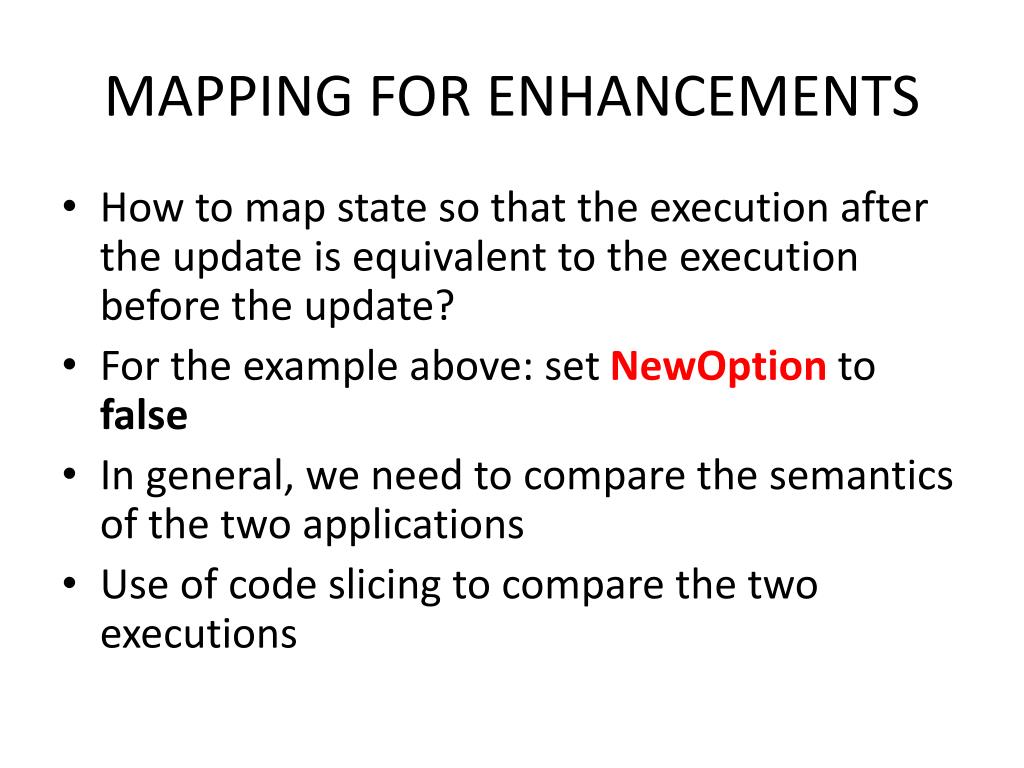

  17. MAPPING FOR ENHANCEMENTS • How to map state so that the execution after the update is equivalent to the execution before the update? • For the example above: set NewOption to false • In general, we need to compare the semantics of the two applications • Use of code slicing to compare the two executions

  18. CODE SLICING WITH UNIFICATION • Code slicing has been used to identify components that have identical semantics • Our goal is different: we want to force to components to have compatible semantics • Define basic compatibility rules to be used by unification procedure • short to long • Float to double • Define constructs that can match anything (NULL constructs) • Log functions for example • Define patterns to handle control constructs • if (cond) then s1 elses2 matches s1 if cond (not unified yet) is true • if (x > y) thens1 bug fix!

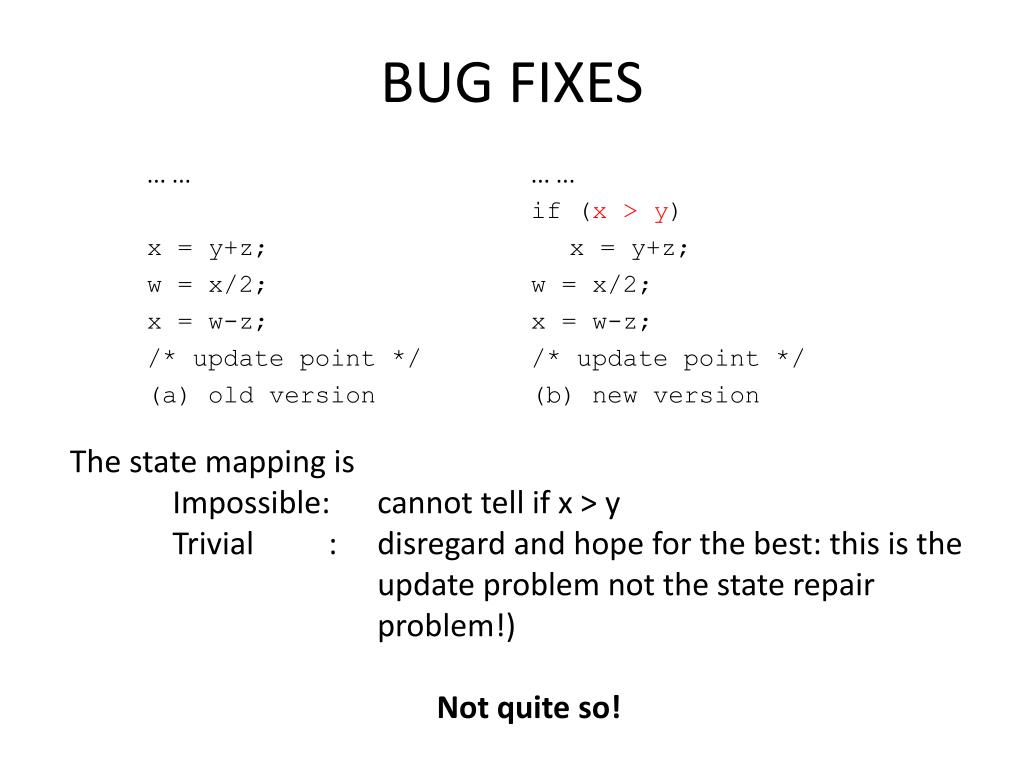

  19. BUG FIXES • ... ... • if (x > y) • x = y+z; • w = x/2; • x = w-z; • /* update point */ • (b) new version ... ... x = y+z; w = x/2; x = w-z; /* update point */ (a) old version The state mapping is Impossible: cannot tell if x > y Trivial : disregard and hope for the best: this is the update problem not the state repair problem!) Not quite so!

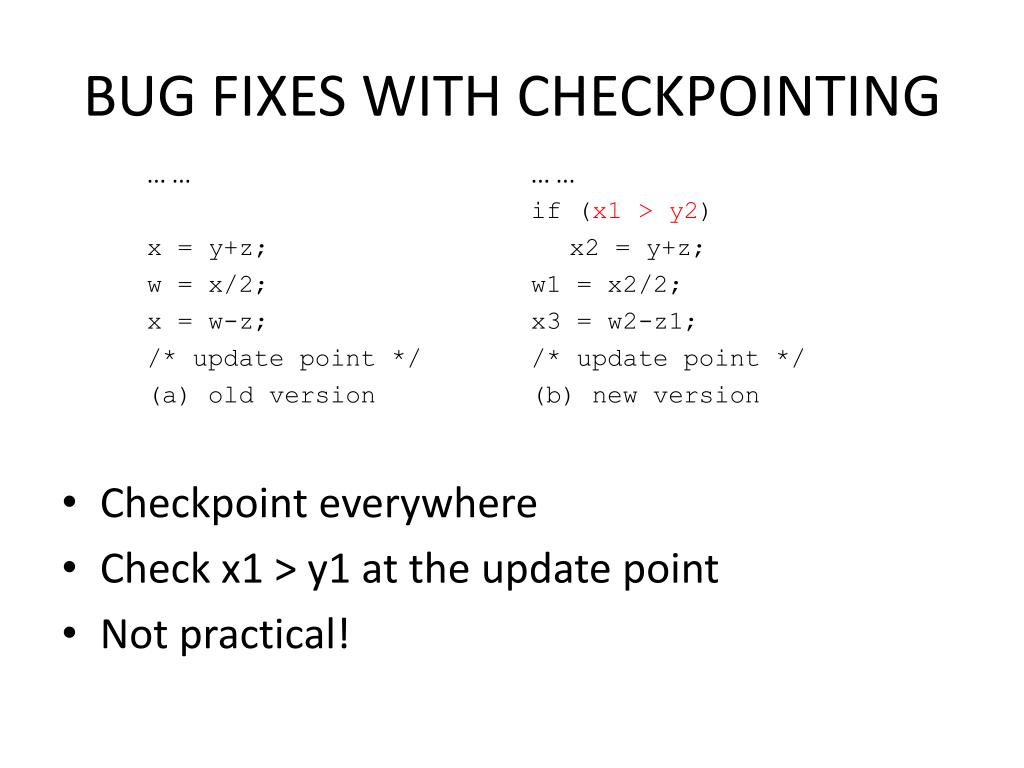

  20. BUG FIXES WITH CHECKPOINTING ... ... x = y+z; w = x/2; x = w-z; /* update point */ (a) old version • ... ... • if (x1 > y2) • x2 = y+z; • w1 = x2/2; • x3 = w2-z1; • /* update point */ • (b) new version • Checkpoint everywhere • Check x1 > y1 at the update point • Not practical!

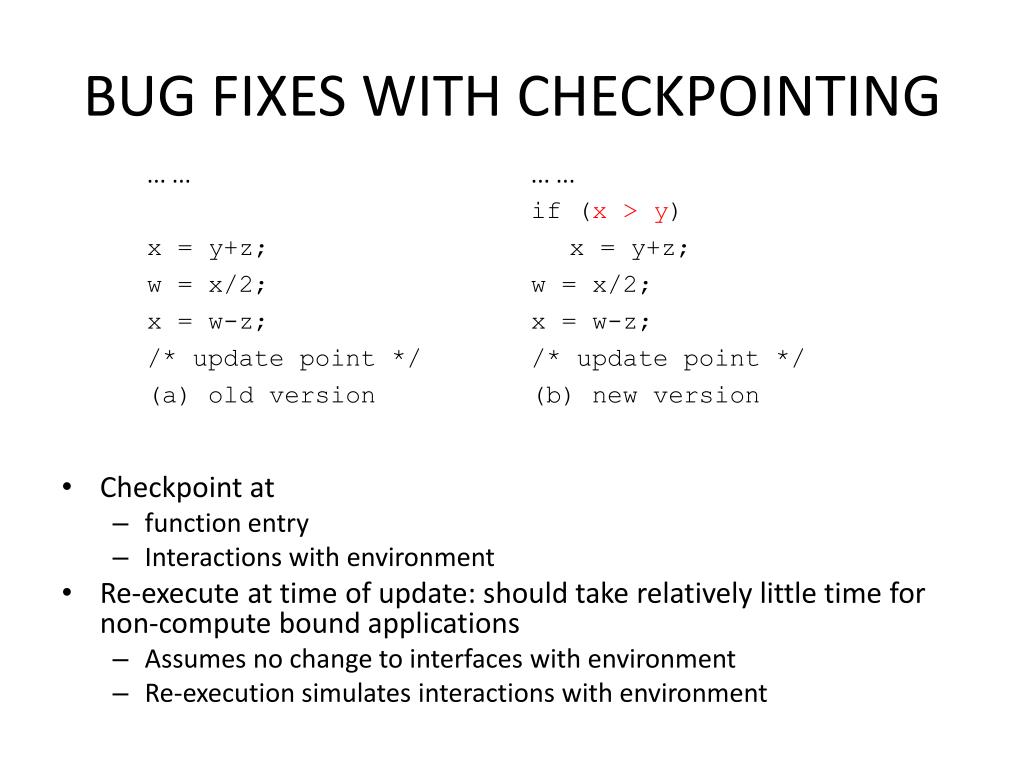

  21. BUG FIXES WITH CHECKPOINTING ... ... x = y+z; w = x/2; x = w-z; /* update point */ (a) old version • ... ... • if (x > y) • x = y+z; • w = x/2; • x = w-z; • /* update point */ • (b) new version • Checkpoint at • function entry • Interactions with environment • Re-execute at time of update: should take relatively little time for non-compute bound applications • Assumes no change to interfaces with environment • Re-execution simulates interactions with environment

  22. QUESTIONS?
