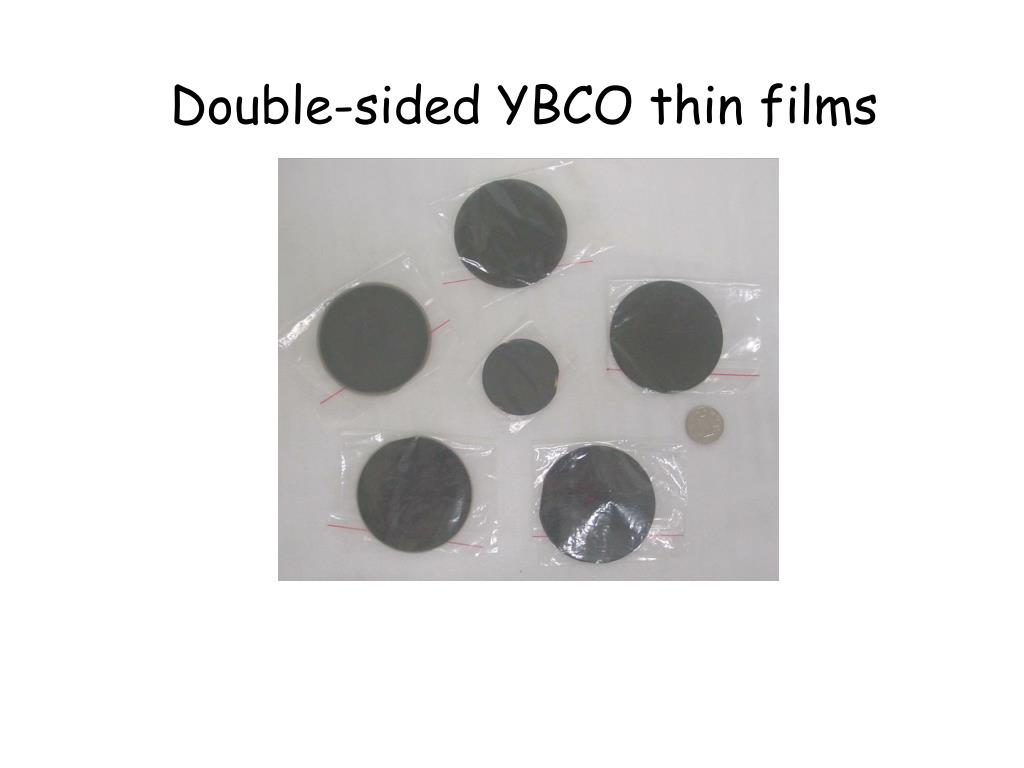

  1. Double-sided YBCO thin films

  2. Cleanroom for deposition

  3. Homogeneous Tc distribution Measured with inductive coil with 5 mm in diameter

  4. By Michele Lorenz

  5. 2 Homogeneous Jc distribution Measured with Leipzig jc-scan system JC = 2.5 ~ 2.9 MA/cm2

  6. Rs distribution Measured at145GHz, 75K, by FZK, Germany 0.24－0.37 mW converted to 10GHz

  7. XRD results of 3 inch sample edge center

  8. Surface structure of YBCO films AFM images, the heights of the designated steps are given: A-B,1.136nm; B-C, 1.172nm; C-D, 1.131nm; E-F, 1.1609nm; F-G, 1.142nm; G-H,1.164nm.

  9. MTI CorporationLead suppler for Advanced Materials and Lab Equipmentwww.mtixtl.com • We can provide 2 to 3 inch YBCO double-sided YBCO thin films in a small batch (e.g. 10-30 pieces) in one month after substrate delivered. • The typical properties of 500 nm films are as follows: Tc ~ 90K, Delta Tc less than 1K Jc77K,0T ~2-3 MA/cm2 Rs77k,10GHz~0.2-0.8mohm
