  1. Experience at Auckland with SRL and NetFlowMet Nevil BrownleeThe University of AucklandChicago IETF, August 1998

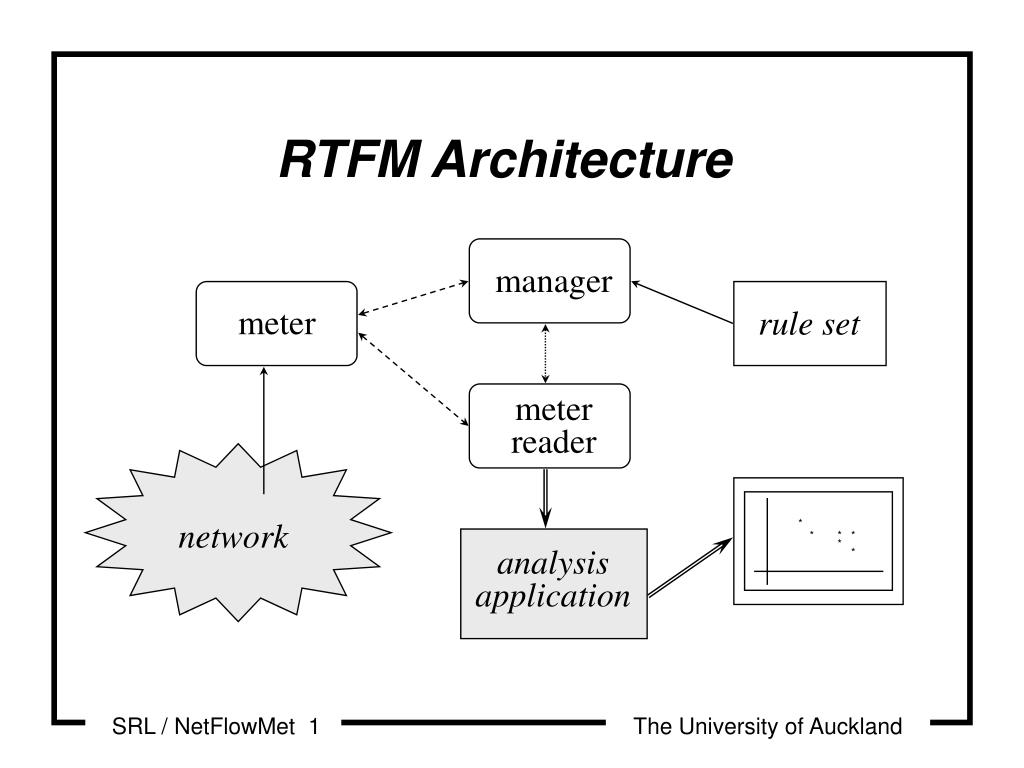

  2. manager meter rule set meter reader network * * * * * * analysis application RTFM Architecture The University of Auckland

  3. ICMP Smurf Attacks The University of Auckland

  4. The University of Auckland

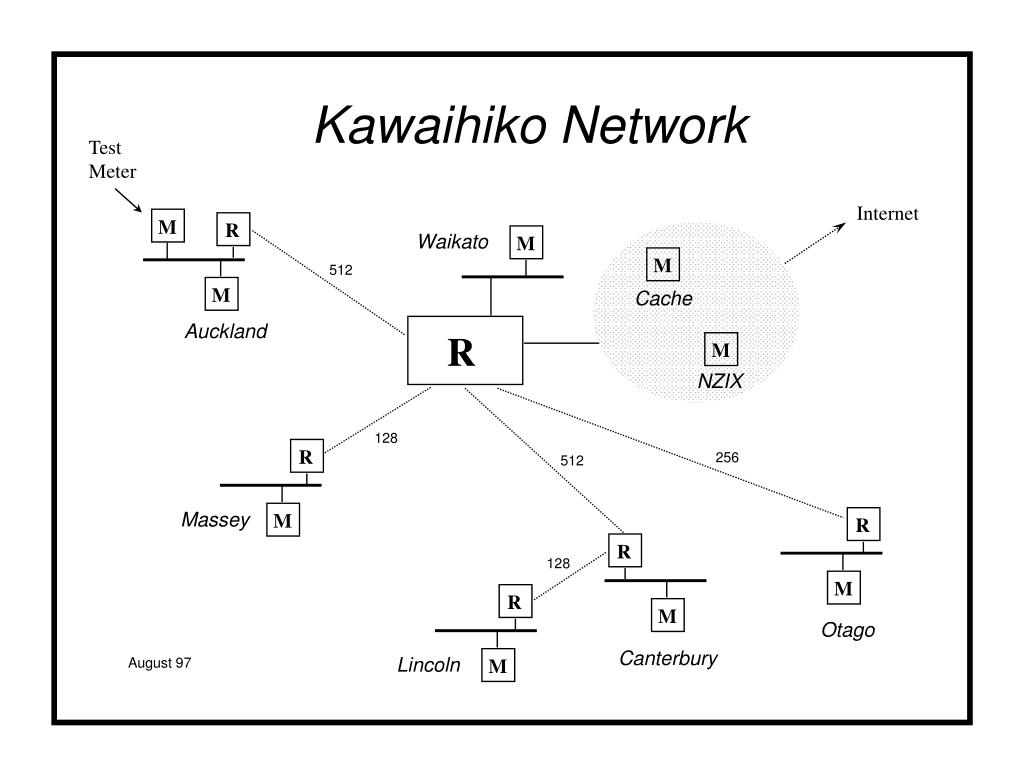

  5. M R M M M R M R M R R M R M M Kawaihiko Network Test Meter Internet Waikato 512 Cache Auckland NZIX 128 256 512 Massey 128 Otago • Canterbury Lincoln August 97

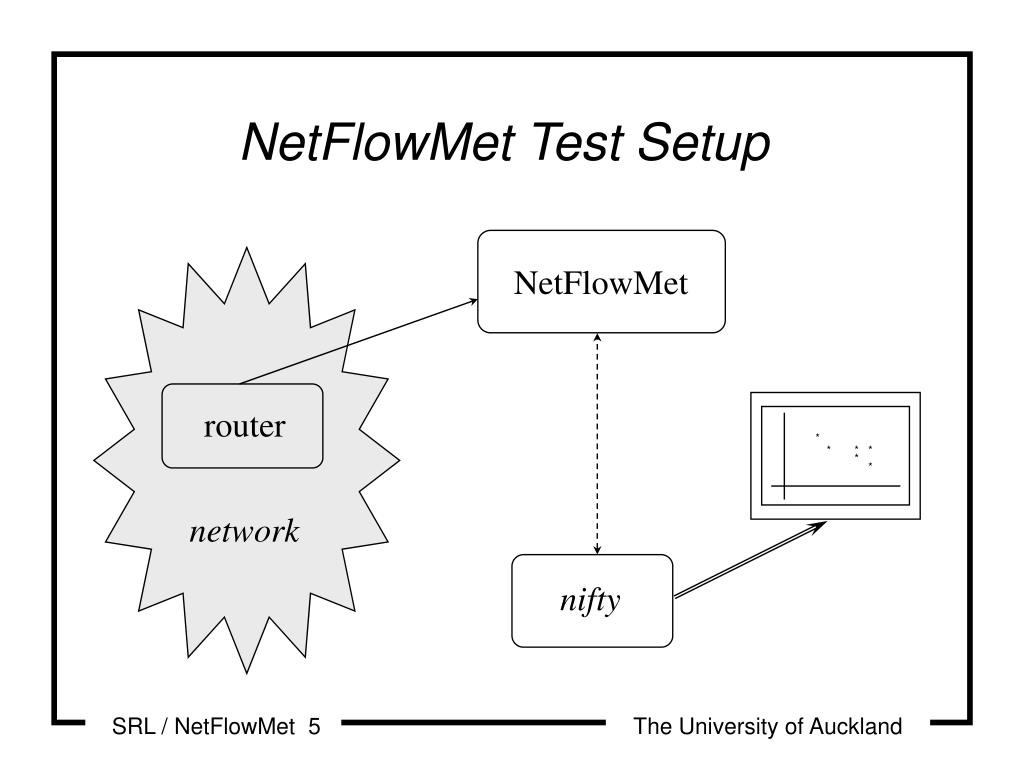

  6. NetFlowMet router * * * * * * nifty NetFlowMet Test Setup network The University of Auckland

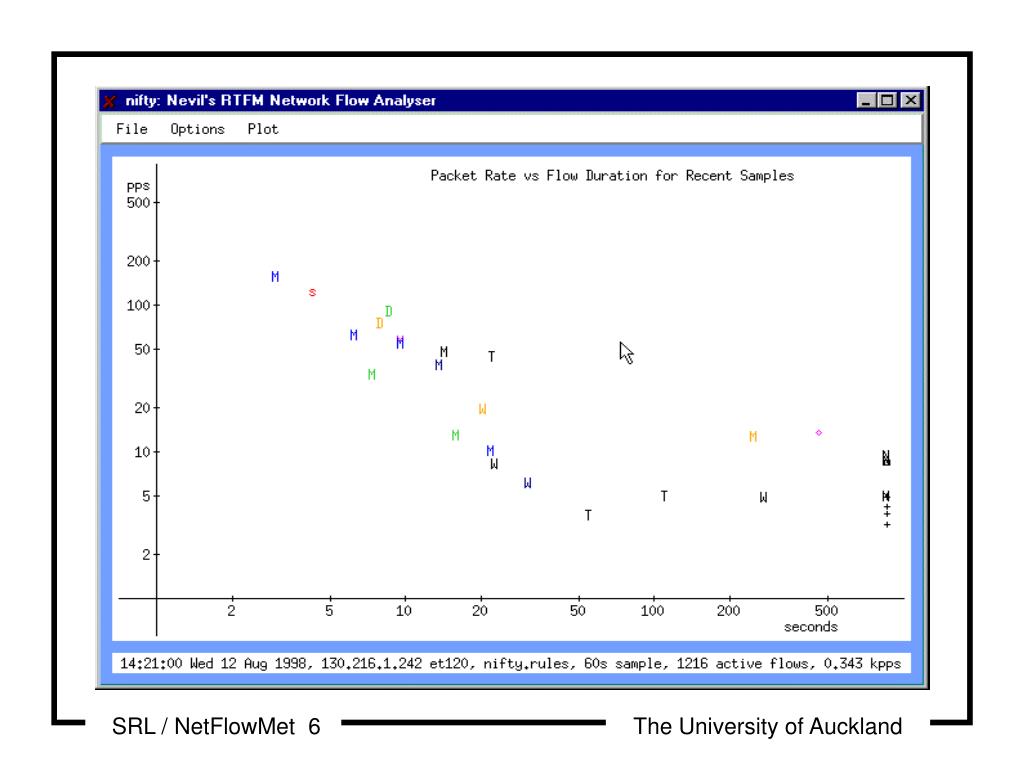

  7. The University of Auckland

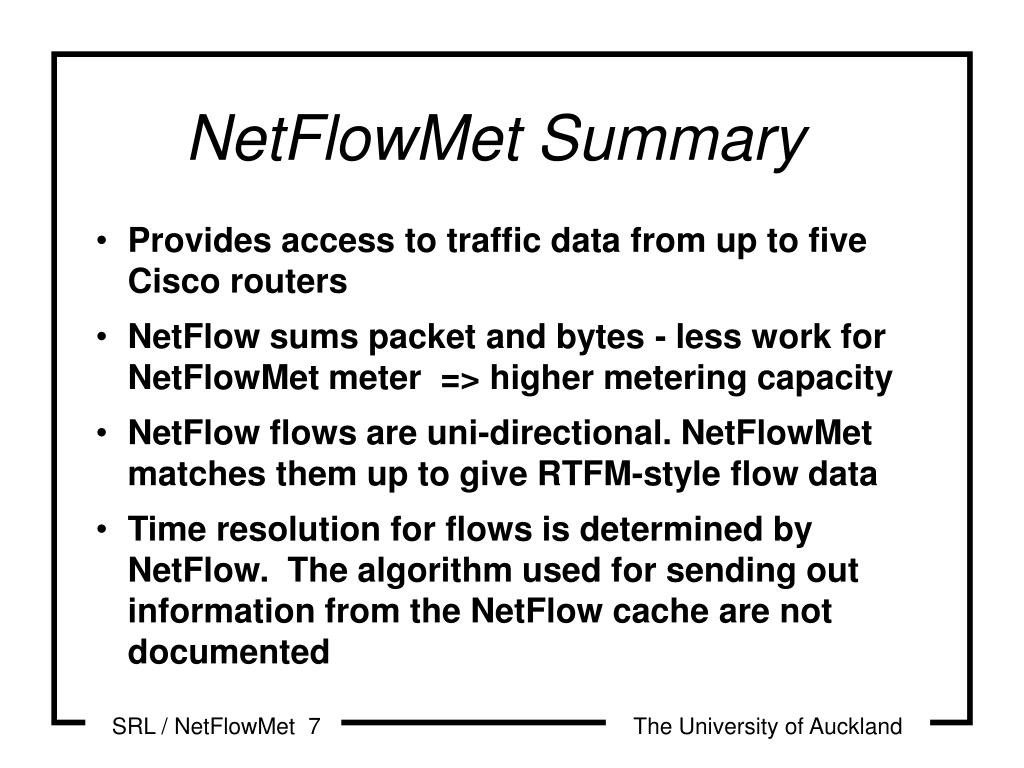

  8. NetFlowMet Summary • Provides access to traffic data from up to five Cisco routers • NetFlow sums packet and bytes - less work for NetFlowMet meter => higher metering capacity • NetFlow flows are uni-directional. NetFlowMet matches them up to give RTFM-style flow data • Time resolution for flows is determined by NetFlow. The algorithm used for sending out information from the NetFlow cache are not documented The University of Auckland

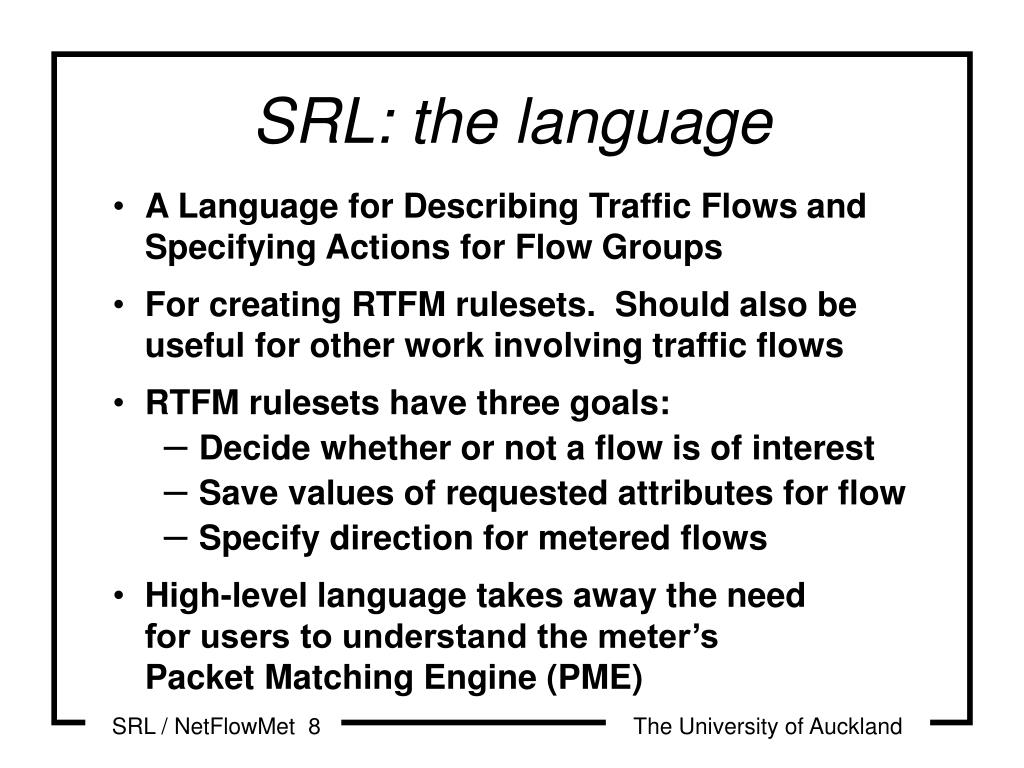

  9. SRL: the language • A Language for Describing Traffic Flows and Specifying Actions for Flow Groups • For creating RTFM rulesets. Should also be useful for other work involving traffic flows • RTFM rulesets have three goals: • Decide whether or not a flow is of interest • Save values of requested attributes for flow • Specify direction for metered flows • High-level language takes away the need for users to understand the meter’s Packet Matching Engine (PME) The University of Auckland

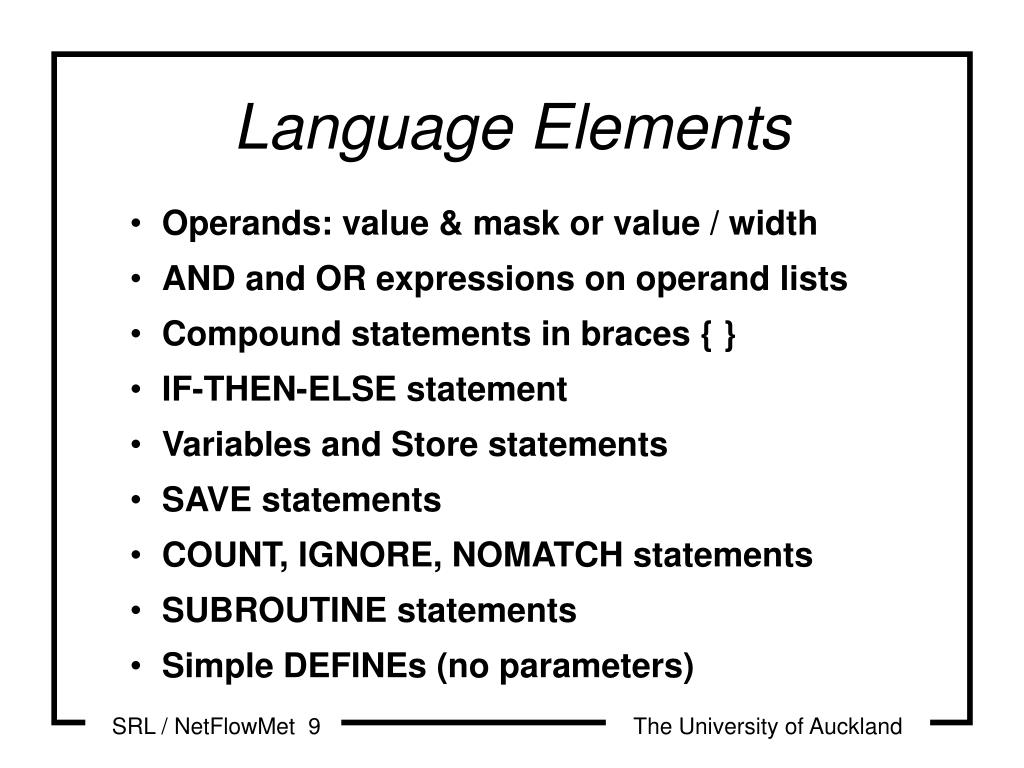

  10. Language Elements • Operands: value & mask or value / width • AND and OR expressions on operand lists • Compound statements in braces { } • IF-THEN-ELSE statement • Variables and Store statements • SAVE statements • COUNT, IGNORE, NOMATCH statements • SUBROUTINE statements • Simple DEFINEs (no parameters) The University of Auckland

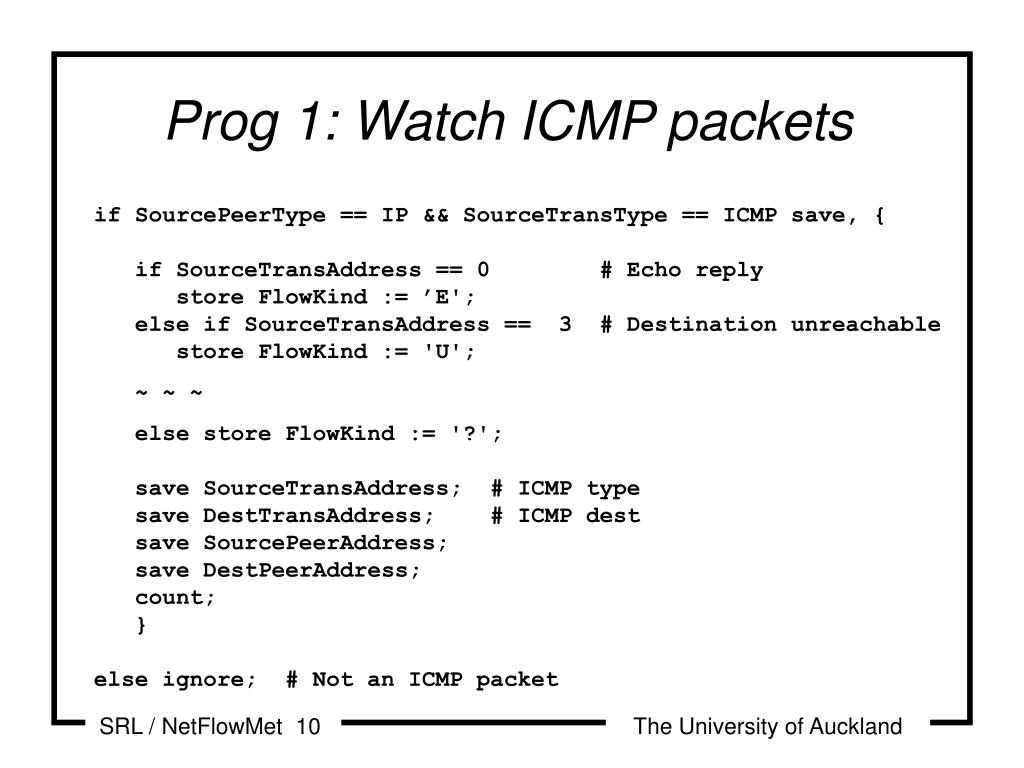

  11. Prog 1: Watch ICMP packets if SourcePeerType == IP && SourceTransType == ICMP save, { if SourceTransAddress == 0 # Echo reply store FlowKind := ’E'; else if SourceTransAddress == 3 # Destination unreachable store FlowKind := 'U'; ~ ~ ~ else store FlowKind := '?'; save SourceTransAddress; # ICMP type save DestTransAddress; # ICMP dest save SourcePeerAddress; save DestPeerAddress; count; } else ignore; # Not an ICMP packet The University of Auckland

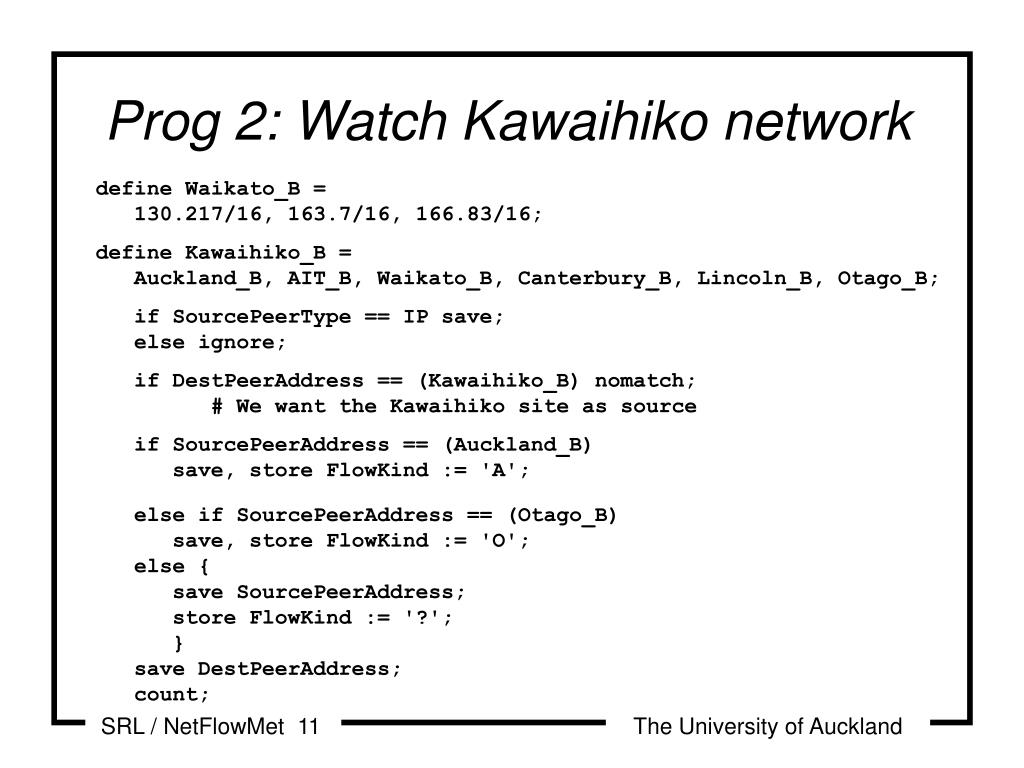

  12. Prog 2: Watch Kawaihiko network define Waikato_B = 130.217/16, 163.7/16, 166.83/16; define Kawaihiko_B = Auckland_B, AIT_B, Waikato_B, Canterbury_B, Lincoln_B, Otago_B; if SourcePeerType == IP save; else ignore; if DestPeerAddress == (Kawaihiko_B) nomatch; # We want the Kawaihiko site as source if SourcePeerAddress == (Auckland_B) save, store FlowKind := 'A'; else if SourcePeerAddress == (Otago_B) save, store FlowKind := 'O'; else { save SourcePeerAddress; store FlowKind := '?'; } save DestPeerAddress; count; The University of Auckland

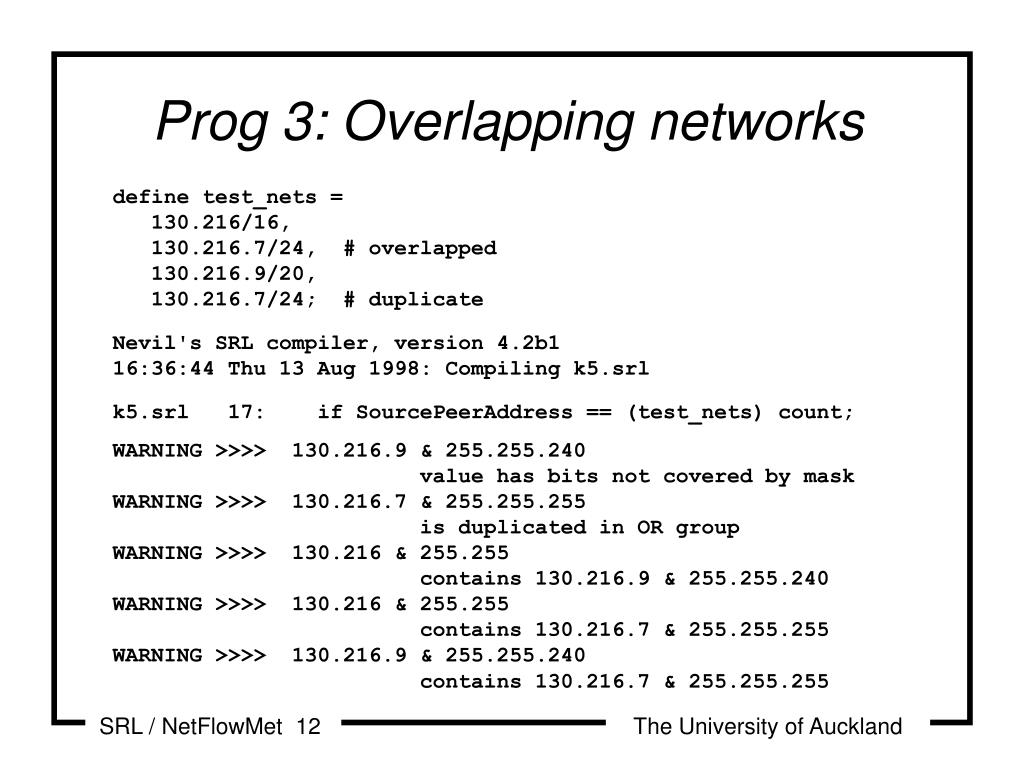

  13. Prog 3: Overlapping networks define test_nets = 130.216/16, 130.216.7/24, # overlapped 130.216.9/20, 130.216.7/24; # duplicate Nevil's SRL compiler, version 4.2b1 16:36:44 Thu 13 Aug 1998: Compiling k5.srl k5.srl 17: if SourcePeerAddress == (test_nets) count; WARNING >>>> 130.216.9 & 255.255.240 value has bits not covered by mask WARNING >>>> 130.216.7 & 255.255.255 is duplicated in OR group WARNING >>>> 130.216 & 255.255 contains 130.216.9 & 255.255.240 WARNING >>>> 130.216 & 255.255 contains 130.216.7 & 255.255.255 WARNING >>>> 130.216.9 & 255.255.240 contains 130.216.7 & 255.255.255 The University of Auckland

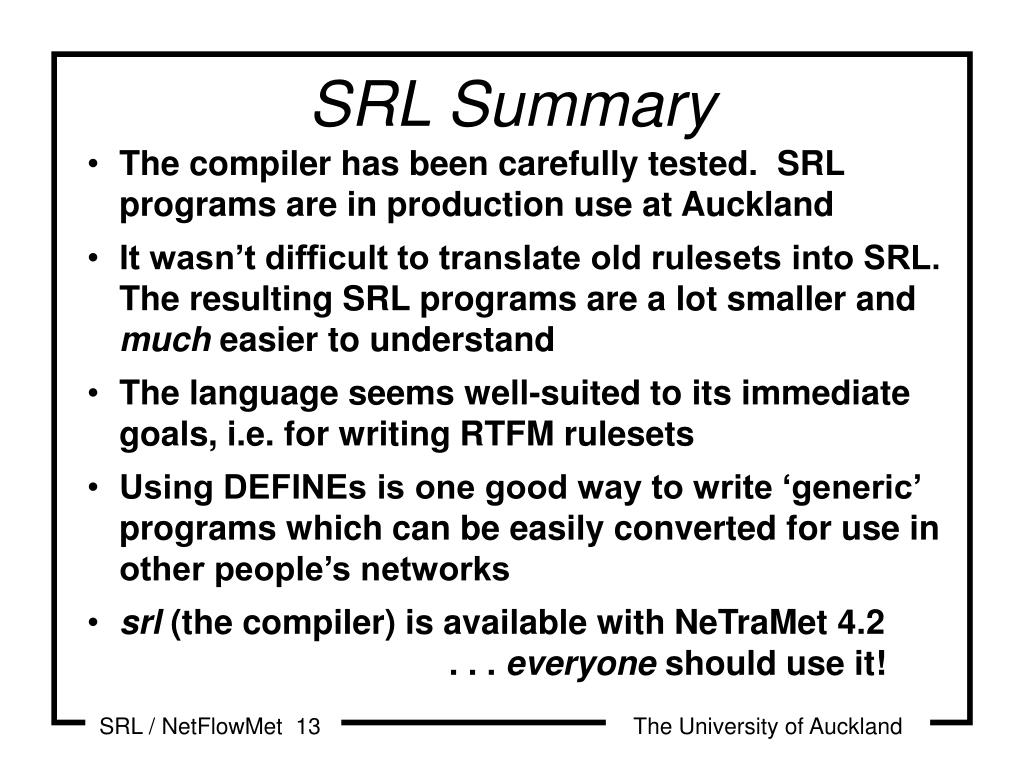

  14. SRL Summary • The compiler has been carefully tested. SRL programs are in production use at Auckland • It wasn’t difficult to translate old rulesets into SRL. The resulting SRL programs are a lot smaller and much easier to understand • The language seems well-suited to its immediate goals, i.e. for writing RTFM rulesets • Using DEFINEs is one good way to write ‘generic’ programs which can be easily converted for use in other people’s networks • srl (the compiler) is available with NeTraMet 4.2 . . . everyone should use it! The University of Auckland
