  1. Concept 8.1 PHOTOSYNTHESIS USES LIGHT ENERGY TO MAKE FOOD

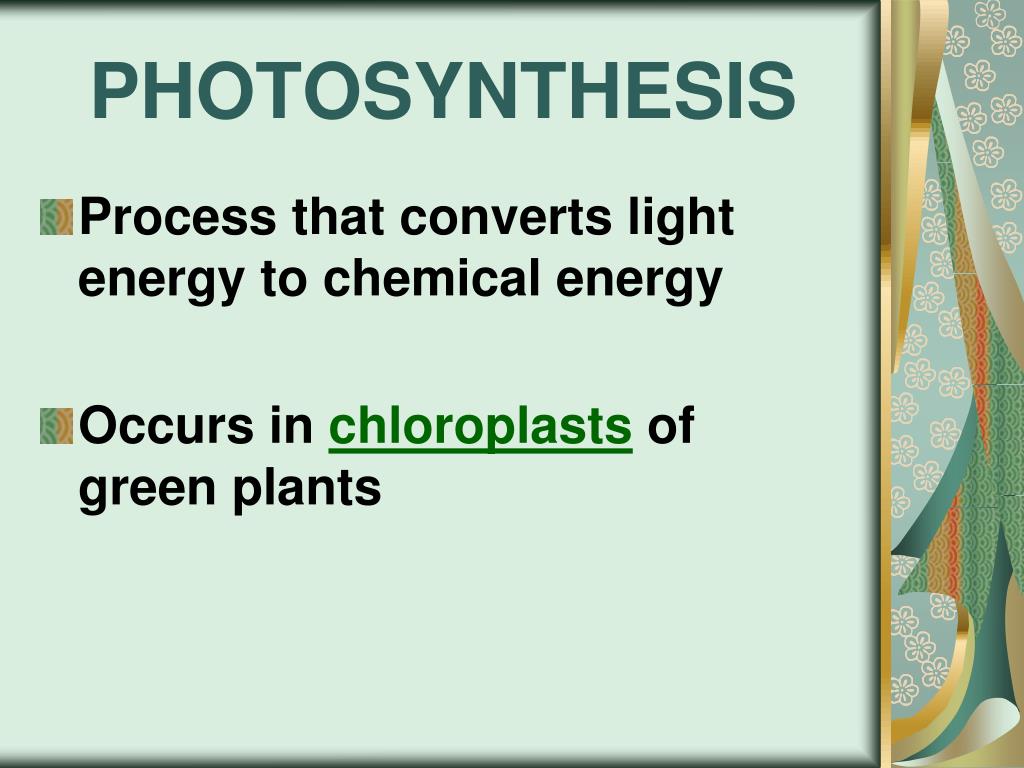

  2. PHOTOSYNTHESIS • Process that converts light energy to chemical energy • Occurs in chloroplasts of green plants

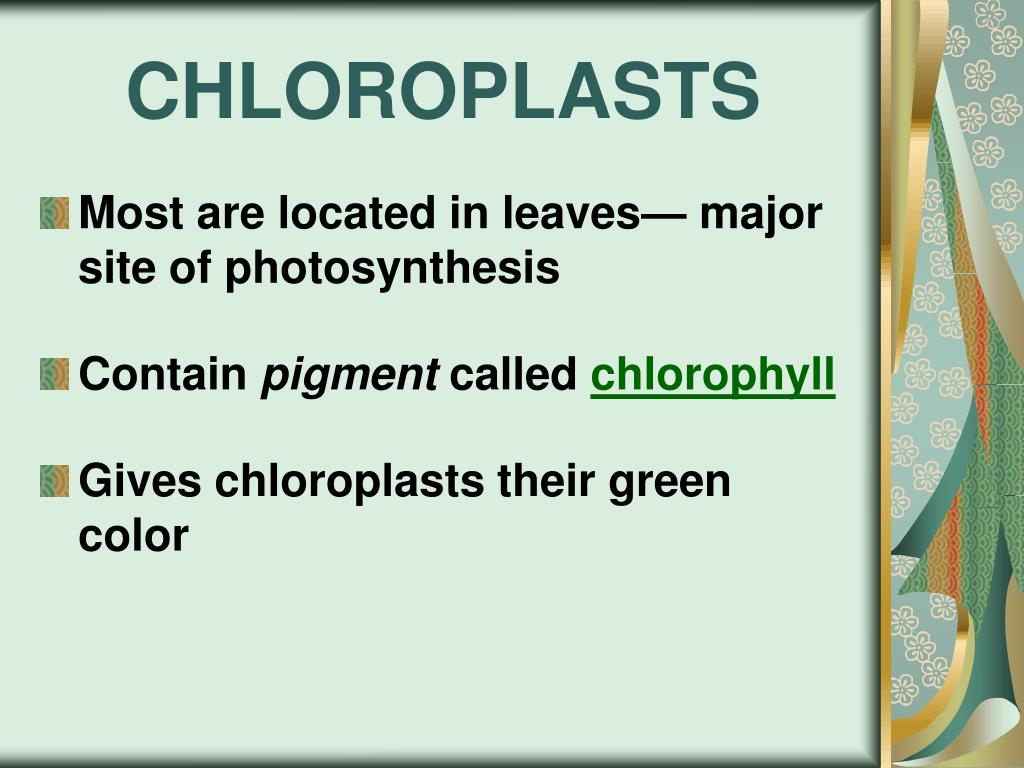

  3. CHLOROPLASTS • Most are located in leaves— major site of photosynthesis • Contain pigment called chlorophyll • Gives chloroplasts their green color

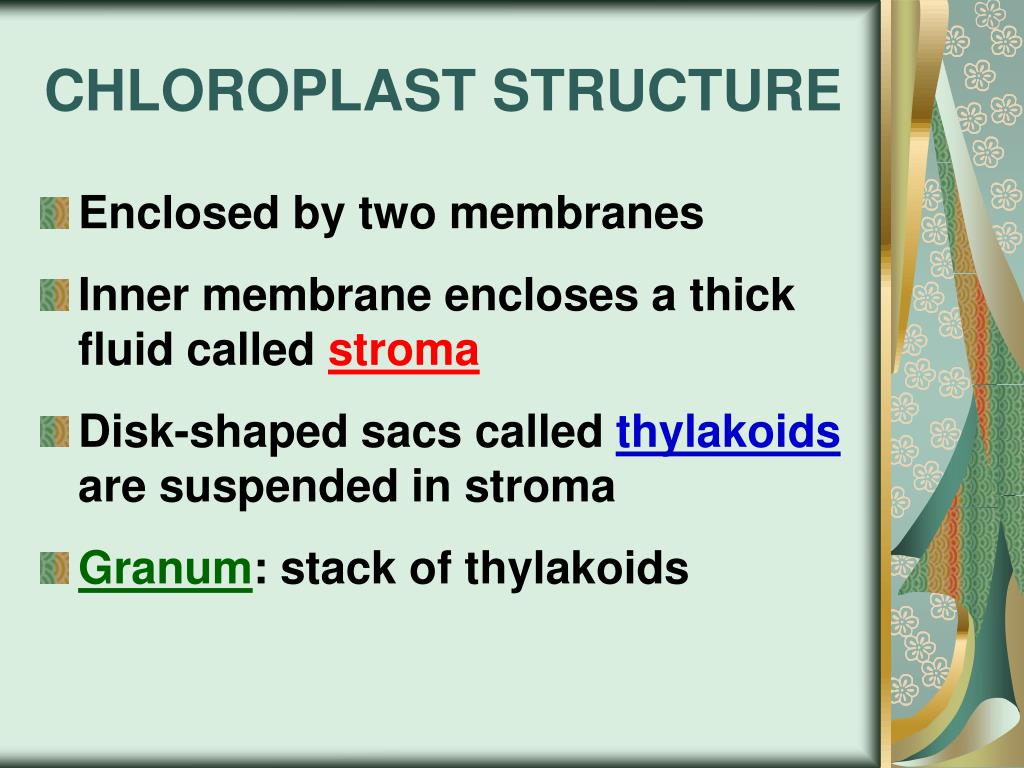

  4. CHLOROPLAST STRUCTURE • Enclosed by two membranes • Inner membrane encloses a thick fluid calledstroma • Disk-shaped sacs calledthylakoids are suspended in stroma • Granum: stack of thylakoids

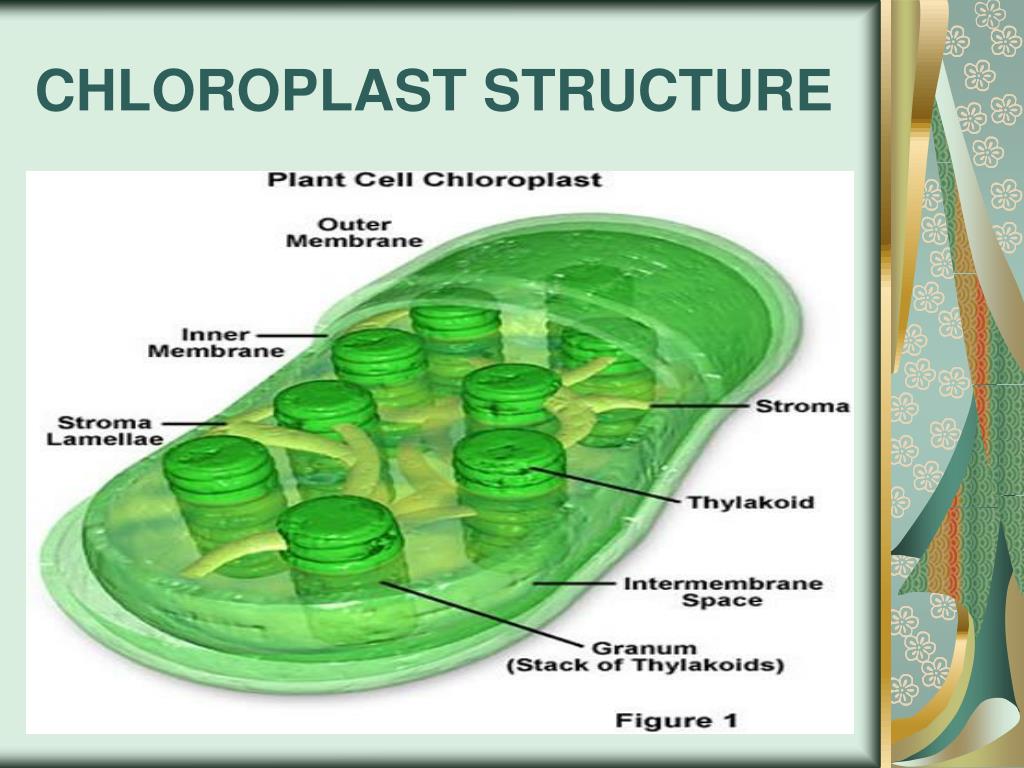

  5. CHLOROPLAST STRUCTURE

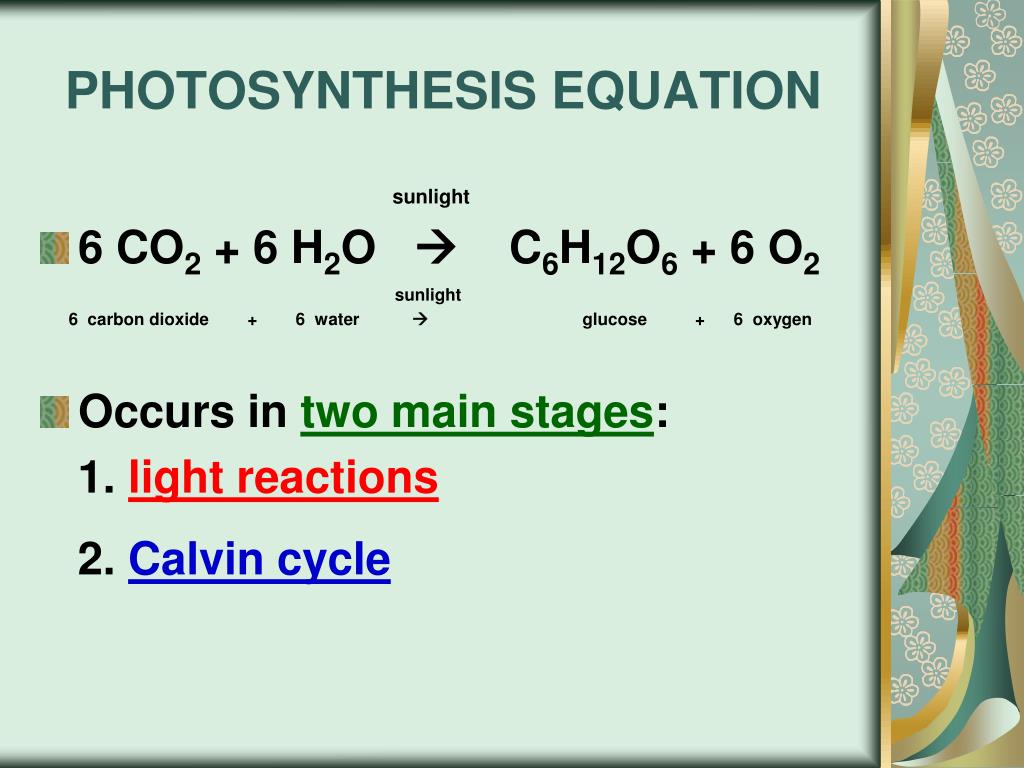

  6. PHOTOSYNTHESIS EQUATION sunlight • 6 CO2 + 6 H2O  C6H12O6 + 6 O2 sunlight 6 carbon dioxide + 6 water  glucose + 6 oxygen • Occurs in two main stages: 1. light reactions 2. Calvin cycle

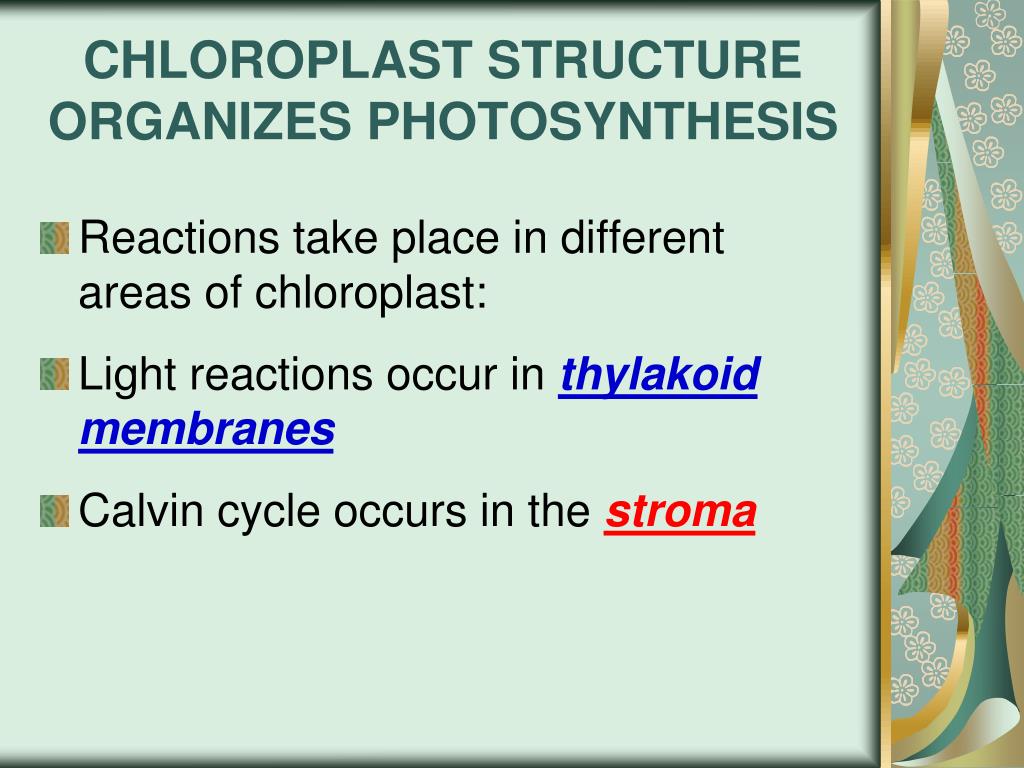

  7. CHLOROPLAST STRUCTURE ORGANIZES PHOTOSYNTHESIS • Reactions take place in different areas of chloroplast: • Light reactions occur inthylakoidmembranes • Calvin cycle occurs in thestroma

  8. PHOTOSYNTHESIS OVERVIEW

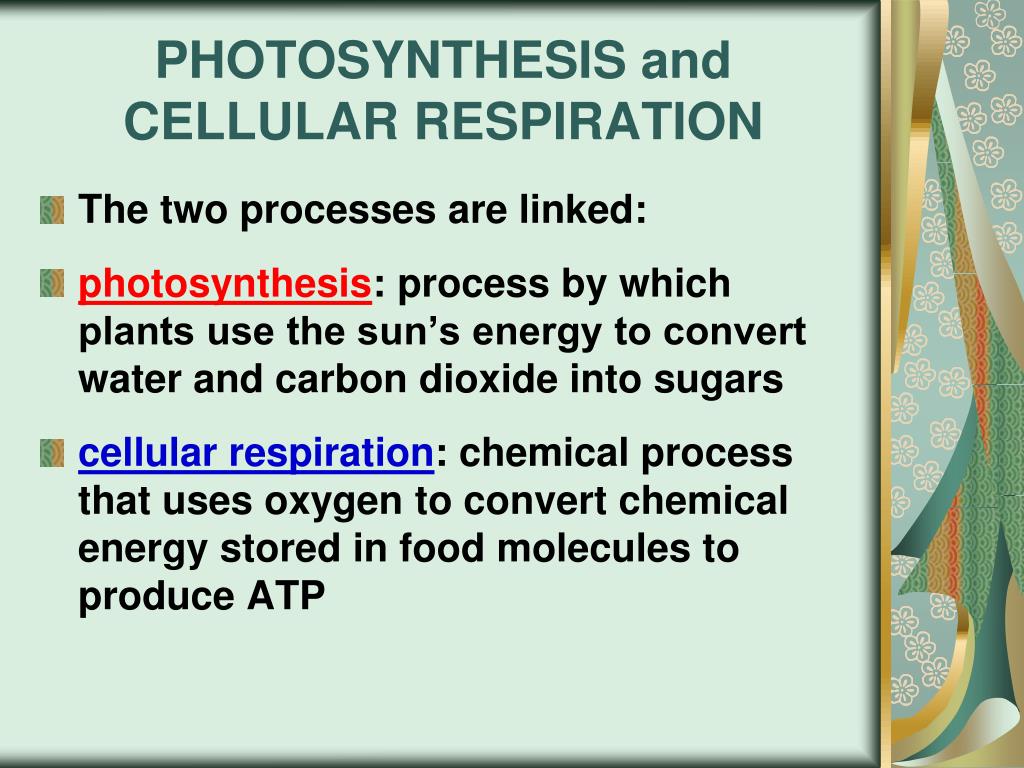

  9. PHOTOSYNTHESIS and CELLULAR RESPIRATION • The two processes are linked: • photosynthesis: process by which plants use the sun’s energy to convert water and carbon dioxide into sugars • cellular respiration: chemical process that uses oxygen to convert chemical energy stored in food molecules to produce ATP

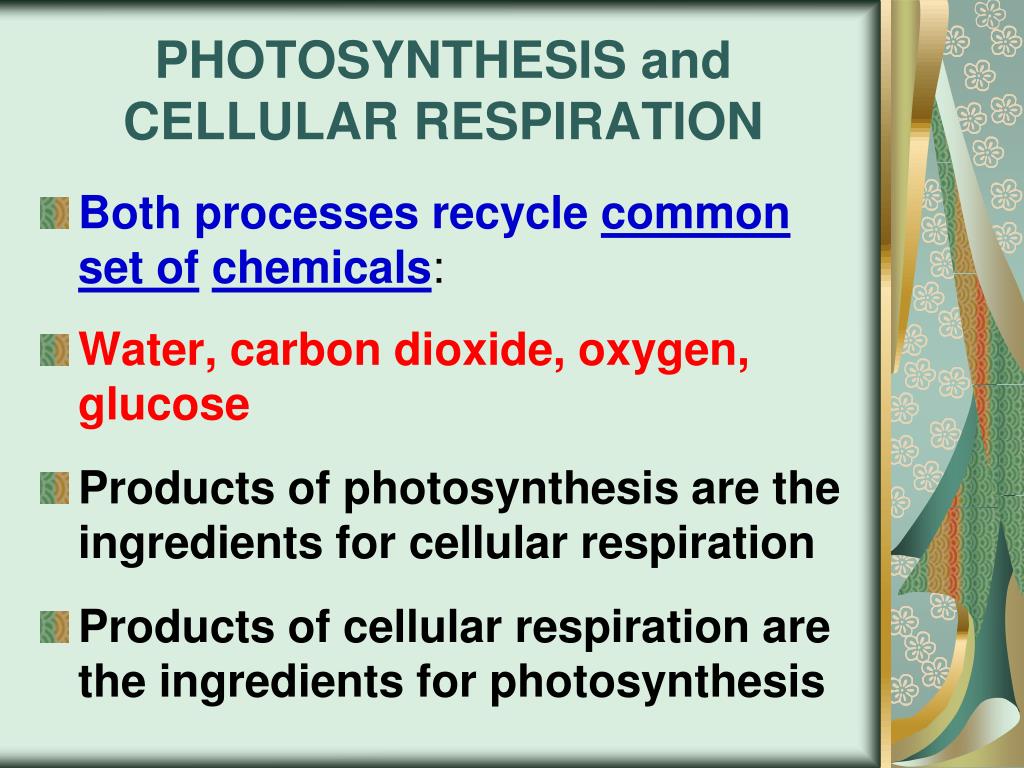

  10. PHOTOSYNTHESIS and CELLULAR RESPIRATION • Both processes recycle common set ofchemicals: • Water, carbon dioxide, oxygen, glucose • Products of photosynthesis are the ingredients for cellular respiration • Products of cellular respiration are the ingredients for photosynthesis

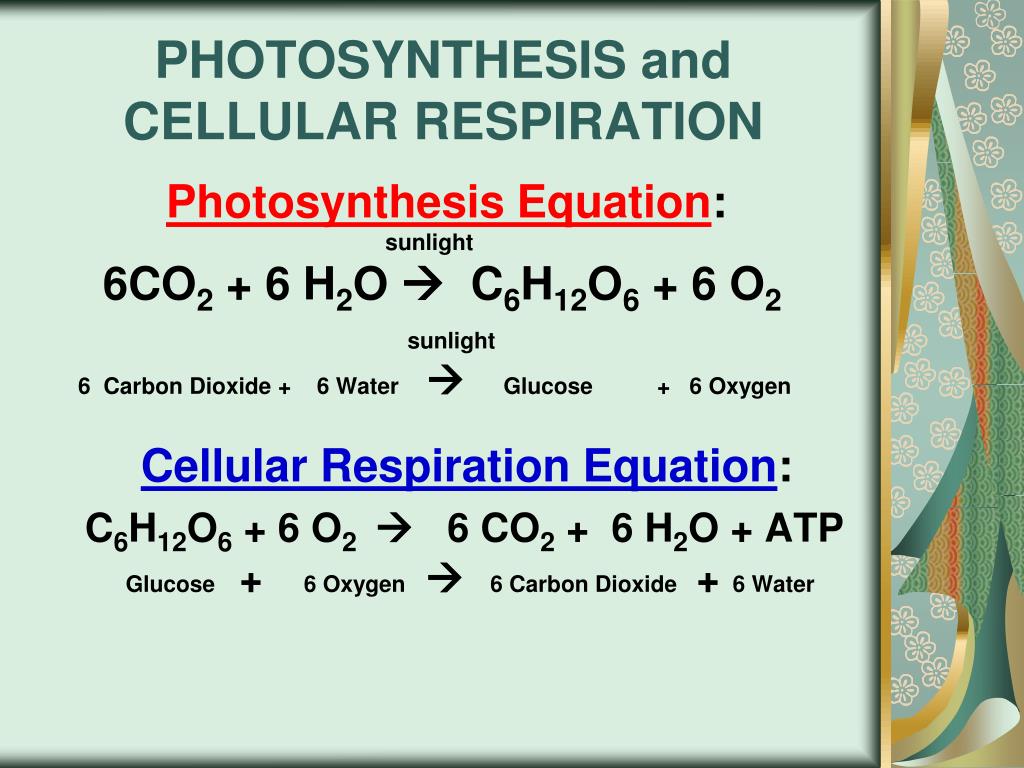

  11. PHOTOSYNTHESIS and CELLULAR RESPIRATION Photosynthesis Equation: sunlight 6CO2 + 6 H2O  C6H12O6 + 6 O2 sunlight 6 Carbon Dioxide + 6 Water  Glucose + 6 Oxygen Cellular Respiration Equation: C6H12O6 + 6 O2  6 CO2 + 6 H2O + ATP Glucose + 6 Oxygen  6 Carbon Dioxide + 6 Water

  12. PHOTOSYNTHESIS and CELLULAR RESPIRATION

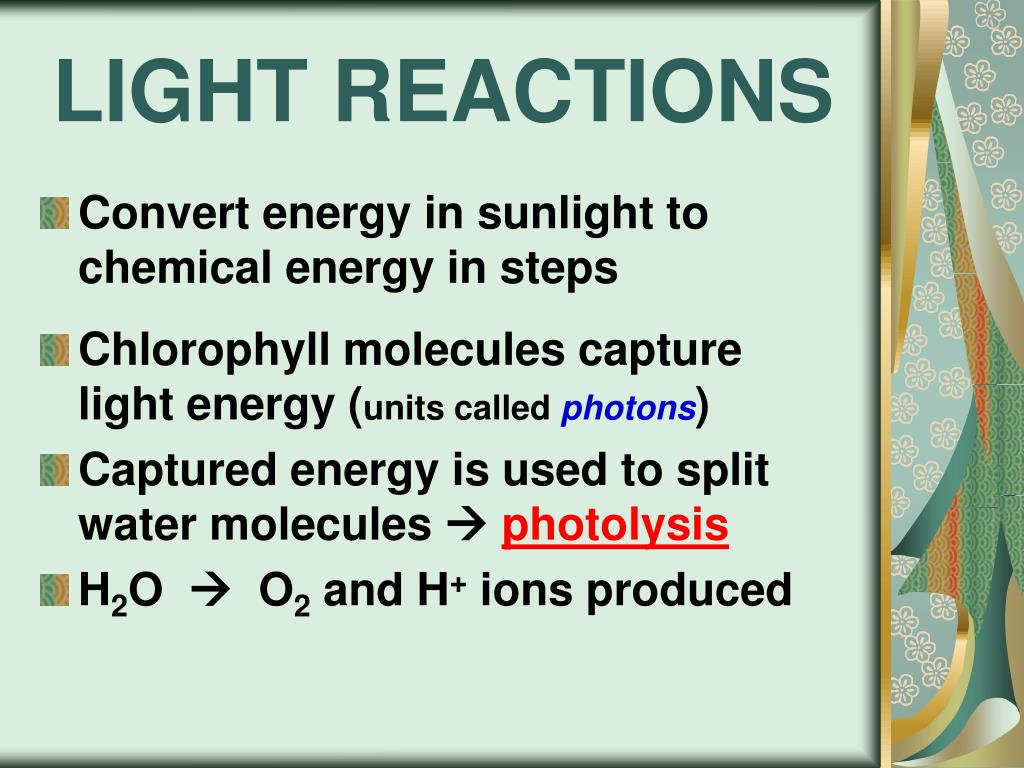

  13. LIGHT REACTIONS • Convert energy in sunlight to chemical energy in steps • Chlorophyll molecules capture light energy (units called photons) • Captured energy is used to split water molecules photolysis • H2O  O2 and H+ ions produced

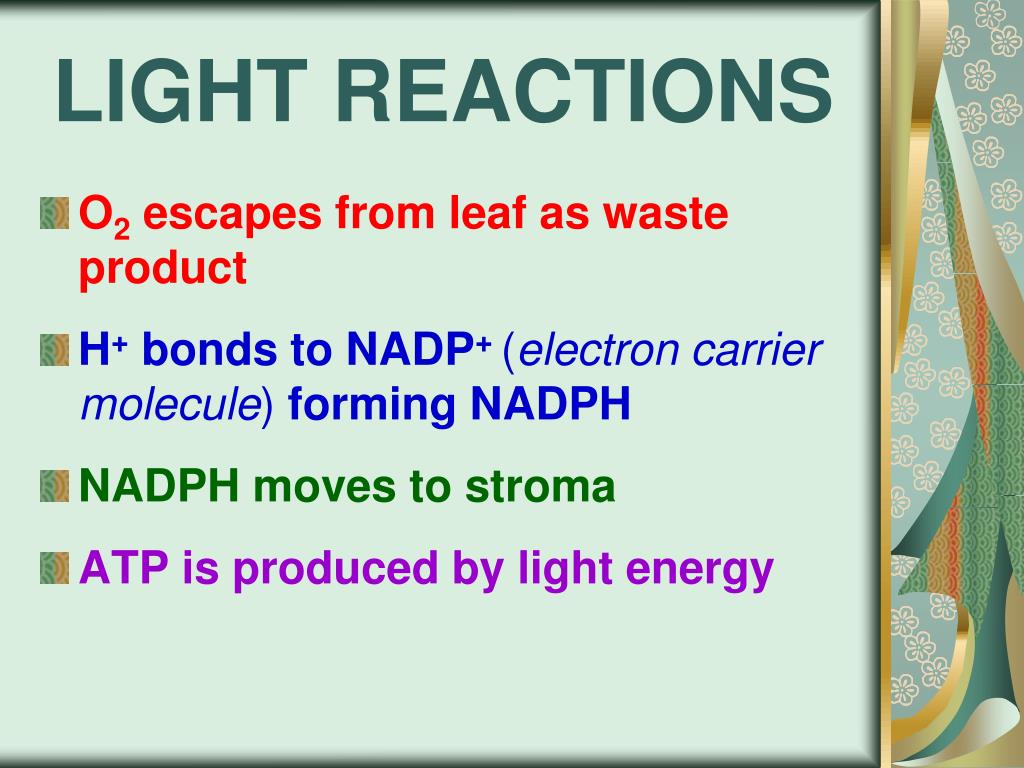

  14. LIGHT REACTIONS • O2 escapes from leaf as waste product • H+ bonds to NADP+ (electron carriermolecule) forming NADPH • NADPH moves to stroma • ATP is produced by light energy

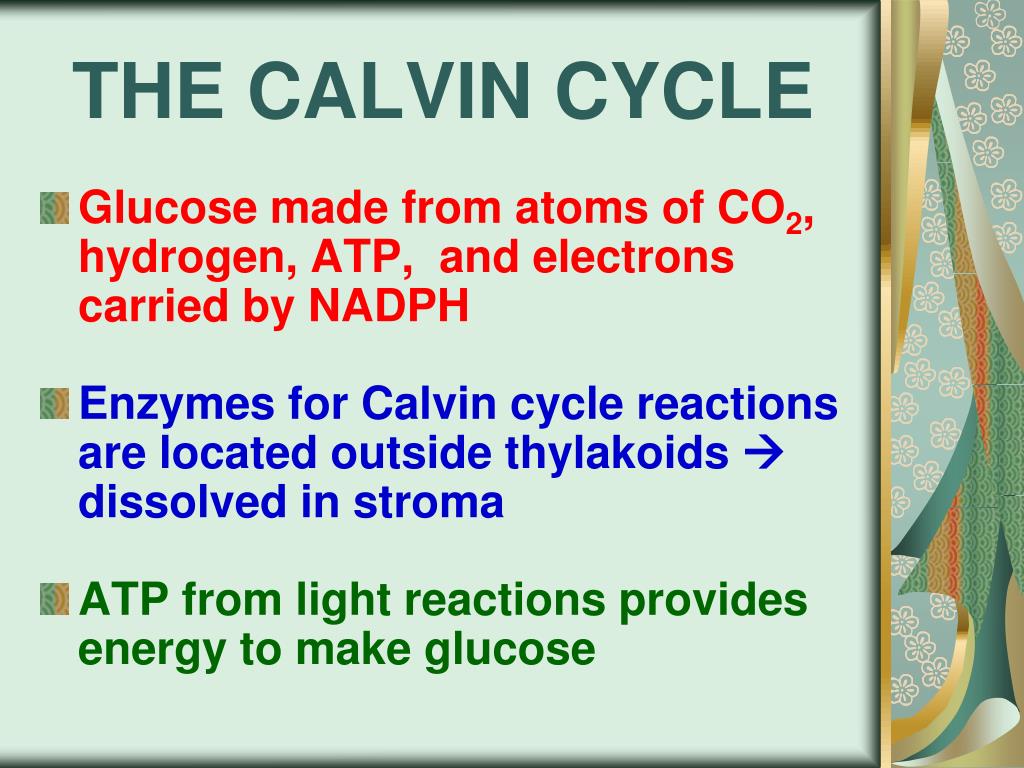

  15. THE CALVIN CYCLE • Glucose made from atoms of CO2, hydrogen, ATP, and electrons carried by NADPH • Enzymes for Calvin cycle reactions are located outside thylakoids  dissolved in stroma • ATP from light reactions provides energy to make glucose

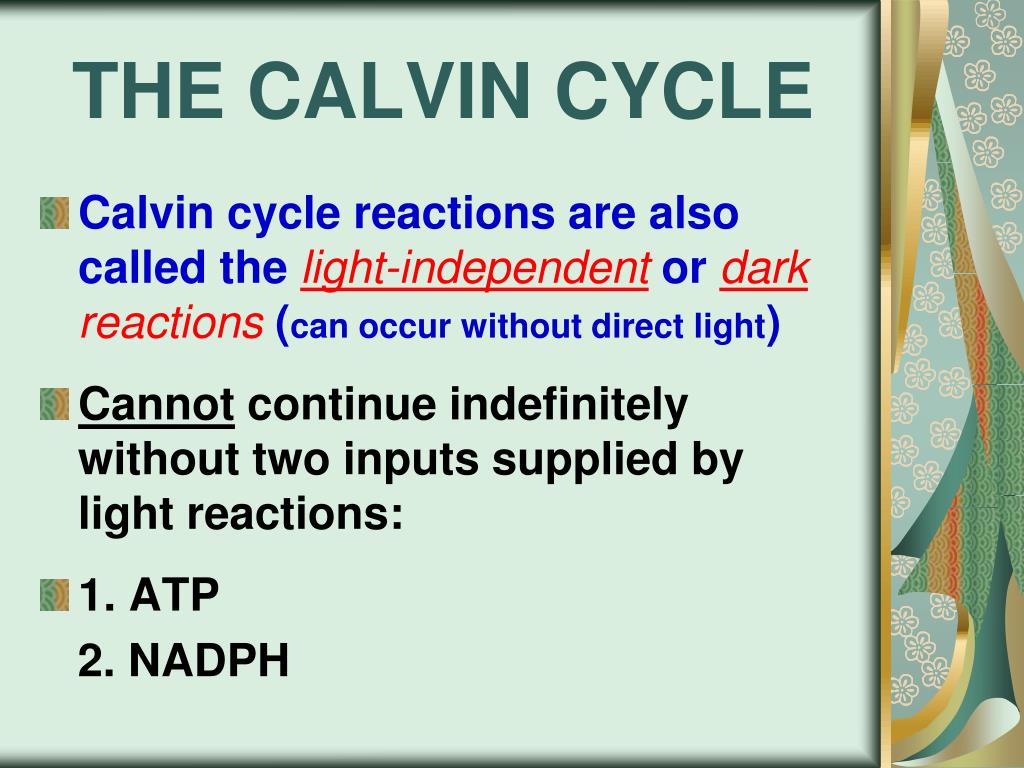

  16. THE CALVIN CYCLE • Calvin cycle reactions are also called the light-independent or darkreactions(can occur without direct light) • Cannot continue indefinitely without two inputs supplied by light reactions: • 1. ATP 2. NADPH

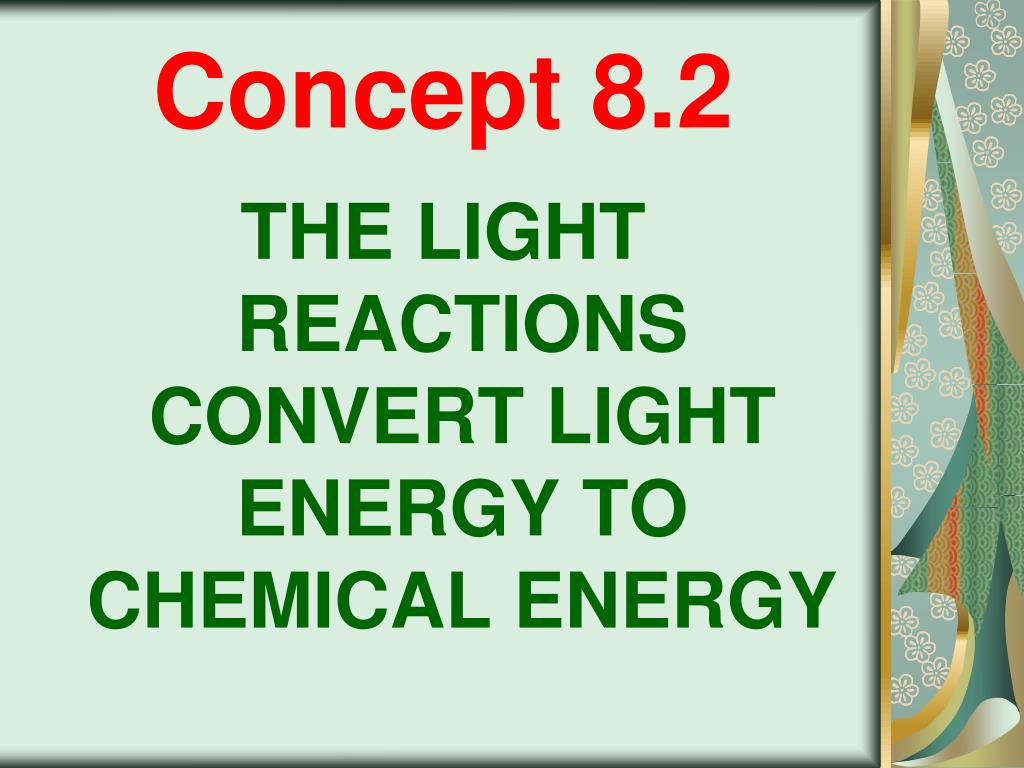

  17. Concept 8.2 THE LIGHT REACTIONS CONVERT LIGHT ENERGY TO CHEMICAL ENERGY

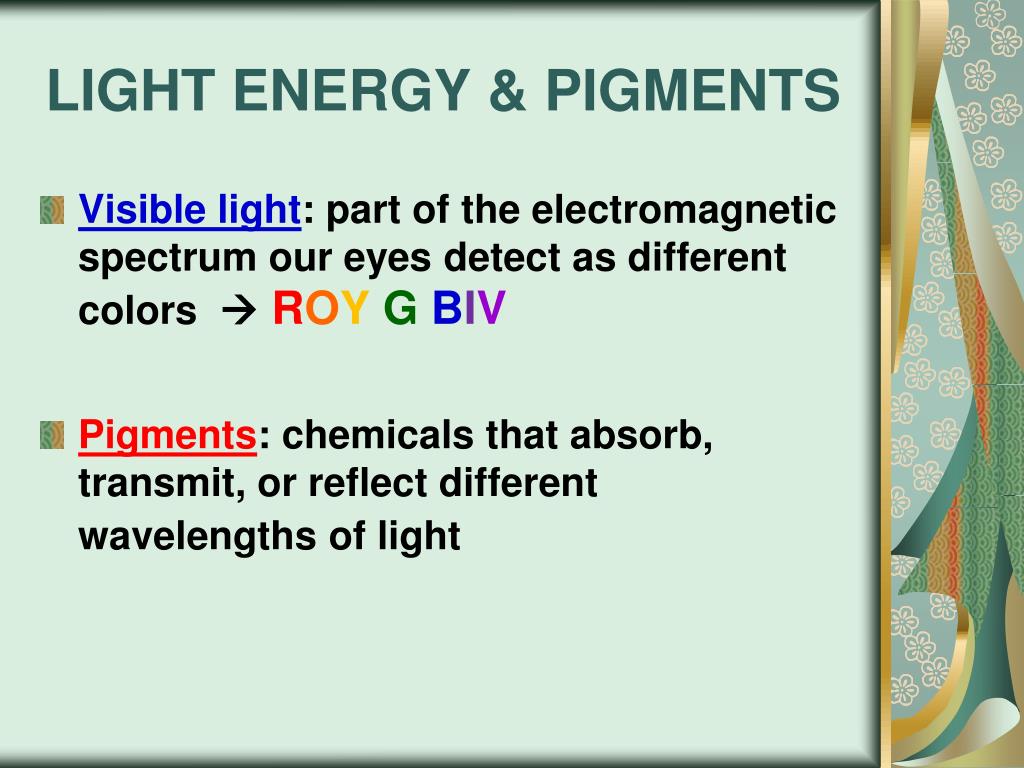

  18. LIGHT ENERGY & PIGMENTS • Visible light: part of the electromagnetic spectrum our eyes detect as different colors ROYGBIV • Pigments: chemicals that absorb, transmit, or reflect different wavelengths of light

  19. CHLOROPLAST PIGMENTS • Absorb blue-violet & red-orange light • Convert absorbed light energy to chemical energy • Do not absorb green light well: • reflect or transmit it back • makes leaves look green

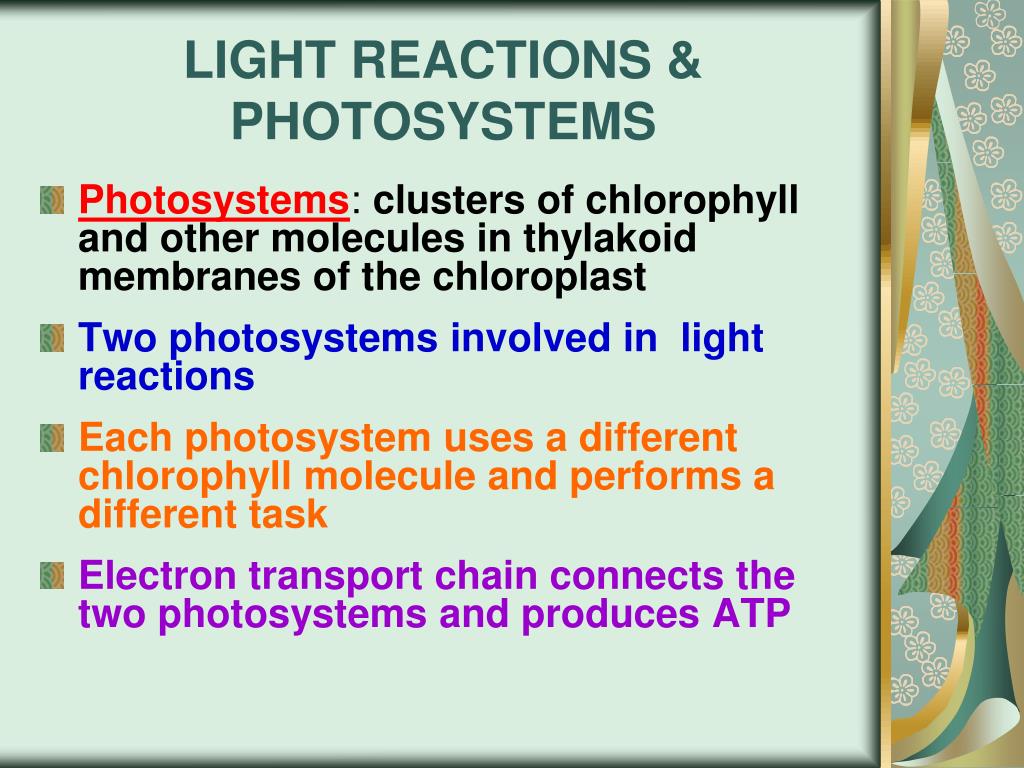

  20. LIGHT REACTIONS & PHOTOSYSTEMS • Photosystems: clusters of chlorophyll and other molecules in thylakoid membranes of the chloroplast • Two photosystems involved in light reactions • Each photosystem uses a different chlorophyll molecule and performs a different task • Electron transport chain connects the two photosystems and produces ATP

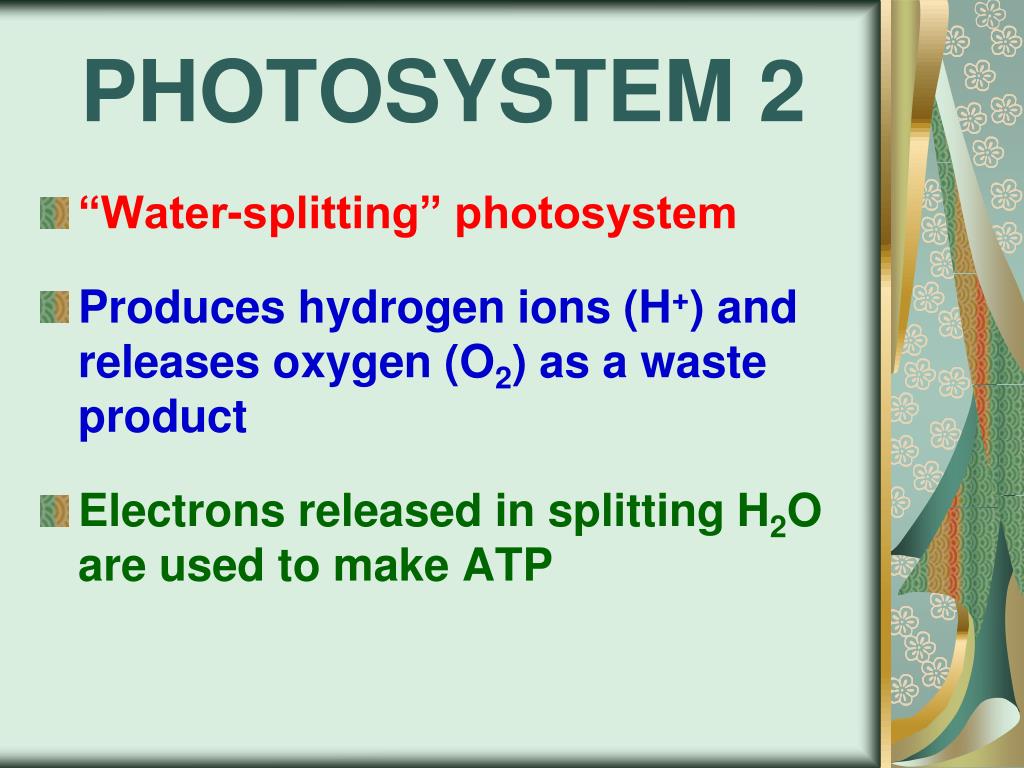

  21. PHOTOSYSTEM 2 • “Water-splitting” photosystem • Produces hydrogen ions (H+) and releases oxygen (O2) as a waste product • Electrons released in splitting H2O are used to make ATP

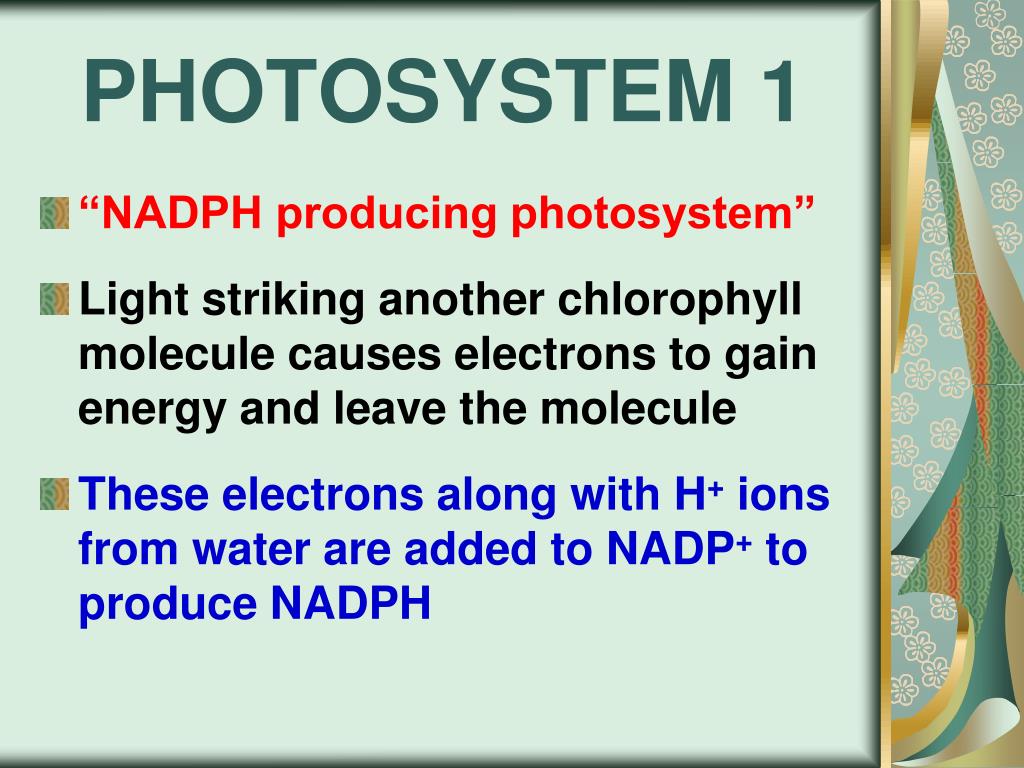

  22. PHOTOSYSTEM 1 • “NADPH producing photosystem” • Light striking another chlorophyll molecule causes electrons to gain energy and leave the molecule • These electrons along with H+ ions from water are added to NADP+ to produce NADPH

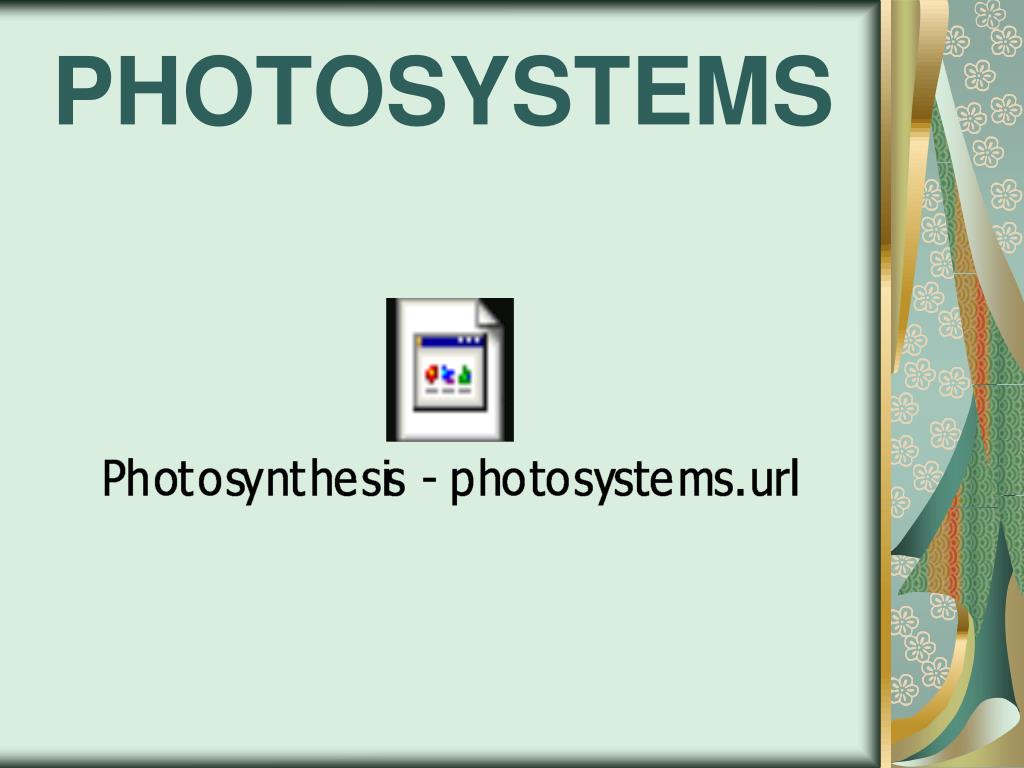

  23. PHOTOSYSTEMS

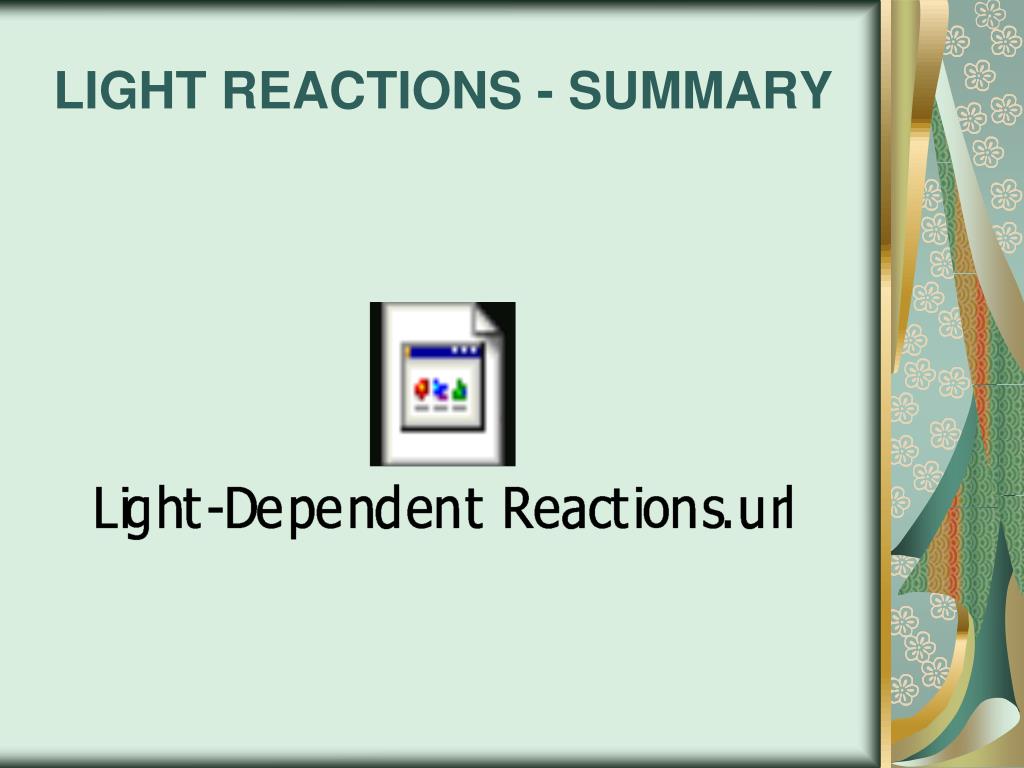

  24. LIGHT REACTIONS - SUMMARY

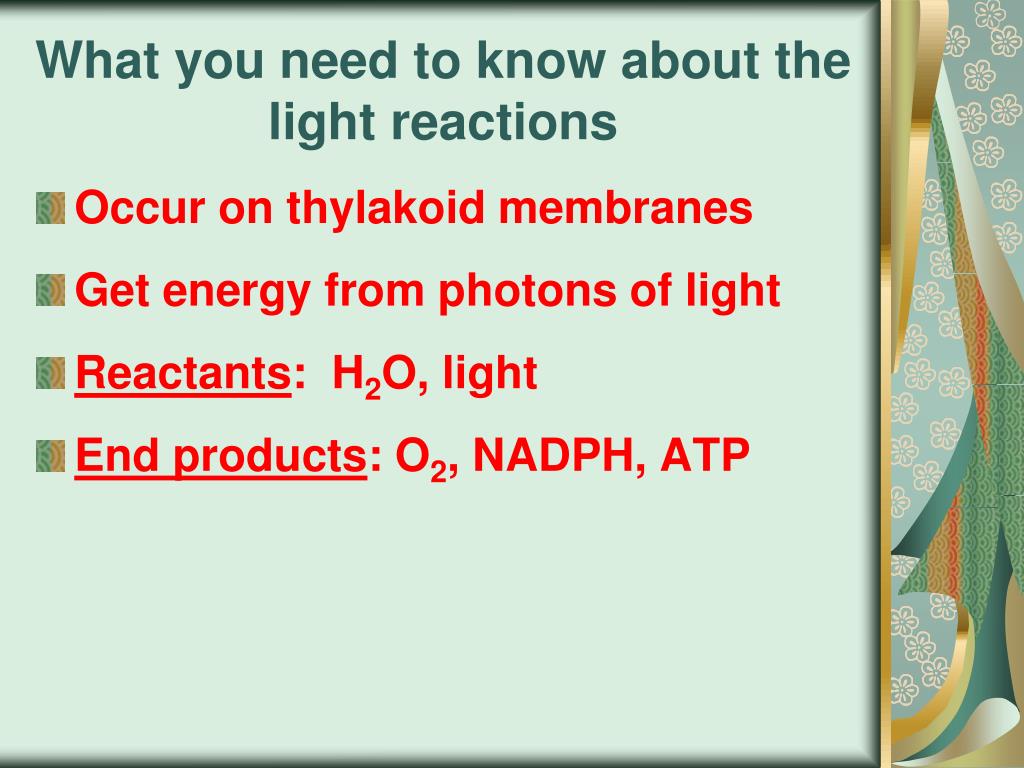

  25. What you need to know about the light reactions • Occur on thylakoid membranes • Get energy from photons of light • Reactants: H2O, light • End products: O2, NADPH, ATP

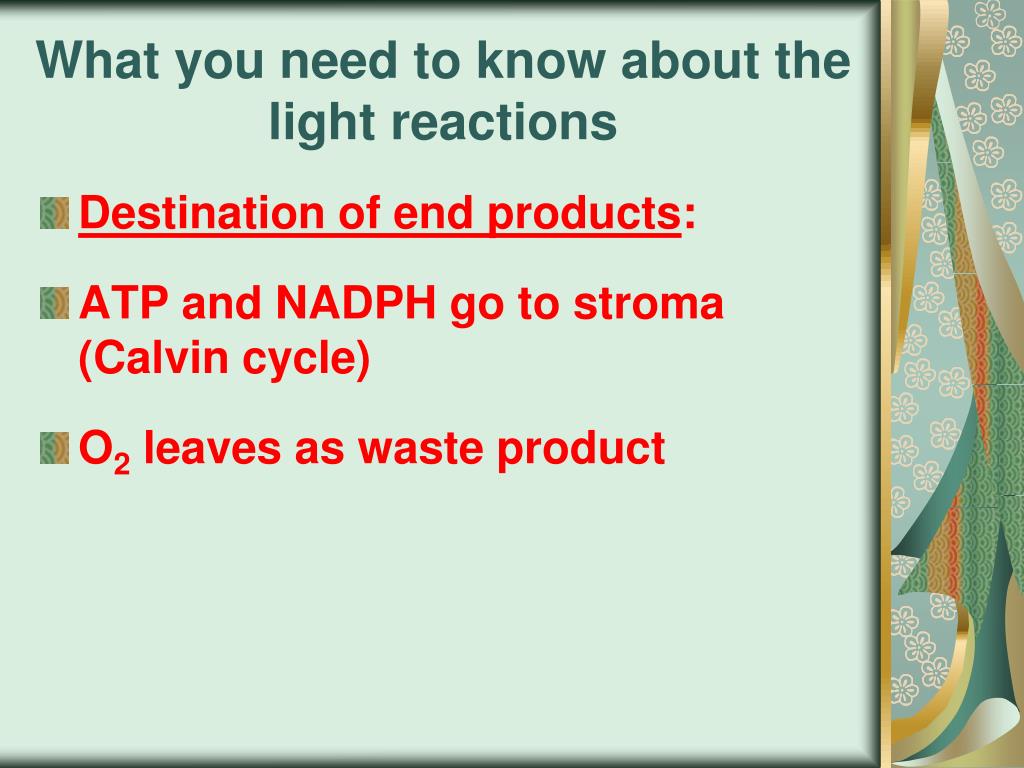

  26. What you need to know about the light reactions • Destination of end products: • ATP and NADPH go to stroma (Calvin cycle) • O2 leaves as waste product

  27. Concept 8.3 THE CALVIN CYCLE MAKES SUGAR FROM CARBON DIOXIDE

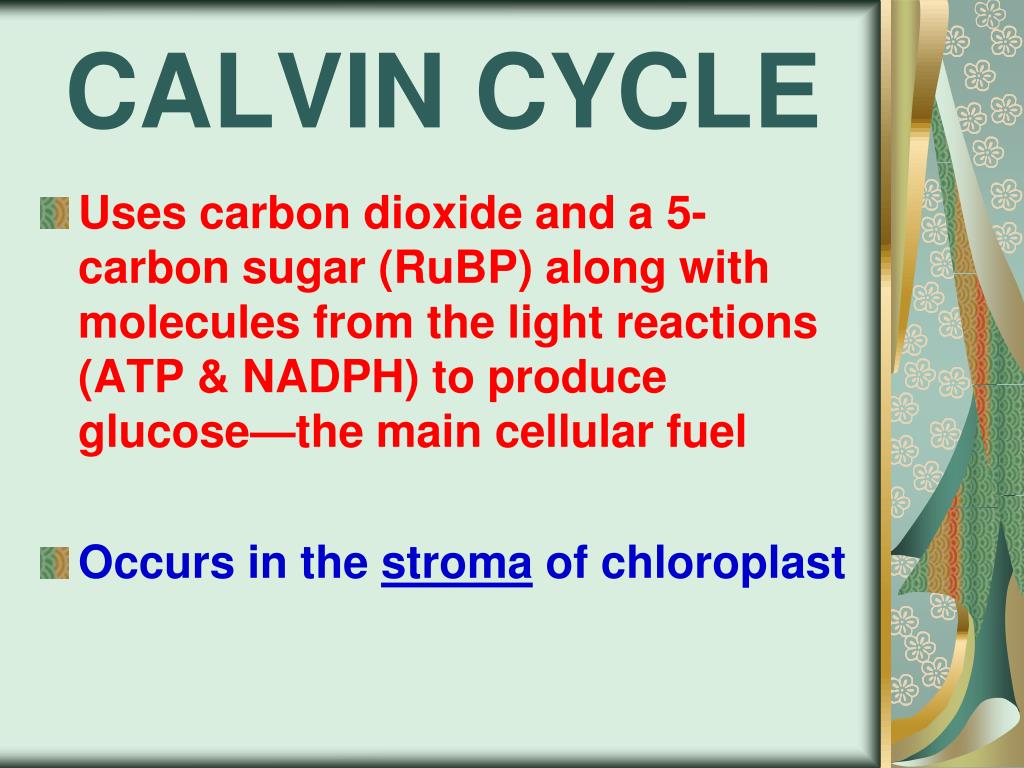

  28. CALVIN CYCLE • Uses carbon dioxide and a 5-carbon sugar (RuBP) along with molecules from the light reactions (ATP & NADPH) to produce glucose—the main cellular fuel • Occurs in the stroma of chloroplast

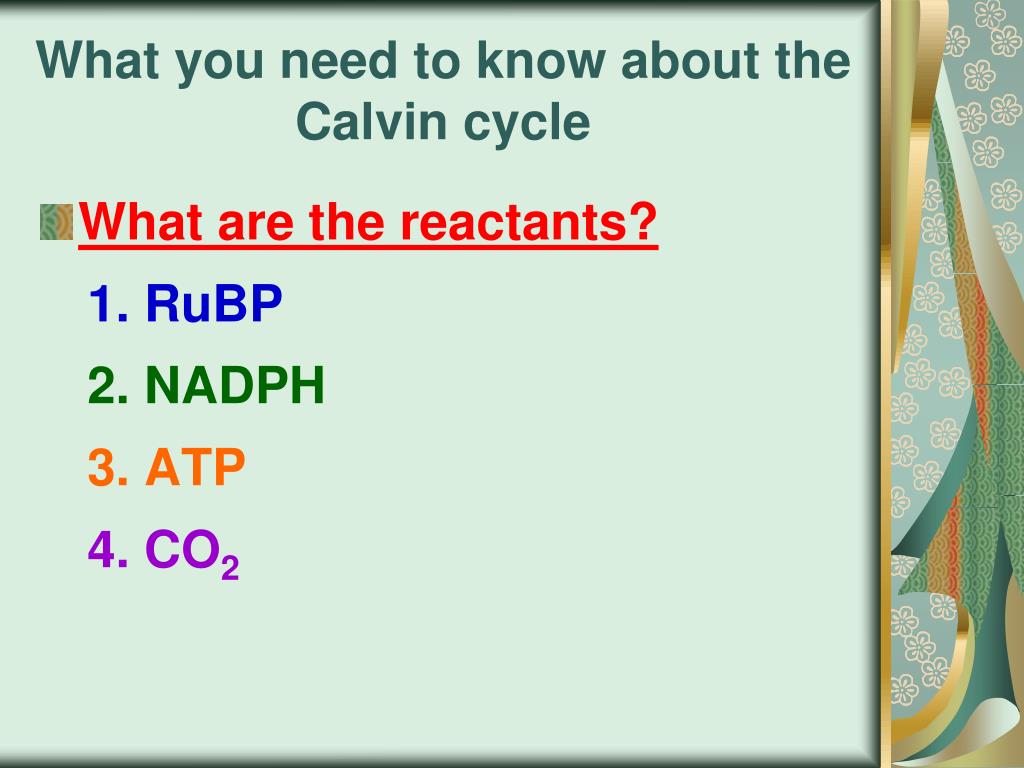

  29. What you need to know about the Calvin cycle • What are the reactants? 1. RuBP 2. NADPH 3. ATP 4. CO2

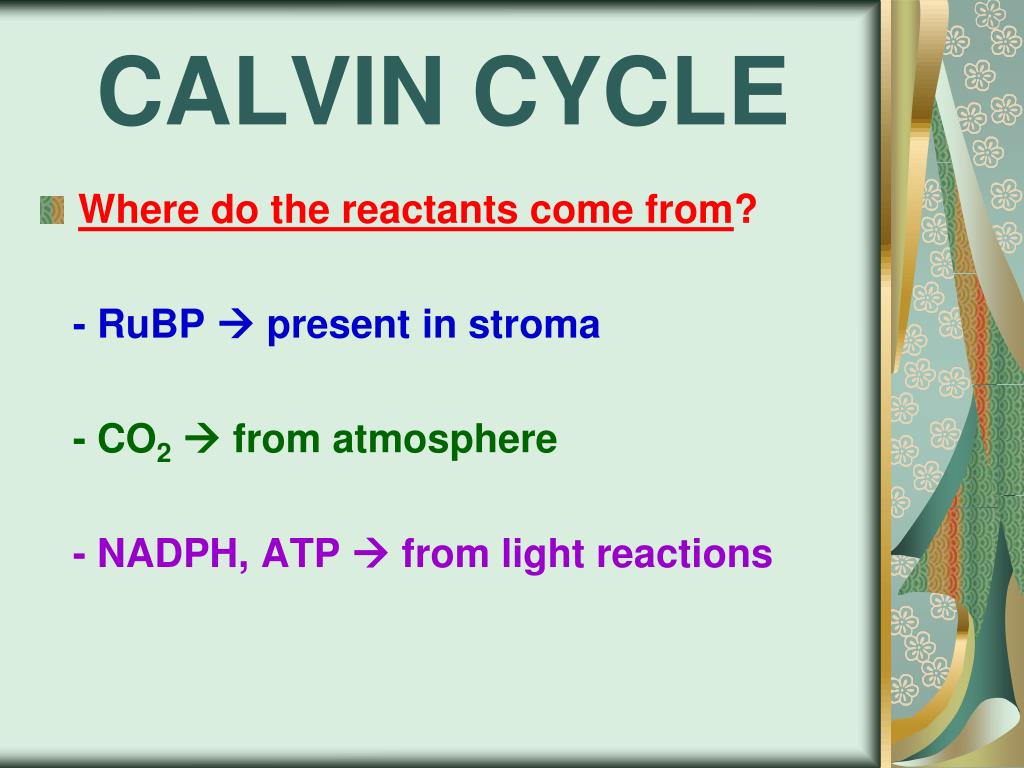

  30. CALVIN CYCLE • Where do the reactants come from? - RuBP  present in stroma - CO2 from atmosphere - NADPH, ATP  from light reactions

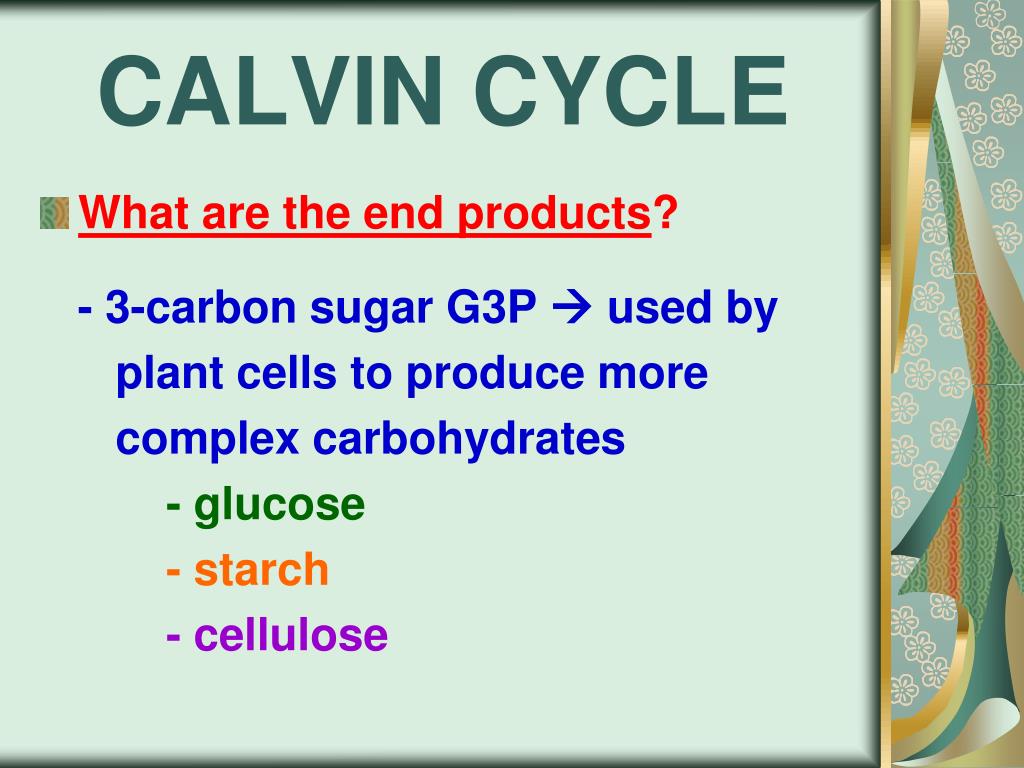

  31. CALVIN CYCLE • What are the end products? - 3-carbon sugar G3P  used by plant cells to produce more complex carbohydrates - glucose - starch - cellulose

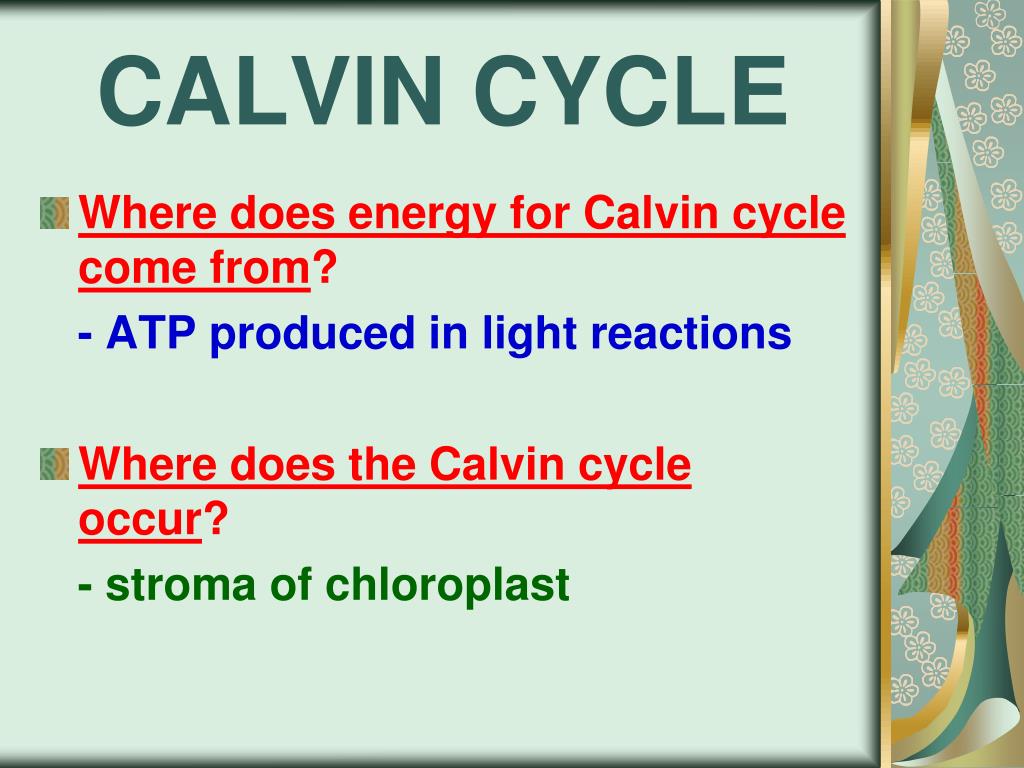

  32. CALVIN CYCLE • Where does energy for Calvin cycle come from? - ATP produced in light reactions • Where does the Calvin cycle occur? - stroma of chloroplast

  33. CALVIN CYCLE

  34. SUMMARY OF PHOTOSYNTHESIS

  35. SUMMARY OF PHOTOSYNTHESIS • 6 CO2 + 6 H2O  C6H12O6 + 6 O2 • LIGHT REACTIONS: • Occur on thylakoid membranes • Convert light energy to chemical energy of ATP • Use reactant H2O from the equation and releases product O2

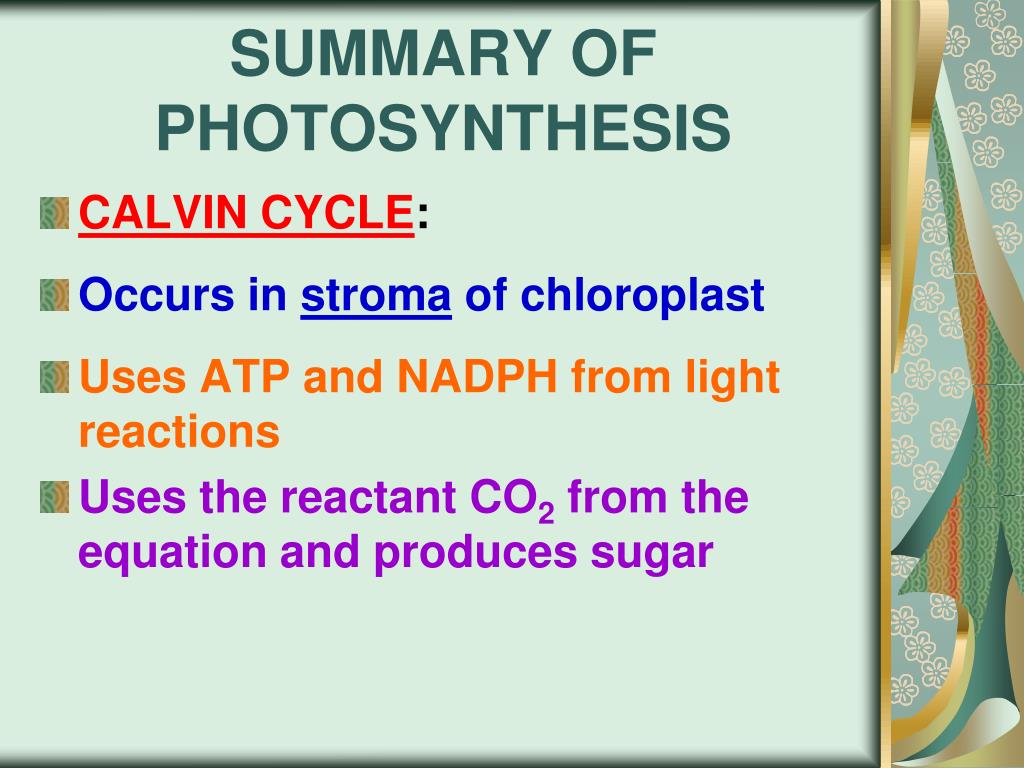

  36. SUMMARY OF PHOTOSYNTHESIS • CALVIN CYCLE: • Occurs in stroma of chloroplast • Uses ATP and NADPH from light reactions • Uses the reactant CO2 from the equation and produces sugar

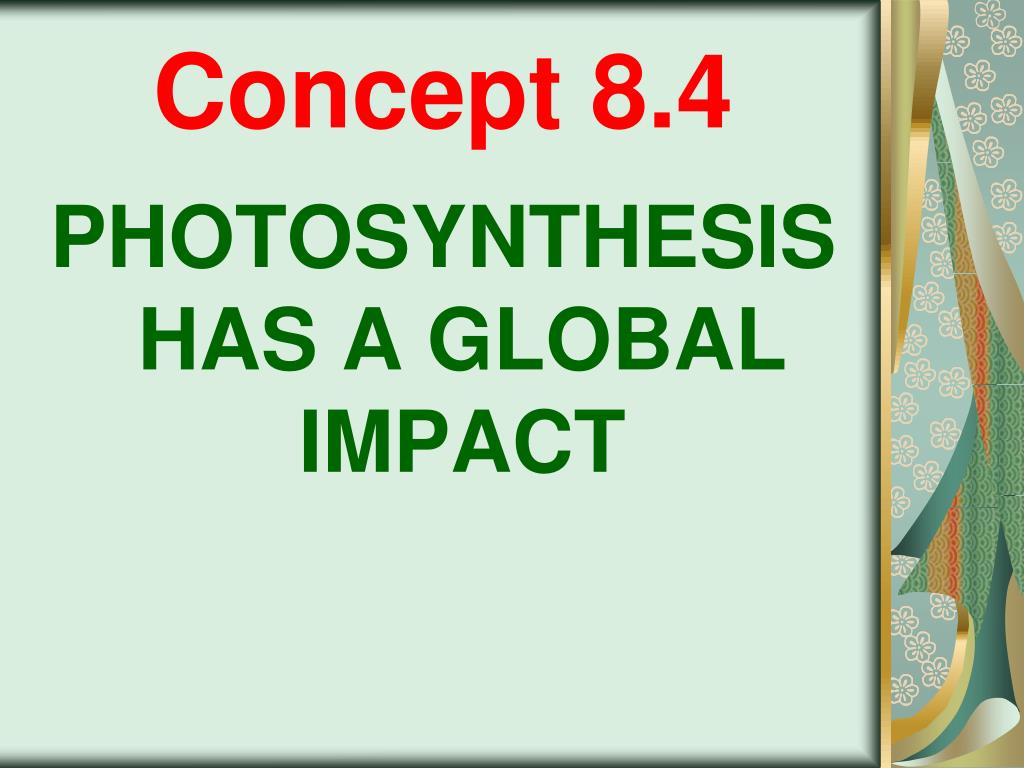

  37. Concept 8.4 PHOTOSYNTHESIS HAS A GLOBAL IMPACT

  38. THE CARBON CYCLE • Process by which carbon moves from inorganic to organic compounds and back • Photosynthesis converts inorganic carbon dioxide to organic compounds • Consumers eat producers and return carbon dioxide to the atmosphere via cellular respiration

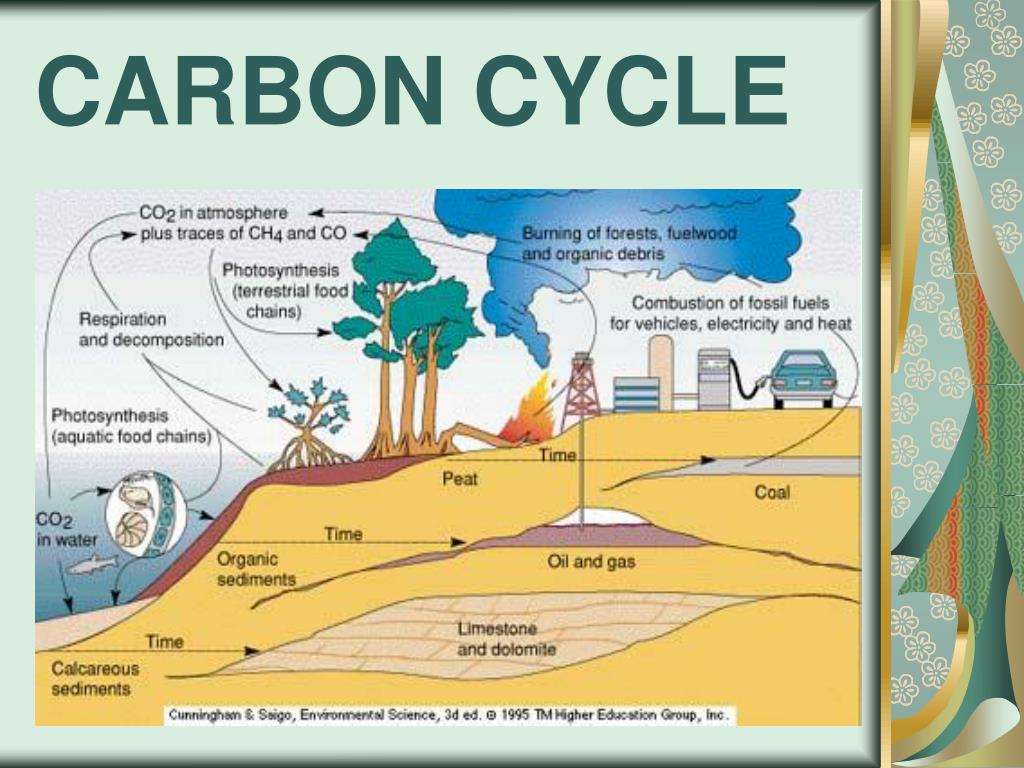

  39. CARBON CYCLE

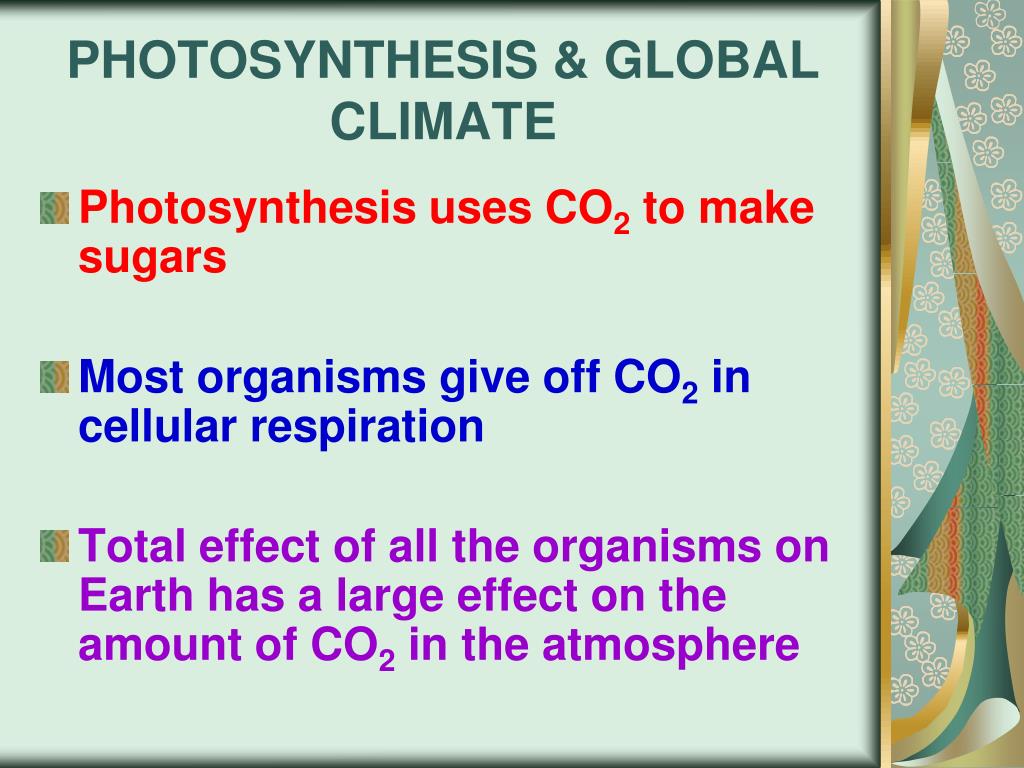

  40. PHOTOSYNTHESIS & GLOBAL CLIMATE • Photosynthesis uses CO2 to make sugars • Most organisms give off CO2 in cellular respiration • Total effect of all the organisms on Earth has a large effect on the amount of CO2 in the atmosphere

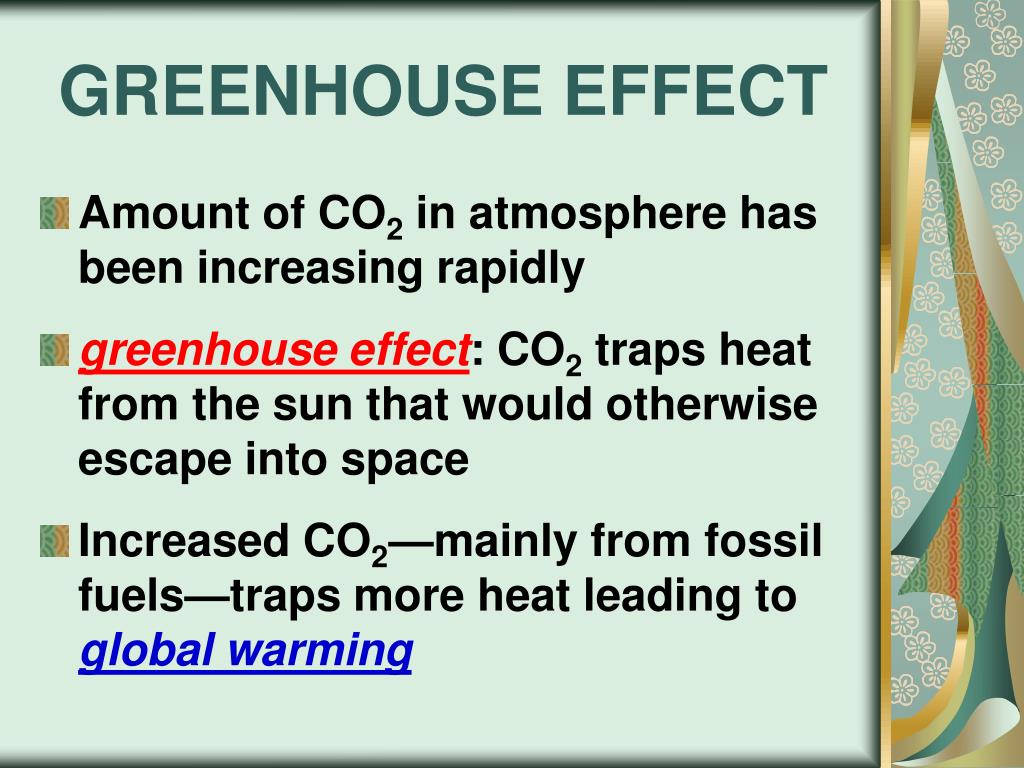

  41. GREENHOUSE EFFECT • Amount of CO2 in atmosphere has been increasing rapidly • greenhouse effect: CO2 traps heat from the sun that would otherwise escape into space • Increased CO2—mainly from fossil fuels—traps more heat leading to global warming

  42. GREENHOUSE EFFECT

  43. THE END

  44. THE CALVIN CYCLE
