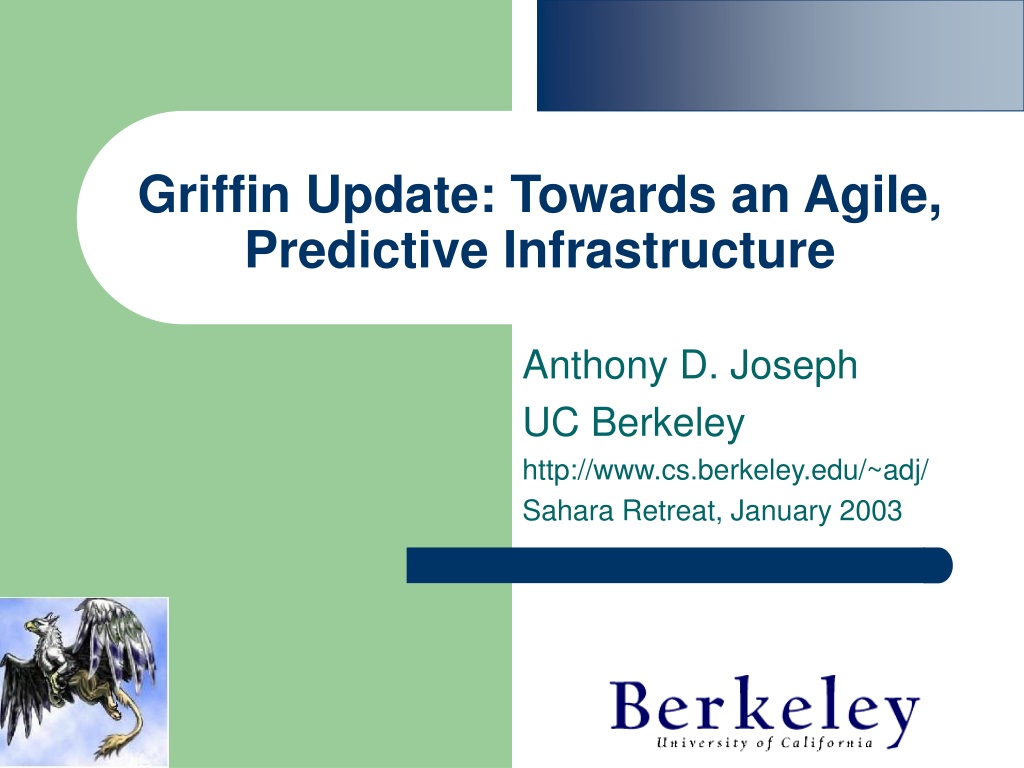

  1. Griffin Update: Towards an Agile, Predictive Infrastructure Anthony D. Joseph UC Berkeley http://www.cs.berkeley.edu/~adj/ Sahara Retreat, January 2003

  2. Outline • Griffin • Motivation • Goals • Components • Tapas Update • Motivation • Data preconditioning-based network modeling • Model accuracy issues and validation • Domain analysis

  3. Near-Continuous, Highly-Variable Internet Connectivity • Connectivity everywhere: campus, in-building, satellite… • Projects: Sahara (01-), Iceberg (98-01), Rover (95-97) • Most applications support limited variability (1% to 2x) • Design environment for legacy apps is static desktop LAN • Strong abstraction boundaries (APIs) hide the # of RPCs • But, today’s apps see a wider range of variability • 35 orders of magnitude of bandwidth from 10's Kb/s 1 Gb/s • 46 orders of magnitude of latency from 1 sec 1,000's ms • 59 orders of magnitude of loss rates from 10-3 10-12 BER • Neither best-effort or unbounded retransmission may be ideal • Also, overloaded servers / limited resources on mobile devices • Result: Poor/variable performance from legacy apps

  4. Griffin Goals • Users always see excellent ( local, lightly loaded) application behavior and performance • Independent of the current infrastructure conditions • Move away from “reactive to change” model • Agility: key metric is time to react and adapt • Help legacy applications handle changing conditions • Analyze, classify, and predict behavior • Pre-stage dynamic/static code/data (activate on demand) • Architecture for developing new applications • Input/control mechanisms for new applications • Application developer tools • Leverage Sahara policies and control mechanisms

  5. Griffin: An Adaptive, Predictive Approach • Continuous, cross-layer, multi-timescale introspection • Collect & cluster link, network, and application protocol events • Broader-scale: Correlate AND communicate short-/long-term events and effects at multiple levels (breaks abstractions) • Challenge: Building accurate models of correlated events • Convey app reqs/network info to/from lower-levels • Break abstraction boundaries in a controlled way • Challenge: Extensible interfaces to avoid existing least common denominator problems • Overlay more powerful network model on top of IP • Avoid standardization delays/inertia • Enables dynamic service placement • Challenge: Efficient interoperation with IP routing policies

  6. Some Enabling Infrastructure Components • Tapas network characteristics toolkit • Measuring/modeling/emulating/predicting delay, loss, … • Provides Sahara with micro-scale network weather information • Mechanism for monitoring/predicting available QoS • REAP protocol modifying / application building toolkit • Introspective mobile code/data support for legacy / new apps • Provides dynamic placement of data and service components • MINO E-mail application on OceanStore / Planet Lab • Brocade, Mobile Tapestry, and Fault-Tolerant Tapestry • Overlay routing layer providing Sahara with efficient application-level object location and routing • Mobility support, fault-tolerance, varying delivery semantics

  7. Outline • Griffin • Motivation • Goals • Components • Tapas Update • Motivation • Data preconditioning-based network modeling • Model accuracy issues and validation • Domain analysis

  8. Tapas Motivation • Accurate modeling and emulation for protocol design • Very difficult to gain access to new or experimental networks • Delay, error, congestion in IP, GSM, GPRS, 1xRTT, 802.11a/b • Study interactions between protocols at different levels • Creating models/artificial traces that are statistically indistinguishable from traces from real networks • Such models have both predictive and descriptive power • Better understanding of network characteristics • Can be used to optimize new and existing protocols

  9. Tapas • Novel data preconditioning-based analysis approach • More accurately models/emulates long-/short-term dependence effects than classic approaches (Gilbert, Markov, HMM, Bernoulli) • Analysis, simulation, modeling, prediction tools: • MultiTracer: Multi-layer trace collection and analysis (download) • Trace analysis and synthetic trace generator tools • Markov-based Trace Analysis, Modified hidden Markov Model • WSim: Wireless link simulator (currently trace-driven) • Simple feedback algorithm and API • Domain analysis tool: chooses most accurate model for a metric • Error-tolerant radio / link layer protocols: RLPLite, PPPLite • Collected >5,000 minutes of TCP, UDP, RLP traces in good/bad, stationary/mobile environments (download)

  10. Application Application Packetization Packetization RTP RTP Socket Interface Socket Interface TCP/UDP (Lite) TCP/UDP (Lite) PSTN IP IP Fixed Host Unix BSDi 3.0 PPP/PPP Lite GSM Base Station Mobile Host Unix BSDi 3.0 PPP/PPP Lite GSM Network MultiTracer Plotting & Analysis MultiTracer Measurement Testbed • Multi-layer trace collection • RLP, UDP/TCP, App • Easy trace collection • Rapid, graphical analysis RLP / non RLP RLP / non RLP SocketDUMP TCPdump TCPstats RLPDUMP 300 B/s SocketDUMP TCPdump TCPstats

  11. real network metric trace trace analysis algorithm network model artificial network metric trace Choosing the Right Network Model • Collect empirical packet trace: T = {1,0}* • 1: corrupted/delayed packet, 0: correct/non-delayed packet • Create mathematical models based on T • T may be non-stationary (statistics vary over time) • Classic models don’t always work well (can’t capture variations) • MTA, M3 – Trace data preconditioning algorithms • Decompose T into stationary sub-traces & model transitions • Stationary sub-traces can be modeled with high-order DTMC • Markov-based Trace Analysis (MTA) and Modified hidden Markov Model (M3) tools accurately model time varying links

  12. Good Subtrace Bad Subtrace Good Subtrace Bad Subtrace c c Error Trace … 10001110011100….0 0000…0000 11001100…00 00000..000... Bad Trace … 10001110011100….0 11001100…00 ... Good Trace … 0000…0000 00000..000... Creating Stationarity in Traces • Our idea for MTA and M3: decompose T into stationary sub-traces • Bad sub-traces B1..n = 1{1,0}*0c, Good sub-traces G1..n = 0* • C is a change-of-state constant: mean + std dev of length of 1* • MTA: Model B with a DTMC, model state lengths with exponential distribution, and compute transitions between states • M3: Similar, but models multiple states using HMM to transition Model B with DTMC

  13. Issues in Modeling • Evaluating the accuracy of a particular model • How closely does it model a network characteristic? • How much trace data do we need to collect to accurately model a network characteristic? • How much work? • Can a model be used to accurately model a network scenario? • I.e., can we model a case like poor fixed indoor coverage and use the model to model conditions at a later time?

  14. Evaluating Model Accuracy • Determine CDFs of burst lengths in Lossy and Error Free subtraces of a collected trace • Create Model • Use model to generate an artificial trace and determine CDFs of Lossy and Error Free subtraces • Calculate correlation coefficient (cc) between Lossy and Error-Free CDFs of collected and artificial traces • Observation: Accurate models have cc > 0.96

  15. Model Evaluation Methodology • What size collected trace is needed for accurate model? • Sub-divide trace into subtraces of length len/2j • Compare cc values between subtraces and collected trace • Trace lengths > max(EF burst size) yield cc > 0.96 • How representative is a model? • Collect large trace, AB, and sub-divide into A and B • Create model from A • Use cc to compare model A with A, B, and AB • Representative models have all cc values > 0.96

  16. Challenge: Domain Analysis • Which model to use? • Gilbert, HMM, MTA, M3 have different properties • Algorithm (applied to Gilbert, HMM, MTA, M3): • Collect traces, compute exponential functions for lengths of good and bad state and compute 1’s density of bad state • For a given density, determine model parameters and optimal model (best cc) • Experiment: • Apply to artificial network environment with varying bad state densities • Plot optimal model as a function of the good and bad state exponential values: Domain of Applicability Plot

  17. Domain of Applicability Plot, Lden= 0.2b

  18. Domain of Applicability Plot , Lden= 0.7

  19. Griffin Summary • On-going Tapas work: • Sigmetrics 2003 submission on domain analysis • Trace collection: CDMA 1xRTT, GPRS, & IEEE 802.11a, PlanetLab IP • Release of WSim • Dissertation (Almudena Konrad) • Tapestry and MINO talks at retreat • In joint and ROC/OS sessions

  20. Griffin Update: Towards an Agile, Predictive Infrastructure Anthony D. Joseph UC Berkeley http://www.cs.berkeley.edu/~adj/ Sahara Retreat, January 2003
