  1. Patient specific QC in Aarhus Lone Hoffmann Ulrik Vindelev Elstrøm, Mai-Britt Kyed Jørgensen

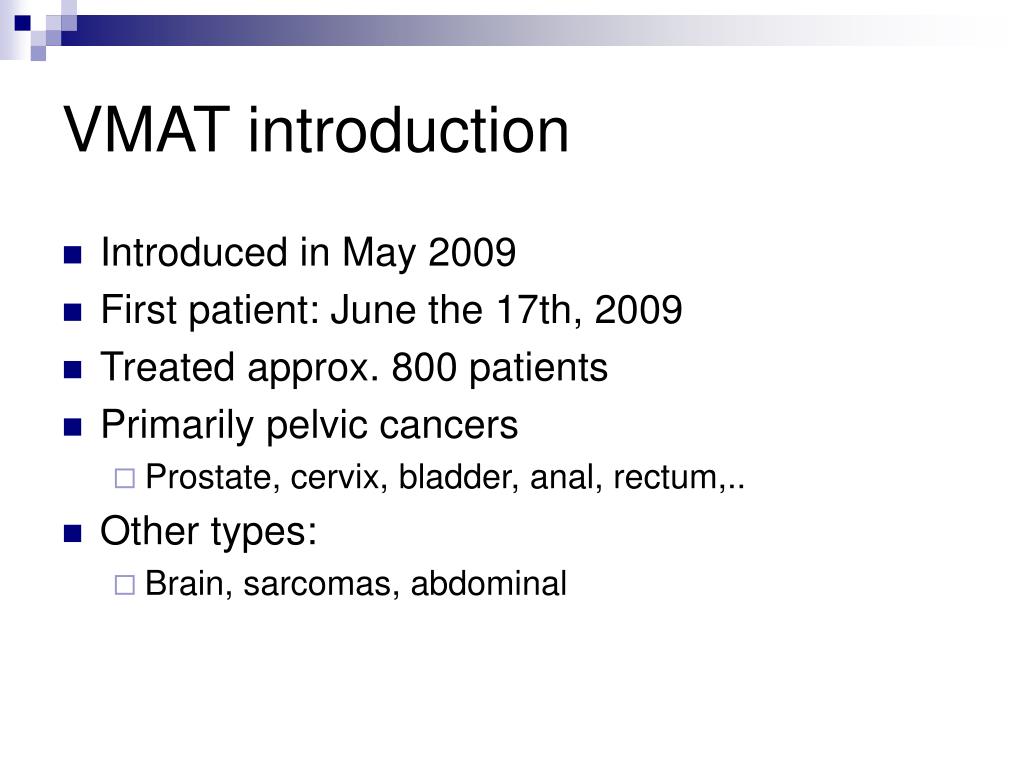

  2. VMAT introduction • Introduced in May 2009 • First patient: June the 17th, 2009 • Treated approx. 800 patients • Primarily pelvic cancers • Prostate, cervix, bladder, anal, rectum,.. • Other types: • Brain, sarcomas, abdominal

  3. Patient specific QA • Perform Delta4 verification for all patients • Normalization to daily output • Gamma(3,3) > 95 % • Most patients: G(3,3) > 97 %

  4. Test/learning plans • 10 prostate plans (15MV)were created with: • 250MU, 500MU, 750Mu, 1000MU, 2000MU • In 1 or 2 arcs • 10 H&N plans (6MV) were created with: • 250MU, 500MU, 750Mu, 1000MU, 2000MU • In 1 or 2 arcs • 2 Gy/fx

  5. G(3,3) vs. #MUs • G(3,3) decreases as a function of MUs • Planning criteria: MU < 400 for 1/2 arcs

  6. G(3,3) vs. accelerator • Differences between accelerators

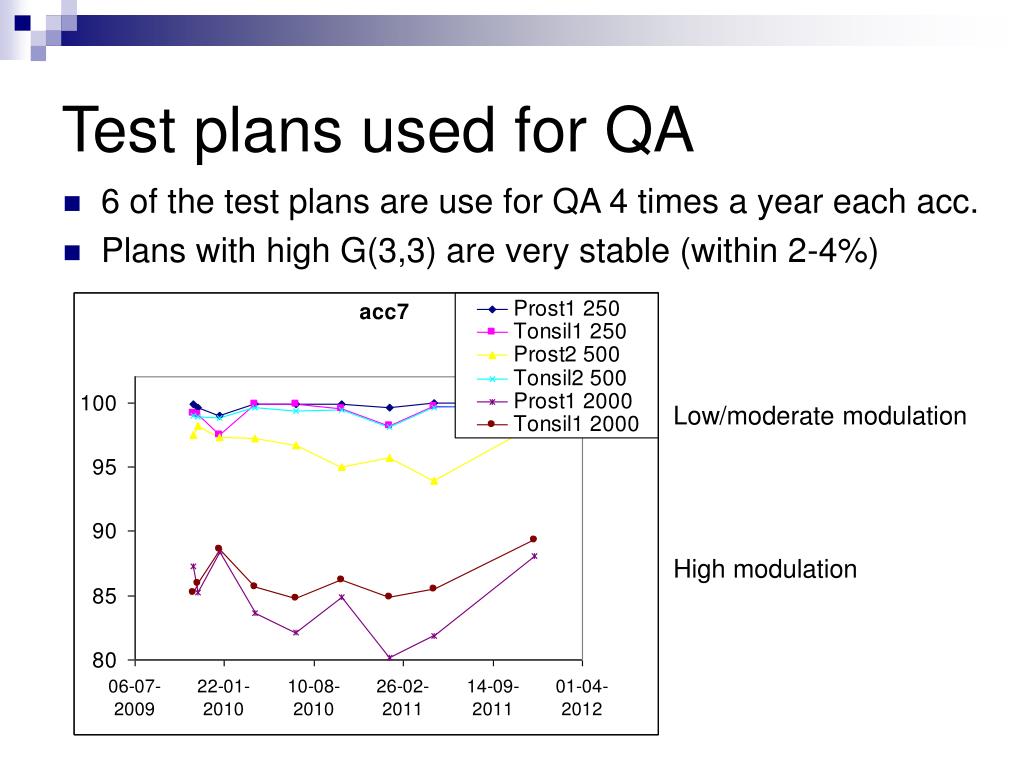

  7. Test plans used for QA • 6 of the test plans are use for QA 4 times a year each acc. • Plans with high G(3,3) are very stable (within 2-4%) Low/moderate modulation High modulation

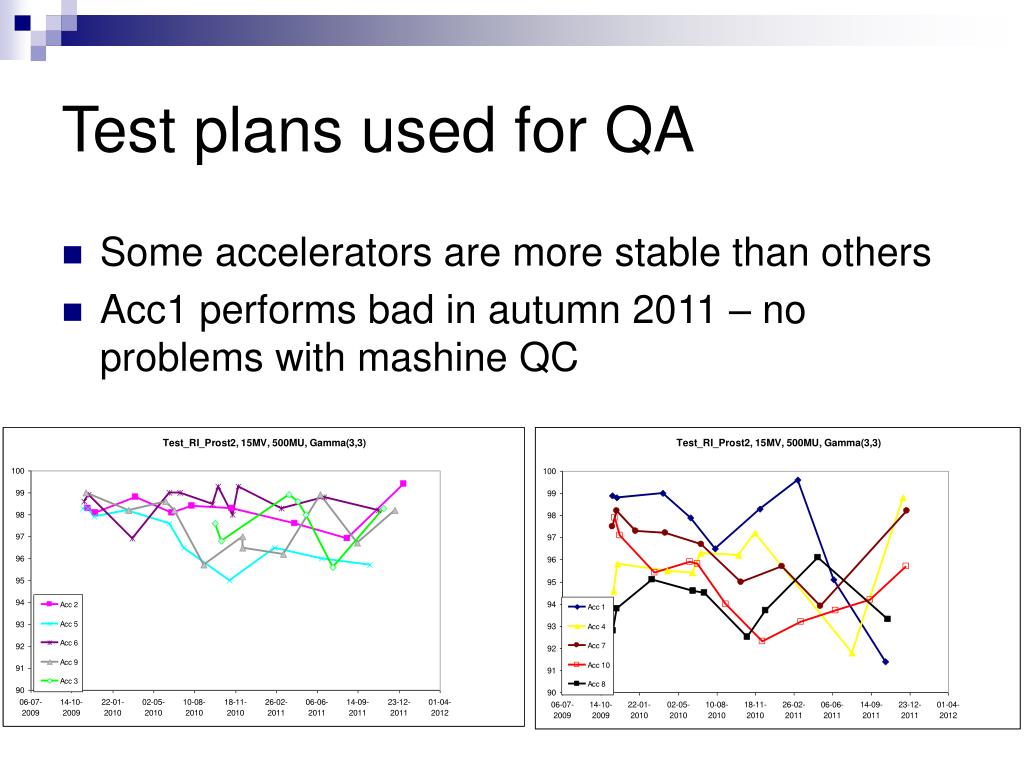

  8. Test plans used for QA • Some accelerators are more stable than others • Acc1 performs bad in autumn 2011 – no problems with mashine QC

  9. Acc QC vs. Patient spec QC • Problems with acc QC on acc 5 (spring 2011) • Not seen for patient specific QC Low dose rate DRMLC test

  10. Real patient plans • Reproducibility for each acc • Difference between acc – not seen with acc QC acc3

  11. True beam • 5 patients treated at Clinac and True beam • G(3,3) does not depend on Clinac/True beam? • MeanG(Clinac)=98.4% • MeanG(TrueBeam)=99.0%

  12. Portal dosimetry • Use EPID/MVD for patient specific QC • Fast measurement • Ideal for routine measurements

  13. Delta4 vs. PDI • Perform Delta4 and PDI measurement consecutively at same accelerator • Preliminary results, Oct-Dec 2011: • 68 plans (1,2, ..6 arcs) • 127 single arcs • Single arcs • G(3,3)D4: • 1.7% higher than G(3,3)PDI • Plans • G(3,3)D4: • 1.0% higher than G(3,3)PDI • Pass criteria: • G(3,3)D4: 95% G(3,3)PDI: 94%

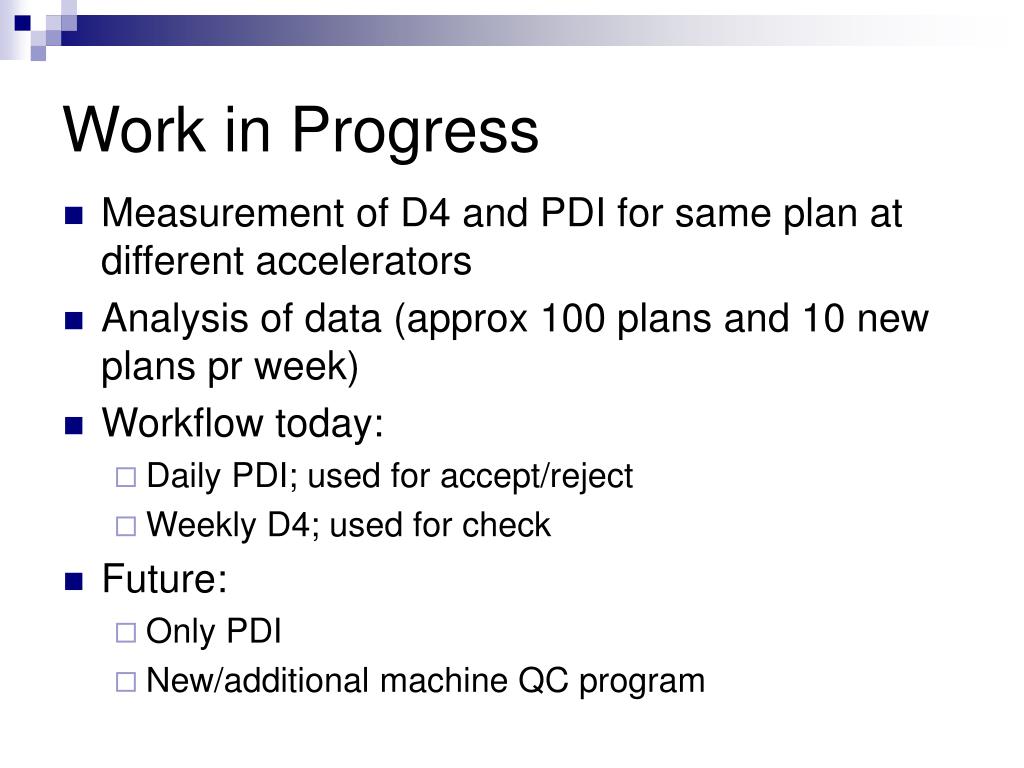

  14. Work in Progress • Measurement of D4 and PDI for same plan at different accelerators • Analysis of data (approx 100 plans and 10 new plans pr week) • Workflow today: • Daily PDI; used for accept/reject • Weekly D4; used for check • Future: • Only PDI • New/additional machine QC program

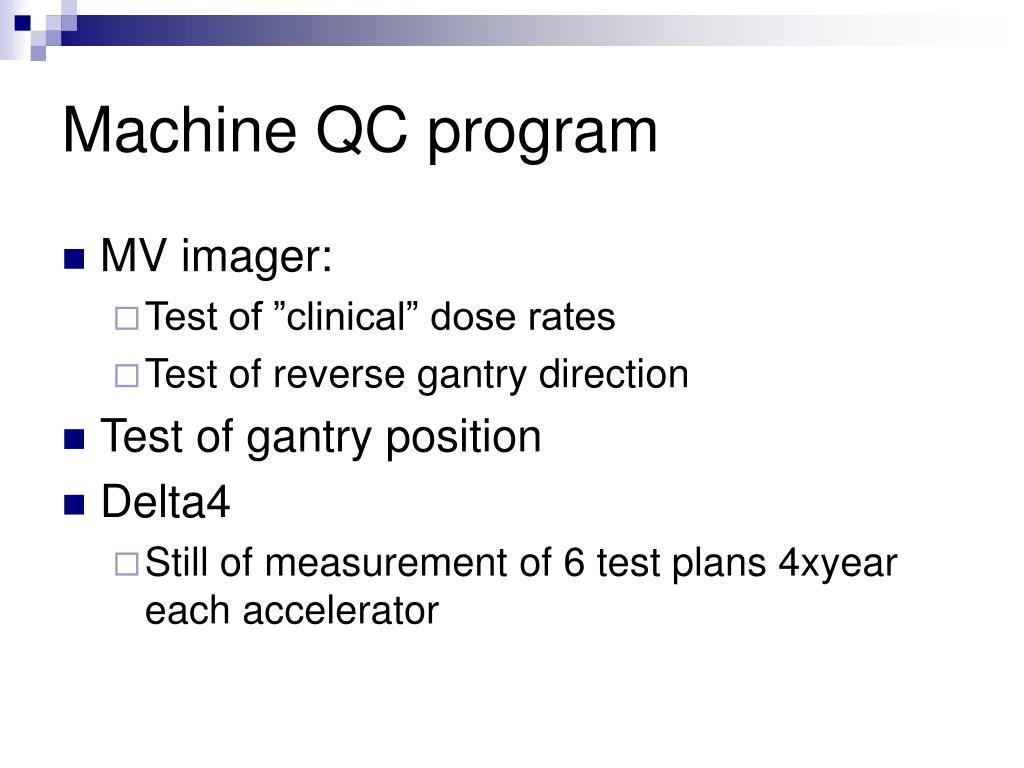

  15. Machine QC program • MV imager: • Test of ”clinical” dose rates • Test of reverse gantry direction • Test of gantry position • Delta4 • Still of measurement of 6 test plans 4xyear each accelerator
