  1. Office Post-Processing

  2. Download Note: Static observation data are only stored in the receiver and hence receiver is required to be connected to the PC for downloading.

  3. Topcon Tools If you are running on demo mode the following will popup If you are not running on demo mode the following will popup Note: If you receive “Sentinel protection driver not installed” it means the driver for the USB needs to be installed first.

  4. Topcon Tools – New Job Enter name Click here Enter here Click here Enter here

  5. Topcon Tools – Configuring Click here Enter the observation precision for you project

  6. Topcon Tools – New Datum Click here Click here

  7. Topcon Tools – New Datum Click here Click here Check with your local authority for the value

  8. Topcon Tools – New Projection Click here Click here Select your custom datum

  9. Topcon Tools – New Projection Click Here Click Here Click Here Check with your local authority for the value

  10. Topcon Tools – New Projection Scroll this Select your custom projection

  11. Topcon Tools – New Projection Click Here

  12. Topcon Tools - Configuring Click Here Click Here

  13. Topcon Tools - Configuring Click Here

  14. Topcon Tools – Import Data Click here

  15. Topcon Tools – Import Data Select this Automatic search for GPS+ receivers Note: For GRS-1 it will be “Mobile device”

  16. Topcon Tools – Import Data Select your receiver Click Here Click here

  17. Topcon Tools – Control point The icon will change to triangle to show that it is a control point Click here and select what type of control point you want it to be If you are using an auto pos for coordinate you require to key in the actual coordinate

  18. Topcon Tools – Antenna Info Select this

  19. Topcon Tools – Antenna Info Click here Enter all antenna type and height

  20. Topcon Tools – PostProcessing Click here

  21. Topcon Tools - Adjustment Click here Baseline: Green = Post-Processing Passed!!! Red = Post-Processing Failed!!! Tips: Make sure all baselines have passed post-processing before adjustment!!!

  22. Topcon Tools - Adjustment Click here

  23. Topcon Tools - Adjustment PASSED!!!

  24. Topcon Tools - Options Right - Click Click here

  25. Topcon Tools - Options Click here Click here Click here Click here

  26. Topcon Tools - Adjustment

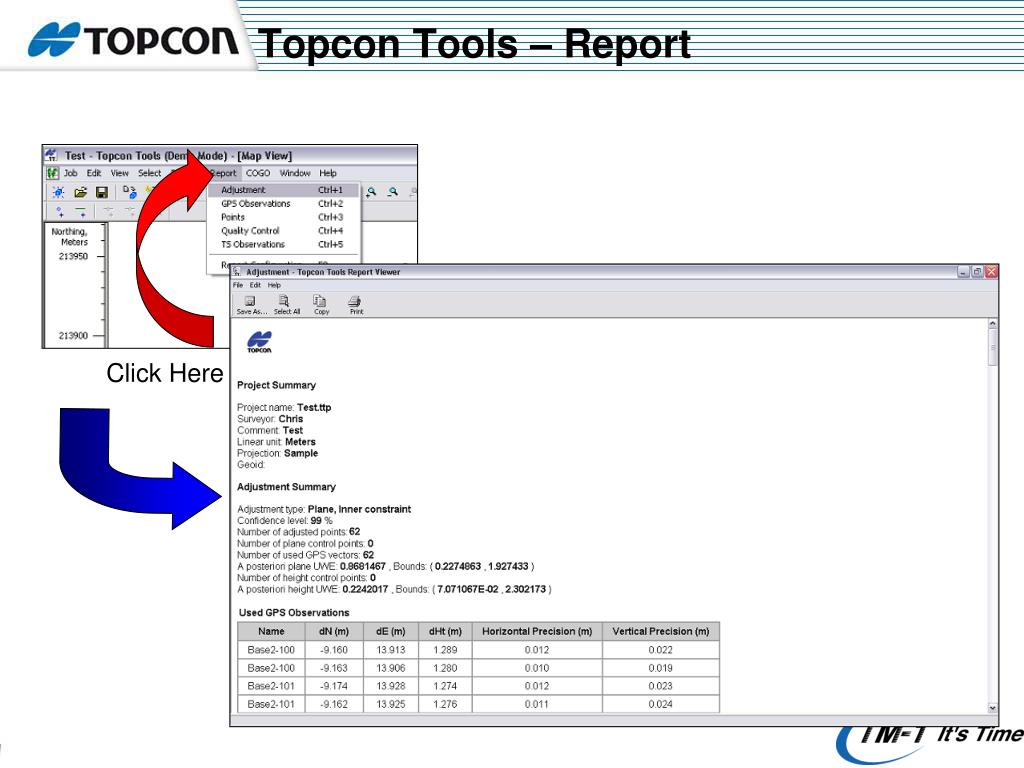

  27. Topcon Tools – Report Click Here Click Here Click Here Click Here Click Here

  28. Topcon Tools – Report Click Here
