  1. Czech manufacturer of smartlabels 1 Úvod

  2. RFID – THE FUTURE The new SMARTLABEL production line Ing. Jakub UnuckaIng. Jiří Švub Prague 03/30/2011 2 Introduction

  3. Gaben Czech company from Ostrava focused on Auto ID • Barcode scanners • Portable terminals • Label printers • Consumables • Applications in logistics • Data collection in industrial procesess • RFID SMARTLABEL manufacture • etc. 3 Introduction

  4. 4 Úvod

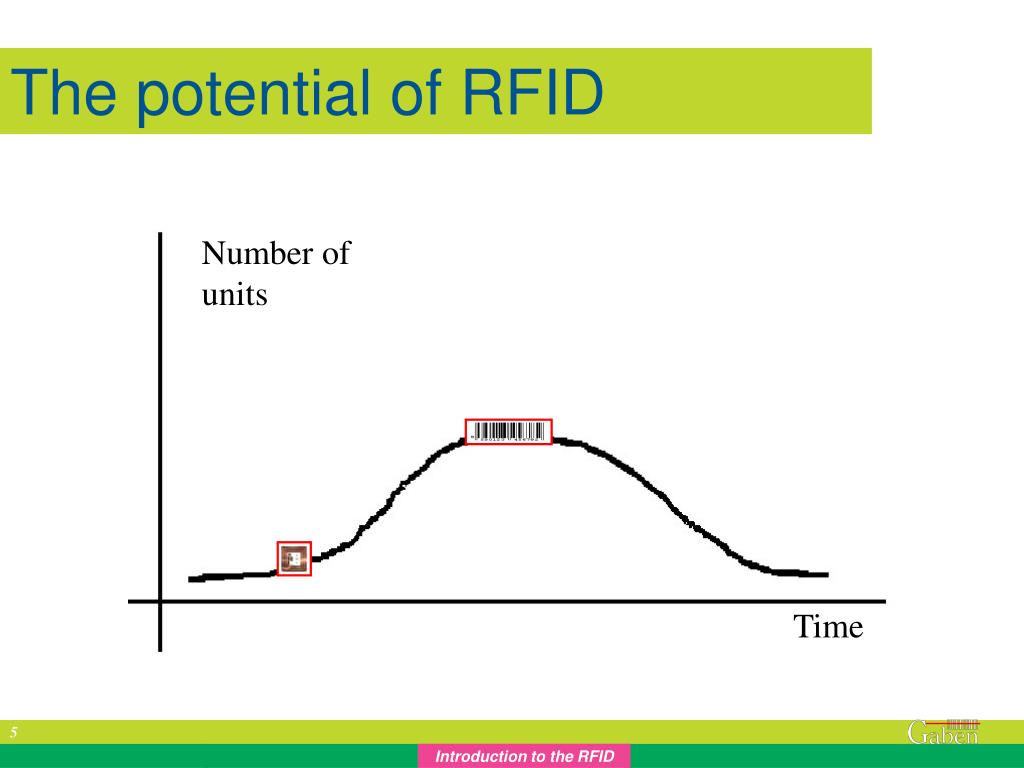

  5. The potential of RFID Number of units Time 5 Introduction to the RFID

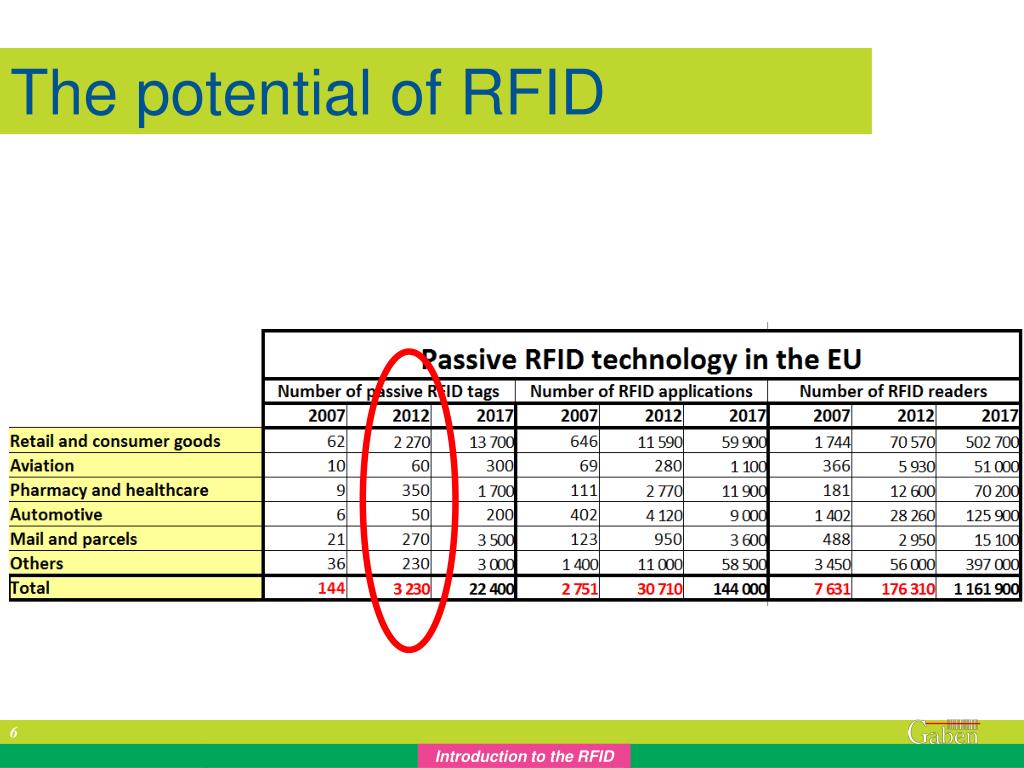

  6. The potential of RFID 6 Introduction to the RFID

  7. The potential of RFID Future of RFID = SMARTLABEL 7 Why SMARTLABEL?

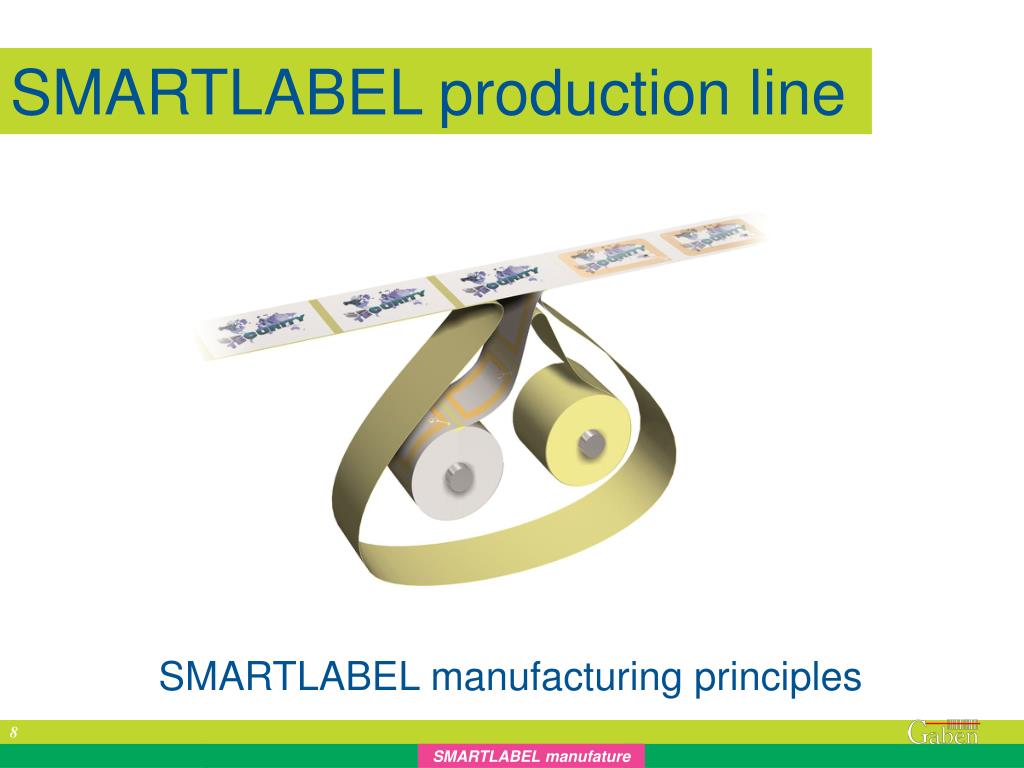

  8. SMARTLABEL production line SMARTLABEL manufacturing principles 8 SMARTLABEL manufature

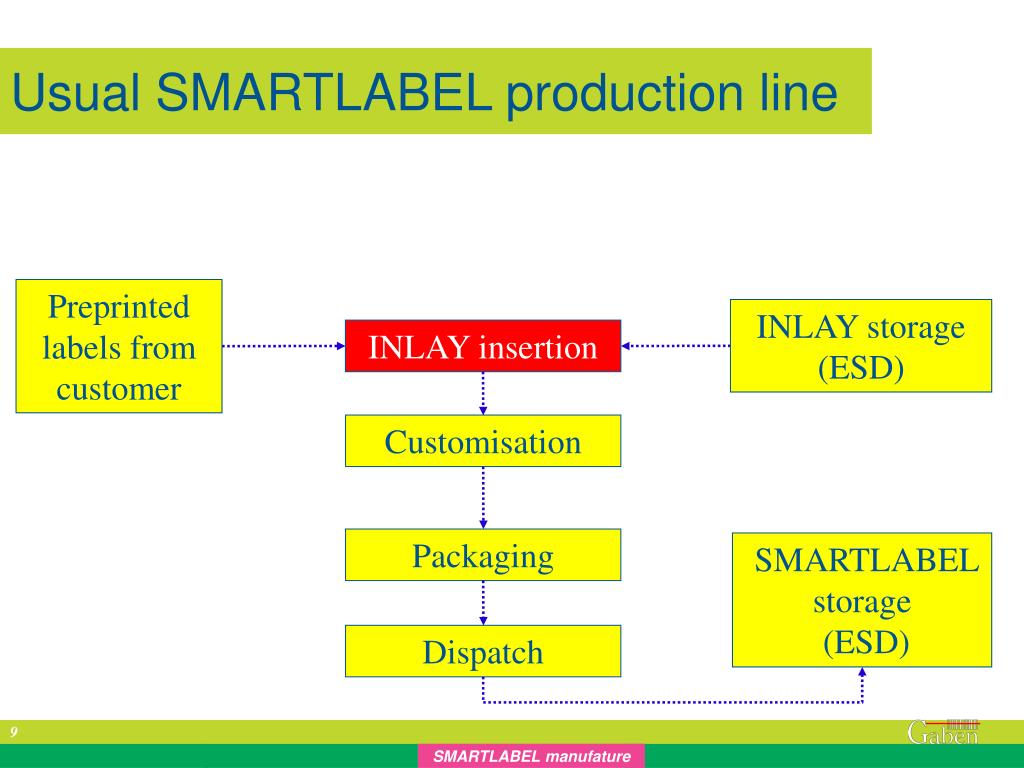

  9. Usual SMARTLABEL production line Preprinted labels from customer INLAY storage (ESD) INLAY insertion Customisation Packaging SMARTLABEL storage (ESD) Dispatch 9 SMARTLABEL manufature

  10. New SMARTLABEL production line Paper storage Laser cut INLAY storage (ESD) INLAY insertion Customisation SMARTLABEL storage (ESD) Packaging Dispatch 10 SMARTLABEL manufature

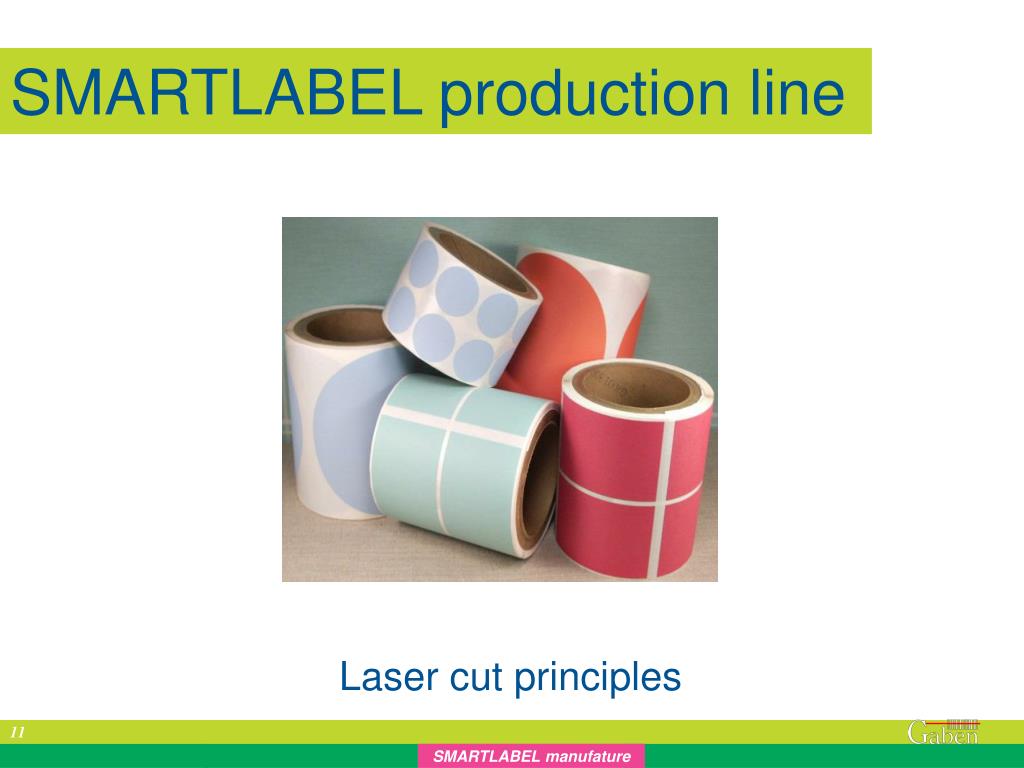

  11. SMARTLABEL production line Laser cut principles 11 SMARTLABEL manufature

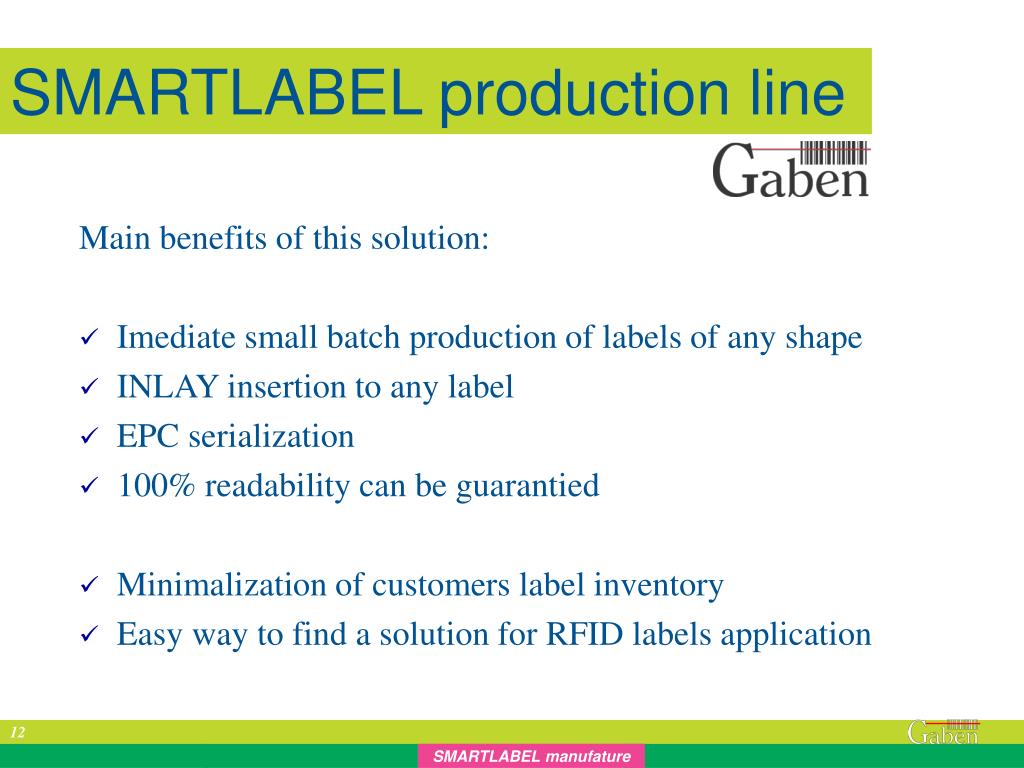

  12. SMARTLABEL production line Main benefits of this solution: • Imediate small batch production of labels of any shape • INLAY insertion to any label • EPC serialization • 100% readability can be guarantied • Minimalization of customers label inventory • Easy way to find a solution for RFID labels application 12 SMARTLABEL manufature

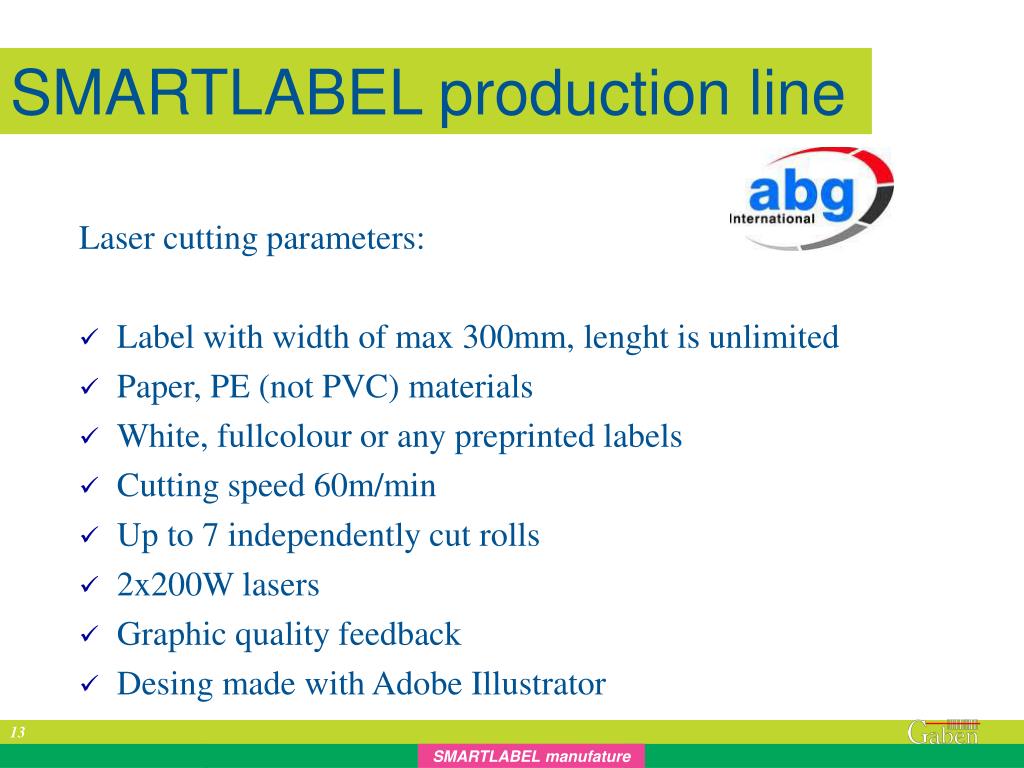

  13. SMARTLABEL production line Laser cutting parameters: • Label with width of max 300mm, lenght is unlimited • Paper, PE (not PVC) materials • White, fullcolour or any preprinted labels • Cutting speed 60m/min • Up to 7 independently cut rolls • 2x200W lasers • Graphic quality feedback • Desing made with Adobe Illustrator 13 SMARTLABEL manufature

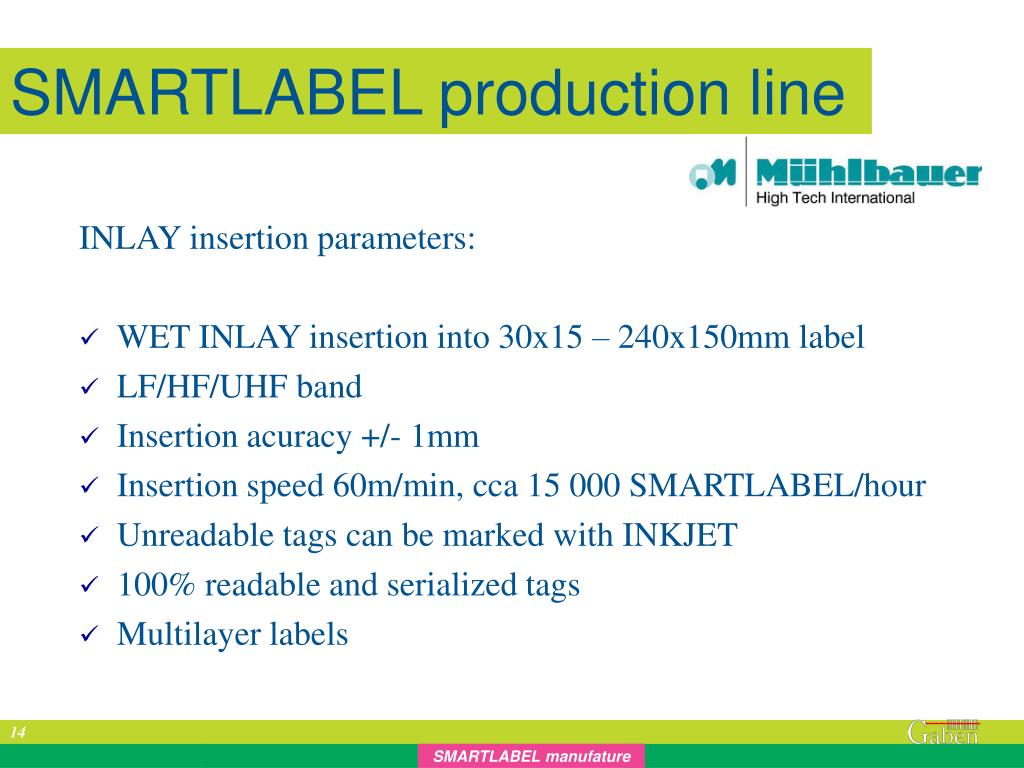

  14. SMARTLABEL production line INLAY insertion parameters: • WET INLAY insertion into 30x15 – 240x150mm label • LF/HF/UHF band • Insertion acuracy +/- 1mm • Insertion speed 60m/min, cca 15 000 SMARTLABEL/hour • Unreadable tags can be marked with INKJET • 100% readable and serialized tags • Multilayer labels 14 SMARTLABEL manufature

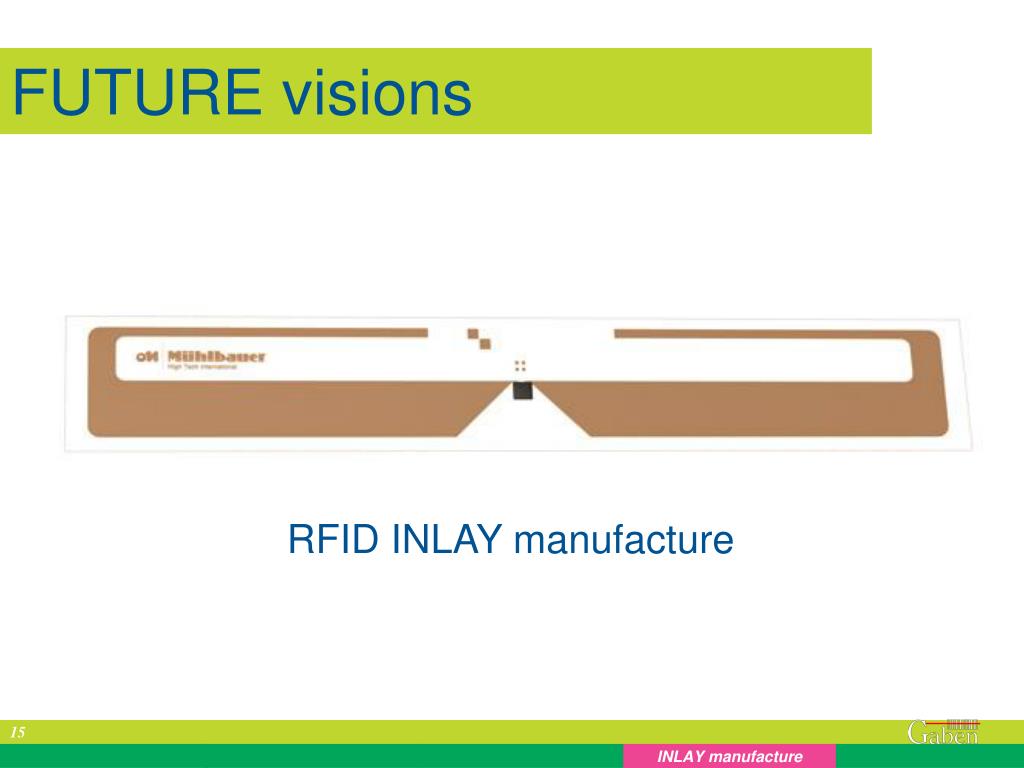

  15. FUTURE visions RFID INLAY manufacture 15 INLAY manufacture

  16. Czech manufacturer of smartlabels 16 Úvod
