  1. Analysis of Aeronautical Gateway Protocol Curtis Kelsey University of Missouri

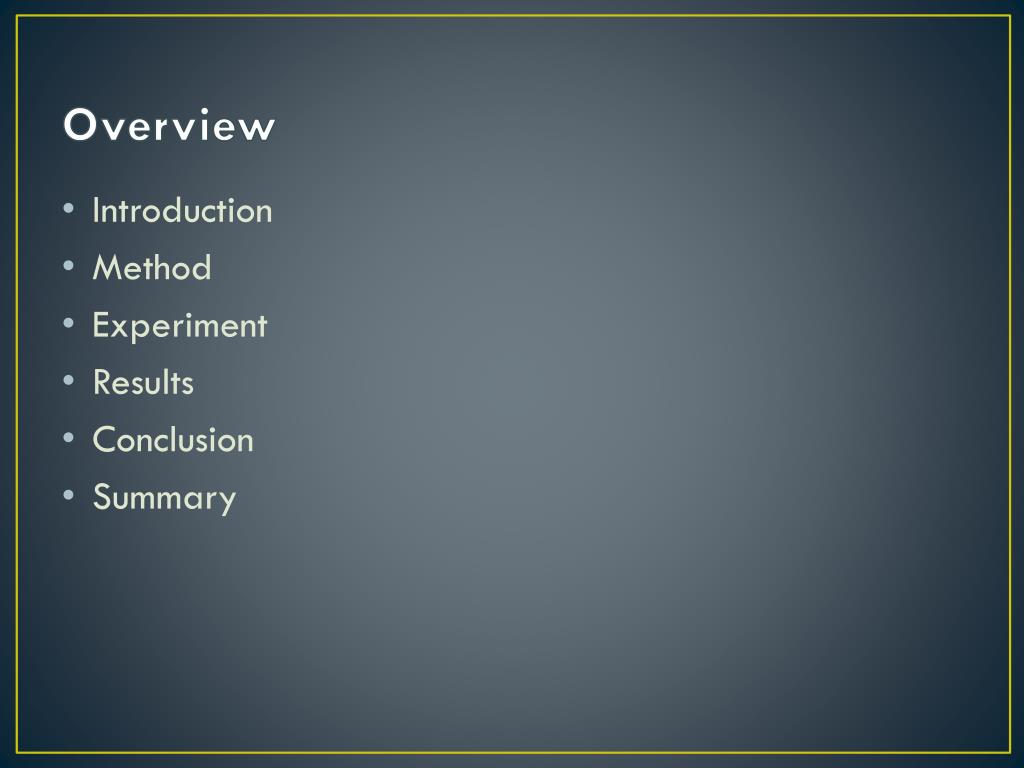

  2. Overview • Introduction • Method • Experiment • Results • Conclusion • Summary

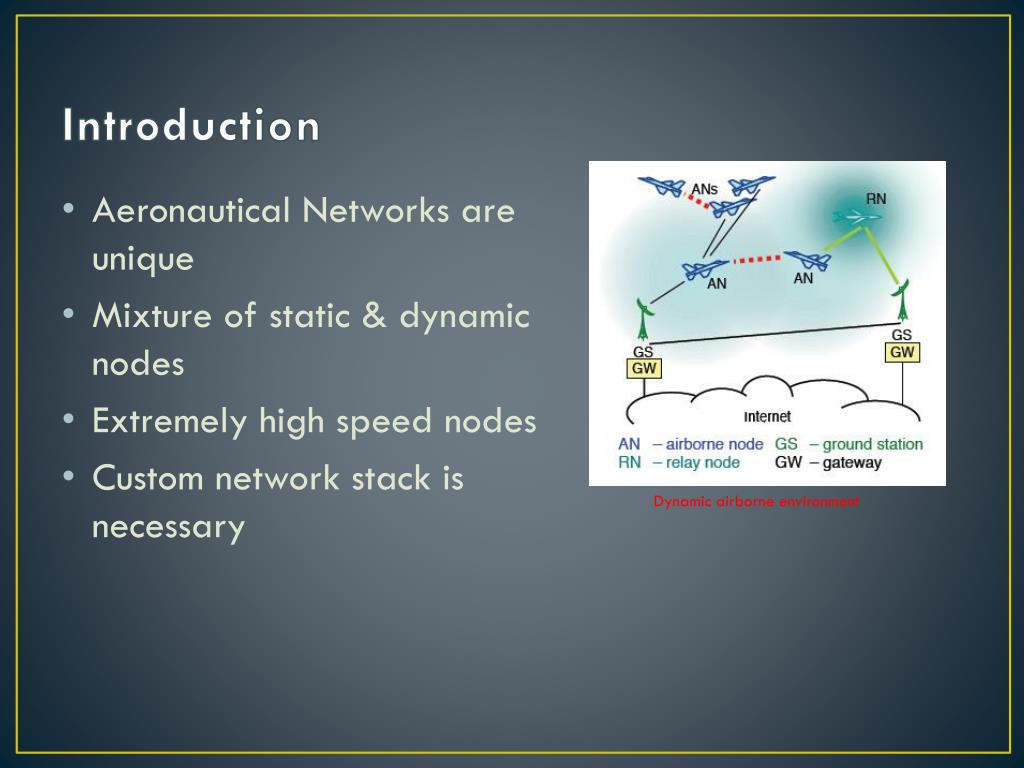

  3. Introduction • Aeronautical Networks are unique • Mixture of static & dynamic nodes • Extremely high speed nodes • Custom network stack is necessary Dynamic airborne environment

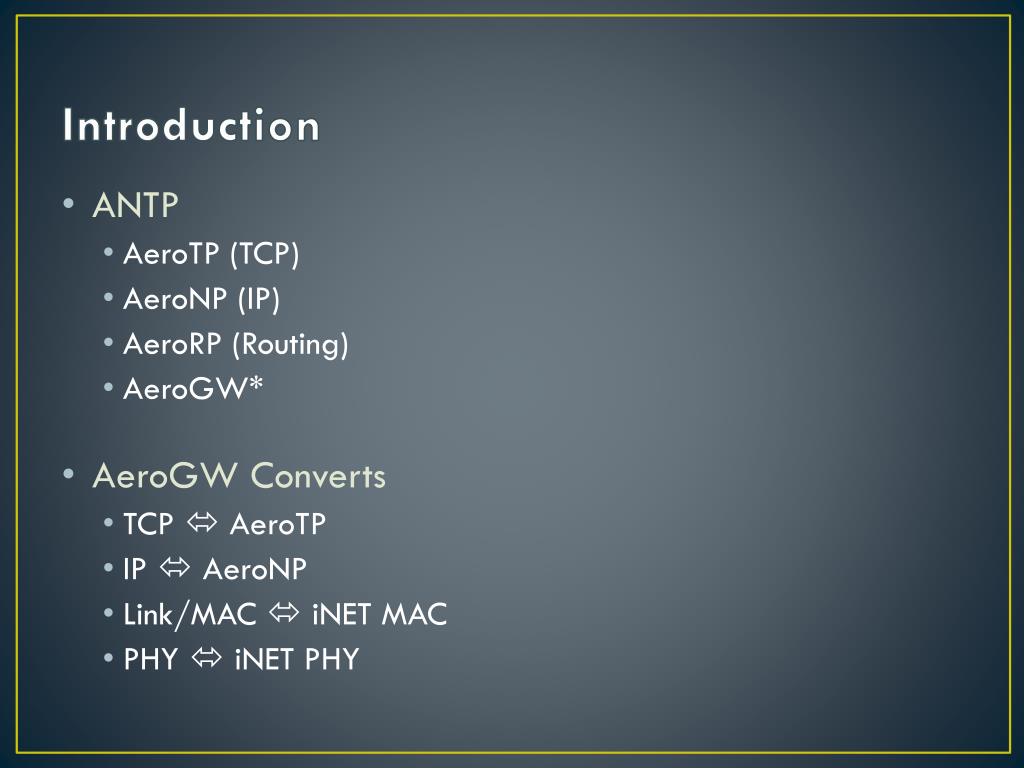

  4. Introduction • ANTP • AeroTP (TCP) • AeroNP (IP) • AeroRP (Routing) • AeroGW* • AeroGW Converts • TCP  AeroTP • IP  AeroNP • Link/MAC  iNET MAC • PHY  iNET PHY

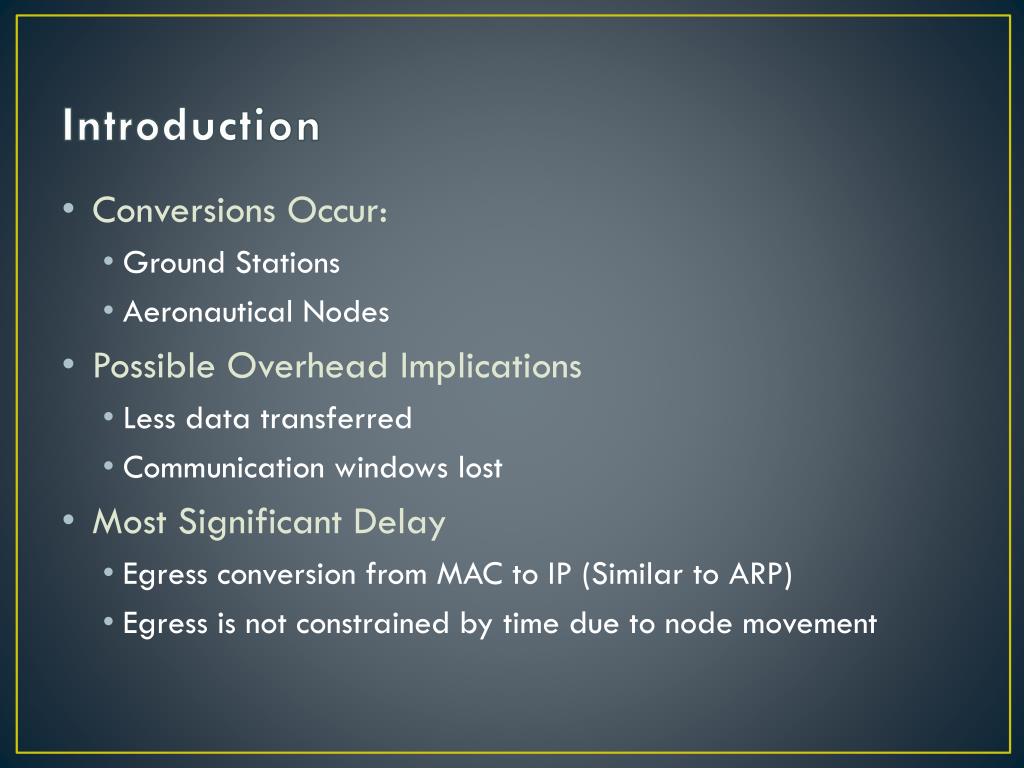

  5. Introduction • Conversions Occur: • Ground Stations • Aeronautical Nodes • Possible Overhead Implications • Less data transferred • Communication windows lost • Most Significant Delay • Egress conversion from MAC to IP (Similar to ARP) • Egress is not constrained by time due to node movement

  6. Method • Does delay caused by the conversion process result in excessive data loss? • Implementation of entire suite beyond the scope of one semester • Implement a network simulation • Use additional delay as control variable • Analyze data delivery

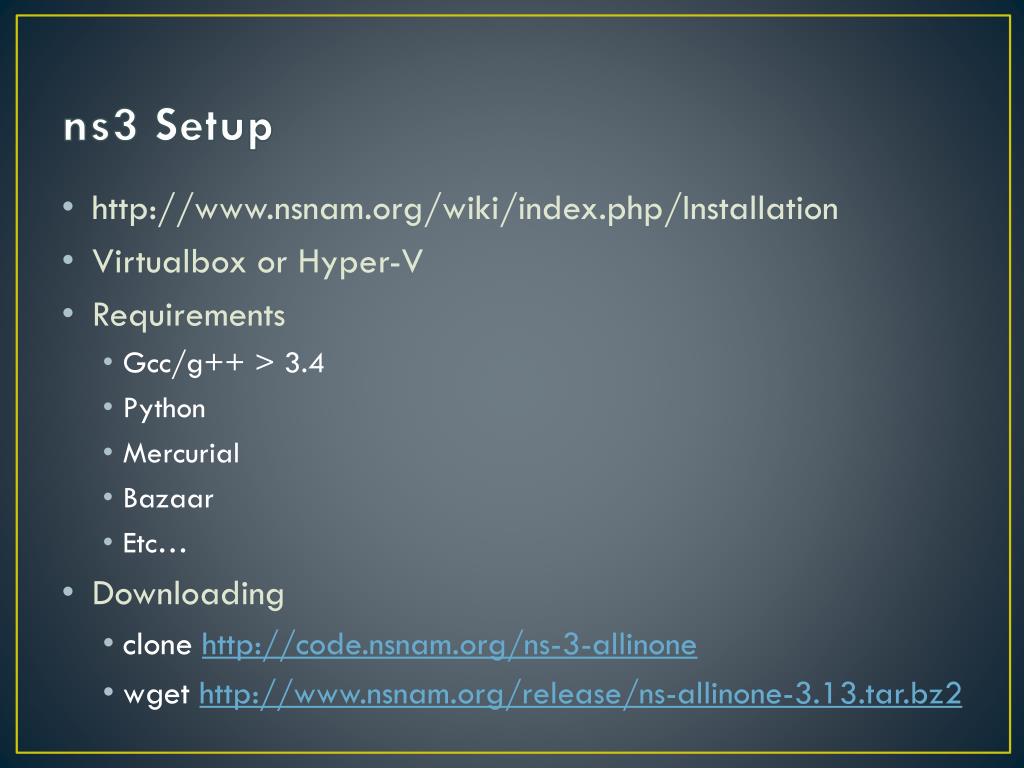

  7. ns3 Setup • http://www.nsnam.org/wiki/index.php/Installation • Virtualbox or Hyper-V • Requirements • Gcc/g++ > 3.4 • Python • Mercurial • Bazaar • Etc… • Downloading • clone http://code.nsnam.org/ns-3-allinone • wgethttp://www.nsnam.org/release/ns-allinone-3.13.tar.bz2

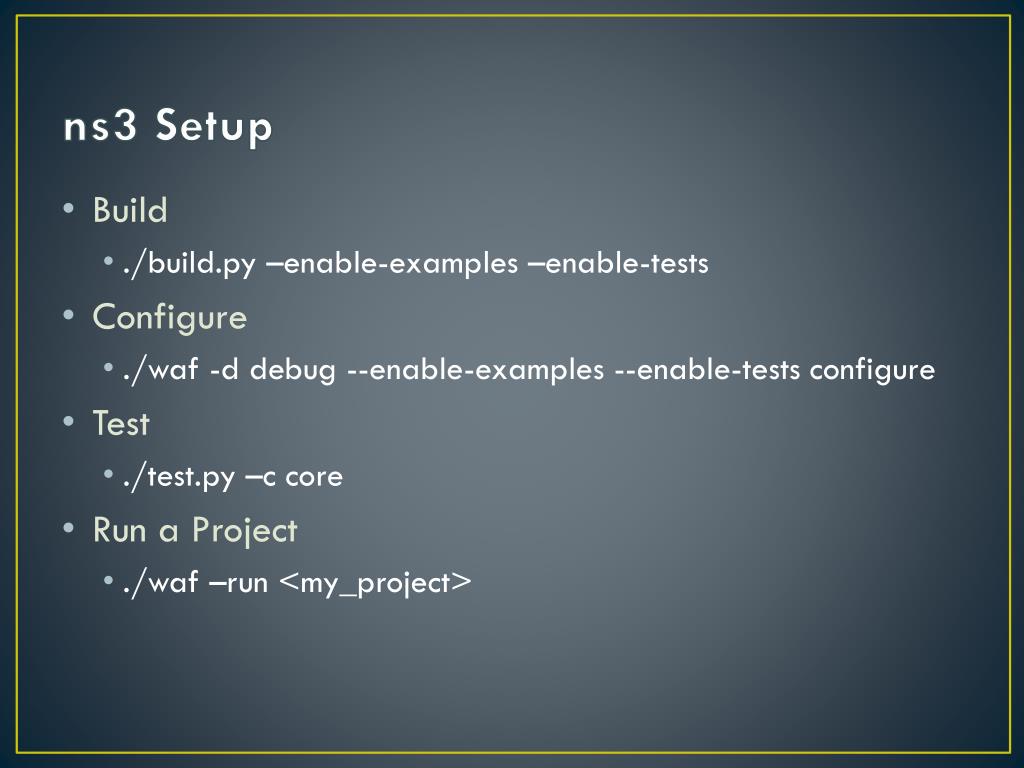

  8. ns3 Setup • Build • ./build.py –enable-examples –enable-tests • Configure • ./waf -d debug --enable-examples --enable-tests configure • Test • ./test.py –c core • Run a Project • ./waf –run <my_project>

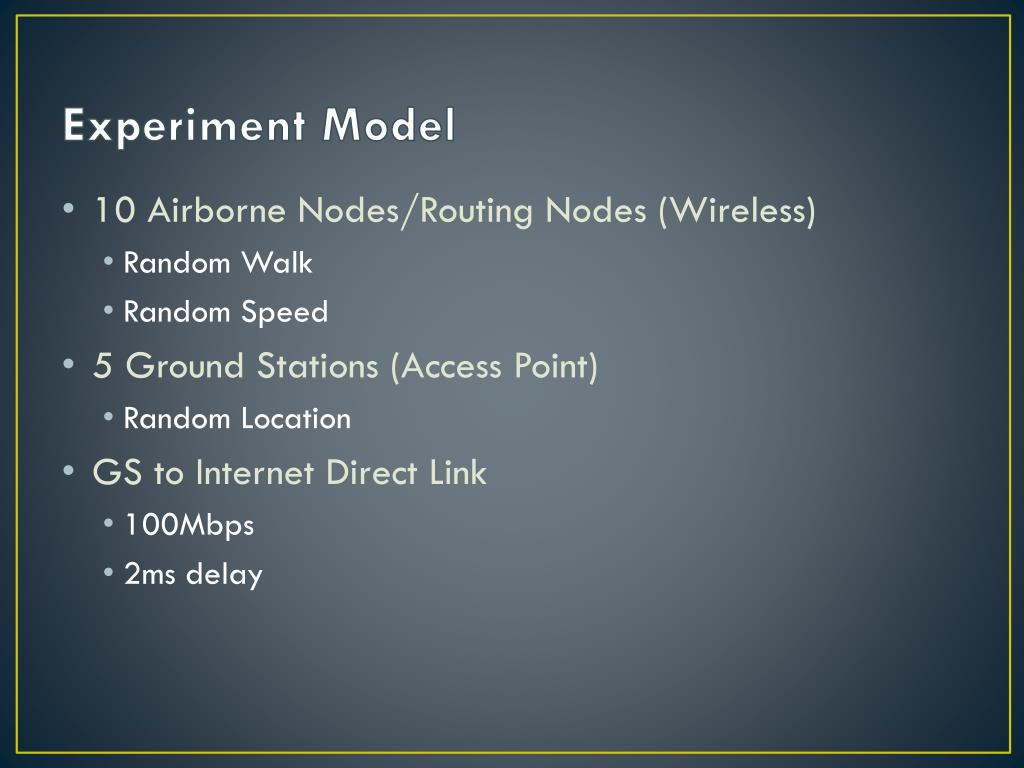

  9. Experiment Model • 10 Airborne Nodes/Routing Nodes (Wireless) • Random Walk • Random Speed • 5 Ground Stations (Access Point) • Random Location • GS to Internet Direct Link • 100Mbps • 2ms delay

  10. Experiment Model • 1 Destination Internet Node (Wired) • 100Mbps • 1/10/100/1000ms delay • Traffic • 100-1kb packets/10 seconds • UDP • Zone • 1000 x 1000 area

  11. Experiment Construction • PointToPointHelper • Handles Wired/Wireless Bridge • CsmaHelper • Handles wired nodes • WifiHelper • Handles wireless nodes • MobilityHelper • Handles AN and RN Mobility

  12. Experiment Construction • Packet capture enabled • AP • Csma (Wired) • Wireless Nodes

  13. Results • Simulation ran for • 1ms additional delay • 10ms additional delay • 100ms additional delay • 1000ms additional delay • At Wireless Network Edge

  14. Results • Packets captured at • Wireless AP (Ground Station) • Wired Node • Pcap file processed with Tcpdump & sent to log files • Tcpdump –nn –tt –r (pcap file) > (log file)

  15. Results 3 • How many of the 100 packets got delivered? Wired Node Wireless Nodes

  16. Results • 1ms • 100% packet delivery • No delay between transmit/receive • 10ms • 100% packet delivery • No delay between transmit/receive • 100ms • 100% packet delivery • No delay between transmit/receive • 1000ms • 100% packet delivery • No delay between transmit/receive

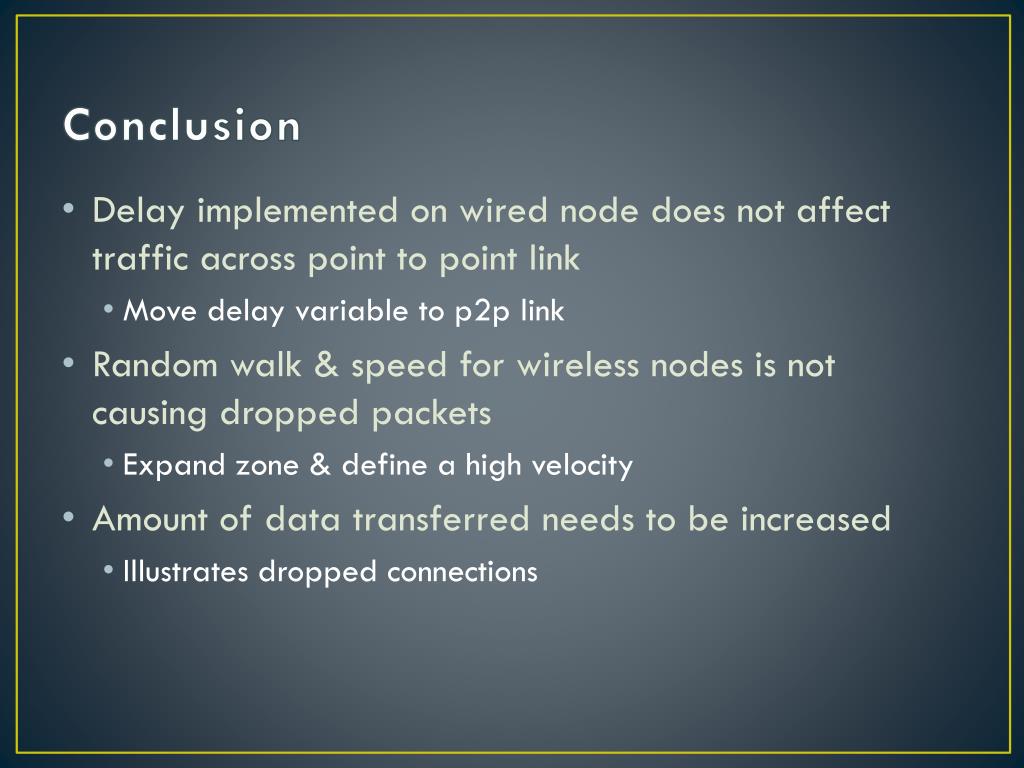

  17. Conclusion • Delay implemented on wired node does not affect traffic across point to point link • Move delay variable to p2p link • Random walk & speed for wireless nodes is not causing dropped packets • Expand zone & define a high velocity • Amount of data transferred needs to be increased • Illustrates dropped connections

  18. References • (Primary Paper) E. K. ¸Cetinkaya and J. P. G. Sterbenz. Aeronautical Gateways: Supporting TCP/IP-based Devices and Applications over Modern Telemetry Networks. In Proceedings of the International Telemetering Conference (ITC), Las Vegas, NV, October 2009. • Cetinkaya, E., & Rohrer, J. (2012). Protocols for highly-dynamic airborne networks. Proceedings of the 18th annual international conference on Mobile computing and networking, 411–413. Retrieved from http://dl.acm.org/citation.cfm?id=2348597 • Narra, H., Cetinkaya, E., & Sterbenz, J. (2012). Performance analysis of AeroRP with ground station advertisements. Proceedings of the first ACM …, 43–47. Retrieved from http://dl.acm.org/ft_gateway.cfm?id=2248337&ftid=1233995&dwn=1&CFID=118936837&CFTOKEN=41922410 • Sterbenz, J., Pathapati, K., Nguyen, T., & Rohrer, J. (2011). Performance Analysis of the AeroTP Transport Protocol for Highly-Dynamic Airborne Telemetry Networks. Retrieved from http://oai.dtic.mil/oai/oai?verb=getRecord&metadataPrefix=html&identifier=ADA544743 • J. P. Rohrer, E. Perrins, and J. P. G. Sterbenz. End-to-end disruption-tolerant transport protocol issues and design for airborne telemetry networks. In Proceedings of the International Telemetering Conference (ITC), San Diego, CA, October 2008 • A. Jabbar, E. Perrins, and J. P. G. Sterbenz. A cross-layered protocol architecture for highly-dynamic multihop airborne telemetry networks. In Proceedings of the International Telemetering Conference (ITC), San Diego, CA, October 2008.

  19. Summary • Introduction • ns3 setup • Experiment Construction • Results • Conclusion • Summary

  20. Questions?
