  1. More on RDT Robert John Walters

  2. RDT – a reprise • A Graphically based formal modelling language • Models represented as diagrams (not text) • Communications inspired by π-calculus • Drawn in two parts: • Behaviour of components (processes) • How they are connected together

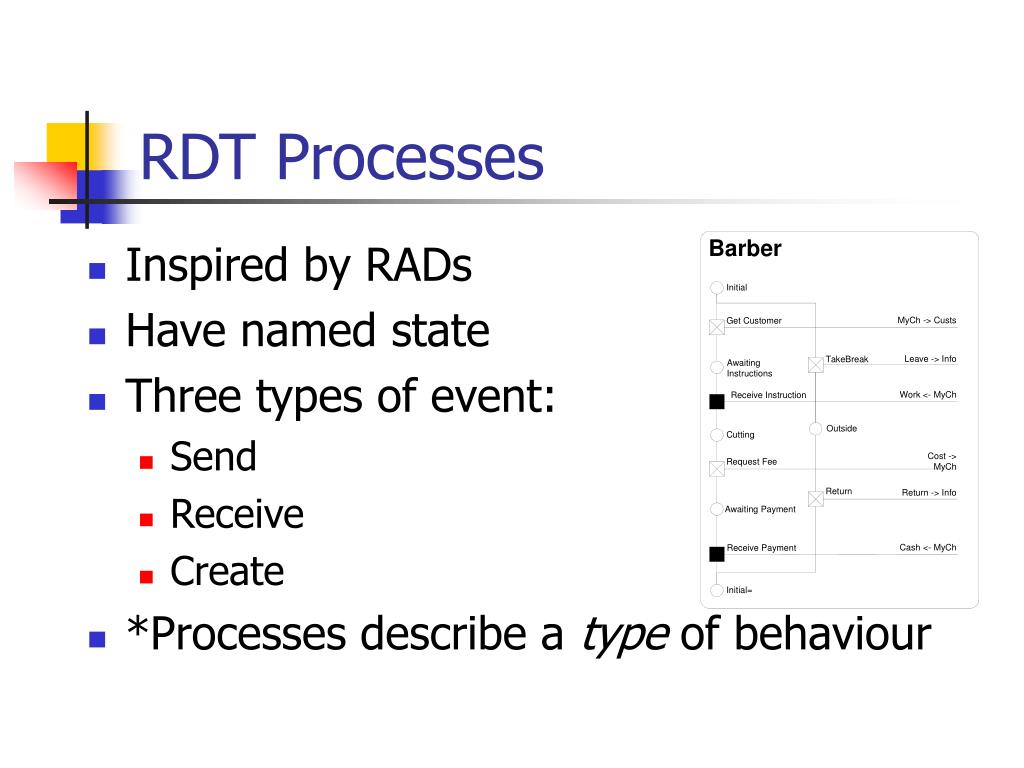

  3. RDT Processes • Inspired by RADs • Have named state • Three types of event: • Send • Receive • Create • *Processes describe a type of behaviour

  4. RDT Models • Process instances labelled with a name and their type • Channels (names) known to an instance are shown and labelled • Connections between channels shown by lines • *Concerned with instances

  5. Why target SPIN? • Highly regarded and widely available • Input language looks like “C” • Direct input of property to be checked • Natural correspondence between channels in Promela and RDT

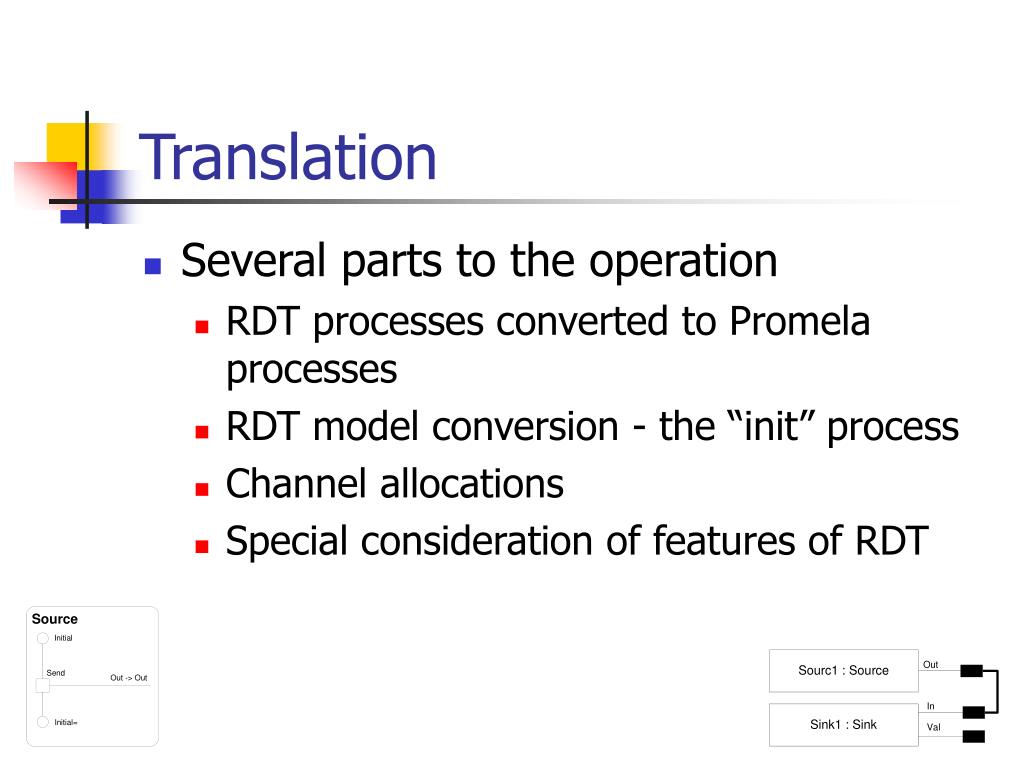

  6. Translation • Several parts to the operation • RDT processes converted to Promela processes • RDT model conversion - the “init” process • Channel allocations • Special consideration of features of RDT

  7. Translation: Processes (1) • Could have used a single “do” loop with process state stored in a variable • State would have to be a number (since there is no string type in Promela) • Establishing the extent to which a process is exercised is not straightforward

  8. Translation: Processes (2) • Each RDT process is converted to a process in Promela • Label in Promela for each state of the RDT process • “if” statement with each label with two statements which • Perform the communication • Move process to the next state

  9. Translation: Processes (3) proctype Source(chan Out) { initial: if :: Out?Out; goto initial; fi; } proctype Sink(chan In, val) { initial: if :: In?Val; goto initial; fi; }

  10. Translation: Models (1) • Performed (assembled) in the “init” process • Required instances of processes are created (run) • Actions enclosed in “atomic” statement (So things don’t start happening until we are ready) • Connections implemented by appropriate allocation of channels as parameters to process instances

  11. Translation: Models (2) chan ch0 = [CHLEN] of {chan}; chan nch0 = [0] of {chan}; /* Process definitions here */ init { Atomic { run Source(ch0); run Sink(ch0, nch0); } };

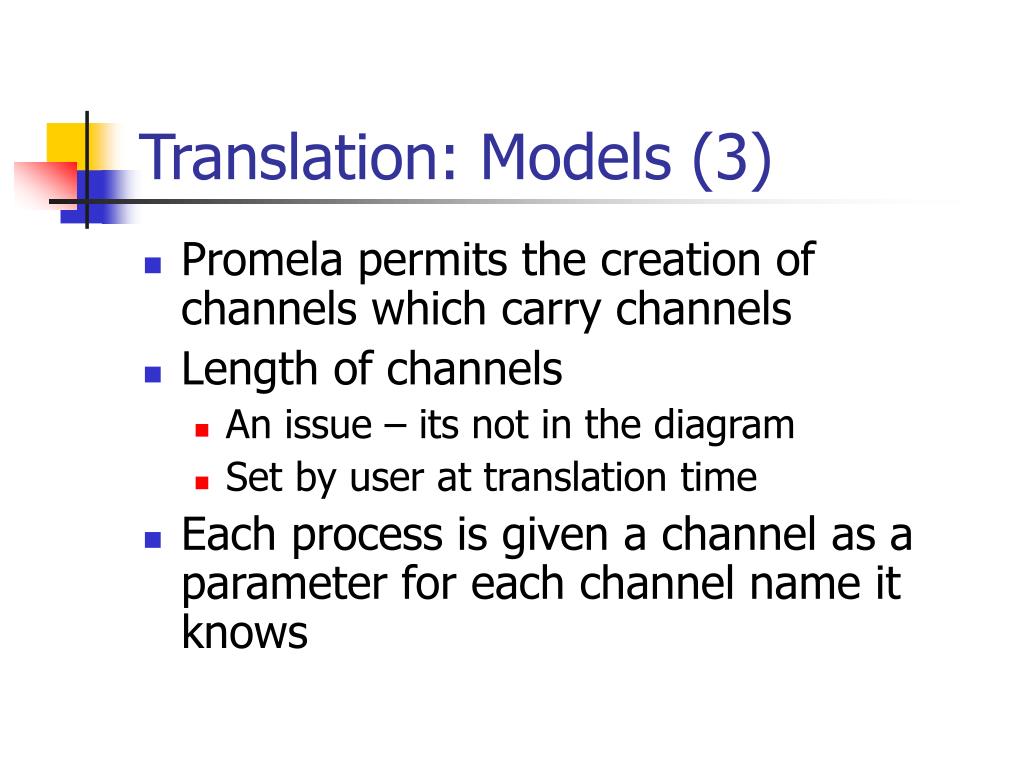

  12. Translation: Models (3) • Promela permits the creation of channels which carry channels • Length of channels • An issue – its not in the diagram • Set by user at translation time • Each process is given a channel as a parameter for each channel name it knows

  13. Issues – Unconnected channels • Each process has a parameter for each channel name it knows • What if the name isn’t connected to anything (at start up)? • Omitting parameters to processes is an error • Unconnected names given a nil length channel each to avoid problems

  14. Issues – the Create type event • Permits a process to bring a new channel (value) into existence • Translation scheme outlined so far requires all channels to be declared before start of execution • Solution adopted is a provide processes with a collection of channels to use • In current implementation, when these are exhausted, create events can no longer occur

  15. Issues – Special case of Read if :: X?X; goto second; fi; chan tmp; … if :: atomic{X?tmp; X = tmp; } goto second; fi;

  16. Further work • I already have a tool which performs this translation automatically • Solution to the Create problem…

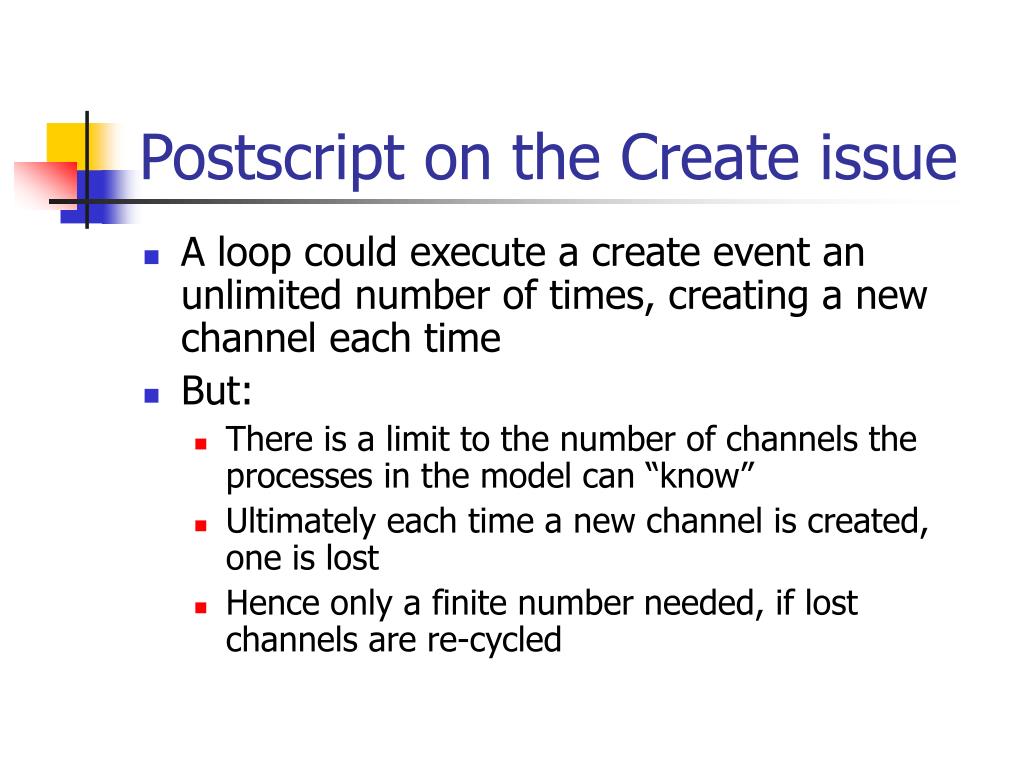

  17. Postscript on the Create issue • A loop could execute a create event an unlimited number of times, creating a new channel each time • But: • There is a limit to the number of channels the processes in the model can “know” • Ultimately each time a new channel is created, one is lost • Hence only a finite number needed, if lost channels are re-cycled

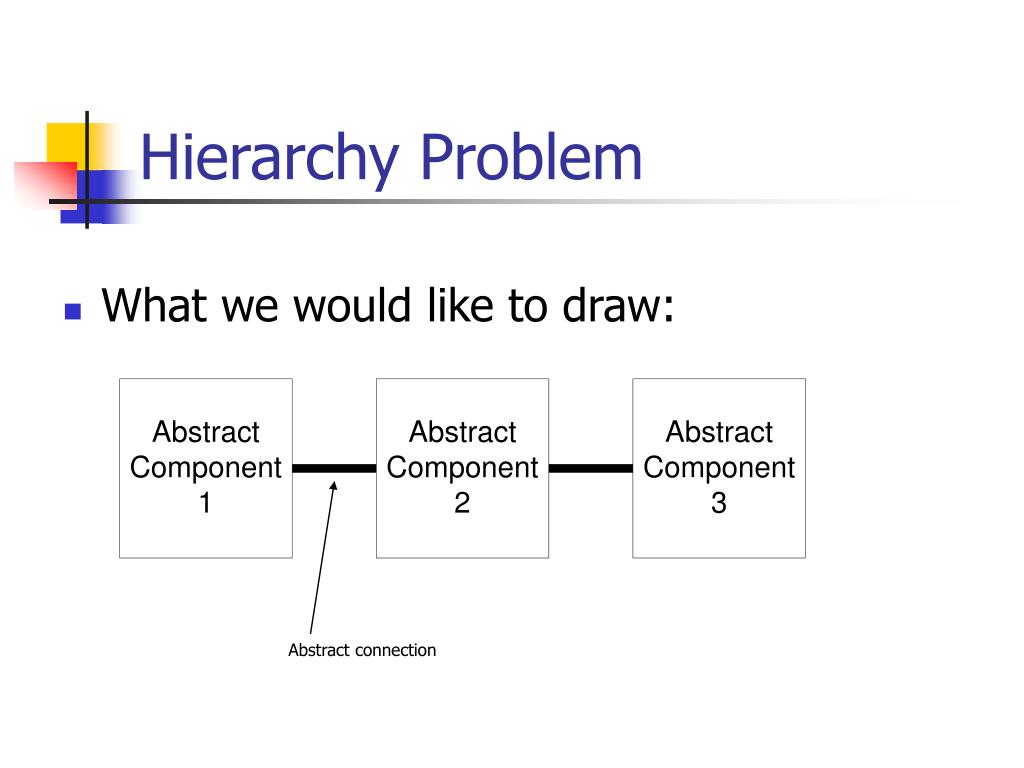

  18. Hierarchy Problem • What we would like to draw: Abstract connection

  19. What we usually get • Boxes within Boxes • With the lines brought out to the edges

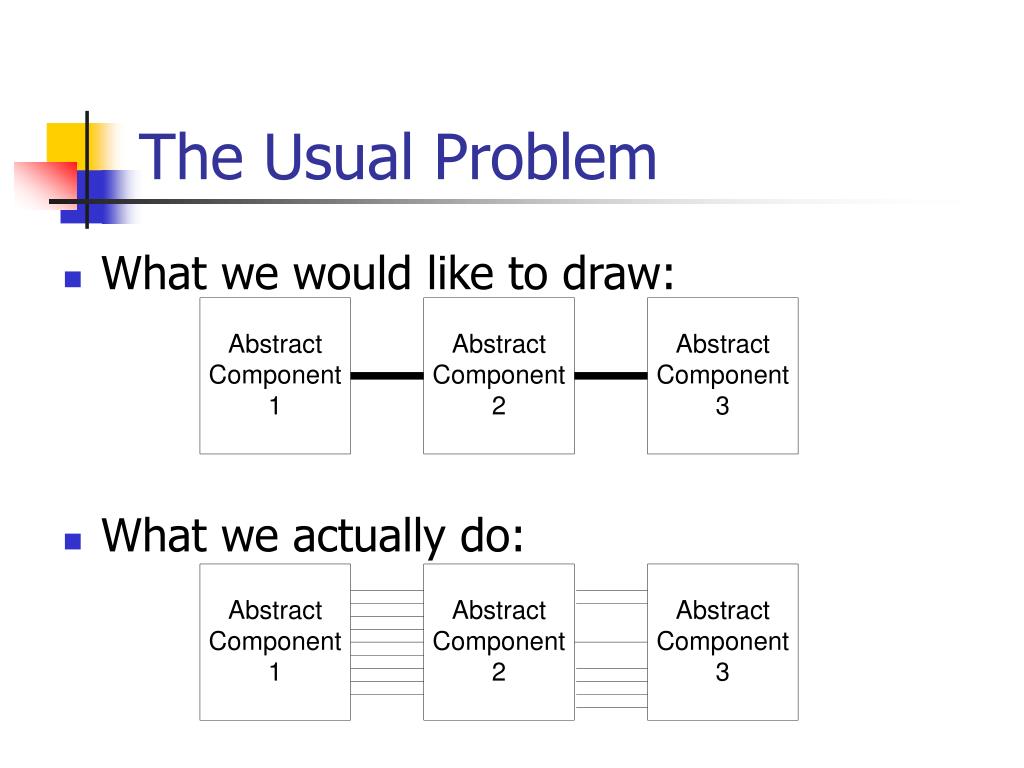

  20. The Usual Problem • What we would like to draw: • What we actually do:

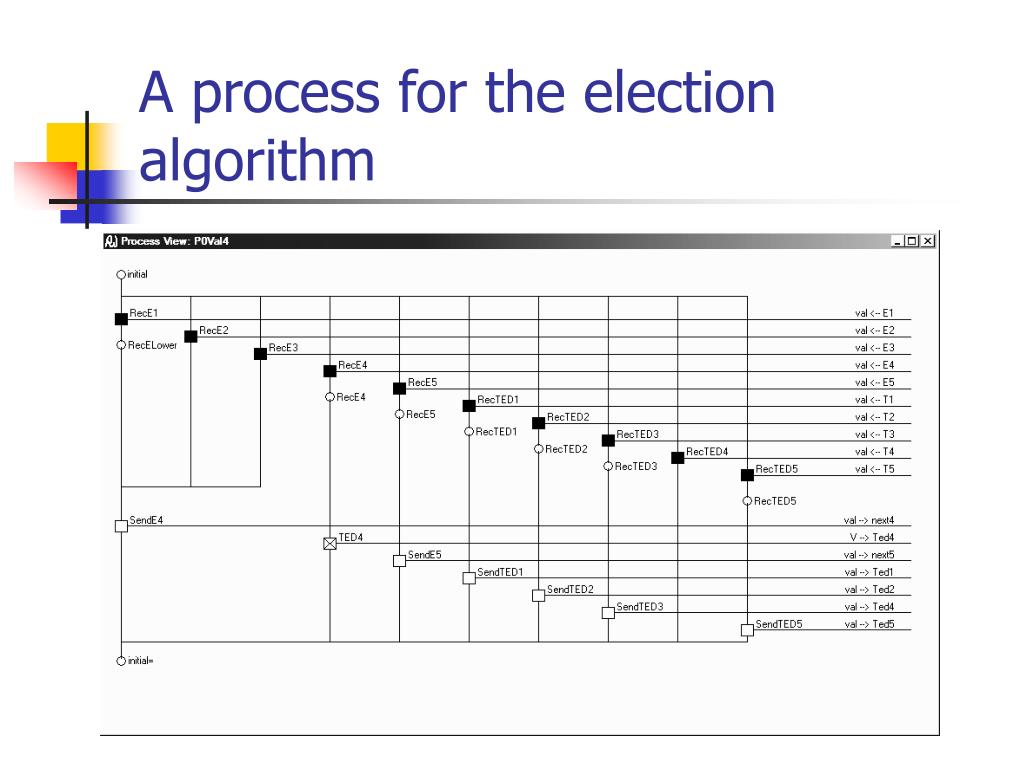

  21. A process for the election algorithm

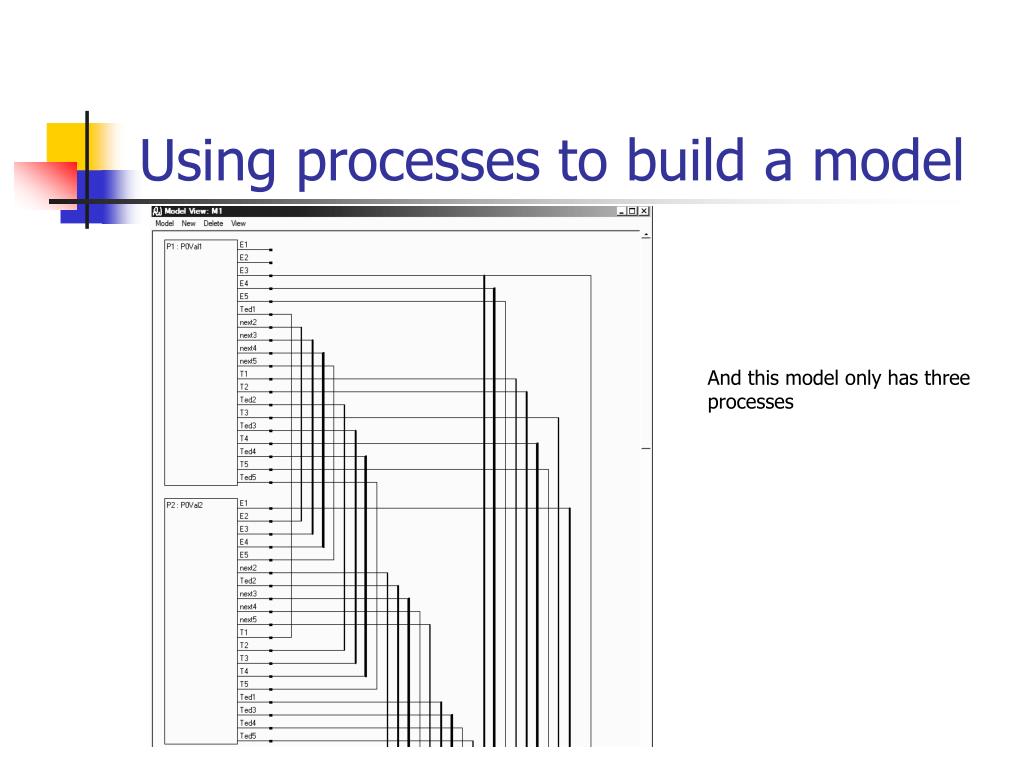

  22. Using processes to build a model And this model only has three processes

  23. Executing the model

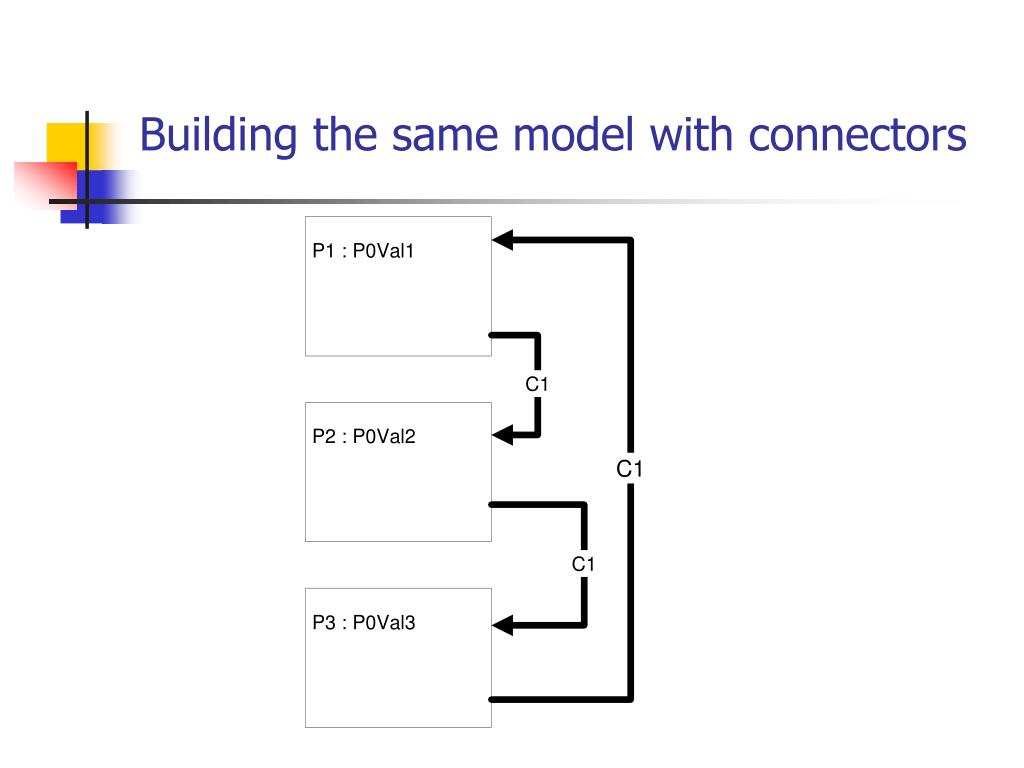

  24. Building the same model with connectors

  25. The Connector

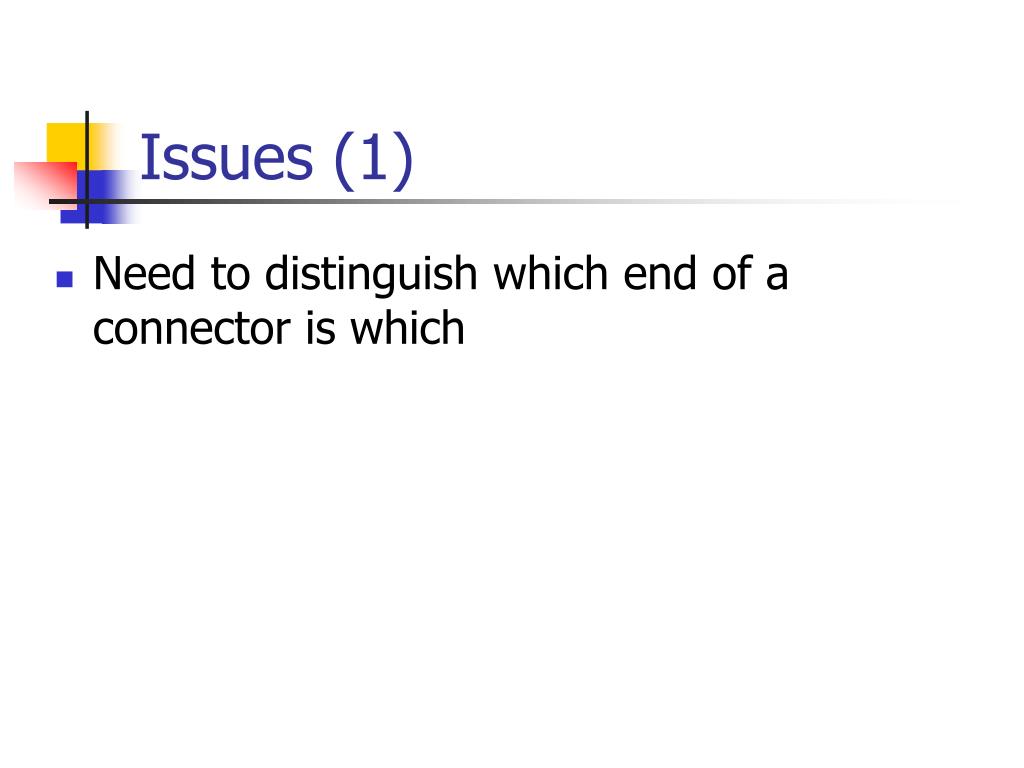

  26. Issues (1) • Need to distinguish which end of a connector is which

  27. Issues (2) • Allowing processes to be connected at the higher, “connector” level • Want to use the connectors in the model definition (before connectors and processes fully elaborated) • Don’t want to add the connectors as a tidying exercise after model is complete • Tool draws either view – either showing connectors (plus any individually created channels), or the all of the detail

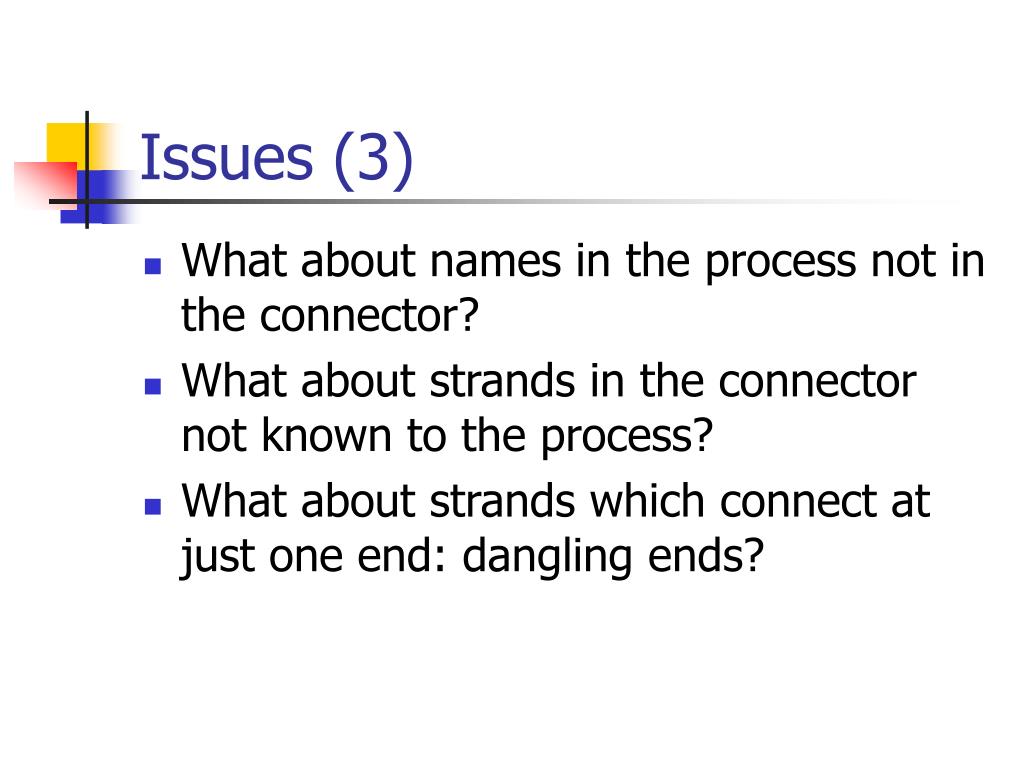

  28. Issues (3) • What about names in the process not in the connector? • What about strands in the connector not known to the process? • What about strands which connect at just one end: dangling ends?

  29. Conclusion • Visual Formal Models can be useful • Single level diagrams get cluttered • Addressing this requires attention to channels as well as processes • This is not as simple as it appears
