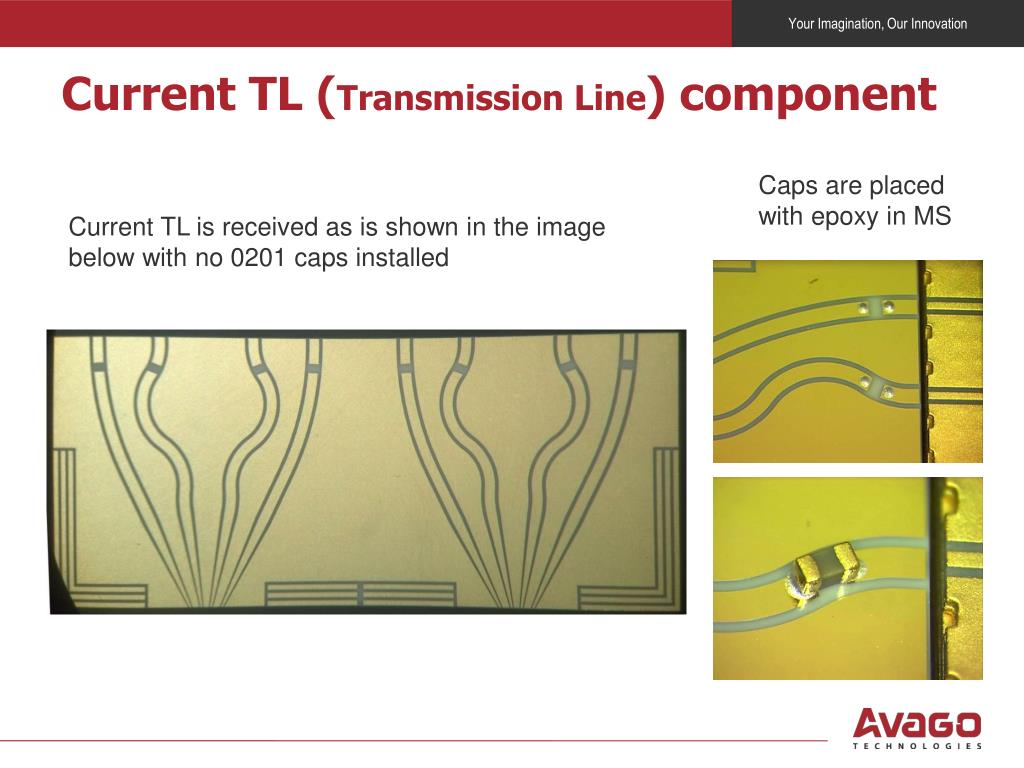

  1. Current TL (Transmission Line) component Caps are placed with epoxy in MS Current TL is received as is shown in the image below with no 0201 caps installed 1

  2. New Proposed TL component New design TL component the plan is to install the 0201 caps using solder, so pick up tool will need to be developed to avoid contact with capacitors installed.
