  1. Optimized load sharing control by means of thermal reliability management Carsten Nesgaard Department of Electric Power Engineering Technical University of Denmark Henrik Møller

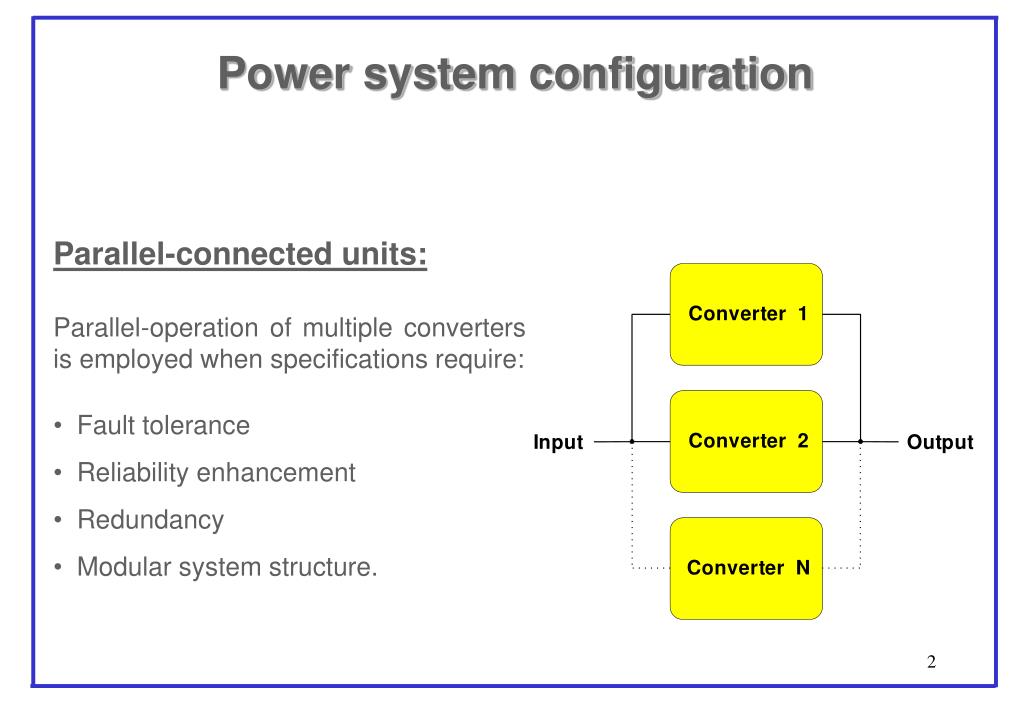

  2. Power system configuration Parallel-connected units: Parallel-operation of multiple converters is employed when specifications require: • Fault tolerance • Reliability enhancement • Redundancy • Modular system structure.

  3. Converter Schematic overview of key converter elements:

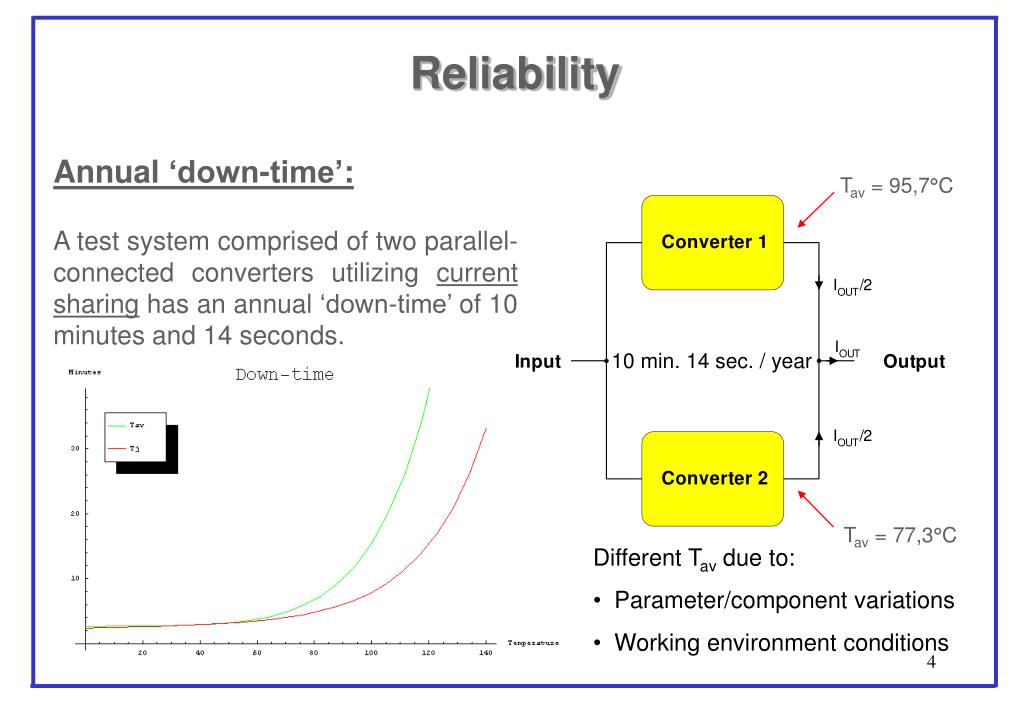

  4. Reliability Annual ‘down-time’: A test system comprised of two parallel-connected converters utilizing current sharing has an annual ‘down-time’ of 10 minutes and 14 seconds. Tav = 95,7C 10 min. 14 sec. / year Tav = 77,3C Different Tav due to: • Parameter/component variations • Working environment conditions

  5. Current sharing technique (“Prior art”) Converter and current sharing structure:

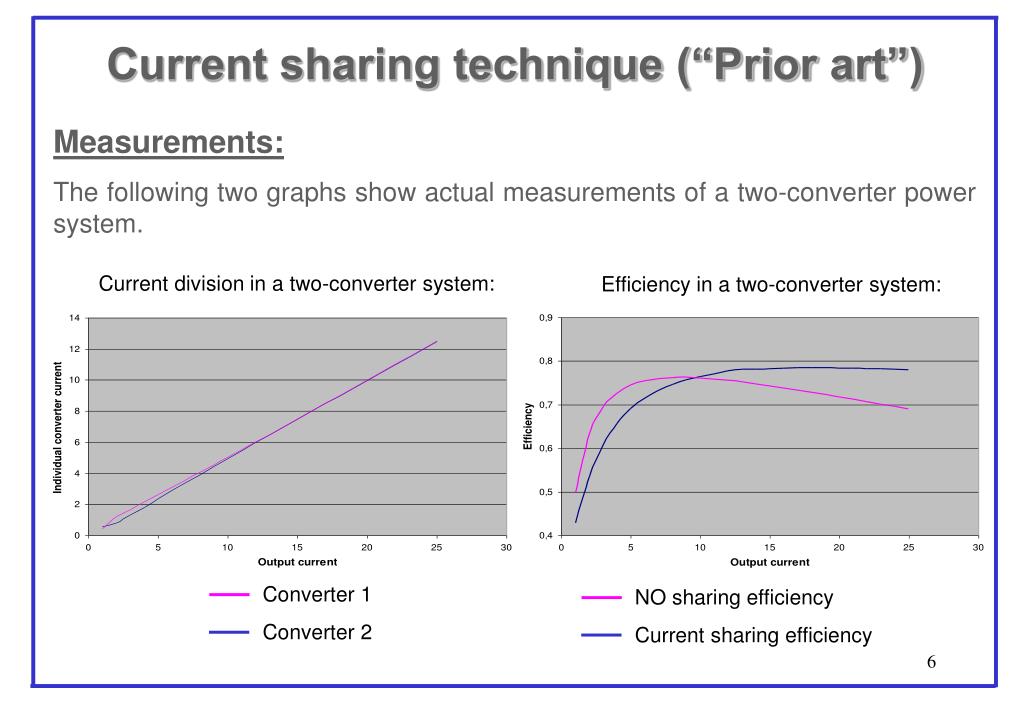

  6. Current sharing technique (“Prior art”) Measurements: The following two graphs show actual measurements of a two-converter power system. Current division in a two-converter system: Efficiency in a two-converter system: Converter 1 Converter 2 NO sharing efficiency Current sharing efficiency

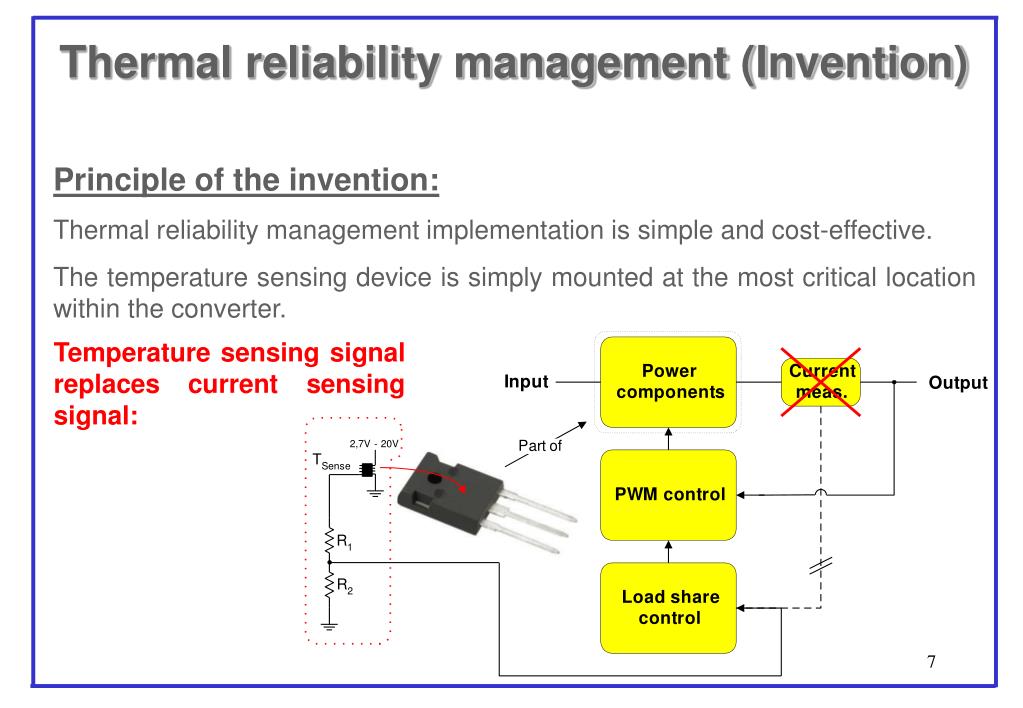

  7. Thermal reliability management (Invention) Principle of the invention: Thermal reliability management implementation is simple and cost-effective. The temperature sensing device is simply mounted at the most critical location within the converter. Temperature sensing signal replaces current sensing signal:

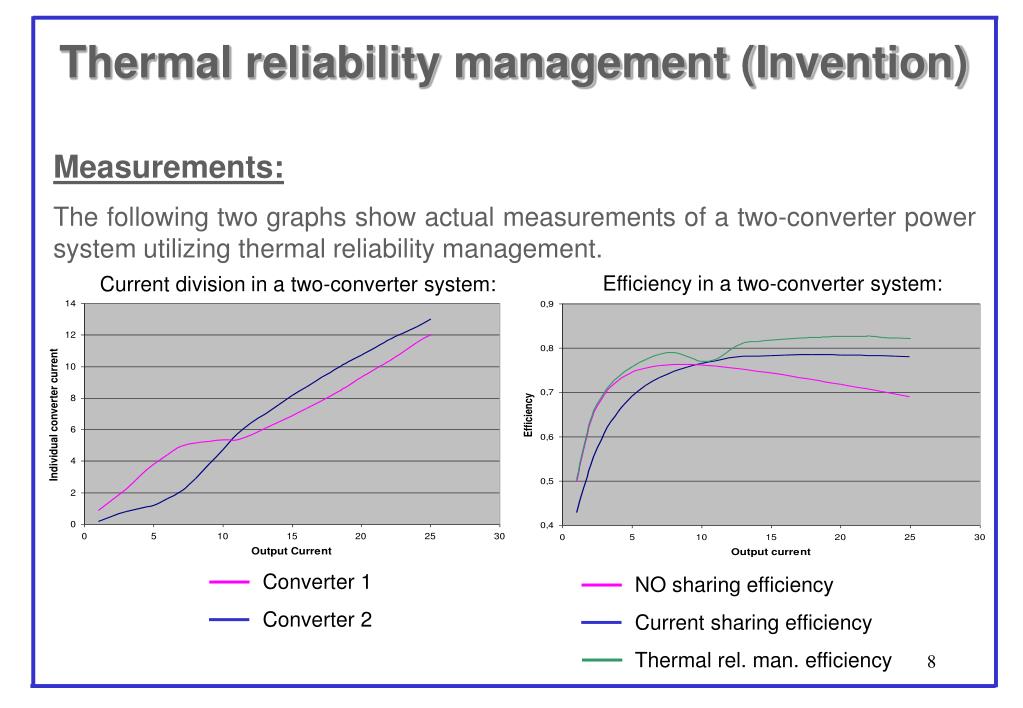

  8. Thermal reliability management (Invention) Measurements: The following two graphs show actual measurements of a two-converter power system utilizing thermal reliability management. Efficiency in a two-converter system: Current division in a two-converter system: Converter 1 Converter 2 NO sharing efficiency Current sharing efficiency Thermal rel. man. efficiency

  9. Thermal reliability management (Invention) Dynamic change in power throughput:

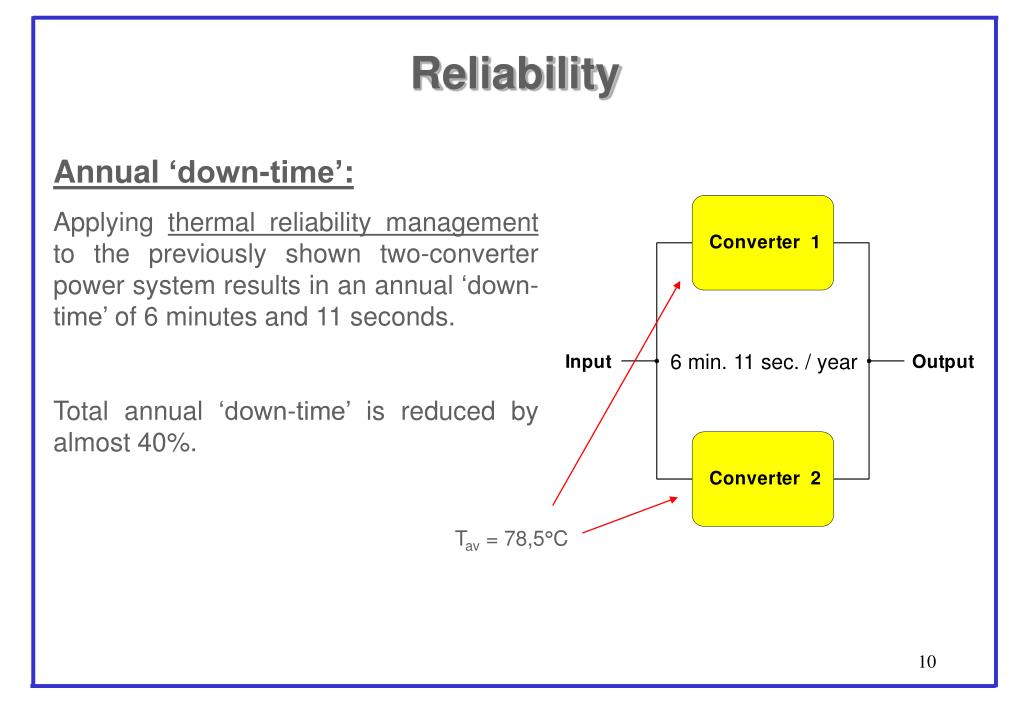

  10. Reliability Annual ‘down-time’: Applying thermal reliability management to the previously shown two-converter power system results in an annual ‘down-time’ of 6 minutes and 11 seconds. Total annual ‘down-time’ is reduced by almost 40%. 6 min. 11 sec. / year Tav = 78,5C

  11. Summary Advantages: • Optimized reliability  fundamentally different load sharing control • Minimized losses  increased overall efficiency • Simple implementation • Ready for immediate implementation in both new and existing designs Disadvantages: • Individual converter failure rate might increase slightly. However, it is aaby far compensated through a much lower average temperature.
