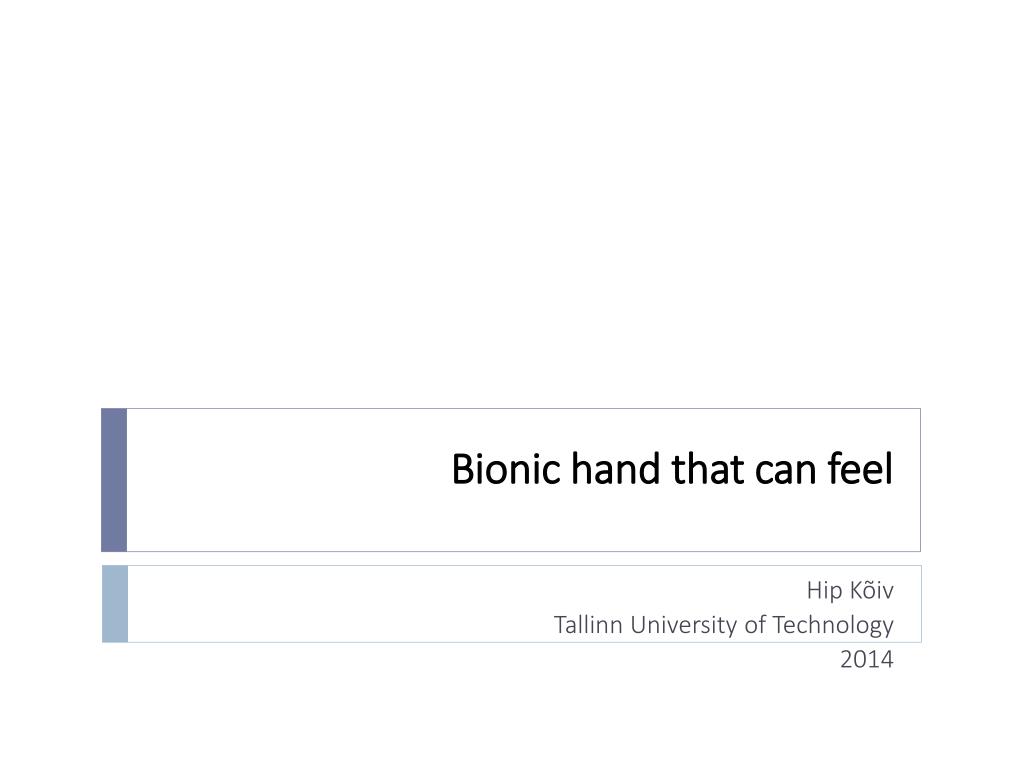

  1. Bionic hand that can feel Hip Kõiv Tallinn UniversityofTechnology 2014

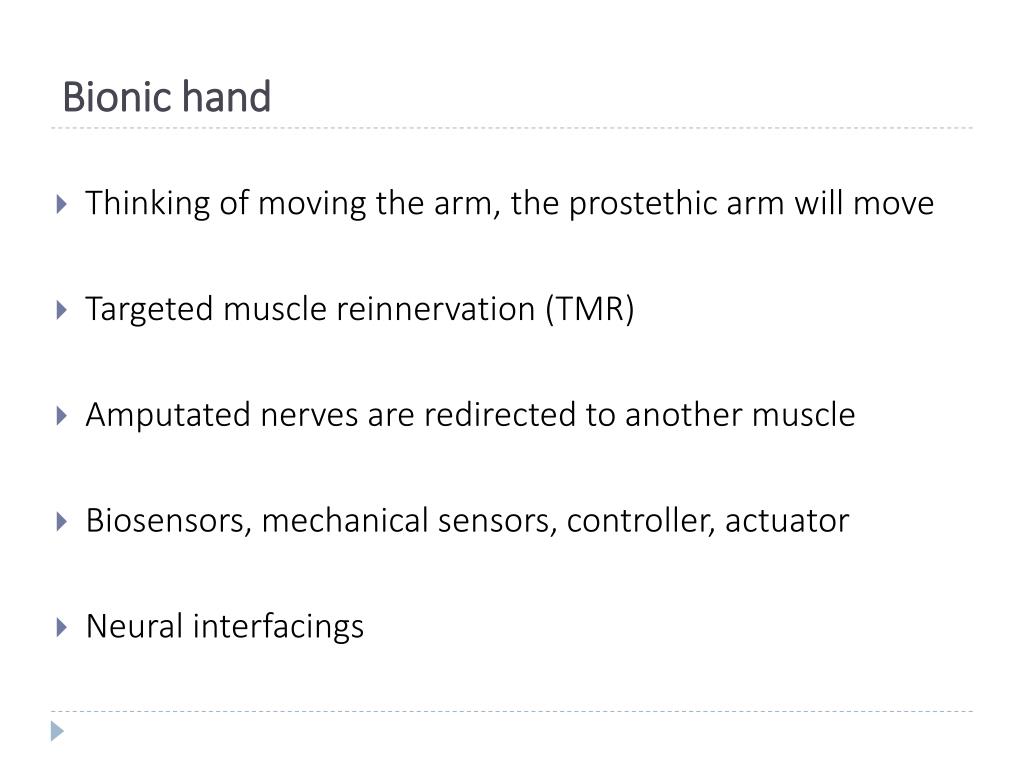

  2. Bionic hand • Thinking of moving the arm, the prostethic arm will move • Targeted muscle reinnervation (TMR) • Amputated nerves are redirected to another muscle • Biosensors, mechanical sensors, controller,actuator • Neural interfacings

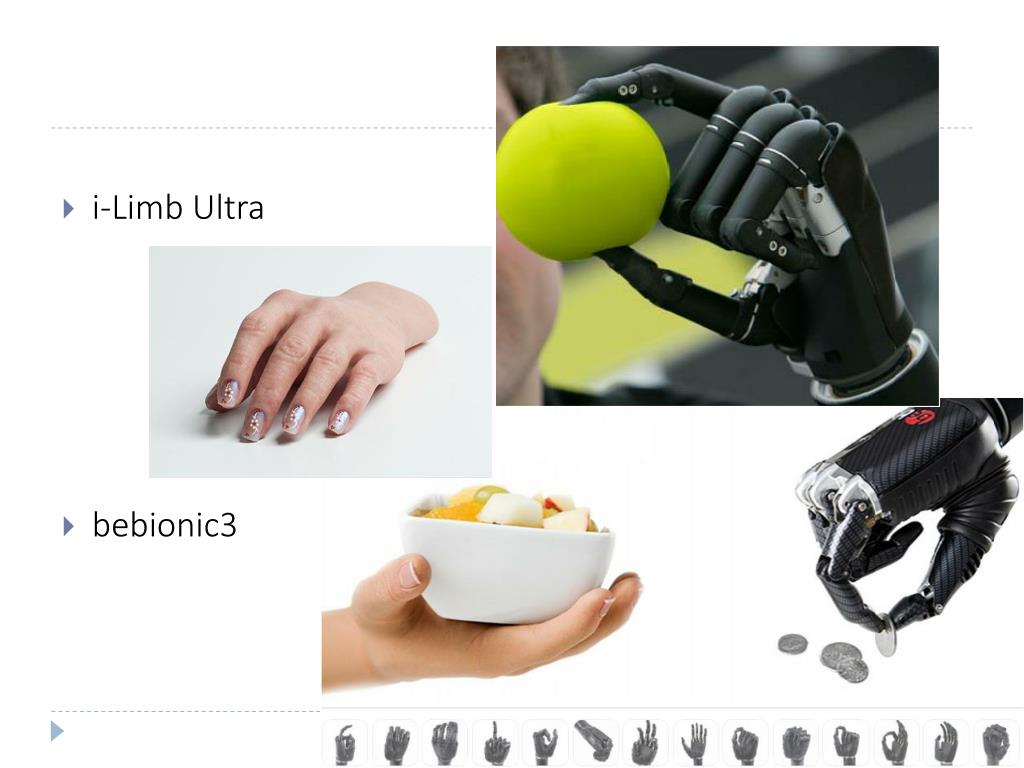

  3. i-Limb Ultra • bebionic3

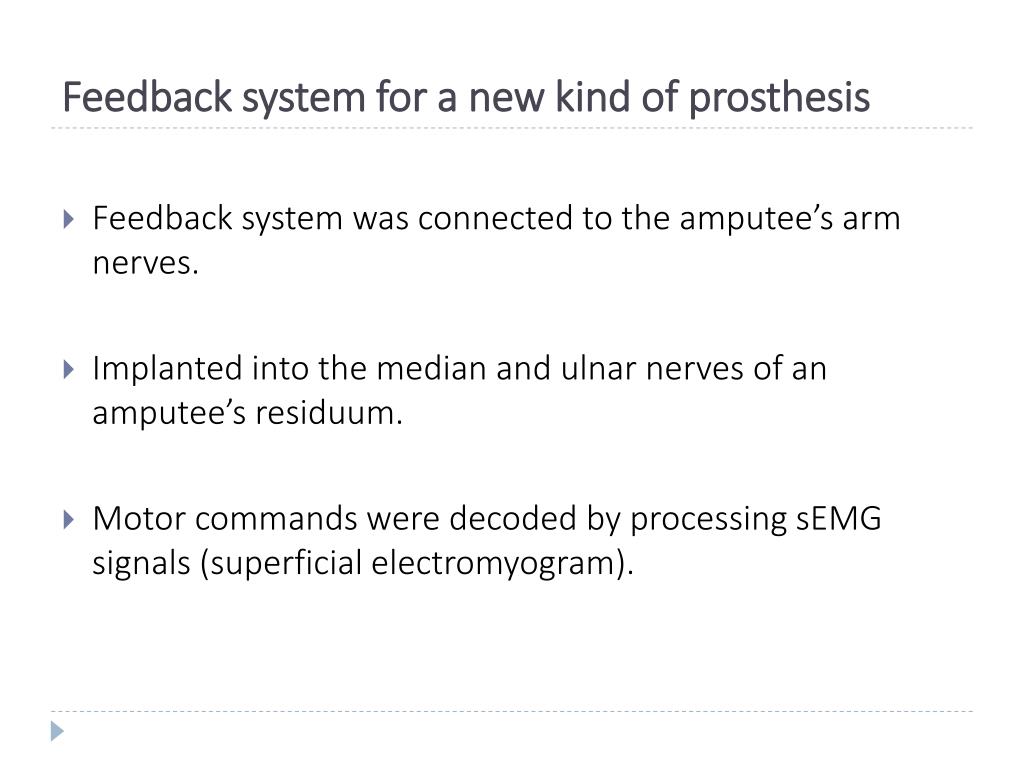

  4. Feedback system for a new kind of prosthesis • Feedback system was connected to the amputee’s arm nerves. • Implanted into the median and ulnar nerves of an amputee’s residuum. • Motor commands were decoded by processing sEMG signals (superficial electromyogram).

  5. Transversal intrafascicular multichannel electrodes (TIMEs) are used for closing the user-prosthesis loop and to trigger sensory feedback. • Arm was able to modulate force during grasping and to identify physical characteristics of objects (palmar grasp, ulnar grasp, hand opening, and rest).

  6. A - Blindfolded and acoustically isolated patient • B – Median nerve • C – Ulnar nerve

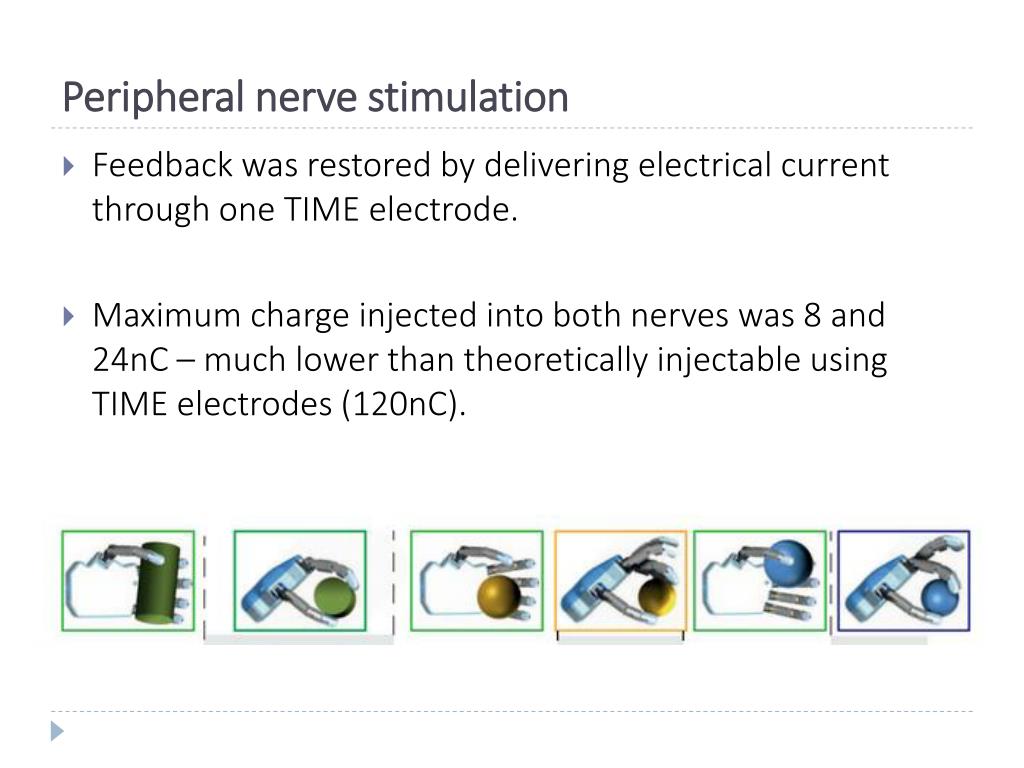

  7. Peripheral nerve stimulation • Feedback was restored by delivering electrical current through one TIME electrode. • Maximum charge injected into both nerves was 8 and 24nC – much lower than theoretically injectable using TIME electrodes (120nC).

  8. Results • Patient could produce 3 levels of stable and discrete pressure with index and the little finger. • Success rate of >90% in last sessions. • Patient was able to control how forcefully he grasped objects, and feel their shape and stiffness. • He could tell the differences among hard, medium and soft objects, and identify the shapes of specific objects such as a cylindrical bottle or round baseball.

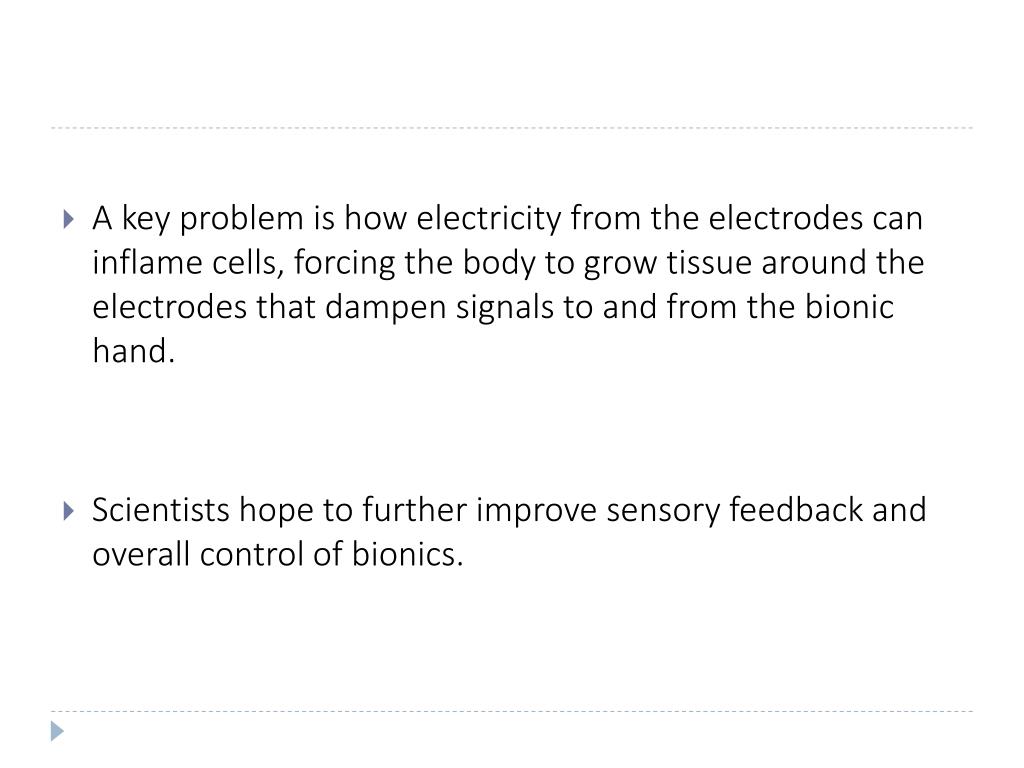

  9. A key problem is how electricity from the electrodes can inflame cells, forcing the body to grow tissue around the electrodes that dampen signals to and from the bionic hand. • Scientists hope to further improve sensory feedback and overall control of bionics.

  10. Thank you!
