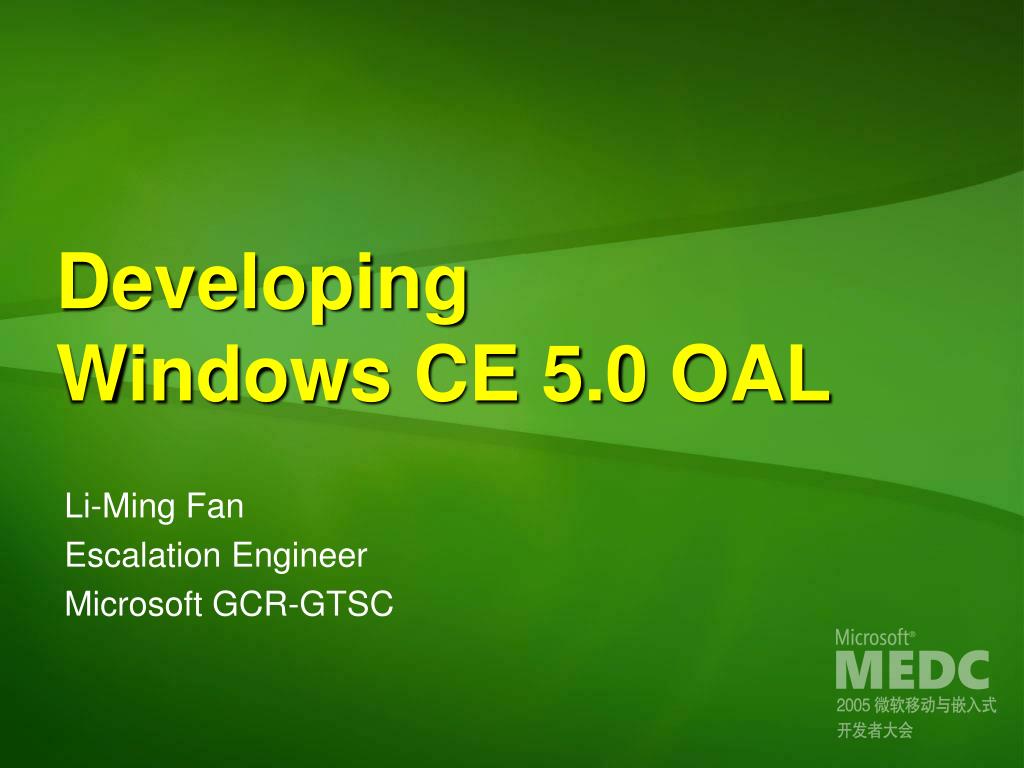

  1. DevelopingWindows CE 5.0 OAL Li-Ming Fan Escalation Engineer Microsoft GCR-GTSC

  2. Agenda • Windows CE 5.0 BSPs and Kernels • Development Process • OAL • Architecture and Design • Boot Sequence and Required OAL Functions • Kernel and KITL • Optional OAL Functions • Building • Power Management

  3. Agenda • Windows CE 5.0 BSPs and Kernels • Development Process • OAL • Architecture and Design • Boot Sequence and Required OAL Functions • Kernel and KITL • Optional OAL Functions • Building • Power Management

  4. Windows CE 5.0 BSPs • Intel Assabet and Lubbock (use Mainstone II) • ARM Integrator (use Samsung SMDK2410) • SH3 Keywest (deprecated) BSPs NO LONGER SUPPORTED

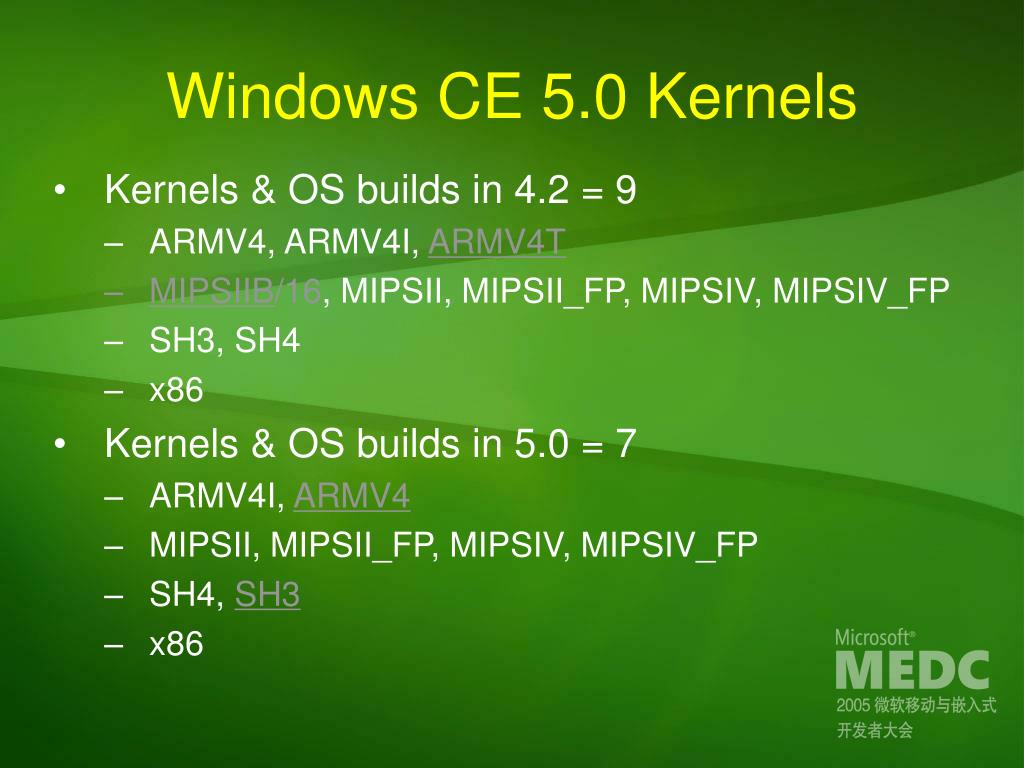

  5. Windows CE 5.0 Kernels • Kernels & OS builds in 4.2 = 9 • ARMV4, ARMV4I, ARMV4T • MIPSIIB/16, MIPSII, MIPSII_FP, MIPSIV, MIPSIV_FP • SH3, SH4 • x86 • Kernels & OS builds in 5.0 = 7 • ARMV4I, ARMV4 • MIPSII, MIPSII_FP, MIPSIV, MIPSIV_FP • SH4, SH3 • x86

  6. Agenda • Windows CE 5.0 BSPs and Kernels • Development Process • OAL • Architecture and Design • Boot Sequence and Required OAL Functions • Kernel and KITL • Optional OAL Functions • Building • Power Management

  7. BSP Development Process Test Hardware, Rom Monitor Clone Reference BSP Develop Boot Loader Power Management Add Device Drivers Develop OAL (Minimal Kernel) Package (CEC/MSI)

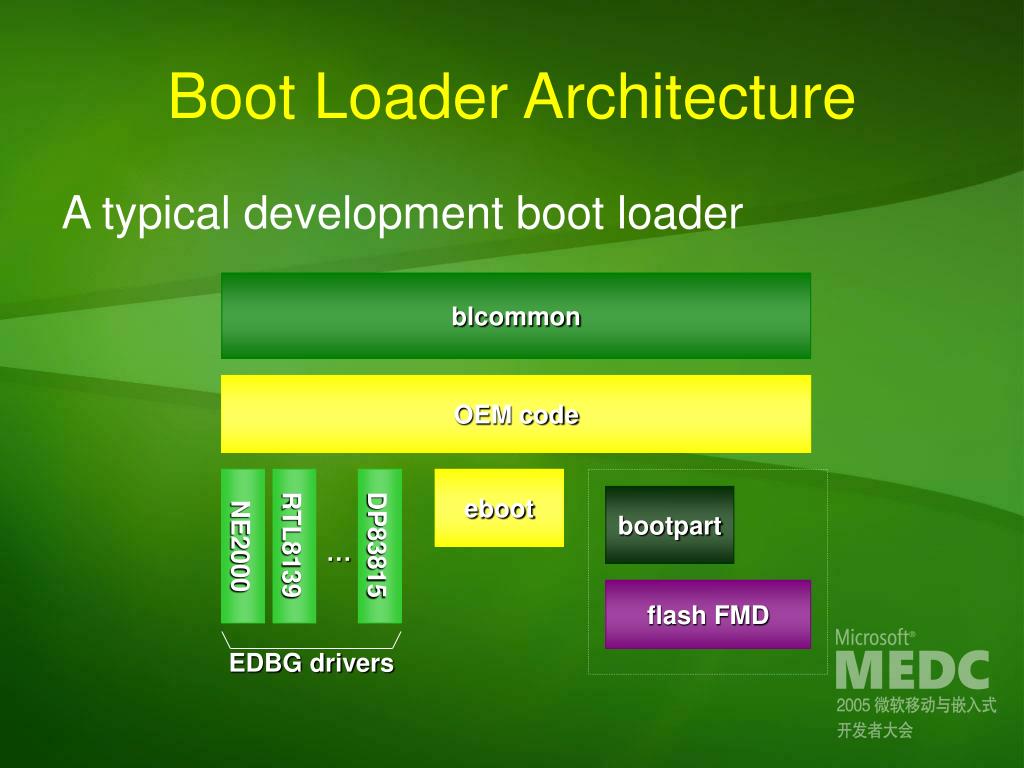

  8. Boot Loader Architecture A typical development boot loader blcommon OEM code eboot RTL8139 DP83815 bootpart NE2000 … flash FMD EDBG drivers

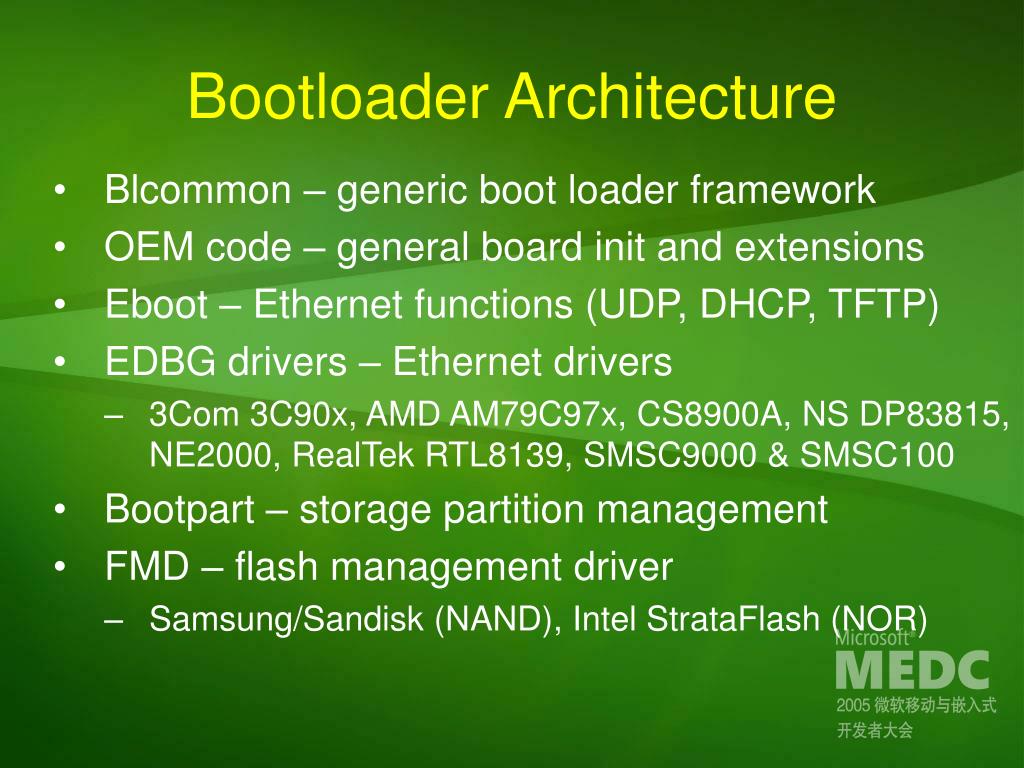

  9. Bootloader Architecture • Blcommon – generic boot loader framework • OEM code – general board init and extensions • Eboot – Ethernet functions (UDP, DHCP, TFTP) • EDBG drivers – Ethernet drivers • 3Com 3C90x, AMD AM79C97x, CS8900A, NS DP83815, NE2000, RealTek RTL8139, SMSC9000 & SMSC100 • Bootpart – storage partition management • FMD – flash management driver • Samsung/Sandisk (NAND), Intel StrataFlash (NOR)

  10. Agenda • Windows CE 5.0 BSPs and Kernels • Development Process • OAL • Architecture and Design • Boot Sequence and Required OAL Functions • Kernel and KITL • Optional OAL Functions • Building • Power Management

  11. Windows CE 5.0 BSPs • Reduce OS “bring-up” time on OEM hardware • Avoid changing the "public" OAL interface • Provide production features (power management, performance optimizations, IOCTLs, etc.) • Maximize code re-use (and testing) • Provide a consistent OAL architecture that can be easily extended/customized • Increase BSP coverage in-the-box • One BSP for each supported CPU • Integrate BSPs into the IDE Catalog • Integrate BSPs into the Platform Wizard • Enable third parties to create BSPs easily • Ship CSP drivers for many CPUs and SOCs • PB Tools - BSP Wizard and IDE tools • Enables faster, easier porting to OEM devices

  12. PQOAL Design Kernel • Collection of OAL software libraries organized by CPU architecture (or model) and by OAL “function” • Common Code Directory Structure • BSP configuration files are located in a single location (platform\<BSP>\src\inc) OAL OS Timer Library Cache Library Startup Library Interrupt Library IOCTL Library KITL Library RTC Library RTC Timers Caches USB port Ethernet port Serial port Hardware

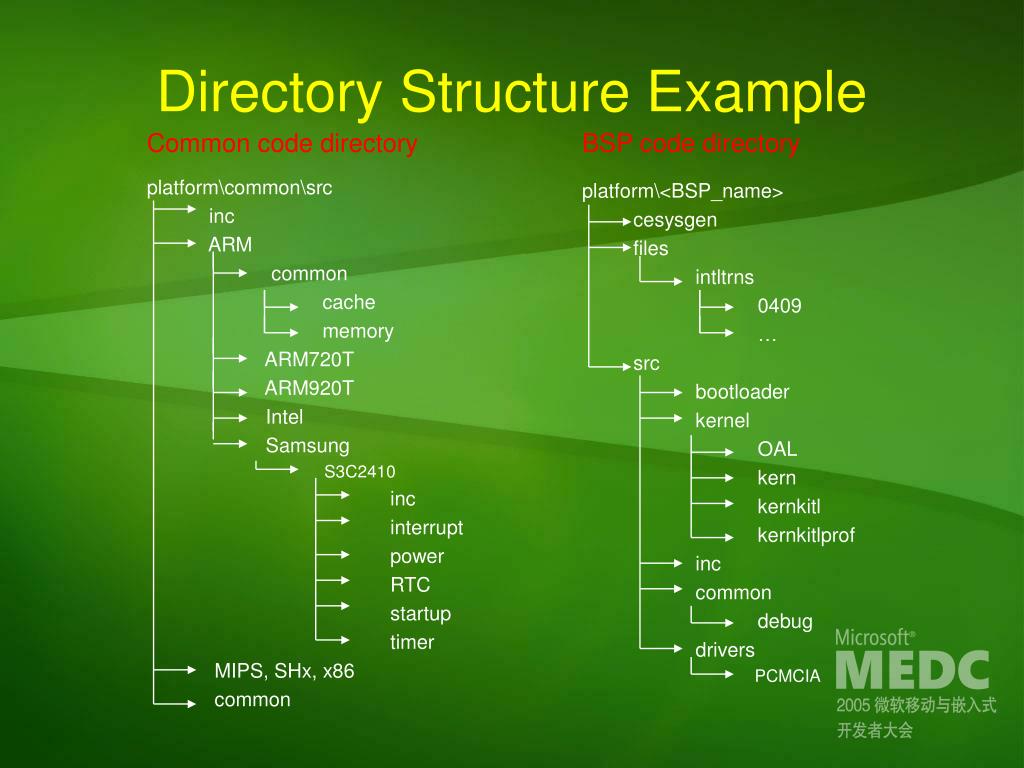

  13. Directory Structure Example Common code directory BSP code directory platform\common\src inc ARM common cache memory ARM720T ARM920T Intel Samsung S3C2410 inc interrupt power RTC startup timer MIPS, SHx, x86 common platform\<BSP_name> cesysgen files intltrns 0409 … src bootloader kernel OAL kern kernkitl kernkitlprof inc common debug drivers PCMCIA

  14. BSP Configuration Files • BSP configuration files are located in a single location (platform\<BSP>\src\inc) • Simplifies porting/customization work • Consistent file naming scheme • args.h – bootloader-OAL shared memory structure • bsp.h – master bsp include file • bsp_base_regs.h – board-level address definitions • bsp_cfg.h – general BSP configs (device name, clock settings,…) • image_cfg.h – memory layout address definitions • ioctl_cfg.h – definitions used by BSP IOCTL routines • ioctl_tab.h – IOCTL function table • kitl_cfg.h – KITL transport name/device/driver table • oemaddrtab_cfg.inc – (ARM/x86) VA-PA mapping table

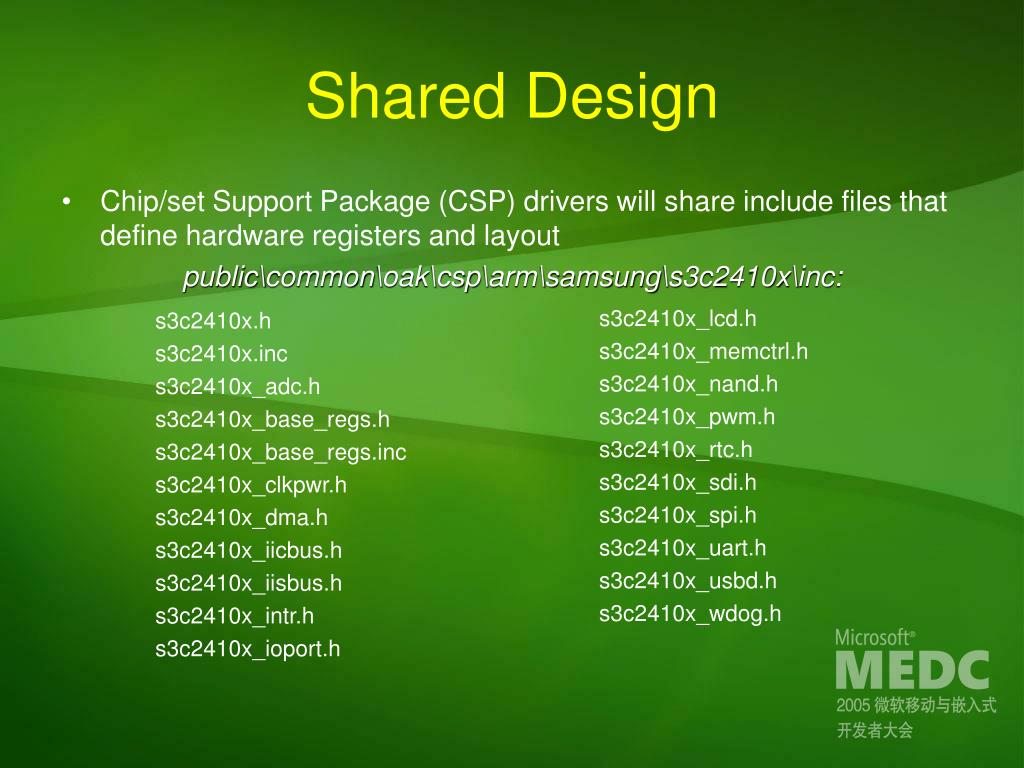

  15. Shared Design • Chip/set Support Package (CSP) drivers will share include files that define hardware registers and layout public\common\oak\csp\arm\samsung\s3c2410x\inc: s3c2410x_lcd.h s3c2410x_memctrl.h s3c2410x_nand.h s3c2410x_pwm.h s3c2410x_rtc.h s3c2410x_sdi.h s3c2410x_spi.h s3c2410x_uart.h s3c2410x_usbd.h s3c2410x_wdog.h s3c2410x.h s3c2410x.inc s3c2410x_adc.h s3c2410x_base_regs.h s3c2410x_base_regs.inc s3c2410x_clkpwr.h s3c2410x_dma.h s3c2410x_iicbus.h s3c2410x_iisbus.h s3c2410x_intr.h s3c2410x_ioport.h

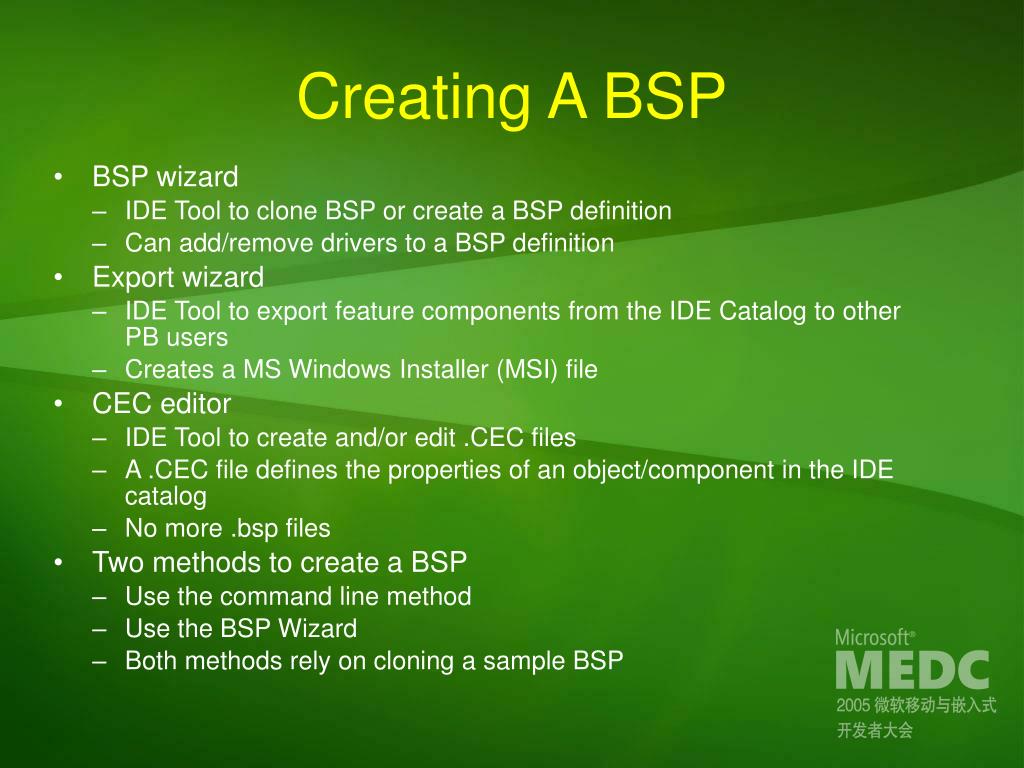

  16. Creating A BSP • BSP wizard • IDE Tool to clone BSP or create a BSP definition • Can add/remove drivers to a BSP definition • Export wizard • IDE Tool to export feature components from the IDE Catalog to other PB users • Creates a MS Windows Installer (MSI) file • CEC editor • IDE Tool to create and/or edit .CEC files • A .CEC file defines the properties of an object/component in the IDE catalog • No more .bsp files • Two methods to create a BSP • Use the command line method • Use the BSP Wizard • Both methods rely on cloning a sample BSP

  17. Creating An OAL • Create directory for OAL code in the BSP • platform\<BSPname>\kernel\oal • Add <dirname> to “dirs” file to build OAL with BSP • Required OAL functions • Startup • Debug serial • OEMInit • System timer • Interrupt processing • Kernel input/output, KITL • Optional OAL functions (Platform Dependent) • Real-time clock and timer • Parallel port I/O code • Ethernet port debug • More information in PB docs • “How-to Create an OEM adaptation layer”

  18. Agenda • Windows CE 5.0 BSPs and Kernels • Development Process • OAL • Architecture and Design • Boot Sequence and Required OAL Functions • Kernel and KITL • Optional OAL Functions • Building • Power Management

  19. Required OAL Functions • Startup • Debug Serial • OEMInit • System Timer • Interrupt Processing • Kernel Input/Output • Example: Custom Kernel IOCTL • KITL

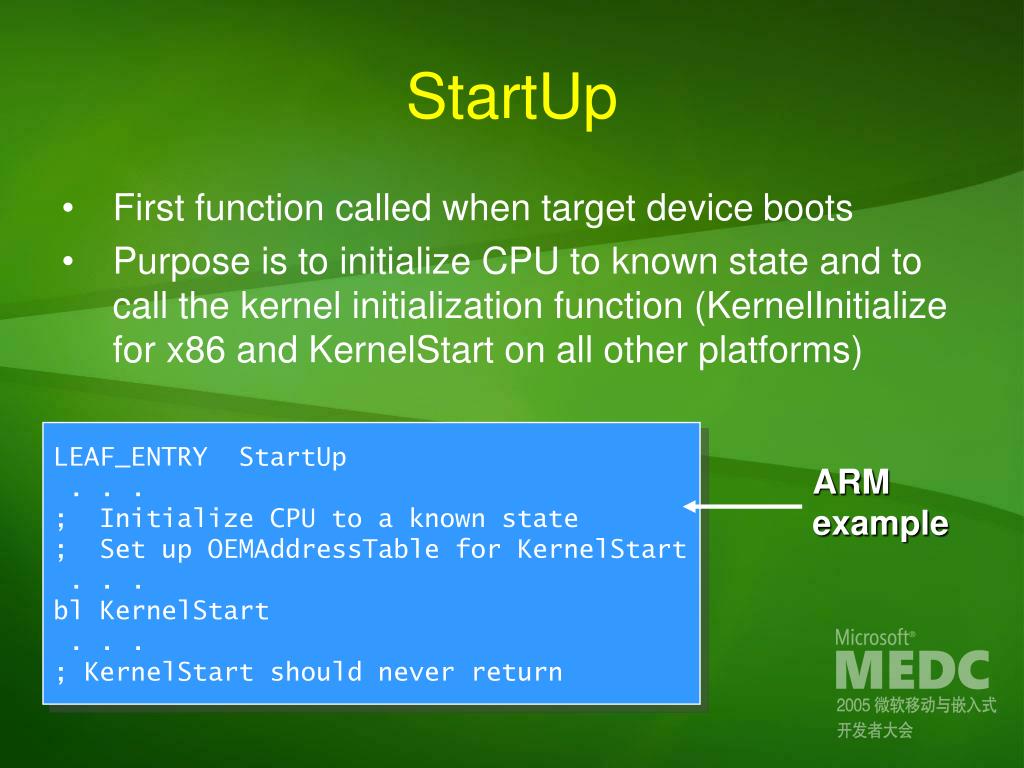

  20. StartUp • First function called when target device boots • Purpose is to initialize CPU to known state and to call the kernel initialization function (KernelInitialize for x86 and KernelStart on all other platforms) LEAF_ENTRY StartUp . . . ; Initialize CPU to a known state ; Set up OEMAddressTable for KernelStart . . . bl KernelStart . . . ; KernelStart should never return ARM example

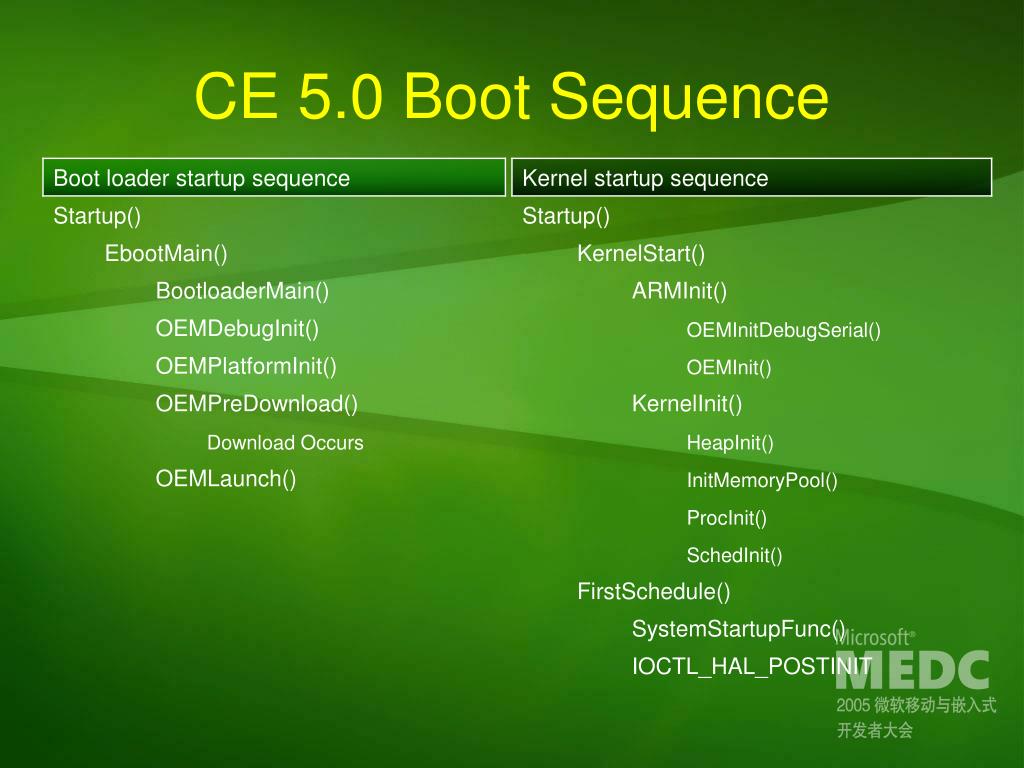

  21. CE 5.0 Boot Sequence

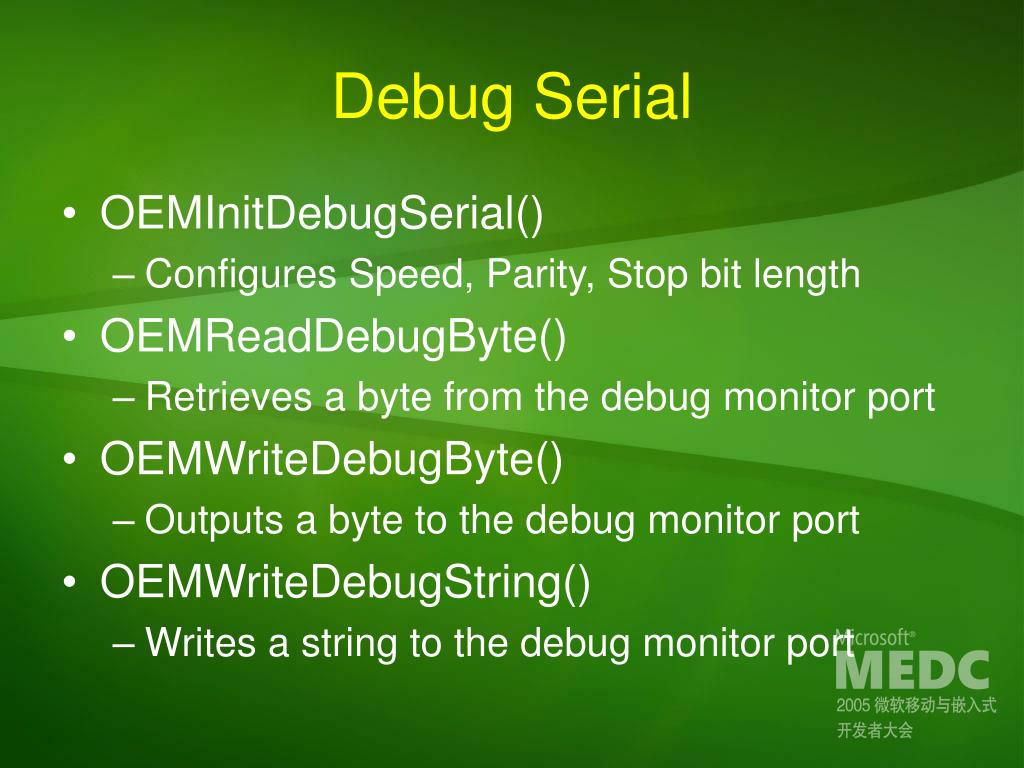

  22. Debug Serial • OEMInitDebugSerial() • Configures Speed, Parity, Stop bit length • OEMReadDebugByte() • Retrieves a byte from the debug monitor port • OEMWriteDebugByte() • Outputs a byte to the debug monitor port • OEMWriteDebugString() • Writes a string to the debug monitor port

  23. OEMInit • Required task is to set up hardware and register interrupt for the system tick • ISRs and HookInterrupt • Setting Up the Interrupt Map • Define a mapping of Interrupt IDs • Mapping can be dynamic at driver load time • Interrupt IDs’ are returned by the ISRs to the kernel and are used to link an incoming IRQ with a software IST

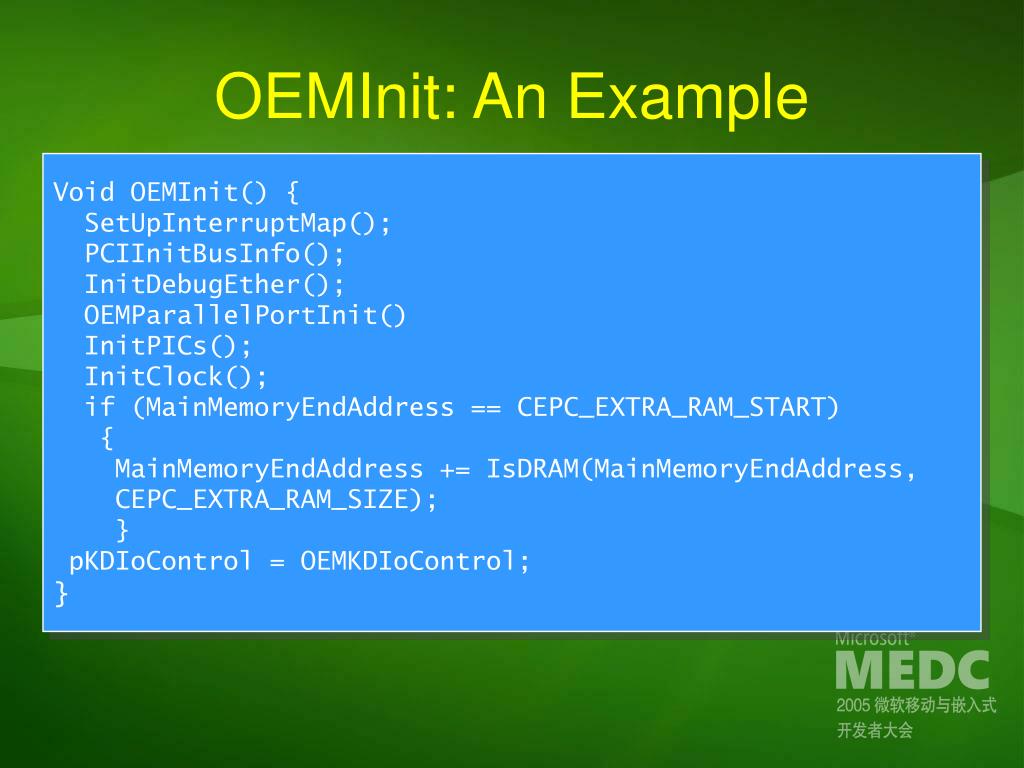

  24. OEMInit: An Example Void OEMInit() { SetUpInterruptMap(); PCIInitBusInfo(); InitDebugEther(); OEMParallelPortInit() InitPICs(); InitClock(); if (MainMemoryEndAddress == CEPC_EXTRA_RAM_START) { MainMemoryEndAddress += IsDRAM(MainMemoryEndAddress, CEPC_EXTRA_RAM_SIZE); } pKDIoControl = OEMKDIoControl; }

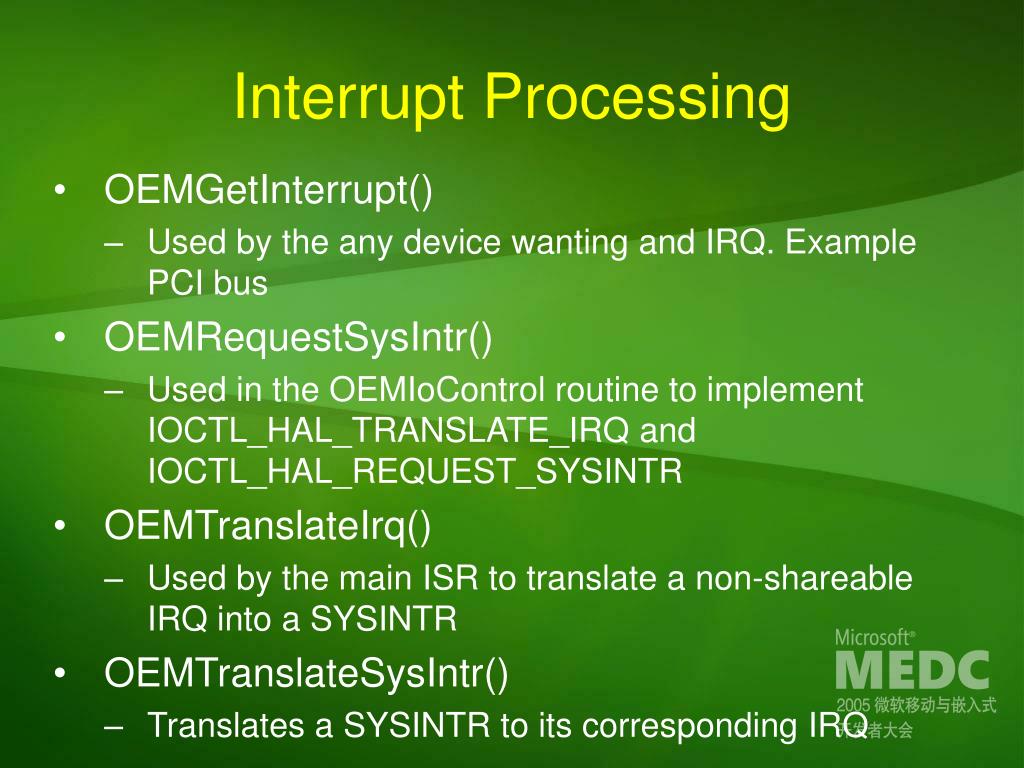

  25. Interrupt Processing • OEMInterruptEnable() • Performs hardware operations necessary to allow a device to generate the specified interrupt • Includes • Setting a hardware priority for the device • Setting a hardware interrupt enable port • Clearing any pending interrupt conditions from the device • OEMInterruptDisable() • Disables the specified hardware interrupt • OEMInterruptDone() • Unmasked and reenables of interrupt processing

  26. Interrupt Processing • OEMGetInterrupt() • Used by the any device wanting and IRQ. Example PCI bus • OEMRequestSysIntr() • Used in the OEMIoControl routine to implement IOCTL_HAL_TRANSLATE_IRQ and IOCTL_HAL_REQUEST_SYSINTR • OEMTranslateIrq() • Used by the main ISR to translate a non-shareable IRQ into a SYSINTR • OEMTranslateSysIntr() • Translates a SYSINTR to its corresponding IRQ

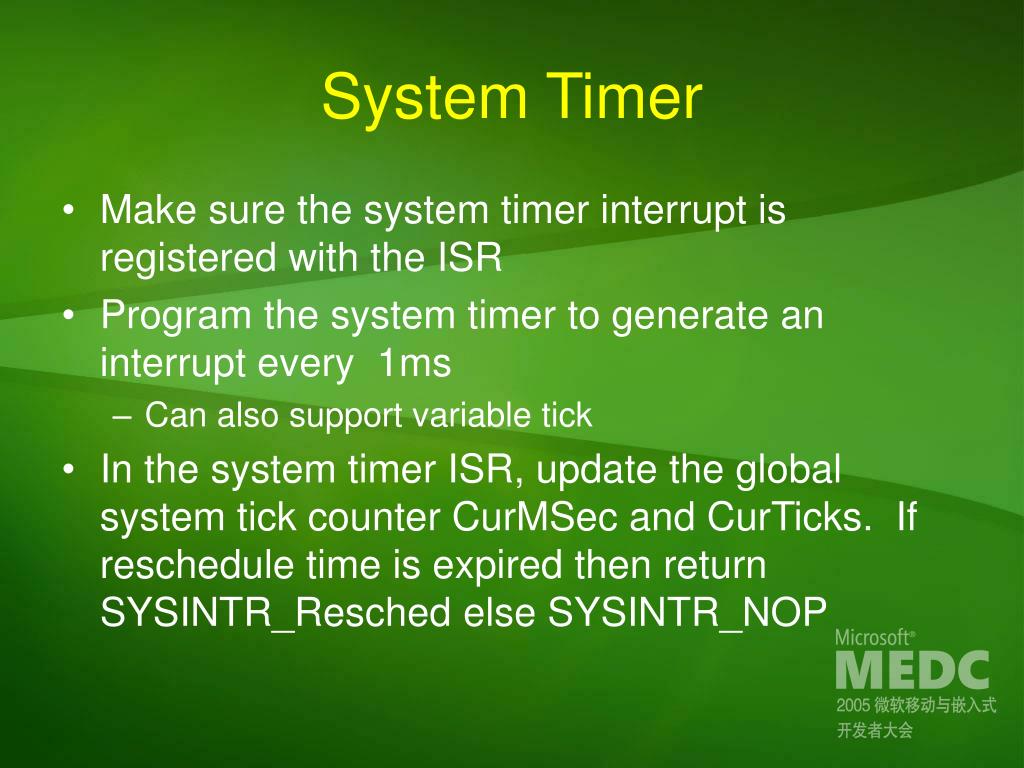

  27. System Timer • Make sure the system timer interrupt is registered with the ISR • Program the system timer to generate an interrupt every 1ms • Can also support variable tick • In the system timer ISR, update the global system tick counter CurMSec and CurTicks. If reschedule time is expired then return SYSINTR_Resched else SYSINTR_NOP

  28. Agenda • Windows CE 5.0 BSPs and Kernels • Development Process • OAL • Architecture and Design • Boot Sequence and Required OAL Functions • Kernel and KITL • Optional OAL Functions • Building • Power Management

  29. Kernel Libraries

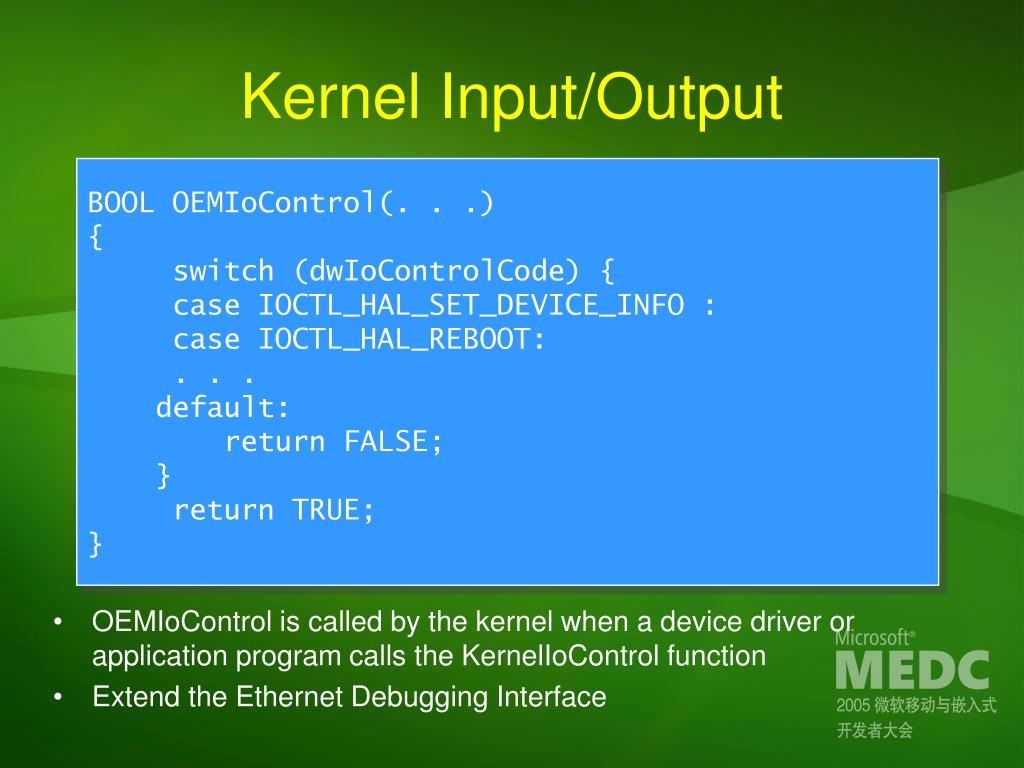

  30. Kernel Input/Output BOOL OEMIoControl(. . .) { switch (dwIoControlCode) { case IOCTL_HAL_SET_DEVICE_INFO : case IOCTL_HAL_REBOOT: . . . default: return FALSE; } return TRUE; } • OEMIoControl is called by the kernel when a device driver or application program calls the KernelIoControl function • Extend the Ethernet Debugging Interface

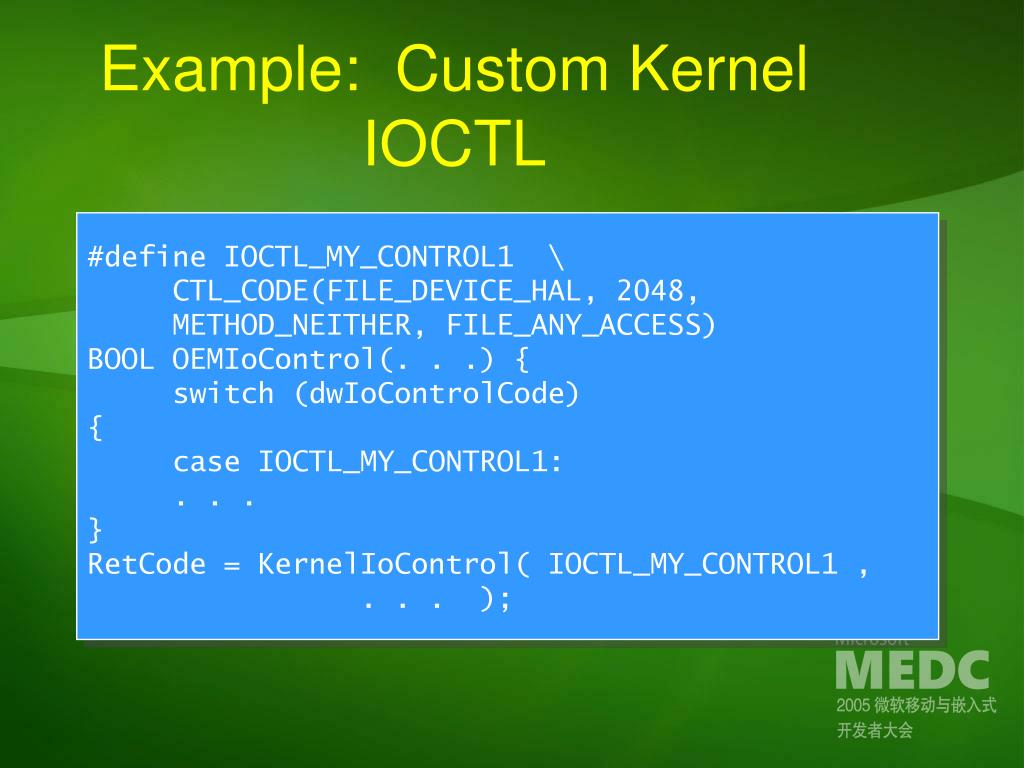

  31. Example: Custom Kernel IOCTL #define IOCTL_MY_CONTROL1 \ CTL_CODE(FILE_DEVICE_HAL, 2048, METHOD_NEITHER, FILE_ANY_ACCESS) BOOL OEMIoControl(. . .) { switch (dwIoControlCode) { case IOCTL_MY_CONTROL1: . . . } RetCode = KernelIoControl( IOCTL_MY_CONTROL1 , . . . );

  32. KITLKernel Independent Transport Layer • Designed to provide an easy way for you to support any debug service • OEM Function to implement is OEMKitlINit • Including the KITL support in the operating system image • Vmini not always necessary. EDBG driver can talk directly to desktop • Passive KITL also available

  33. Agenda • Windows CE 5.0 BSPs and Kernels • Development Process • OAL • Architecture and Design • Boot Sequence and Required OAL Functions • Kernel and KITL • Optional OAL Functions • Building • Power Management

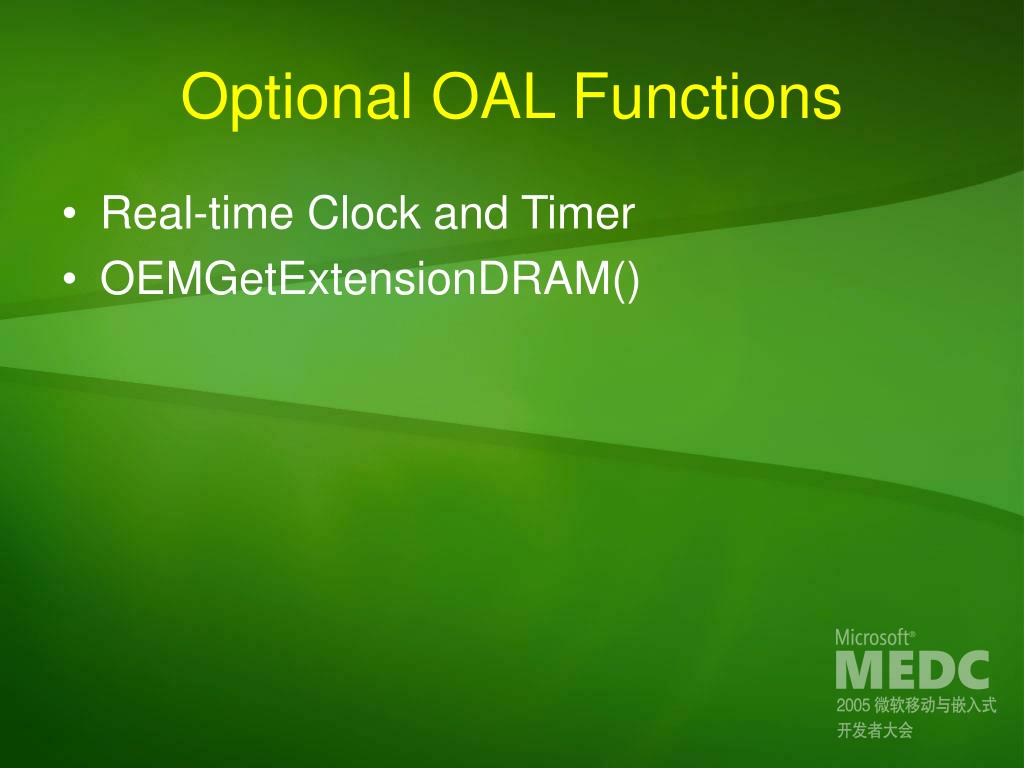

  34. Optional OAL Functions • Real-time Clock and Timer • OEMGetExtensionDRAM()

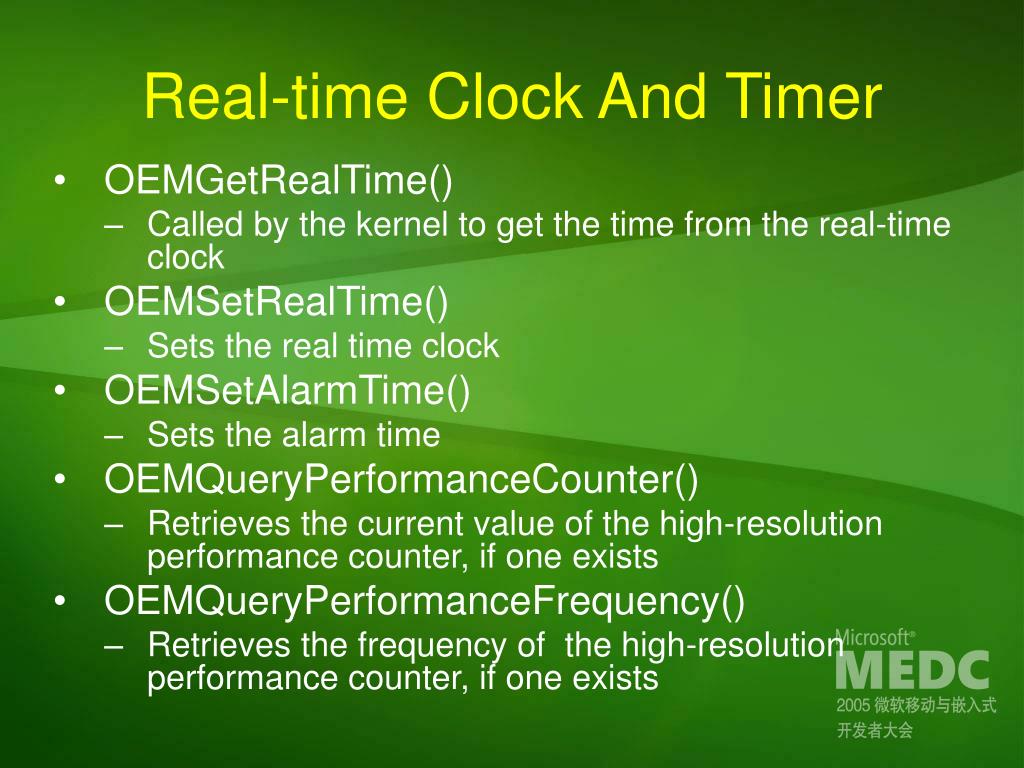

  35. Real-time Clock And Timer • OEMGetRealTime() • Called by the kernel to get the time from the real-time clock • OEMSetRealTime() • Sets the real time clock • OEMSetAlarmTime() • Sets the alarm time • OEMQueryPerformanceCounter() • Retrieves the current value of the high-resolution performance counter, if one exists • OEMQueryPerformanceFrequency() • Retrieves the frequency of the high-resolution performance counter, if one exists

  36. OEMGetExtensionDRAM() BOOL OEMGetExtensionDRAM(LPDWORD lpMemStart, LPDWORD lpMemLen) { return FALSE; // no extension DRAM } BOOL OEMGetExtensionDRAM(LPDWORD lpMemStart, LPDWORD lpMemLen) { *lpMemStart = 0x81800000; *lpMemLen = 0x00400000; // 4MB return TRUE; } • pNKEnumExtensionDRAM AND OEMEnumExtensionDRAM Example 1No extension DRAM available Example 2Extended 4MB DRAM available at 0x81800000

  37. Agenda • Windows CE 5.0 BSPs and Kernels • Development Process • OAL • Architecture and Design • Boot Sequence and Required OAL Functions • Kernel and KITL • Optional OAL Functions • Building • Power Management

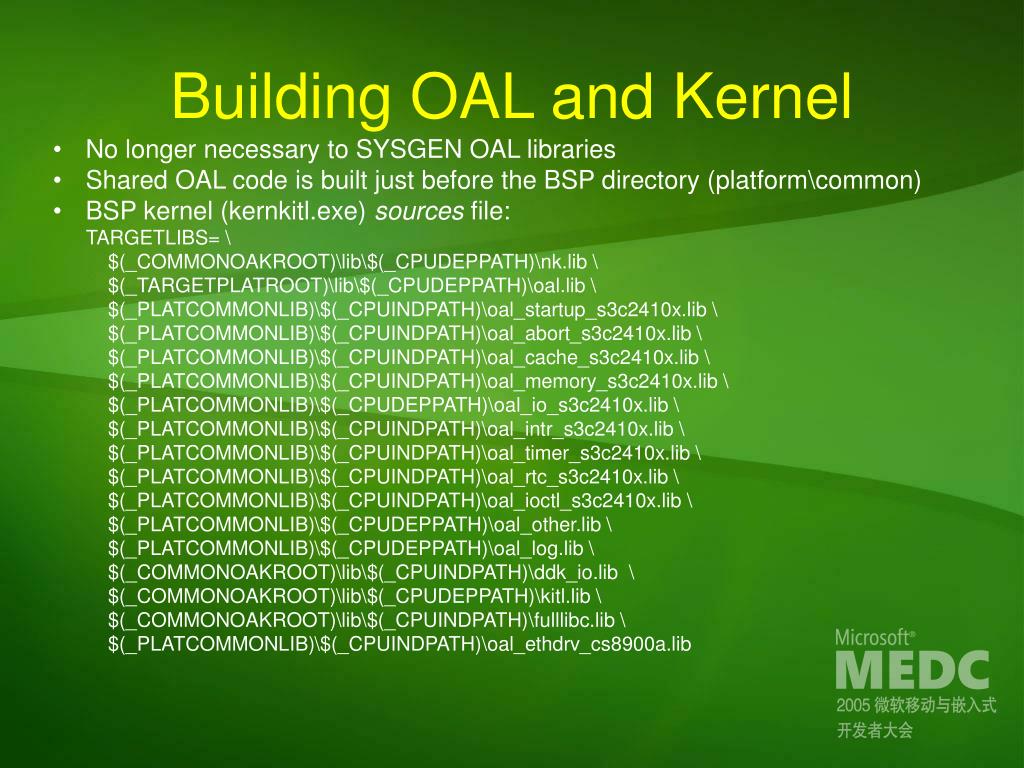

  38. Building OAL and Kernel • No longer necessary to SYSGEN OAL libraries • Shared OAL code is built just before the BSP directory (platform\common) • BSP kernel (kernkitl.exe) sources file: TARGETLIBS= \ $(_COMMONOAKROOT)\lib\$(_CPUDEPPATH)\nk.lib \ $(_TARGETPLATROOT)\lib\$(_CPUDEPPATH)\oal.lib \ $(_PLATCOMMONLIB)\$(_CPUINDPATH)\oal_startup_s3c2410x.lib \ $(_PLATCOMMONLIB)\$(_CPUINDPATH)\oal_abort_s3c2410x.lib \ $(_PLATCOMMONLIB)\$(_CPUINDPATH)\oal_cache_s3c2410x.lib \ $(_PLATCOMMONLIB)\$(_CPUINDPATH)\oal_memory_s3c2410x.lib \ $(_PLATCOMMONLIB)\$(_CPUDEPPATH)\oal_io_s3c2410x.lib \ $(_PLATCOMMONLIB)\$(_CPUINDPATH)\oal_intr_s3c2410x.lib \ $(_PLATCOMMONLIB)\$(_CPUINDPATH)\oal_timer_s3c2410x.lib \ $(_PLATCOMMONLIB)\$(_CPUINDPATH)\oal_rtc_s3c2410x.lib \ $(_PLATCOMMONLIB)\$(_CPUINDPATH)\oal_ioctl_s3c2410x.lib \ $(_PLATCOMMONLIB)\$(_CPUDEPPATH)\oal_other.lib \ $(_PLATCOMMONLIB)\$(_CPUDEPPATH)\oal_log.lib \ $(_COMMONOAKROOT)\lib\$(_CPUINDPATH)\ddk_io.lib \ $(_COMMONOAKROOT)\lib\$(_CPUDEPPATH)\kitl.lib \ $(_COMMONOAKROOT)\lib\$(_CPUINDPATH)\fulllibc.lib \ $(_PLATCOMMONLIB)\$(_CPUINDPATH)\oal_ethdrv_cs8900a.lib

  39. Agenda • Windows CE 5.0 BSPs and Kernels • Development Process • OAL • Architecture and Design • Boot Sequence and Required OAL Functions • Kernel and KITL • Optional OAL Functions • Building • Power Management

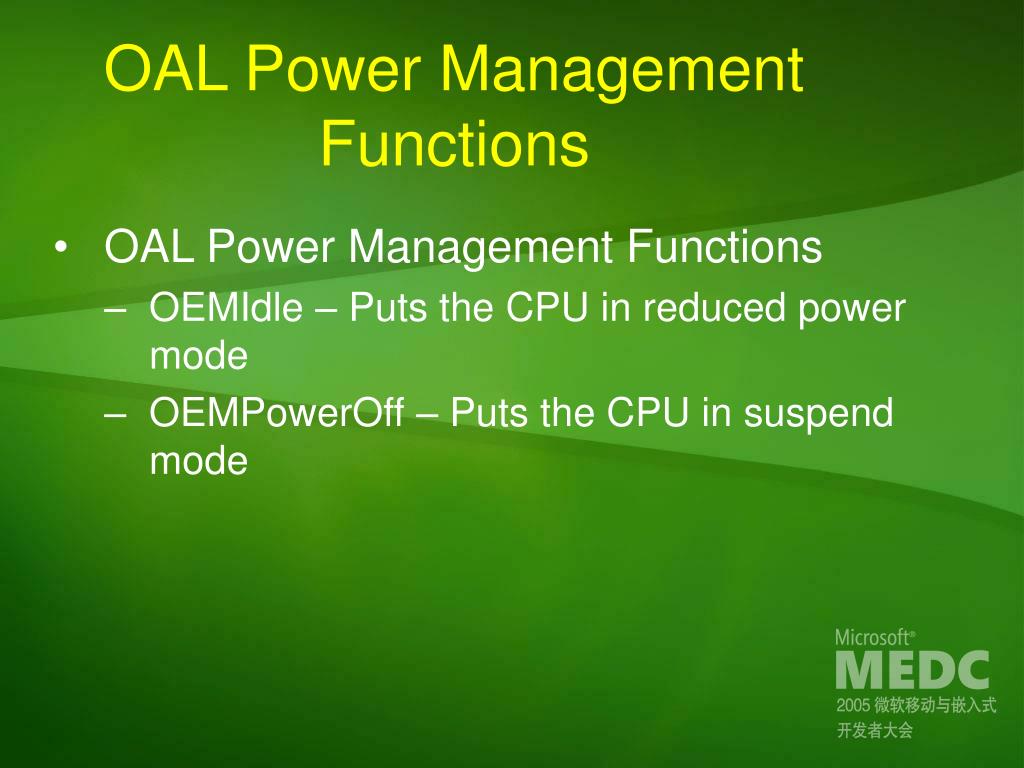

  40. OAL Power Management Functions • OAL Power Management Functions • OEMIdle – Puts the CPU in reduced power mode • OEMPowerOff – Puts the CPU in suspend mode

  41. Tools & Resources Build Develop Websites msdn.microsoft.com/embedded msdn.microsoft.com/mobility Newsgroups microsoft.public.pocketpc.developer smartphone.developer dotnet.framework.compactframework microsoft.public.windowsxp.embedded windowsce.platbuilder windowsce.embedded.vc Blogs blogs.msdn.com/mikehall blogs.msdn.com/windowsmobilevsdteamnetcfteam Tools Windows CE 5.0 Eval KitWindows XP Embedded Eval Kit Windows Mobile 5.0 Eval Kit
