  1. EP-TA1 Gas PT100 Flow Cell • Pt100 Flow Cell design • How it works • ELMB flow scan system • Flow Cell calibration • Tests for stability in gas flow measurements October 2003 Serguei Morozov

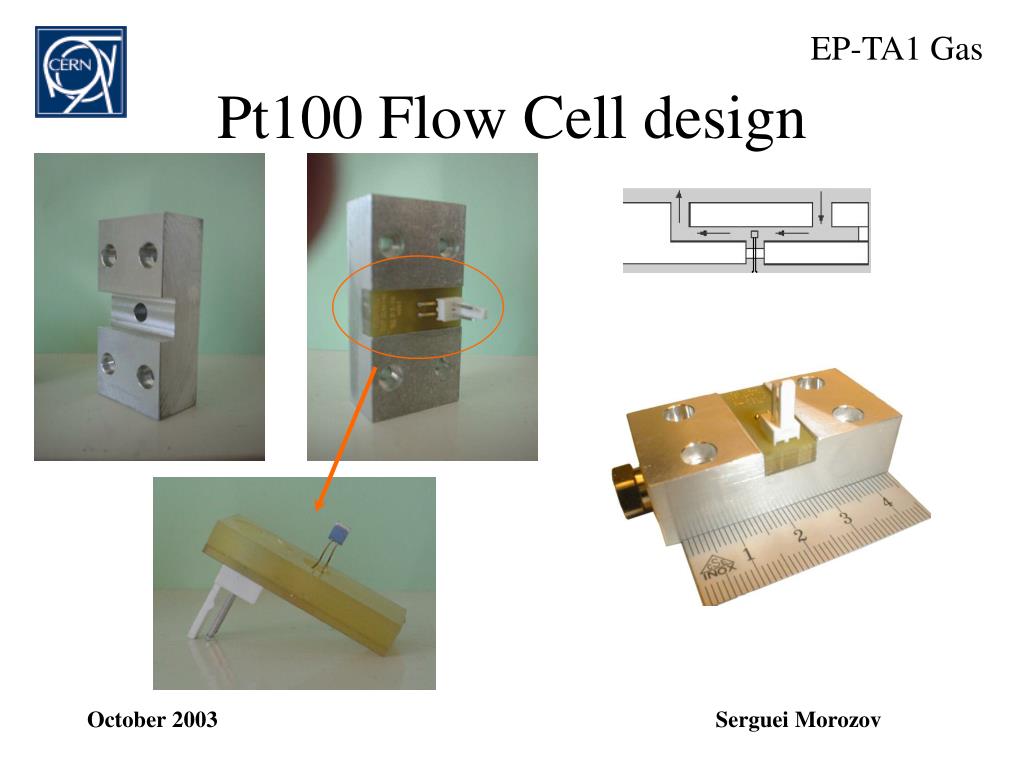

  2. EP-TA1 Gas Pt100 Flow Cell design October 2003 Serguei Morozov

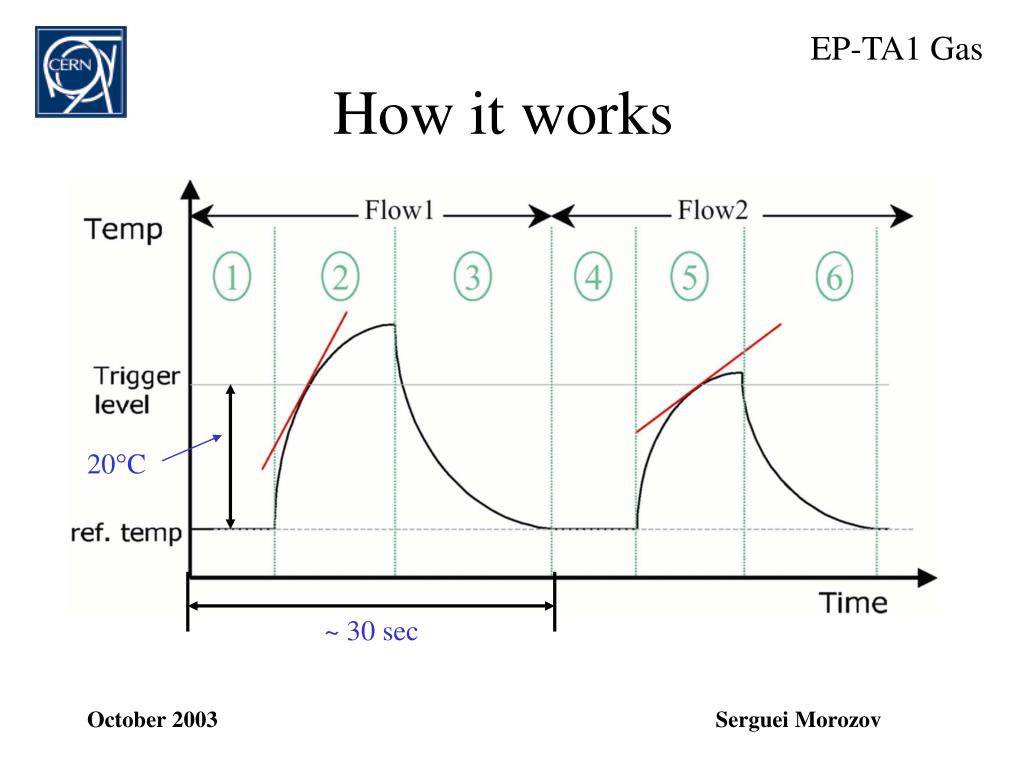

  3. EP-TA1 Gas How it works 20°C ~ 30 sec October 2003 Serguei Morozov

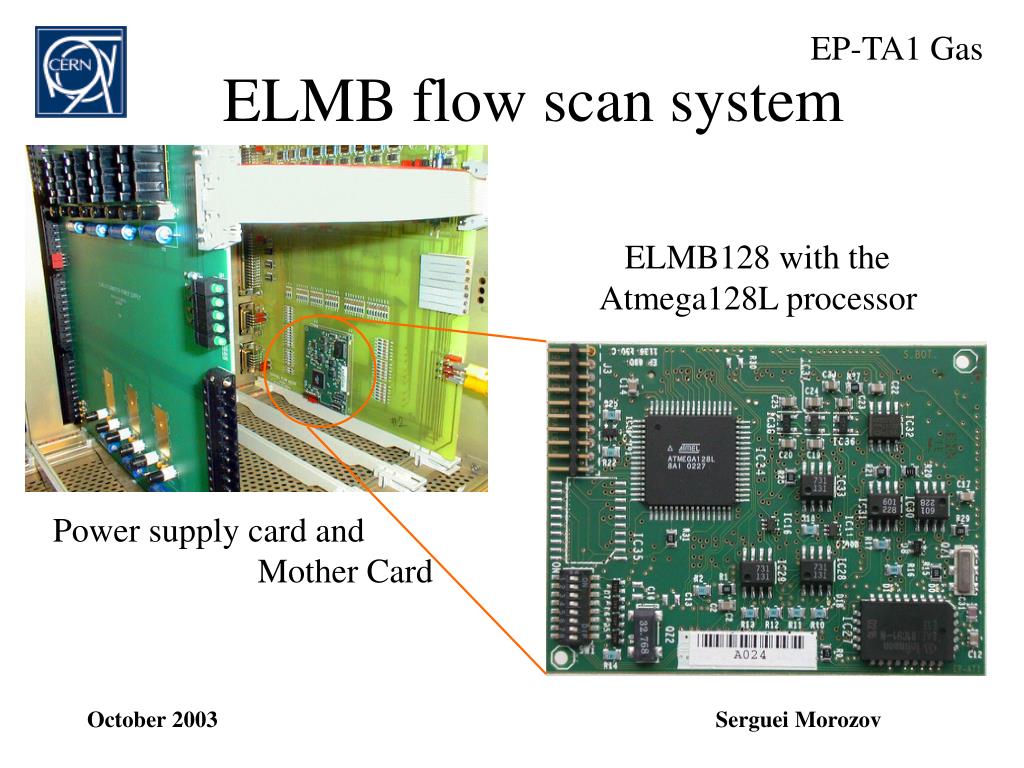

  4. EP-TA1 Gas ELMB flow scan system ELMB128 with the Atmega128L processor Power supply card and Mother Card October 2003 Serguei Morozov

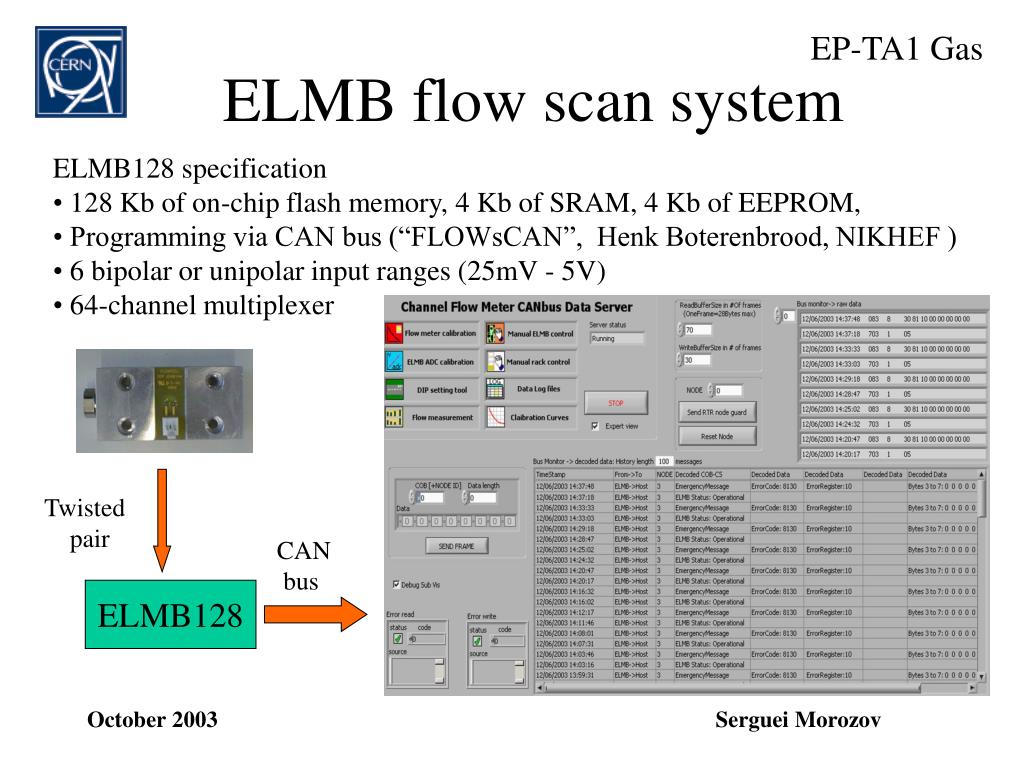

  5. EP-TA1 Gas ELMB flow scan system • ELMB128 specification • 128 Kb of on-chip flash memory, 4 Kb of SRAM, 4 Kb of EEPROM, • Programming via CAN bus (“FLOWsCAN”, Henk Boterenbrood, NIKHEF ) • 6 bipolar or unipolar input ranges (25mV - 5V) • 64-channel multiplexer Twisted pair CAN bus ELMB128 October 2003 Serguei Morozov

  6. EP-TA1 Gas Flow Cell calibration Calibration curve (ArCO2CF4) First polynomial fit Second polynomial fit October 2003 Serguei Morozov

  7. EP-TA1 Gas Flow Cell calibration Flow DataBase Polynom coeff. (Flow=p0+p1*x+..) Slope DataBase fl(1)=p0+p1*x.. fl(2)=p0+p1*x.. fl(3)=p0+p1*x.. Slope Flow October 2003 Serguei Morozov

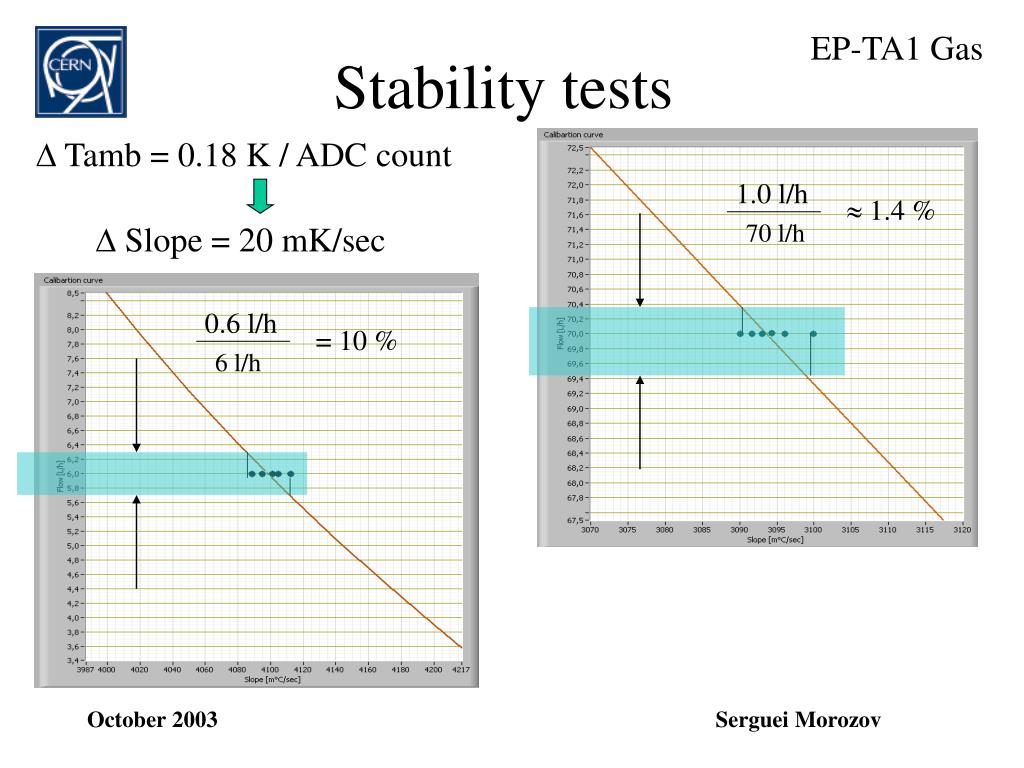

  8. EP-TA1 Gas Stability tests  Tamb = 0.18 K / ADC count 1.0 l/h  1.4 % 70 l/h  Slope = 20 mK/sec 0.6 l/h = 10 % 6 l/h October 2003 Serguei Morozov

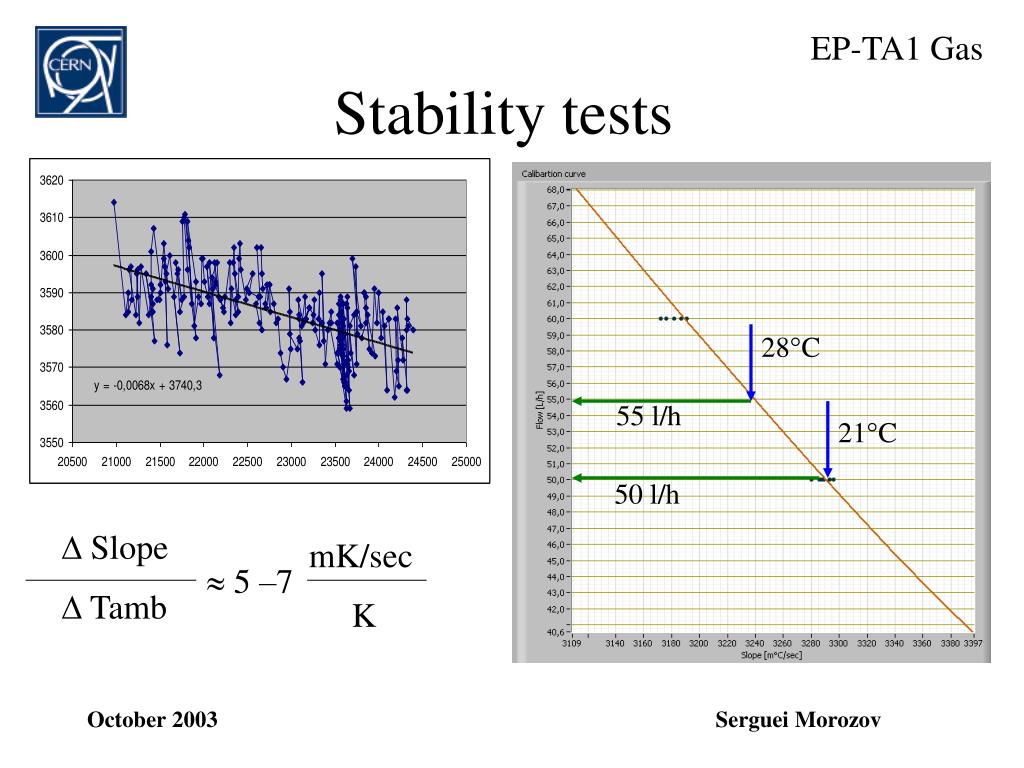

  9. EP-TA1 Gas Stability tests 28°C 55 l/h 21°C 50 l/h  Slope mK/sec  5 –7  Tamb K October 2003 Serguei Morozov

  10. EP-TA1 Gas Stability tests The same positions in Manifold The different positions in Manifold October 2003 Serguei Morozov

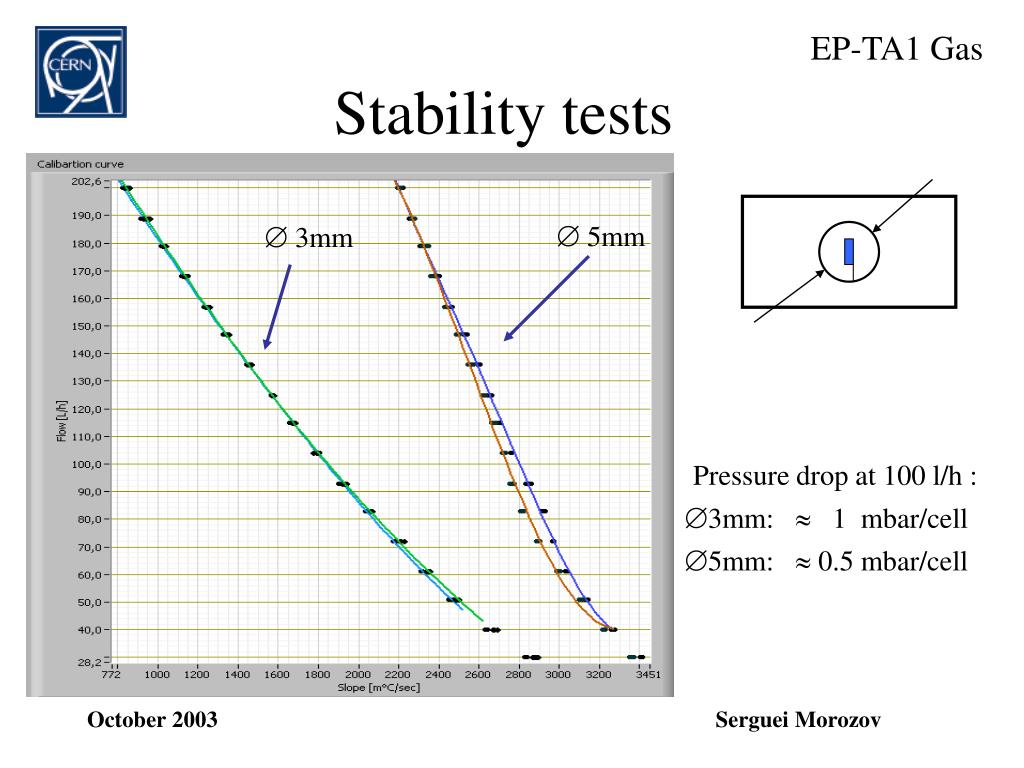

  11. EP-TA1 Gas Stability tests  5mm  3mm Pressure drop at 100 l/h : • 3mm:  1 mbar/cell • 5mm:  0.5 mbar/cell October 2003 Serguei Morozov

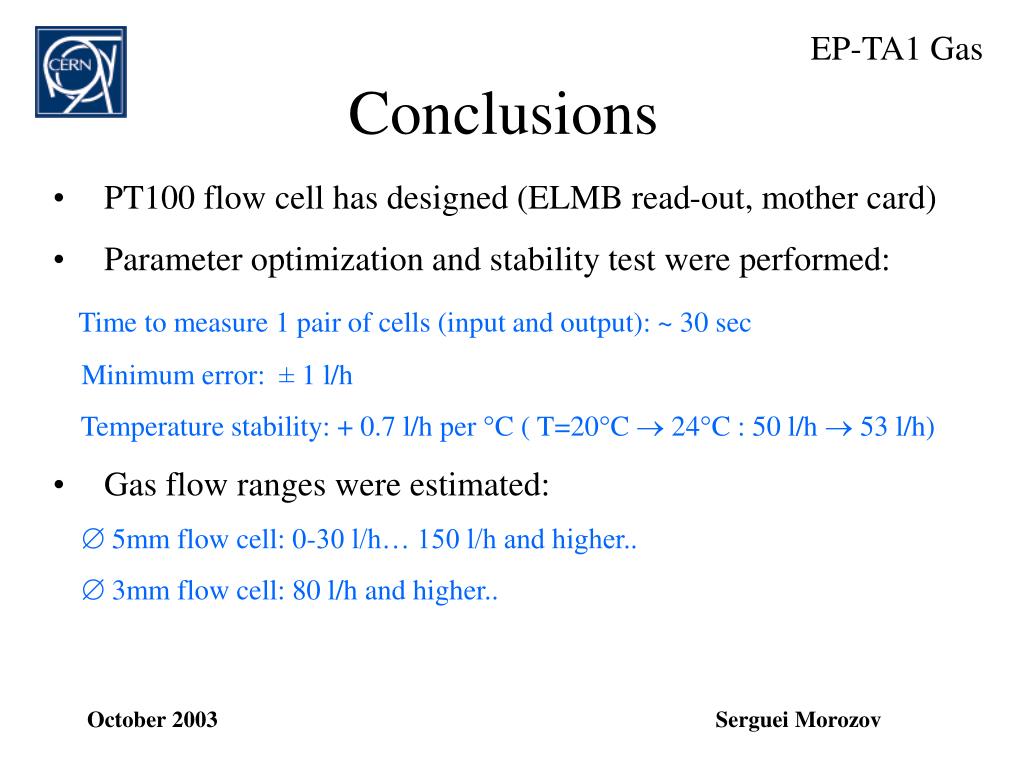

  12. EP-TA1 Gas Conclusions • PT100 flow cell has designed (ELMB read-out, mother card) • Parameter optimization and stability test were performed: • Time to measure 1 pair of cells (input and output): ~ 30 sec • Minimum error: ± 1 l/h • Temperature stability: + 0.7 l/h per °C ( T=20°C  24°C : 50 l/h  53 l/h) • Gas flow ranges were estimated: •  5mm flow cell: 0-30 l/h… 150 l/h and higher.. •  3mm flow cell: 80 l/h and higher.. October 2003 Serguei Morozov
