CS1022 Computer Programming & Principles

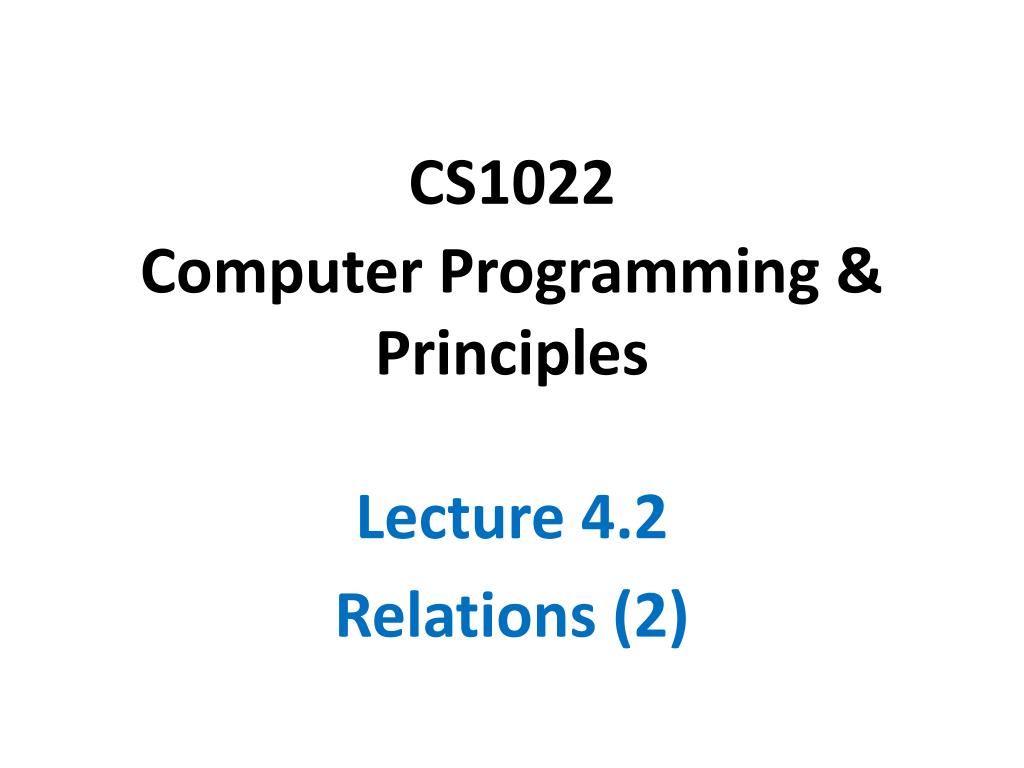

1. CS1022Computer Programming & Principles Lecture 4.2 Relations (2)

2. Plan of lecture • Equivalence relations • Set partition • Partial order • Total order • Database management systems CS1022

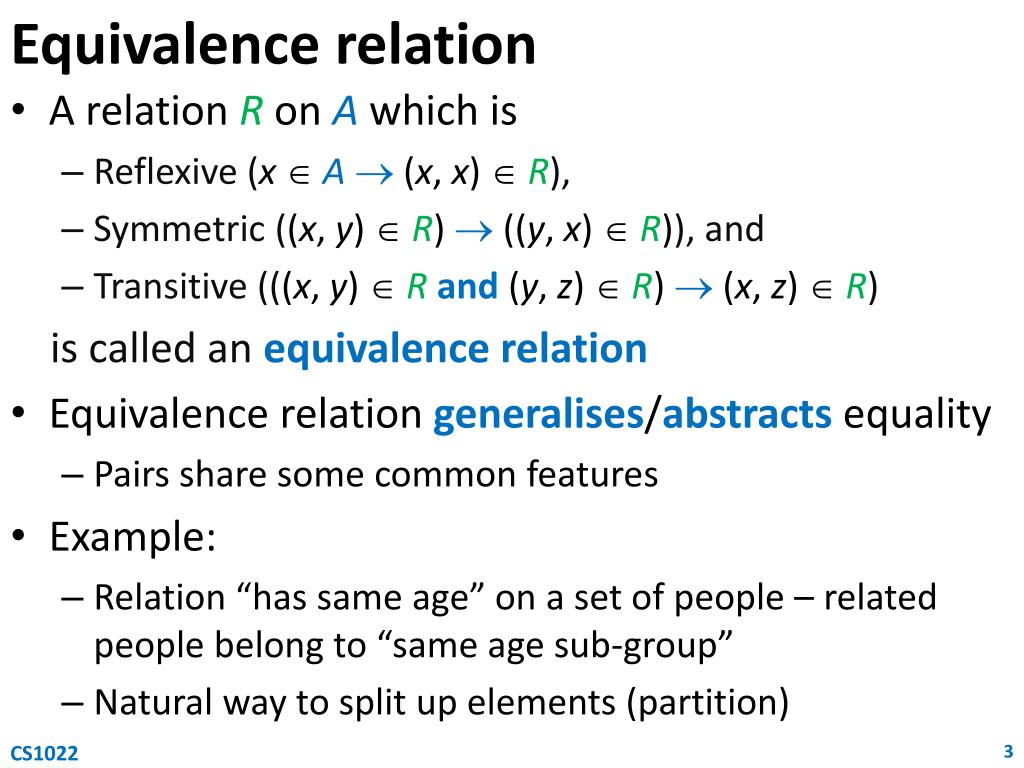

3. Equivalence relation • A relation R on A which is • Reflexive (x  A (x, x)  R), • Symmetric ((x, y)  R)  ((y, x)  R)), and • Transitive (((x, y)  Rand (y, z)  R)  (x, z)  R) is called an equivalence relation • Equivalence relation generalises/abstracts equality • Pairs share some common features • Example: • Relation “has same age” on a set of people – related people belong to “same age sub-group” • Natural way to split up elements (partition) CS1022

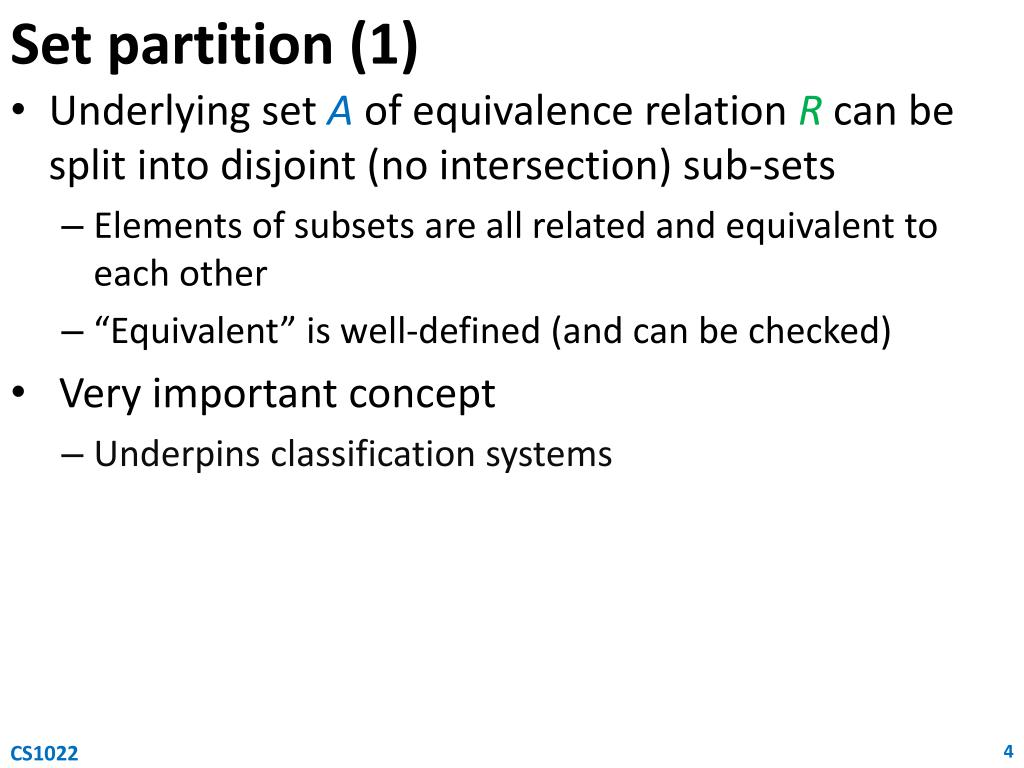

4. Set partition (1) • Underlying set A of equivalence relation Rcan be split into disjoint (no intersection) sub-sets • Elements of subsets are all related and equivalent to each other • “Equivalent” is well-defined (and can be checked) • Very important concept • Underpins classification systems CS1022

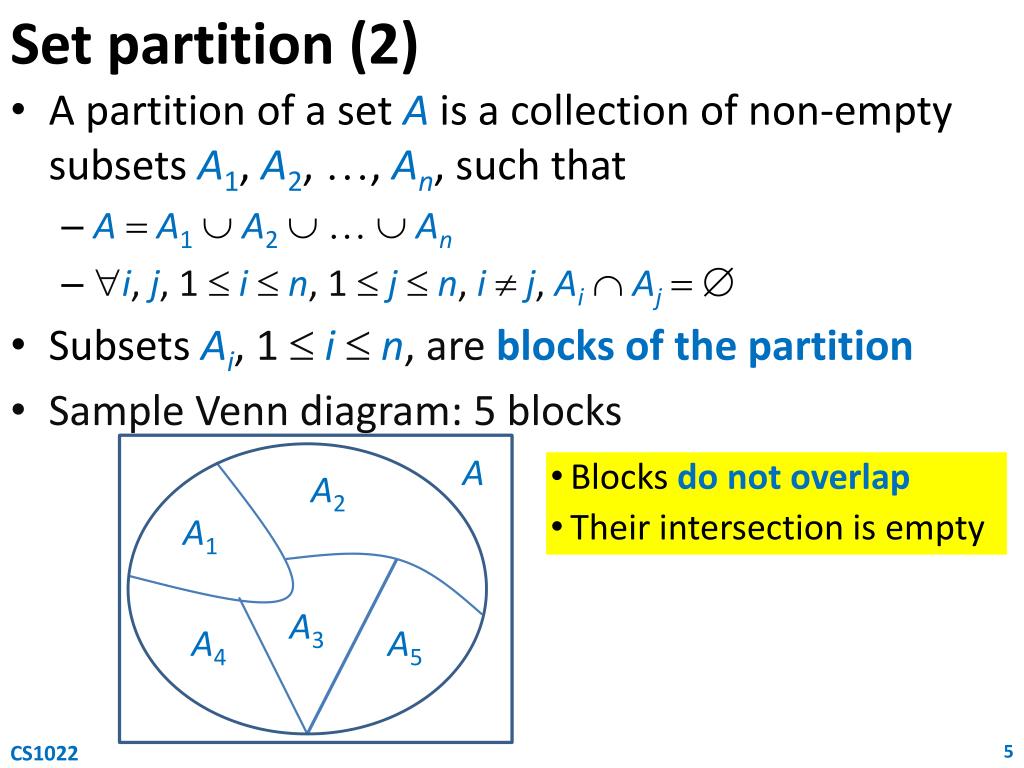

5. Set partition (2) • A partition of a set A is a collection of non-empty subsets A1, A2, , An, such that • A A1A2  An • i, j, 1 i  n, 1  j  n, i  j, AiAj   • Subsets Ai, 1 i  n, are blocks of the partition • Sample Venn diagram: 5 blocks • Blocks do not overlap • Their intersection is empty A A2 A1 A3 A4 A5 CS1022

6. Set partition (3) • Subsets/partitions consist of related elements of A • Equivalence class Ex, of any x A, is the set Ex z A : zR x • Theorem: • Let R be an equivalence relation on a non-empty set A • The distinct equivalence classes form a partition of A • Proof in 4 parts: • Show that equivalent classes are non-empty subsets of A • Show that if xR y then Ex Ey • Show that A Ex1Ex2  Exn • Show that for any two Ex and Ey, ExEy   CS1022

7. Set partition (4) • Example: relation R on R (real numbers) defined as xRy if, and only if, x y is an integer Is an equivalence relation. • Proof: • Since x x  0 for any real number x, then R is reflexive • If x y is an integer then y x  (x  y) is the negative of an integer, which is an integer, hence R is symmetric • If x y and y z are integers then x z  (x y) + (y z) is the sum of two integers, which is another integer, so R is transitive • Therefore R is an equivalence relation CS1022

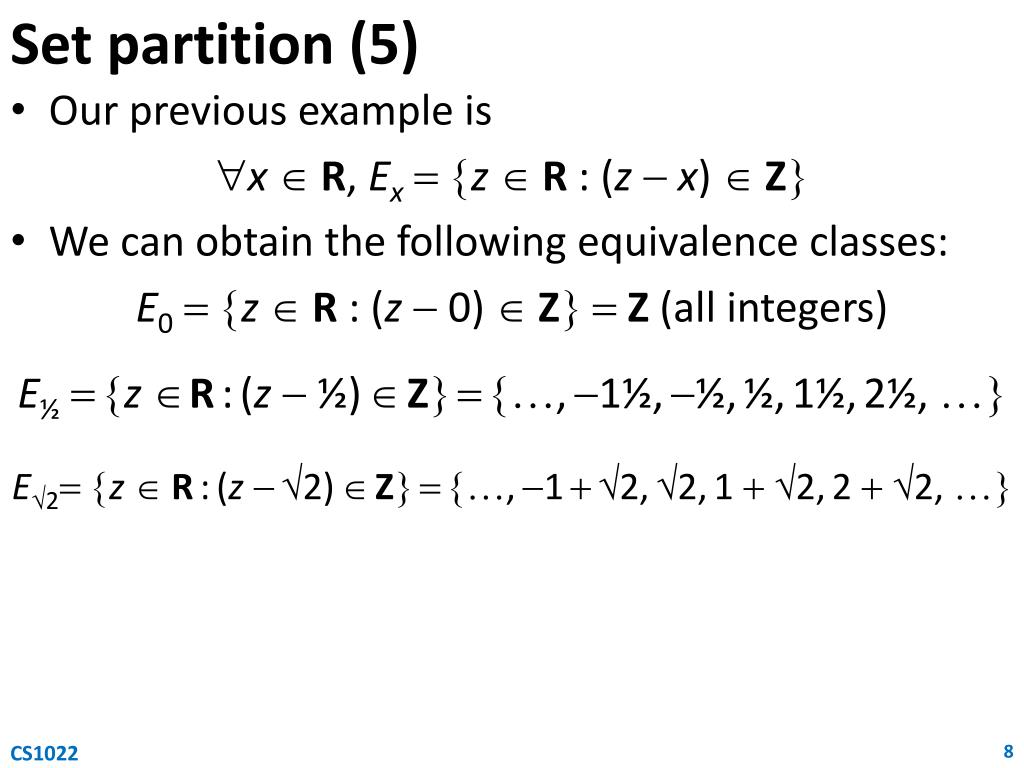

8. Set partition (5) • Our previous example is x  R, Ex  z  R : (z x) Z • We can obtain the following equivalence classes: E0  z  R : (z 0) Z  Z (all integers) E½ z R:(z ½)Z,1½,½,½,1½,2½,  E2 z  R:(z2)Z,12,2,1  2,2  2,  CS1022

9. Partial order (1) • A relation R on A which is • Reflexive (x  A (x, x)  R), • Anti-symmetric ((x, y)  R) and (x  y))  ((y, x)  R)), and • Transitive (((x, y)  Rand (y, z)  R)  (x, z)  R) Is a partial order • Sets on which partial order is defined are “posets” • Partial orders help us defining precedence • Decide when an element precedes another • Establish an order among elements • Sample partial orders • “” on the set R of real numbers • “” on subsets of some universe set CS1022

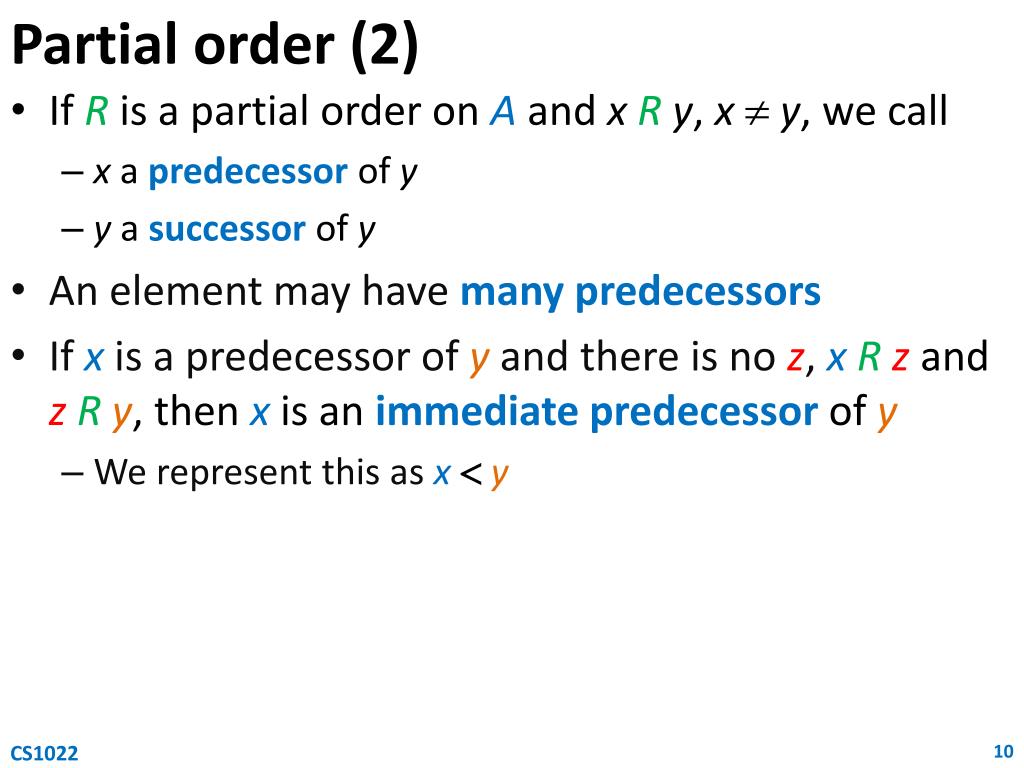

10. Partial order (2) • If R is a partial order on A and x R y, x  y, we call • x a predecessor of y • y a successor of y • An element may have many predecessors • If x is a predecessor of y and there is no z, x Rz and z Ry, then x is an immediate predecessor of y • We represent this as xy CS1022

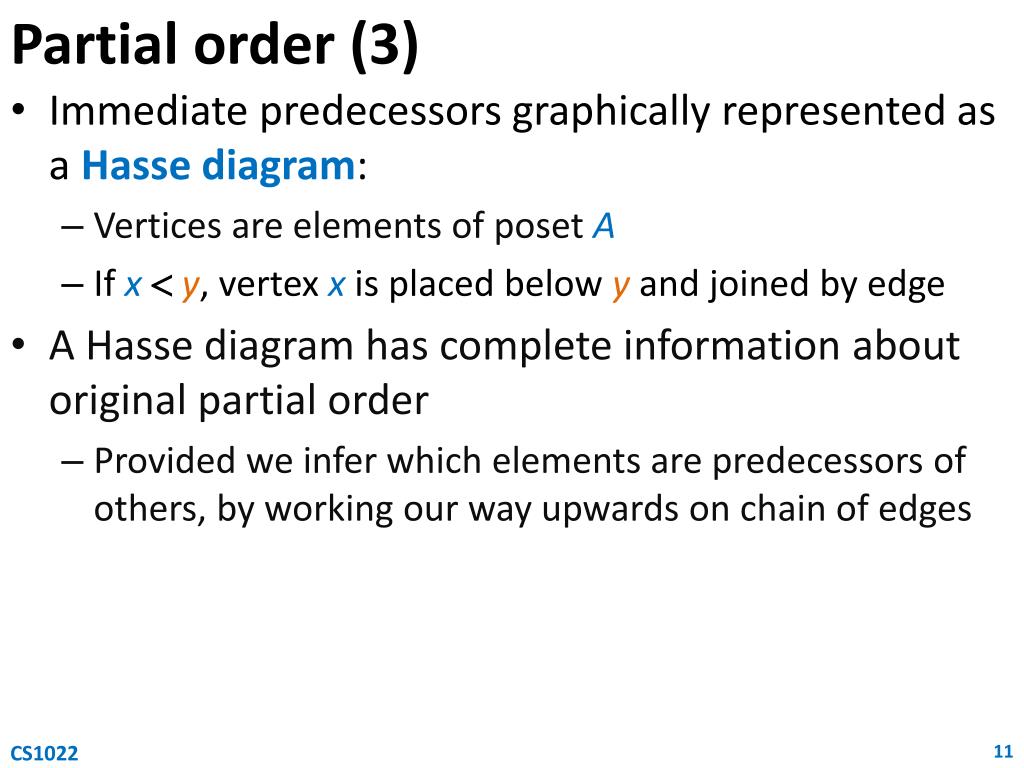

11. Partial order (3) • Immediate predecessors graphically represented as a Hasse diagram: • Vertices are elements of posetA • If xy, vertex x is placed below y and joined by edge • A Hasse diagram has complete information about original partial order • Provided we infer which elements are predecessors of others, by working our way upwards on chain of edges CS1022

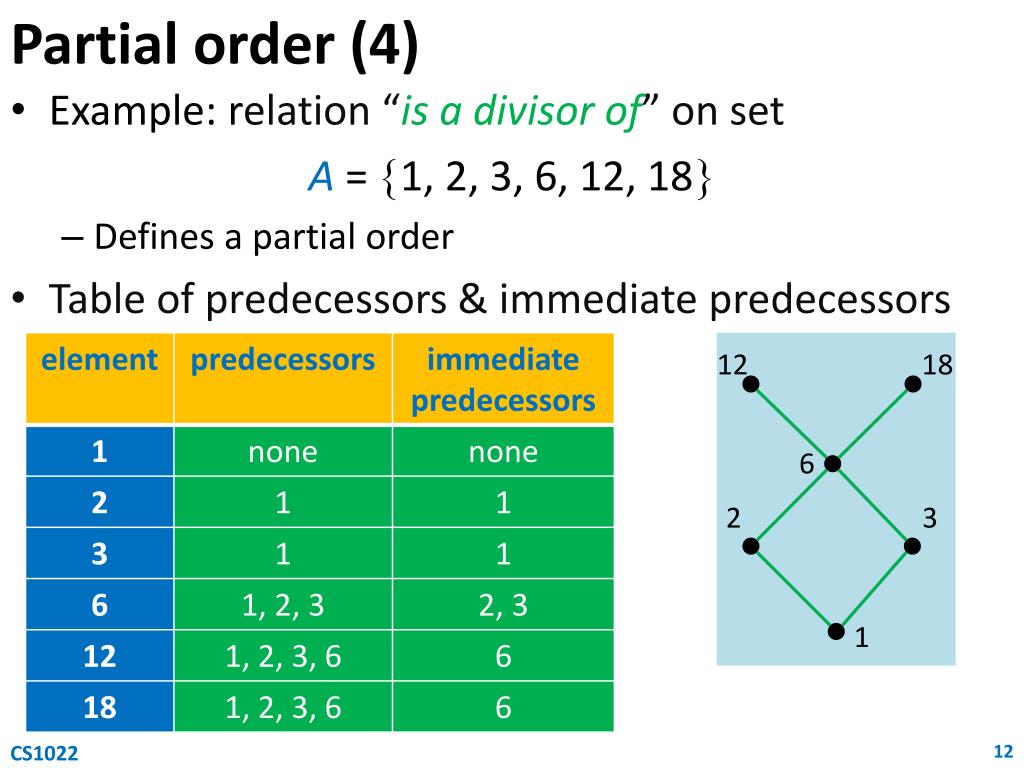

12. Partial order (4) • Example: relation “is a divisor of” on set A = 1, 2, 3, 6, 12, 18 • Defines a partial order • Table of predecessors & immediate predecessors 12 18 6 2 3 1 CS1022

13. Total order • A total order on a set A is a partial ordering in which every pair of elements are related. • The Hasse diagram of a total order is a long chain • Examples of total orders: • Relation “” on Real numbers • Lexicographical ordering of words in a dictionary • In computing: • Sorting algorithms require total ordering of elements • Posets with minimal/maximal elements useful too CS1022

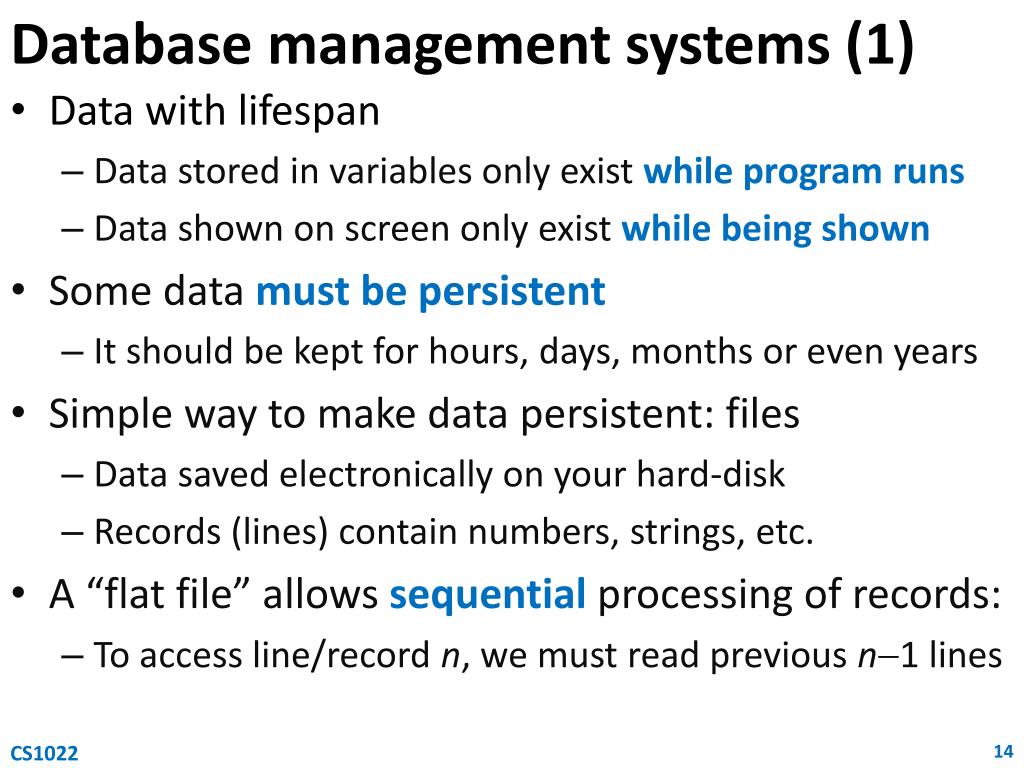

14. Database management systems (1) • Data with lifespan • Data stored in variables only exist while program runs • Data shown on screen only exist while being shown • Some data must be persistent • It should be kept for hours, days, months or even years • Simple way to make data persistent: files • Data saved electronically on your hard-disk • Records (lines) contain numbers, strings, etc. • A “flat file” allows sequential processing of records: • To access line/record n, we must read previous n1 lines CS1022

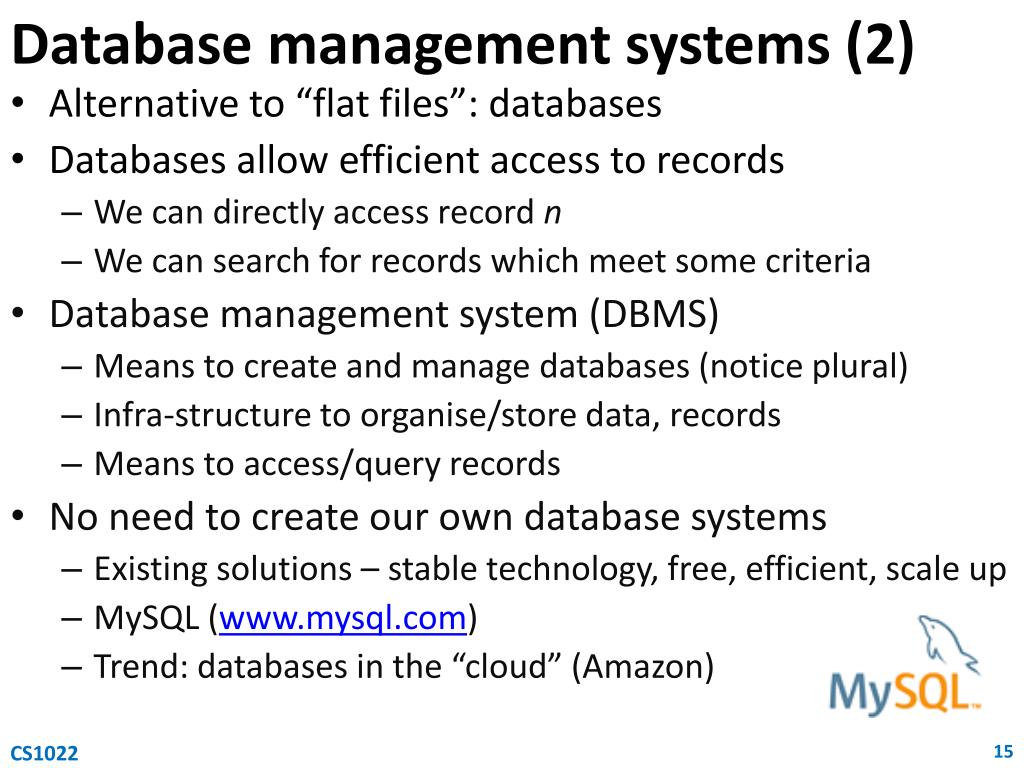

15. Database management systems (2) • Alternative to “flat files”: databases • Databases allow efficient access to records • We can directly access record n • We can search for records which meet some criteria • Database management system (DBMS) • Means to create and manage databases (notice plural) • Infra-structure to organise/store data, records • Means to access/query records • No need to create our own database systems • Existing solutions – stable technology, free, efficient, scale up • MySQL (www.mysql.com) • Trend: databases in the “cloud” (Amazon) CS1022

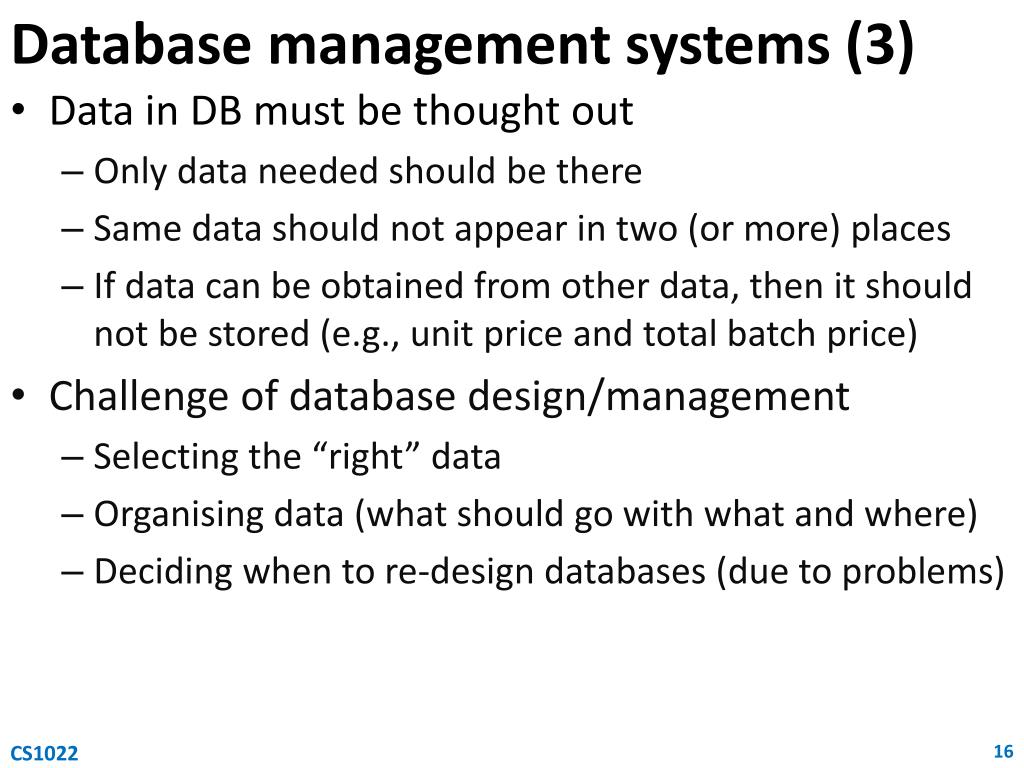

16. Database management systems (3) • Data in DB must be thought out • Only data needed should be there • Same data should not appear in two (or more) places • If data can be obtained from other data, then it should not be stored (e.g., unit price and total batch price) • Challenge of database design/management • Selecting the “right” data • Organising data (what should go with what and where) • Deciding when to re-design databases (due to problems) CS1022

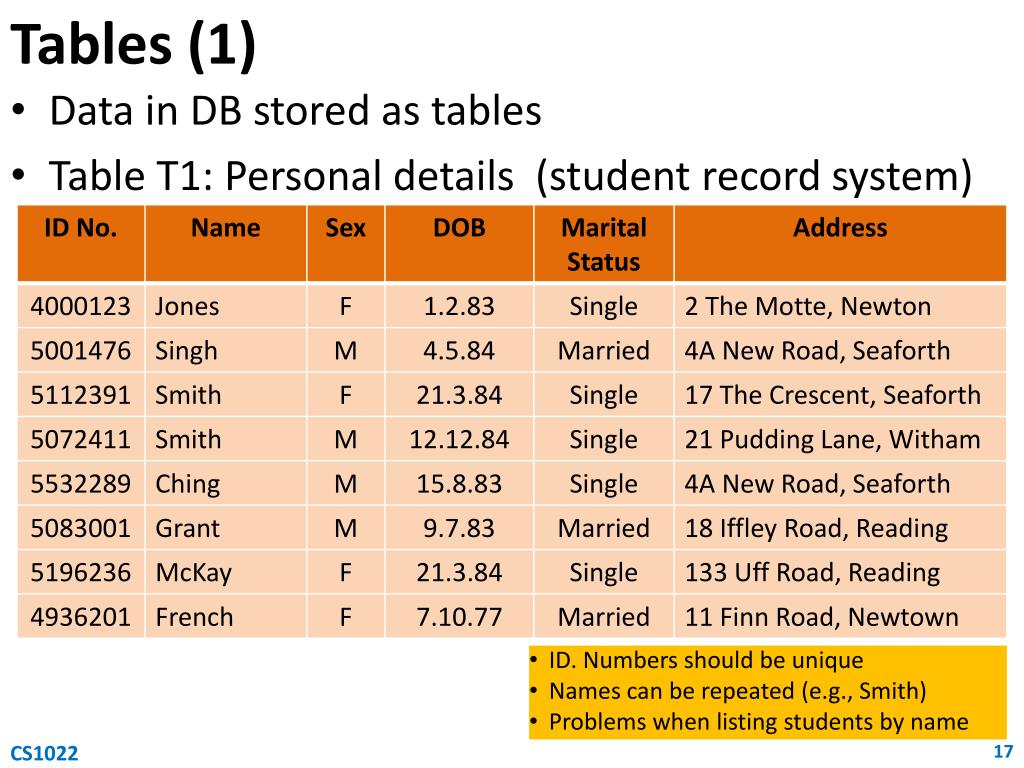

17. Tables (1) • Data in DB stored as tables • Table T1: Personal details (student record system) • ID. Numbers should be unique • Names can be repeated (e.g., Smith) • Problems when listing students by name CS1022

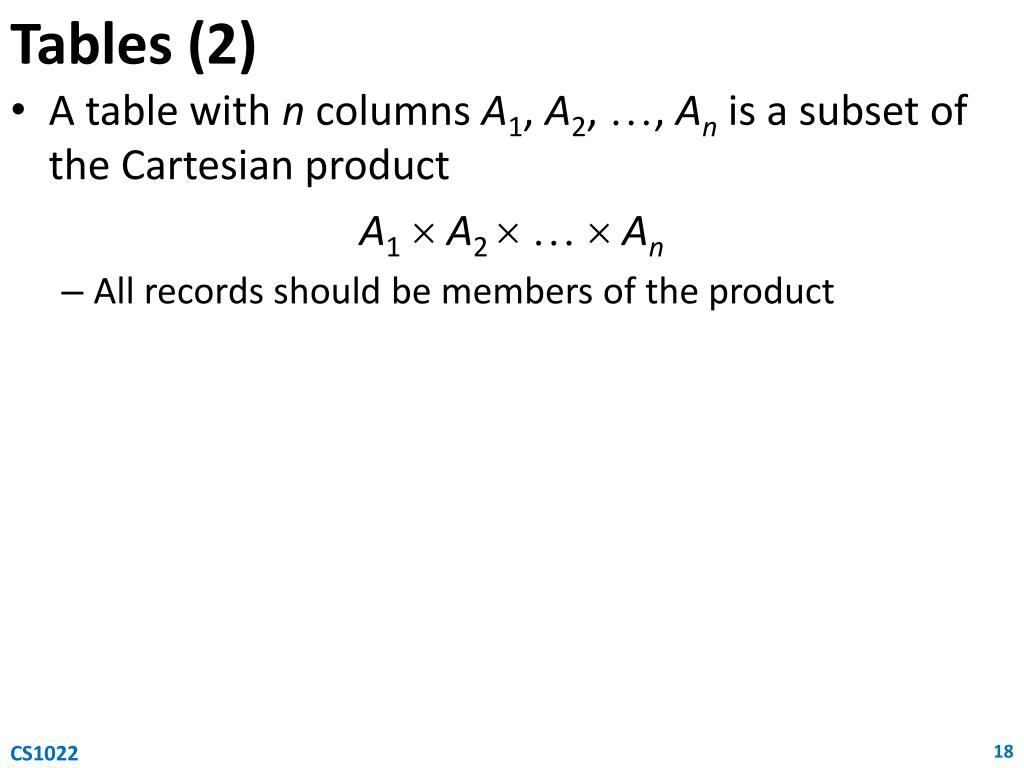

18. Tables (2) • A table with n columns A1, A2, , An is a subset of the Cartesian product A1  A2    An • All records should be members of the product CS1022

19. Tables (3) • Table T2: Course results • Table is Cartesian product of • Names  Marks  Marks  Marks  Marks • Rows are elements • (Jones, B, C, B, D) • (Grant, C, B, A, C) CS1022

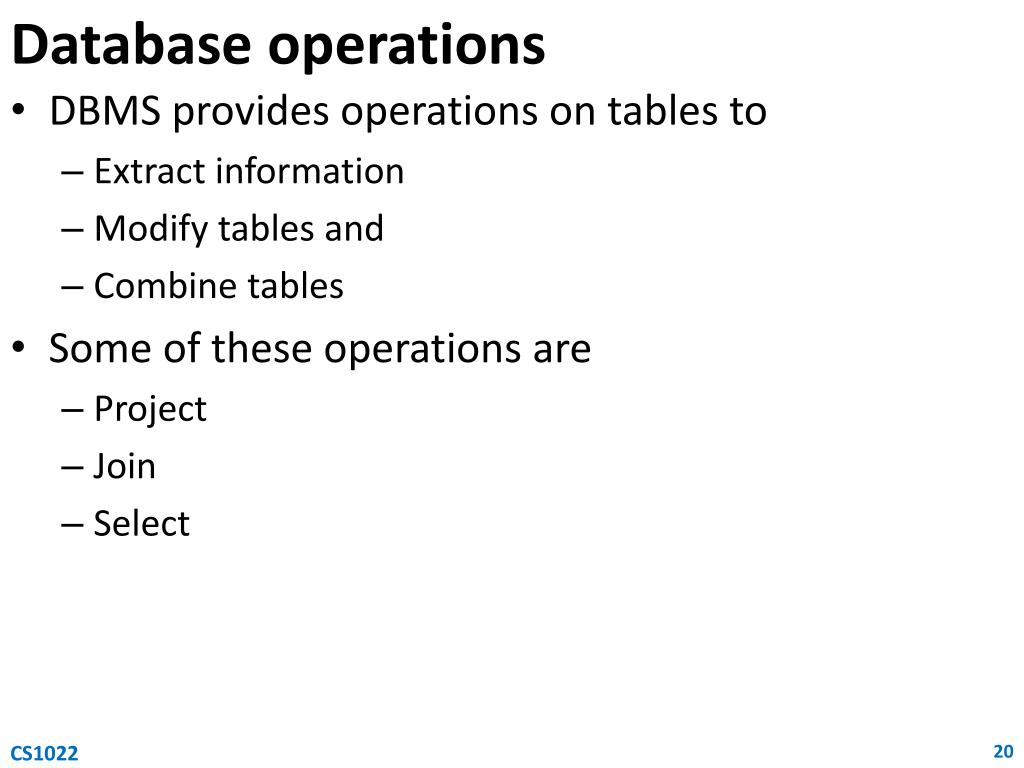

20. Database operations • DBMS provides operations on tables to • Extract information • Modify tables and • Combine tables • Some of these operations are • Project • Join • Select CS1022

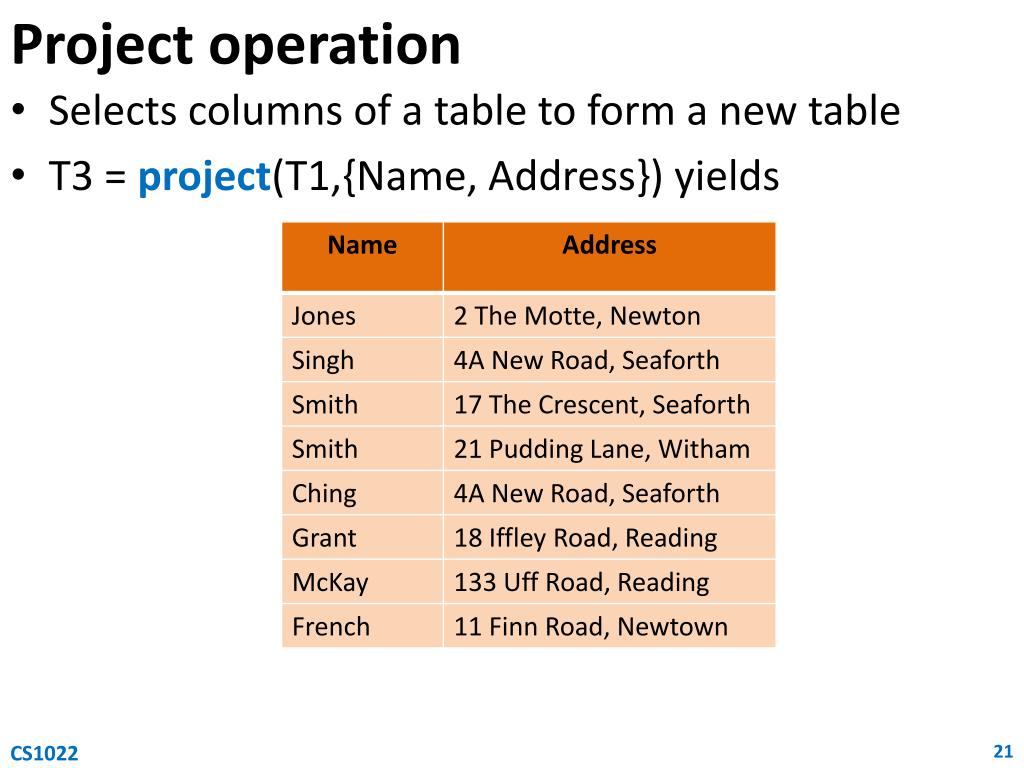

21. Project operation • Selects columns of a table to form a new table • T3 = project(T1,{Name, Address}) yields CS1022

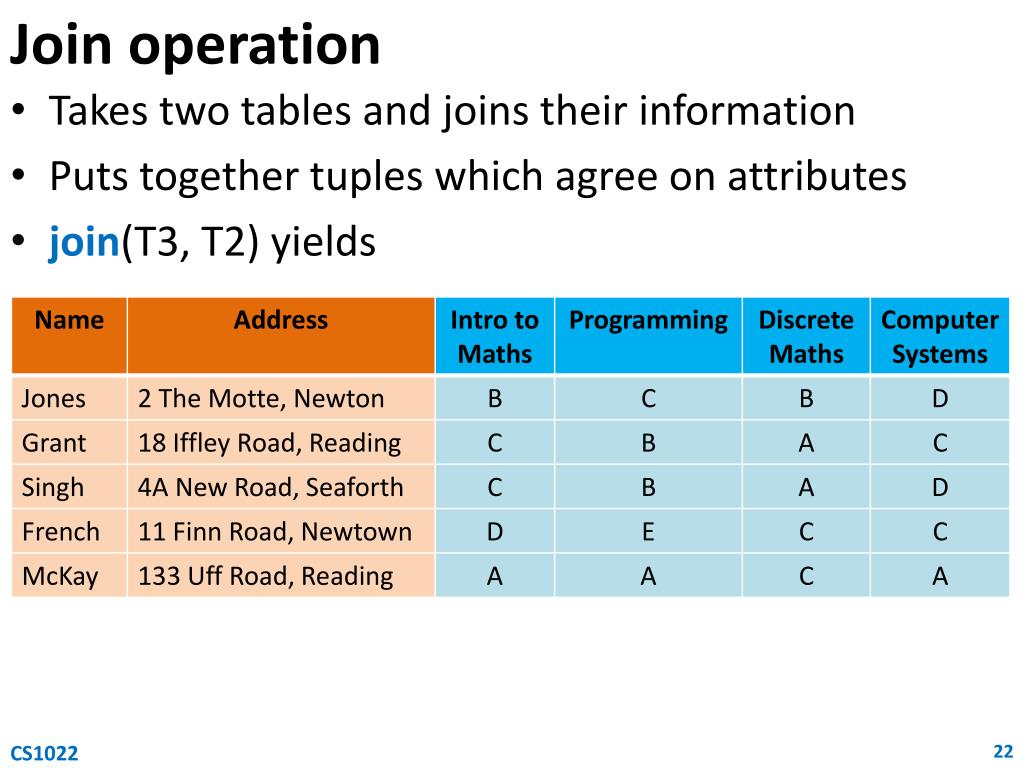

22. Join operation • Takes two tables and joins their information • Puts together tuples which agree on attributes • join(T3, T2) yields CS1022

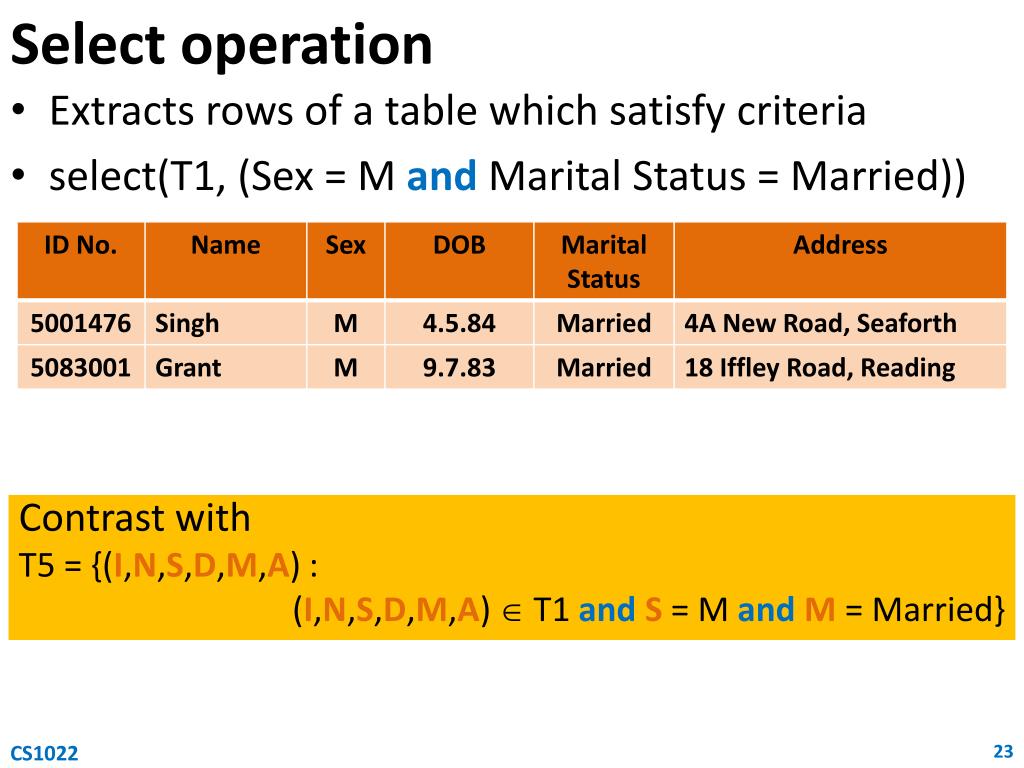

23. Select operation • Extracts rows of a table which satisfy criteria • select(T1, (Sex = M and Marital Status = Married)) • Contrast with • T5 = {(I,N,S,D,M,A) : • (I,N,S,D,M,A)  T1 andS = M andM = Married} CS1022

24. Summary You should now know: • What equivalence relations are • Definition of set partition • Partial and total order of a relation • Concepts of database management systems CS1022

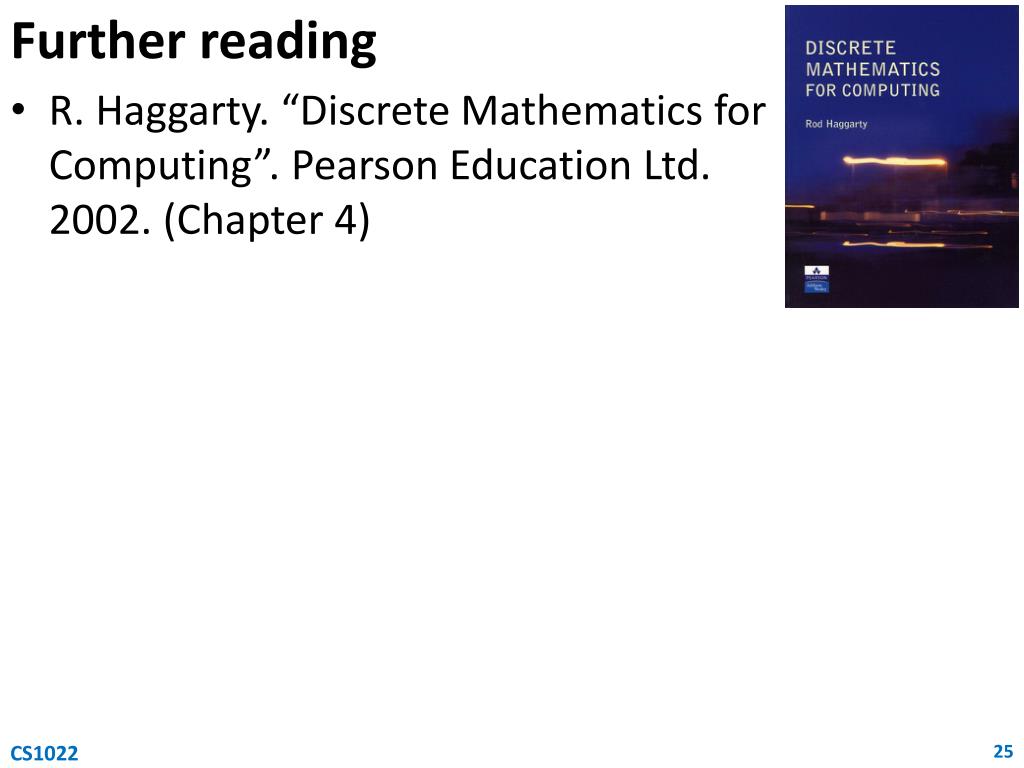

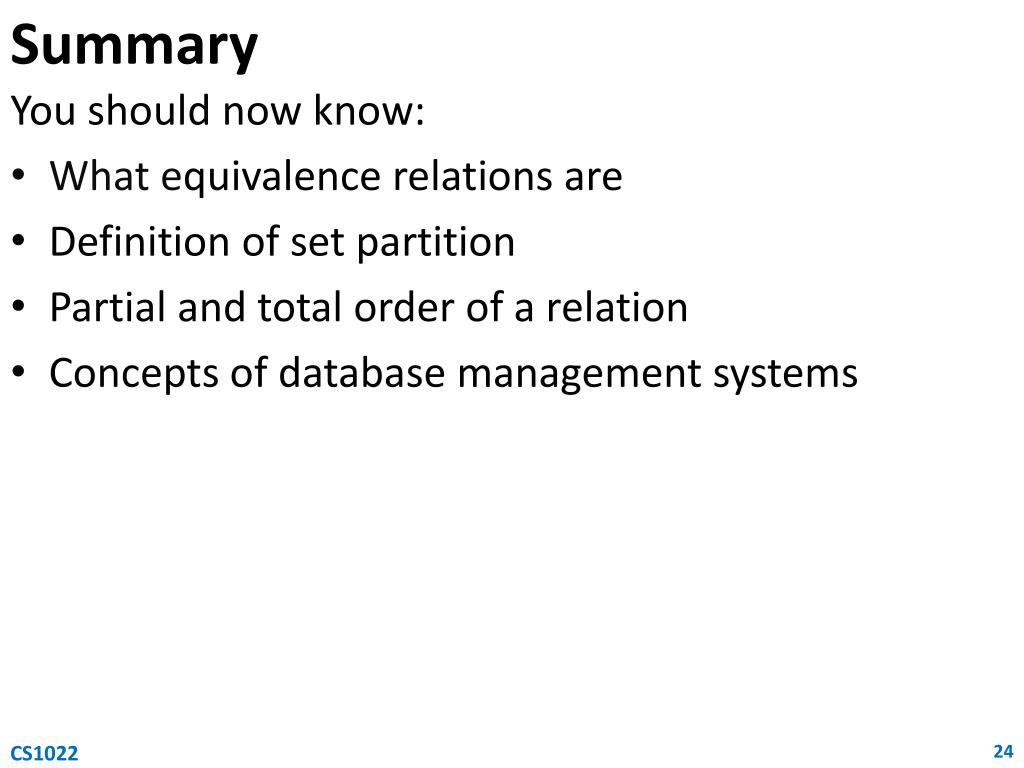

25. Further reading • R. Haggarty. “Discrete Mathematics for Computing”. Pearson Education Ltd. 2002. (Chapter 4) CS1022
