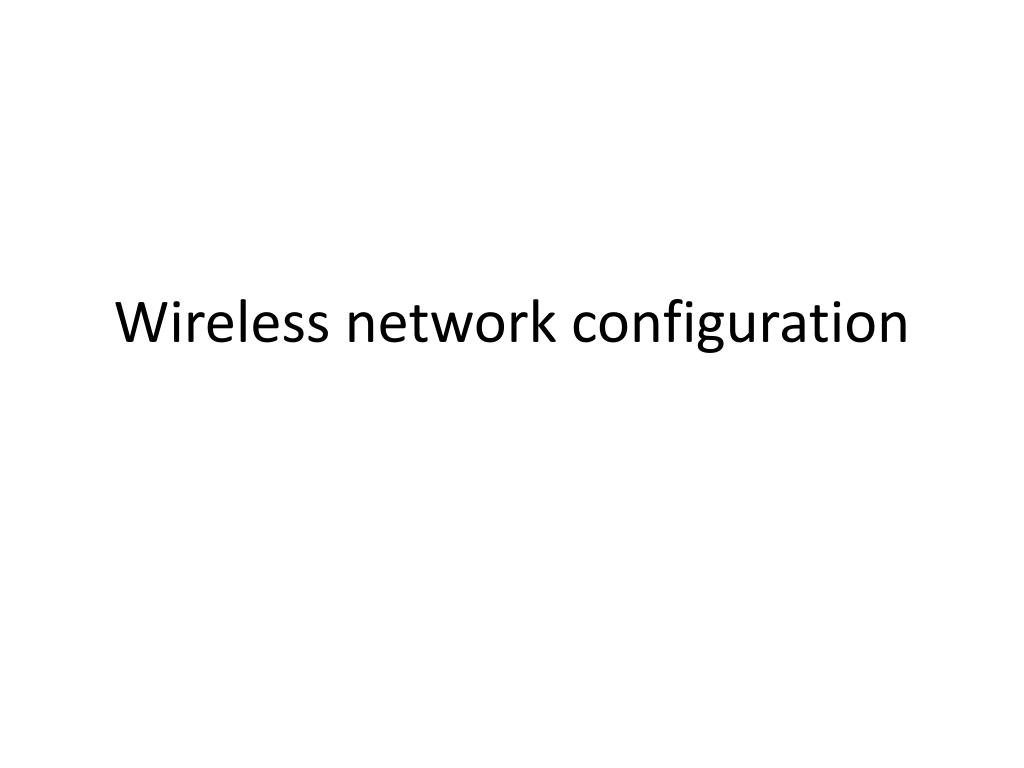

  1. Wireless network configuration

  2. http://203.159.26.64/http://203.159.26.64/putty/

  3. Login to router • Connect cable to “LAN1” interface • Your PC: 192.168.1.3 / 24 • ssh 192.168.1.1 • User:root • Password:root

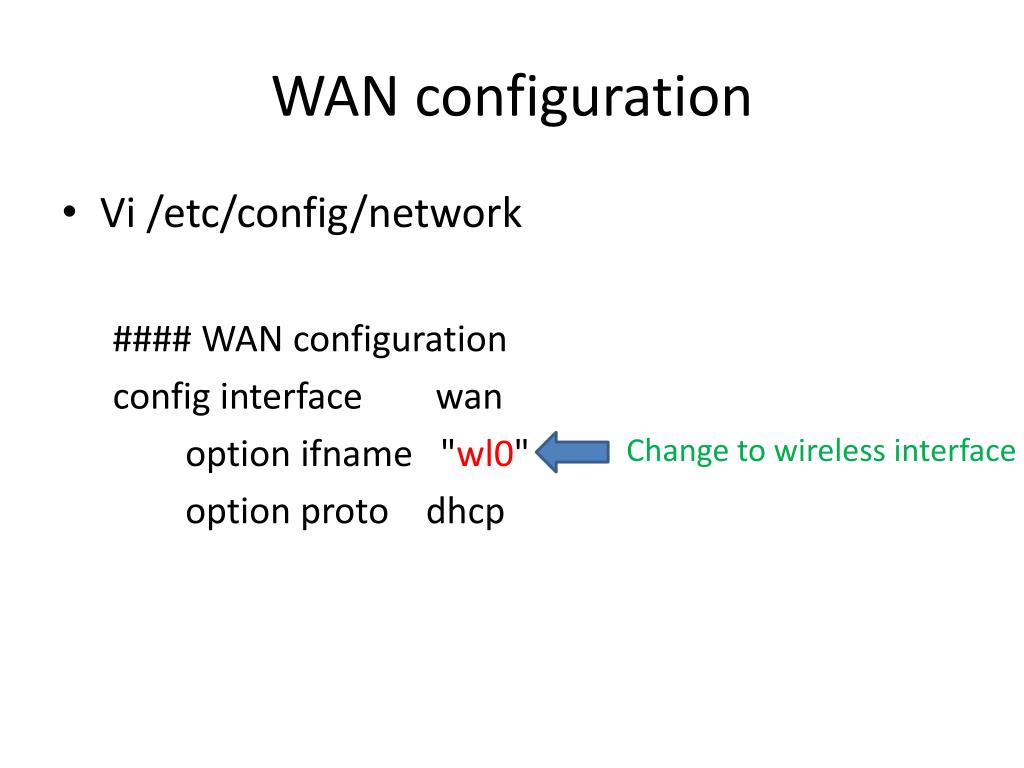

  4. WAN configuration • Vi /etc/config/network #### WAN configuration config interface wan option ifname "wl0" option proto dhcp Change to wireless interface

  5. Wireless configuration • Vi /etc/config/wireless configwifi-device wl0 option type broadcom option channel 1 # REMOVE THIS LINE TO ENABLE WIFI: #option disabled 1 configwifi-iface option device wl0 option network wan option mode sta option ssidAIT option encryption none Change to channel 1 Add # to comment out Change to WAN Change to station mode Write SSID name

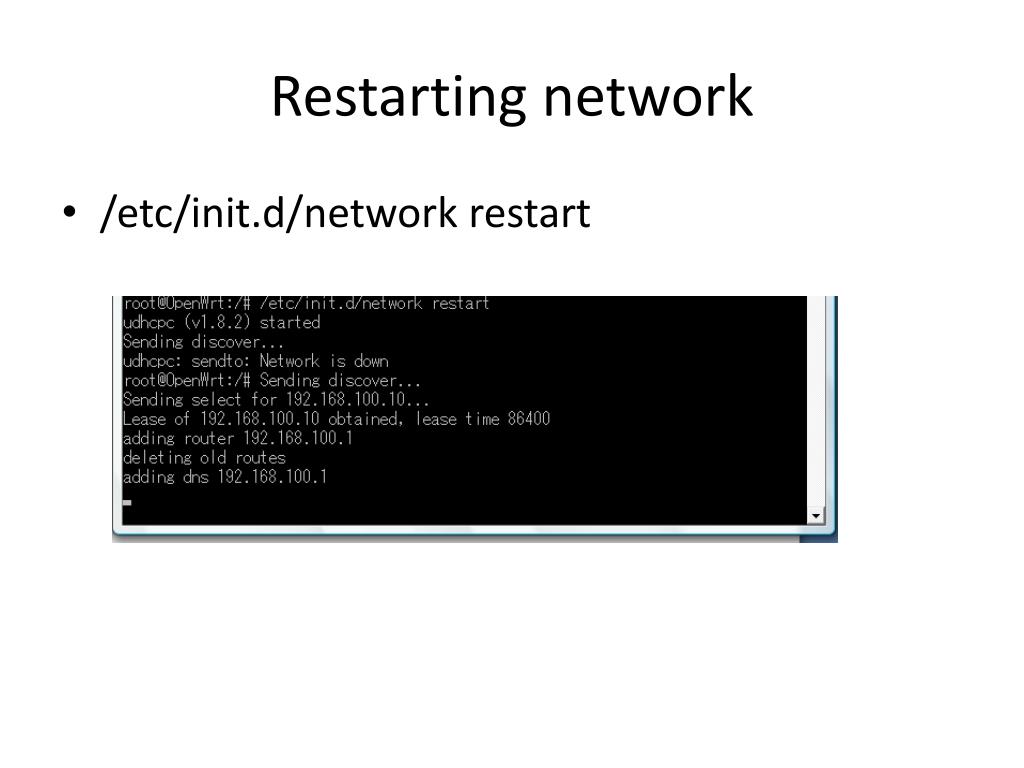

  6. Restarting network • /etc/init.d/network restart

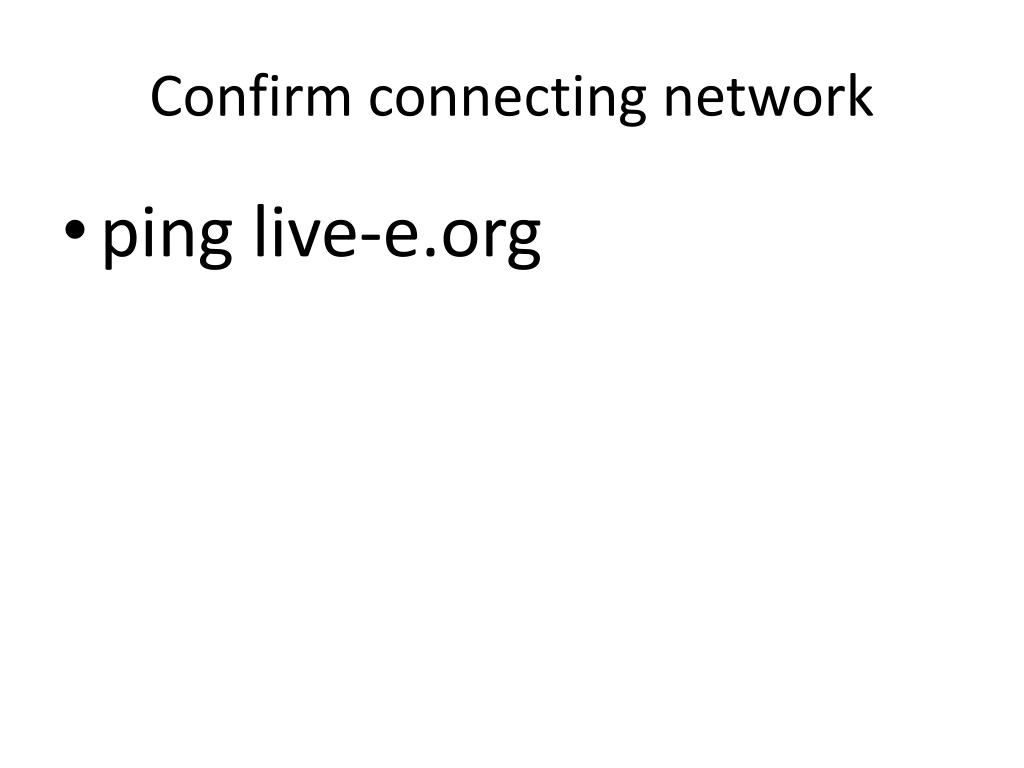

  7. Confirm connecting network • ping live-e.org

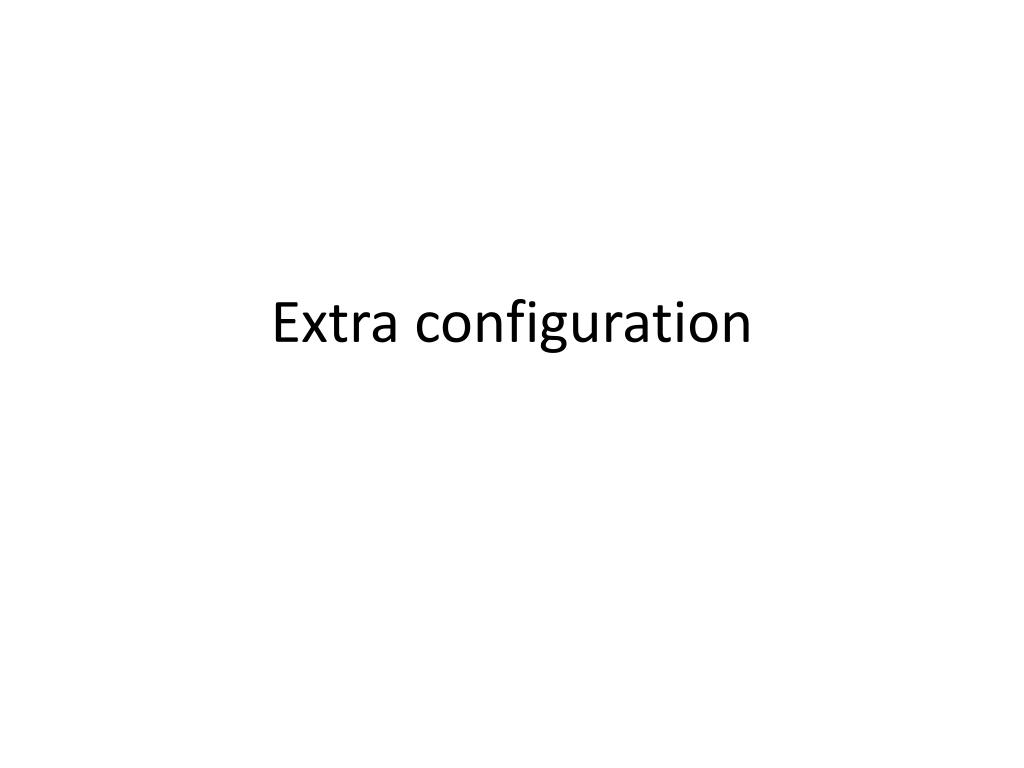

  8. Extra configuration

  9. Using encryption • Vi /etc/config/wireless configwifi-iface option device wl0 option network wan option mode sta option ssid AIT option encryption wep option key ‘1’ option key1 ‘12345678901234567890123456’ Write encryption type Select key number Key(base 16 number)

  10. Static IP address configuration • Vi /etc/config/network #### WAN configuration config interface wan option ifname "wl0" option proto static option ipaddr 192.168.10.2 option netmask 255.255.255.0 option gateway 192.168.10.1 option dns 192.168.10.1 Change to static Write network information

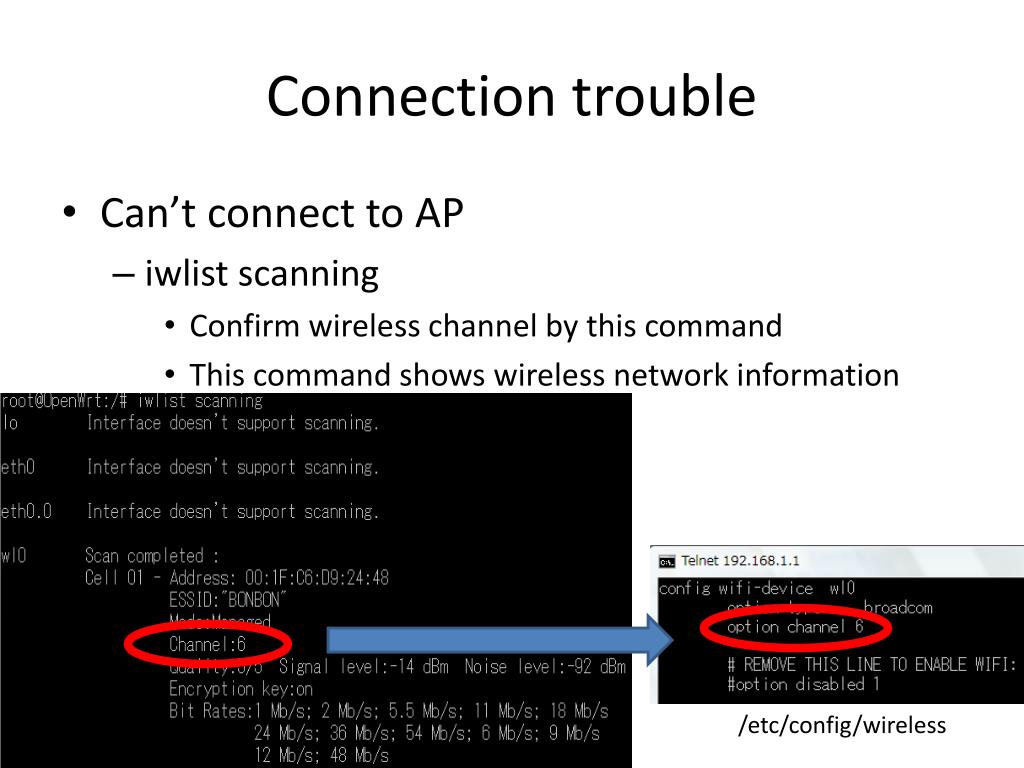

  11. Connection trouble • Can’t connect to AP • iwlist scanning • Confirm wireless channel by this command • This command shows wireless network information /etc/config/wireless

  12. Reference • http://wiki.openwrt.org/ClientModeHowto • http://forum.openwrt.org/viewtopic.php?pid=49824 • http://woz.gs/wifi/openwrtbridge.html • http://wiki.openwrt.org/OpenWrtDocs/KamikazeConfiguration/NonBridgedWiFi?highlight=%28bridge%29 • http://www.nickcoons.com/blogs/comments.php?blog_id=43 • http://www.alyz.com/openwrt.xhtml • http://wiki.openwrt.org/WirelessBridgeWithWPAHowto • http://m • http://forum.openwrt.org/viewtopic.php?pid=57490 artybugs.net/wireless/openwrt/client.cgi • http://forum.openwrt.org/viewtopic.php?pid=57013 • http://wiki.openwrt.org/OpenWrtDocs/KamikazeConfiguration • http://cqhua.wordpress.com/ • http://forum.openwrt.org/viewtopic.php?id=13591&p=1 • http://forum.openwrt.org/viewtopic.php?id=14141 • http://forum.openwrt.org/viewtopic.php?id=14085 • http://forum.openwrt.org/viewtopic.php?id=13984
