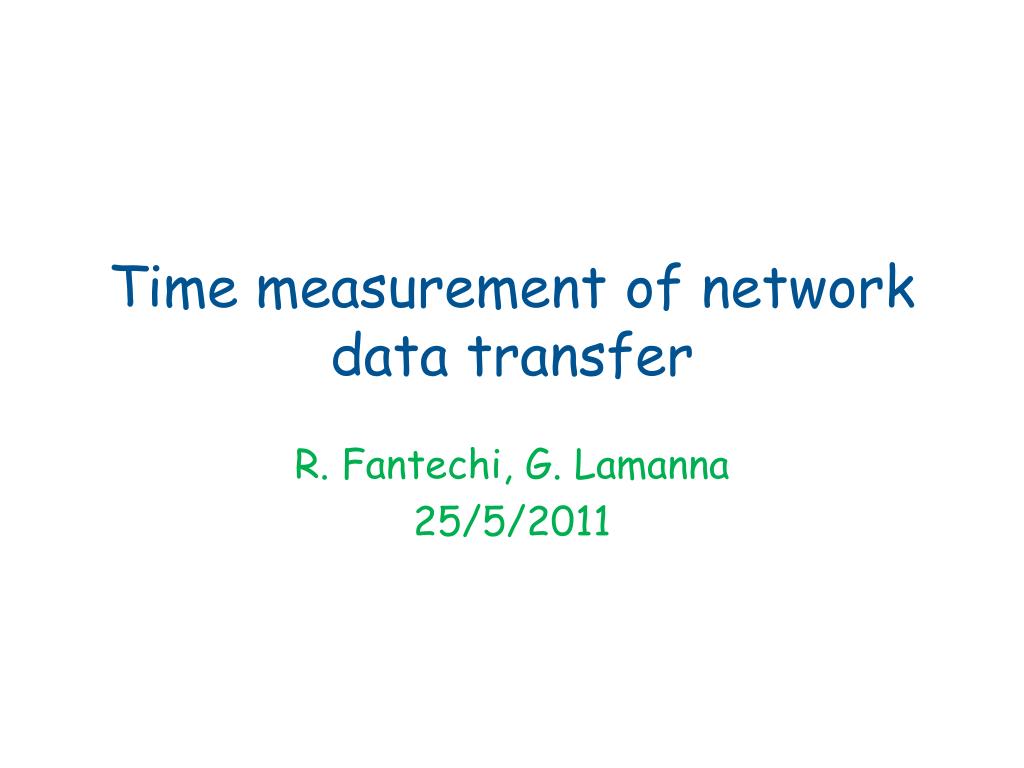

  1. Time measurement of network data transfer R. Fantechi, G. Lamanna 25/5/2011

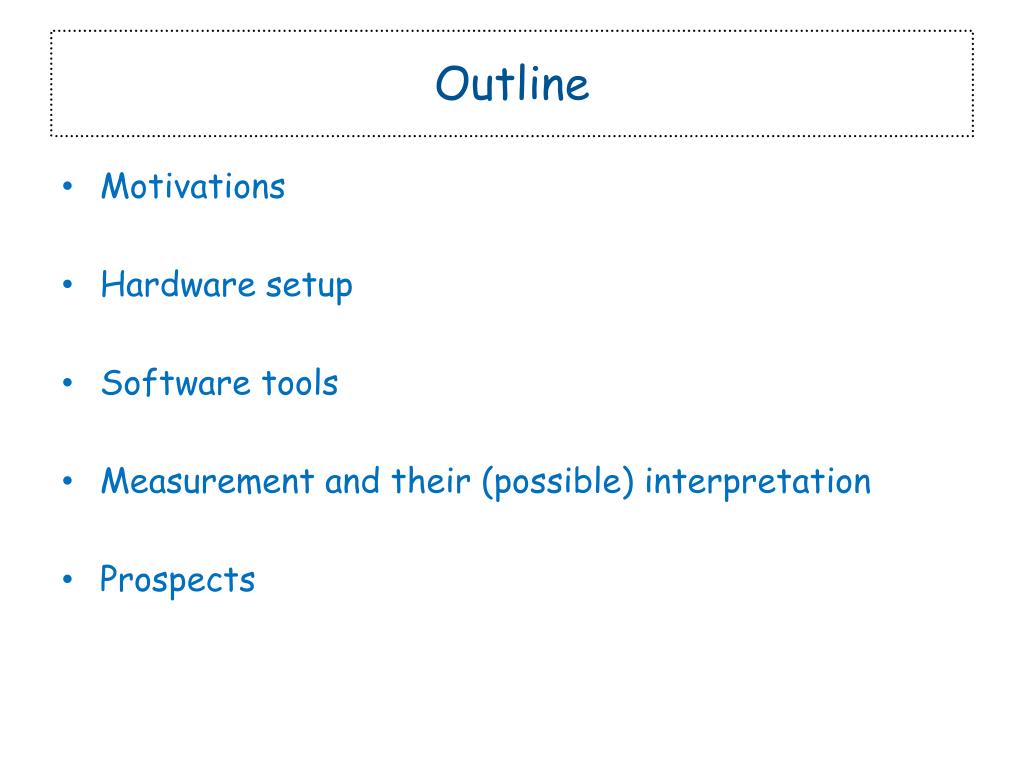

  2. Outline • Motivations • Hardware setup • Software tools • Measurement and their (possible) interpretation • Prospects

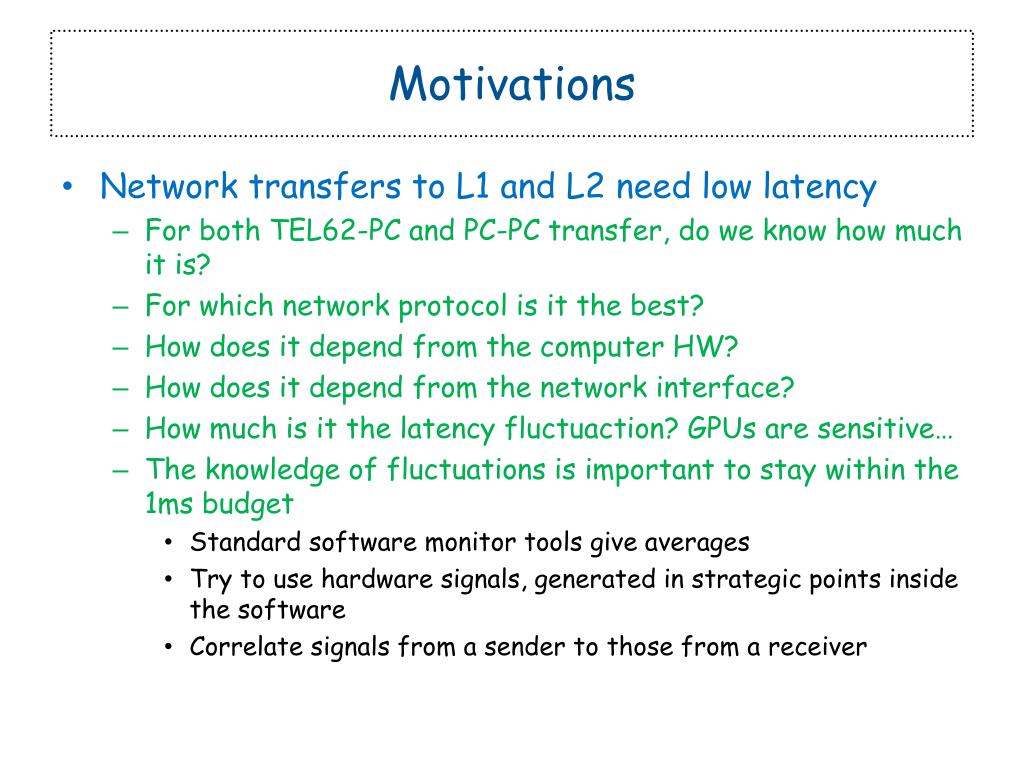

  3. Motivations • Network transfers to L1 and L2 need low latency • Forboth TEL62-PC and PC-PC transfer, do weknowhowmuchitis? • For which network protocol is it the best? • How does it depend from the computer HW? • How does it depend from the network interface? • How much is it the latency fluctuaction? GPUs are sensitive… • The knowledge of fluctuations is important to stay within the 1ms budget • Standard software monitor tools give averages • Try to use hardware signals, generated in strategic points inside the software • Correlate signals from a sender to those from a receiver

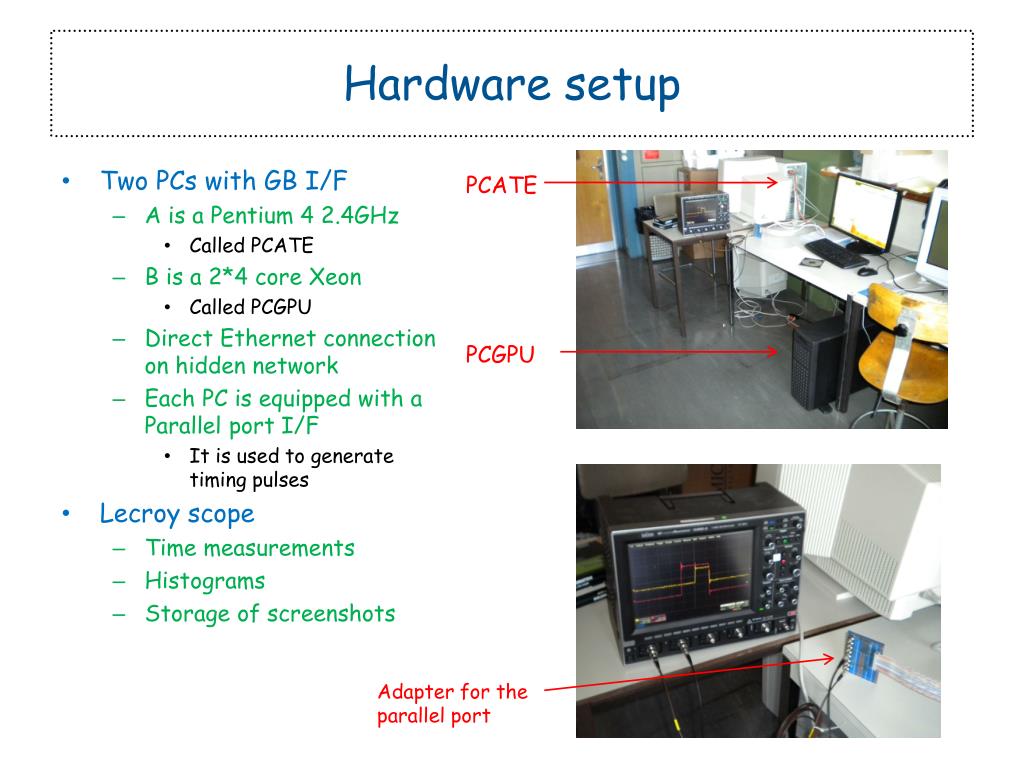

  4. Hardware setup • TwoPCswith GB I/F • A is a Pentium 4 2.4GHz • Called PCATE • B is a 2*4 core Xeon • Called PCGPU • Direct Ethernet connection on hidden network • Each PC is equipped with a Parallel port I/F • It is used to generate timing pulses • Lecroy scope • Time measurements • Histograms • Storage of screenshots PCATE PCGPU Adapter for the parallel port

  5. Software tools • Investigate three “protocols” • Raw Ethernet packets (socketPF_PACKET, SOCK_RAW) • IP packets (socket PF_INET, SOCK_RAW) • TCP packets (socket PF_INET, SOCK_STREAM) • Three pairs of simple senders/receivers • The sender • Gets from the command line packet size, number of packets, delay between packets , downscaling factor (see later) • Initialize the socket and go in a tight loop, with a delay inside • Inside the loop, before and after the send command, write a pulse on the parallel port • The receiver • After inizialization, go in a receive loop and write a pulse on the parallel port after having received a packet

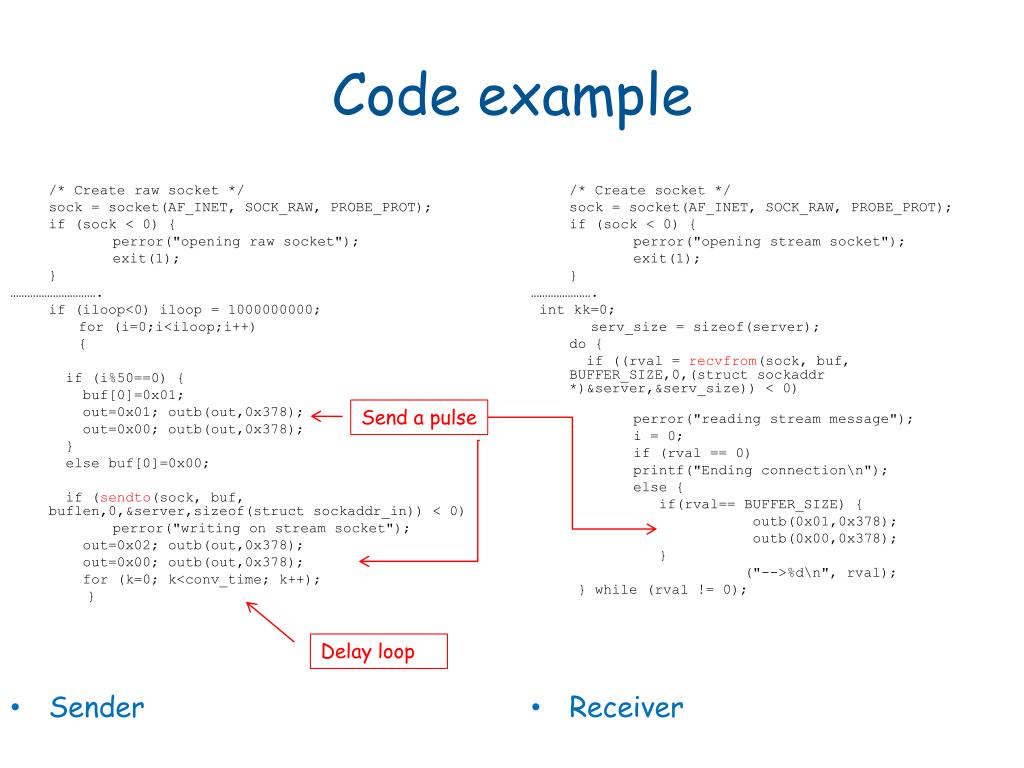

  6. Code example /* Create rawsocket */ sock = socket(AF_INET, SOCK_RAW, PROBE_PROT); if (sock < 0) { perror("opening rawsocket"); exit(1); } …………………………. if (iloop<0) iloop = 1000000000; for (i=0;i<iloop;i++) { if (i%50==0) { buf[0]=0x01; out=0x01; outb(out,0x378); out=0x00; outb(out,0x378); } else buf[0]=0x00; if (sendto(sock, buf, buflen,0,&server,sizeof(structsockaddr_in)) < 0) perror("writing on stream socket"); out=0x02; outb(out,0x378); out=0x00; outb(out,0x378); for (k=0; k<conv_time; k++); } • Sender /* Create socket */ sock = socket(AF_INET, SOCK_RAW, PROBE_PROT); if (sock < 0) { perror("opening streamsocket"); exit(1); } …………………. int kk=0; serv_size = sizeof(server); do { if ((rval = recvfrom(sock, buf, BUFFER_SIZE,0,(structsockaddr *)&server,&serv_size)) < 0) perror("readingstreammessage"); i = 0; if (rval == 0) printf("Endingconnection\n"); else { if(rval== BUFFER_SIZE) { outb(0x01,0x378); outb(0x00,0x378); } ("-->%d\n", rval); } while (rval != 0); • Receiver Send a pulse Delay loop

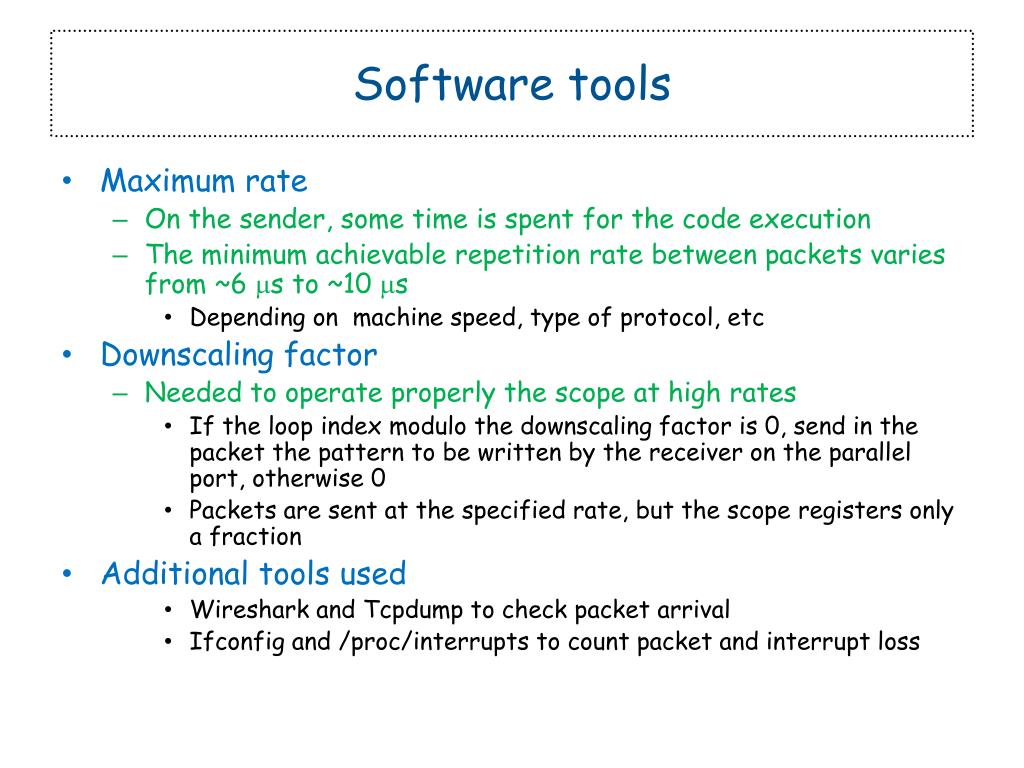

  7. Software tools • Maximum rate • On the sender, some timeisspentfor the code execution • The minimum achievable repetition rate between packets varies from ~6 ms to ~10 ms • Depending on machine speed, type of protocol, etc • Downscaling factor • Needed to operate properly the scope at high rates • If the loop index modulo the downscaling factor is 0, send in the packet the pattern to be written by the receiver on the parallel port, otherwise 0 • Packets are sent at the specified rate, but the scope registers only a fraction • Additional tools used • Wireshark and Tcpdump to check packet arrival • Ifconfig and /proc/interrupts to count packet and interrupt loss

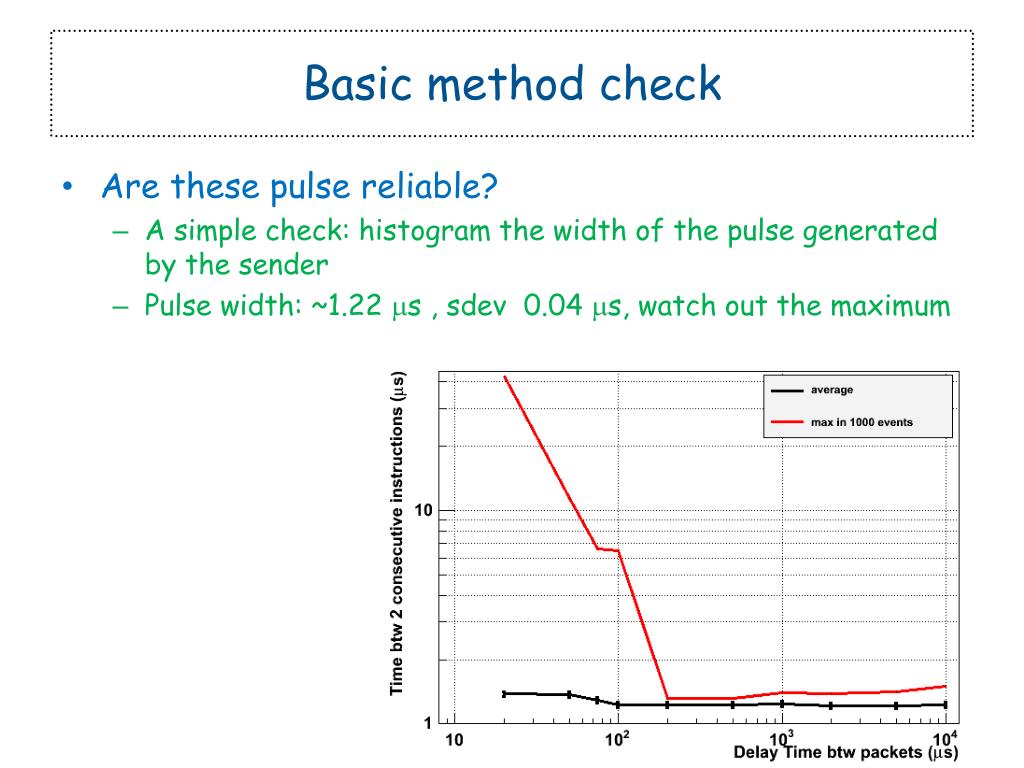

  8. Basicmethodcheck • Are these pulse reliable? • A simple check: histogram the width of the pulse generated by the sender • Pulse width: ~1.22 ms , sdev 0.04 ms, watch out the maximum

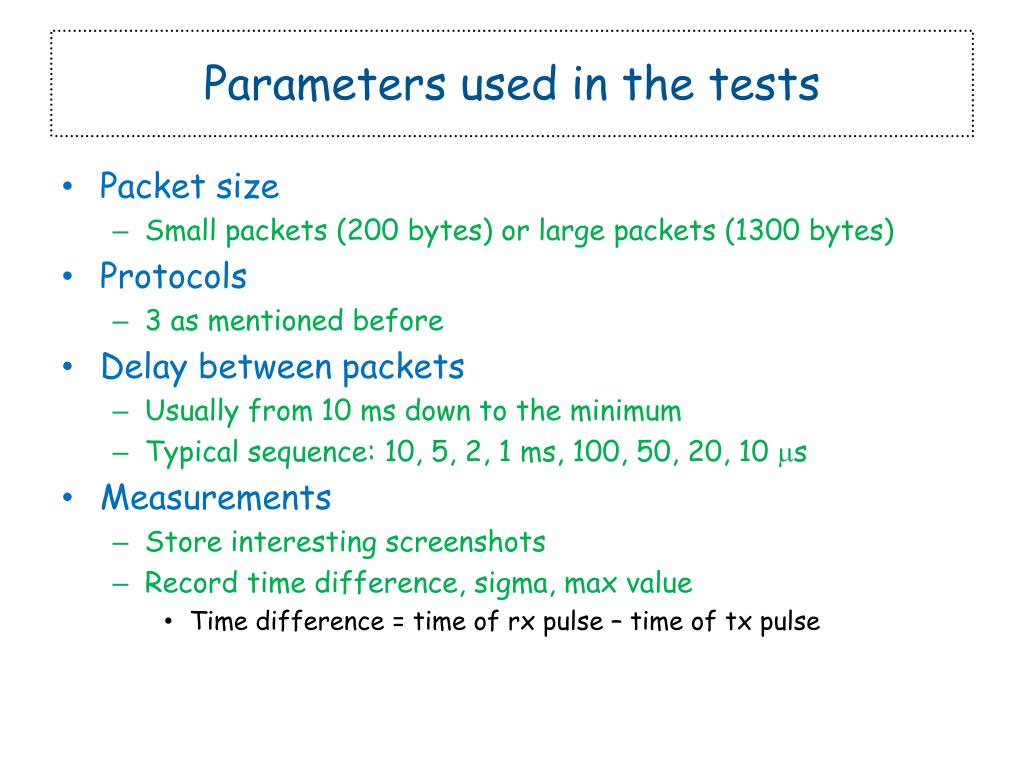

  9. Parametersused in the tests • Packet size • Small packets (200 bytes) or large packets (1300 bytes) • Protocols • 3 as mentioned before • Delay between packets • Usually from 10 ms down to the minimum • Typical sequence: 10, 5, 2, 1 ms, 100, 50, 20, 10 ms • Measurements • Store interesting screenshots • Record time difference, sigma, max value • Time difference = time of rx pulse – time of tx pulse

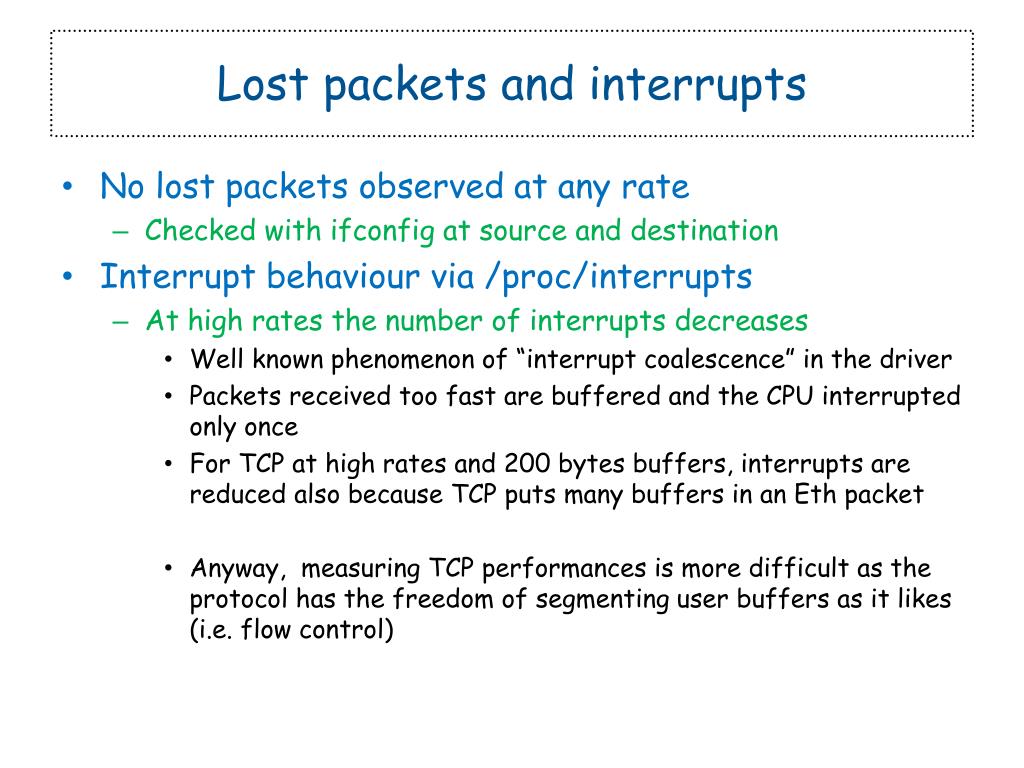

  10. Lost packets and interrupts • No lost packets observed at any rate • Checked with ifconfig at source and destination • Interrupt behaviour via /proc/interrupts • At high rates the number of interrupts decreases • Well known phenomenon of “interrupt coalescence” in the driver • Packets received too fast are buffered and the CPU interrupted only once • For TCP at high rates and 200 bytes buffers, interrupts are reduced also because TCP puts many buffers in an Eth packet • Anyway, measuring TCP performances is more difficult as the protocol has the freedom of segmenting user buffers as it likes (i.e. flow control)

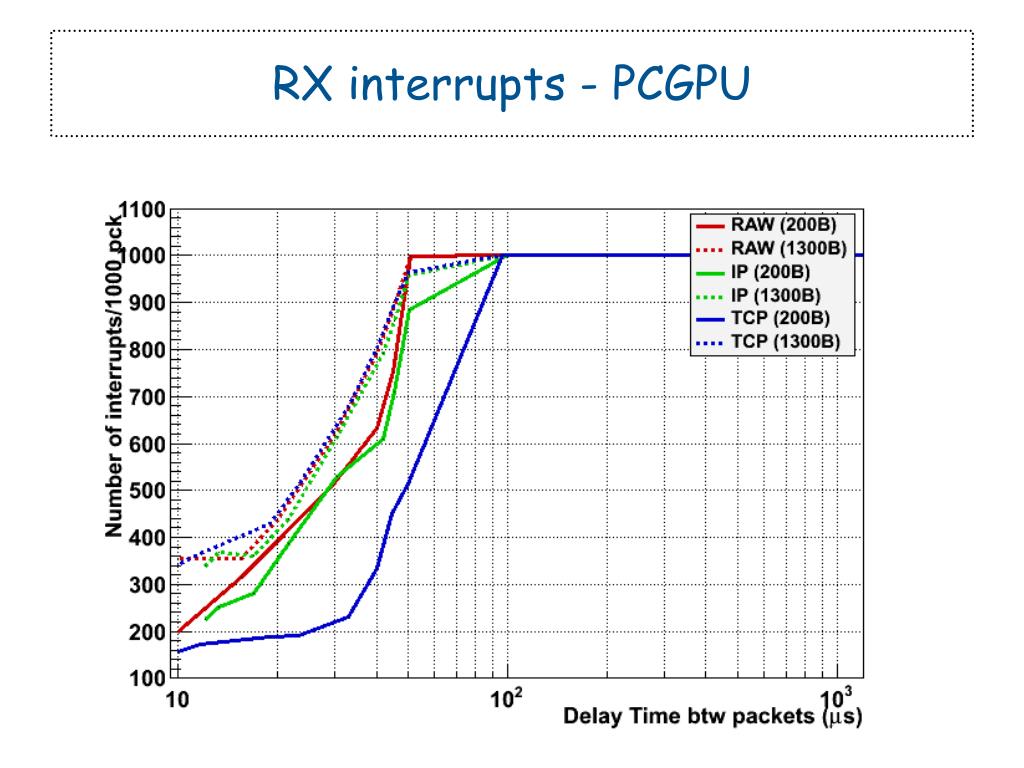

  11. RX interrupts - PCGPU

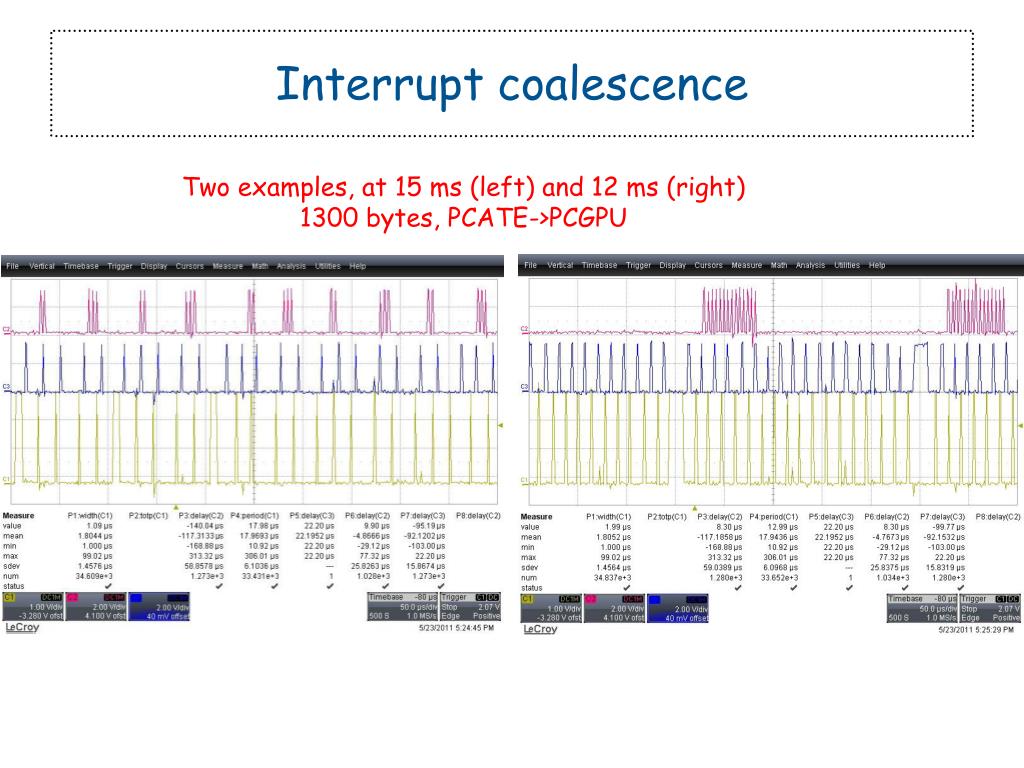

  12. Interrupt coalescence Two examples, at 15 ms (left) and 12 ms (right) 1300 bytes, PCATE->PCGPU

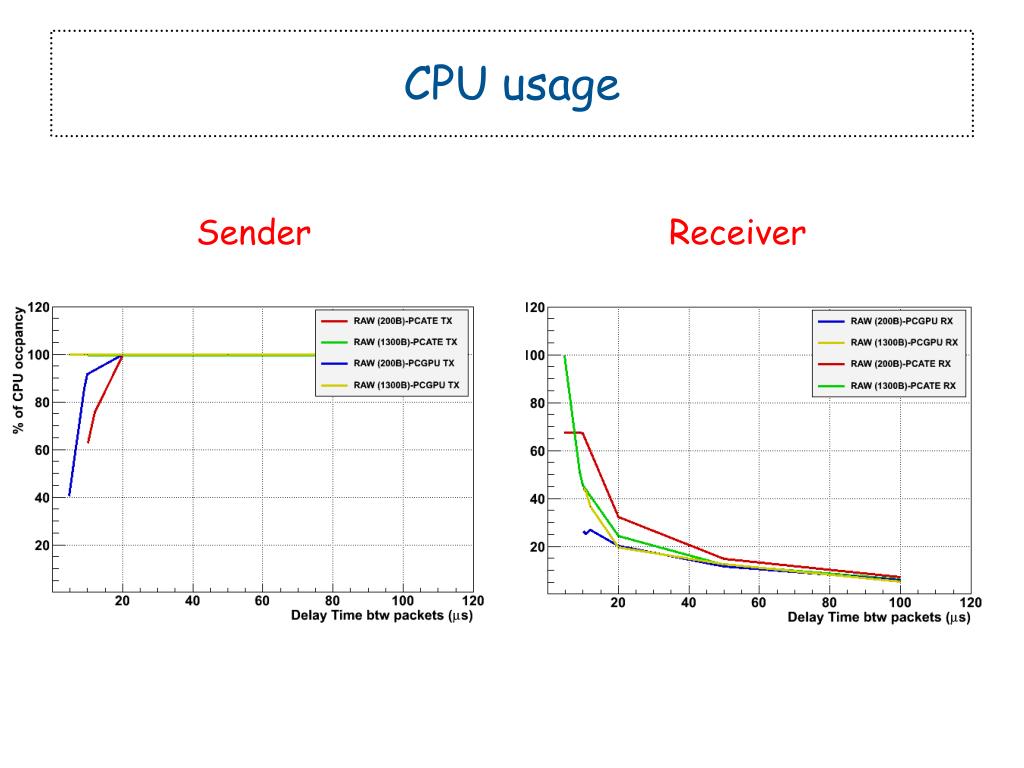

  13. CPU usage Sender Receiver

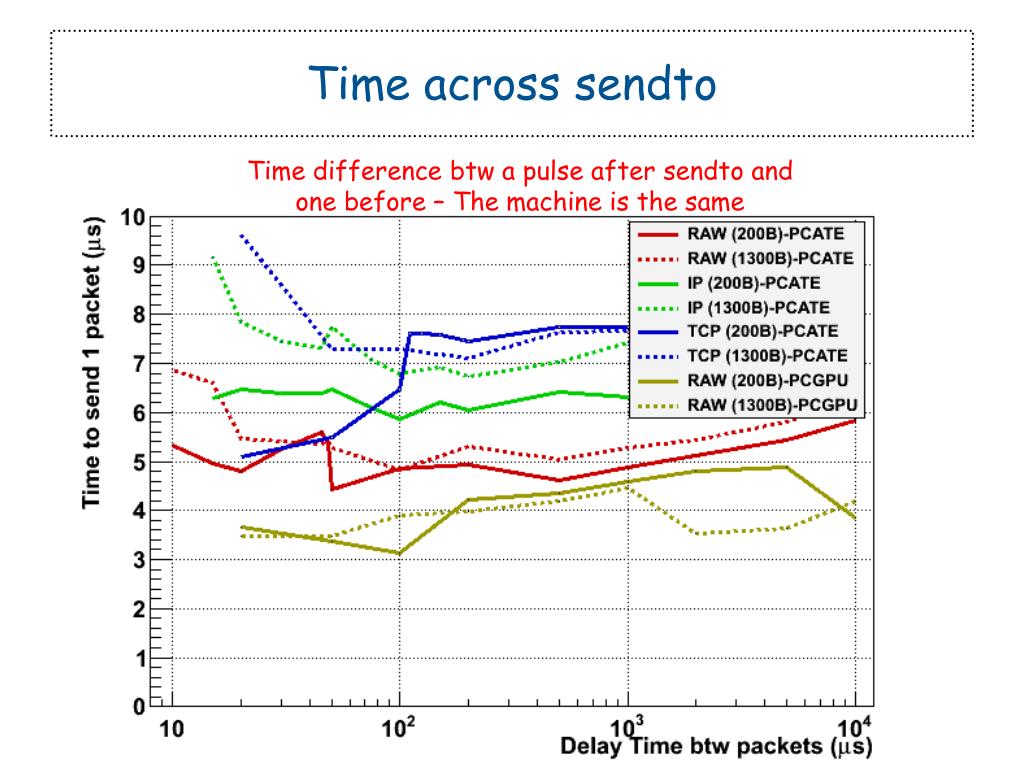

  14. Time across sendto Time difference btw a pulse after sendto and one before – The machine is the same

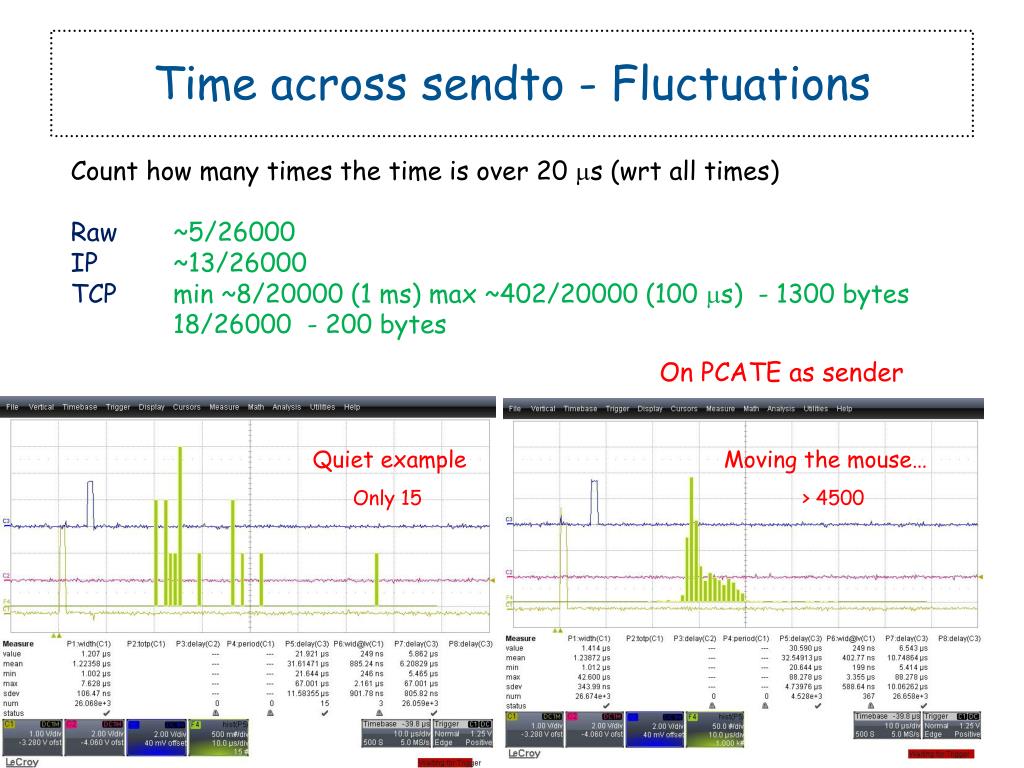

  15. Time across sendto - Fluctuations Count how many times the time is over 20 ms (wrt all times) Raw ~5/26000 IP ~13/26000 TCPmin ~8/20000 (1 ms) max ~402/20000 (100 ms) - 1300 bytes 18/26000 - 200 bytes On PCATE as sender Quiet example Moving the mouse… Only 15 > 4500

  16. Transfer time As a function of time, different buffer sizes Critical zone

  17. Transfer time As a function of packet size, different times, PCATE->PCGPU

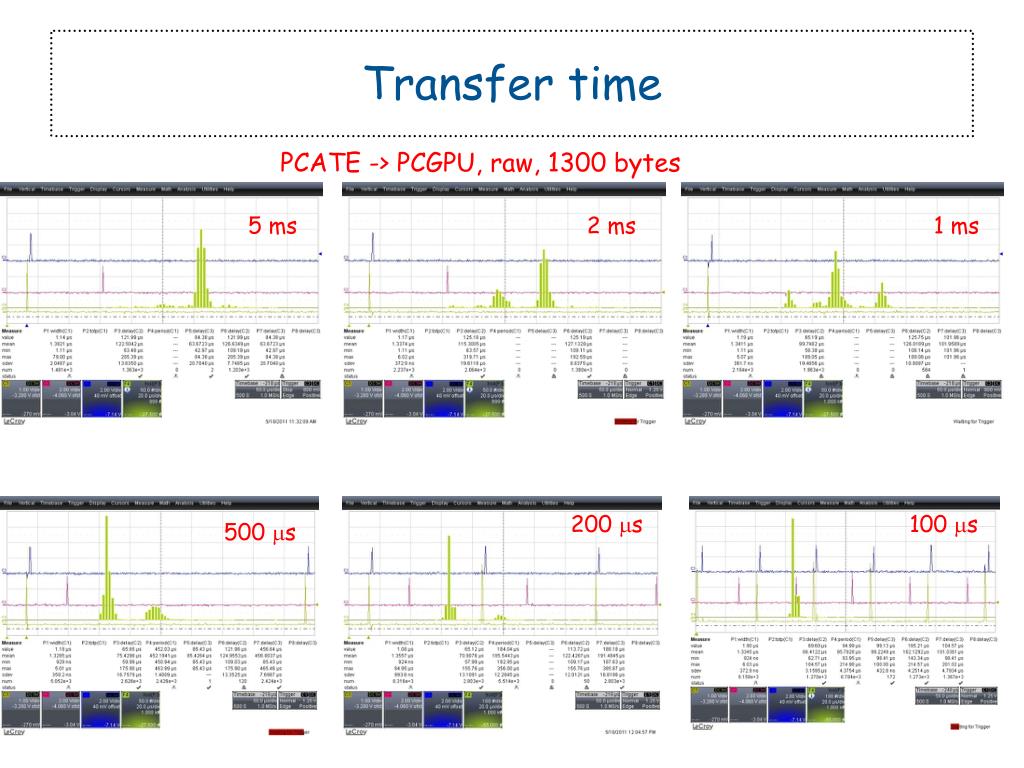

  18. Transfer time PCATE -> PCGPU, raw, 1300 bytes 5 ms 2 ms 1 ms 200 ms 100 ms 500 ms

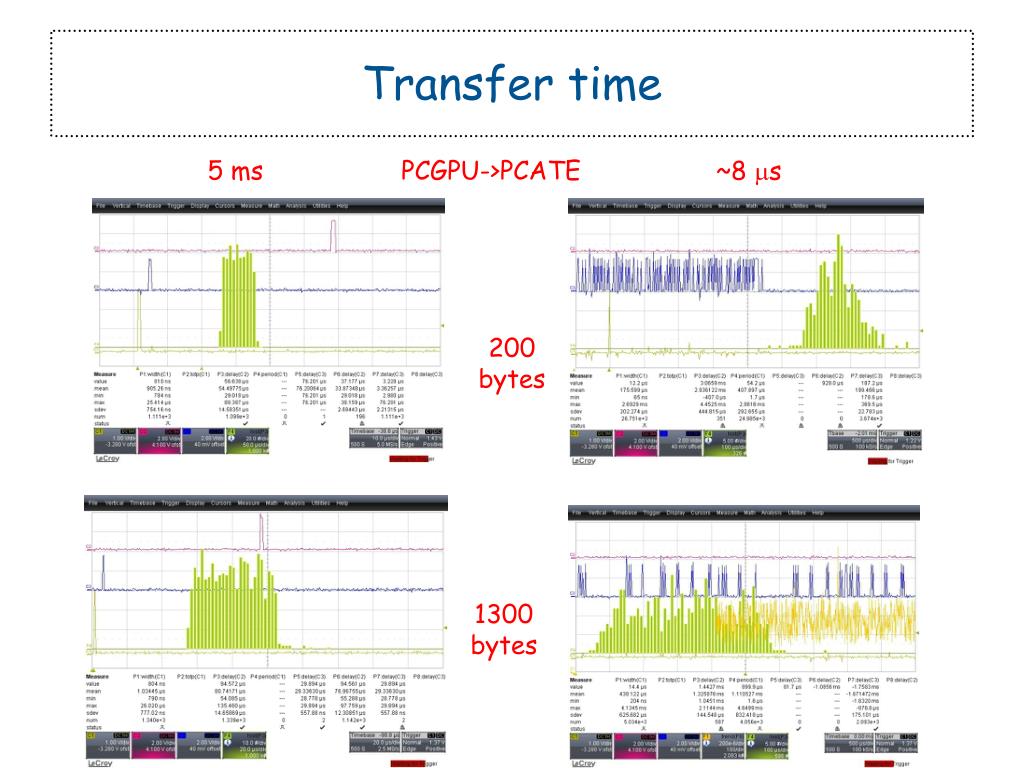

  19. Transfer time 5 ms PCGPU->PCATE ~8 ms 200 bytes 1300 bytes

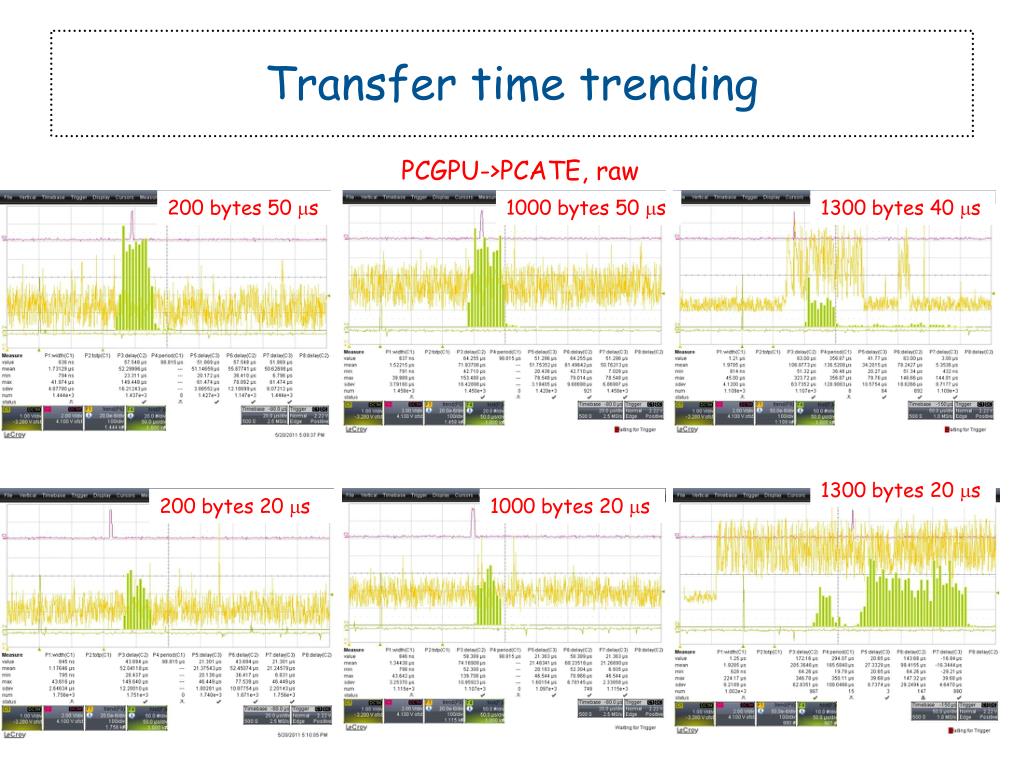

  20. Transfer time trending PCGPU->PCATE, raw 200 bytes 50 ms 1000 bytes 50 ms 1300 bytes 40 ms 1300 bytes 20 ms 200 bytes 20 ms 1000 bytes 20 ms

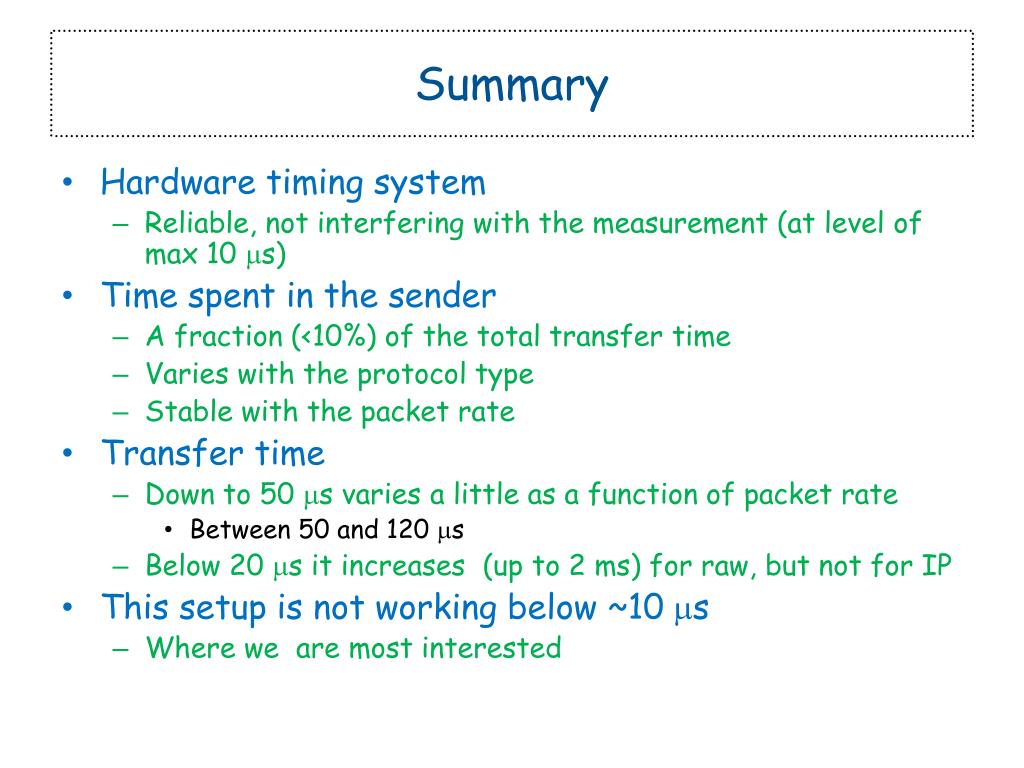

  21. Summary • Hardware timing system • Reliable, not interfering with the measurement (at level of max 10 ms) • Time spent in the sender • A fraction (<10%) of the total transfer time • Varies with the protocol type • Stable with the packet rate • Transfer time • Down to 50 ms varies a little as a function of packet rate • Between 50 and 120 ms • Below 20 ms it increases (up to 2 ms) for raw, but not for IP • This setup is not working below ~10 ms • Where we are most interested

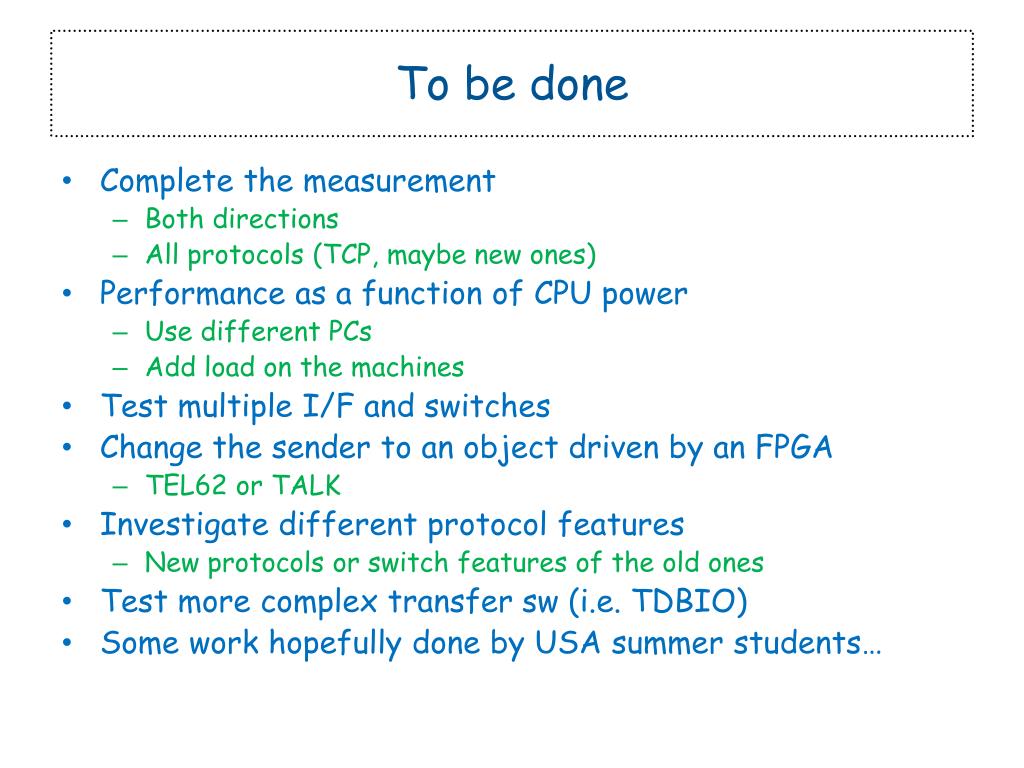

  22. To be done • Complete the measurement • Both directions • All protocols (TCP, maybe new ones) • Performance as a function of CPU power • Use different PCs • Add load on the machines • Test multiple I/F and switches • Change the sender to an object driven by an FPGA • TEL62 or TALK • Investigate different protocol features • New protocols or switch features of the old ones • Test more complex transfer sw (i.e. TDBIO) • Some work hopefully done by USA summer students…
