Construction Mechanisms Natural Product Biosynthesis

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Construction Mechanismsin Natural Product Biosynthesis Ahmad NajibFaculty of Pharmacy Moslem University of Indonesia

  2. Topic Aldol and Claisen Reactions Imine Formation &MannichReaction Amino Acids & Transamination Decarboxylation Reactions Oxidation &Reduction Reactions

  3. Aldol and Claisen Reactions • Reactions both achieve carbon–carbon bond formation; in typical base-catalysed • Chemical reactions, this depends upon the generation of a resonance-stabilized enolate anion from a suitable carbonyl system

  4. Reaction

  5. In most cases, the biological reactions involve coenzyme A esters

  6. Continue

  7. Involving • Claisen reactions involving acetyl-CoA are made even more favourable by first converting acetyl-CoAinto malonyl-CoAby a carboxylation reaction catalysed by the three-component enzyme acetyl-CoAcarboxylase. • The reaction requires CO2, ATP and the coenzyme biotin

  8. Reaction

  9. Result of Reaction • No acylatedmalonic acid derivatives are produced • The carboxyl group introduced into malonyl-CoAis simultaneously lost by a decarboxylationreaction during the Claisen condensation

  10. Analogy the chemical Claisen condensation using the enolateanion from diethyl malonate

  11. Both the reverse aldol and reverse Claisen reactionsmay be encountered in the modification of natural productmolecules.

  12. Imine Formation and the Mannich Reaction • Formation of C–N bonds is frequently achieved by condensation reactions between amines and aldehydesor • Ketones. A typical nucleophilic addition is followed by elimination of water to give an imine or Schiff base

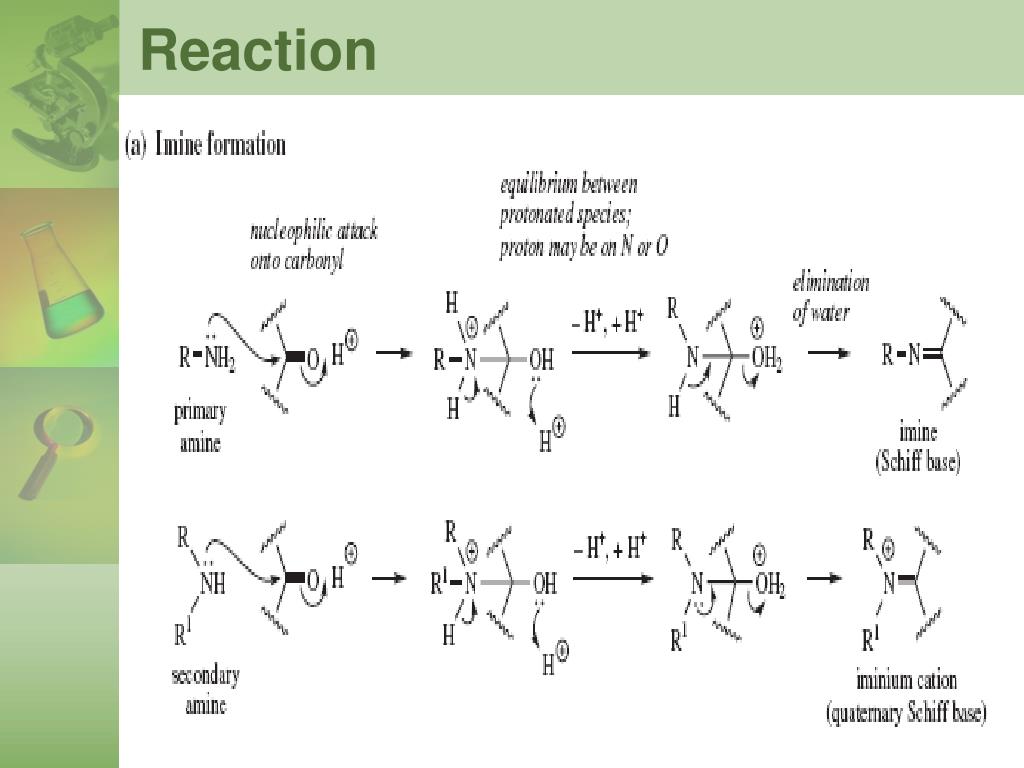

  13. Reaction

  14. Of almost equal importance is the reversal of this process, i.e. the hydrolysis of imines to amines & aldehydes/ketones

  15. The imine so produced, or more likely its protonated form the iminiumcation, can then act as an electrophile in a Mannichreaction • The nucleophile might be provided by an enolate anion, or in many examples by a suitably activated centre in an aromatic ring system • The Mannich reaction throughout alkaloid, combination of an amine (primary/secondary), aldehyde/ketone, &nucleophilic carbon

  16. Little different fromnucleophilic addition to a carbonyl group. Indeed, the imine/iminiumcation is merely acting as the nitrogen analogue of a carbonyl/protonated carbonyl. • To take this analogy further, protons on carbon adjacent to an imine group will be acidic, as are those α to a carbonyl group, and the isomerization of an imine to the enamine shown

  17. Analogous to keto–enol tautomerism. Just as two carbonyl compounds can react via an aldol reaction, so can two imine systems; and this is indicated

  18. Amino Acids &Transamination • The synthesis of amino acids depends upon the amination of the Krebs cycle intermediate 2-oxoglutaric acid to glutamic acid, a process of reductive amination • The reaction involves imine formation and subsequent reduction. The reverse reaction is also important in amino acid catabolism.

  19. Reaction

  20. Cont,… • Glutamic acid can then participate in the formation of other amino acids via transamination, the exchange of the amino group from an amino acid to a keto acid. This provides the most common process for the introduction of nitrogen into amino acids, and for the removal of nitrogen from them.

  21. Cont,… • The reaction is catalysed by a transaminase enzyme using the coenzyme pyridoxal phosphate (PLP) & features an imine intermediate (aldimine) with the aldehyde group of PLP

  22. Continue…………..

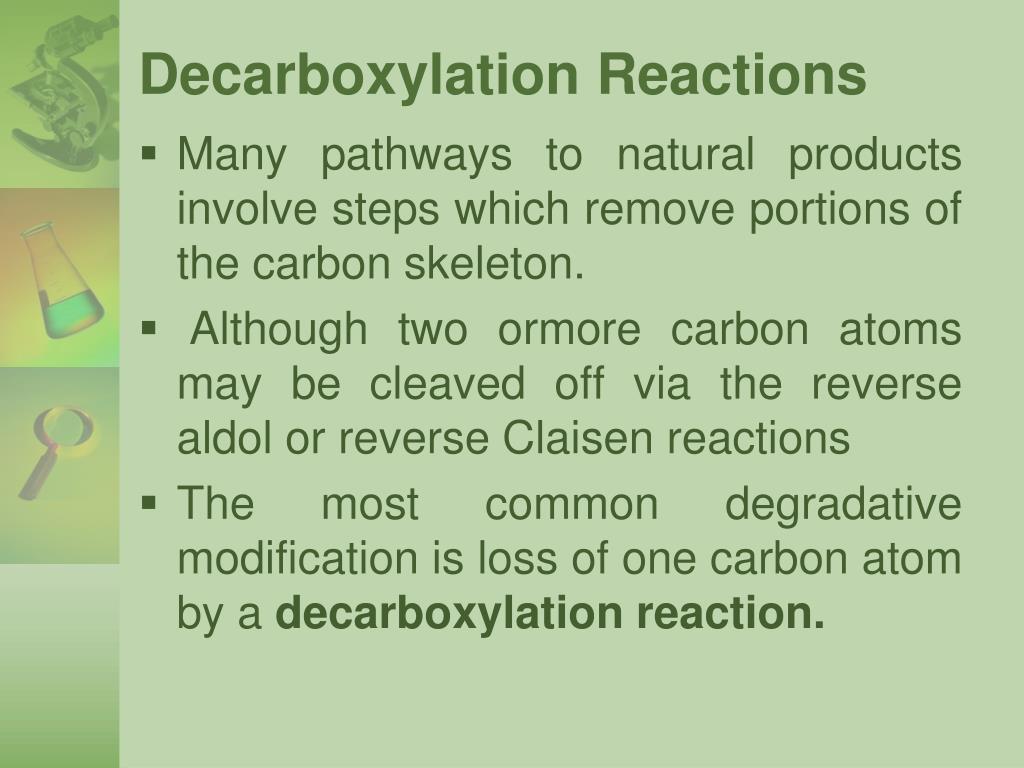

  23. Decarboxylation Reactions • Many pathways to natural products involve steps which remove portions of the carbon skeleton. • Although two ormore carbon atoms may be cleaved off via the reverse aldol or reverse Claisen reactions • The most common degradative modification is loss of one carbon atom by a decarboxylation reaction.

  24. Continue…... • Decarboxylation is a particular feature of the biosynthetic utilization of amino acids • It has already been indicated that several of the basic building blocks (e.g. C6O2N and indole.C2N) • Derived from an amino acid via loss of the carboxyl group

  25. Reaction

  26. Continue……..

  27. Continue……..

  28. Oxidation & Reduction Reactions • Dehydrogenases • Oxidases • Monooxygenases • Diooxygenases • Amine Oxidases • Baeyer–Villiger Monooxygenases • Phenolic Oxidative Coupling • Halogenation Reactions • Glycosylation Reactions

  29. Dehydrogenases • Dehydrogenases remove two hydrogen atoms from the substrate, passing them to a suitable coenzyme acceptor. • The coenzyme system involved can generally be related to the functional group being oxidized in the substrate. • Thus if the oxidation process is then a pyridine nucleotide, nicotinamide adenine dinucleotide (NAD+) or nicotinamide adenine dinucleotide phosphate (NADP+), tends to be utilized as hydrogen acceptor.

  30. One hydrogen from the substrate (that bonded tocarbon) is transferred as hydride to the coenzyme and theother (as a proton) is passed to the medium

  31. Oxidases • Oxidases also remove hydrogen from a substrate, but pass these atoms to molecular oxygen or to hydrogen peroxide, in both cases forming water. Oxidases using hydrogen peroxide are termed peroxidases.

  32. Monooxygeases • With monooxygenases, the second oxygen atom from O2 is reduced to water by an appropriate hydrogen donor, e.g. NADH, NADPH, or ascorbic acid(vitamin C). In this respect they may also be considered to behave as oxidases, and the term ‘mixed-function oxidase’ is also used for these enzymes.

  33. Dioxygenases • introduce both atoms from molecular oxygen into the substrate, and are frequently involved in the cleavage of carbon–carbon bonds, including aromatic rings. • Cyclic peroxides (dioxetanes) have been proposed as intermediates and though evidence points against dioxetanes, they do provide a simple appreciation of the reaction outcome

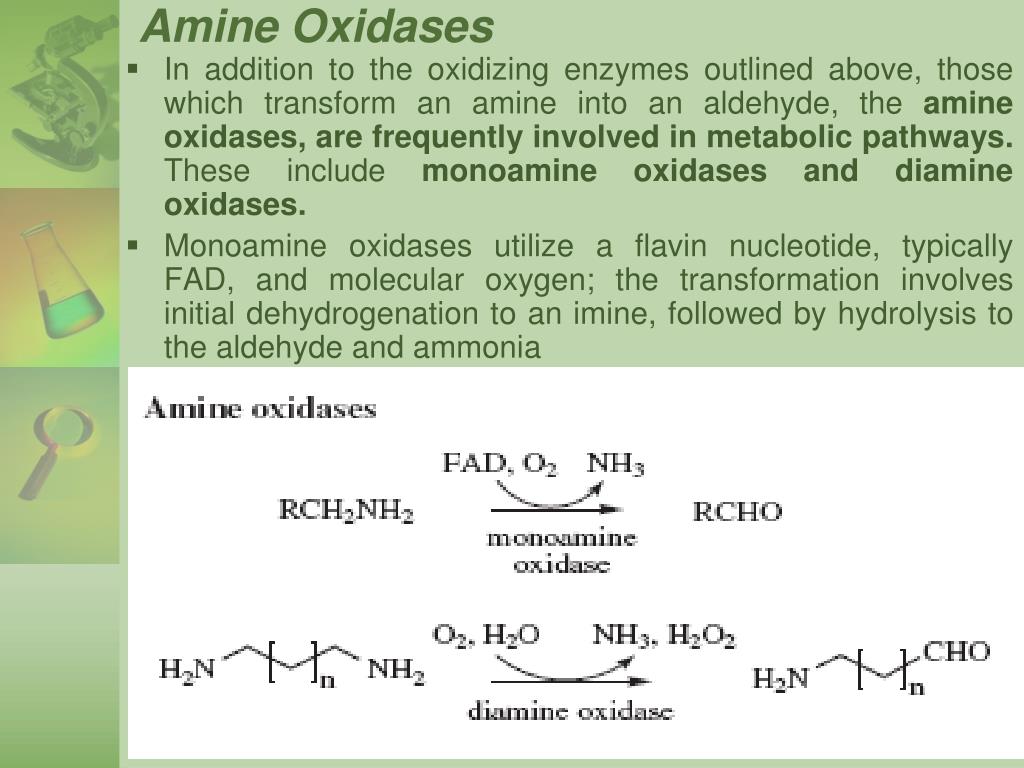

  34. Amine Oxidases • In addition to the oxidizing enzymes outlined above, those which transform an amine into an aldehyde, the amine oxidases, are frequently involved in metabolic pathways. These include monoamine oxidases and diamineoxidases. • Monoamine oxidases utilize a flavin nucleotide, typically FAD, and molecular oxygen; the transformation involves initial dehydrogenation to an imine, followed by hydrolysis to the aldehyde and ammonia

  35. Thank You
