  1. Electronic Data Collection Systems in HCSO Luxembourg, 15 June, 2009 kshxml@ksh.hugergely.fejos@ksh.hu

  2. History • 1998 – 2002: EDI(Excel macro converted workbook data to RDRMES) • 2002 – 2003: webEDI(Qnr’s filled in on the web, inner communication in RDRMES) • Feb 2004: KSHXML1(Qnr’s stored in XML4DR, formatting and checks in XSL; thick/thin clients) • May 2005: Intrastat(Separate system, for huge Intrastat qnr’s) • Sep 2005: KSHXML2(Major changes to KSHXML1, mostly for efficiency) • Jan 2008: KSHEMAIL(Created to skip limitations of KSHXML. Not a correct solution from security point of view. Most qnr’s can be loaded automatically. Excel based, attempt to eliminate paper-based data collection.) • May 2011: ELECTRA(XML based, probably new structure, new technology to display/fill in qnr’s, allow dealing with huge qnr’s (maybe even Intrastat); purpose: handle all surveys, eliminate email. – Setting up requirements.)

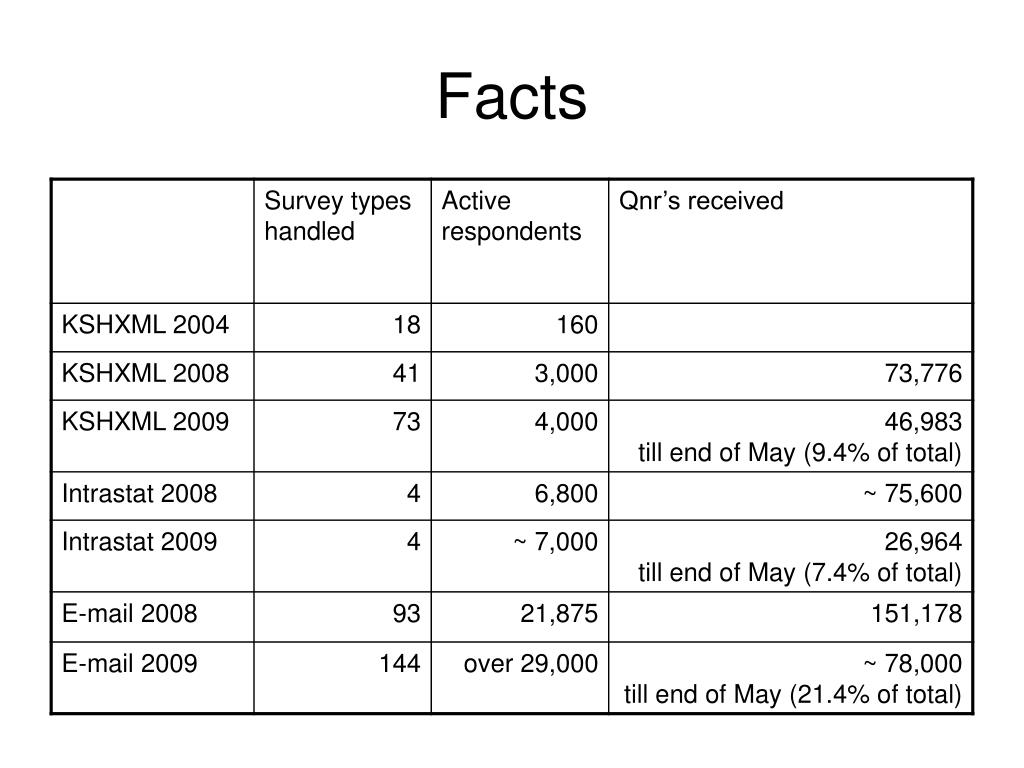

  3. Facts

  4. KSHXMLXML- based Electronic Data Collection System

  5. KSHXML Costs • Software development: ~1.3 million € • Operation costs: • ~ 23,000 € / year(software licenses and support) • ~ 60,000 € / year(HR costs)

  6. Connections of KSHXML to other systems in HCSO

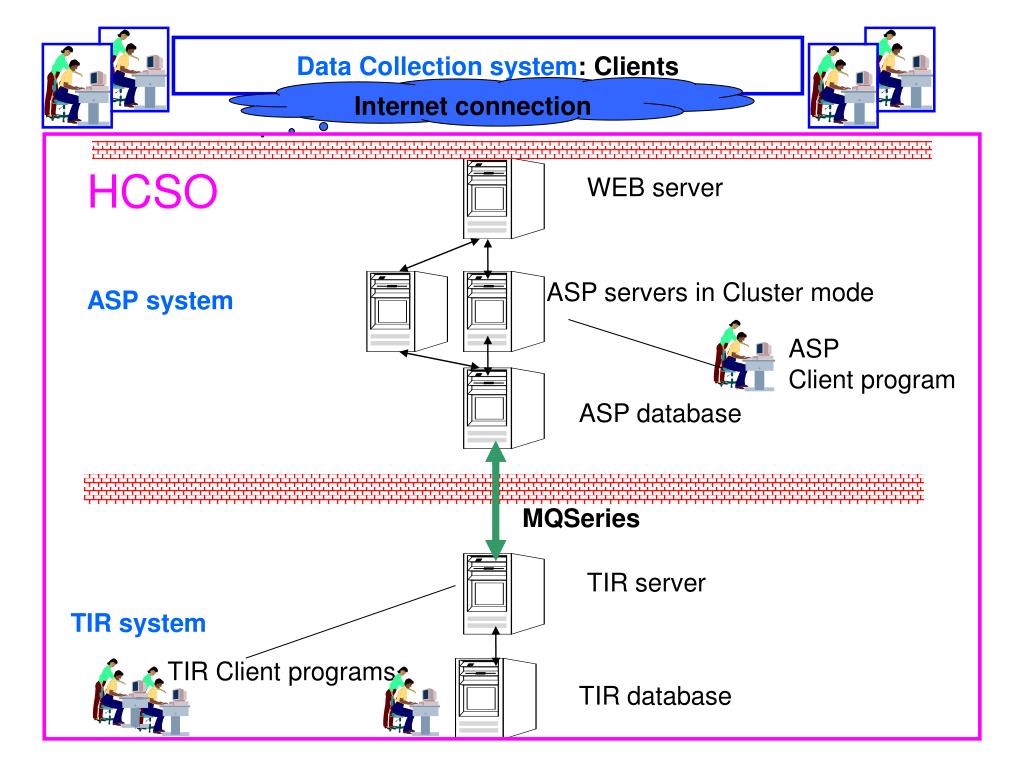

  7. Data Collection system: Clients Internet connection HCSO WEB server ASP servers in Cluster mode ASP system ASP Client program ASP database MQSeries TIR server TIR system TIR Client programs TIR database

  8. KSHXML Model Agency/Enterprise(Client) HCSO centre Agreements Enterprises: on-line registration, Agencies: paper form Agreement administration KSHXML system’s actions TIR ASP Thick or thin client (ASZ/ASZV) Sends and Receives Questionnaires Controls Transfers Questionnaires or Error lists Loads to HCSO Database Administers the users (Clients and HCSO’s) Controlling rules of Questionnaires Code lists Mandatory Data Provisions Personalised data Acknowledgements Error lists Filling in Error checking Sending Questionnaires Corrections Administration Internet Received Questionnaires

  9. KSHXML Workflow – Respondent’s view • Registration: Data Supplier initiates online or by sending a paper form • HCSO sends back the User ID and Password to Client. • In every time period (monthly, quarterly, annually) HCSO sends the personalised or pre-filled questionnaires to the Respondents. • Respondent signs in: using the * thin client via a browser or * thick client program (downloaded and installed) • Respondent fills in the questionnaires on-line: on the screen (in both clients) or from a CSV file (in thick client)off-line (in thick client).

  10. KSHXML Workflow – HCSO’s view • Questionnaires sent to HCSO have been checked by the Thick / Thin Client. • On sending the questionnaire, respondent receives an acknowledgement. • On the HCSO side (TIR) the questionnaries are loaded into the database (ADEL). A second acknowledgement (reception ack.) is sent to the Respondent. • In ADEL, further checks are performed on the questionnaires. If there are errors, the Client gets an Error list and an opportunity to correct them. • The data of the controlled questionnaires are then processed together with the questionnaires received on paper or by e-mail.

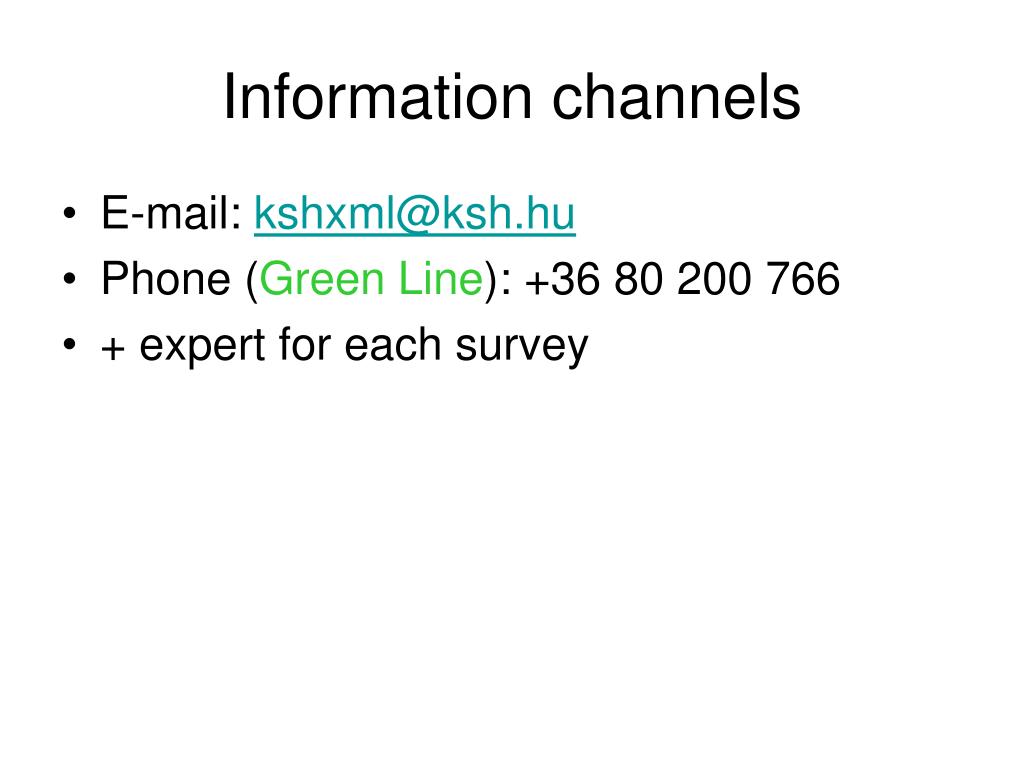

  11. Information channels • E-mail: kshxml@ksh.hu • Phone (Green Line): +36 80 200 766 • + expert for each survey

  12. Thank you for your attention!
