Series Circuits. What make a Series Circuit “Series”? Hint…..what is the most commonly know example of a series circuit?. Series Circuit. A circuit is “Series” because the electrons only have one path to flow. If one light goes out………. ….the entire circuit goes out. Series. Resistance

gus
Télécharger la présentation

Series Circuits

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Series Circuits • What make a Series Circuit “Series”? • Hint…..what is the most commonly know example of a series circuit?

  2. Series Circuit • A circuit is “Series” because the electrons only have one path to flow.

  3. If one light goes out……….. ….the entire circuit goes out

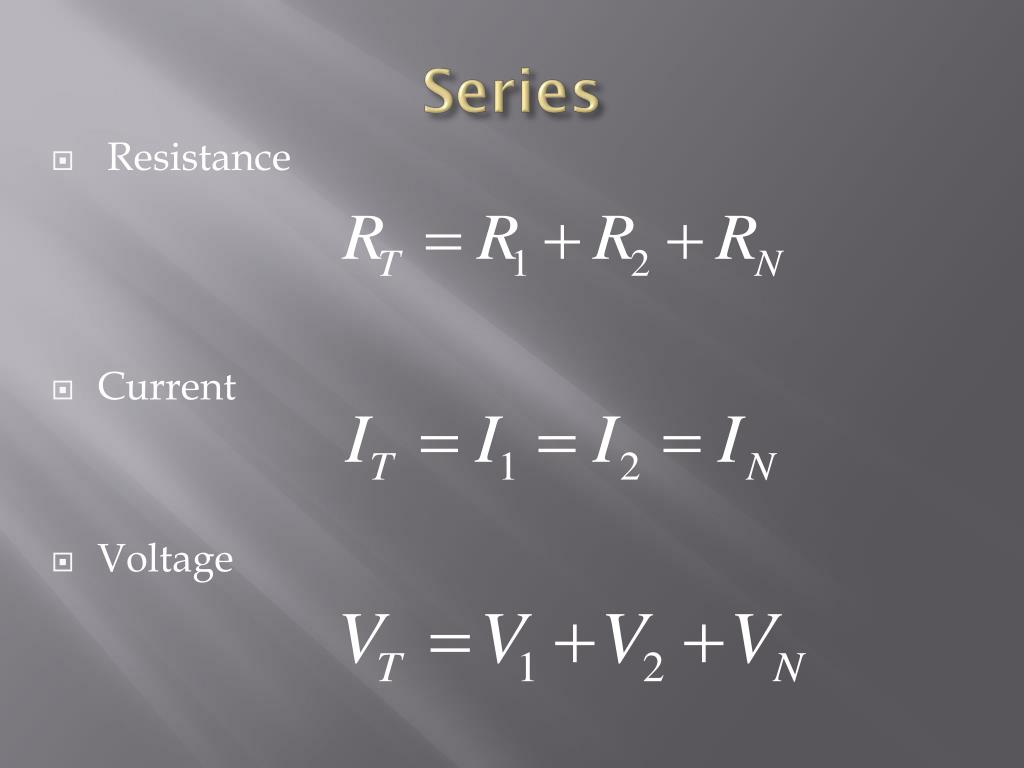

  4. Series • Resistance • Current • Voltage

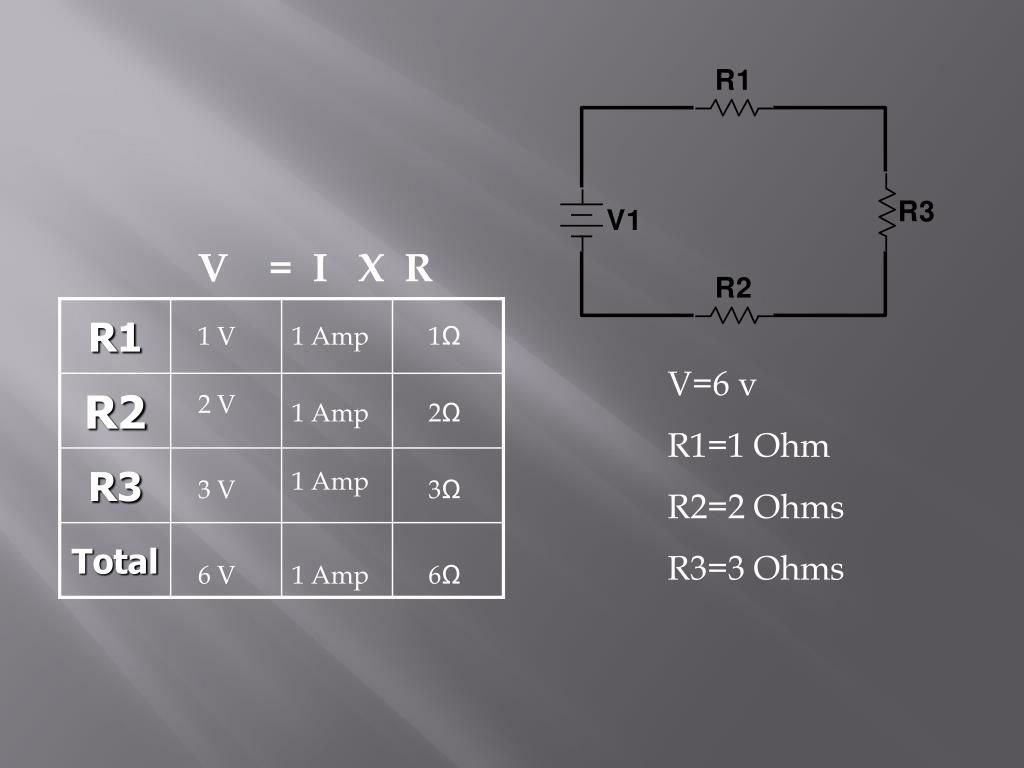

  5. V = I X R 1 V 1 Amp 1Ω V=6 v R1=1 Ohm R2=2 Ohms R3=3 Ohms 2 V 1 Amp 2Ω 1 Amp 3 V 3Ω 6 V 1 Amp 6Ω

  6. V = I X R 5.88V 0.014A 420Ω V=12 v R1=420 Ohm R2=366 Ohms R3=100 Ohms 5.12V 0.014A 366Ω 0.014A 1.4V 100Ω 12 V 0.014 A 886Ω
